tailgate HONDA CR-V 2014 RM1, RM3, RM4 / 4.G Owner's Manual

Continued227

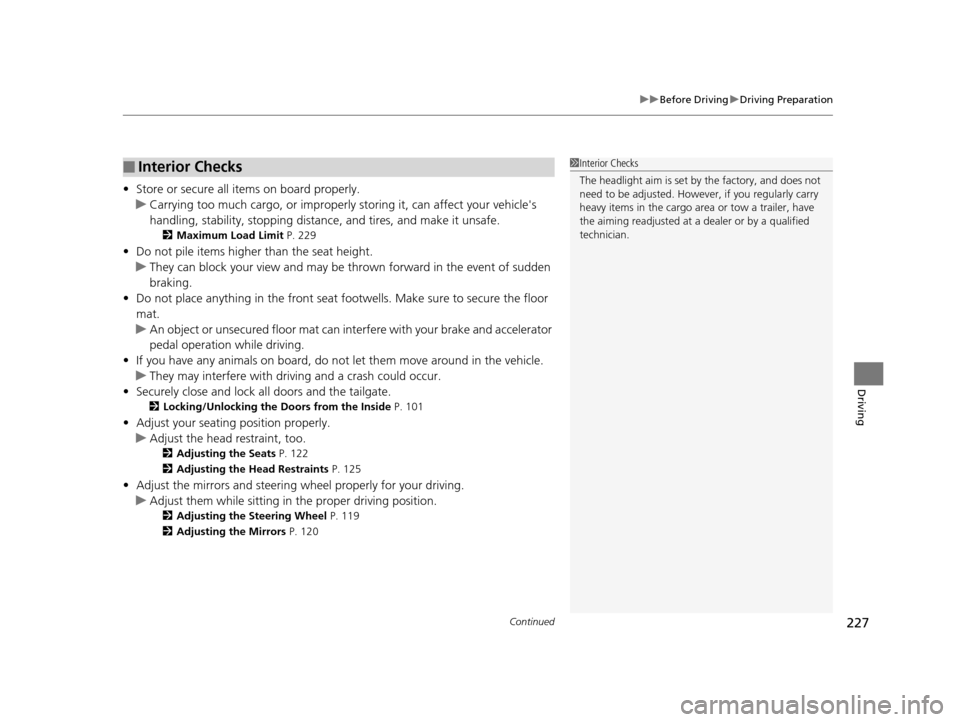

uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle's
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 229
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driving and a crash could occur.
• Securely close and lock al l doors and the tailgate.
2Locking/Unlocking the Doors from the Inside P. 101
•Adjust your seating position properly.
u Adjust the head restraint, too.
2Adjusting the Seats P. 122
2 Adjusting the Head Restraints P. 125
•Adjust the mirrors and steering wh eel properly for your driving.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Steering Wheel P. 119
2 Adjusting the Mirrors P. 120
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
14 CR-V-31T0A6200.book 227 ページ ２０１４年２月１０日　月曜日　午後７時１分

261
Driving
Multi-View Rear Camera
About Your Multi-View Rear Camera
See the Navigation System Manual.
The intelligent multi-information display (i-MID) can display your vehicle’s rear view.
The display automatically changes to the rear view when the shift lever is moved to
(R.
You can view three differen t camera angles on the rearview display. Press the
selector knob to switch the angle.
If the last used viewing mode is Wide or Normal, the same mode is selected the next
time you shift into
(R. If Top view was last used, Wide mode is selected.
■Multi-View Rear Camera Display Area
1 About Your Multi-View Rear Camera
The rear camera view is restricted. You cannot see
the corner ends of the bum per or what is underneath
the bumper. Its unique le ns also makes objects
appear closer or farther than they actually are.
Visually confirm that it is safe to drive before backing
up. Certain conditions, such as weather, lighting, and
high temperatures, may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.
If the camera lens is cove red with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.Models with navigation system
Models without navigation system
Guidelines
BumperCamera Approx. 20 inches (50 cm)
Tailgate Open Range
Approx. 39 inches (1 m)
Approx. 79 inches (2 m)
Approx. 118 inches (3 m)
Wide View Mode
Normal View Mode
Top Down View Mode
14 CR-V-31T0A6200.book 261 ページ ２０１４年２月１０日　月曜日　午後７時１分

319
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 320
If a Tire Goes Flat Changing a Flat Tire ......................... 321
Engine Does Not Start Checking the Engine ........................ 327
Jump Starting .................................... 328
Shift Lever Does Not Move .............. 330
Overheating How to Handle Overheating ............. 331 Indicator, Coming On/Blinking
If the Low Oil Pressu
re Indicator Comes
On................................................ 333
If the Charging System Indicator Comes
On ................................................. 333
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 334
If the Brake System Indicator Comes On (Red) .............................................. 335
If the Electric Power Steering (EPS) System Indicator Comes On ........................... 335 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 336
Fuses Fuse Locations ................................. 337
Inspecting and Changing Fuses ........ 339
Emergency Towing ........................... 340
When You Cannot Open the Tailgate.. 341
14 CR-V-31T0A6200.book 319 ページ ２０１４年２月１０日　月曜日　午後７時１分

341
Handling the Unexpected

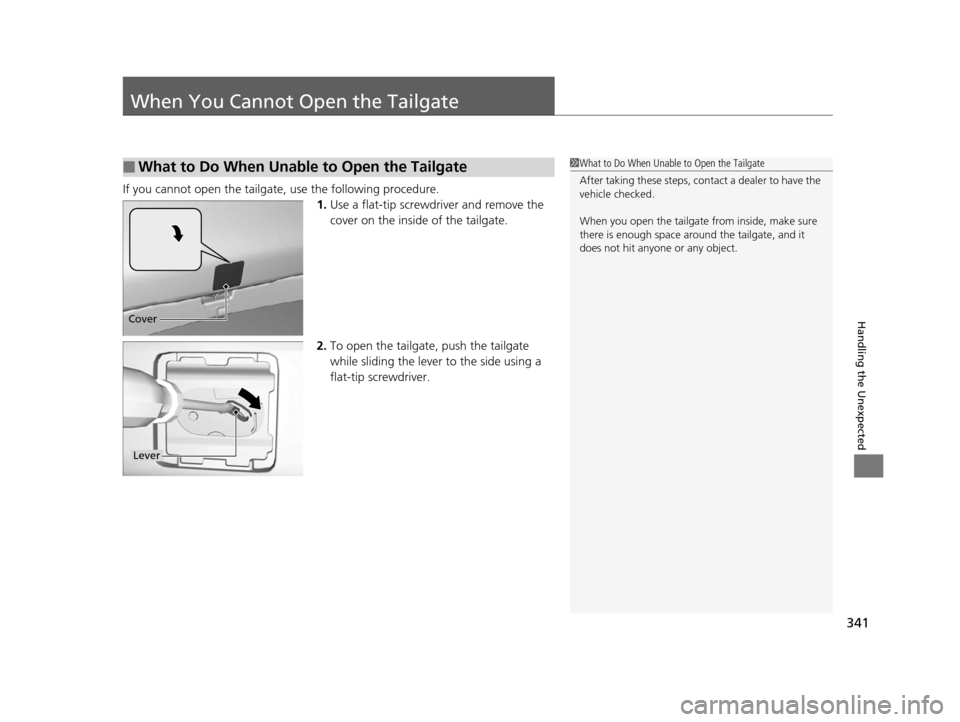

When You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure.1.Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.
2. To open the tailgate, push the tailgate
while sliding the lever to the side using a
flat-tip screwdriver.
■What to Do When Unable to Open the Tailgate1What to Do When Unable to Open the Tailgate
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
14 CR-V-31T0A6200.book 341 ページ ２０１４年２月１０日　月曜日　午後７時１分

359
Index
Tailgate Open ........................................... 72
Transmission ............................................. 70
Turn Signal ............................................... 74
Vehicle Stability Assist (VSA®)
System ............................................ 72, 249
VSA ® OFF.......................................... 72, 250
Washer Level ............................................ 76
Information .............................................. 343
Information Display ................................... 78
Instrument Panel ........................................ 67
Brightness Control .................................. 117
intelligent Multi-Information Display (i-MID) ....................................................... 81
Interior Lights ........................................... 132
Interior Rearview Mirror ......................... 120
iPod ®......................................................... 164
J
Jack (Wheel Nut Wrench) ........................ 324
Jump Starting ........................................... 328
K
Key Number Tag ........................................ 98
Keyless Lockout Prevention ..................... 100
Keys ............................................................. 97
Lockout Prevention ................................. 100
Master Keys .............................................. 97
Number Tag.............................................. 98
Rear Door Won’t Open ........................... 102 Remote Transmitter ................................... 99
Types and Functions .................................. 97
Valet Key ................................................... 98
Won’t Turn ................................................ 19
Kickdown (Automatic Transmission) ....... 242
L
Language (HFL)......................................... 195
LATCH (Child Seats) .............................. 57, 61
Lights ................................................. 112, 289
Automatic ............................................... 113
Bulb Replacement .................................... 289
Daytime Running Lights ........................... 114
Fog Lights ................................................ 114
High Beam Indicator .................................. 74
Interior .................................................... 132
Light Switches ......................................... 112
Lights On Indicator .................................... 74
Turn Signals ............................................. 112
Load Limits ................................................ 229
Locking/Unlocking ...................................... 97
Auto Door Locking/Unlocking .................. 103
Childproof Door Locks ............................. 102
From Inside .............................................. 101
From Outside ............................................. 99
Keys .......................................................... 97
Using a Key ............................................. 100
Lockout Prevention System ...................... 100
Low Battery Charge .................................. 333
Low Fuel Indicator ...................................... 70 Low Oil Pressure Indicator
................. 68, 333
Lower Anchors ...................................... 57, 61
Luggage (Maximum Load Limit) ............. 229
M
Maintenance............................................. 267
Battery .................................................... 309
Brake Fluid .............................................. 287
Cleaning ................................................. 314
Climate Control System ........................... 313
Coolant ................................................... 284
Heating and Cooling System ................... 313
Maintenance Minder
TM............................ 271
Oil ........................................................... 280
Precautions ............................................. 268
Radiator .................................................. 285
Remote Control....................................... 311
Remote Transmitter ................................. 310
Replacing Light Bulbs .............................. 289
Safety...................................................... 269
Service Items ........................................... 274
Tires ........................................................ 300
Transmission Fluid ................................... 286
Under the Hood ...................................... 277
Wireless Headphone................................ 312
Malfunction Indicator Lamp .............. 69, 334
Map Lights ................................................ 132
Maximum Load Limit ............................... 229
Meters, Gauges ........................................... 77
14 CR-V-31T0A6200.book 359 ページ ２０１４年２月１０日　月曜日　午後７時１分

360
Index
Mirrors....................................................... 120
Adjusting ................................................. 120
Door ........................................................ 121
Exterior .................................................... 121
Interior Rearview...................................... 120
Modifications (and Accessories) ............... 266
Moonroof .................................................. 110
MP3 .................................................... 161, 169
Multi-View Rear Camera .......................... 261
N
Numbers (Identification).......................... 346
O
Odometer.................................................... 78
Off-Highway Driving Guidelines .............. 237
Oil (Engine) ............................................... 279
Adding .................................................... 281
Checking ................................................. 280
Displaying Oil Life .................................... 271
Low Oil Pressure Indicator .................. 68, 333
Recommended Engine Oil ........................ 279
Viscosity .................................................. 279
Opening/Closing
Hood ....................................................... 278
Moonroof ................................................ 110
Power Windows ...................................... 108
Tailgate ................................................... 104 Outside Temperature
................................. 80
Adjusting .................................................. 80
Overheating .............................................. 331
P
Pandora®................................................... 167
Panic Mode ............................................... 107
Parking ...................................................... 260
Parking Brake ........................................... 256
Parking Brake and Brake System Indicator ............................................ 68, 335
Passenger Airbag Off Indicator ................. 49
Passing Indicators ..................................... 112
Power Windows ....................................... 108
Precautions While Driving ....................... 241
Driving Guidelines for Your Utility Vehicle .................................................. 241
Rain ........................................................ 241
Pregnant Women ....................................... 35
Puncture (Tire) .......................................... 321
R
Radiator.................................................... 285
Radio (AM/FM) ......................................... 156
Radio (XM ®).............................................. 159
Radio Data System (RDS) ......................... 158
Range .................................................... 79, 82
RDS (Radio Data System) ......................... 158
Readiness Codes (Emissions Testing) ....... 349Real Time AWD with Intelligent Control
System
TM.................................................. 251
Rear Defogger/Heated Door Mirror Button ..................................................... 118
Rear Entertainment System ..................... 174
Rear Seat Back .......................................... 130
Rear Seats (Folding Down) ...................... 129
Rearview Camera ..................................... 261
Rearview Mirror ....................................... 120
Refueling .................................................. 262
Fuel Gauge ............................................... 77
Gasoline ......................................... 262, 344
Low Fuel Indicator ..................................... 70
Regulations .............................. 254, 303, 347
Remote Transmitter ................................... 99
Replacement Battery .................................................... 310
Bulbs ...................................................... 289
Front Wiper Blade Rubber ....................... 296
Fuses .............................................. 337, 338
Rear Wiper Blade Rubber ........................ 298
Tires........................................................ 306
Reporting Safety Defects ......................... 348
Resetting a Trip Meter ............................... 79
S
Safe Driving................................................ 23
Safety Check ............................................... 28
Safety Labels .............................................. 66
Safety Message .......................................... 22
14 CR-V-31T0A6200.book 360 ページ ２０１４年２月１０日　月曜日　午後７時１分

361
Index
Seat Belts.................................................... 29
Adjusting the Shoulder Anchor ................. 33
Automatic Seat Belt Tensioners ................. 31
Checking .................................................. 36
Detachable Anchor ................................... 34
Fastening .................................................. 32
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 60
Pregnant Women...................................... 35
Reminder .................................................. 30
Warning Indicator ............................... 30, 70
Seat Heaters ............................................. 139
Seats .......................................................... 122
Adjusting ................................................ 122
Driver’s Seat Lumbar Support .................. 122
Front Seats.............................................. 122
Rear Seats ............................................... 129
Seat Heaters ........................................... 139
Security System ........................................ 106
Immobilizer System Indicator..................... 75
Security System Alarm Indicator ................ 75
Select Lever ........................................ 15, 243
Operation ......................................... 15, 244
Releasing ................................................ 330
Won’t Move ........................................... 330
Select/Reset Knob ...................................... 78
Selecting a Child Seat ................................ 56
Selector Knob (Audio) ............................. 153
Setting the Clock ........................................ 96
Shift Lever .......................................... 15, 243
Shift Lever Position Indicator ............ 69, 244Shifting (Transmission)
............................. 243
Shoulder Anchor ......................................... 33
Side Airbags ................................................ 44
Cutoff System ........................................... 46
Off Indicator .............................................. 46
Side Curtain Airbags ................................... 47
SMS Text Message ............................ 206, 218
Snow Tires ................................................. 308
Spare Tire .......................................... 321, 345
Spark Plugs ................................................ 344
Specifications ............................................ 344
Specified Fuel .................................... 262, 344
Speedometer .............................................. 77
SRS Airbags (Airbags) ................................. 40
Starting the Engine .................................. 239
Does Not Start ......................................... 327
Engine Switch Buzzer .............................. 111
Jump Starting .......................................... 328
Steering Wheel ......................................... 119
Adjusting ................................................. 119
Stopping .................................................... 260
Summer Tires ............................................ 308
Sunglasses Holder ..................................... 138
Supplemental Restraint System (SRS) ........ 40
Switches (Around the Steering
Wheel) ............................................. 2, 3, 111
Synchronized Mode .................................. 147
T
Tachometer................................................. 77 Tailgate
..................................................... 104
Unable to Open....................................... 341
Temperature Gauge ................................... 77
Temperature Sensor ................................. 148
Text Message .................................... 206, 218
Time (Setting) ............................................. 96
Tire Pressure Monitoring System (TPMS) ..................................................... 252
Button..................................................... 252
Indicator.................................................... 73
Tires ........................................................... 300
Air Pressure ..................................... 301, 345
Checking and Maintaining ...................... 300
Inspection ............................................... 300
Labeling .................................................. 301
Puncture (Flat Tire) .................................. 321
Regulations ............................................. 303
Rotation .................................................. 307
Spare Tire ........................................ 321, 345
Summer .................................................. 308
Tire Chains .............................................. 308
Wear Indicators ....................................... 305
Winter..................................................... 308
Tonneau Cover ......................................... 140
Tools .......................................................... 320
Towing a Trailer ....................................... 231
Equipment and Accessories ..................... 232
Load Limits .............................................. 231
Towing Your Vehicle ................................ 235
Behind a Motorhome .............................. 235
Emergency .............................................. 340
14 CR-V-31T0A6200.book 361 ページ ２０１４年２月１０日　月曜日　午後７時１分
