uuReplacing Light Bulbs uFog Light Bulbs*
290
Maintenance
5. Reinstall the hold-down wire. Hook the end
of the wire on the knob in the slot.
u You can see if the hold-down wire is in
the right place from the inspection
window.
6. Reinstall the rubber weather seal.
7. Insert the coupler into the connector of the
bulb.
Fog Light Bulbs*
When replacing, use the following bulbs.
1.Remove the clip using a flat-tip screwdriver,
and push up the under cover.
Inspection Window Hold-down
Wire
Fog Light: 55W (H11)
1
Fog Light Bulbs*
NOTICE
Halogen bulbs get very hot wh en lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
The fog lights ar e halogen bulbs.
When replacing a bulb, handl e it by its plastic case,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Clip
* Not available on all models
14 CR-V-31T0A6200.book 290 ページ ２０１４年２月１０日　月曜日　午後７時１分

291
uuReplacing Light Bulbs uSide Marker Light Bulb
Maintenance
2. Push the tab to remove the coupler.
3. Rotate the old bulb to the left to remove.
4. Insert new bulb.
Side Marker Light Bulb
When replacing, use the following bulbs.
1.Turn the socket to th e left and remove it,
then remove the old bulb.
2. Insert a new bulb.
Bulb
Coupler Tab
Side Marker Light: 3CP
1
Fog Light Bulbs*
Insert a flat-tip screwdriver, lift and remove the
central pin to remove the clip.
Insert the clip with the central pin raised, and push
until it is flat.
Central pin
Push until the
pin is flat.
BulbSocket
* Not available on all models
14 CR-V-31T0A6200.book 291 ページ ２０１４年２月１０日　月曜日　午後７時１分

292
uuReplacing Light Bulbs uFront Turn Signal/Parking Light Bulbs
Maintenance
Front Turn Signal/Parking Light Bulbs
When replacing, use the following bulbs.
1.Turn the socket to the left and remove it.
2. Push in the old bulb, rotate to the left until
it unlocks, and remove.
3. Insert new bulb.
Brake Light, Taillight, Back -Up Light, Rear Turn
Signal Light and Lower Rear Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Use a Phillip-head scre wdriver to remove
the bolts.
2. Pull the light assembly out of the rear pillar.
Front Turn Signal /Parking: 24/2.2CP
Bulb
Socket
Lower Rear Side Marker/Brake/Taillight: 21/5W
Back-Up Light: 21W
Rear Turn Signal Light: 21W (Amber)
Bolts
14 CR-V-31T0A6200.book 292 ページ ２０１４年２月１０日　月曜日　午後７時１分

293
uuReplacing Light Bulbs uBrake Light, Taillight, Back-Up Light, Rear Turn Signal Light and Lower Rear Side Marker Light Bulbs
Maintenance
3. Turn the socket to th e left and remove it.
Remove the old bulb.
4. Insert a new bulb.
5. Reinstall the light assembly by sliding it on
to the guide on the body.
Bulb Socket
Guide
14 CR-V-31T0A6200.book 293 ページ ２０１４年２月１０日　月曜日　午後７時１分

294
uuReplacing Light Bulbs uUpper Rear Side Marker/Taillight
Maintenance
Upper Rear Side Marker/Taillight
When replacing, use the following bulbs.
1. Remove the lower taillight assembly.
2 Brake Light, Taillight, Back-Up Light, Rear Turn Signal Light and Lower Rear
Side Marker Light Bulbs P. 292
2.Use a Phillip-head scre wdriver to remove
the bolt.
3. Pull the light assembly out of the rear pillar.
4. Turn the socket to the left and remove it.
Remove the old bulb.
5. Insert a new bulb.
Upper Rear Side Marker/Taillight: 3CP
Bolt
Bulb
Socket
14 CR-V-31T0A6200.book 294 ページ ２０１４年２月１０日　月曜日　午後７時１分

295
uuReplacing Light Bulbs uRear License Plate Light Bulb
Maintenance
Rear License Plate Light Bulb
When replacing, use the following bulb.
1.Push the left edge of the lens to the right
and pull out the licence light assembly.
2. Push the tabs to remove the lens.
3. Remove the old bulb.
4. Insert a new bulb.
High-Mount Bra ke Light Bulb
High-mount brake light bulbs are LED type . Have an authorized Honda dealer
inspect and replace the light bulbs.
Rear License Plate Light: 3CP
Bulb Tab
Tab
Lens
14 CR-V-31T0A6200.book 295 ページ ２０１４年２月１０日　月曜日　午後７時１分

296
Maintenance

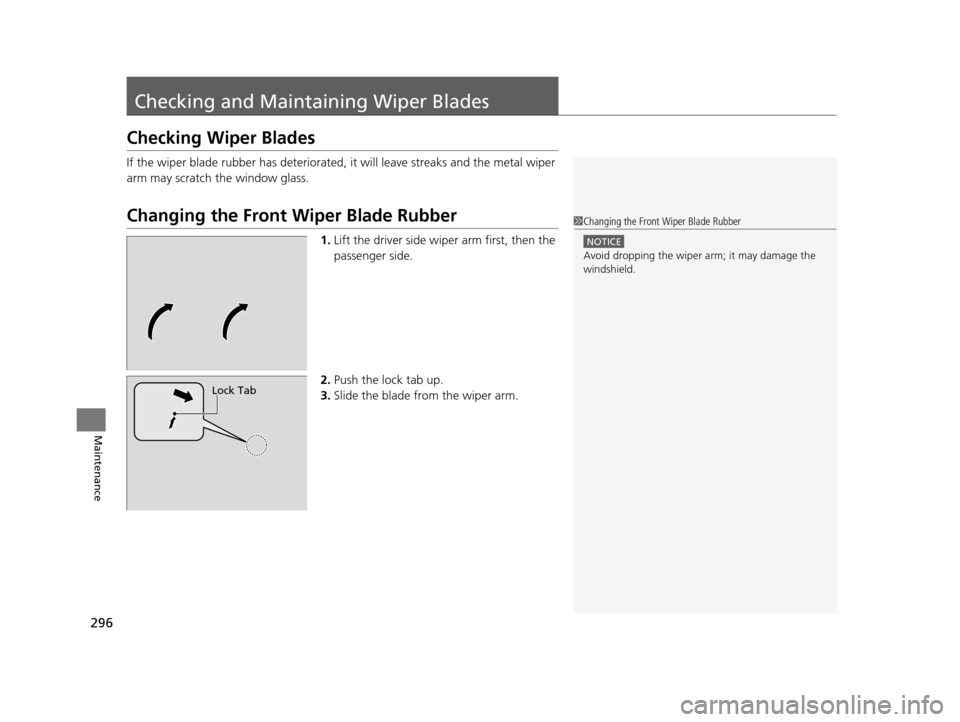

Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the metal wiper
arm may scratch the window glass.
Changing the Front Wiper Blade Rubber
1. Lift the driver side wiper arm first, then the
passenger side.
2. Push the lock tab up.
3. Slide the blade from the wiper arm.
1Changing the Front Wiper Blade Rubber
NOTICE
Avoid dropping the wiper ar m; it may damage the
windshield.
Lock Tab
14 CR-V-31T0A6200.book 296 ページ ２０１４年２月１０日　月曜日　午後７時１分

297

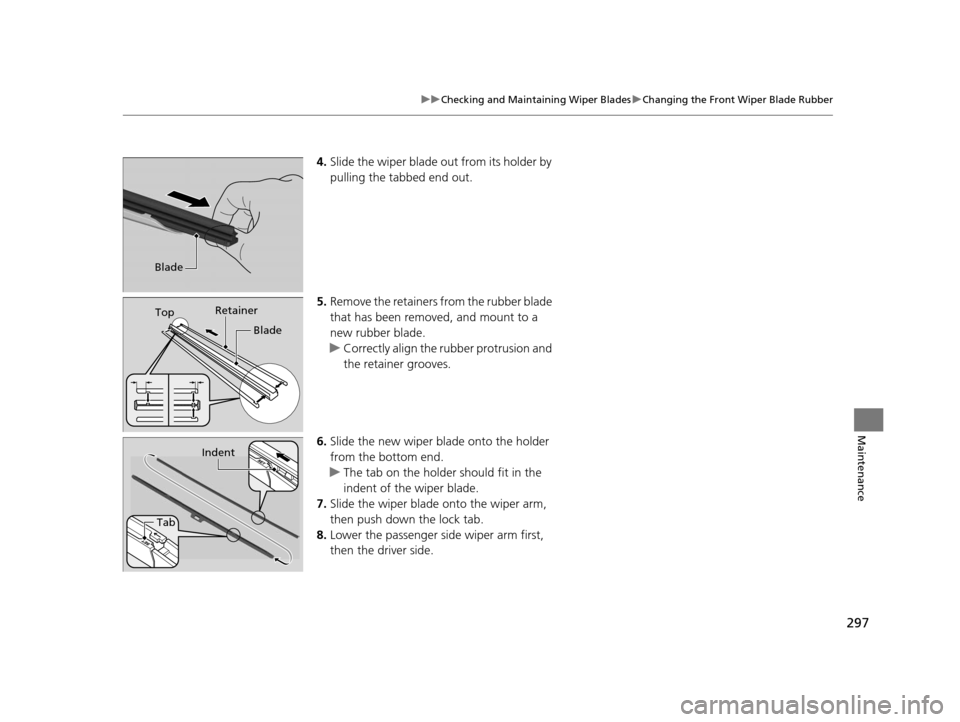

uuChecking and Maintaining Wiper Blades uChanging the Front Wiper Blade Rubber
Maintenance
4. Slide the wiper blade out from its holder by
pulling the tabbed end out.
5. Remove the retainers from the rubber blade
that has been removed, and mount to a
new rubber blade.
u Correctly align the rubber protrusion and
the retainer grooves.
6. Slide the new wiper bl ade onto the holder
from the bottom end.
u The tab on the holder should fit in the
indent of the wiper blade.
7. Slide the wiper blade onto the wiper arm,
then push down the lock tab.
8. Lower the passenger side wiper arm first,
then the driver side.
Blade
Top Retainer
Blade
Tab Indent
14 CR-V-31T0A6200.book 297 ページ ２０１４年２月１０日　月曜日　午後７時１分

298

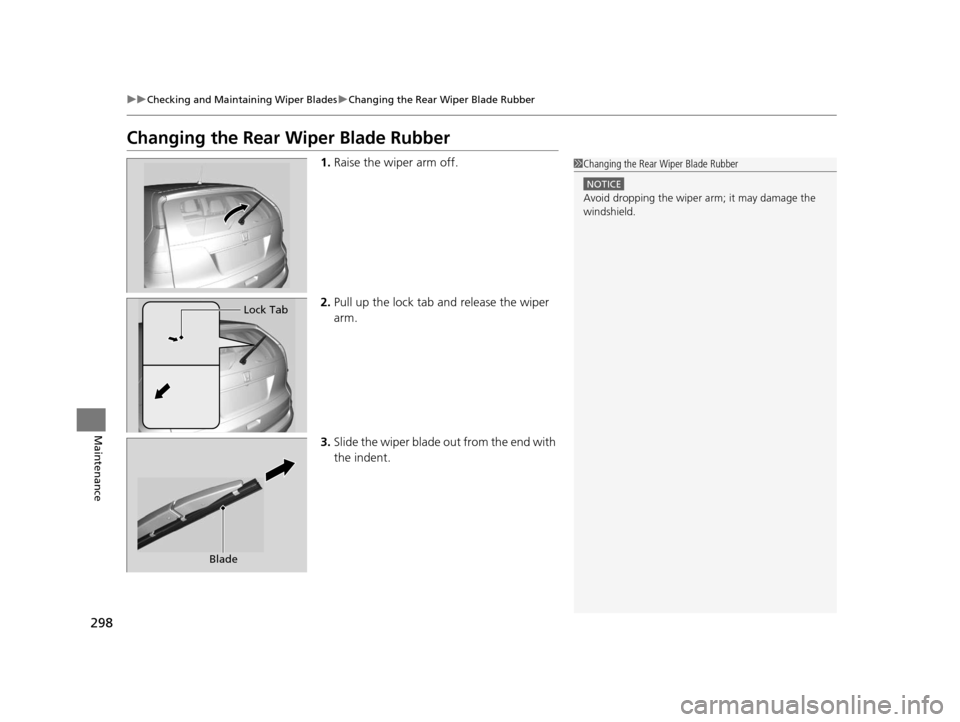

uuChecking and Maintaining Wiper Blades uChanging the Rear Wiper Blade Rubber
Maintenance
Changing the Rear Wiper Blade Rubber
1. Raise the wiper arm off.
2. Pull up the lock tab and release the wiper
arm.
3. Slide the wiper blade out from the end with
the indent.1 Changing the Rear Wiper Blade Rubber
NOTICE
Avoid dropping the wiper ar m; it may damage the
windshield.
Lock Tab
Blade
14 CR-V-31T0A6200.book 298 ページ ２０１４年２月１０日　月曜日　午後７時１分

299

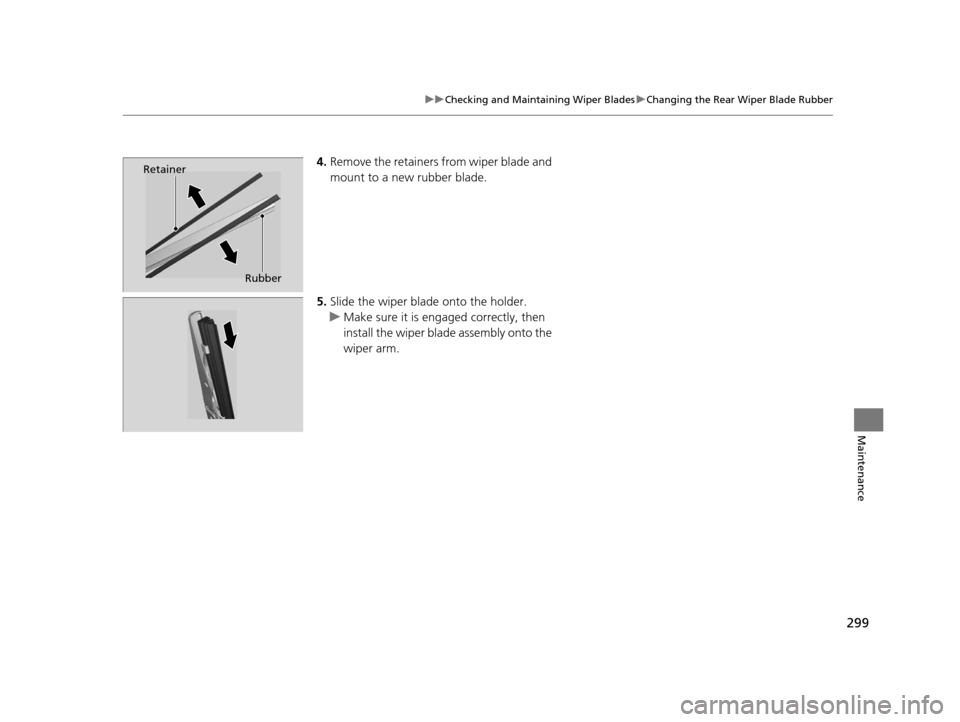

uuChecking and Maintaining Wiper Blades uChanging the Rear Wiper Blade Rubber
Maintenance
4. Remove the retainers from wiper blade and
mount to a new rubber blade.
5. Slide the wiper blade onto the holder.
u Make sure it is engaged correctly, then
install the wiper blade assembly onto the
wiper arm.Retainer
Rubber
