headlight bulb HONDA CR-V 2014 RM1, RM3, RM4 / 4.G Owners Manual

74
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Turn Signal
Indicators
●Blinks when you operate the turn signal
lever.
●Blinks along with all turn signals if you press
the hazard warning button.
●Does not blink or blinks rapidly - A turn signal
light bulb has blown. Change the bulb immediately.
2 Replacing Light Bulbs P. 292
High Beam
Indicator●Comes on when the high beam headlights
are on.—
Lights On
Indicator●Comes on whenever the light switch is on, or
in AUTO* when the exterior lights are on.
●If you remove the key from the ignition switch while
the lights are on, a chime s ounds when the driver's
door is opened.
Fog Light
Indicator*
●Comes on when the fog lights are on.—
Side Airbag Off
Indicator
●Comes on for a few seconds when you turn
the ignition switch to ON
(w, then goes off.●Comes on when the passenger side airbag
system is automatically shut off.
●It does not mean there is a problem with your side
airbags.
●Comes on when nobody is sitting in the
passenger seat - Have your vehicle checked by a
dealer.
●Comes on when someone is sitting in the seat -
Have the passenger sit properly.
U.S.
Canada
* Not available on all models
14 CR-V-31T0A6200.book 74 ページ ２０１４年２月１０日　月曜日　午後７時１分

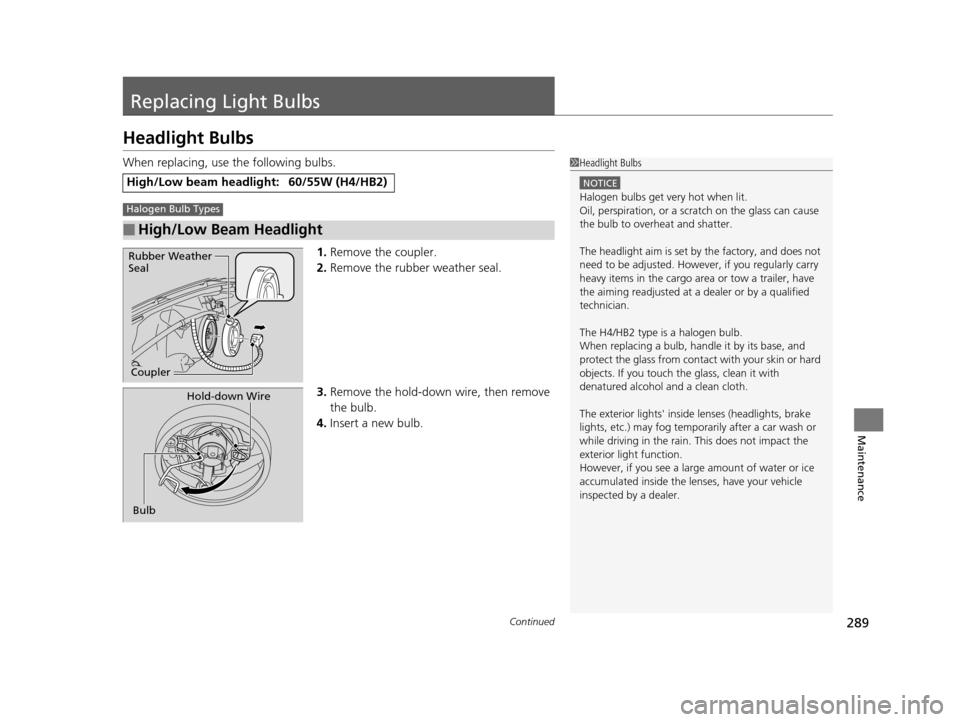

289Continued
Maintenance
Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.1.Remove the coupler.
2. Remove the rubber weather seal.
3. Remove the hold-down wire, then remove
the bulb.
4. Insert a new bulb.
High/Low beam headlight:60/55W (H4/HB2)
■High/Low Beam Headlight
1Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overhe at and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
The H4/HB2 type is a halogen bulb.
When replacing a bulb, ha ndle it by its base, and
protect the glass from contact with your skin or hard
objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
The exterior lights' inside lenses (headlights, brake
lights, etc.) may fog temporarily after a car wash or
while driving in the rain. This does not impact the
exterior light function.
However, if you see a larg e amount of water or ice
accumulated inside the le nses, have your vehicle
inspected by a dealer.Halogen Bulb Types
Coupler
Rubber Weather
Seal
Bulb
Hold-down Wire
14 CR-V-31T0A6200.book 289 ページ ２０１４年２月１０日　月曜日　午後７時１分

344
Information
Specifications
■Vehicle Specifications
*1: 16 inch wheel with 2WD models
*2: 17 inch wheel with 2WD models and 16 inch wheel with 4WD
models
*3: 17 inch wheel with 4WD models
ModelHonda CR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 4,332 lbs (1,965 kg)*1
4,464 lbs (2,025 kg)*2
4,564 lbs (2,070 kg)*3
Canada: 1,965 kg*1
2,025 kg*2
2,070 kg*3
Gross Axle Weight
Rating (Front)U.S.: 2,227 lbs (1,010 kg)*1
2,271 lbs (1,030 kg)*2
2,326 lbs (1,055 kg)*3
Canada: 1,010 kg*1
1,030 kg*2
1,055 kg*3
Gross Axle Weight
Rating (Rear)U.S.: 2,150 lbs (975 kg)*1
2,238 lbs (1,015 kg)*2
2,282 lbs (1,035 kg)*3
Canada: 975 kg*1
1,015 kg*2
1,035 kg*3
Air Conditioning:Refrigerant Type HFC-134a (R-134a)Charge Quantity13.6 – 15.4 oz (385 – 435 g)Lubricant TypeSP-10
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,354 cm3)
Spark Plugs NGK ILZKR7B-11S
DENSO SXU22HCR11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 15.3 US gal (58 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
*1: Not available on all models
Headlights (High/Low Beams)60/55W (H4/HB2)
Fog Lights 55W (H11)
Front Turn Signal/Parking Lights24/2.2CP
Side Marker Lights 3CP
Upper Rear Side Marker/Taillights3CP
Lower Rear Side Marker/Brake/
Taillights 21/5W
Back-Up Lights21W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake LightLED
Rear License Plate Light 3CP
Cargo Area Light8W
Vanity Mirror Lights*12WInterior LightsMap Lights8WCeiling Light8W
14 CR-V-31T0A6200.book 344 ページ ２０１４年２月１０日　月曜日　午後７時１分

356
Index
B
Battery....................................................... 309
Charging System Indicator ................. 69, 333
Jump Starting .......................................... 328
Maintenance (Checking the Battery) ........ 309
Maintenance (Replacing).......................... 310
Behind a Motorhome ............................... 235
Belts (Seat) .................................................. 29
Beverage Holders ...................................... 134
Bluetooth ® Audio ..................................... 172
Bluetooth ® HandsFreeLink ®..................... 194
Booster Seats (For Children) ....................... 64
Brake System ............................................. 256
Anti-lock Brake System (ABS) ................... 258
Brake Assist System ................................. 259
Fluid ........................................................ 287
Foot Brake ............................................... 257
Indicator ............................................ 68, 335
Parking Brake .......................................... 256
Brightness Control (Instrument Panel) .... 117
Bulb Replacement ..................................... 289
Brake Light, Taillight , Back-Up Light, Rear
Turn Signal Light a nd Lower Rear Side
Marker Light ........................................ 292
Fog Lights ................................................ 290
Front Turn Signal/Parking Light ................ 292
Headlights ............................................... 289
High-Mount Brake Light .......................... 295
Rear License Plate Light............................ 295
Side Marker Lights ................................... 291
Upper Rear Side Marker/Taillight .............. 294 Bulb Specifications
................................... 344
C
Carbon Monoxide Gas ............................... 65
Cargo Hook ............................................... 137
Cargo Side Net .......................................... 136
Carrying Cargo ................................. 227, 229
CD Player ................................................... 161
Certification Label .................................... 346
Changing Bulbs ........................................ 289
Charging System Indicator ................. 69, 333
Child Safety ................................................. 52
Childproof Door Locks............................. 102
Child Seat .................................................... 52
Booster Seats ............................................ 64
Child Seat for Infants................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 60
Larger Children ......................................... 63
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Childproof Door Locks ............................. 102
Cleaning the Exterior ............................... 316
Cleaning the Interior ................................ 314
Climate Control System ............................ 145
Changing the Mode ................................ 145
Defrosting the Windshield and Windows ............................................... 146
Dust and Pollen Filter............................... 313 Recirculation/Fresh Air Mode................... 145
Sensors ................................................... 148
Synchronized Mode ................................ 147
Using Automatic Climate Control............ 145
Clock ........................................................... 96
Coat Hook ................................................ 136
Compact Spare Tire .......................... 321, 345
Compass .................................................... 223
Console Compartment ............................. 133
Controls ...................................................... 95
Coolant (Engine) ...................................... 284
Adding to the Radiator ........................... 285
Adding to the Reserve Tank .................... 284
Overheating ............................................ 331
Creeping (Automatic Transmission) ........ 242
Cruise Control .......................................... 246
Indicator ................................................... 76
Cup Holders .............................................. 134
Customer Service Information ................ 354
Customized Features ................................. 84
D
Daytime Running Lights .......................... 114
Dead Battery ............................................ 328
Defrosting the Windshield and Windows ......................................... 144, 146
Detachable Anchor .................................... 34
Devices that Emit Radio Waves ............... 347
Dimming
Headlights .............................................. 112
14 CR-V-31T0A6200.book 356 ページ ２０１４年２月１０日　月曜日　午後７時１分

358
Index
Fuses.......................................................... 337
Inspecting and Changing ......................... 339
Locations ......................................... 337, 338
G
Gasoline (Fuel)
Economy ................................................. 265
Gauge ....................................................... 77
Information ............................................. 262
Low Fuel Indicator ..................................... 70
Refueling ................................................. 262
Gauges ......................................................... 77
Gear Shift Lever Positions Automatic Transmission ........................... 243
Glass (care) ................................................ 317
Glove Box .................................................. 133
H
Halogen Bulbs ................................... 289, 290
Handling the Unexpected ........................ 319
HandsFreeLink® (HFL)............................... 194
Automatic Import of Cellular Phonebook
and Call History ..................................... 210
Automatic Transferring ............................ 208
Caller’s ID Information ............................. 208
HFL Buttons ............................................. 194
HFL Menus .............................................. 196
HFL Status Display.................................... 195
Making a Call .......................................... 213 Options During a Call .............................. 217
Phone Setup............................................ 201
Receiving a Call ....................................... 216
Speed Dial ............................................... 211
Text Message .................................. 206, 218
To Clear the System ................................ 209
To Create a Security PIN .......................... 207
Hazard Warning Button .............................. 2
Head Restraints ........................................ 125
Headlights ................................................. 112
Aiming .................................................... 289
Automatic Operation............................... 113
Dimming ......................................... 112, 114
Operating................................................ 112
Heaters (Seat) ........................................... 139
Heating and Cooling System ................... 142
Cooling ................................................... 144
Defrosting the Windshield and Windows ............................................... 144
Dust and Pollen Filter............................... 313
Heating ................................................... 143
HFL (HandsFreeLink ®)............................... 194
High Beam Indicator .................................. 74
Hill Start Assist System ............................. 240
I
Identification Numbers ............................ 346
Engine and Transmission ......................... 346
Vehicle Identification ............................... 346
Ignition Switch ......................................... 111 Illumination Control
................................ 117
Knob ...................................................... 117
i-MID (intelligent Multi-Information Display) ..................................................... 81
Immobilizer System .................................. 106
Indicator ................................................... 75
Indicators .................................................... 68
All-Wheel Drive (AWD) System .................. 71
Anti-lock Brake System (ABS) .................... 71
Charging System............................... 69, 333
CRUISE CONTROL ............................. 76, 247
CRUISE MAIN.................................... 76, 246
Door Open.......................................... 28, 72
ECON Mode ..................................... 75, 245
Electric Power Steering (EPS) System ............................................ 73, 335
Fog Light .................................................. 74
High Beam ................................................ 74
Immobilizer System ................................... 75
Lights On .................................................. 74
Low Fuel ................................................... 70
Low Oil Pressure ............................... 68, 333
Low Tire Pressure/TPMS .................... 73, 254
Maintenance Minder......................... 76, 271
Malfunction Indicator Lamp .............. 69, 334
Parking Brake and Brak e System ....... 68, 335
Seat Belt Reminder .............................. 30, 70
Security System Alarm............................... 75
Shift Lever Position.................................... 69
Side Airbag Off ................................... 50, 74
Supplemental Restraint System ........... 48, 71
14 CR-V-31T0A6200.book 358 ページ ２０１４年２月１０日　月曜日　午後７時１分
