Page 2 of 365

Contents
Child Safety P. 52Exhaust Gas Hazard P. 65Safety Labels P. 66
Opening and Closing the Tailgate P. 104 Security System P. 106 Opening and Closing the Windows P. 108
Operating the Switches Around the Steering Wheel P. 111 Adjusting the Mirrors P. 120
Interior Lights/Interior Convenience Items P. 132 Heating and Cooling System
* P. 142
Rear Entertainment System* P. 174 Audio Error Messages P. 186
Bluetooth ® HandsFreeLink ® P. 194 Compass P. 223
Off-Highway Driving Guidelines P. 237 When Driving P. 239 Braking P. 256
Refueling P. 262 Fuel Economy P. 265Accessories and Modifications P. 266
Maintenance Under the Hood P. 277 Replacing Light Bulbs P. 289
Checking and Maintaining Tires P. 300 Battery P. 309 Remote Transmitter Care P. 310
Heating and Cooling System
*/Climate Control System* Maintenance P. 313 Cleaning P. 314
Engine Does Not Start P. 327 Jump Starting P. 328 Shift Lever Does Not Move P. 330
Fuses P. 337 Emergency Towing P. 340
When You Cannot Open the Tailgate P. 341
Devices that Emit Radio Waves P. 347 Reporting Safety Defects P. 348
Authorized Manuals P. 353 Customer Service Information P. 354
Quick Reference GuideP. 2
Safe DrivingP. 23
Instrument PanelP. 67
ControlsP. 95
FeaturesP. 149
DrivingP. 225
MaintenanceP. 267
Handling the UnexpectedP. 319
InformationP. 343
IndexP. 355
14 CR-V-31T0A6200.book 1 ページ 2014年2月10日 月曜日 午後7時1分
Page 19 of 365

18
Quick Reference Guide
Handling the Unexpected (P319)
Flat Tire (P321)
● Park in a safe location and replace the
flat tire with the compact spare tire in the
cargo area.
Indicators Come On
(P333)
●Identify the indicator and consult the
owner's manual.
Engine Won't Start (P327)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P337)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P331)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P340)
●Call a professional towing service if you
need to tow your vehicle.
14 CR-V-31T0A6200.book 18 ページ 2014年2月10日 月曜日 午後7時1分
Page 320 of 365

319
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 320
If a Tire Goes Flat Changing a Flat Tire ......................... 321
Engine Does Not Start Checking the Engine ........................ 327
Jump Starting .................................... 328
Shift Lever Does Not Move .............. 330
Overheating How to Handle Overheating ............. 331 Indicator, Coming On/Blinking
If the Low Oil Pressu
re Indicator Comes
On................................................ 333
If the Charging System Indicator Comes
On ................................................. 333
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 334
If the Brake System Indicator Comes On (Red) .............................................. 335
If the Electric Power Steering (EPS) System Indicator Comes On ........................... 335 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 336
Fuses Fuse Locations ................................. 337
Inspecting and Changing Fuses ........ 339
Emergency Towing ........................... 340
When You Cannot Open the Tailgate.. 341
14 CR-V-31T0A6200.book 319 ページ 2014年2月10日 月曜日 午後7時1分
Page 328 of 365

327
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2Battery P. 309●If the interior lights come on normally 2 Inspecting and Changing Fuses P. 339
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2 Starting the Engine P. 239
Check the immobilize r system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2 Immobilizer System P. 106
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 77
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2 Inspecting and Changing Fuses P. 339
If the problem continues:
2Emergency Towing P. 340
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 328
14 CR-V-31T0A6200.book 327 ページ 2014年2月10日 月曜日 午後7時1分
Page 329 of 365

328
Handling the Unexpected
Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Connect the first jump er cable to your
vehicle's + terminal.
2. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12 volt booster battery only.
3. Connect the second jumper cable to the
booster battery - terminal.
4. Connect the other end of the second
jumper cable to the engine mounting bolt
as shown. Do not conn ect this jumper cable
to any other part.
5. If your vehicle is connected to another
vehicle, start the assisting vehicle's engine
and increase its rpm slightly.
6. Attempt to start your vehicle's engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
■Jump Starting Procedure1Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.
3WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster Battery
14 CR-V-31T0A6200.book 328 ページ 2014年2月10日 月曜日 午後7時1分

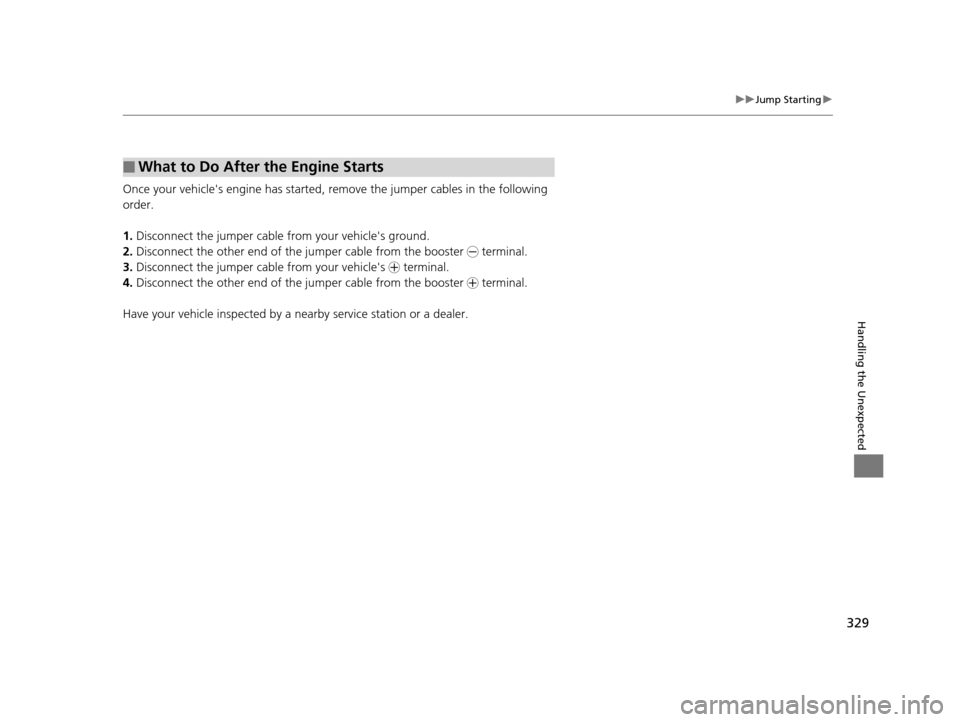

Page 330 of 365

329
uuJump Starting u
Handling the Unexpected
Once your vehicle's engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle's ground.
2. Disconnect the other end of the jumper cable from the booster - terminal.
3. Disconnect the jumper ca ble from your vehicle's + terminal.
4. Disconnect the other end of the jumper cable from the booster + terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts
14 CR-V-31T0A6200.book 329 ページ 2014年2月10日 月曜日 午後7時1分
Page 357 of 365

356
Index
B
Battery....................................................... 309
Charging System Indicator ................. 69, 333
Jump Starting .......................................... 328
Maintenance (Checking the Battery) ........ 309
Maintenance (Replacing).......................... 310
Behind a Motorhome ............................... 235
Belts (Seat) .................................................. 29
Beverage Holders ...................................... 134
Bluetooth ® Audio ..................................... 172
Bluetooth ® HandsFreeLink ®..................... 194
Booster Seats (For Children) ....................... 64
Brake System ............................................. 256
Anti-lock Brake System (ABS) ................... 258
Brake Assist System ................................. 259
Fluid ........................................................ 287
Foot Brake ............................................... 257
Indicator ............................................ 68, 335
Parking Brake .......................................... 256
Brightness Control (Instrument Panel) .... 117
Bulb Replacement ..................................... 289
Brake Light, Taillight , Back-Up Light, Rear
Turn Signal Light a nd Lower Rear Side
Marker Light ........................................ 292
Fog Lights ................................................ 290
Front Turn Signal/Parking Light ................ 292
Headlights ............................................... 289
High-Mount Brake Light .......................... 295
Rear License Plate Light............................ 295
Side Marker Lights ................................... 291
Upper Rear Side Marker/Taillight .............. 294 Bulb Specifications
................................... 344
C
Carbon Monoxide Gas ............................... 65
Cargo Hook ............................................... 137
Cargo Side Net .......................................... 136
Carrying Cargo ................................. 227, 229
CD Player ................................................... 161
Certification Label .................................... 346
Changing Bulbs ........................................ 289
Charging System Indicator ................. 69, 333
Child Safety ................................................. 52
Childproof Door Locks............................. 102
Child Seat .................................................... 52
Booster Seats ............................................ 64
Child Seat for Infants................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 60
Larger Children ......................................... 63
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Childproof Door Locks ............................. 102
Cleaning the Exterior ............................... 316
Cleaning the Interior ................................ 314
Climate Control System ............................ 145
Changing the Mode ................................ 145
Defrosting the Windshield and Windows ............................................... 146
Dust and Pollen Filter............................... 313 Recirculation/Fresh Air Mode................... 145
Sensors ................................................... 148
Synchronized Mode ................................ 147
Using Automatic Climate Control............ 145
Clock ........................................................... 96
Coat Hook ................................................ 136
Compact Spare Tire .......................... 321, 345
Compass .................................................... 223
Console Compartment ............................. 133
Controls ...................................................... 95
Coolant (Engine) ...................................... 284
Adding to the Radiator ........................... 285
Adding to the Reserve Tank .................... 284
Overheating ............................................ 331
Creeping (Automatic Transmission) ........ 242
Cruise Control .......................................... 246
Indicator ................................................... 76
Cup Holders .............................................. 134
Customer Service Information ................ 354
Customized Features ................................. 84
D
Daytime Running Lights .......................... 114
Dead Battery ............................................ 328
Defrosting the Windshield and Windows ......................................... 144, 146
Detachable Anchor .................................... 34
Devices that Emit Radio Waves ............... 347
Dimming
Headlights .............................................. 112
14 CR-V-31T0A6200.book 356 ページ 2014年2月10日 月曜日 午後7時1分
Page 358 of 365

357
Index
Rearview Mirror ...................................... 120
Dipstick (Engine Oil) ................................ 280
Directional Signals (Turn Signal) ............. 112
Display Button ............................................ 81
Door Mirrors ............................................. 121
Doors .......................................................... 97
Auto Door Locking.................................. 103
Auto Door Unlocking .............................. 103
Door Open Indicator ........................... 28, 72
Keys.......................................................... 97
Locking/Unlocking the Doors from the
Inside .................................................... 101
Locking/Unlocking the Doors from the Outside ................................................... 99
Lockout Prevention System ..................... 100
DOT Tire Quality Grading ........................ 303
Driver’s Seat Lumbar Support ................. 122
Driving ...................................................... 225
Automatic Transmission .......................... 242
Braking ................................................... 256
Cruise Control ........................................ 246
Off-Highway Driving Guidelines .............. 237
Shifting Gear .......................................... 243
Starting the Engine ................................. 239
Dust and Pollen Filter .............................. 313
DVD Player ............................................... 174
E
Eco Assist System .......................................... 7
ECON Button ............................................ 245 Elapsed Time
............................................... 82
Electric Power Steering (EPS) System
Indicator ............................................ 73, 335
Electronic Stability Control (ESC) ............. 249
Emergency ................................................ 340
Emissions Testing (Readiness Codes) ....... 349
Engine ....................................................... 346
Coolant ................................................... 284
Jump Starting .......................................... 328
Oil ........................................................... 279
Starting ................................................... 239
Switch Buzzer .......................................... 111
Engine Coolant ......................................... 284
Adding to the Radiator ............................ 285
Adding to the Reserve Tank ..................... 284
Overheating ............................................ 331
Temperature Gauge .................................. 77
Engine Oil ................................................. 279
Adding .................................................... 281
Checking ................................................. 280
Displaying Oil Life .................................... 271
Low Oil Pressure Indicator .................. 68, 333
Recommended Engine Oil ........................ 279
EPS (Electric Power Steering) System ............................................... 73, 335
Exhaust Gas Hazard (Carbon Monoxide) .. 65
Exterior Care (Cleaning) ........................... 316
Exterior Mirrors ........................................ 121
F
Features.................................................... 149
Filters Dust and Pollen ....................................... 313
Oil ........................................................... 282
Flat Tire ..................................................... 321
Floor Mats ................................................. 315
Fluids
Automatic Transmission .......................... 286
Brake ...................................................... 287
Engine Coolant ....................................... 284
Windshield Washer ................................. 288
Fog Light Indicator ..................................... 74
Folding Down the Rear Seats .................. 129
Foot Brake ................................................ 257
Front Airbags (SRS) ..................................... 40
Front Seats ................................................ 122
Adjusting ................................................ 122
Fuel ...................................................... 16, 262
Economy ................................................. 265
Gauge ....................................................... 77
Low Fuel Indicator ..................................... 70
Range ................................................. 79, 82
Recommendation .................................... 262
Refueling................................................. 262
Fuel Economy ........................................... 265
Fuel Fill Cap .............................................. 264
Message.................................................. 334
Fuel Fill Door ............................................ 263
14 CR-V-31T0A6200.book 357 ページ 2014年2月10日 月曜日 午後7時1分
Page 360 of 365

359
Index
Tailgate Open ........................................... 72
Transmission ............................................. 70
Turn Signal ............................................... 74
Vehicle Stability Assist (VSA®)
System ............................................ 72, 249
VSA ® OFF.......................................... 72, 250
Washer Level ............................................ 76
Information .............................................. 343
Information Display ................................... 78
Instrument Panel ........................................ 67
Brightness Control .................................. 117
intelligent Multi-Information Display (i-MID) ....................................................... 81
Interior Lights ........................................... 132
Interior Rearview Mirror ......................... 120
iPod ®......................................................... 164
J
Jack (Wheel Nut Wrench) ........................ 324
Jump Starting ........................................... 328
K
Key Number Tag ........................................ 98
Keyless Lockout Prevention ..................... 100
Keys ............................................................. 97
Lockout Prevention ................................. 100
Master Keys .............................................. 97
Number Tag.............................................. 98
Rear Door Won’t Open ........................... 102 Remote Transmitter ................................... 99
Types and Functions .................................. 97
Valet Key ................................................... 98
Won’t Turn ................................................ 19
Kickdown (Automatic Transmission) ....... 242
L
Language (HFL)......................................... 195
LATCH (Child Seats) .............................. 57, 61
Lights ................................................. 112, 289
Automatic ............................................... 113
Bulb Replacement .................................... 289
Daytime Running Lights ........................... 114
Fog Lights ................................................ 114
High Beam Indicator .................................. 74
Interior .................................................... 132
Light Switches ......................................... 112
Lights On Indicator .................................... 74
Turn Signals ............................................. 112
Load Limits ................................................ 229
Locking/Unlocking ...................................... 97
Auto Door Locking/Unlocking .................. 103
Childproof Door Locks ............................. 102
From Inside .............................................. 101
From Outside ............................................. 99
Keys .......................................................... 97
Using a Key ............................................. 100
Lockout Prevention System ...................... 100
Low Battery Charge .................................. 333
Low Fuel Indicator ...................................... 70 Low Oil Pressure Indicator
................. 68, 333
Lower Anchors ...................................... 57, 61
Luggage (Maximum Load Limit) ............. 229
M
Maintenance............................................. 267
Battery .................................................... 309
Brake Fluid .............................................. 287
Cleaning ................................................. 314
Climate Control System ........................... 313
Coolant ................................................... 284
Heating and Cooling System ................... 313
Maintenance Minder
TM............................ 271
Oil ........................................................... 280
Precautions ............................................. 268
Radiator .................................................. 285
Remote Control....................................... 311
Remote Transmitter ................................. 310
Replacing Light Bulbs .............................. 289
Safety...................................................... 269
Service Items ........................................... 274
Tires ........................................................ 300
Transmission Fluid ................................... 286
Under the Hood ...................................... 277
Wireless Headphone................................ 312
Malfunction Indicator Lamp .............. 69, 334
Map Lights ................................................ 132
Maximum Load Limit ............................... 229
Meters, Gauges ........................................... 77
14 CR-V-31T0A6200.book 359 ページ 2014年2月10日 月曜日 午後7時1分
Page 362 of 365

361
Index
Seat Belts.................................................... 29
Adjusting the Shoulder Anchor ................. 33
Automatic Seat Belt Tensioners ................. 31
Checking .................................................. 36
Detachable Anchor ................................... 34
Fastening .................................................. 32
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 60
Pregnant Women...................................... 35
Reminder .................................................. 30
Warning Indicator ............................... 30, 70
Seat Heaters ............................................. 139
Seats .......................................................... 122
Adjusting ................................................ 122
Driver’s Seat Lumbar Support .................. 122
Front Seats.............................................. 122
Rear Seats ............................................... 129
Seat Heaters ........................................... 139
Security System ........................................ 106
Immobilizer System Indicator..................... 75
Security System Alarm Indicator ................ 75
Select Lever ........................................ 15, 243
Operation ......................................... 15, 244
Releasing ................................................ 330
Won’t Move ........................................... 330
Select/Reset Knob ...................................... 78
Selecting a Child Seat ................................ 56
Selector Knob (Audio) ............................. 153
Setting the Clock ........................................ 96
Shift Lever .......................................... 15, 243
Shift Lever Position Indicator ............ 69, 244Shifting (Transmission)
............................. 243
Shoulder Anchor ......................................... 33
Side Airbags ................................................ 44
Cutoff System ........................................... 46
Off Indicator .............................................. 46
Side Curtain Airbags ................................... 47
SMS Text Message ............................ 206, 218
Snow Tires ................................................. 308
Spare Tire .......................................... 321, 345
Spark Plugs ................................................ 344
Specifications ............................................ 344
Specified Fuel .................................... 262, 344
Speedometer .............................................. 77
SRS Airbags (Airbags) ................................. 40
Starting the Engine .................................. 239
Does Not Start ......................................... 327
Engine Switch Buzzer .............................. 111
Jump Starting .......................................... 328
Steering Wheel ......................................... 119
Adjusting ................................................. 119
Stopping .................................................... 260
Summer Tires ............................................ 308
Sunglasses Holder ..................................... 138
Supplemental Restraint System (SRS) ........ 40
Switches (Around the Steering
Wheel) ............................................. 2, 3, 111
Synchronized Mode .................................. 147
T
Tachometer................................................. 77 Tailgate
..................................................... 104
Unable to Open....................................... 341
Temperature Gauge ................................... 77
Temperature Sensor ................................. 148
Text Message .................................... 206, 218
Time (Setting) ............................................. 96
Tire Pressure Monitoring System (TPMS) ..................................................... 252
Button..................................................... 252
Indicator.................................................... 73
Tires ........................................................... 300
Air Pressure ..................................... 301, 345
Checking and Maintaining ...................... 300
Inspection ............................................... 300
Labeling .................................................. 301
Puncture (Flat Tire) .................................. 321
Regulations ............................................. 303
Rotation .................................................. 307
Spare Tire ........................................ 321, 345
Summer .................................................. 308
Tire Chains .............................................. 308
Wear Indicators ....................................... 305
Winter..................................................... 308
Tonneau Cover ......................................... 140
Tools .......................................................... 320
Towing a Trailer ....................................... 231
Equipment and Accessories ..................... 232
Load Limits .............................................. 231
Towing Your Vehicle ................................ 235
Behind a Motorhome .............................. 235
Emergency .............................................. 340
14 CR-V-31T0A6200.book 361 ページ 2014年2月10日 月曜日 午後7時1分
