HONDA CR-V 2015 RM1, RM3, RM4 / 4.G User Guide

10
Quick Reference Guide
Safe Driving (P 27)
Airbags (P 41)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 54)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Exhaust Gas Hazard (P 67)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 32)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 33)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
15 CR-V-31T0A6300.book 10 ページ ２０１５年２月２日　月曜日　午前１０時３５分

11
Quick Reference Guide
Instrument Panel (P 69)
System Indicators
Malfunction
Indicator Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake
System (ABS)
Indicator
Vehicle Stability
Assist (VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator
*
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL

Indicator*Parking Brake
and Brake System
Indicator Supplemental
Restraint System
Indicator
Door and Tailgate
*
Open Indicator
CRUISE MAIN Indicator
*
Tachometer
Speedometer Fuel
Gauge
Security System Alarm Indicator
*
Shift Lever Position Indicator
Low Fuel Indicator
Gauges (P 92)/Information Display* (P 93)/Multi-Information Display* (P96)/
intelligent Multi-Inform ation Display (i-MID)
(P 111)/System Indicators (P 70)
Tailgate Open
Indicator
*
ECON Mode Indicator Maintenance Minder
Indicator
*
Washer Level
Indicator*
Ambient MeterTemperature Gauge
Electric Power
Steering (EPS)
Indicator Turn Signal and
Hazard Warning
Indicators
All-Wheel Drive
(
AWD ) System
Indicator
*
System Indicators
Canada U.S.
Smart Entry System
Indicator*
Lane Keeping Assist
System (
LKAS) Indicator*
Adaptive Cruise Control
(ACC ) Indicator*
Starter System
Indicator*
Collision Mitigation
Braking SystemTM
(CMBSTM) Indicator*
Lane Departure
Warning Indicator*
System Message
Indicator*
Multi-Information Display*
Canada U.S.
Brake System
Indicator (Amber)
*
Not available on all models
15 CR-V-31T0A6300.book 11 ページ ２０１５年２月２日　月曜日　午前１０時３５分

12
Quick Reference Guide
Controls (P127)
Clock (P 128)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
The clock in the i-MID is automatically
updated along with the audio system’s clock
display.
Models with navigation system
Models without navigation systemModels with two displays
i-MID
aPress the CLOCK (AUX) button until the
displayed time begins flashing.
bPress the ( 4 (Hour) or (5 (Minute)
button to set the time. Press the ( 6
(Reset) button to set the time to the
nearest hour.
cPress the CLOCK button again to set
the time.
To set the time to the nearest hour:
Press and hold the CLOCK button until the
clock display begins to blink, then press the
( 6 (Reset) button.
Depending on the displayed time, the clock
sets forward or backward.
Example:
1:06 will reset to 1:00
1:53 will reset to 2:00
Models with one display
aPress the (Home) button, then
select Settings .
bSelect Clock/Info , then Clock
Adjustment .
cTouch the / icon to adjust the
numbers up or down.
dSelect OK.
Models with two displays
(Home) Button
34
15 CR-V-31T0A6300.book 12 ページ ２０１５年２月２日　月曜日　午前１０時３５分

13
Quick Reference Guide
ENGINE START/STOP
Button
* (P154)
Press the button to change the vehicle’s
power mode.
Turn Signals (P158)
Lights (P159)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P164)
*1:Models with automatic intermittent wipers
*2:Models without automatic intermittent
wipers
Wiper/Washer Control Lever
Adjustment Ring: Low Sensitivity
*1
: Long Delay*2
: High Sensitivity*1
: Short Delay*2
MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO : Low speed wipe
HI: High speed wipe Pull toward
you to spray
washer fluid.
*
Not available on all models
15 CR-V-31T0A6300.book 13 ページ ２０１５年２月２日　月曜日　午前１０時３５分

14
Quick Reference Guide
Steering Wheel (P172)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P137)
●Pull either front door inner handle to
unlock and open it at the same time.
Tailgate (P140)
● With all the doors unlocked, press the
tailgate release butto n and lift open the
tailgate.
● Press the tailgate release button to
unlock and open the tailgate when you
carry the smart entry remote.
● Press the power tailgate button on the
driver side control panel or the remote
transmitter to open and close the power
tailgate.
Models without smart entry system
Models with smart entry system
Models with power tailgate
Power Door Mirrors
(P174)
●With the ignition switch in ON
(w*1, move
the selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
*1: Models with the smart entry system have
an ENGINE START/STOP button instead of
an ignition switch.
Selector Switch
Adjustment Switch
15 CR-V-31T0A6300.book 14 ページ ２０１５年２月２日　月曜日　午前１０時３５分

15
Quick Reference Guide
Power Windows (P150)
● With the ignition switch in ON
(w*1, open
and close the power windows.
● If the power window lock button is in the
off position, each passenger's window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator on), each
passenger's window switch is disabled.
*1: Models with the smart entry system have
an ENGINE START/STOP button instead of
an ignition switch.
Power Window Lock Button
Window
Switch Indicator
Heating and Cooling System* (P 197)
● Rotate the fan control dial to adjust the fan speed.
● Press the Mode buttons ( / / / ) to select the vents air flows from.
● Rotate the temperature control dial to adjust the temperature.
● Use the button for maximum cool setting.
● Rotate the fan control dial to OFF to turn the system off.
● Press the button to defrost the windshield.
Fan Control
Dial (Windshield
Defroster) Button
A/C (Air Conditioning) Button
Air flows from floor and
windshield defroster vents. Air flows from floor vents. Air flows from floor and
dashboard vents and back
of the center console. Air flows from dashboard
vents and back of the center
console.
Button
Button
Button (Recirculation) Button
Temperature
Control Dial
Button
Button
*
Not available on all models
15 CR-V-31T0A6300.book 15 ページ ２０１５年２月２日　月曜日　午前１０時３５分

16
Quick Reference Guide

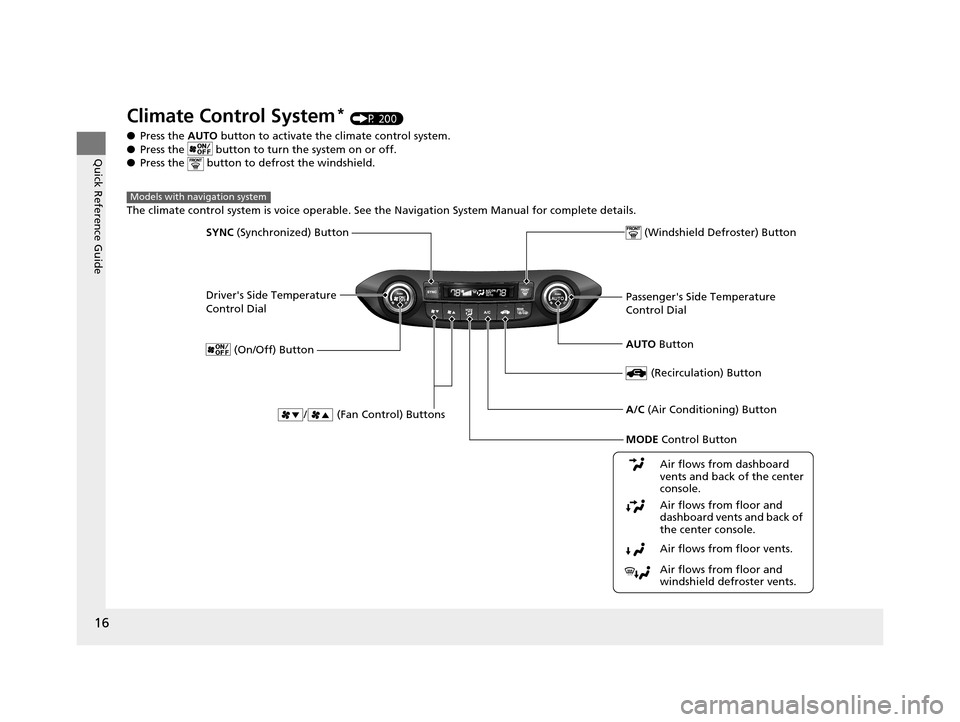

Climate Control System* (P 200)
● Press the AUTO button to activate the climate control system.
● Press the button to turn the system on or off.
● Press the button to defrost the windshield.
The climate control system is voice operable. See the Navigation System Manual for complete details.
Models with navigation system
Driver's Side Temperature
Control Dial
/ (Fan Control) Buttons
(Windshield Defroster) Button
A/C (Air Conditioning) Button
Air flows from floor and
windshield defroster vents. Air flows from floor vents. Air flows from floor and
dashboard vents and back of
the center console. Air flows from dashboard
vents and back of the center
console.
SYNC (Synchronized) Button
(Recirculation) Button
AUTO Button
Passenger's Side Temperature
Control Dial
MODE Control Button
(On/Off) Button
15 CR-V-31T0A6300.book 16 ページ ２０１５年２月２日　月曜日　午前１０時３５分

17
Quick Reference Guide

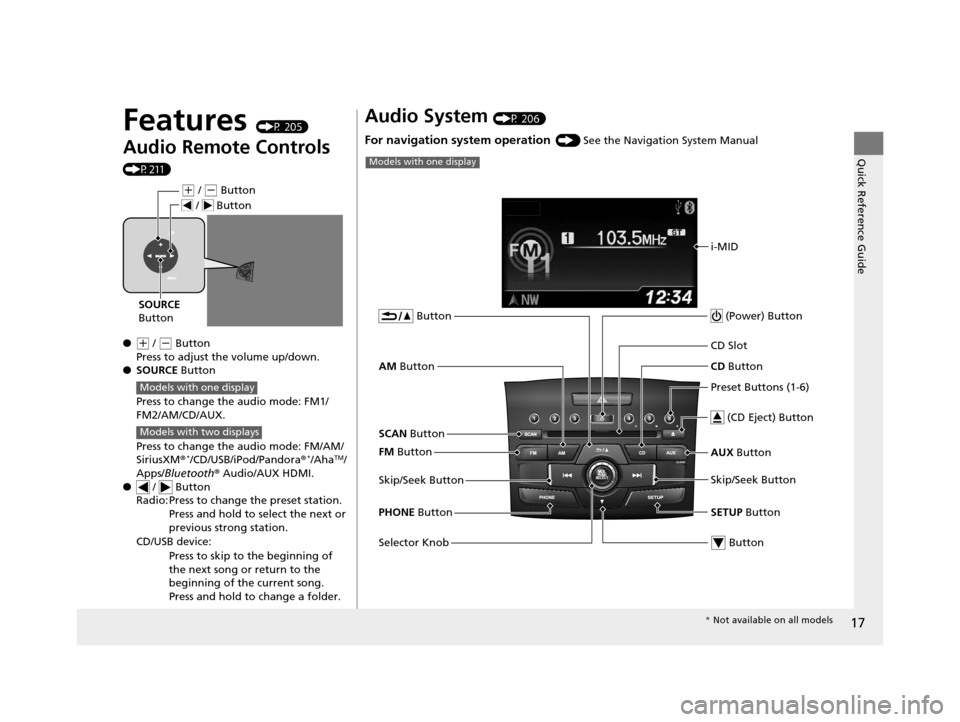

Features (P 205)
Audio Remote Controls
(P211)
●
(+ / (- Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM1/
FM2/AM/CD/AUX.
Press to change the audio mode: FM/AM/
SiriusXM ®
*/CD/USB/iPod/Pandora®*/AhaTM/
Apps/Bluetooth ® Audio/AUX HDMI.
● / Button
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
CD/USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
(+ / (- Button
SOURCE
Button
/ Button
Models with one display
Models with two displays
Audio System (P 206)
For navigation system operation () See the Navigation System Manual
i-MID
AM Button
FM Button
SCAN Button
Skip/Seek Button
Selector Knob Button
(Power) Button
CD
Button
AUX Button
CD Slot
(CD Eject) Button
Preset Buttons (1-6)
Button
SETUP Button
Skip/Seek Button
PHONE Button
Models with one display
* Not available on all models
15 CR-V-31T0A6300.book 17 ページ ２０１５年２月２日　月曜日　午前１０時３５分

18
Quick Reference Guide

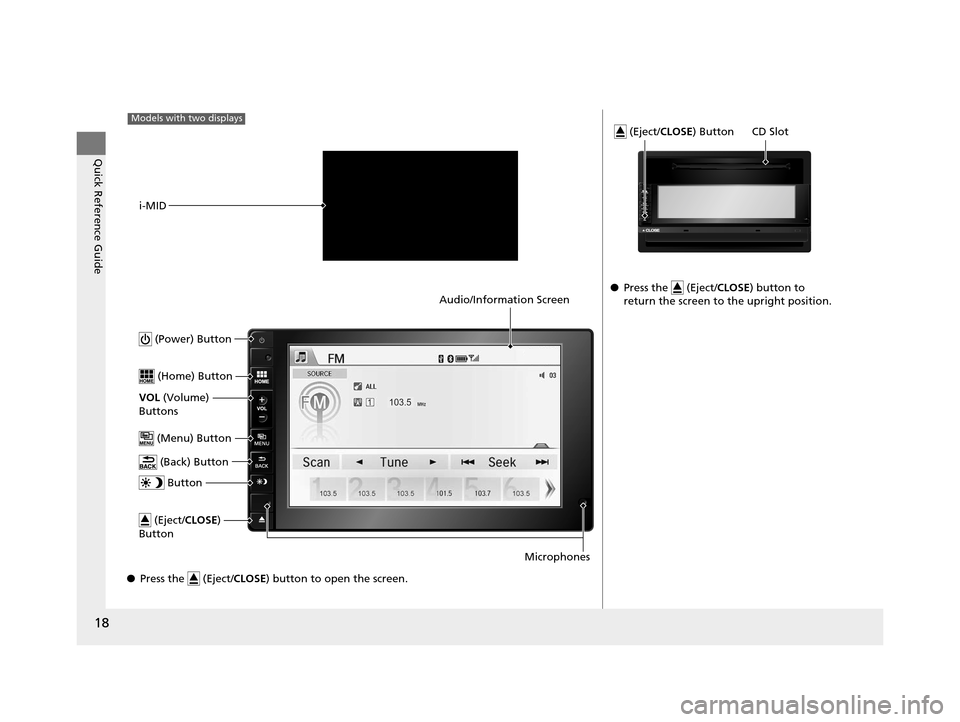

●Press the (Eject/ CLOSE) button to open the screen.
Models with two displays
i-MID
(Power) Button
(Home) Button
VOL (Volume)
Buttons
(Menu) Button
(Back) Button
(Eject/ CLOSE)
Button
Button
Audio/Information Screen
Microphones
● Press the (Eject/ CLOSE) button to
return the screen to the upright position.
(Eject/CLOSE) ButtonCD Slot
15 CR-V-31T0A6300.book 18 ページ ２０１５年２月２日　月曜日　午前１０時３５分

19
Quick Reference Guide

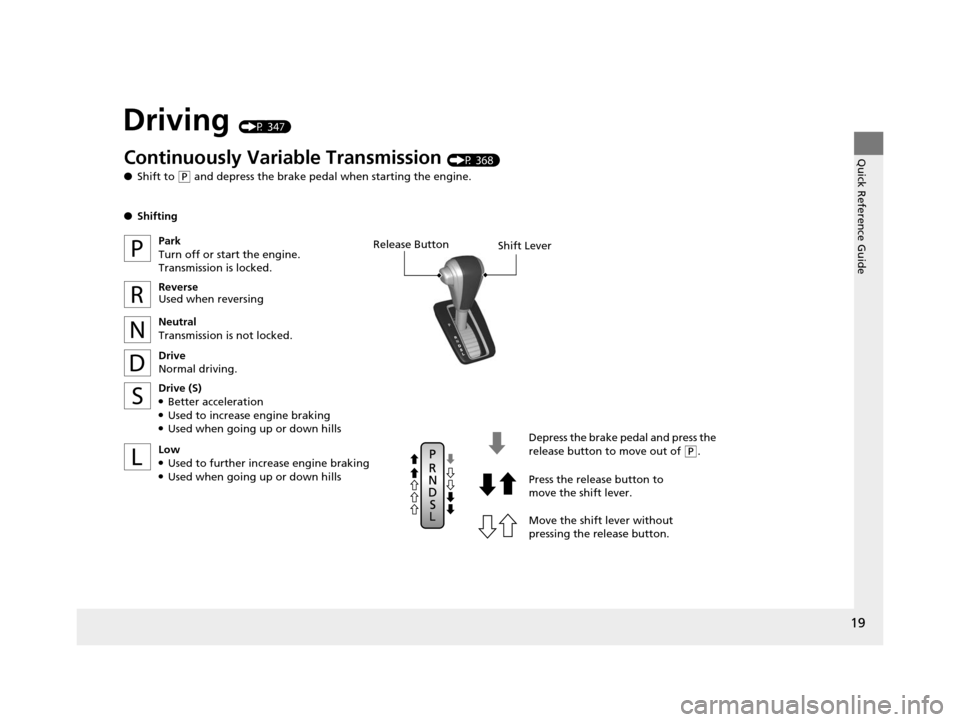

Driving (P 347)
Release ButtonShift Lever
Depress the brake pedal and press the
release button to move out of
(P.
Move the shift lever without
pressing the release button. Press the release button to
move the shift lever.
Continuously Variable Transmission (P 368)
● Shift to
(P and depress the brake pedal when starting the engine.
● Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing
Neutral
Transmission is not locked.
Drive
Normal driving.
Drive (S)
●Better acceleration●Used to increase engine braking●Used when going up or down hills
Low
●Used to further increase engine braking●Used when going up or down hills
