display HONDA CR-V 2015 RM1, RM3, RM4 / 4.G Owners Manual

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 27
For Safe Driving P. 28 Seat Belts P. 33 Airbags P. 41
2Instrument Panel P. 69
Indicators P. 70 Gauges and Displays P. 92
2Controls P. 127
Clock P. 128 Locking and Unlocking the Doors P. 130
Opening and Closing the Moonroof* P. 152
Adjusting the Seats P. 175
Climate Control System
* P. 200
2 Features P. 205
Audio System P. 206 Audio System Basic Operation P. 213
Customized Features P. 271 HomeLink® Universal Transceiver* P. 282
2 Driving P. 347
Before Driving P. 348 Towing a Trailer P. 353Parking Your Vehicle P. 416Multi-View Rear Camera* P. 417
2Maintenance P. 425
Before Performing Maintenance P. 426 Maintenance MinderTM P. 429
Checking and Maintaining Wiper Blades P. 461
2 Handling the Unexpected P. 483
Tools P. 484 If a Tire Goes Flat P. 485
Overheating P. 497 Indicator, Coming On/Blinking P. 499
2Information P. 509
Specifications P. 510 Identification Numbers P. 512
Emissions Testing P. 515 Warranty Coverages P. 517
15 CR-V-31T0A6300.book 2 ページ ２０１５年２月２日　月曜日　午前１０時３５分

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙ECON Button (P 370)
❙Ignition Switch* (P 153)
❙Steering Wheel Adjustments (P 172)
❙Information Display* (P 93)
❙Tire Pressure Monitoring System (TPMS) Button* (P 401)
❙Hazard Warning Button
❙System Indicators (P 70)
❙Rear Window Defogger (P 168)
❙Heated Mirror Button* (P 168)
❙Gauges (P 92)
❙intelligent Multi-Information Display
(i-MID)
(P 111)
❙Multi-Information Display* (P 96)
❙ENGINE START/STOP Button* (P 154)
❙Heating and Cooling System* (P 197)
❙Audio System (P 206)
❙Navigation System*
() See the Navigation System Manual
❙ (Vehicle Stability Assist (VSA ®) System OFF) Button (P 396)
❙Lane Departure Warning (LDW) Button* (P 387)
❙Collision Mitigation Braking SystemTM (CMBSTM) OFF Button* (P 412)
❙Heated Windshield Button* (P 169)
❙Power Tailgate Button* (P 145)
❙Climate Control System* (P 200)
15 CR-V-31T0A6300.book 4 ページ ２０１５年２月２日　月曜日　午前１０時３５分

5
Quick Reference Guide
❙ (Select/Reset) Knob* (P 93)
❙MENU Button (P 114)
❙(+ / (- / / Buttons (P 114)
❙SOURCE Button (P 114)
❙ (Display) Button (P 111)
❙Headlights/Turn Signals (P 158)
❙Brightness Control (P 167)
❙Navigation System Voice Control Buttons*
() See the Navigation System Manual
❙Bluetooth ® HandsFreeLink ® System Voice
Control Buttons
(P 284)
❙LaneWatchTM * (P 398)
❙Fog Lights* (P 162)
❙Wipers/Washers (P 164)
❙Cruise Control Buttons* (P 371)
❙Adaptive Cruise Control (ACC) Buttons*
(P 375)
❙Lane Keeping Assist System (LKAS) Button*
(P 391)
❙ (Information) Button* (P 96)
❙SEL/RESET Button* (P 96)
❙Horn (Press an area around .)
* Not available on all models
15 CR-V-31T0A6300.book 5 ページ ２０１５年２月２日　月曜日　午前１０時３５分

9
Quick Reference Guide
Eco Assist System (P 370)
Ambient Meter●Changes color to reflect your driving
style.
Green: Fuel efficient driving
Yellow: Moderate acceleration/
deceleration
White: Aggressive acceleration/
deceleration
● The ambient meter color changes in
accordance with your brake or
accelerator pedal operation.
ECON Button (P 370)
Helps maximize fuel economy.
ECON Mode Indicator (P 78)
Comes on when ECON mode is on.
The message is displayed for a
few seconds when the ECON
mode is turned on.
Models with multi-information
display
* Not available on all models
15 CR-V-31T0A6300.book 9 ページ ２０１５年２月２日　月曜日　午前１０時３５分

11
Quick Reference Guide
Instrument Panel (P 69)
System Indicators
Malfunction
Indicator Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake
System (ABS)
Indicator
Vehicle Stability
Assist (VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator
*
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL

Indicator*Parking Brake
and Brake System
Indicator Supplemental
Restraint System
Indicator
Door and Tailgate
*
Open Indicator
CRUISE MAIN Indicator
*
Tachometer
Speedometer Fuel
Gauge
Security System Alarm Indicator
*
Shift Lever Position Indicator
Low Fuel Indicator
Gauges (P 92)/Information Display* (P 93)/Multi-Information Display* (P96)/
intelligent Multi-Inform ation Display (i-MID)
(P 111)/System Indicators (P 70)
Tailgate Open
Indicator
*
ECON Mode Indicator Maintenance Minder
Indicator
*
Washer Level
Indicator*
Ambient MeterTemperature Gauge
Electric Power
Steering (EPS)
Indicator Turn Signal and
Hazard Warning
Indicators
All-Wheel Drive
(
AWD ) System
Indicator
*
System Indicators
Canada U.S.
Smart Entry System
Indicator*
Lane Keeping Assist
System (
LKAS) Indicator*
Adaptive Cruise Control
(ACC ) Indicator*
Starter System
Indicator*
Collision Mitigation
Braking SystemTM
(CMBSTM) Indicator*
Lane Departure
Warning Indicator*
System Message
Indicator*
Multi-Information Display*
Canada U.S.
Brake System
Indicator (Amber)
*
Not available on all models
15 CR-V-31T0A6300.book 11 ページ ２０１５年２月２日　月曜日　午前１０時３５分

12
Quick Reference Guide
Controls (P127)
Clock (P 128)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
The clock in the i-MID is automatically
updated along with the audio system’s clock
display.
Models with navigation system
Models without navigation systemModels with two displays
i-MID
aPress the CLOCK (AUX) button until the
displayed time begins flashing.
bPress the ( 4 (Hour) or (5 (Minute)
button to set the time. Press the ( 6
(Reset) button to set the time to the
nearest hour.
cPress the CLOCK button again to set
the time.
To set the time to the nearest hour:
Press and hold the CLOCK button until the
clock display begins to blink, then press the
( 6 (Reset) button.
Depending on the displayed time, the clock
sets forward or backward.
Example:
1:06 will reset to 1:00
1:53 will reset to 2:00
Models with one display
aPress the (Home) button, then
select Settings .
bSelect Clock/Info , then Clock
Adjustment .
cTouch the / icon to adjust the
numbers up or down.
dSelect OK.
Models with two displays
(Home) Button
34
15 CR-V-31T0A6300.book 12 ページ ２０１５年２月２日　月曜日　午前１０時３５分

17
Quick Reference Guide
Features (P 205)
Audio Remote Controls
(P211)
●
(+ / (- Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM1/
FM2/AM/CD/AUX.
Press to change the audio mode: FM/AM/
SiriusXM ®
*/CD/USB/iPod/Pandora®*/AhaTM/
Apps/Bluetooth ® Audio/AUX HDMI.
● / Button
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
CD/USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
(+ / (- Button
SOURCE
Button
/ Button
Models with one display
Models with two displays
Audio System (P 206)
For navigation system operation () See the Navigation System Manual
i-MID
AM Button
FM Button
SCAN Button
Skip/Seek Button
Selector Knob Button
(Power) Button
CD
Button
AUX Button
CD Slot
(CD Eject) Button
Preset Buttons (1-6)
Button
SETUP Button
Skip/Seek Button
PHONE Button
Models with one display
* Not available on all models
15 CR-V-31T0A6300.book 17 ページ ２０１５年２月２日　月曜日　午前１０時３５分

18
Quick Reference Guide
●Press the (Eject/ CLOSE) button to open the screen.
Models with two displays
i-MID
(Power) Button
(Home) Button
VOL (Volume)
Buttons
(Menu) Button
(Back) Button
(Eject/ CLOSE)
Button
Button
Audio/Information Screen
Microphones
● Press the (Eject/ CLOSE) button to
return the screen to the upright position.
(Eject/CLOSE) ButtonCD Slot
15 CR-V-31T0A6300.book 18 ページ ２０１５年２月２日　月曜日　午前１０時３５分

uuFor Safe Driving uYour Vehicle's Safety Features
32
Safe DrivingFor the safety of you and your passenge rs, make a habit of checking these items
each time before you drive.
• After everyone has entered the vehicle, be sure all doors and the tailgate are
closed and locked. Locking the doors and the tailgate helps prevent an occupant
from being ejected and an outsider from unexpectedly opening a door or the
tailgate.
2 Locking/Unlocking the Doors from the Inside P. 137
•Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2 Adjusting the Seats P. 175
•Adjust head restraints to the proper position. Head restraints are most effective
when the center of the head restraint alig ns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2 Adjusting the Head Restraints P. 178
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2 Fastening a Seat Belt P. 36
•Protect children by using seat belts or chil d seats according to a child's age, height
and weight.
2 Child Safety P. 54
■Safety Checklist1Safety Checklist
If the door and/or the tail gate open indicator will
come on and a message appears on the multi-
information display
*, a door and/or the tailgate is not
completely closed. Close all doors and the tailgate
tightly until the indicator goes off. 2 Door and Tailgate Open Indicator P. 75
2 Door Open Indicator P. 75
2 Tailgate Open Indicator P. 75
* *
* Not available on all models
15 CR-V-31T0A6300.book 32 ページ ２０１５年２月２日　月曜日　午前１０時３５分

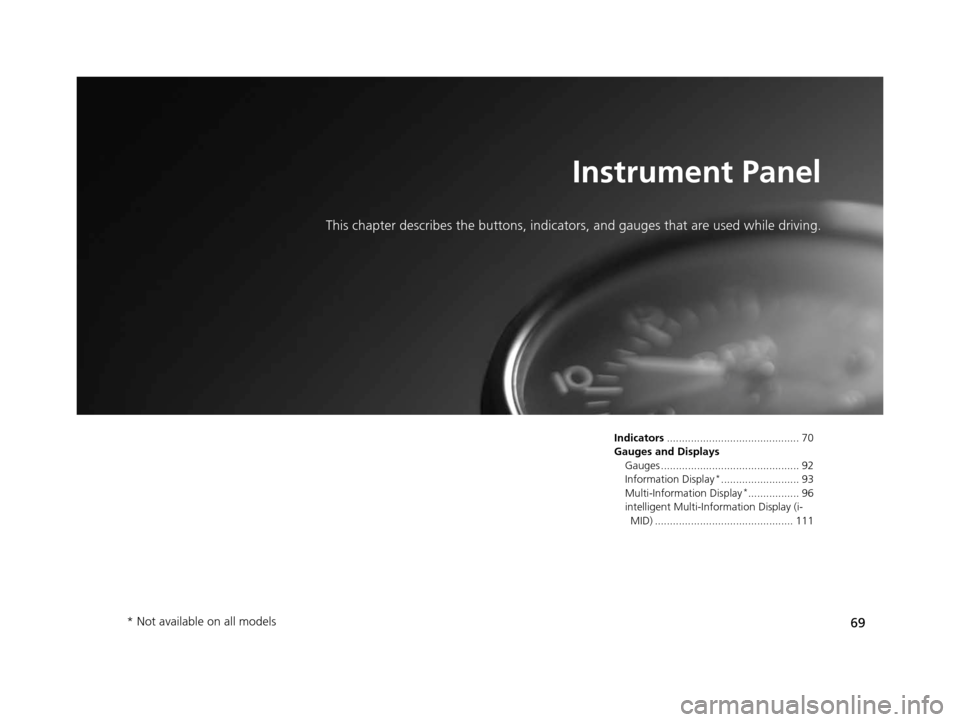

69
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 70
Gauges and Displays Gauges .............................................. 92
Information Display
*.......................... 93
Multi-Information Display*................. 96
intelligent Multi-Information Display (i- MID) .............................................. 111
* Not available on all models
