hood release HONDA CR-V 2015 RM1, RM3, RM4 / 4.G Owners Manual

Visual Index
6
Quick Reference Guide
❙Power Door Lock Master Switch (P 138)
❙Power Window Switches (P 150)
❙Rearview Mirror (P 173)
❙Driver's Front Airbag
(P 44)
❙Parking Brake (P 405)
❙Hood Release Handle (P 441)
❙Glove Box (P 187)
❙Driver’s Pocket
❙Fuel Fill Door Release Handle (P 421)
❙Memory Buttons* (P 171)
❙Accessory Power Socket
(P 189)
❙Seat Heater Switches*
(P 194)
❙Interior Fuse Box (P 504)
❙Passenger's Front Airbag
(P 44)
❙Shift Lever
Continuously Variable
Transmission
(P 368)
❙SET Button* (P 171)
❙Door Mirror Controls (P 174)
15 CR-V-31T0A6300.book 6 ページ ２０１５年２月２日　月曜日　午前１０時３５分

Visual Index
8
Quick Reference Guide
❙Audio Antenna (P 209)
❙Windshield Wipers (P 164, 461)
❙Door Lock/Unlock Control (P 133)
❙How to Refuel (P 421)
❙High-Mount Brake Light (P 460)
❙Rear Wiper (P 165, 463)
❙Back-Up Lights (P 457)
❙Brake/Taillights (P 457)
❙Rear Turn Signal Lights (P 457)
❙Rear Side Marker Lights (P 457)
❙Power Door Mirrors (P 174)
❙Maintenance Under the Hood (P 440)
❙Fog Lights* (P 162, 453)
❙Multi-View Rear Camera* (P 417)
❙Front Turn Signal/Side Marker Lights (P 158, 455, 456)
❙Parking Lights (P 159, 456)
❙Tires (P 465, 485)
❙Headlights (P 159, 452)
❙Opening/Closing the Tailgate
(P 140)
❙Tailgate Release Button (P141)
15 CR-V-31T0A6300.book 8 ページ ２０１５年２月２日　月曜日　午前１０時３５分

22
Quick Reference Guide
Maintenance (P 425)
Under the Hood (P 440)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull the lever up, and lift up
the hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 452)
● Inspect all lights regularly.
Wiper Blades (P 461)
● Replace blades if they leave streaks
across the windshield.
Tires (P 465)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
15 CR-V-31T0A6300.book 22 ページ ２０１５年２月２日　月曜日　午前１０時３５分

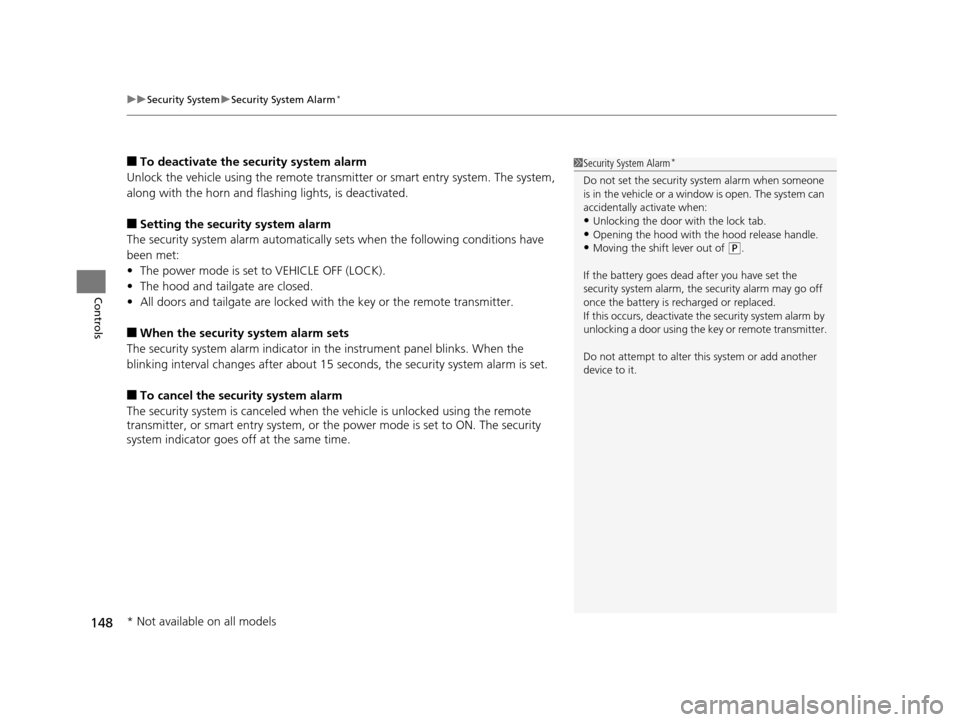

uuSecurity System uSecurity System Alarm*
148
Controls
■To deactivate the security system alarm
Unlock the vehicle using the remote transmitter or smart entry system. The system,
along with the horn and flas hing lights, is deactivated.
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The power mode is set to VEHICLE OFF (LOCK).
• The hood and tailgate are closed.
• All doors and tailgate are locked with the key or the remote transmitter.
■When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 seconds, the security system alarm is set.
■To cancel the security system alarm
The security system is canceled when th e vehicle is unlocked using the remote
transmitter, or smart entry system, or the power mode is set to ON. The security
system indicator goes off at the same time.
1 Security System Alarm*
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.•Opening the hood with the hood release handle.
•Moving the shift lever out of ( P.
If the battery goes dead after you have set the
security system alarm, the security alarm may go off
once the battery is re charged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the ke y or remote transmitter.
Do not attempt to alter th is system or add another
device to it.
* Not available on all models
15 CR-V-31T0A6300.book 148 ページ ２０１５年２月２日　月曜日　午前１０時３５分

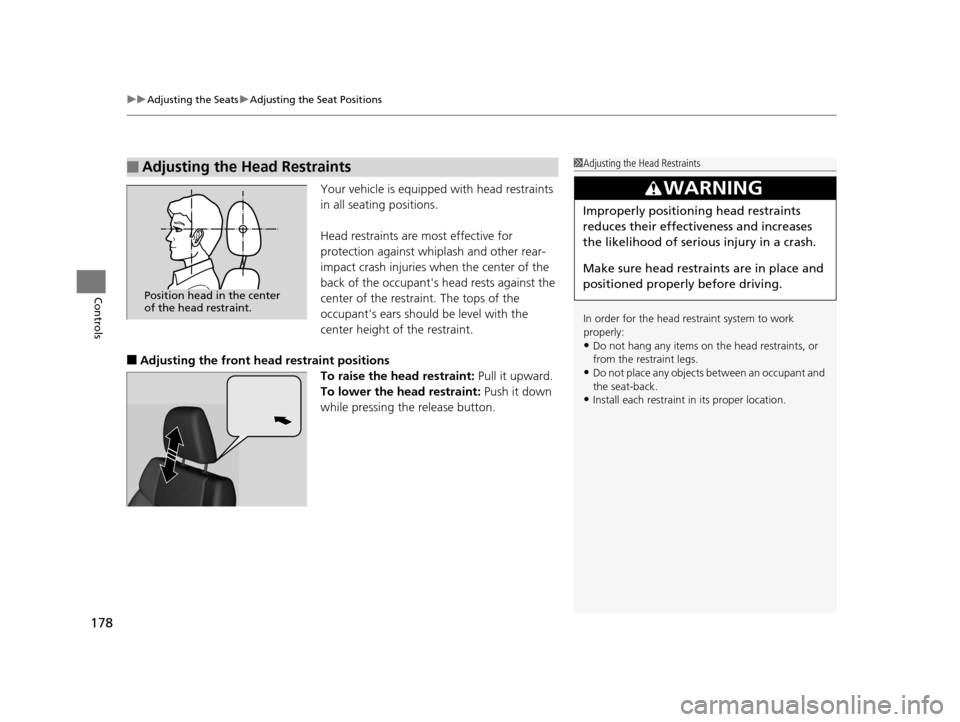

uuAdjusting the Seats uAdjusting the Seat Positions
178
Controls
Your vehicle is equipped with head restraints
in all seating positions.
Head restraints are most effective for
protection against whiplash and other rear-
impact crash injuries when the center of the
back of the occupant's head rests against the
center of the restraint. The tops of the
occupant's ears should be level with the
center height of the restraint.
■Adjusting the front head restraint positions
To raise the head restraint: Pull it upward.
To lower the head restraint: Push it down
while pressing the release button.
■Adjusting the Head Restraints1 Adjusting the Head Restraints
In order for the head restraint system to work
properly:
•Do not hang any items on the head restraints, or
from the restraint legs.
•Do not place any objects between an occupant and
the seat-back.
•Install each restraint in its proper location.
3WARNING
Improperly positioning head restraints
reduces their effectiveness and increases
the likelihood of serious injury in a crash.
Make sure head restraints are in place and
positioned properly before driving.
Position head in the center
of the head restraint.
15 CR-V-31T0A6300.book 178 ページ ２０１５年２月２日　月曜日　午前１０時３５分

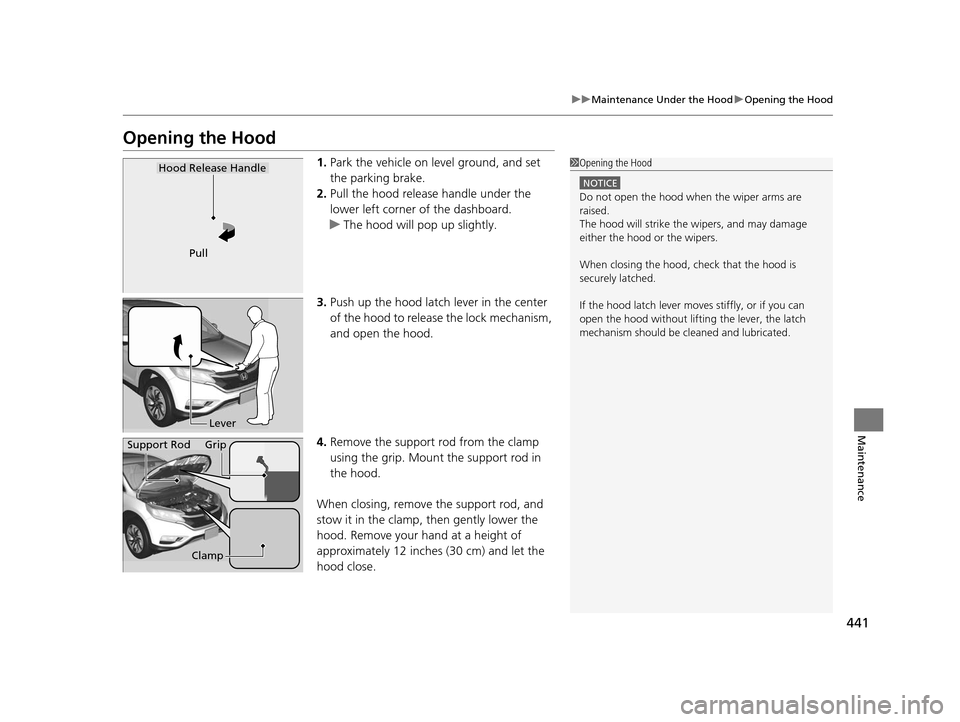

441
uuMaintenance Under the Hood uOpening the Hood
Maintenance
Opening the Hood
1. Park the vehicle on le vel ground, and set
the parking brake.
2. Pull the hood release handle under the
lower left corner of the dashboard.
u The hood will pop up slightly.
3. Push up the hood latch lever in the center
of the hood to release the lock mechanism,
and open the hood.
4. Remove the support rod from the clamp
using the grip. Mount the support rod in
the hood.
When closing, remove the support rod, and
stow it in the clamp, then gently lower the
hood. Remove your hand at a height of
approximately 12 inches (30 cm) and let the
hood close.1 Opening the Hood
NOTICE
Do not open the hood when the wiper arms are
raised.
The hood will strike the wipers, and may damage
either the hood or the wipers.
When closing the hood, check that the hood is
securely latched.
If the hood latch lever moves stiffly, or if you can
open the hood without lifti ng the lever, the latch
mechanism should be cl eaned and lubricated.
Hood Release Handle
Pull
Lever
Support Rod Grip
Clamp
15 CR-V-31T0A6300.book 441 ページ ２０１５年２月２日　月曜日　午前１０時３５分
