keyless entry HONDA CR-V 2015 RM1, RM3, RM4 / 4.G Owners Manual

87

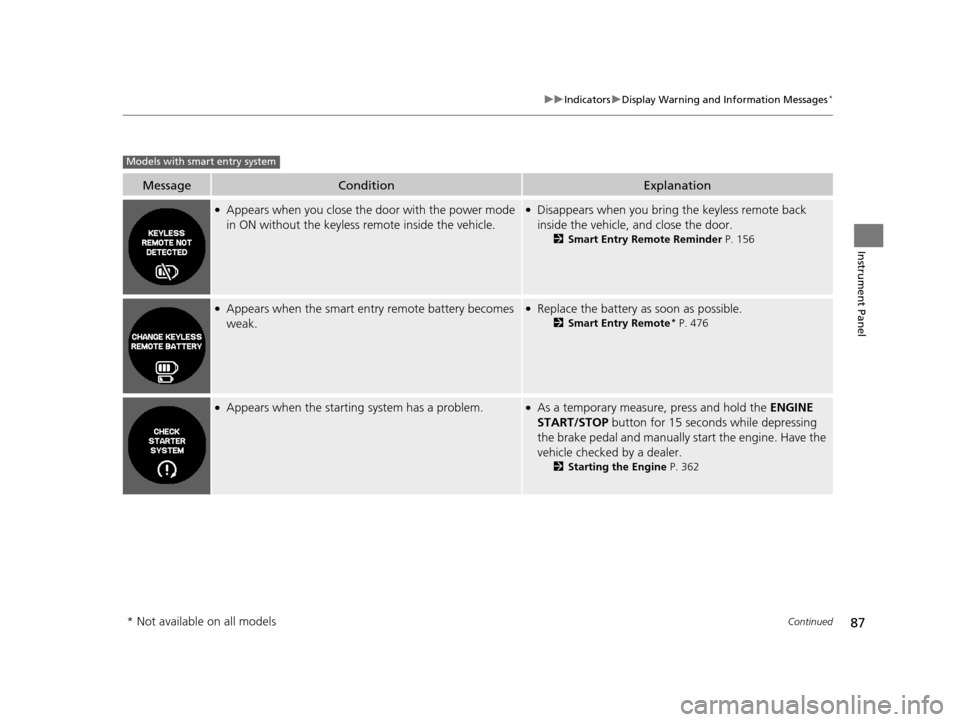

uuIndicators uDisplay Warning and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●Appears when you close the door with the power mode
in ON without the keyless remote inside the vehicle.●Disappears when you bring the keyless remote back
inside the vehicle, and close the door.
2Smart Entry Remote Reminder P. 156
●Appears when the smart entry remote battery becomes
weak.●Replace the battery as soon as possible.
2Smart Entry Remote* P. 476
●Appears when the starting system has a problem.●As a temporary measure, press and hold the ENGINE
START/STOP button for 15 seconds while depressing
the brake pedal and manually start the engine. Have the
vehicle checked by a dealer.
2 Starting the Engine P. 362
Models with smart entry system
* Not available on all models
15 CR-V-31T0A6300.book 87 ページ ２０１５年２月２日　月曜日　午前１０時３５分

119

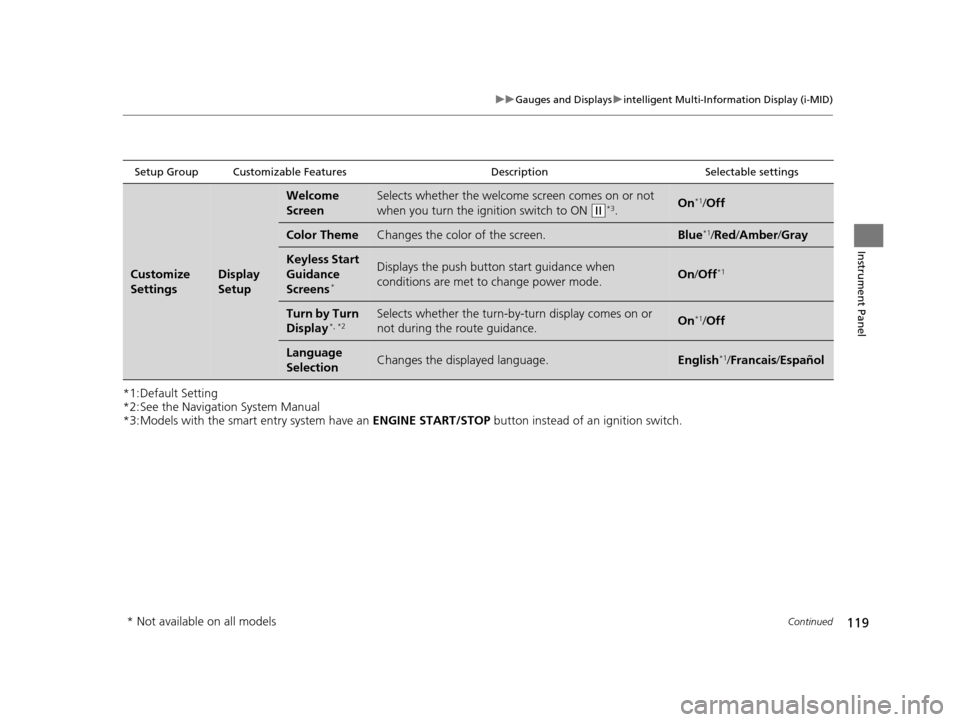

uuGauges and Displays uintelligent Multi-Information Display (i-MID)
Continued
Instrument Panel
*1:Default Setting
*2:See the Navigation System Manual
*3:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Setup Group Customizable Features DescriptionSelectable settings
Customize
SettingsDisplay
Setup
Welcome
ScreenSelects whether the welcome screen comes on or not
when you turn the ignition switch to ON
(w*3.On*1/Off
Color ThemeChanges the color of the screen.Blue*1/Red/ Amber /Gray
Keyless Start
Guidance
Screens
*
Displays the push button start guidance when
conditions are met to change power mode.On /Off*1
Turn by Turn
Display*, *2Selects whether the turn-by -turn display comes on or
not during the route guidance.On*1/ Off
Language
SelectionChanges the displayed language.English*1/Francais /Español
* Not available on all models
15 CR-V-31T0A6300.book 119 ページ ２０１５年２月２日　月曜日　午前１０時３５分

526
Index
Indicators..................................................... 70
Adaptive Cruise Control (ACC) .................. 82
All-Wheel Drive (AWD) System................... 73
Anti-lock Brake System (ABS) ..................... 73
Brake System ............................................. 81
Charging System ............................... 71, 499
Collision Mitigati on Braking System
TM
(CMBSTM) ........................................... 83, 84
CRUISE CONTROL .............................. 79, 372
CRUISE MAIN .................................... 79, 371
Door Open .......................................... 32, 75
ECON Mode ...................................... 78, 370
Electric Power Steering (EPS) System .. 76, 501
Fog Light ................................................... 77
High Beam................................................. 77
Immobilizer System .................................... 78
Lane Departure Warning (LDW) ................. 85
Lane Keeping Assist System (LKAS) ............ 82
Lights On ................................................... 77
Low Fuel .................................................... 72
Low Oil Pressure ................................ 70, 499
Low Tire Pressure/TPMS ..................... 76, 403
Maintenance Minder ......................... 79, 429
Malfunction Indicator Lamp ............... 71, 500
Parking Brake and Brak e System ........ 70, 501
Seat Belt Reminder .............................. 34, 72
Security System Alarm ............................... 78
Shift Lever Position .................................... 71
Smart Entry System .................................... 80
Starter System ........................................... 80
Supplemental Restraint System ............ 51, 73 System Message Indicator ......................... 81
Tailgate Open............................................ 75
Transmission ............................................. 72
Turn Signal ................................................ 77
Vehicle Stability Assist (VSA
®)
System ............................................ 74, 396
VSA ® OFF .......................................... 74, 397
Washer Level ............................................. 79
Information .............................................. 509
Information Button .................................... 96
Information Display ................................... 93
Instant Fuel Economy Gauge ..................... 98
Instrument Panel ........................................ 69
Brightness Control................................... 167
intelligent Multi-Information Display (i-MID) ..................................................... 111
Interior Lights ........................................... 185
Interior Rearview Mirror .......................... 173
Internet Radio .................................. 251, 252
iPod ........................................................... 221
J
Jack (Wheel Nut Wrench) ........................ 488
Jump Starting ........................................... 494
K
Key Number Tag ....................................... 132
Keyless Lockout Prevention ..................... 136Keys
........................................................... 130
Lockout Prevention ................................. 136
Master Keys ............................................ 130
Number Tag............................................ 132
Rear Door Won’t Open ........................... 138
Remote Transmitter ................................ 133
Types and Functions................................ 130
Valet Key ................................................ 131
Won’t Turn ............................................... 24
Kickdown (Continuously Variable Transmission) .......................................... 367
L
Lane Departure Warning (LDW) ............. 386
Lane Keeping Assist System (LKAS) ........ 390
Indicator ................................................... 82
LaneWatch
TM............................................ 398
Language (HFL) ........................................ 285
LATCH (Child Seats) ............................. 59, 63
LDW (Lane Departure Warning) ............. 386
Lights ................................................ 159, 452
Automatic............................................... 160
Bulb Replacement ................................... 452
Daytime Running Lights .......................... 163
Fog Lights ............................................... 162
High Beam Indicator ................................. 77
Interior.................................................... 185
Light Switches......................................... 159
Lights On Indicator .................................... 77
Turn Signals ............................................ 158
15 CR-V-31T0A6300.book 526 ページ ２０１５年２月２日　月曜日　午前１０時３５分
