transmission fluid HONDA CR-V 2015 RM1, RM3, RM4 / 4.G Owners Manual

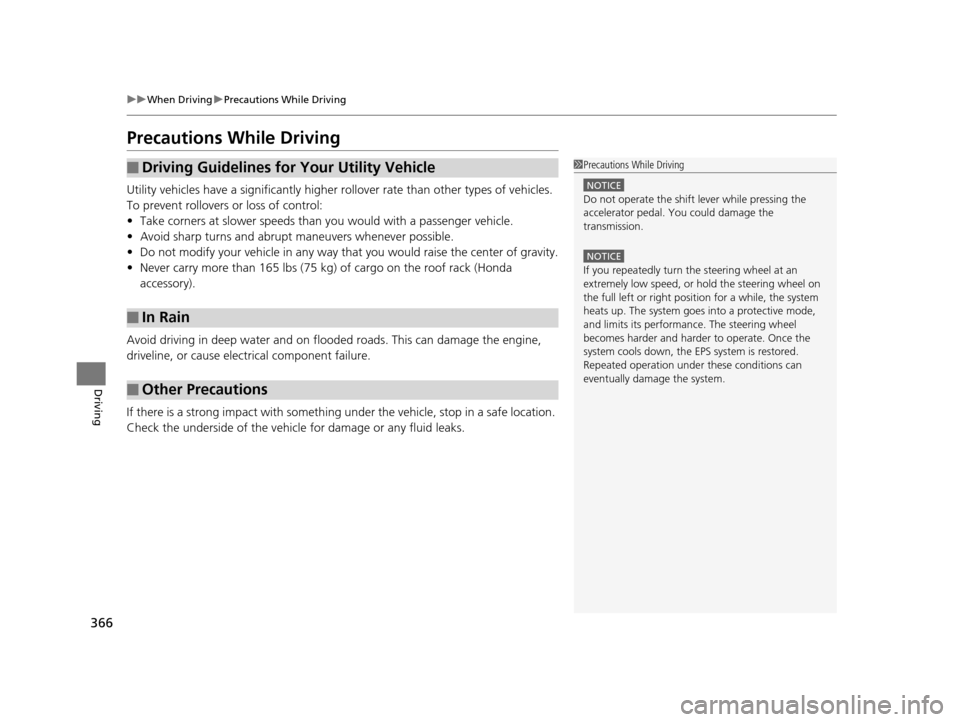

366
uuWhen Driving uPrecautions While Driving
Driving
Precautions While Driving
Utility vehicles have a significantly higher rollover rate than other types of vehicles.
To prevent rollovers or loss of control:
• Take corners at slower speeds than yo u would with a passenger vehicle.
• Avoid sharp turns and abrupt maneuvers whenever possible.
• Do not modify your vehicle in any way that you would raise the center of gravity.
• Never carry more than 165 lbs (75 kg ) of cargo on the roof rack (Honda
accessory).
Avoid driving in deep water and on flooded roads. This can damage the engine,
driveline, or cause elec trical component failure.
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
■Driving Guidelines for Your Utility Vehicle
■In Rain
■Other Precautions
1 Precautions While Driving
NOTICE
Do not operate the shift lever while pressing the
accelerator pedal. You could damage the
transmission.
NOTICE
If you repeatedly turn the steering wheel at an
extremely low speed, or hold the steering wheel on
the full left or right position for a while, the system
heats up. The system goes into a protective mode,
and limits its performa nce. The steering wheel
becomes harder and harder to operate. Once the
system cools down, the EPS system is restored.
Repeated operation under these conditions can
eventually damage the system.
15 CR-V-31T0A6300.book 366 ページ ２０１５年２月２日　月曜日　午前１０時３５分

425
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 426
Safety When Performing Maintenance...427Parts and Fluids Used in Maintenance Service ........................................... 428
Maintenance Minder
TM..................... 429
Maintenance Under the Hood Maintenance Items Under the Hood .. 440
Opening the Hood ........................... 441
Recommended Engine Oil ................ 442
Oil Check ......................................... 443
Adding Engine Oil ............................ 444
Changing the Engine Oil and Oil Filter ...445
Engine Coolant ................................ 447
Transmission Fluid ............................ 449
Brake Fluid ....................................... 450
Refilling Window Washer Fluid......... 451
Replacing Light Bulbs ....................... 452
Checking and Maintaining Wiper Blades... 461Checking and Maintaining Tires
Checking Tires ................................. 465
Tire and Loading Information Label ...... 466Tire Labeling .................................... 466DOT Tire Quality Grading (U.S. Vehicles).. 468Wear Indicators................................ 470
Tire Service Life ................................ 470 Tire and Wheel Replacement ........... 471
Tire Rotation .................................... 472
Winter Tires ..................................... 473
Battery ............................................... 474
Remote Transmitter Care Replacing the Button Battery ........... 475
Heating and Cooling System
*/Climate
Control System* Maintenance ....... 477
Cleaning
Interior Care .................................... 478
Exterior Care.................................... 480
* Not available on all models
15 CR-V-31T0A6300.book 425 ページ ２０１５年２月２日　月曜日　午前１０時３５分

435
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the transmission
fluid changed every 25,000 miles (40,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*
* Not available on all models
15 CR-V-31T0A6300.book 435 ページ ２０１５年２月２日　月曜日　午前１０時３５分

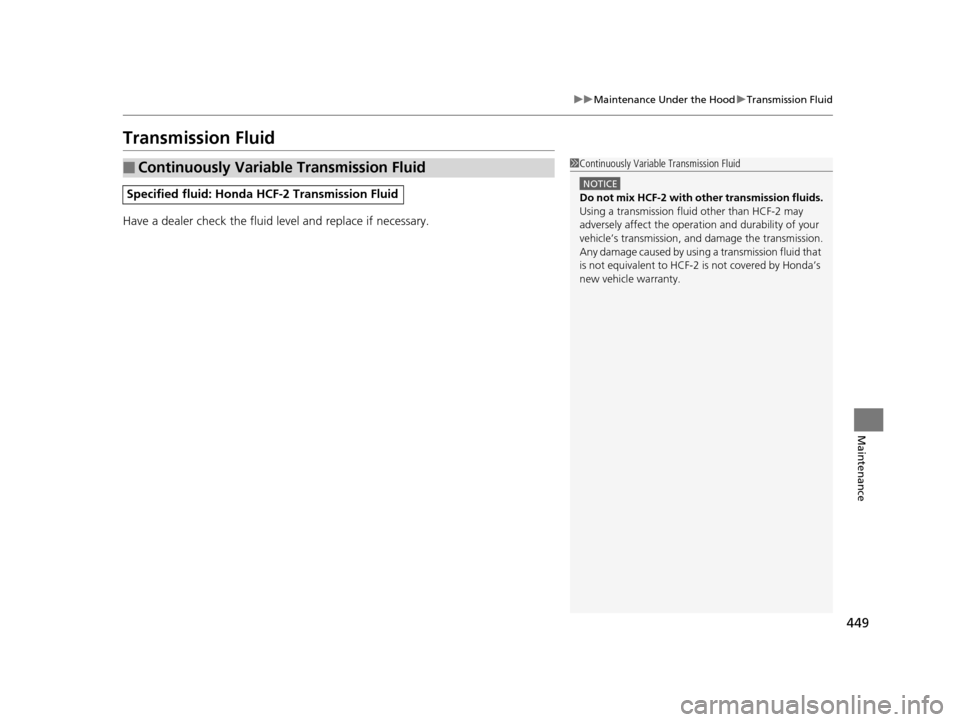

449
uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
■Continuously Variable Transmission Fluid
Specified fluid: Honda HC F-2 Transmission Fluid
1Continuously Variable Transmission Fluid
NOTICE
Do not mix HCF-2 with other transmission fluids.
Using a transmission fluid other than HCF-2 may
adversely affect the operati on and durability of your
vehicle’s transmission, and damage the transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to HCF-2 is not covered by Honda’s
new vehicl e warranty.
15 CR-V-31T0A6300.book 449 ページ ２０１５年２月２日　月曜日　午前１０時３５分

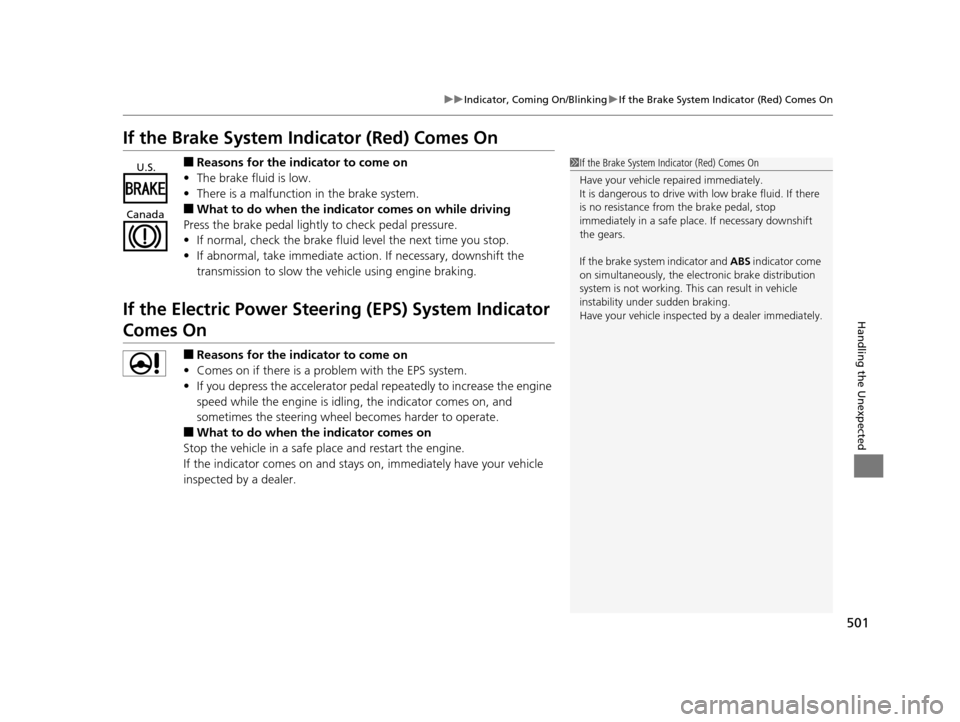

501
uuIndicator, Comin g On/BlinkinguIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indica tor comes on while driving
Press the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on if there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when th e indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
15 CR-V-31T0A6300.book 501 ページ ２０１５年２月２日　月曜日　午前１０時３５分

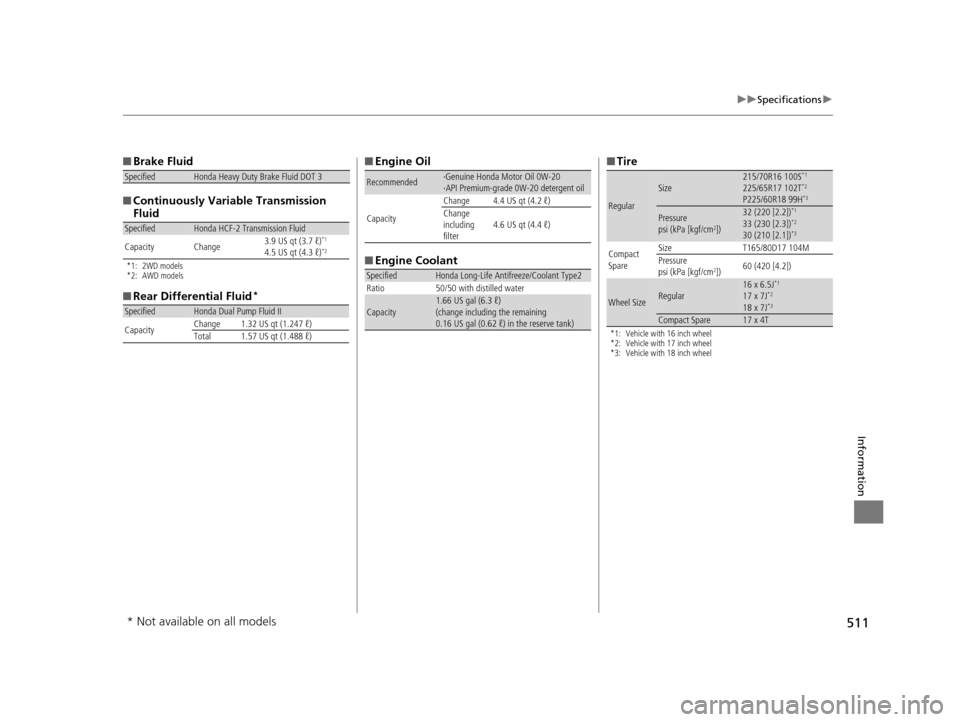

511
uuSpecifications u
Information
■Brake Fluid
■ Continuously Variable Transmission
Fluid
*1: 2WD models
*2: AWD models
■Rear Differential Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2 Transmission Fluid
Capacity Change 3.9 US qt (3.7 ℓ)*1
4.5 US qt (4.3 ℓ)*2
SpecifiedHonda Dual Pump Fluid II
Capacity Change 1.32 US qt (1.247 ℓ)
Total 1.57 US qt (1.488 ℓ)
■
Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.4 US qt (4.2 ℓ)
Change
including
filter
4.6 US qt (4.4 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.66 US gal (6.3 ℓ)
(change including the remaining
0.16 US gal (0.62 ℓ) in the reserve tank)
■ Tire
*1: Vehicle with 16 inch wheel
*2: Vehicle with 17 inch wheel
*3: Vehicle with 18 inch wheel
Regular
Size215/70R16 100S*1
225/65R17 102T*2
P225/60R18 99H*3
Pressure
psi (kPa [kgf/cm2])
32 (220 [2.2])*1
33 (230 [2.3])*2
30 (210 [2.1])*3
Compact
Spare Size
T165/80D17 104M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular16 x 6.5J*1
17 x 7J*2
18 x 7J*3
Compact Spare17 x 4T
* Not available on all models
15 CR-V-31T0A6300.book 511 ページ ２０１５年２月２日　月曜日　午前１０時３５分

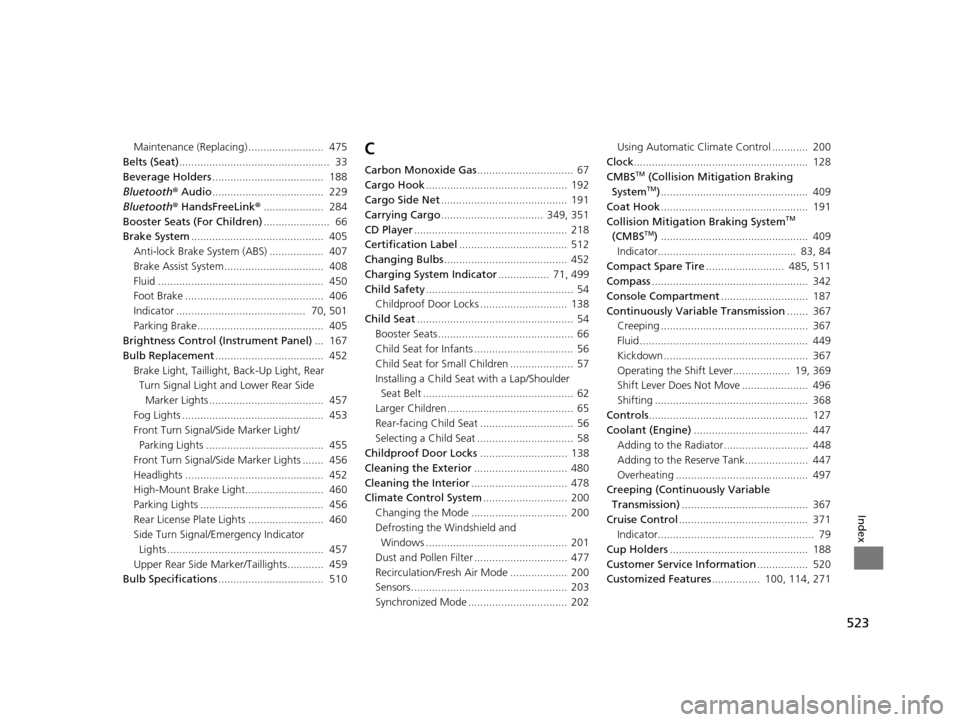

523
Index
Maintenance (Replacing) ......................... 475
Belts (Seat) .................................................. 33
Beverage Holders ..................................... 188
Bluetooth ® Audio ..................................... 229
Bluetooth ® HandsFreeLink ®.................... 284
Booster Seats (For Children) ...................... 66
Brake System ............................................ 405
Anti-lock Brake System (ABS) .................. 407
Brake Assist System................................. 408
Fluid ....................................................... 450
Foot Brake .............................................. 406
Indicator ........................................... 70, 501
Parking Brake.......................................... 405
Brightness Control (Instrument Panel) ... 167
Bulb Replacement .................................... 452
Brake Light, Taillight, Back-Up Light, Rear
Turn Signal Light and Lower Rear Side
Marker Lights ...................................... 457
Fog Lights ............................................... 453
Front Turn Signal/Si de Marker Light/
Parking Lights ....................................... 455
Front Turn Signal/Side Marker Lights ....... 456
Headlights .............................................. 452
High-Mount Brake Light.......................... 460
Parking Lights ......................................... 456
Rear License Plate Lights ......................... 460
Side Turn Signal/Emergency Indicator Lights .................................................... 457
Upper Rear Side Mar ker/Taillights............ 459
Bulb Specifications ................................... 510C
Carbon Monoxide Gas ................................ 67
Cargo Hook ............................................... 192
Cargo Side Net .......................................... 191
Carrying Cargo .................................. 349, 351
CD Player ................................................... 218
Certification Label .................................... 512
Changing Bulbs ......................................... 452
Charging System Indicator ................. 71, 499
Child Safety ................................................. 54
Childproof Door Locks ............................. 138
Child Seat .................................................... 54
Booster Seats ............................................. 66
Child Seat for Infants ................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 62
Larger Children .......................................... 65
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Childproof Door Locks ............................. 138
Cleaning the Exterior ............................... 480
Cleaning the Interior ................................ 478
Climate Control System ............................ 200
Changing the Mode ................................ 200
Defrosting the Windshield and Windows ............................................... 201
Dust and Pollen Filter ............................... 477
Recirculation/Fresh Air Mode ................... 200
Sensors .................................................... 203
Synchronized Mode ................................. 202 Using Automatic Climate Control ............ 200
Clock .......................................................... 128
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 409
Coat Hook ................................................. 191
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 409
Indicator.............................................. 83, 84
Compact Spare Tire .......................... 485, 511
Compass .................................................... 342
Console Compartment ............................. 187
Continuously Variable Transmission ....... 367
Creeping ................................................. 367
Fluid ........................................................ 449
Kickdown ................................................ 367
Operating the Shift Lever................... 19, 369
Shift Lever Does Not Move ...................... 496
Shifting ................................................... 368
Controls ..................................................... 127
Coolant (Engine) ...................................... 447
Adding to the Radiator ............................ 448
Adding to the Reserve Tank..................... 447
Overheating ............................................ 497
Creeping (Continuously Variable Transmission) .......................................... 367
Cruise Control ........................................... 371
Indicator.................................................... 79
Cup Holders .............................................. 188
Customer Service Information ................. 520
Customized Features ................ 100, 114, 271
15 CR-V-31T0A6300.book 523 ページ ２０１５年２月２日　月曜日　午前１０時３５分

524
Index
D
Daytime Running Lights........................... 163
Dead Battery ............................................. 494
Defrosting the Windshield and Windows .......................................... 199, 201
Detachable Anchor ..................................... 38
Devices that Emit Radio Waves ................ 513
Dimming
Headlights ............................................... 159
Rearview Mirror ....................................... 173
Dipstick (Engine Oil) ................................. 443
Directional Signals (Turn Signals) ............ 158
Display Button .......................................... 111
Display Setup ............................................ 238
Door Mirrors ............................................. 174
Doors ......................................................... 130
Auto Door Locking .................................. 139
Auto Door Unlocking ............................... 139
Door Open Indicator .................................. 32
Keys ........................................................ 130
Locking/Unlocking the Doors from the Inside ..................................................... 137
Locking/Unlocking the Doors from the Outside .................................................. 133
Lockout Prevention System ...................... 136
DOT Tire Quality Grading ........................ 468
Driver’s Seat Lumbar Support .................. 175
Driving ....................................................... 347
Adaptive Cruise Control (ACC) ................ 375
Braking .................................................... 405
Continuously Variable Transmission ......... 367 Cruise Control ......................................... 371
Off-Highway Driving Guidelines............... 358
Shifting Gear ........................................... 368
Starting the Engine.......................... 360, 362
Driving Position Memory System ............ 170
Dust and Pollen Filter ............................... 477
E
Eco Assist System.......................................... 9
ECON Button ............................................ 370
Elapsed Time ............................................. 112
Electric Power Steering (EPS) System
Indicator............................................ 76, 501
Electronic Stability Control (ESC) ............. 396
Emergency ................................................ 506
Emissions Testing (Readiness Codes) ....... 515
Engine ....................................................... 512
Coolant ................................................... 447
Jump Starting .......................................... 494
Oil ........................................................... 442
Starting ........................................... 360, 362
Switch Buzzer.................................. 153, 156
Engine Coolant ......................................... 447
Adding to the Radiator ............................ 448
Adding to the Reserve Tank..................... 447
Overheating ............................................ 497
Temperature Gauge .................................. 92
Engine Oil ................................................. 442
Adding .................................................... 444
Checking................................................. 443 Displaying Oil Life ................................... 429
Low Oil Pressure Indicator ................. 70, 499
Recommended Engine Oil ....................... 442
ENGINE START/STOP Button .................... 154
EPS (Electric Power Steering)
System ............................................... 76, 501
Exhaust Gas Hazard (Carbon Monoxide) ................................................ 67
Exterior Care (Cleaning) .......................... 480
Exterior Mirrors ........................................ 174
F
Features.................................................... 205
Filters Dust and Pollen....................................... 477
Oil .......................................................... 445
Flat Tire ..................................................... 485
Floor Mats ................................................ 479
Fluids Brake ...................................................... 450
Continuously Variable Transmission ........ 449
Engine Coolant ....................................... 447
Windshield Washer ................................. 451
Fog Light Indicator .................................... 77
Folding Down the Rear Seats .................. 182
Foot Brake ................................................ 406
Front Airbags (SRS) .................................... 44
Front Seats ................................................ 175
Adjusting ................................................ 175
Front Sensor Camera ............................... 374
15 CR-V-31T0A6300.book 524 ページ ２０１５年２月２日　月曜日　午前１０時３５分

527
Index
Load Limits............................................... 351
Locking/Unlocking ................................... 130
Auto Door Locking/Unlocking ................. 139
Childproof Door Locks ............................ 138
From Inside ............................................. 137
From Outside .......................................... 133
Keys........................................................ 130
Using a Key............................................. 136
Lockout Prevention System ..................... 136
Low Battery Charge ................................. 499
Low Fuel Indicator ..................................... 72
Low Oil Pressure Indicator ................. 70, 499
Low Smart Entry Remote Signal Strength .................................................. 132
Lower Anchors ..................................... 59, 63
Luggage (Maximum Load Limit) ............. 351
M
Maintenance............................................ 425
Battery .................................................... 474
Brake Fluid .............................................. 450
Cleaning ................................................. 478
Climate Control System .......................... 477
Coolant .................................................. 447
Heating and Cooling System ................... 477
Maintenance Minder
TM............................ 429
Oil .......................................................... 443
Precautions ............................................. 426
Radiator .................................................. 448
Remote Transmitter ................................ 475 Replacing Light Bulbs ............................... 452
Safety ...................................................... 427
Service Items ........................................... 434
Tires ........................................................ 465
Transmission Fluid ................................... 449
Under the Hood ...................................... 440
Malfunction Indicator Lamp .............. 71, 500
Map Lights ................................................ 186
Maximum Load Limit ............................... 351
Meters, Gauges ........................................... 92
Mirrors ....................................................... 173
Adjusting ................................................. 173
Door ........................................................ 174
Exterior .................................................... 174
Interior Rearview ..................................... 173
Modifications (and Accessories) .............. 424
Moonroof .................................................. 152
MP3 ........................................... 218, 226, 253
Multi-Information Display ......................... 96
Multi-View Rear Camera .......................... 417
N
Numbers (Identification).......................... 512
O
Odometer.............................................. 93, 97
Off-Highway Driving Guidelines ............. 358
Oil (Engine) ............................................... 442
Adding .................................................... 444 Checking................................................. 443
Displaying Oil Life .................................... 429
Low Oil Pressure Indicator ................. 70, 499
Recommended Engine Oil ....................... 442
Viscosity .................................................. 442
Opening/Closing Hood....................................................... 441
Moonroof ............................................... 152
Power Windows ...................................... 150
Tailgate ................................................... 140
Outside Temperature ........................... 95, 98
Adjusting ............................................ 95, 98
Overheating .............................................. 497
P
Pandora®........................................... 224, 252
Panic Mode ............................................... 149
Parking ...................................................... 416
Parking Brake ........................................... 405
Parking Brake and Brake System
Indicator ............................................ 70, 501
Passenger Airbag Off Indicator ................. 52
Passing Indicators ..................................... 159
Playing Bluetooth ® Audio ........................ 256
Power Tailgate ......................................... 143
Power Windows ....................................... 150
Precautions While Driving ....................... 366
Driving Guidelines for Your Utility Vehicle .................................................. 366
Rain ........................................................ 366
15 CR-V-31T0A6300.book 527 ページ ２０１５年２月２日　月曜日　午前１０時３５分

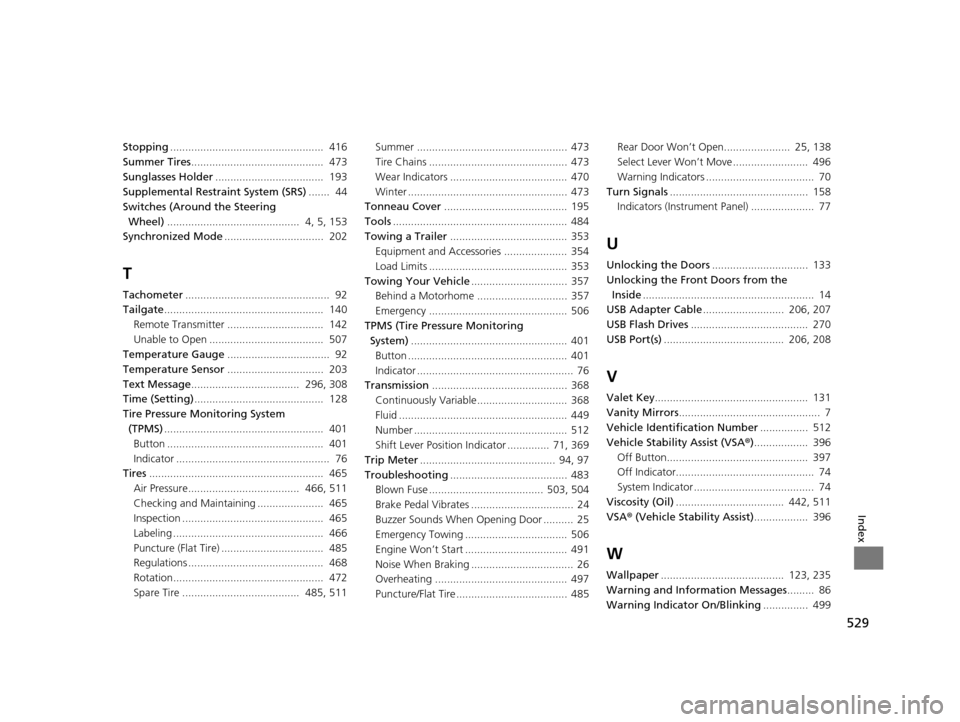

529
Index
Stopping................................................... 416
Summer Tires ............................................ 473
Sunglasses Holder .................................... 193
Supplemental Restraint System (SRS) ....... 44
Switches (Around the Steering
Wheel) ............................................ 4, 5, 153
Synchronized Mode ................................. 202
T
Tachometer................................................ 92
Tailgate ..................................................... 140
Remote Transmitter ................................ 142
Unable to Open ...................................... 507
Temperature Gauge .................................. 92
Temperature Sensor ................................ 203
Text Message .................................... 296, 308
Time (Setting) ........................................... 128
Tire Pressure Monitoring System (TPMS) ..................................................... 401
Button .................................................... 401
Indicator ................................................... 76
Tires .......................................................... 465
Air Pressure..................................... 466, 511
Checking and Maintaining ...................... 465
Inspection ............................................... 465
Labeling .................................................. 466
Puncture (Flat Tire) .................................. 485
Regulations ............................................. 468
Rotation.................................................. 472
Spare Tire ....................................... 485, 511 Summer .................................................. 473
Tire Chains .............................................. 473
Wear Indicators ....................................... 470
Winter ..................................................... 473
Tonneau Cover ......................................... 195
Tools .......................................................... 484
Towing a Trailer ....................................... 353
Equipment and Accessories ..................... 354
Load Limits .............................................. 353
Towing Your Vehicle ................................ 357
Behind a Motorhome .............................. 357
Emergency .............................................. 506
TPMS (Tire Pressure Monitoring System) .................................................... 401
Button ..................................................... 401
Indicator .................................................... 76
Transmission ............................................. 368
Continuously Variable .............................. 368
Fluid ........................................................ 449
Number ................................................... 512
Shift Lever Position Indicator .............. 71, 369
Trip Meter ............................................. 94, 97
Troubleshooting ....................................... 483
Blown Fuse ...................................... 503, 504
Brake Pedal Vibrates .................................. 24
Buzzer Sounds When Opening Door .......... 25
Emergency Towing .................................. 506
Engine Won’t Start .................................. 491
Noise When Braking .................................. 26
Overheating ............................................ 497
Puncture/Flat Tire ..................................... 485 Rear Door Won’t Open...................... 25, 138
Select Lever Won’t Move ......................... 496
Warning Indicators .................................... 70
Turn Signals .............................................. 158
Indicators (Instrument Panel) ..................... 77
U
Unlocking the Doors ................................ 133
Unlocking the Fron t Doors from the
Inside ......................................................... 14
USB Adapter Cable ........................... 206, 207
USB Flash Drives ....................................... 270
USB Port(s) ........................................ 206, 208
V
Valet Key................................................... 131
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 512
Vehicle Stability Assist (VSA ®).................. 396
Off Button............................................... 397
Off Indicator.............................................. 74
System Indicator ........................................ 74
Viscosity (Oil) .................................... 442, 511
VSA ® (Vehicle Stability Assist) .................. 396
W
Wallpaper......................................... 123, 235
Warning and Info rmation Messages ......... 86
Warning Indicator On/Blinking ............... 499
15 CR-V-31T0A6300.book 529 ページ ２０１５年２月２日　月曜日　午前１０時３５分
