uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 503 to 504.
Use the charts to locate the fuse in question and
conform the specific amperage on the fuse label. 2 Fuse Locations P. 503
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
15 CR-V-31T0A6300.book 505 ページ ２０１５年２月２日　月曜日　午前１０時３５分

509
Information

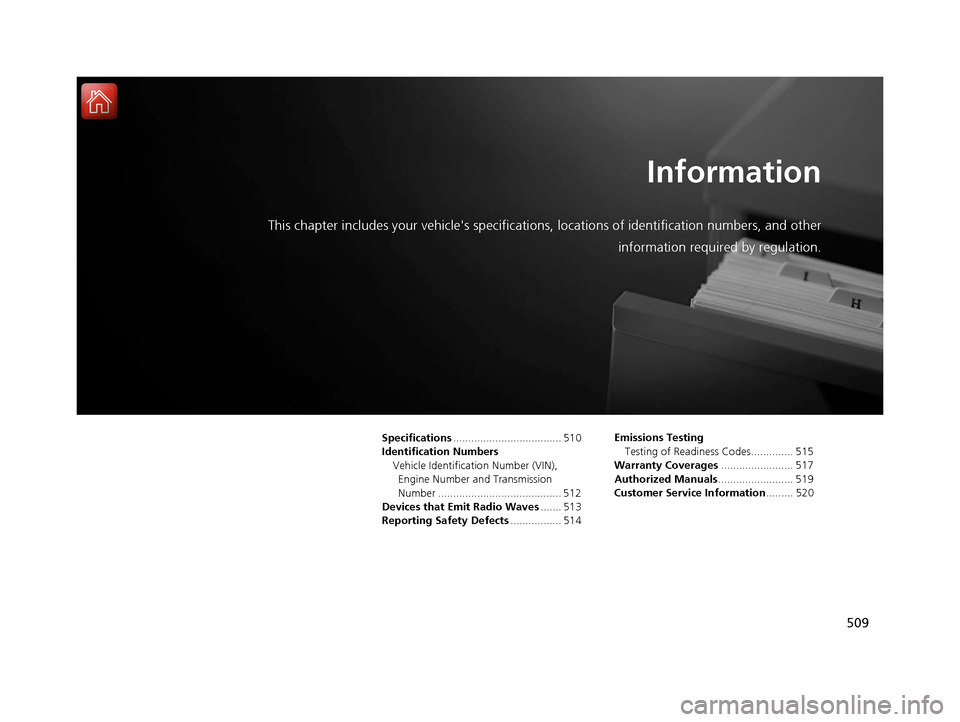

This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 510
Identification Numbers Vehicle Identification Number (VIN), Engine Number and Transmission
Number ......................................... 512
Devices that Emit Radio Waves ....... 513
Reporting Safety Defects ................. 514Emissions Testing
Testing of Readiness Codes.............. 515
Warranty Coverages ........................ 517
Authorized Manuals ......................... 519
Customer Service Information ......... 520
15 CR-V-31T0A6300.book 509 ページ ２０１５年２月２日　月曜日　午前１０時３５分

510
Information
Specifications

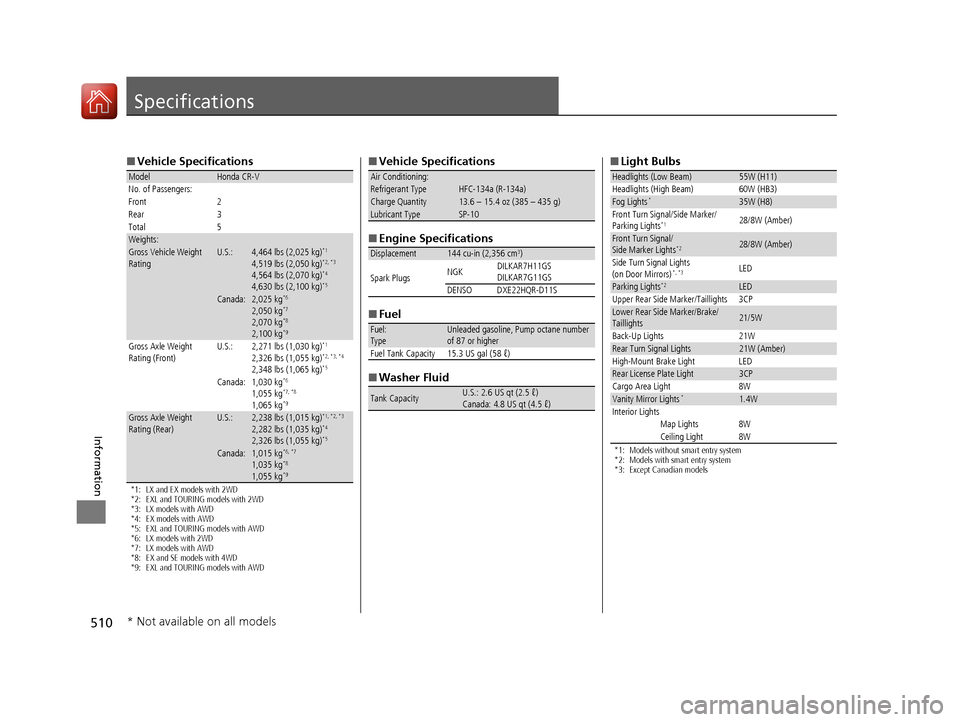

■Vehicle Specifications
*1: LX and EX models with 2WD
*2: EXL and TOURING models with 2WD
*3: LX models with AWD
*4: EX models with AWD
*5: EXL and TOURING models with AWD
*6: LX models with 2WD
*7: LX models with AWD
*8: EX and SE models with 4WD
*9: EXL and TOURING models with AWD
ModelHonda CR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.:4,464 lbs (2,025 kg)*1
4,519 lbs (2,050 kg)*2, *3
4,564 lbs (2,070 kg)*4
4,630 lbs (2,100 kg)*5
Canada:2,025 kg*6
2,050 kg*7
2,070 kg*8
2,100 kg*9
Gross Axle Weight
Rating (Front)U.S.:2,271 lbs (1,030 kg)*1
2,326 lbs (1,055 kg)*2, *3, *4
2,348 lbs (1,065 kg)*5
Canada:1,030 kg*6
1,055 kg*7, *8
1,065 kg*9
Gross Axle Weight
Rating (Rear)U.S.:2,238 lbs (1,015 kg)*1, *2, *3
2,282 lbs (1,035 kg)*4
2,326 lbs (1,055 kg)*5
Canada:1,015 kg*6, *7
1,035 kg*8
1,055 kg*9
■ Vehicle Specifications
■ Engine Specifications
■ Fuel
■ Washer Fluid
Air Conditioning:Refrigerant Type HFC-134a (R-134a)Charge Quantity13.6 – 15.4 oz (385 – 435 g)Lubricant TypeSP-10
Displacement144 cu-in (2,356 cm3)
Spark Plugs NGK
DILKAR7H11GS
DILKAR7G11GS
DENSO DXE22HQR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 15.3 US gal (58 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
*1: Models without smart entry system
*2: Models with smart entry system
*3: Except Canadian models
Headlights (Low Beam)55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights*35W (H8)
Front Turn Signal/Side Marker/
Parking Lights
*128/8W (Amber)
Front Turn Signal/
Side Marker Lights*228/8W (Amber)
Side Turn Signal Lights
(on Door Mirrors)
*, *3LED
Parking Lights*2LED
Upper Rear Side Marker/Taillights 3CP
Lower Rear Side Marker/Brake/
Taillights21/5W
Back-Up Lights 21W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Rear License Plate Light3CP
Cargo Area Light 8W
Vanity Mirror Lights*1.4W
Interior Lights Map Lights 8W
Ceiling Light 8W
* Not available on all models
15 CR-V-31T0A6300.book 510 ページ ２０１５年２月２日　月曜日　午前１０時３５分

511
uuSpecifications u
Information

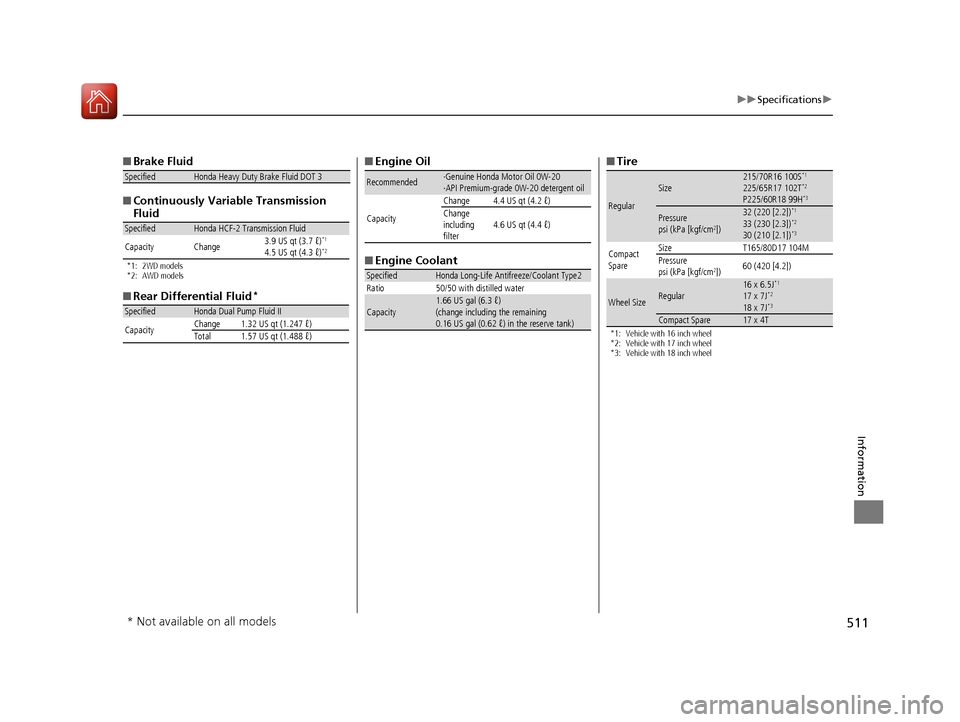

■Brake Fluid
■ Continuously Variable Transmission
Fluid
*1: 2WD models
*2: AWD models
■Rear Differential Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2 Transmission Fluid
Capacity Change 3.9 US qt (3.7 ℓ)*1
4.5 US qt (4.3 ℓ)*2
SpecifiedHonda Dual Pump Fluid II
Capacity Change 1.32 US qt (1.247 ℓ)
Total 1.57 US qt (1.488 ℓ)
■
Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.4 US qt (4.2 ℓ)
Change
including
filter
4.6 US qt (4.4 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.66 US gal (6.3 ℓ)
(change including the remaining
0.16 US gal (0.62 ℓ) in the reserve tank)
■ Tire
*1: Vehicle with 16 inch wheel
*2: Vehicle with 17 inch wheel
*3: Vehicle with 18 inch wheel
Regular
Size215/70R16 100S*1
225/65R17 102T*2
P225/60R18 99H*3
Pressure
psi (kPa [kgf/cm2])
32 (220 [2.2])*1
33 (230 [2.3])*2
30 (210 [2.1])*3
Compact
Spare Size
T165/80D17 104M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular16 x 6.5J*1
17 x 7J*2
18 x 7J*3
Compact Spare17 x 4T
* Not available on all models
15 CR-V-31T0A6300.book 511 ページ ２０１５年２月２日　月曜日　午前１０時３５分

512
Information

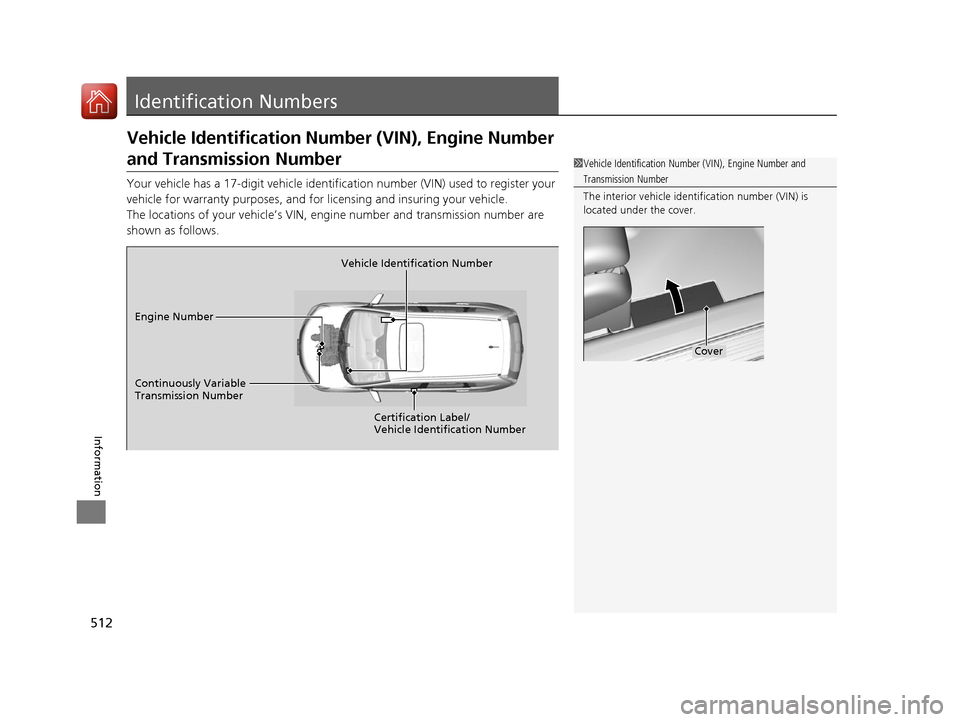

Identification Numbers
Vehicle Identification Number (VIN), Engine Number
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number and transmission number are
shown as follows.
1 Vehicle Identification Number (VIN), Engine Number and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification Number
Continuously Variable
Transmission Number
15 CR-V-31T0A6300.book 512 ページ ２０１５年２月２日　月曜日　午前１０時３５分

515Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has “Readiness Codes,” as part of the onboard self diagnostic system.
Some States use these codes as a test to see if your vehicle's emissions components
are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the fuel tank to approximately 3/4 full.
2. Park the vehicle and leave the engi ne off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
15 CR-V-31T0A6300.book 515 ページ ２０１５年２月２日　月曜日　午前１０時３５分

516
uuEmissions Testing uTesting of Readiness Codes
Information

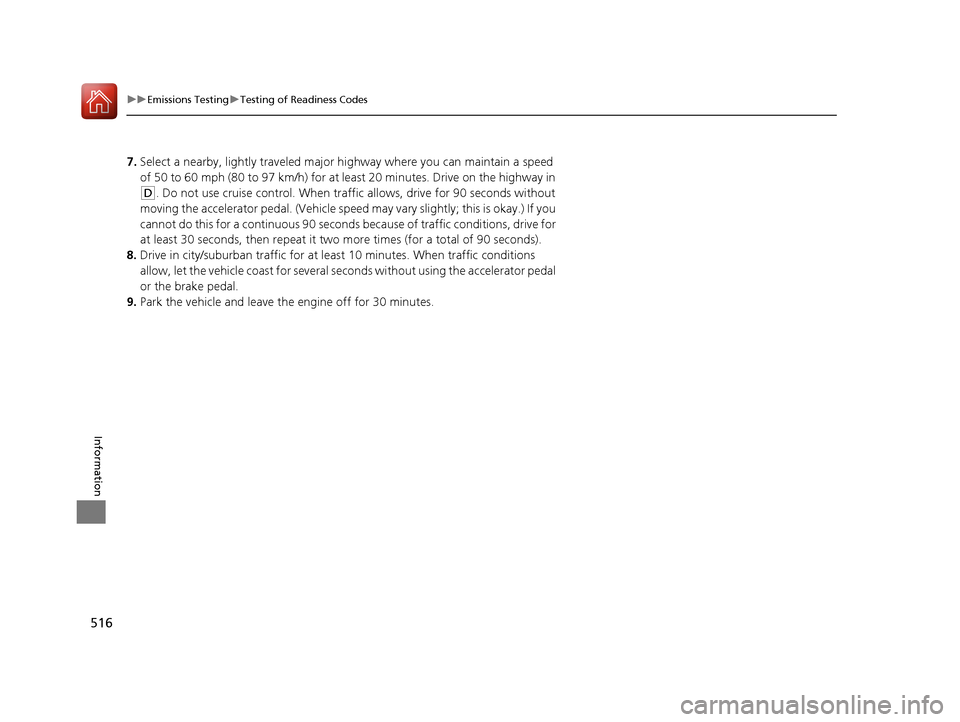

7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When tra ffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle spee d may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two mo re times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at l east 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
15 CR-V-31T0A6300.book 516 ページ ２０１５年２月２日　月曜日　午前１０時３５分

520
Information

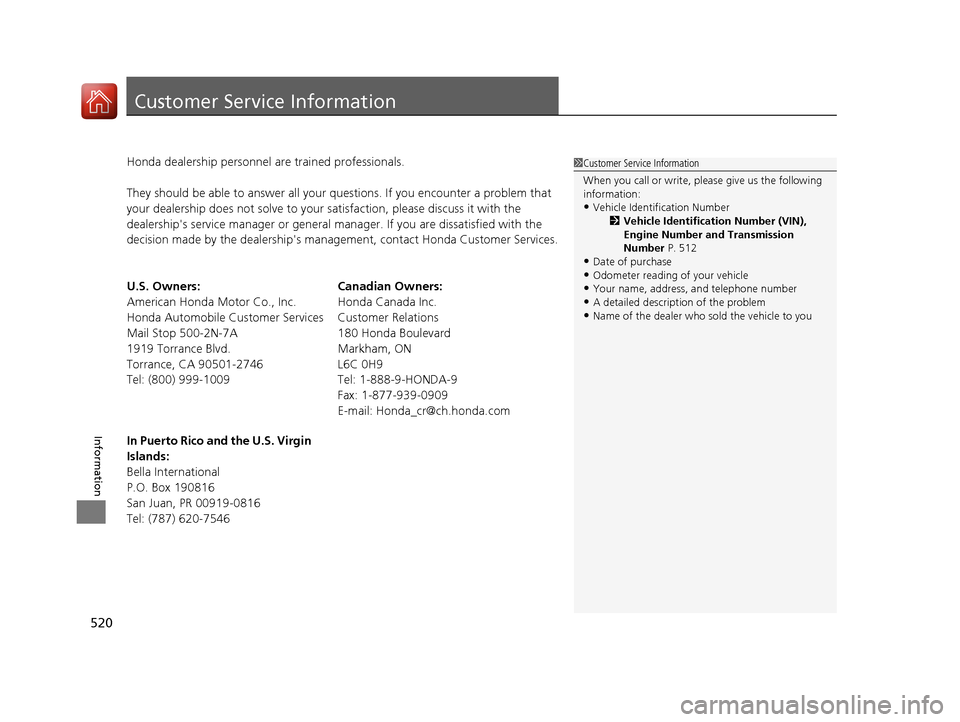

Customer Service Information
Honda dealership personnel are trained professionals.
They should be able to answer all your questions. If you encounter a problem that
your dealership does not solve to your satisfaction, please discuss it with the
dealership's service manager or general manager. If you are dissatisfied with the
decision made by the dealership's mana gement, contact Honda Customer Services.
U.S. Owners:
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 500-2N-7A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: (800) 999-1009 Canadian Owners:
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands:
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-75461 Customer Service Information
When you call or write, pl ease give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number and Transmission
Number P. 512
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
15 CR-V-31T0A6300.book 520 ページ ２０１５年２月２日　月曜日　午前１０時３５分

Index
522
Index
Index
Numbers
4WD........................................................... 400
A
ABS (Anti-lock Brake System) ................... 407
Accessories and Modifications ................. 424
Accessory Power Sockets .......................... 189
Adaptive Cruise Control (ACC) ................. 375
Indicator .................................................... 82
Additives Coolant ................................................... 447
Engine Oil ................................................ 442
Washer .................................................... 451
Additives, Engine Oil ................................ 442
Adjusting
Armrest ................................................... 184
Front Seats .............................................. 175
Head Restraints........................................ 178
Mirrors .................................................... 173
Rear Seat Back ......................................... 183
Rear Seats................................................ 182
Steering Wheel ........................................ 172
Adjusting the Sound ................................. 237
Air Conditioning System (Climate Control System) .................................................... 200
Changing the Mode ................................ 200
Defrosting the Windshield and Windows ............................................... 201
Dust and Pollen Filter ............................... 477
Recirculation/Fresh Air Mode ................... 200 Sensors ................................................... 203
Synchronized Mode................................. 202
Using Automatic Climate Control ............ 200
Air Conditioning System (Heating and Cooling System) ...................................... 197
Cooling ................................................... 199
Defrosting the Windshield and Windows ............................................... 199
Dust and Pollen Filter............................... 477
Heating ................................................... 198
Air Pressure ....................................... 466, 511
Airbags ........................................................ 41
Advanced Airbags ..................................... 47
Airbag Care............................................... 53
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 44
Indicator.............................................. 51, 73
Passenger Airbag Off Indicator .................. 52
Sensors ..................................................... 41
Side Airbags .............................................. 48
Side Curtain Airbags.................................. 50
All-Wheel Drive (AWD) ............................ 400
AM/FM Radio ............................................ 215
Anti-lock Brake System (ABS) .................. 407
Indicator.................................................... 73
Armrest ..................................................... 184
Audio Antenna ......................................... 209
Audio System ............................................ 206
Adjusting the Sound................................ 214
Auxiliary Input Jack.................................. 207
Error Messages ........................................ 262 General Information................................ 267
Internet Radio ......................................... 224
iPhone .................................................... 270
iPod ........................................................ 221
MP3/WMA/AAC ..................... 218, 226, 253
Pandora
®................................................ 224
Reactivating ............................................ 210
Recommended CDs ................................ 268
Recommended Devices ........................... 270
Security Code ......................................... 210
Theft Protection ...................................... 210
USB Adapter Cable ................................. 207
USB Flash Drives...................................... 270
USB Port(s) .............................................. 208
Audio/Information Screen ....................... 233
Authorized Manuals ................................ 519
Auto Door Locking/Unlocking ................ 139
Customize .............................................. 122
Automatic Intermittent Wipers .............. 165
Automatic Lighting .................................. 160
Auxiliary Input Jack ................................. 207
Average Fuel Economy ...................... 94, 112
Average Speed ......................................... 112
AWD (All-Wheel Drive) ............................ 400
B
Battery...................................................... 474
Charging System Indicator ................ 71, 499
Jump Starting ......................................... 494
Maintenance (Checking the Battery) ....... 474
15 CR-V-31T0A6300.book 522 ページ ２０１５年２月２日　月曜日　午前１０時３５分

523
Index
Maintenance (Replacing) ......................... 475
Belts (Seat) .................................................. 33
Beverage Holders ..................................... 188
Bluetooth ® Audio ..................................... 229
Bluetooth ® HandsFreeLink ®.................... 284
Booster Seats (For Children) ...................... 66
Brake System ............................................ 405
Anti-lock Brake System (ABS) .................. 407
Brake Assist System................................. 408
Fluid ....................................................... 450
Foot Brake .............................................. 406
Indicator ........................................... 70, 501
Parking Brake.......................................... 405
Brightness Control (Instrument Panel) ... 167
Bulb Replacement .................................... 452
Brake Light, Taillight, Back-Up Light, Rear
Turn Signal Light and Lower Rear Side
Marker Lights ...................................... 457
Fog Lights ............................................... 453
Front Turn Signal/Si de Marker Light/
Parking Lights ....................................... 455
Front Turn Signal/Side Marker Lights ....... 456
Headlights .............................................. 452
High-Mount Brake Light.......................... 460
Parking Lights ......................................... 456
Rear License Plate Lights ......................... 460
Side Turn Signal/Emergency Indicator Lights .................................................... 457
Upper Rear Side Mar ker/Taillights............ 459
Bulb Specifications ................................... 510C
Carbon Monoxide Gas ................................ 67
Cargo Hook ............................................... 192
Cargo Side Net .......................................... 191
Carrying Cargo .................................. 349, 351
CD Player ................................................... 218
Certification Label .................................... 512
Changing Bulbs ......................................... 452
Charging System Indicator ................. 71, 499
Child Safety ................................................. 54
Childproof Door Locks ............................. 138
Child Seat .................................................... 54
Booster Seats ............................................. 66
Child Seat for Infants ................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 62
Larger Children .......................................... 65
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Childproof Door Locks ............................. 138
Cleaning the Exterior ............................... 480
Cleaning the Interior ................................ 478
Climate Control System ............................ 200
Changing the Mode ................................ 200
Defrosting the Windshield and Windows ............................................... 201
Dust and Pollen Filter ............................... 477
Recirculation/Fresh Air Mode ................... 200
Sensors .................................................... 203
Synchronized Mode ................................. 202 Using Automatic Climate Control ............ 200
Clock .......................................................... 128
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 409
Coat Hook ................................................. 191
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 409
Indicator.............................................. 83, 84
Compact Spare Tire .......................... 485, 511
Compass .................................................... 342
Console Compartment ............................. 187
Continuously Variable Transmission ....... 367
Creeping ................................................. 367
Fluid ........................................................ 449
Kickdown ................................................ 367
Operating the Shift Lever................... 19, 369
Shift Lever Does Not Move ...................... 496
Shifting ................................................... 368
Controls ..................................................... 127
Coolant (Engine) ...................................... 447
Adding to the Radiator ............................ 448
Adding to the Reserve Tank..................... 447
Overheating ............................................ 497
Creeping (Continuously Variable Transmission) .......................................... 367
Cruise Control ........................................... 371
Indicator.................................................... 79
Cup Holders .............................................. 188
Customer Service Information ................. 520
Customized Features ................ 100, 114, 271
15 CR-V-31T0A6300.book 523 ページ ２０１５年２月２日　月曜日　午前１０時３５分
