engine HONDA CR-V 2016 RM1, RM3, RM4 / 4.G Owners Manual

435
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the transmission
fluid changed every 25,000 miles (40,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*
* Not available on all models
15 CR-V-31T0A6300.book 435 ページ ２０１５年２月２日　月曜日　午前１０時３５分

uuMaintenance MinderTMuTo Use Maintenance MinderTM
436
Maintenance
Reset the engine oil life display if you have performed the maintenance service.
1. Turn the ignition switch to ON
(w*1.
2. Display the engine oil life by repeatedly
pressing the (Select/Reset) knob.
3. Press and hold the knob for 10 seconds
or more.
u The engine oil life indicator and the
maintenance item codes blink.
4. Press the knob for five seconds or more.
u The displayed maintenance items
disappear, and the engine oil life display
returns to 100%.
■Resetting the Display1Resetting the Display
NOTICE
Failure to reset the engine oil life after a maintenance
service results in the sy stem showing incorrect
maintenance intervals, which can lead to serious
mechanical problems.
The dealer will reset the en gine oil life display after
completing the required ma intenance service. If
someone other than a deal er performs maintenance
service, reset the engine oil life display yourself.Models with information display
15 CR-V-31T0A6300.book 436 ページ ２０１５年２月２日　月曜日　午前１０時３５分

437
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance

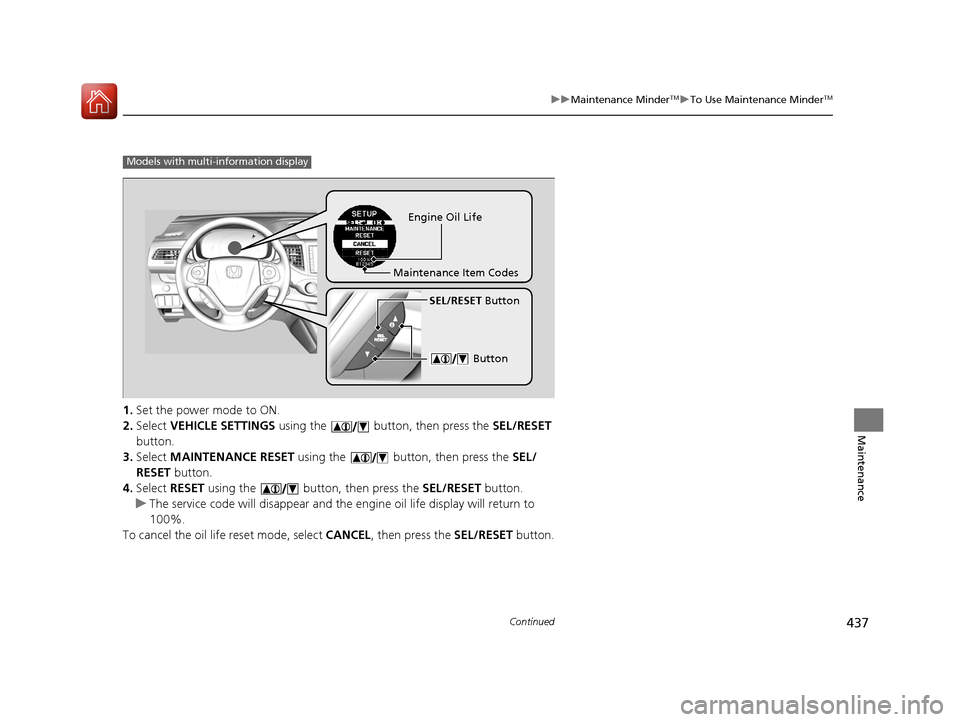

1. Set the power mode to ON.
2. Select VEHICLE SETTINGS using the button, then press the SEL/RESET
button.
3. Select MAINTENANCE RESET using the button, then press the SEL/
RESET button.
4. Select RESET using the button, then press the SEL/RESET button.
u The service code will disappear and the en gine oil life display will return to
100%.
To cancel the oil life reset mode, select CANCEL, then press the SEL/RESET button.
Models with multi- information display
Engine Oil Life
Maintenance Item Codes SEL/RESET Button
Button
15 CR-V-31T0A6300.book 437 ページ ２０１５年２月２日　月曜日　午前１０時３５分

438
uuMaintenance MinderTMuTo Use Maintenance MinderTM

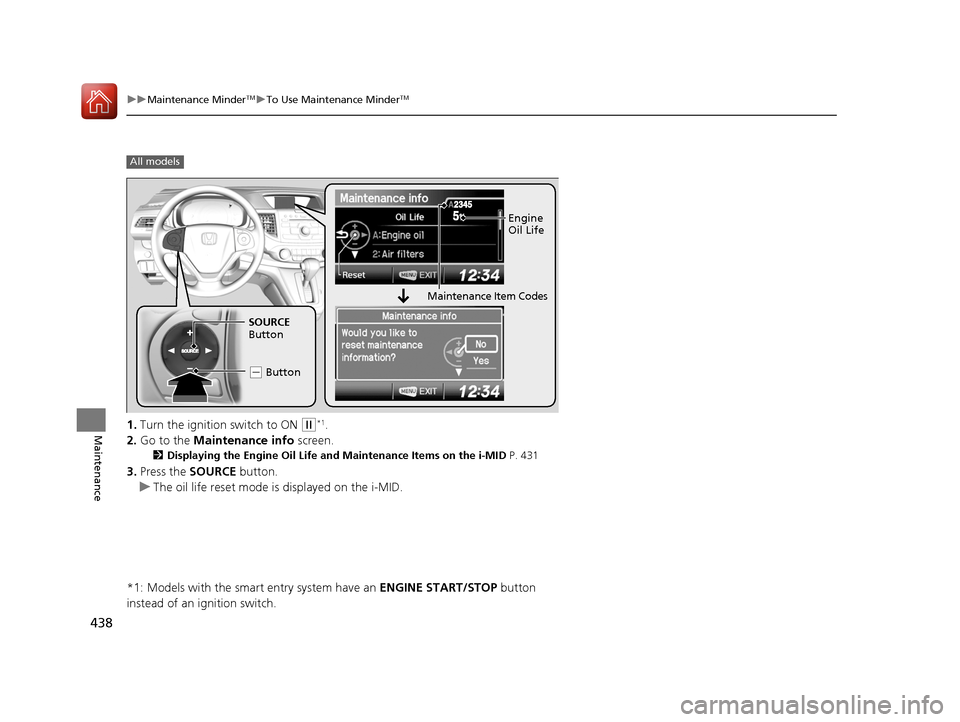

Maintenance1. Turn the ignition switch to ON (w*1.
2. Go to the Maintenance info screen.
2Displaying the Engine Oil Life and Maintenance Items on the i-MID P. 431
3.Press the SOURCE button.
u The oil life reset mode is displayed on the i-MID.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
All models
Engine
Oil Life
SOURCE
Button
( - Button
Maintenance Item Codes
15 CR-V-31T0A6300.book 438 ページ ２０１５年２月２日　月曜日　午前１０時３５分

439
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance

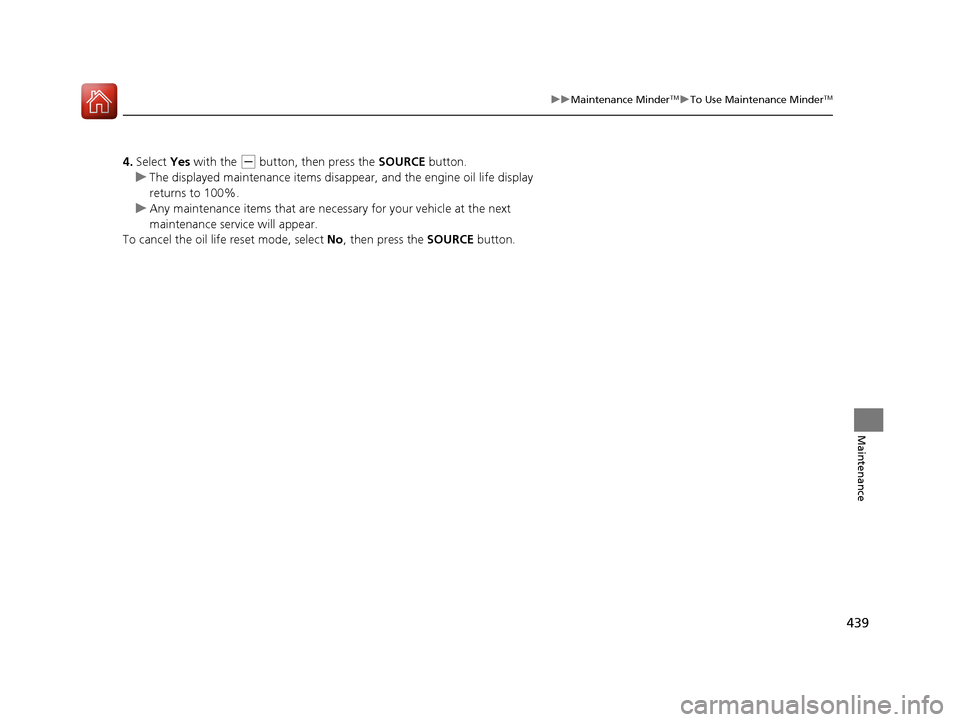

4. Select Yes with the (- button, then press the SOURCE button.
u The displayed maintenance items disapp ear, and the engine oil life display
returns to 100%.
u Any maintenance items that are necessary for your vehicle at the next
maintenance service will appear.
To cancel the oil life reset mode, select No, then press the SOURCE button.
15 CR-V-31T0A6300.book 439 ページ ２０１５年２月２日　月曜日　午前１０時３５分

440
Maintenance

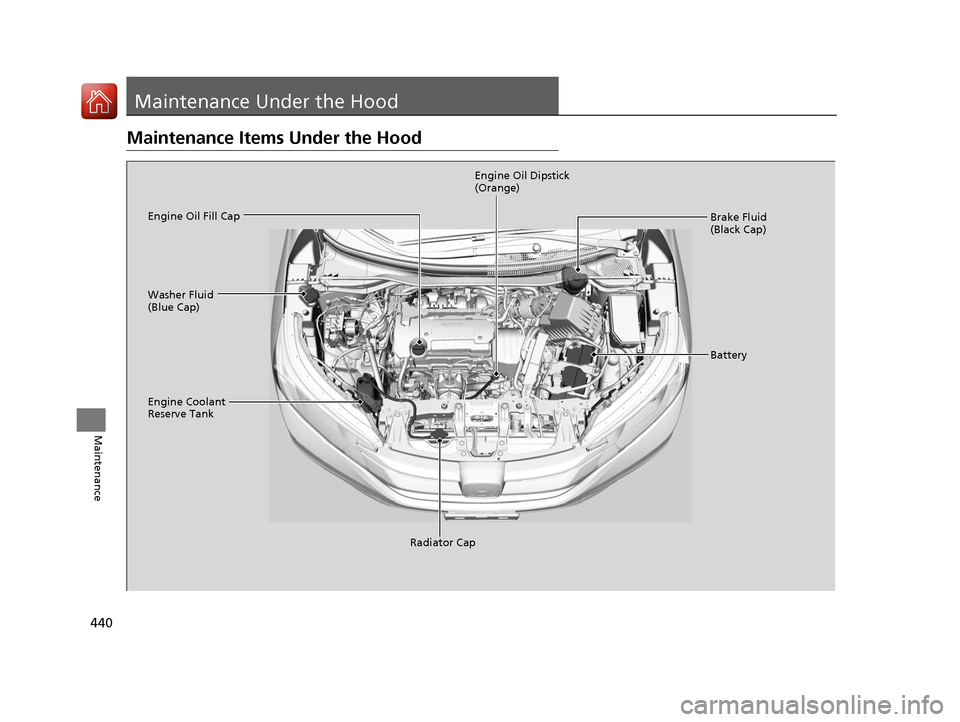

Maintenance Under the Hood
Maintenance Items Under the Hood
Brake Fluid
(Black Cap)
Engine Coolant
Reserve Tank Radiator Cap
Washer Fluid
(Blue Cap)
Engine Oil Dipstick
(Orange)
Engine Oil Fill Cap
Battery
15 CR-V-31T0A6300.book 440 ページ ２０１５年２月２日　月曜日　午前１０時３５分

442
uuMaintenance Under the Hood uRecommended Engine Oil
Maintenance

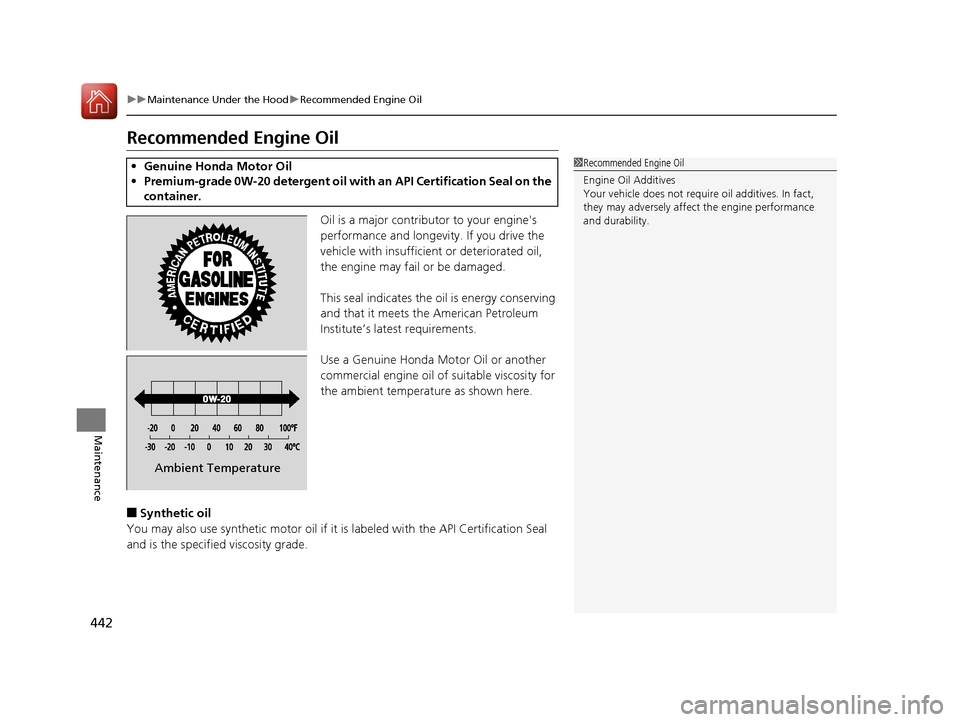

Recommended Engine Oil
Oil is a major contributor to your engine's
performance and longevity. If you drive the
vehicle with insufficient or deteriorated oil,
the engine may fail or be damaged.
This seal indicates the oil is energy conserving
and that it meets the American Petroleum
Institute’s latest requirements.
Use a Genuine Honda Motor Oil or another
commercial engine oil of suitable viscosity for
the ambient temperature as shown here.
■Synthetic oil
You may also use synthetic motor oil if it is labeled with the API Certification Seal
and is the specified viscosity grade.
• Genuine Honda Motor Oil
• Premium-grade 0W-20 detergent oil with an API Certification Seal on the
container.1 Recommended Engine Oil
Engine Oil Additives
Your vehicle does not require oil additives. In fact,
they may adversely affect the engine performance
and durability.
Ambient Temperature
15 CR-V-31T0A6300.book 442 ページ ２０１５年２月２日　月曜日　午前１０時３５分

443
uuMaintenance Under the Hood uOil Check
Maintenance
Oil Check
We recommend that you check the engi ne oil level every time you refuel.
Park the vehicle on level ground.
Wait approximately three minutes after turn ing the engine off before you check the
oil. 1.Remove the dipstick (orange handle).
2. Wipe the dipstick with a clean cloth or
paper towel.
3. Insert the dipstick back all the way into its
hole.
4. Remove the dipstick again, and check the
level. It should be between the upper and
lower marks. Add oil if necessary.1Oil Check
If the oil level is near or below the lower mark, slowly
add oil being careful not to overfill.
Upper Mark
Lower Mark
15 CR-V-31T0A6300.book 443 ページ ２０１５年２月２日　月曜日　午前１０時３５分

444
uuMaintenance Under the Hood uAdding Engine Oil
Maintenance
Adding Engine Oil
1. Unscrew and remove the engine oil fill cap.
2. Add oil slowly.
3. Reinstall the engine oil fill cap, and tighten
it securely.
4. Wait for three minutes and recheck the
engine oil dipstick.1Adding Engine Oil
If any oil spills, wipe it away immediately. Spilled oil
may damage the engine compartment components.
NOTICE
Do not fill the engine oil above the upper mark.
Overfilling the engine oil can result in leaks and
engine damage.
Engine Oil
Fill Cap
15 CR-V-31T0A6300.book 444 ページ ２０１５年２月２日　月曜日　午前１０時３５分

445
uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
Continued
Maintenance

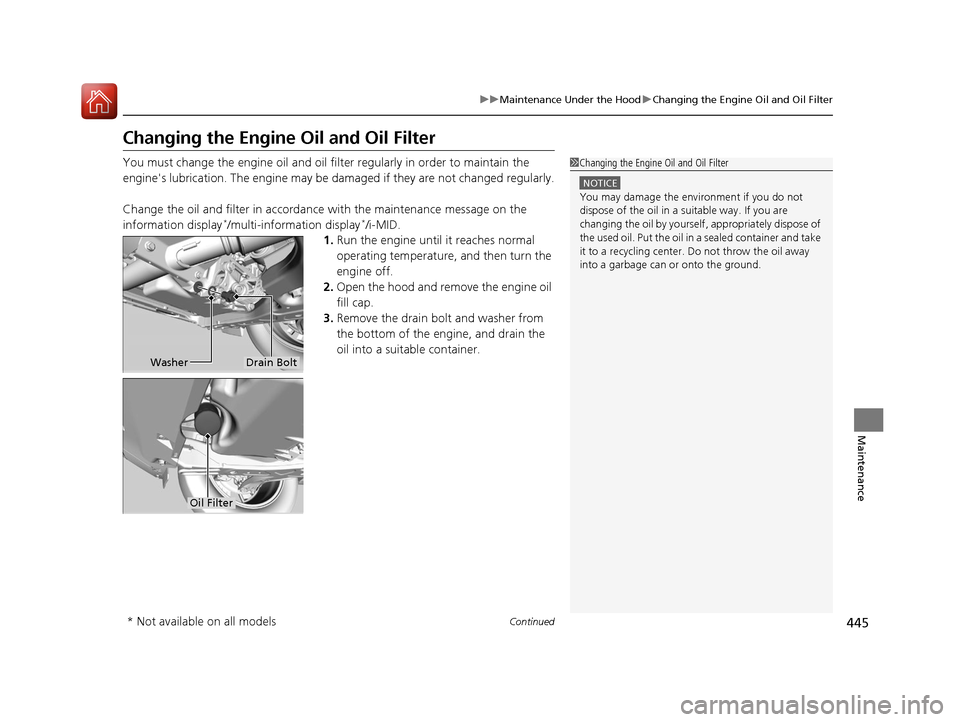

Changing the Engine Oil and Oil Filter
You must change the engine oil and oil fi lter regularly in order to maintain the
engine's lubrication. The engine may be damaged if they are not changed regularly.
Change the oil and filter in accordance with the ma intenance message on the
information display
*/multi-information display*/i-MID.
1. Run the engine until it reaches normal
operating temperature, and then turn the
engine off.
2. Open the hood and remove the engine oil
fill cap.
3. Remove the drain bolt and washer from
the bottom of the engine, and drain the
oil into a suitable container.
1Changing the Engine Oil and Oil Filter
NOTICE
You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself , appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.
WasherDrain Bolt
Oil Filter
* Not available on all models
