CD player HONDA CR-V 2016 RM1, RM3, RM4 / 4.G Owners Manual

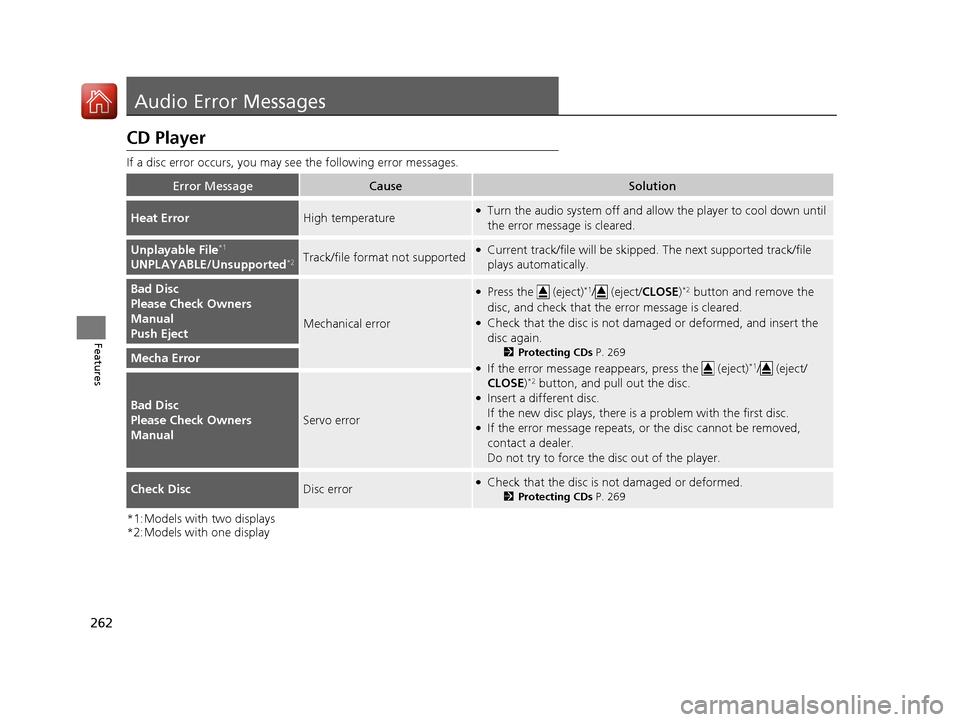

262
Features
Audio Error Messages
CD Player
If a disc error occurs, you may see the following error messages.
*1:Models with two displays
*2:Models with one display
Error MessageCauseSolution
Heat ErrorHigh temperature●Turn the audio system off and allo w the player to cool down until
the error message is cleared.
Unplayable File*1
UNPLAYABLE/Unsupported*2Track/file format not supported●Current track/file will be skippe d. The next supported track/file
plays automatically.
Bad Disc
Please Check Owners
Manual
Push Eject
Mechanical error
●Press the (eject)*1/ (eject/ CLOSE)*2 button and remove the
disc, and check that the error message is cleared.
●Check that the disc is not damaged or deformed, and insert the
disc again.
2 Protecting CDs P. 269
●If the error message reappears, press the (eject)*1/ (eject/
CLOSE)*2 button, and pull out the disc.●Insert a different disc.
If the new disc plays, there is a problem with the first disc.
●If the error message repeats, or the disc cannot be removed,
contact a dealer.
Do not try to force the disc out of the player.
Mecha Error
Bad Disc
Please Check Owners
Manual
Servo error
Check DiscDisc error●Check that the disc is not damaged or deformed.
2Protecting CDs P. 269
15 CR-V-31T0A6300.book 262 ページ ２０１５年２月２日　月曜日　午前１０時３５分

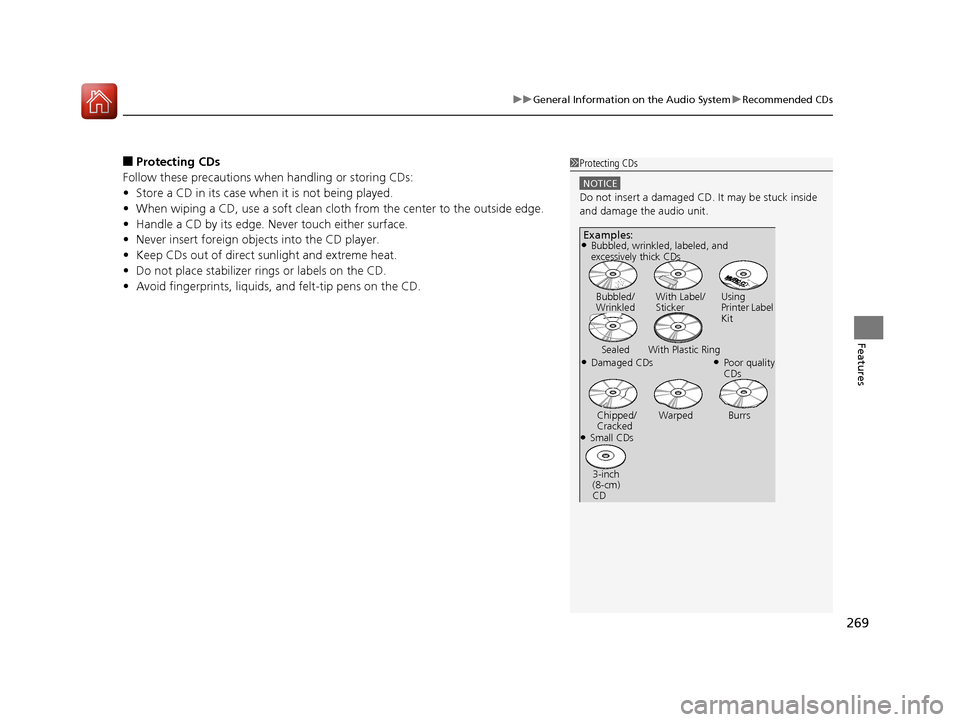

269
uuGeneral Information on the Audio System uRecommended CDs
Features
■Protecting CDs
Follow these precautions when handling or storing CDs:
• Store a CD in its case when it is not being played.
• When wiping a CD, use a soft clean cloth from the center to the outside edge.
• Handle a CD by its edge. Never touch either surface.
• Never insert foreign obje cts into the CD player.
• Keep CDs out of direct sunlight and extreme heat.
• Do not place stabilizer rings or labels on the CD.
• Avoid fingerprints, liquids, and felt-tip pens on the CD.1Protecting CDs
NOTICE
Do not insert a damaged CD. It may be stuck inside
and damage the audio unit.
Examples:
●Damaged CDs Bubbled/
Wrinkled
With Label/
Sticker Using
Printer Label
Kit
Sealed With Plastic Ring●Poor quality
CDs
Chipped/
Cracked Warped Burrs
●Small CDs
3-inch
(8-cm)
CD
●Bubbled, wrinkled, labeled, and
excessively thick CDs
15 CR-V-31T0A6300.book 269 ページ ２０１５年２月２日　月曜日　午前１０時３５分

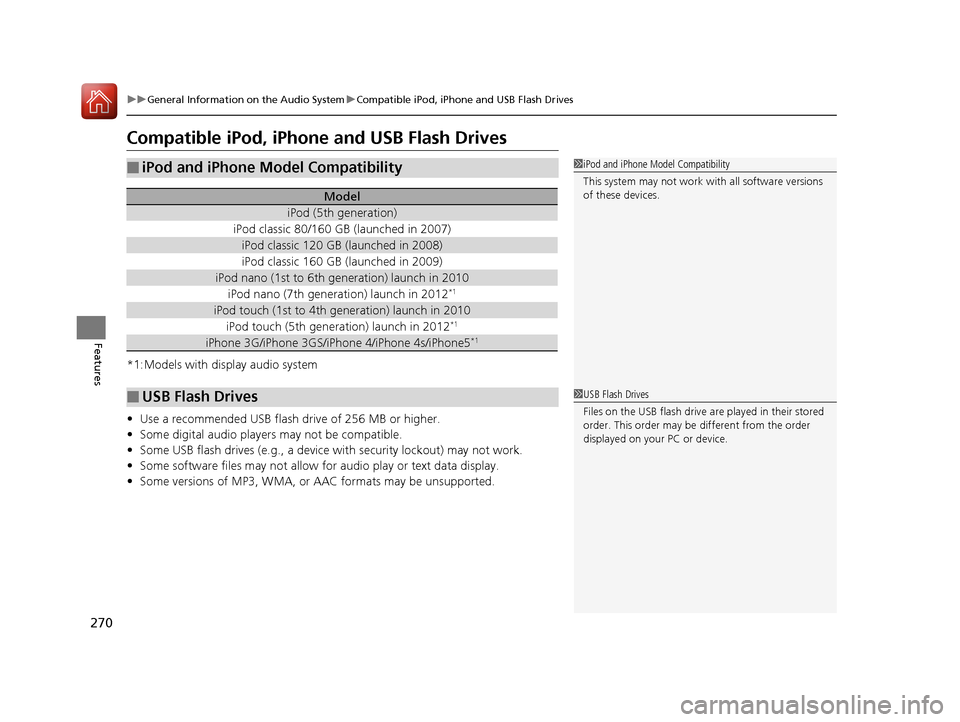

270
uuGeneral Information on the Audio System uCompatible iPod, iPhone and USB Flash Drives
Features
Compatible iPod, iPhone and USB Flash Drives
*1:Models with display audio system
• Use a recommended USB flash drive of 256 MB or higher.
• Some digital audio players may not be compatible.
• Some USB flash drives (e.g., a device with security lockout) may not work.
• Some software files may not allow for audio play or text data display.
• Some versions of MP3, WMA, or AAC formats may be unsupported.
■iPod and iPhone Model Compatibility
Model
iPod (5th generation)
iPod classic 80/160 GB (launched in 2007)
iPod classic 120 GB (launched in 2008)
iPod classic 160 GB (launched in 2009)
iPod nano (1st to 6th generation) launch in 2010
iPod nano (7th generation) launch in 2012*1
iPod touch (1st to 4th generation) launch in 2010
iPod touch (5th generation) launch in 2012*1
iPhone 3G/iPhone 3GS/iPhone 4/iPhone 4s/iPhone5*1
■USB Flash Drives
1iPod and iPhone Model Compatibility
This system may not work with all software versions
of these devices.
1USB Flash Drives
Files on the USB flash drive are played in their stored
order. This order may be different from the order
displayed on your PC or device.
15 CR-V-31T0A6300.book 270 ページ ２０１５年２月２日　月曜日　午前１０時３５分

523
Index
Maintenance (Replacing) ......................... 475
Belts (Seat) .................................................. 33
Beverage Holders ..................................... 188
Bluetooth ® Audio ..................................... 229
Bluetooth ® HandsFreeLink ®.................... 284
Booster Seats (For Children) ...................... 66
Brake System ............................................ 405
Anti-lock Brake System (ABS) .................. 407
Brake Assist System................................. 408
Fluid ....................................................... 450
Foot Brake .............................................. 406
Indicator ........................................... 70, 501
Parking Brake.......................................... 405
Brightness Control (Instrument Panel) ... 167
Bulb Replacement .................................... 452
Brake Light, Taillight, Back-Up Light, Rear
Turn Signal Light and Lower Rear Side
Marker Lights ...................................... 457
Fog Lights ............................................... 453
Front Turn Signal/Si de Marker Light/
Parking Lights ....................................... 455
Front Turn Signal/Side Marker Lights ....... 456
Headlights .............................................. 452
High-Mount Brake Light.......................... 460
Parking Lights ......................................... 456
Rear License Plate Lights ......................... 460
Side Turn Signal/Emergency Indicator Lights .................................................... 457
Upper Rear Side Mar ker/Taillights............ 459
Bulb Specifications ................................... 510C
Carbon Monoxide Gas ................................ 67
Cargo Hook ............................................... 192
Cargo Side Net .......................................... 191
Carrying Cargo .................................. 349, 351
CD Player ................................................... 218
Certification Label .................................... 512
Changing Bulbs ......................................... 452
Charging System Indicator ................. 71, 499
Child Safety ................................................. 54
Childproof Door Locks ............................. 138
Child Seat .................................................... 54
Booster Seats ............................................. 66
Child Seat for Infants ................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 62
Larger Children .......................................... 65
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Childproof Door Locks ............................. 138
Cleaning the Exterior ............................... 480
Cleaning the Interior ................................ 478
Climate Control System ............................ 200
Changing the Mode ................................ 200
Defrosting the Windshield and Windows ............................................... 201
Dust and Pollen Filter ............................... 477
Recirculation/Fresh Air Mode ................... 200
Sensors .................................................... 203
Synchronized Mode ................................. 202 Using Automatic Climate Control ............ 200
Clock .......................................................... 128
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 409
Coat Hook ................................................. 191
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 409
Indicator.............................................. 83, 84
Compact Spare Tire .......................... 485, 511
Compass .................................................... 342
Console Compartment ............................. 187
Continuously Variable Transmission ....... 367
Creeping ................................................. 367
Fluid ........................................................ 449
Kickdown ................................................ 367
Operating the Shift Lever................... 19, 369
Shift Lever Does Not Move ...................... 496
Shifting ................................................... 368
Controls ..................................................... 127
Coolant (Engine) ...................................... 447
Adding to the Radiator ............................ 448
Adding to the Reserve Tank..................... 447
Overheating ............................................ 497
Creeping (Continuously Variable Transmission) .......................................... 367
Cruise Control ........................................... 371
Indicator.................................................... 79
Cup Holders .............................................. 188
Customer Service Information ................. 520
Customized Features ................ 100, 114, 271
15 CR-V-31T0A6300.book 523 ページ ２０１５年２月２日　月曜日　午前１０時３５分
