display HONDA CR-V 2016 RM1, RM3, RM4 / 4.G Quick Guide

82 || 83
Storing Speed Dial Entries
Store up to 20 numbers for quick dialing. 
1. From the Home screen, select Phone.
2. Select MENU.
3. Select Edit Speed Dial, then select New Entry.
4. Select an entry method.
5. If desired, you can create a voice tag for the 
number. Follow the prompts.
Using Speed Dial
Make calls quickly using stored speed dial entries.
Using voice commands
Press the Talk button before you say each command.
1. Say “Dial by name.”
2. Say the stored voice tag name. For example,
“John Smith.”
Using the touchscreen
1. From the Home screen, select Phone.
2. Scroll through the list to find the entry you want
to call, and select it to call.
Models with touchscreen
SMS Text Messaging and E-Mail*
Receive and send messages from your paired and connected phone. Visit
handsfreelink.com (U.S.) or handsfreelink.ca
 (Canada) to check phone compatibility. 
Standard message rates apply. This feature is limited while the vehicle is moving.
Receiving and Responding to Messages
When you receive a new message, a pop-up appears on the touchscreen. You can
view the message when the vehicle is stopped. You can also reply to it using fixed
phrases or call the sender.
1. When the prompt appears, select Read.
2. The message is displayed, and the system reads
it aloud.
To reply: With the message open, select Reply,
and choose one of the six available responses. 
Select Send to send the message. You cannot
create a new text message.
To call the sender: With the message open,
select Call.
Selecting an Account
If your phone has both text message and e-mail accounts, you can select only one 
of them at a time to be active and receive notifications.
1. From the Home screen, select Settings.
2. Select Phone.
3. Select Select Account.
4. Select Text Message or an e-mail account.
*if equipped
BLUETOOTH® HANDSFREELINK®BLUETOOTH® HANDSFREELINK®

| 85
NAVIGATION84    |
Models with touchscreen
HondaLink™ Assist
Automatically connect and talk to an operator who can locate your vehicl\
e and send
emergency help in the event of a collision. Visit www.hondalink.com (U.S.) or honda.
ca/hondalinkassist (Canada) for more information.
1. Make sure your phone is on and paired to Bluetooth®
HandsFreeLink® (see page 80).
2. Select Call Now, or the system automatically
connects after 10 seconds. The vehicle information
and its position are sent to the operator.
3. Select Talk Now to immediately talk to the operator.
4. When the call is complete, select Hang Up or press
the Hang Up/Back button on the steering wheel.
Learn how to enter a destination and operate the navigation system.
Basic Navigation Operation
A real-time navigation system uses GPS and a map database to show your current 
location and help guide you to a desired destination. You can operate the system
using voice commands or the touchscreen.
To reduce the potential for driver distraction, certain manual functions \
may be
inoperable or grayed out while the vehicle is moving. Voice commands are always
available.
Steering Wheel Controls
Use the steering wheel controls to control the system.
NAVIGATION*
*if equipped
SOURCE button: Press to enter
a selection after pressing and
holding the MENU button.
MENU button: From the map
screen, press and hold to display
Go Home and other options. + / - buttons: Scroll the list after
pressing and holding the MENU button.
Using the navigation system while driving can take your attention away f\
rom
the road, causing a crash in which you could be seriously injured or killed.
Operate system controls only when the conditions permit you to safely do\
so.
WARNING
BACK button: Press to cancel
a command or operation.
TALK button: Press to give
navigation commands.
Siri® Eyes Free
Activate Siri through your vehicle when an iPhone® is paired to the system. Visit
handsfreelink.com (U.S.) or honda.ca/siri
 (Canada) to check phone compatibility.
Hang-Up/Back button: Exit Siri Eyes Free mode, or 
cancel a command.
Talk button:
Press and hold to activate Siri Eyes Free 
mode. The Smartphone screen appears. Say your
command after you hear the Siri tone. If you only 
press and release the Talk button, the standard voice 
recognition system is activated.
Here are some examples of Siri commands:
“Call John Smith”
“Read my new text message”
“Find a nearby sushi restaurant”
Notes:
• 
Any requests that include visual feedback from Siri on your phone are not 
displayed in the vehicle.
•  Certain commands rely on the iPhone’s features and existing apps.
• 
To hear turn-by-turn directions or songs through the vehicle, set the audio source 
to Bluetooth® Audio.
Siri and iPhone are trademarks of Apple, Inc.
“Remind me to pick up dinner”
“Set
 up a meeting today at 3 p.m.”
“Play
 song XYZ”
BLUETOOTH® HANDSFREELINK®

86 ||    87
NAVIGATION
NAVIGATION
Navigation Display and Controls
Use the touchscreen to enter information and make selections.
Navi: Display the map screen.
HOME
(screen shown)
Info: Select items
such as trip
computer, traffic
incidents, and
more.
BACK:
Go back to the previous
display. Settings: Select Navi from the Settings
screen for map and navigation options.
MENU: From
the map screen,
select various
destination
options.
GPS signal
strength
Traffic
incident
icon Traffic
flow
Current
map scale Current
vehicle
position
Map
orientation
Current
street
Traffic
status
Map
menu Landmark
icon
Voice Prompt Volume
Adjust volume for navigation and voice command confirmation. This does\
not
affect audio or Bluetooth
® HandsFreeLink® volume, which is controlled by the 
volume bar.
1. From the Home Screen, select Settings.
2. Select System.
3. Select Volume.
4. Adjust the level.
5. Selelct OK when complete.
Voice Prompt
Turn the voice feedback feature on or off. 
1. From the Home screen, select Settings.
2. Select System.
3. Select Voice Prompt.
4. Select On or Off.
Talk Button Tips
• 
When using the Talk button, wait for a beep before saying a command.
• To bypass the system prompts, simply press the Talk button again to say your 
command.
• 
When the Talk button is pressed, all available voice commands are highlighted 
in yellow.
•  Speak in a clear, natural voice.
• 
Reduce all background noise.
• Adjust the dashboard and side vents away from the microphone in the ceiling.
•  Close the windows and moonroof.

88 || 89
NAVIGATION
NAVIGATION
Entering a Destination
Use multiple methods to enter a destination.
Home Address
Store your home address in the system so you can easily route to it.
1. From the Home screen, select Settings.
2. Select Navigation.
3. Select Edit Go Home (1 or 2). 
4. Enter the address, and select OK when complete. 
When your home address is stored, you can press the Talk button and say “Go 
home” at any time. You can also select Go home from the navigation menu.
Place Category
Enter a destination or point of interest using voice commands. Press the Talk 
button before saying each command.
You can also enter the place name manually when the vehicle is stopped. F\
rom the
map screen, press the MENU button and select Place Name. Follow the prompts.
1. From the Voice Portal screen, say “Place name.”
2. Say a category, for example “ATM/Bank.”
3. Say the name of the place, for example “ABC 
Bank.”
4. The system interprets the name. If necessary, 
you may have to clarify similar matches.
5. Say “Set as destination” to set the route.
Street Address
Enter a street address using voice commands. Press the Talk button before saying 
each command.
You can also enter the address manually when the vehicle is stopped. From the
map screen, press the MENU button and select Address. Follow the prompts.
U.S. models
1. From the Voice Portal screen, say “Address.”
2. The system prompts you to say the entire
address. For example, say
“1-2-3-4 Main Street, 
Los Angeles, California.”
3. The system interprets the address by state, city, 
street, and address number. If necessary, you 
may have to clarify similar matches.
4. Say “Set as destination” to set the route.
Canadian models
1. From the Voice Portal screen, say “Address.”
2. Follow the prompts.
Find Nearest Place
Enter a destination by category and distance using voice commands. Press the 
Talk button before saying each command.
1. Say “Find nearest” and a place. For example,
“Find nearest ATM.”
2. A list of the nearest places in your area is
displayed by shortest distance to destination.
3. Say the number next to the destination you want 
to select.
4. Say “Set as destination” to set the route.

90 || 91
NAVIGATION
NAVIGATION
Routing
After a destination is set, you can alter or cancel your route.
Map Legend
During route guidance
Next
guidance
point
Estimated time
to destination
Turn-by-Turn directions
Shows a more detailed view of the next maneuver on the i-MID.
Distance to
destination
Calculated
route
Distance to next
maneuver
Current routeUpcoming
maneuver
Taking a Detour
You can calculate a detour route manually if you encounter a road closure\
or other
obstacle.
1. When en route, press the MENU button from the 
map screen.
2. Select Detour. The system attempts to calculate 
a new route by avoiding the next 5 miles (8 km) 
while on a freeway or 1 mile (1 km) while on a
surface street.
TrafficView traffic flow, incidents, and construction in major metro areas. You can also
route around congestion or incidents using voice commands. Press the Talk
button before saying each command. Available on U.S. models only.
1. When en route, say “Display traffic incidents.”
A list of incidents on your route appears.
2. Say the number of the incident you want to avoid.
3. Say “Avoid” and the incident list returns.
4. Say “Recalculate route” to set the new route.
Canceling Your Route
You can cancel your route at any time.
1. When en route, press the MENU button from the 
map screen.
2. Select Cancel Route. The route is cleared and the
map screen returns. You can also press the Talk
button and say “Cancel route.”

102 || 103
DRIVING
DRIVING

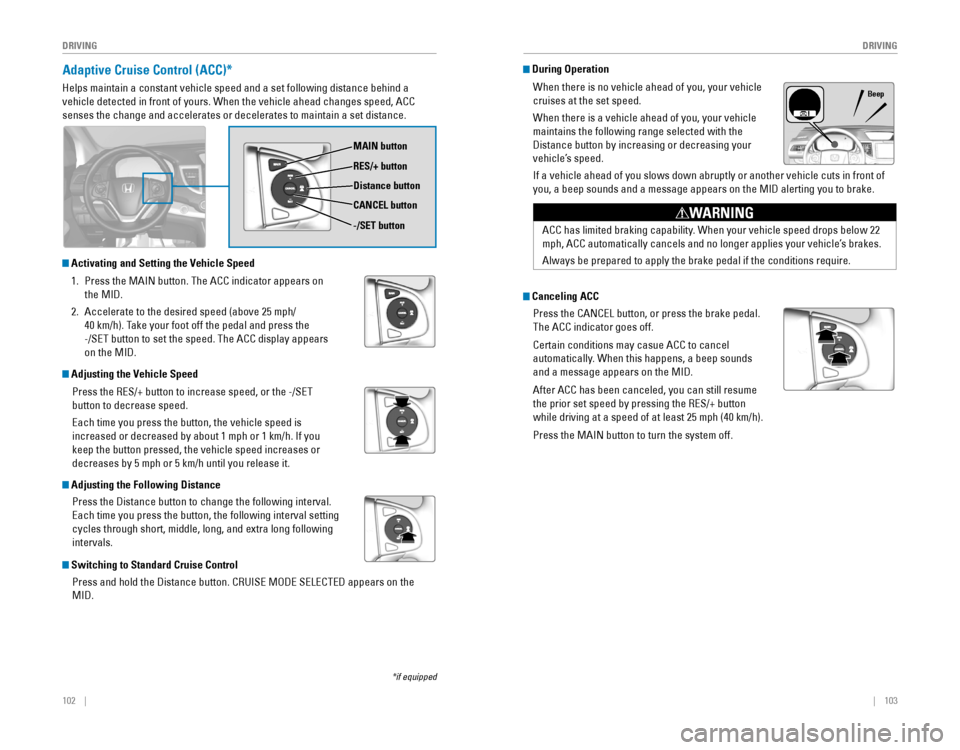

Adaptive Cruise Control (ACC)*
Helps maintain a constant vehicle speed and a set following distance behind a 
vehicle detected in front of yours. When the vehicle ahead changes speed\
, ACC
senses the change and accelerates or decelerates to maintain a set dista\
nce.
*if equipped
MAIN button
RES/+ button
Distance button
CANCEL button
-/SET button
During Operation
When there is no vehicle ahead of you, your vehicle
cruises at the set speed.
When there is a vehicle ahead of you, your vehicle
maintains the following range selected with the
Distance button by increasing or decreasing your 
vehicle’s speed.
If a vehicle ahead of you slows down abruptly or another vehicle cuts in front of 
you, a beep sounds and a message appears on the MID alerting you to brake.
Beep
Adjusting the Vehicle Speed
Press the RES/+ button to increase speed, or the -/SET 
button to decrease speed.
Each time you press the button, the vehicle speed is 
increased or decreased by about 1 mph or 1 km/h. If you 
keep the button pressed, the vehicle speed increases or 
decreases by 5 mph or 5 km/h until you release it.
Activating and Setting the Vehicle Speed
1. Press the MAIN button. The ACC indicator appears on 
the MID.
2. Accelerate to the desired speed (above 25 mph/
40 km/h). Take your foot off the pedal and press the
-/SET button to set the speed. The ACC display appears 
on the MID.
Adjusting the Following Distance
Press the Distance button to change the following interval. 
Each time you press the button, the following interval setting 
cycles through short, middle, long, and extra long following
intervals.
Switching to Standard Cruise Control
Press and hold the Distance button. CRUISE MODE SELECTED appears on the 
MID.
ACC has limited braking capability. When your vehicle speed drops below 22 
mph, ACC automatically cancels and no longer applies your vehicle’s brakes.
Always be prepared to apply the brake pedal if the conditions require.
WARNING
Canceling ACC
Press the CANCEL button, or press the brake pedal. 
The ACC indicator goes off.
Certain conditions may casue ACC to cancel
automatically. When this happens, a beep sounds 
and a message appears on the MID.
After ACC has been canceled, you can still resume 
the prior set speed by pressing the RES/+ button 
while driving at a speed of at least 25 mph (40 km/h).
Press the MAIN button to turn the system off.

104    || 105
DRIVING
DRIVING
Lane Departure Warning (LDW)*
A camera mounted between the windshield and the rearview mirror determines if 
your vehicle begins to move away from the center of a detected lane while driving 
between 45–90 mph (72–145 km/h).
If you cross a detected lane line without using your 
turn signal, a message appears on the display and a
beep sounds.
*if equipped
Beep
*if equipped
Lane Keeping Assist System (LKAS)*
A camera mounted between the windshield and the rearview mirror determines if 
your vehicle begins to move away from the center of a detected lane while driving 
between 45–90 mph (72–145 km/h).
If you cross a detected lane line without using your 
turn signal, a message appears on the MID and a 
beep sounds.
Steering wheel vibrations alert you and light steering 
torque is applied to help keep your vehicle within the 
lane.
Beep
Steering assistance
Turning LDW On or Off
Press LDW to turn the system on or off. A green 
indicator light appears on the button when the 
system is on.
Important Safety Reminder
Like all assistance systems, LDW has limitations. Over-reliance on LDW may result 
in a collision. It is always your responsibility to keep the vehicle within your lane. 
LDW only alerts you when lane drift is detected without a turn signal in use. LDW 
may not detect all lane markings or lane departures; accuracy will vary based on 
weather, speed, and lane marker condition. It is always your responsibility to safely 
operate the vehicle and avoid collisions.
LDW button
Indicator
Turning LKAS On or Off
1. Press the MAIN button. LKAS appears in the 
MID.
2. Press the LKAS button. Lane outlines appear in 
the MID. Dotted lane lines turn solid when the 
system operates.
3. Press the MAIN or LKAS button to turn the 
system off.
Important Safety Reminder
LKAS is for your convenience only. It is not a substitute for your vehicle control. The 
system does not work if you take your hands off the steering wheel or fa\
il to steer
the vehicle.
Do not place an object on the top of the instrument panel. It may reflect onto the 
windshield and prevent the system from detecting lane lines properly.

106 ||    107
DRIVING
DRIVING
*if equipped
Collision Mitigation Braking System™ (CMBS™)*
Can alert you when a potential frontal collision with a vehicle or pedes\
trian is
determined and reduce your vehicle speed when a collision is deemed unavoidable 
to help minimize collision severity.
The system provides visual and audible alerts if you 
do not take appropriate action to avoid a collision.
Alert Stages
The system has three alert stages for a possible 
collision. Depending on the circumstances or 
CMBS settings, CMBS may not go through all of
the stages before initiating the last stage.
Stage 1:  Visual warnings and audible warning
Stage 2:  Visual warnings, audible warning, and light brake application
Stage 3:  Visual warnings, audible warning, and strong brake application
Beep
LaneWatch™*
Check the passenger-side rear areas in the upper display when the right turn signal
is activated.
LaneWatch display
Activating LaneWatch
Activate the right turn signal. The LaneWatch
display appears. Check the display for blind spots, 
and visually confirm that it is safe to change lanes.
You can also press the LaneWatch button on the 
end of the turn signal switch to view a constant
real-time display. Press it again to turn the display
off.
*if equipped
Turning CMBS On or Off
Press and hold the CMBS OFF button. A beep sounds 
and a message appears in the MID. The CMBS 
indicator appears when the system is off.
Changing Settings
Change the alert distance. Use the steering wheel buttons to make and enter 
selections in the MID (see page 30).
1. Select the Customize Settings display.
2. Select Change Settings.
3. Select Driver Assist System Setup.
4. Select Forward Collision Warning Distance. Select Long, Normal, or Short.
5. Exit the menu.
Important Safety Reminder
CMBS is designed to reduce the severity of an unavoidable collision. It does not 
prevent collision nor stop the vehicle automatically. It is still your responsibility to 
operate the brake pedal and steering wheel appropriately according to the driving 
conditions.
Failure to visually confirm that it is safe to change lanes before doing so may 
result in a crash and serious injury or death.
Do not rely only on LaneWatch while driving. Always look in your mirrors, to 
either side of your vehicle, and behind you for other vehicles before changing 
lanes.
WARNING
Changing Settings
Customize the display and how and when the display appears.
1. From the HOME screen, select Settings.
2. Select Camera.
3. Select LaneWatch.
4. Select an option and make the preferred changes.
5. Press the BACK button to exit the menu.
Important Safety Reminder
Like all assistance systems, LaneWatch has limitations. Over-reliance on the system
may result in a collision.

108 || 109
DRIVING
DRIVING
Multi-View Rear Camera
When you shift into Reverse (R), a real-time image of the area behind your vehicle is 
shown in the i-MID or touchscreen, along with helpful parking guidelines.
Models with one display
Wide view Normal viewTop down view
Press the selector knob to change
views.
The rear camera view is restricted. You cannot see the corner ends of the bumper or what is underneath the bumper. Its unique lens also makes objects appear closer or farther than they actually are.
Visually confirm that it is safe to drive before backing up. Certain conditions (such as weather, lighting, and high temperatures) may also restrict the rear view. Do not rely on the rearview display, which does not give you all information about conditions at the rear of your vehicle.
Changing Camera Settings
Turn the guidelines on or off.
1. From the HOME screen, select Settings.
2. Select Camera.
3. Select Rear Wide Camera.
4. Select one of the options.
Fixed Guideline: Guidelines appear when you
shift into Reverse. Select On or Off.
Dynamic Guideline: Guidelines move as you turn
the steering wheel. Select On or Off.
5. Press the BACK button to exit the menu.
Models with touchscreen
Wide view Normal viewTop down view
Press the icons on the touchscreen to change views.

110 || 111
HANDLING THE UNEXPECTED
DRIVING
Refueling
Use the proper fuel and refueling procedure to ensure the best performance and 
safety of your vehicle.
Fuel Information
Use of unleaded gasoline of 87 octane or higher is recommended.
• 
Honda recommends TOP TIER Detergent Gasoline where available.
• Do NOT use gasoline containing more than 15% ethanol.
• Do NOT use gasoline containing methanol.
• Do NOT use gasoline containing MMT.
Learn about what to do in critical or emergency situations.
Smart Entry Remote Battery Strength*
If the battery life in your remote transmitter is weak, a message appears in the 
display with information on how to start the engine.
1. Touch the back of the remote transmitter to the 
ENGINE START/STOP button while the indicator is 
flashing.
2. With the brake pedal pressed, press the ENGINE 
START/STOP button within 10 seconds.
HANDLING THE UNEXPECTED
*if equipped
We recommend quality gasoline containing detergent additives that help 
prevent fuel system and engine deposits. In addition, in order to maintain good 
performance, fuel economy, and emissions control, we strongly recommend the
use of gasoline that does NOT contain harmful manganese-based fuel additives 
such as MMT, if such gasoline is available. 
NOTICE
Gasoline is highly flammable and explosive. You can be burned or seriously 
injured when handling fuel.
•  Stop the engine, and keep heat, sparks, and flame away.
•  Handle fuel only outdoors.
•  Wipe up spills immediately.
WARNING
How to Refuel
1. The fuel fill door is located at the left rear of the
vehicle. Park next to the service pump that is
most accessible.
2. Turn off the engine.
3. Pull the fuel fill door release handle near the
parking brake. The fuel fill door opens.
4. Turn the fuel fill cap slowly to open. Place the fuel
fill cap in the holder.
5. Insert the filler nozzle fully. When the tank is full, 
the fuel nozzle clicks off automatically.
6. Replace the fuel fill cap. Tighten it until you hear
at least one click. Close the fuel fill door.
Pull
Shift Lever Does Not Move
Follow the procedure below if you cannot move the shift lever out of Park (P).
1. Set the parking brake.
2. Remove the key from the ignition, or remove the
built-in key from the remote transmitter.
3. Wrap a cloth around the tip of a small flat-tip
screwdriver to remove the cover of the shift lock
release slot. Put the tip of the flat-tip screwdriver
into the slot and remove it as shown in the image.
4. Insert the key into the shift lock release slot.
5. While pushing the key down, press the shift lever
release button and place the shift lever into Neutral  
(N). The lock is now released. Have the shift lever
checked by a dealer as soon as possible.
Slot
Release
button
Shift lock
release slot
