AFETYSAFETY
Seat Belt with Detachable Anchor
The seat belt for the rear center seat is located in the ceiling.
1. Pull out the seat belt’s small latch plate and 
the latch plate from each holding slot in the
ceiling.
2. Line up the triangle marks on the small
latch plate and anchor buckle. Make sure 
the seat belt is not twisted. Attach the belt 
to the anchor buckle.
3. Insert the latch plate into the buckle. 
Properly fasten the seat belt the same way 
you fasten the lap/shoulder seat belt.
 To unlatch the detachable anchor, insert 
the latch plate into the slot on the side of
the anchor buckle.
Airbags
Your vehicle is equipped with three types of airbags: front airbags, side airbags, and 
side curtain airbags.
Front Airbags (SRS)
The front SRS airbags inflate in a moderate-to-severe frontal collision to help 
protect the head and chest of the driver and/or front passenger. They are housed 
in the center of the steering wheel for the driver, and in the dashboard for the front 
passenger. Both airbags are marked SRS AIRBAG.
SRS (Supplemental Restraint System) indicates that the airbags are designed to 
supplement seat belts, not replace them. Seat belts are the occupant’s primary 
restraint system.
Advanced Airbags
Your front airbags have advanced features to help reduce the likelihood of airbag-
related injuries to smaller occupants.
The driver’s advanced front airbag system includes 
a seat position sensor. If the seat is too far forward, 
the airbag inflates with less force, regardless of the 
severity of the impact.
If there is a problem with the driver’s seat position 
sensor, the SRS indicator will come on and the
airbag will inflate with full (normal) force, regardless 
of the driver’s seating position.
The passenger’s advanced front airbag system 
has weight sensors. Although Honda recommends
against carrying an infant or small child in front, if
the sensors detect the weight of a child (up to 65 lbs 
or 29 kg), the system will automatically turn off the
passenger’s front airbag.
For both advanced front airbags to work properly: 
• Do not spill any liquid on or under the seats.
• Do not put any object under the passenger’s seat.
• Make sure any objects are positioned properly on the floor. Improperly 
positioned objects can interfere with the advanced airbag sensors.
• All occupants should sit upright and wear their seat belts properly.
• Do not place any cover over any part of the passenger side dashboard.
Driver’s
seat
position
sensor
Passenger’s
seat
weight
sensorsLatch
plate
Latch
plate
Small latch plate Latch
plate
Buckle
Small latch plate
Small
latch plate
Anchor buckle
Using the seat belt with the detachable anchor unlatched increases the 
chance of serious injury or death in a crash.
Before using the seat belt, make sure the detachable anchor is correctly 
latched.
WARNING

12 || 13
S
AFETYSAFETY
Passenger Airbag Off indicator
The indicator comes on to alert you that the front
passenger’s front airbag has been turned off. This 
occurs when the front passenger’s weight sensors
detect 65 lbs (29 kg) or less, the weight of an infant 
or small child, on the seat.
Infants and small children should always ride properly restrained in a back seat.
Objects placed on the seat can also cause the indicator to come on.
If the front passenger‘s seat is empty, the passenger’s front airbag will not deploy 
and the indicator will not come on.
If the indicator comes on with no occupant or objects in the front passenger’s 
seat, something may be interfering with the weight sensors, such as: 
• An object hanging on the seat or in the seat-back pocket.
• A child seat or other object pressing against the rear of the seat-back.
• A rear passenger pushing or pulling on the back of the front passenger’s seat.
• The front seat or seat-back is forced against an object on the seat or floor 
behind it.
• An object placed under the front passenger’s seat.
If none of these conditions exist, have your vehicle checked by a dealer as soon 
as possible.
The passenger airbag off indicator may go on and off repeatedly if the total weight 
on the seat is near the airbag cutoff threshold.
1 Two SRS (Supplemental Restraint System) front airbags. The driver’s airbag 
is stored in the center of the steering wheel; the front passenger’s airbag is 
stored in the dashboard. Both are marked SRS AIRBAG.
2  Two side airbags, one for the driver and one for the front passenger. The 
airbags are stored in the outer edges of the seat-backs. Both are marked 
SIDE AIRBAG.
3  Two side curtain airbags, one for each side of the vehicle. The airbags are 
stored in the ceiling, above the side windows. The front and rear pillars are 
marked SIDE CURTAIN AIRBAG.
4 An electronic control unit that continually monitors and can record
information about the sensors, the airbag activators, the seat belt 
tensioners, and driver and front passenger seat belt use when the vehicle is 
on.
5  Automatic front seat belt tensioners. The driver’s and front passenger’s seat 
belts incorporate sensors that detect whether or not they are fastened.
6  A driver’s seat position sensor. If the seat is too far forward, the airbag will 
inflate with less force.
7  Weight sensors in the front passenger’s seat. The front passenger’s airbag 
will be turned off if the weight on the seat is 65 lbs (29 kg) or less (the weight 
of an infant or small child).
8  Impact sensors that can detect a moderate-to-severe front or side impact.
9  An indicator on the dashboard that alerts you that the front passenger’s front 
airbag has been turned off.
10  An indicator on the instrument panel that alerts you to a possible problem 
with the airbag system or seat belt tensioners.
11 Safing sensor
12  A rollover sensor that detects whether the vehicle is about to roll over.
Airbag System Components
8
8
5
8
6
2
4
12
13109817253
8
11
8
U.S.
Canada

14    || 15
S
AFETYSAFETY

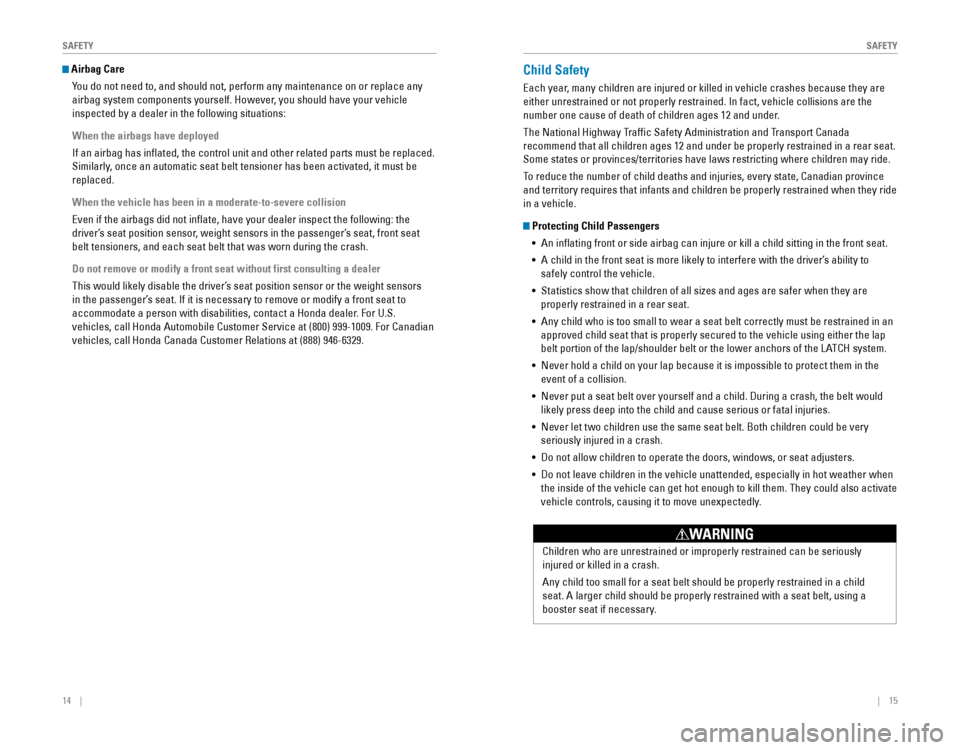

Airbag Care
You do not need to, and should not, perform any maintenance on or replace\
any
airbag system components yourself. However, you should have your vehicle 
inspected by a dealer in the following situations:
When the airbags have deployed
If an airbag has inflated, the control unit and other related parts must be replaced. 
Similarly, once an automatic seat belt tensioner has been activated, it must be 
replaced.
When the vehicle has been in a moderate-to-severe collision
Even if the airbags did not inflate, have your dealer inspect the following: the 
driver’s seat position sensor, weight sensors in the passenger’s seat, front seat
belt tensioners, and each seat belt that was worn during the crash.
Do not remove or modify a front seat without first consulting a dealer
This would likely disable the driver’s seat position sensor or the weight sensors 
in the passenger’s seat. If it is necessary to remove or modify a front seat to 
accommodate a person with disabilities, contact a Honda dealer. For U.S. 
vehicles, call Honda Automobile Customer Service at (800) 999-1009. For Canadian 
vehicles, call Honda Canada Customer Relations at (888) 946-6329.
Child Safety
Each year, many children are injured or killed in vehicle crashes because they are 
either unrestrained or not properly restrained. In fact, vehicle collisions are the 
number one cause of death of children ages 12 and under.
The National Highway Traffic Safety Administration and Transport Canada
recommend that all children ages 12 and under be properly restrained in a rear seat. 
Some states or provinces/territories have laws restricting where children may ride. 
To reduce the number of child deaths and injuries, every state, Canadian province 
and territory requires that infants and children be properly restrained when they ride 
in a vehicle.
Protecting Child Passengers• 
An inflating front or side airbag can injure or kill a child sitting in the front seat.
• A child in the front seat is more likely to interfere with the driver’s ability to 
safely control the vehicle.
• 
Statistics show that children of all sizes and ages are safer when they are 
properly restrained in a rear seat.
• 
Any child who is too small to wear a seat belt correctly must be restrained in an 
approved child seat that is properly secured to the vehicle using either\
the lap
belt portion of the lap/shoulder belt or the lower anchors of the LATCH system.
• Never hold a child on your lap because it is impossible to protect them in the 
event of a collision.
• 
Never put a seat belt over yourself and a child. During a crash, the belt would 
likely press deep into the child and cause serious or fatal injuries.
• 
Never let two children use the same seat belt. Both children could be very 
seriously injured in a crash.
• 
Do not allow children to operate the doors, windows, or seat adjusters.
• Do not leave children in the vehicle unattended, especially in hot weather when 
the inside of the vehicle can get hot enough to kill them. They could al\
so activate
vehicle controls, causing it to move unexpectedly.
Children who are unrestrained or improperly restrained can be seriously 
injured or killed in a crash.
Any child too small for a seat belt should be properly restrained in a child 
seat. A larger child should be properly restrained with a seat belt, using a 
booster seat if necessary.
WARNING

24    || 25
I
NSTRUMENT PANELINSTRUMENT PANEL
Smart Entry system*
There is a problem with the smart entry system.
Malfunction indicator lamp (check engine light)
• The emissions control system may have a problem, or the fuel cap is loose  
or missing.
• (Blinks) A misfire in the engine’s cylinders is detected. Stop in a safe place, 
and wait for the engine to cool down.
Anti-lock Brake System (ABS)
There is a problem with the anti-lock brake system. Your vehicle still has 
normal braking ability, but no anti-lock function. 
Tire Pressure Monitoring System (TPMS)*
There is a problem with the tire pressure monitoring system, or the vehicle is 
fitted with the compact spare tire.
Collision Mitigation Braking System™ (CMBS™)*
There is a problem with system, the radar sensor is blocked, or the 
temperature is too high.
Lane Departure Warning (LDW)*
There is a problem with the system, the camera is blocked, or the 
temperature is too high.
Lane Keeping Assist System (LKAS)*
There is a problem with the system, the camera is blocked, or the 
temperature is too high.
Vehicle Stability Assist (VSA
®)
There is a problem with the VSA system or hill start assist system.
Adaptive Cruise Control (ACC)*
There is a problem with the system, the radar sensor is blocked, or the 
temperature is too high.
Electric Power Steering (EPS)
There is a problem with the EPS system. Stop in a safe place, and restart the 
vehicle.
Starter system*
There is a problem with the starter system. Press and hold the ENGINE 
START/STOP button for up to 15 seconds while pressing the brake pedal and 
manually start the engine.
All Wheel Drive (AWD)*
There is a problem with the AWD system. If the indicator blinks, the system 
is overheated and inactive. Stop in a safe place, and idle until the ind\
icator
goes off.
Learn about the indicators, gauges, and displays related to driving the vehicle.
Indicators briefly appear with each engine start and then go out. Red and amber 
indicators are most critical. Blue and green indicators are used for general?
information.
Malfunction Indicators
These are the most critical indicators. If they come on and stay lit while driving or at 
any other time, there may be a problem. See your dealer if necessary.
Brake system
• Brake fluid is low.
• The brake system has a problem.
Press the brake pedal lightly to check pedal pressure. If normal, check 
the brake fluid level when you stop. If abnormal, take immediate action. If 
necessary, downshift the transmission to slow the vehicle using engine
braking. Have your vehicle repaired immediately.
Low oil pressure
Engine oil pressure is low. Stop in a safe place. Open the hood. Check the oil 
level, and add oil if necessary (see page 128). If the indicator does not turn 
off, have your vehicle repaired immediately.
Charging system
The battery is not charging. Turn off all electrical items, but do not turn off 
the vehicle to prevent further battery discharge. Have your vehicle repaired 
immediately.
Supplemental Restraint System (SRS)
There is a problem with one of the airbag systems or seat belt tensioners. 
Ca nada
U.S.
INSTRUMENT PANEL
*if equipped*if equipped

42    ||    43
V
EHICLE CONTROLSVEHICLE CONTROLS
Adjusting the Seats
Make seat adjustments before driving to ensure the best comfort and safety.
Adjusting the Front Seats
Adjust the driver’s seat as far back as possible while 
allowing you to maintain full control of the vehicle.
You should be able to sit upright and well back in the 
seat, adequately press the pedals without leaning 
forward, and grip the steering wheel comfortably. 
The passenger’s seat should be adjusted so that it 
is as far back from the front airbag in the dashboard 
as possible.
The National Highway Traffic Safety Administration and Transport Canada
recommend that drivers allow at least 10 inches (25 cm) between the center of the 
steering wheel and the chest.
Driver’s power seat*
Move back and allow sufficient space.
*if equipped
Automatic (AUTO) Rain-Sensing Wipers*
When you move the lever to the AUTO position
while driving in rainy weather, the wipers operate
based on the amount of detected rainfall.
Put the lever in the AUTO position only when driving
in rainy weather.
Rotate the adjustment ring to adjust the rainfall
sensor sensitivity.
Return the lever to the OFF position when rain stops.
Do not use the wipers when the windshield is dry. The windshield will get 
scratched, or the rubber blades will get damaged.
In cold weather, the blades may freeze to the windshield, becoming stuck. 
Operating the wipers in this condition may damage the wipers. Use the de\
froster
or heated windshield button* to warm the windshield, or manually clear the 
windshield of ice and snow before turning on the wipers.
NOTICE
Rear WiperWhen you shift to Reverse (R) and the front
wipers are activated, the rear wiper activates
even if the switch is off.
AUTO
position
Adjustment ringLow sensitivity: Wipers
operate when more
rainfall is detected.
High sensitivity: Wipers
operate when less
rainfall is detected.
Always ensure the wiper lever is in the OFF position before entering a car wash to 
prevent severe damage to the windshield wiper system.
NOTICE
*if equipped
1 INT: Intermittent2 ON: Continuous wipe3 OFF4 Washer
421
3
4
Horizontal
position
adjustment
Height
adjustment Lumbar support
adjustment
Seat-back
angle
adjustment

48    ||    49
V
EHICLE CONTROLSVEHICLE CONTROLS
Adjusting the Steering Wheel
The steering wheel height and distance from your body can be adjusted so that you 
can comfortably grip the steering wheel in an appropriate driving posture.
1. Pull up the steering wheel adjustment lever.
2. Move the steering wheel up or down, and in
or out.
3. Push down the steering wheel adjustment
lever to lock the steering wheel in position.
Driving Position Memory System*
You can store two driver’s seat positions into memory when the vehicle is on using
the buttons on the driver’s door.
1. Adjust the seat to your preferred position.
2. Press SET.
3. Press and hold memory button 1 or 2. You will hear 
two beeps when the memory is set.
4. Press one of the memory buttons to recall 
previously stored positions.
Lumbar positions cannot be stored.
When you unlock and open the driver’s door with a remote transmitter, the seat
adjusts automatically to one of the two preset positions.
*if equipped
To adjust
To lockLever
*if equipped
Adjusting the Mirrors
Adjust the angle of the mirrors for the best visibility when you are sitting in the 
correct driving position.
Rearview Mirror with Day/Night Positions*
Manually adjust the position to reduce headlight
glare from vehicles behind you. Flip the tab to 
switch between day and night positions.
Automatic Dimming Rearview Mirror*When driving after dark, the automatic dimming
function reduces the glare from headlights behind 
you.
A green indicator appears when automatic dimming
is on. The function cancels when the shift lever is in
Reverse (R).
Power Door MirrorsAdjust the power door mirrors when the vehicle is on.
L/R selector switch: Select the left or right mirror.
After adjusting the mirror, return the switch to the
center position.
Mirror position adjustment switch: Press the switch
left, right, up, or down to move the mirror.
Memorybutton 1
Memorybutton 2
SET button
Adjusting the steering wheel position while driving may cause you to los\
e
control of the vehicle and be seriously injured in a crash.
Adjust the steering wheel only when the vehicle is stopped.
WARNING
Night position
Ta b
Day
position
Sensor
Adjustment
switch
Selector
switch
