Continued515
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)*
Driving
■How the system works
The system starts monitoring the roadway ah ead when your vehicle speed is about
3 mph (5 km/h) and there is a vehicle in front of you. The radar sensor is
in the front grille.
The CMBS
TM activates when:●The speed difference between your vehicle and a vehicle or pedestrian detected in
front of you becomes about 3 mph (5 km/h) and over with a chance of a collision.
●Your vehicle speed is about 62 mph (100 km/h) or less and the system
determines there is a chance of a collision with:
- Vehicles detected in front of you that are stationary, oncoming, or traveling in
your same direction.
- A pedestrian who is detected in front of you.
●Your vehicle speed is above 62 mph (100 km/h), and the system determines
there is a chance of a collision with a vehicle detected in front of you traveling
in your same direction. The camera is
located behind the
rearview mirror.
When to use
1
How the system works
When the CMBS
TM activates, it may automatically
apply the brake. It will be canceled when your vehicle
stops or a potential coll ision is not determined.
17 CR-V-31TLA6000.book 515 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

521
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)*
Continued
Driving
■Vehicle conditions
• Headlight lenses are dirty or the h eadlights are not properly adjusted.
• The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
• The inside of the windshield is fogged.
• An abnormal tire or wheel condition (wro ng sized, varied size or construction,
improperly inflated, co mpact spare tire, etc.).
• When tire chains are installed.
• The vehicle is tilted due to a heavy load or suspension modifications.
• The camera temperature gets too high.
• Driving with the parking brake applied.
• When the radar sensor in the front grille gets dirty.
17 CR-V-31TLA6000.book 521 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

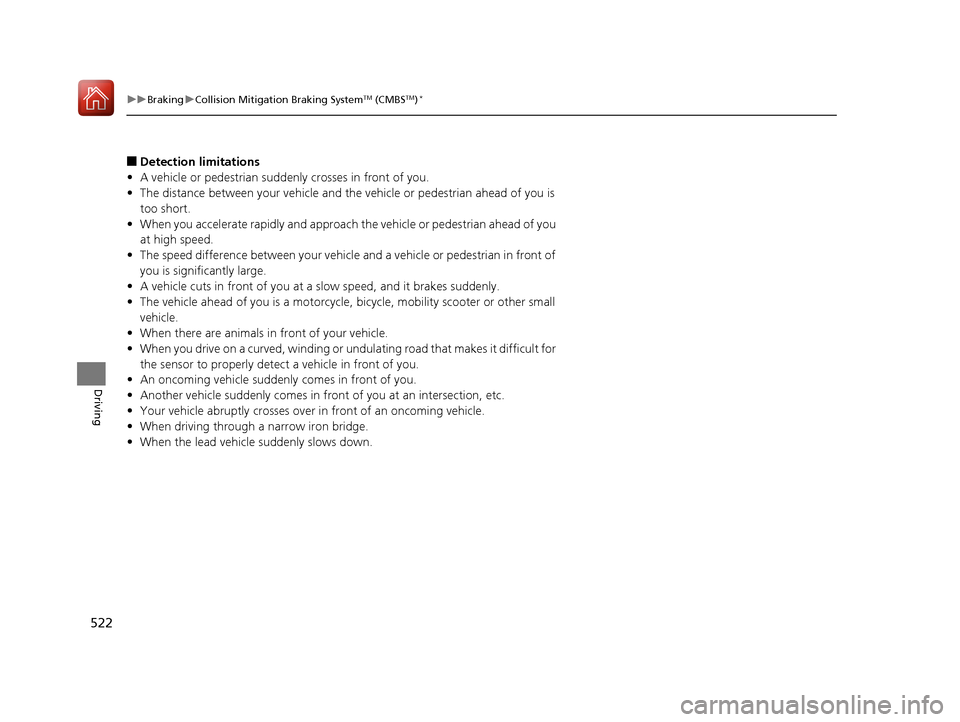

522
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)*
Driving
■Detection limitations
• A vehicle or pedestrian suddenly crosses in front of you.
• The distance between your vehicle and the vehicle or pedestrian ahead of you is
too short.
• When you accelerate rapidly and approach the vehicle or pedestrian ahead of you
at high speed.
• The speed difference between your vehicle an d a vehicle or pedestrian in front of
you is significantly large.
• A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter or other small
vehicle.
• When there are animals in front of your vehicle.
• When you drive on a cu rved, winding or undulating road that makes it difficult for
the sensor to properly detect a vehicle in front of you.
• An oncoming vehicle suddenly comes in front of you.
• Another vehicle suddenly comes in front of you at an intersection, etc.
• Your vehicle abruptly crosses over in front of an oncoming vehicle.
• When driving through a narrow iron bridge.
• When the lead vehicle suddenly slows down.
17 CR-V-31TLA6000.book 522 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

Index
647
Index
Index
Numbers
4WD.......................................................... 500
A
ABS (Anti-lock Brake System) .................. 512
Accessories and Modifications ................ 598
Accessory Power Sockets ......................... 212
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ........................... 97, 465
Adding the Coolant ................................. 562
Additives Coolant .......................................... 561, 563
Engine Oil ............................................... 554
Washer ................................................... 567
Additives, Engine Oil ............................... 554
Adjusting Armrest .................................................. 202
Front Seats.............................................. 194
Head Restraints ....................................... 198
Mirrors.................................................... 192
Rear Seats ............................................... 201
Steering Wheel ....................................... 191
Temperature ................................... 120, 128
Adjusting the Sound ........................ 240, 278
Agile Handling Assist ............................... 494
Air Conditioning System (Climate
Control System) ...................................... 221
Changing the Mode................................ 222
Defrosting the Windshield and
Windows .............................................. 222 Dust and Pollen Filter ............................... 592
Recirculation/Fresh Air Mode ................... 222
Sensor ..................................................... 225
Synchronized Mode ................................. 224
Using Automatic Climate Control ............ 221
Air Pressure ....................................... 580, 635
Airbags ........................................................ 49
Advanced Airbags ..................................... 55
Airbag Care ............................................... 62
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 52
Indicator .............................................. 60, 85
Passenger Airbag Off Indicator .................. 61
Sensors ...................................................... 49
Side Airbags .............................................. 56
Side Curtain Airbags .................................. 58
All-Wheel Drive (AWD) ............................ 500
AM/FM Radio .................................... 242, 285
Android Auto
TM........................................ 321
Anti-lock Brake System (ABS) .................. 512
Indicator .................................................... 85
Apple CarPlay
TM........................................ 318
Armrest ..................................................... 202
Audio Remote Controls ............................ 231
Audio System ............................ 228, 235, 256
Adjusting the Sound ........................ 240, 278
AM/FM Radio .................................. 242, 285
Android Auto
TM....................................... 321
Apple CarPlayTM....................................... 318
Audio/Information Screen ................ 236, 257
Changing the Home Screen Icon Layout .. 261 Changing the Screen Interface ................ 275
Closing Apps ........................................... 277
Customizing the Meter............................ 262
Display Setup .................................. 241, 279
Error Messages ........................................ 325
General Information ................................ 330
Home Screen........................................... 268
HondaLink
®............................................. 310
How to use Siri ® Eyes Free .............. 255, 317
iPod ................................................ 244, 296
Limitations for Manual Operation ............ 280
Menu Customize ..................................... 276
MP3/WMA/AAC .............................. 249, 305
Pandora ®......................................... 247, 303
Playing Bluetooth ® Audio ................ 252, 308
Playing SiriusXM ® Radio .......................... 289
Reactivating ............................................ 230
Recommended Devices............................ 331
Remote Controls ..................................... 231
Security Code .......................................... 230
Selecting an Audio Source ....................... 280
Song By Voice
TM (SBV) ............................. 299
Status Area ............................................. 274
Theft Protection ...................................... 230
USB Flash Drives ...................... 249, 305, 331
USB Port(s) .............................................. 229
Voice Control Operation.......................... 281
Wallpaper Setup.............................. 238, 266
Wi-Fi Connection .................................... 315
Audio/Information Screen ............... 236, 257
Authorized Manuals ................................ 644
17 CR-V-31TLA6000.book 647 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

648
Index
Auto Door Locking/Unlocking................. 146
Auto High-Beam System .......................... 178
Automatic Brake Hold .............................. 510
Indicator ............................................ 82, 510
Automatic Intermittent Wipers ............... 183
Automatic Lighting .................................. 175
Average Fuel Economy ..................... 119, 124
Average Speed .......................................... 124
AWD (All-Wheel Drive) ............................ 500
B
Battery....................................................... 588
Charging System Indicator ................. 83, 619
Jump Starting .......................................... 611
Maintenance (Checking the Battery) ........ 588
Maintenance (Replacing).......................... 590
Belts (Seat) .................................................. 40
Beverage Holders ...................................... 210
Blind spot information (BSI) System ........ 495
Bluetooth ® Audio ............................. 252, 308
Bluetooth ® HandsFreeLink ®............. 371, 394
Booster Seats (For Children) ....................... 75
Brake System ............................................. 506
Anti-lock Brake System (ABS) ................... 512
Automatic Brake Hold.............................. 510
Brake Assist System ................................. 513
Fluid ........................................................ 566
Foot Brake ............................................... 509
Indicator (Red) ........................... 80, 621, 622
Parking Brake .......................................... 506 Brightness Control
(Instrument Panel).... 185
Bulb Replacement .................................... 568
Brake/Taillight, Rear Turn Signal Light and
Rear Side Marker Lights ......................... 572
Fog Lights ............................................... 570
Front Turn Signal/ Front Side Marker Lights .................................................... 572
Headlights ............................................... 568
High-Mount Brake Light .......................... 574
Parking/Daytime Running Lights .............. 572
Rear License Plate Light ........................... 574
Side Turn Signal/Emergency Indicator Lights .................................................... 572
Taillight and Back-Up Lights .................... 573
Bulb Specifications ................................... 634
C
Carbon Monoxide Gas ............................... 76
Cargo Hook ............................................... 215
Carrying Cargo ................................. 433, 435
Certification Label .................................... 636
Changing Bulbs ........................................ 568
Charging System Indicator ................. 83, 619
Child Safety ................................................. 63
Childproof Door Locks............................. 145
Child Seat .................................................... 63
Booster Seats ............................................ 75
Child Seat for Infants................................. 65
Child Seat for Small Children ..................... 66 Installing a Child Seat
with a Lap/Shoulder
Seat Belt ................................................. 71
Larger Children ......................................... 74
Rear-facing Child Seat............................... 65
Selecting a Child Seat ............................... 67
Childproof Door Locks ............................. 145
Cleaning the Exterior ............................... 595
Cleaning the Interior ............................... 593
Climate Control System ........................... 221
Changing the Mode................................ 221
Defrosting the Windshield and
Windows .............................................. 222
Dust and Pollen Filter .............................. 592
Recirculation/Fresh Air Mode................... 222
Sensors ................................................... 225
Synchronized Mode ................................ 224
Using Automatic Climate Control............ 221
Clock ......................................................... 132
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 514
Coat Hook ................................................ 214
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 514
Compact Spare Tire .......................... 601, 635
Compass .................................................... 428
Continuously Variable Transmission ....... 452
Creeping................................................. 452
Fluid ....................................................... 565
Kickdown ............................................... 452
Operating the Shift Lever .................. 23, 454
Shift Lever Does Not Move ...................... 614
17 CR-V-31TLA6000.book 648 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

650
Index
F
Features..................................................... 227
Filters Dust and Pollen ....................................... 592
Oil ........................................................... 558
Flat Tire ..................................................... 601
Floor Mats ................................................. 594
Fluids
Brake ....................................................... 566
Continuously Variable Transmission ......... 565
Engine Coolant ................................ 561, 563
Windshield Washer .................................. 567
FM/AM Radio .................................... 242, 285
Fog Light Indicator ..................................... 91
Folding Down the Rear Seats ................... 201
Foot Brake ................................................. 509
Front Airbags (SRS) ..................................... 52
Front Seat Heaters .................................... 218
Front Seats ................................................ 194
Adjusting ................................................. 194
Front Sensor Camera ................................ 463
Fuel ...................................................... 25, 531
Fuel Economy and CO
2 Emissions............. 534
Gauge ..................................................... 117
Instant Fuel Economy ....................... 119, 128
Low Fuel Indicator ..................................... 84
Range .............................................. 119, 124
Recommendation .................................... 531
Refueling ................................................. 531
Fuel Economy and CO
2 Emissions ............ 534
Fuel Fill Door ............................................. 532 Fuses
.......................................................... 625
Inspecting and Changing......................... 628
Locations......................................... 625, 626
G
Gasoline (Fuel)
Fuel Economy and CO
2 Emissions ............ 534
Gauge ..................................................... 117
Information ............................................. 531
Instant Fuel Economy ...................... 119, 128
Low Fuel Indicator ..................................... 84
Refueling................................................. 531
Gauges ...................................................... 117
Gear Shift Lever Positions Continuously Variable Transmission ......... 453
Glass (care) ........................................ 593, 596
Glove Box .................................................. 206
H
Handling the Unexpected ........................ 599
HandsFreeLink ® (HFL) ....................... 371, 394
Automatic Import of Cellular Phonebook
and Call History ............................. 384, 407
Caller’s ID Information............................. 382
Displaying Messages................................ 422
HFL Buttons..................................... 371, 394
HFL Menus ...................................... 373, 397
HFL Status Display ........................... 372, 396
In Case of Emergency .............................. 426 Limitations for Manual Operation .... 372, 396
Making a Call ................................. 388, 415
Options During a Call...................... 393, 419
Phone Setup ................................... 377, 402
Phonebook Phonetic M
odification........... 411
Receiving a Call............................... 392, 418
Receiving a Text Message/E-mail ............. 420
Ring Tone ....................................... 382, 406
Selecting a Mail Account......................... 421
Speed Dial ...................................... 385, 408
To Clear the System ................................ 383
To Set Up Text Message/E-mail Options .. 405
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 285
Head Restraints ........................................ 198
Headlights ................................................ 174
Aiming.................................................... 568
Auto High-Beam System ......................... 178
Automatic Operation .............................. 175
Dimming......................................... 174, 181
Operating ............................................... 174
Heated Door Mirror Button .................... 187
Heated Steering Wheel ........................... 217
Heated Windshield Button ...................... 188
Heaters (Front Seat) ................................. 218
Heaters (Seat) ........................................... 219
Heating and Cooling System Dust and Pollen Filter .............................. 592
HFL (HandsFreeLink ®) ...................... 371, 394
High Beam Indicator .................................. 90
Hill Start Assist System ..................... 445, 450
17 CR-V-31TLA6000.book 650 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

654
Index
Snow Tires................................................. 587
Song By VoiceTM (SBV) .............................. 299
Spare Tire .......................................... 601, 635
Spark Plugs ................................................ 634
Specifications ............................................ 634
Specified Fuel .................................... 531, 634
Speedometer ............................................. 117
SRS Airbags (Airbags) ................................. 52
Starting the Engine .......................... 444, 446
Does Not Start ......................................... 608
Engine Switch Buzzer....................... 168, 171
Jump Starting .......................................... 611
Steering Wheel ......................................... 191
Adjusting ................................................. 191
Stopping .................................................... 524
Summer Tires ............................................ 587
Sunglasses Holder ..................................... 216
Supplemental Restraint System (SRS) ........ 52
Switches (Around the Steering
Wheel) ............................................. 4, 5, 168
System Message Indicator .......................... 90
T
Tachometer............................................... 117
Tailgate ..................................................... 147
Tailgate Open Indicator.............................. 87
Unable to Open ....................................... 630
Temperature Outside Temperature Display ........... 120, 128
Temperature Sensor ......................... 120, 128 Theft Protection
....................................... 230
Time (Setting) ........................................... 132
Tire Pressure Monitoring System (TPMS) ..................................................... 501
Button..................................................... 501
Indicator.................................................... 89
Tires ........................................................... 579
Air Pressure ..................................... 580, 635
Checking and Maintaining ...................... 579
Inspection ............................................... 579
Labeling .................................................. 580
Puncture (Flat Tire) .................................. 601
Regulations ............................................. 582
Rotation .................................................. 586
Spare Tire ........................................ 601, 635
Summer .................................................. 587
Tire Chains .............................................. 587
Wear Indicators ....................................... 584
Winter..................................................... 587
Tonneau Cover ......................................... 220
Tools .......................................................... 600
Towing a Trailer ....................................... 437
Equipment and Accessories ..................... 438
Load Limits .............................................. 437
Towing Your Vehicle ................................ 441
Behind a Motorhome .............................. 441
Emergency .............................................. 629
TPMS (Tire Pressure Monitoring
System) .................................................... 501
Button..................................................... 501
Indicator.................................................... 89 Transmission
............................................. 453
Continuously Variable ............................. 453
Fluid ....................................................... 565
Number .................................................. 636
Shift Lever Position Indicator ............. 83, 454
TRIP Knob ......................................... 118, 122
Trip Meter ........................................ 118, 122
Troubleshooting ...................................... 599
Blown Fuse ..................................... 625, 626
Brake Pedal Vibrates ................................. 30
Buzzer Sounds When Opening Door ......... 30
Emergency Towing ................................. 629
Engine Won’t Start ................................. 608
Noise When Braking ................................. 31
Overheating ............................................ 615
Puncture/Flat Tire .................................... 601
Rear Door Won’t Open ..................... 30, 145
Select Lever Won’t Move ........................ 614
Warning Indicators.................................... 80
Turbo Engine Vehicle .............................. 535
Turn Signals .............................................. 173
Indicators (Instru ment Panel) ..................... 90U
Under-floor Storage Area ....................... 209
Unlocking the Doors ................................ 137
Unlocking the Fron t Doors from the
Inside ......................................................... 15
USB Flash Drives ....................... 249, 305, 331
USB Port(s) ................................................ 229
17 CR-V-31TLA6000.book 654 ページ ２０１６年１０月１１日　火曜日　午後６時３７分
