tailgate HONDA CR-V 2017 RM1, RM3, RM4 / 4.G Owner's Guide

uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
154
Controls

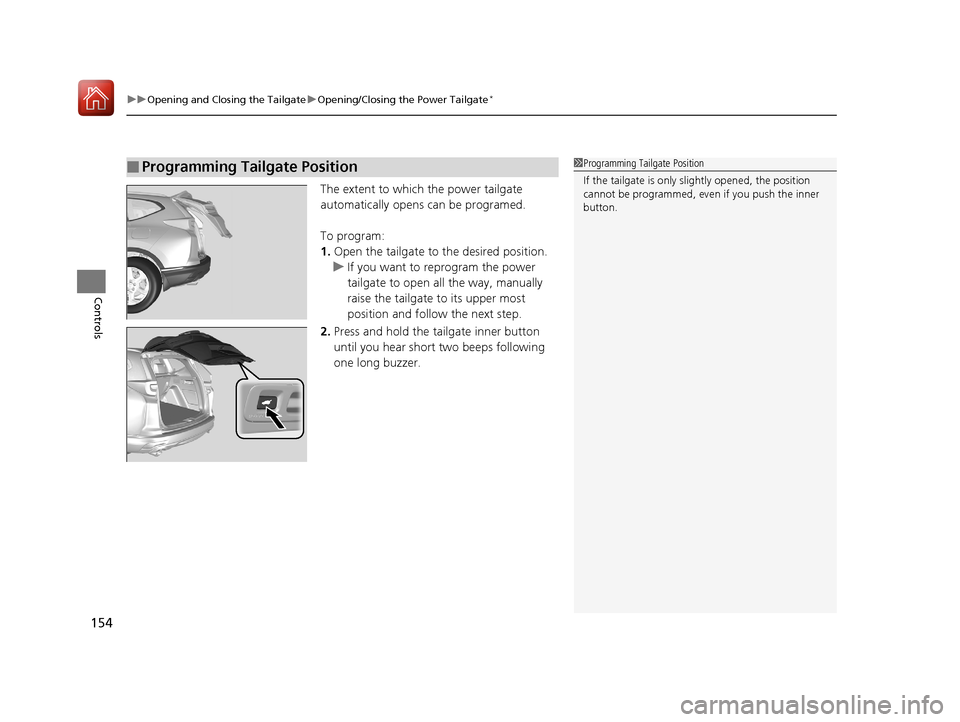

The extent to which the power tailgate
automatically opens can be programed.
To program:
1. Open the tailgate to the desired position.
u If you want to reprogram the power
tailgate to open all the way, manually
raise the tailgate to its upper most
position and follow the next step.
2. Press and hold the tailgate inner button
until you hear short two beeps following
one long buzzer.
■Programming Tailgate Position1Programming Tailgate Position
If the tailgate is only sl ightly opened, the position
cannot be programmed, even if you push the inner
button.
17 CR-V-31TLA6000.book 154 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

155
uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
Controls

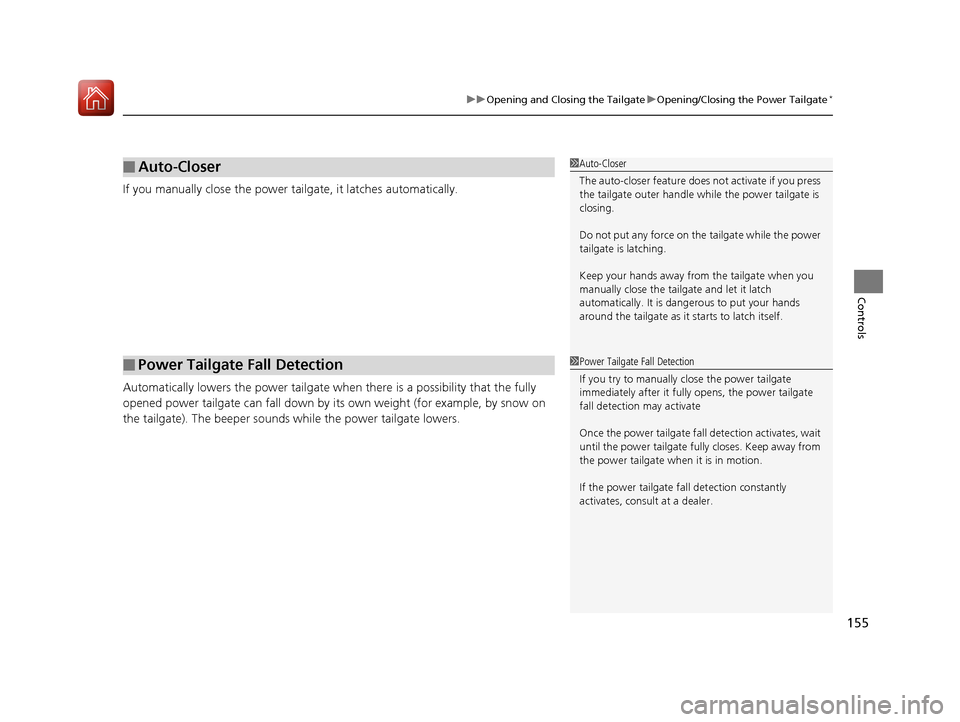

If you manually close the power tailgate, it latches automatically.
Automatically lowers the power tailgate wh en there is a possibility that the fully
opened power tailgate can fall down by its own weight (for example, by snow on
the tailgate). The beeper sounds while the power tailgate lowers.
■Auto-Closer
■Power Tailgate Fall Detection
1Auto-Closer
The auto-closer feature does not activate if you press
the tailgate outer handle while the power tailgate is
closing.
Do not put any force on the tailgate while the power
tailgate is latching.
Keep your hands away from the tailgate when you
manually close the tailga te and let it latch
automatically. It is dange rous to put your hands
around the tailgate as it st arts to latch itself.
1Power Tailgate Fall Detection
If you try to manually close the power tailgate
immediately after it full y opens, the power tailgate
fall detection may activate
Once the power tailgate fall detection activates, wait
until the power tailgate full y closes. Keep away from
the power tailgate when it is in motion.
If the power tailgate fa ll detection constantly
activates, consult at a dealer.
17 CR-V-31TLA6000.book 155 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

156
uuOpening and Closing the Tailgate uOpening/Closing the Tailgate
Controls
Opening/Closing the Tailgate
When all the doors are unlocked or press the
tailgate unlock button on the remote
transmitter, the tailgate is unlocked.
Press the tailgate release button and lift open
the tailgate.
If you are carrying the smart entry remote, you
do not have to unlock the tailgate before
opening it.
To close the tailgate, grab the inner handle,
pull the tailgate down, and push it closed
from outside.
■Using the Tailgate Release Button1 Using the Tailgate Release Button
Do not leave the key, remote transmitter
*, or smart
entry remote* in the cargo area before closing the
tailgate.
Even if you are not carrying the smart entry remote,
you can lock/unlock the tail gate while someone else
with the remote is within range.
Models with smart entry system
Outer Handle
Models with smart entry system
Inner Handle
* Not available on all models
17 CR-V-31TLA6000.book 156 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

157
uuOpening and Closing the Tailgate uOpening/Closing the Tailgate
Controls
Press the tailgate unlock button to unlock the
tailgate.
■Using the Remote Transmitter*1Using the Remote Transmitter*
If you have unlocked and opened the tailgate using
the remote transmitter or smart entry remote*, when
closing, the tailgate locks automatically.
Tailgate
Unlock
Button
Tailgate
Unlock
Button
* Not available on all models
17 CR-V-31TLA6000.book 157 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

158
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains electronic transmitters that use electronic
signals to verify the key.
Pay attention to the following when inserti ng the key into the ignition switch or
pressing the ENGINE START/STOP button
*:
• Do not allow objects that emit strong radio waves near the ignition switch*1.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle's immobilizer system near the ignition
switch.
Security System Alarm*
The security system alarm activates when the tailgate, hood or doors are forcibly
opened. The alarm does not go off if the tailgate or doors are opened with the key,
remote transmitter or smart entry system.
However, the alarm goes off if a door is ope ned with the key, then the shift lever is
moved out of
(P or the hood is opened before the power mode is set to ON.
■When the security sy stem alarm activates
The horn sounds intermittently and all the exterior lights flash.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
1 Immobilizer System
NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Canadian models only: Apply and hold the brake
pedal before turning the vehicle on the first time after
the battery has been disconnected.
1 Security System Alarm*
The security alarm continues for a maximum of two
minutes until the security system deactivates.
* Not available on all models
17 CR-V-31TLA6000.book 158 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

Continued159
uuSecurity System uSecurity System Alarm*
Controls
■To deactivate the security system alarm
Unlock the vehicle using the remote transmi tter or smart entry system. The system,
along with the horn and flashing lights, is deactivated.
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The power mode is set to VEHICLE OFF (LOCK).
• The hood and tailgate are closed.
• All doors and tailgate are locked with the key or the remote transmitter.
■When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 se conds, the security system alarm is set.
■To cancel the security system alarm
The security system is canceled when the vehicle is unlocked using the key, remote
transmitter, smart entry system, or the power mode is set to ON. The security system
alarm indicator goes off at the same time.
1 Security System Alarm*
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.•Opening the hood with the hood release handle.
•Moving the shift lever out of ( P.
If the battery goes dead after you have set the
security system alarm, the security alarm may go off
once the battery is re charged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the ke y or remote transmitter.
Do not attempt to alter th is system or add another
device to it.
* Not available on all models
17 CR-V-31TLA6000.book 159 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

201
uuAdjusting the Seats uRear Seats
Controls
Rear Seats
1. Store the center seat belt first. Insert the
latch plate into the slot on the side of the
anchor buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 46
3.Lower the rear seat head restraint to its
lowest position. Put the armrest back into
the seat-back.
4. Pull the release lever and fold down the
seat.
4. Pull the release lever and fold down the
seat.
■Folding Down the Rear Seats1Folding Down the Rear Seats
The rear seat-backs can be folded down to
accommodate bulkier items in the cargo area.
Never drive with the seat-back folded down and the
tailgate open.
2 Exhaust Gas Hazard P. 76
When returning the seat-back to its original position,
push it firmly back. Also, m ake sure all rear shoulder
belts are positioned in front of the seat-back.
Make sure all items in the cargo area or items
extending through the opening into the rear
seats are properly secured. Loose items can fly
forward if you have to brake hard.
3WARNING
Make sure the seat-backs are latched
securely before driving.
Latch plate
anchor buckle
Release LeverFrom the rear seat side
Release LeverFrom the cargo area side
17 CR-V-31TLA6000.book 201 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

205
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls
■Rear
The map lights can be turned on and off by
pressing the button when the front interior
light switch is in the door activated position.
■ON
The light comes on when you open the
tailgate, and goes off when closed.
■OFF
The light stays off with or without opening the
tailgate.
Models without panoramic roof
Models with panoramic roof
Off
On
■Cargo Area Lights
Off
On
17 CR-V-31TLA6000.book 205 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
220
Controls
The rear cargo cover can be used to conceal
items in the cargo area and protect them from
direct sunlight.
■To extend:
Slightly lift up on the handle at the center
edge of the cover to unhook each end, then
pull the cover rearward and clip the mounting
rods in the hooks at bo th sides of the tailgate
opening.
■To retract:
Slip the rods out of the hooks, then slowly roll
it back until it is completely retracted.
■To remove:
Push either end of the housing inward, then
lift it out of its position.
■Rear Cargo Cover*1 Rear Cargo Cover*
Do not let anyone access items in the cargo area
while driving. Loose items ca n cause injury if you have
to brake hard.
Do not stack objects higher than the top of the seat
in the cargo area. They could block your view and be
thrown about the vehicle during a sudden stop.
To prevent rear cargo cover damage:
•Do not place items on the rear cargo cover.•Do not put weight on the rear cargo cover.
Be sure that each mounting rod sets in its respective
retention groove when you retract the rear cargo
cover. If they are not set in the grooves, the rods may
rattle as they contac t the surrounding surfaces.
Handle
Mounting Rod
Hook
* Not available on all models
17 CR-V-31TLA6000.book 220 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

350
uuCustomized Features u
Features
Hand Free Access Function
Keyless Open Mode
Lighting SetupInterior Light Dimming Time
Headlight Auto Off Timer
Auto Light Sensitivity
Auto Interior Illumination Sensitivity
Auto Door Lock
Key and Remote Unlock Mode
Door/Window Setup
Apple CarPlay
Maintenance Info.
Android Auto
Keyless Lock Answer Back
Security Relock Timer
Walk Away Auto Lock
Keyless Access Setup*
Keyless Access Light Flash
Door Unlock Mode
Remote Start System On/Off
Keyless Access Beep
Smartphone
Power Tailgate Setup
Power Open By Outer Handle
Default
Auto Door Unlock
Auto Headlight ON With Wiper ON
* Not available on all models
