tailgate HONDA CR-V 2017 RM1, RM3, RM4 / 4.G Service Manual

366
uuCustomized Features u
Features
Setup Group Customizabl e Features Description Selectable Settings
Vehicle
Power
Tailgate
Setup
*
Hand Free Access
FunctionChanges the setting to open power tailgate by a
swift forward in and out kicking motion under
the rear bumper.
On*1/Off
Keyless Open ModeChanges the keyless setting for when the power
tailgate opens.Anytime*1/When
Unlocked
Power Open By Outer
HandleChanges the setting to open power tailgate by
tailgate outer handle.Off (Manual only)*1/
On (Power/Manual)
Maintenance Info.Used to reset the engine oil life display when the
maintenance service has been performed.—
DefaultCancels/Resets all customized items in the Vehicle
settings group as default.Yes /No
Smartphone Apple CarPlay
Sets up the Apple CarPlay
TM connection.—
Android Auto Sets up the Android Auto
TM connection.—
* Not available on all models
17 CR-V-31TLA6000.book 366 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

Continued433
uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle's
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 435
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driv ing and a crash could occur.
• Securely close and lock al l doors and the tailgate.
2Locking/Unlocking the Doors from the Inside P. 144
•Adjust your seating position properly.
u Adjust the head restraint, too.
2Adjusting the Seats P. 194
2 Adjusting the Front Head Restraints P. 198
•Adjust the mirrors and steering wh eel properly for your driving.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Steering Wheel P. 191
2 Adjusting the Mirrors P. 192
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
17 CR-V-31TLA6000.book 433 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

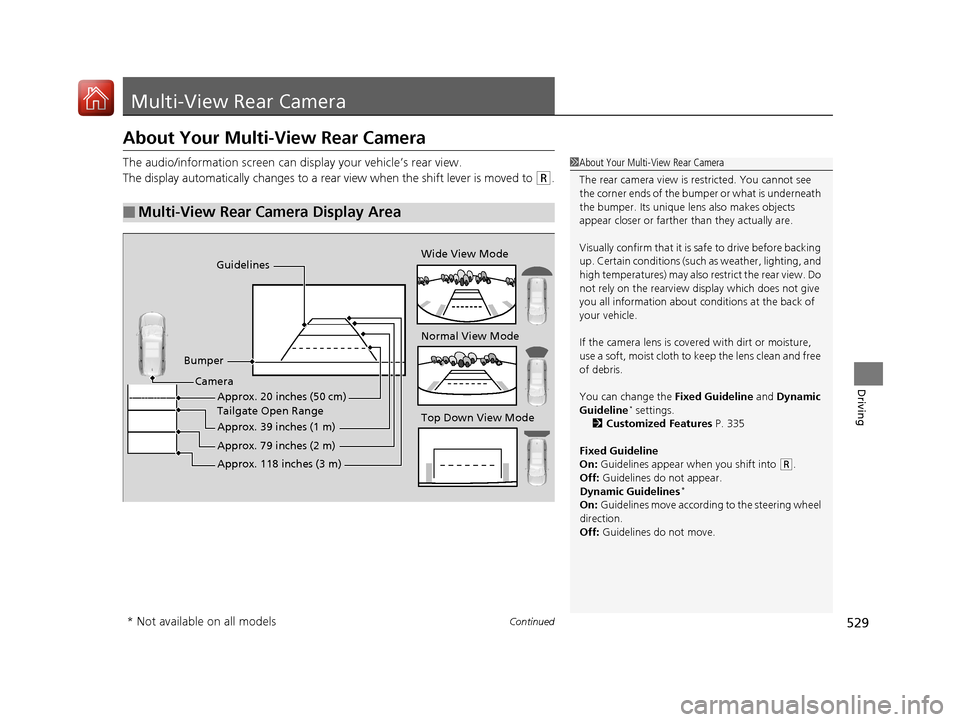

529Continued
Driving
Multi-View Rear Camera
About Your Multi-View Rear Camera
The audio/information screen can display your vehicle’s rear view.
The display automatically changes to a rear view when the shift lever is moved to
(R.
■Multi-View Rear Camera Display Area
1About Your Multi-View Rear Camera
The rear camera view is restricted. You cannot see
the corner ends of the bum per or what is underneath
the bumper. Its unique le ns also makes objects
appear closer or farther than they actually are.
Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also re strict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.
If the camera lens is cove red with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.
You can change the Fixed Guideline and Dynamic
Guideline
* settings.
2 Customized Features P. 335
Fixed Guideline
On: Guidelines appear when you shift into
(R.
Off: Guidelines do not appear.
Dynamic Guidelines
*
On: Guidelines move according to the steering wheel
direction.
Off: Guidelines do not move.
Guidelines
Bumper Wide View Mode
Normal View Mode
Top Down View Mode
Camera
Approx. 79 inches (2 m)
Approx. 39 inches (1 m)
Approx. 118 inches (3 m)
Approx. 20 inches (50 cm)
Tailgate Open Range
* Not available on all models
17 CR-V-31TLA6000.book 529 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

599
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 600
If a Tire Goes Flat Changing a Flat Tire ......................... 601
Engine Does Not Start Checking the Engine ........................ 608
If the Smart Entry Remote Battery is Weak .......................................... 609
Emergency Engine Stop ................... 610
Jump Starting .................................... 611
Shift Lever Does Not Move .............. 614
Overheating How to Handle Overheating ............. 615 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On................................................ 619
If the Charging System Indicator Comes
On ................................................. 619
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 620
If the Brake System Indicator (Red) Comes On or Blinks ....................................... 621
If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On ..... 622
If the Electric Power Steering (EPS) System Indicator Comes On ........................... 623
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 624
Fuses Fuse Locations ................................. 625
Inspecting and Changing Fuses ........ 628
Emergency Towing ........................... 629
When You Cannot Open the Tailgate.. 630Refueling................................................. 631
17 CR-V-31TLA6000.book 599 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

627
uuFuses uFuse Locations
Handling the Unexpected
Circuit ProtectedAmps
18Front Driver's Lumber
support*(10 A)
19Moonroof*(20 A)
20Starter10 A
21ACG10 A
22Daytime Running Light10 A
23
Steering Wheel Heater*1
Handsfree Power Tailgate
Sensor
*(10 A)
24Option5 A
25Driver's Door Lock(10 A)
26Passenger's Side Door Unlock10 A
27Rear Passenger's Side Power Window20 A
28Driver's Power Window20 A
29Front Accessory Power
Socket20 A
30Smart Entry*1
STS*210 A5 A
31Driver's Power Seat Reclining*(20 A)
32Front Seat Heater*(20 A)
33Driver's Power Seat Sliding*(20 A)
34ABS/VSA10 A
35SRS10 A
36HAC Option*20 A
*1:Canadian models with steering heater
*2:Models without smart entry system
*3:Canadian models with panoramic roof
*4:Canadian models
37Trailer*15 A
38Driver's Side Door Lock10 A
39Driver's Door Unlock(10 A)
aPower Tailgate Closer*(20 A)
bPassenger's Power Seat
Sliding*(20 A)
cPassenger's Power Seat Reclining*(20 A)
dPanorama Shade Motor*3(20 A)
eRear Blower(20 A)
fEPT L(20 A)
gEPT R(20 A)
hAccessory Power Socket (Cargo Area)*4(20 A)
Circuit ProtectedAmps
* Not available on all models
17 CR-V-31TLA6000.book 627 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

630
Handling the Unexpected
When You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure:1.Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the tailgate, push the tailgate
while pushing the lever to the right using a
flat-tip screw driver.
■What to Do When Unable to Open the Tailgate1When You Cannot Open the Tailgate
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
Models with power tailgate
Screwdriver
Models without power tailgate
Lever
Screwdriver
17 CR-V-31TLA6000.book 630 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

651
Index
HomeLink® Universal Transceiver ........... 368
Honda SensingTM........................................ 26
HondaLink® .............................................. 310
I
Identification Numbers ............................ 636
Engine and Transmission ......................... 636
Vehicle Identification............................... 636
Ignition Switch ......................................... 168
Illumination Control ................................ 185
Knob ...................................................... 185
Immobilizer System .................................. 158
Immobilizer System Indicator..................... 91
Indicators .................................................... 80
Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) .......................... 98, 465
Anti-lock Brake System (ABS) .................... 85
Automatic Brake Hold ....................... 82, 510
Blind spot information (BSI) ..................... 496
Brake Depressing ...................................... 94
Charging System............................... 83, 619
Collision Mitigati on Braking System
TM
(CMBSTM) ................................ 99, 100, 101
Cruise Control .......................... 93, 457, 460
Cruise Main .............................. 93, 456, 459
Door Open.......................................... 38, 87
ECON Mode ..................................... 93, 455
Electric Power Steering (EPS) System ............................................ 88, 623
Fog Light .................................................. 91 High Beam ................................................ 90
Immobilizer System .................................... 91
Lane Keeping Assist System (LKAS) ...... 98, 99
Lights On ................................................... 90
Low Fuel .................................................... 84
Low Oil Pressure ................................ 82, 619
Low Tire Pressure/TPMS ..................... 89, 504
Maintenance Minder ......................... 93, 541
Malfunction Indicator Lamp ............... 83, 620
Parking Brake and Brake System (Amber) ... 81
Parking Brake and Brake System
(Red)........................................ 80, 621, 622
Road Departure Mitigation (RDM) ........ 95, 96
Seat Belt Reminder .............................. 42, 84
Security System Alarm ............................... 92
Shift Lever Position .................................... 83
Supplemental Restraint System ............ 60, 85
System Message ........................................ 90
Tailgate Open ............................................ 87
Transmission .............................................. 84
Turn Signal ................................................ 90
Vehicle Stability Assist (VSA ®)
System............................................. 86, 492
VSA ® OFF .......................................... 87, 493
Information ............................................... 633
Information Display .................................. 118
Instant Fuel Economy ....................... 119, 128
Instrument Panel ........................................ 79
Brightness Control ................................... 185
Interior Lights ........................................... 203
Interior Rearview Mirror .......................... 192iPod
................................................... 244, 296
J
Jack (Wheel Nut Wrench) ........................ 604
Jump Starting ........................................... 611
K
Key Number Tag ....................................... 136
Keyless Lockout Prevention ..................... 143
Keys ........................................................... 134
Lockout Prevention.................................. 143
Master Keys ............................................ 134
Number Tag ............................................ 136
Rear Door Won’t Open............................ 145
Remote Transmitter ................................. 141
Types and Functions ................................ 134
Valet Key................................................. 135
Won’t Turn ............................................... 29
Kickdown (Continuously Variable Transmission) .......................................... 452
L
Lane Keeping Assist System (LKAS) ......... 484
LaneWatchTM............................................ 498
Language (HFL) ................................ 372, 396
LATCH (Child Seats) .............................. 68, 72
Lights ................................................. 174, 568
Automatic ............................................... 175
Bulb Replacement ................................... 568
17 CR-V-31TLA6000.book 651 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

652
Index
Daytime Running Lights ........................... 181
Fog Lights ................................................ 177
High Beam Indicator .................................. 90
Interior .................................................... 203
Light Switches ......................................... 174
Lights On Indicator .................................... 90
Turn Signals ............................................. 173
Load Limits ................................................ 435
Locking/Unlocking .................................... 134
Auto Door Locking/Unlocking .................. 146
Childproof Door Locks ............................. 145
From Inside .............................................. 144
From Outside ........................................... 137
Keys ........................................................ 134
Using a Key ............................................. 142
Lockout Prevention System ...................... 143
Low Battery Charge .................................. 619
Low Fuel Indicator ...................................... 84
Low Oil Pressure Indicator ................. 82, 619
Low Smart Entry Remote Signal Strength ................................................... 136
Lower Anchors ...................................... 68, 72
Luggage (Maximum Load Limit) .............. 435
Lumbar Support ........................................ 195
Lumbar Support Adjustment Switch ....... 195
M
Maintenance............................................. 537
Adding the Coolant ................................. 562
Battery..................................................... 588 Brake Fluid .............................................. 566
Cleaning ................................................. 593
Coolant ........................................... 561, 563
Maintenance Minder
TM............................ 541
Oil ........................................................... 555
Precautions ............................................. 538
Radiator .................................................. 564
Remote Transmitter ................................. 590
Replacing Light Bulbs .............................. 568
Safety...................................................... 539
Service Items ................................... 543, 548
Tires ........................................................ 579
Transmission Fluid ................................... 565
Under the Hood ...................................... 551
Malfunction Indicator Lamp .............. 83, 620
Map Lights ................................................ 204
Maximum Load Limit ............................... 435
Meters, Gauges ......................................... 117
Mirrors ...................................................... 192
Adjusting ................................................ 192
Door ....................................................... 193
Exterior ................................................... 193
Interior Rearview ..................................... 192
Modifications (and Accessories) .............. 598
Moonroof ................................................. 164
MP3 ................................................... 249, 305
Multi-View Rear Camera .......................... 529
N
Numbers (Identification) ......................... 636
O
Odometer......................................... 118, 122
Off-Highway Driving Guidelines ............. 442
Oil (Engine) .............................................. 554
Adding ................................................... 557
Checking ................................................ 555
Displaying Oil Life ........................... 541, 546
Low Oil Pressure Indicator ................. 82, 619
Recommended Engine Oil ....................... 554
Viscosity.................................................. 554
Open Source Licenses .............................. 334
Opening/Closing
Hood ...................................................... 553
Moonroof ............................................... 164
Power Windows...................................... 161
Tailgate................................................... 147
Outside Temperature Display ......... 120, 128
Overheating ............................................. 615
P
Pandora®.......................................... 247, 303
Panic Mode ............................................... 160
Panoramic Roof ........................................ 165
Parking ..................................................... 524
Parking Brake ........................................... 506
17 CR-V-31TLA6000.book 652 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

653
Index
Parking Brake and Brake System Indicator (Amber) ..................................... 81
Parking Brake and Brake System Indicator (Red) .......................... 80, 621, 622
Passenger Airbag Off Indicator ................. 61
Passing Indicators ..................................... 174
Playing Bluetooth ® Audio ............... 252, 308
Power Tailgate ......................................... 149
Power Windows ....................................... 161
Precautions While Driving ....................... 451
Driving Guidelines for Your Utility
Vehicle .................................................. 451
Rain ........................................................ 451
Pregnant Women ....................................... 47
Puncture (Tire) ......................................... 601
R
Radiator.................................................... 564
Radio (FM/AM) ................................. 242, 285
Radio (SiriusXM ®)..................................... 289
Radio Data System (RDS) ................. 243, 287
Range ................................................ 119, 124
RDS (Radio Data System) ................. 243, 287
Readiness Codes (Emissions Testing) ...... 640
Real Time AWD with Intelligent Control System
TM.................................................. 500
Rear Seat Heaters ..................................... 219
Rear Seats (Folding Down) ...................... 201
Rearview Mirror ....................................... 192 Refueling
................................................... 531
Fuel Gauge .............................................. 117
Gasoline .......................................... 531, 634
Low Fuel Indicator ..................................... 84
Regulations ............................... 504, 582, 638
Remote Transmitter ................................. 141
Replacement Battery .................................................... 590
Bulbs ....................................................... 568
Fuses ............................................... 625, 626
Rear Wiper Blade Rubber ......................... 577
Tires ........................................................ 585
Wiper Blade Rubber ................................. 575
Reporting Safety Defects ......................... 639
Resetting a Trip Meter ..................... 119, 123
Road Departure Mitigation (RDM) .......... 480
On and Off .............................................. 481
S
Safe Driving ................................................ 33
Safety Check ............................................... 38
Safety Labels ............................................... 77
Safety Message ............................................. 1
Seat Belts ..................................................... 40
Adjusting the Shoulder Anchor .................. 45
Automatic Seat Belt Tensioners .................. 43
Checking ................................................... 48
Detachable Anchor .................................... 46
Fastening ................................................... 44 Installing a Child Seat
with a Lap/Shoulder
Seat Belt .................................................. 71
Pregnant Women ...................................... 47
Reminder .................................................. 42
Warning Indicator ............................... 42, 84
Seat Heaters .............................................. 219
Seats .......................................................... 194
Adjusting ................................................ 194
Driver’s Seat Lumbar Support .................. 194
Front Seat Heaters ................................... 218
Front Seats .............................................. 194
Rear Seats ............................................... 201
Seat Heaters ............................................ 219
Security System ......................................... 158
Security System Alarm Indicator................. 92
Select Lever ......................................... 23, 453
Operation.......................................... 23, 454
Releasing................................................. 614
Won’t Move ............................................ 614
Selecting a Child Seat ................................. 67
Selector Knob (Audio) .............................. 235
Setting the Clock ...................................... 132
Shift Lever ........................................... 23, 453
Shift Lever Position Indicator ............ 83, 454
Shifting (Transmission) ............................. 453
Shoulder Anchor ........................................ 45
Side Airbags ................................................ 56
Side Curtain Airbags .................................. 58
Siri ® Eyes Free ................................... 255, 317
SiriusXM ® Radio ........................................ 289
Smart Entry System .................................. 137
17 CR-V-31TLA6000.book 653 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

654
Index
Snow Tires................................................. 587
Song By VoiceTM (SBV) .............................. 299
Spare Tire .......................................... 601, 635
Spark Plugs ................................................ 634
Specifications ............................................ 634
Specified Fuel .................................... 531, 634
Speedometer ............................................. 117
SRS Airbags (Airbags) ................................. 52
Starting the Engine .......................... 444, 446
Does Not Start ......................................... 608
Engine Switch Buzzer....................... 168, 171
Jump Starting .......................................... 611
Steering Wheel ......................................... 191
Adjusting ................................................. 191
Stopping .................................................... 524
Summer Tires ............................................ 587
Sunglasses Holder ..................................... 216
Supplemental Restraint System (SRS) ........ 52
Switches (Around the Steering
Wheel) ............................................. 4, 5, 168
System Message Indicator .......................... 90
T
Tachometer............................................... 117
Tailgate ..................................................... 147
Tailgate Open Indicator.............................. 87
Unable to Open ....................................... 630
Temperature Outside Temperature Display ........... 120, 128
Temperature Sensor ......................... 120, 128 Theft Protection
....................................... 230
Time (Setting) ........................................... 132
Tire Pressure Monitoring System (TPMS) ..................................................... 501
Button..................................................... 501
Indicator.................................................... 89
Tires ........................................................... 579
Air Pressure ..................................... 580, 635
Checking and Maintaining ...................... 579
Inspection ............................................... 579
Labeling .................................................. 580
Puncture (Flat Tire) .................................. 601
Regulations ............................................. 582
Rotation .................................................. 586
Spare Tire ........................................ 601, 635
Summer .................................................. 587
Tire Chains .............................................. 587
Wear Indicators ....................................... 584
Winter..................................................... 587
Tonneau Cover ......................................... 220
Tools .......................................................... 600
Towing a Trailer ....................................... 437
Equipment and Accessories ..................... 438
Load Limits .............................................. 437
Towing Your Vehicle ................................ 441
Behind a Motorhome .............................. 441
Emergency .............................................. 629
TPMS (Tire Pressure Monitoring
System) .................................................... 501
Button..................................................... 501
Indicator.................................................... 89 Transmission
............................................. 453
Continuously Variable ............................. 453
Fluid ....................................................... 565
Number .................................................. 636
Shift Lever Position Indicator ............. 83, 454
TRIP Knob ......................................... 118, 122
Trip Meter ........................................ 118, 122
Troubleshooting ...................................... 599
Blown Fuse ..................................... 625, 626
Brake Pedal Vibrates ................................. 30
Buzzer Sounds When Opening Door ......... 30
Emergency Towing ................................. 629
Engine Won’t Start ................................. 608
Noise When Braking ................................. 31
Overheating ............................................ 615
Puncture/Flat Tire .................................... 601
Rear Door Won’t Open ..................... 30, 145
Select Lever Won’t Move ........................ 614
Warning Indicators.................................... 80
Turbo Engine Vehicle .............................. 535
Turn Signals .............................................. 173
Indicators (Instru ment Panel) ..................... 90U
Under-floor Storage Area ....................... 209
Unlocking the Doors ................................ 137
Unlocking the Fron t Doors from the
Inside ......................................................... 15
USB Flash Drives ....................... 249, 305, 331
USB Port(s) ................................................ 229
17 CR-V-31TLA6000.book 654 ページ ２０１６年１０月１１日　火曜日　午後６時３７分
