display HONDA CR-V 2018 Navigation Manual (in English)

119
uuInformation Functions uGPS Information
Other Features

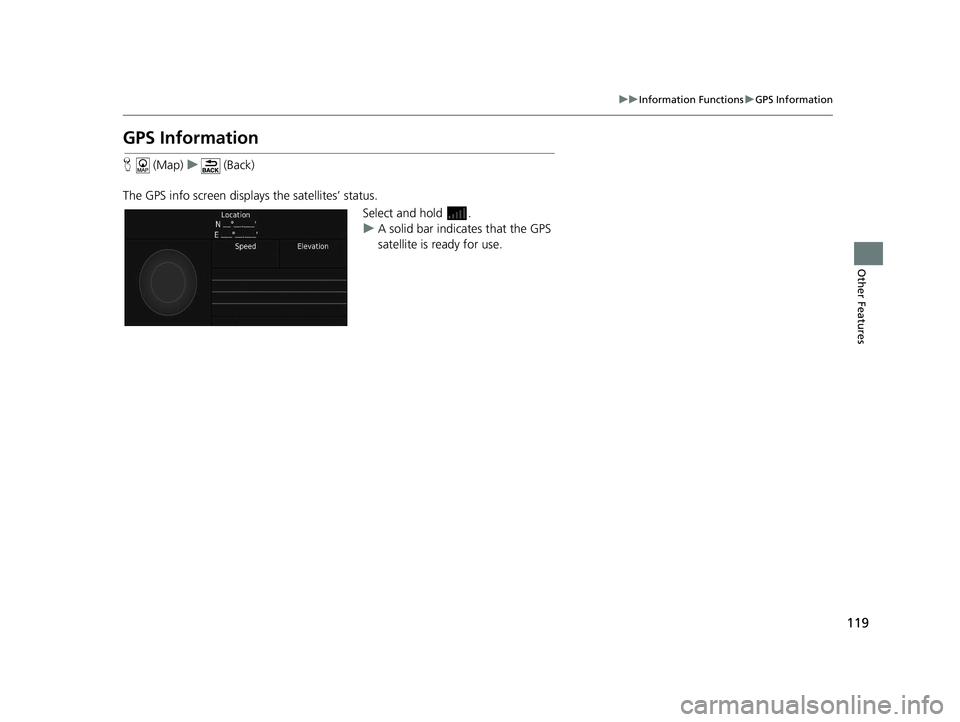

GPS Information
H (Map) u (Back)
The GPS info screen displays the satellites’ status. Select and hold .
uA solid bar indicates that the GPS
satellite is ready for use.
18 CR-V NAVI-31TLA8100.book 119 ページ ２０１７年８月２５日　金曜日　午前９時４３分

121

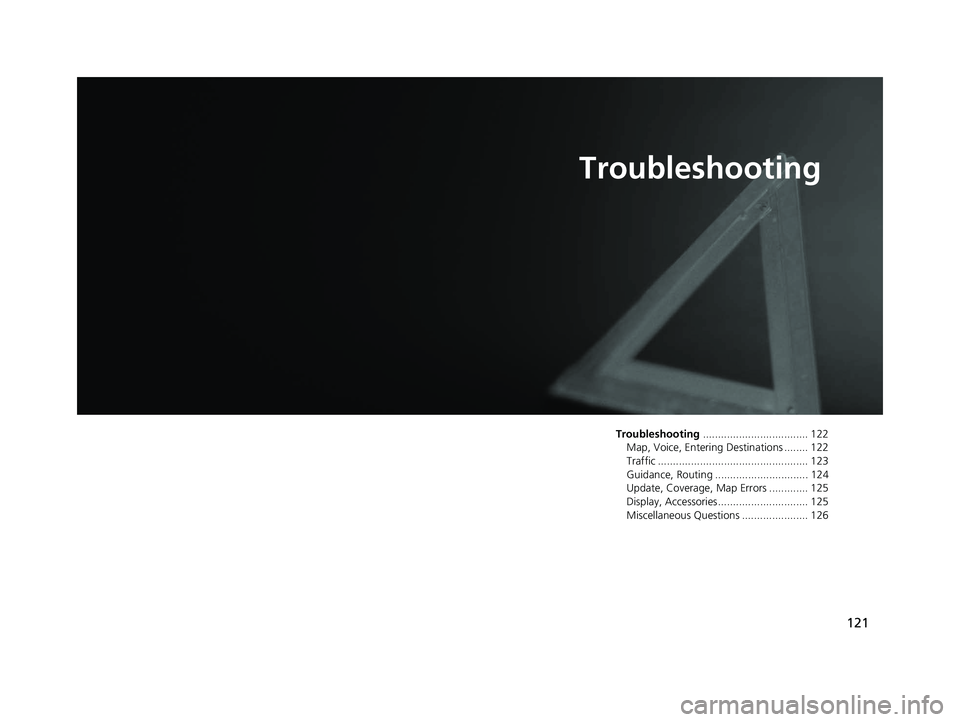

Troubleshooting
Troubleshooting................................... 122
Map, Voice, Entering Destinations ........ 122
Traffic .................................................. 123
Guidance, Routing ............................... 124
Update, Coverage, Map Errors ............. 125
Display, Accessories.............................. 125
Miscellaneous Questions ...................... 126
18 CR-V NAVI-31TLA8100.book 121 ページ ２０１７年８月２５日　金曜日　午前９時４３分

122
Troubleshooting

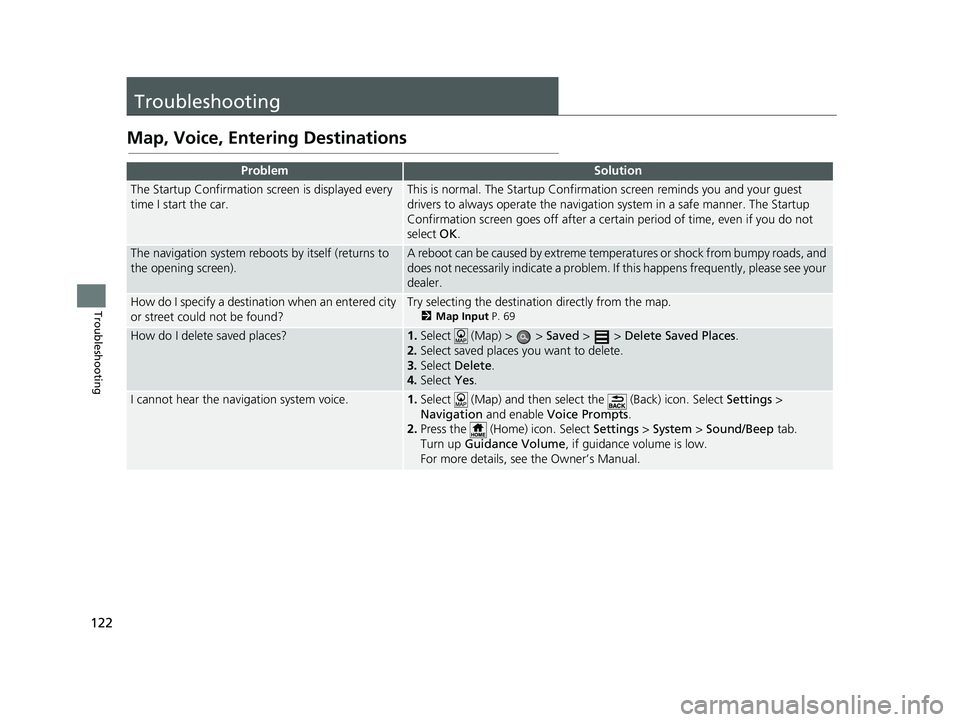

Troubleshooting
Map, Voice, Entering Destinations
ProblemSolution
The Startup Confirmation screen is displayed every
time I start the car.This is normal. The Startup Confirmation screen reminds you and your guest
drivers to always operate the navigation system in a safe manner. The Startup
Confirmation screen goes off after a certa in period of time, even if you do not
select OK.
The navigation system reboots by itself (returns to
the opening screen).A reboot can be caused by extreme temper atures or shock from bumpy roads, and
does not necessarily indicate a problem. If this happens frequently, please see your
dealer.
How do I specify a destinat ion when an entered city
or street could not be found?Try selecting the destination directly from the map.
2 Map Input P. 69
How do I delete saved places?1.Select (Map) > > Saved > > Delete Saved Places .
2. Select saved places you want to delete.
3. Select Delete .
4. Select Yes.
I cannot hear the navigation system voice.1.Select (Map) and then select the (Back) icon. Select Settings >
Navigation and enable Voice Prompts .
2. Press the (Home) icon. Select Settings > System > Sound/Beep tab.
Turn up Guidance Volume , if guidance volume is low.
For more details, see the Owner’s Manual.
18 CR-V NAVI-31TLA8100.book 122 ページ ２０１７年８月２５日　金曜日　午前９時４３分

123
uuTroubleshooting uTraffic
Troubleshooting
Traffic
ProblemSolution
Traffic information is missing or is not displaying
properly. What is wrong?Verify the following:●Traffic information relies on a clear signal. If signal strength is low, traffic data
may not be available.
●Check that the traffic icons are turned on.
2 Traffic Information P. 82●It is possible that there is a temporary technical problem with your metropolitan
area traffic provider. You can call Honda Automobile Customer Service to see if
there is an outage.
2 Honda Automobile Customer Service Contact Information P. 130●If the situation persists, see your Honda authorized dealer for assistance.●Traffic information is available only in certain areas.
18 CR-V NAVI-31TLA8100.book 123 ページ ２０１７年８月２５日　金曜日　午前９時４３分

124
uuTroubleshooting uGuidance, Routing
Troubleshooting

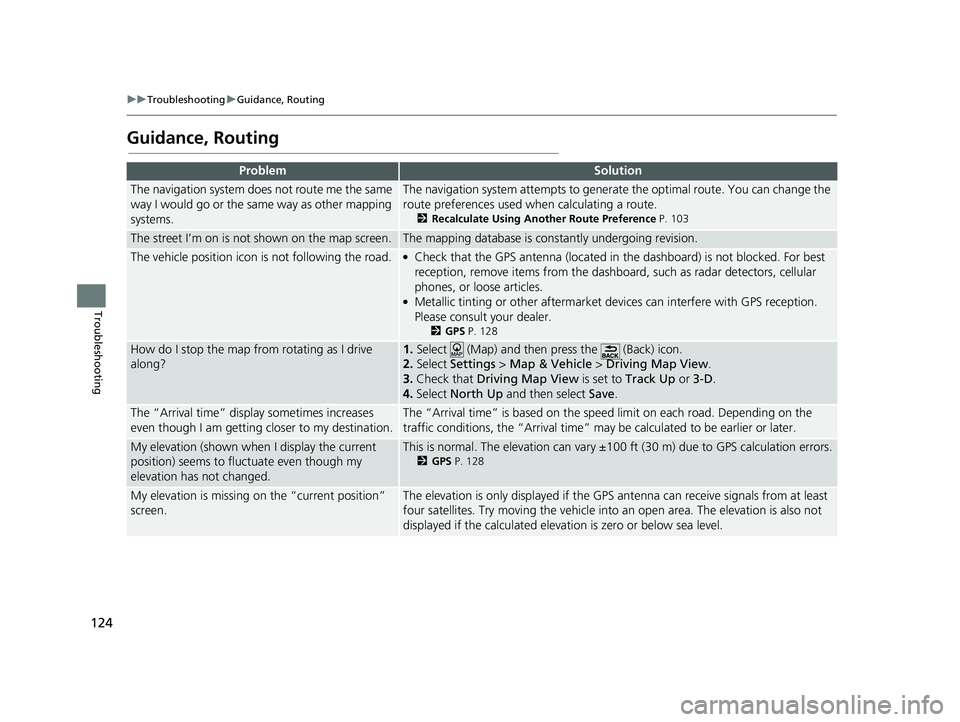

Guidance, Routing
ProblemSolution
The navigation system does not route me the same
way I would go or the same way as other mapping
systems.The navigation system attempts to generate the optimal route. You can change the
route preferences used when calculating a route.
2 Recalculate Using Another Route Preference P. 103
The street I’m on is not shown on the map screen.The mapping database is constantly undergoing revision.
The vehicle position icon is not following the road. ●Check that the GPS antenna (located in the dashboard) is not blocked. For best
reception, remove items from the dashboar d, such as radar detectors, cellular
phones, or loose articles.
●Metallic tinting or other aftermarket devices can interfere with GPS reception.
Please consult your dealer.
2 GPS P. 128
How do I stop the map from rotating as I drive
along?1.Select (Map) and then press the (Back) icon.
2. Select Settings > Map & Vehicle > Driving Map View .
3. Check that Driving Map View is set to Track Up or 3-D .
4. Select North Up and then select Save.
The “Arrival time” displa y sometimes increases
even though I am getting closer to my destination.The “Arrival time” is based on the spee d limit on each road. Depending on the
traffic conditions, the “Arrival time” may be calculated to be earlier or later.
My elevation (shown when I display the current
position) seems to fluc tuate even though my
elevation has not changed.This is normal. The elevation can vary ±100 ft (30 m) due to GPS calculation errors.
2 GPS P. 128
My elevation is missing on the “current position”
screen.The elevation is only displayed if the GP S antenna can receive signals from at least
four satellites. Try moving the vehicle into an open area. The elevation is also not
displayed if the calculated elevation is zero or below sea level.
18 CR-V NAVI-31TLA8100.book 124 ページ ２０１７年８月２５日　金曜日　午前９時４３分

125
uuTroubleshooting uUpdate, Coverage, Map Errors
Troubleshooting

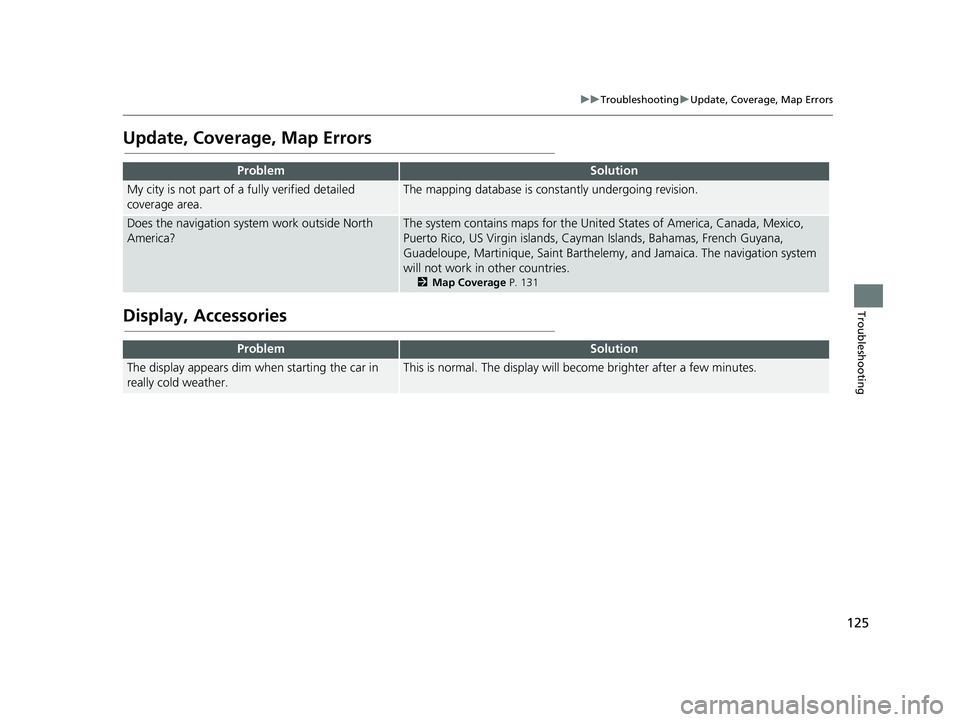

Update, Coverage, Map Errors
Display, Accessories
ProblemSolution
My city is not part of a fully verified detailed
coverage area.The mapping database is constantly undergoing revision.
Does the navigation syst em work outside North
America?The system contains maps for the United States of America, Canada, Mexico,
Puerto Rico, US Virgin islands, Caym an Islands, Bahamas, French Guyana,
Guadeloupe, Martinique, Saint Barthelemy, and Jamaica. The navigation system
will not work in other countries.
2 Map Coverage P. 131
ProblemSolution
The display appears dim when starting the car in
really cold weather.This is normal. The display will become brighter after a few minutes.
18 CR-V NAVI-31TLA8100.book 125 ページ ２０１７年８月２５日　金曜日　午前９時４３分

Index
139
Index
Index
Symbols
a (Display Mode) Icon .................. 3, 7, 26
d (Talk) Button .............................. 5, 11, 17
Numbers
3D Map....................................................... 30
A
Adding Waypoints ..................................... 90
Apps Menu ............................................... 106
Avoidances ................................................. 38
C
Calculating the Route ................................ 70
Calculation Mode ....................................... 37
Calculator ................................................. 117
Cancel Route .............................................. 10
Categories List of Categories .................................... 138
Changing Your Destination ...................... 91
Changing Your Route ................................ 87
Custom Avoidances .................................... 39
Customer Assistance ................................ 130
D
Dashboards................................................. 34
Data Reset .................................................. 51 Detour
......................................................... 88
Device .......................................................... 49
Display Mode Settings ................................ 26
Driving to Your Destination ...................... 73
E
ecoChallenge............................................ 112
ecoRouteTM................................................ 107
Editing the Destination List ....................... 99
Entering a Destination ............................... 54
Address ..................................................... 61
Categories ................................................. 62
HONDA ..................................................... 60
Map Input ................................................. 69
Recent ....................................................... 68
Saved ........................................................ 68
Entering a New Destination ...................... 94
F
Fuel Economy.................................... 111, 113
G
Go Home....................................................... 8
GPS Information ....................................... 119
H
Help..................................................... 10, 115
Home Location ........................................... 18 HOME Screen
................................................ 3
Honda Customer Service .......................... 130
I
Information Functions............................. 115
L
Language & Keyboard............................... 46
Legal Information .................................... 132
M
Map & Vehicle............................................ 28
Map Buttons ............................................... 33
Map Coverage .......................................... 131
Map Detail .................................................. 31
Map Layers .................................................. 34
Map Legend .................................................. 6
Map Menu .................................................. 78
Map Operation ........................................... 77
Map Screen ................................................. 73
Icon............................................................. 6
Map Theme ................................................. 32
Map Update Obtaining Update Data ........................... 130
Map view .................................................... 30
Mileage Report ......................................... 114
myMaps ....................................................... 35
18 CR-V NAVI-31TLA8100.book 139 ページ ２０１７年８月２５日　金曜日　午前９時４３分

140
Index
N
Navigation................................................... 36
Navigation Top Screen ................................. 3
North Up ..................................................... 30
O
Other Settings ............................................. 45
P
Personal Information .................................. 18
S
Saved Locations.......................................... 19
Deleting............................................... 24, 25
Editing ....................................................... 22
Saving ....................................................... 19
Setting
Data Reset ................................................. 51
Device ....................................................... 49
Display Mode Settings ............................... 26
Language & Keyboard ............................... 46
Map & Vehicle ........................................... 28
Navigation ................................................. 36
Other Settings ........................................... 45
Personal Information.................................. 18
Traffic ........................................................ 44
Start-up ....................................................... 16
Stopping the Route .................................... 87
System Limitations .................................... 128
T
Track Up...................................................... 30
Traffic Indicator...................................................... 6
Setting ...................................................... 44
Traffic Information .................................... 82
Troubleshooting ................................. 12, 122
U
Unit Converter.......................................... 118
Units ............................................................ 45
Update System Software
Obtaining Update Data ........................... 130
V
Vehicle ........................................................ 29
Vehicle Profile .................................. 108, 110
Voice Commands Basic Operation ........................................... 5
Voice Commands List .............................. 136
Voice Control System ................................ 17
Voice Control Operation ............................ 11
Voice Recognition ...................................... 17
W
Where I’ve Been....................................... 116
18 CR-V NAVI-31TLA8100.book 140 ページ ２０１７年８月２５日　金曜日　午前９時４３分
