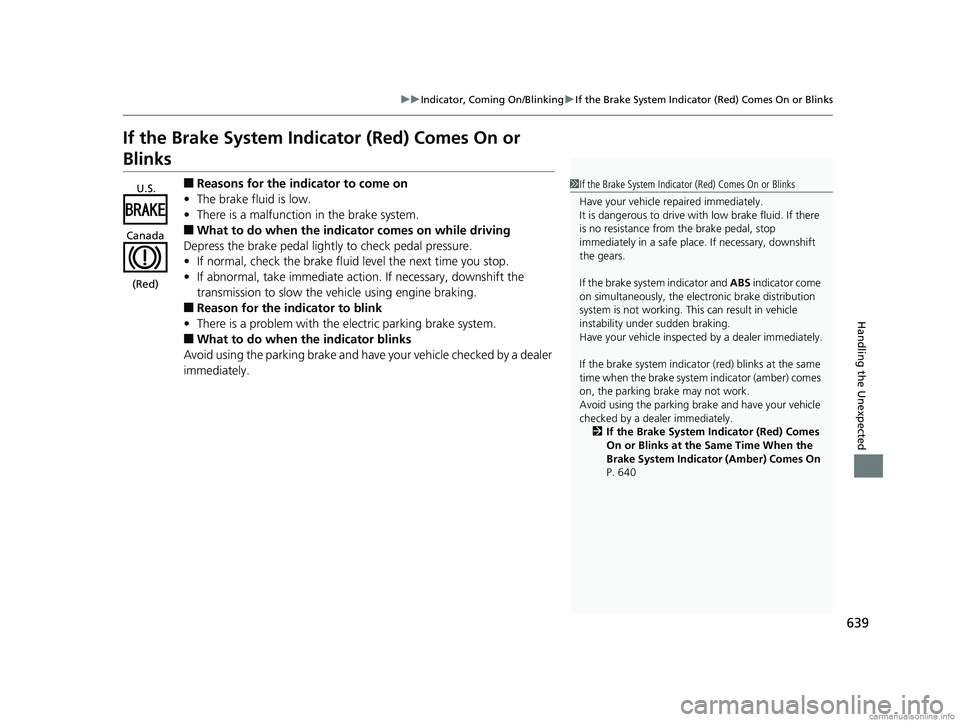

639
uuIndicator, Comi ng On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks
Handling the Unexpected
If the Brake System Indicator (Red) Comes On or
Blinks
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indica tor comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
■Reason for the indicator to blink
• There is a problem with the electric parking brake system.
■What to do when the indicator blinks
Avoid using the parking brake and have your vehicle checked by a dealer
immediately.
1 If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary, downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking br ake may not work.
Avoid using the parking brak e and have your vehicle
checked by a dealer immediately. 2 If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 640U.S.
Canada
(Red)
18 CR-V-31TLA6100.book 639 ページ ２０１７年９月７日　木曜日　午後３時５６分

644
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any appl icable fuse is blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
Audio AMP*(30 A)
−*2, *3−
Electric Brake Booster40 A
Main Fan Motor30 A
Relay Module 130 A
IG Main 2*430 A
−*3−
Relay Module 230 A
Battery125 A
2
EPS70 A
IG Main 130 A*4
50 A*3
Fuse Box Option40 A
Fuse Box 160 A
Front Wiper Motor30 A
Sub Fan Motor30 A
3
Rear Defroster40 A
Starter Motor30 A
Fuse Box 240 A
ABS/VSA Motor40 A
ABS/VSA FSR40 A
Blower Motor40 A
*1:Models with the sma rt entry system have
an ENGINE START/STOP button
instead of an ignition switch.
*2:Canadian models without power seat
*3:Models without smart entry system
*4:Models with smart entry system
4
Option Block 1*(40 A)
−*2, *3−
Option Block 2*(40 A)
−*3−
−−
Power Tail Gate*(40 A)
−*2, *3−
5VB ACT*47.5 A
−*3−
6Washer15 A
7FI Main15 A
8FI Sub*415 ADBW*3
9Stop Lights10 A
10Injector20 A
11LAF7.5 A
Circuit ProtectedAmps
* Not available on all models
18 CR-V-31TLA6100.book 644 ページ ２０１７年９月７日　木曜日　午後３時５６分

647
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller, and replace it with a new
one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
conform the specific amperage on the fuse label. 2 Fuse Locations P. 644
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
18 CR-V-31TLA6100.book 647 ページ ２０１７年９月７日　木曜日　午後３時５６分

667
Index
Shift Lever Does Not Move ...................... 632
Shifting ................................................... 469
Controls .................................................... 131
Coolant (Engine) .............................. 579, 581
Adding the Coolant ................................ 580
Adding to the Radiator ........................... 582
Adding to the Reserve Tank .................... 581
Overheating ............................................ 633
Creeping (Continuously Variable Transmission) .......................................... 468
Cross Traffic Monitor ............................... 543
Cruise Control .................................. 472, 475
Indicator ................................................... 93
Cup Holders .............................................. 215
Customer Service Information ................ 663
Customized Features ............................... 351
Customizing the Auto Door Locking/
Unlocking Setting .................................. 147
D
Daytime Running Lights .......................... 184
Dead Battery ............................................ 629
Defaulting All the Settings ...................... 383
Defrosting the Windshield and Windows ................................................. 227
Detachable Anchor .................................... 46
Devices that Emit Radio Waves ............... 656
Dimming Headlights .............................................. 177
Rearview Mirror ...................................... 195 Dipstick (Engine Oil)
................................. 573
Directional Signals (Turn Signals) ............ 176
Display Setup .................................... 245, 283
Display/Information Button ..................... 122
Door Mirrors ............................................. 196
Doors ......................................................... 134
Auto Door Locking .................................. 146
Auto Door Unlocking ............................... 146
Door Open Indicator ............................ 38, 87
Keys ........................................................ 134
Locking/Unlocking the Doors from the
Inside..................................................... 144
Locking/Unlocking the Doors from the Outside.................................................. 137
Lockout Prevention System ...................... 143
DOT Tire Quality Grading ........................ 600
Driver Information Interface ................... 122
Driver’s Seat Lumbar Support .................. 197
Driving ....................................................... 447
Braking .................................................... 524
Continuously Variable Transmission ......... 468
Cruise Control ................................. 472, 475
Off-Highway Driving Guidelines ............... 458
Shifting Gear ........................................... 469
Starting the Engine .......................... 460, 462
Driving Position Memory System ............. 192
Dust and Pollen Filter ............................... 610
E
Eco Assist System.......................................... 9
ECON Button ............................................ 471
Elapsed Time ............................................. 125
Electric Power Steering (EPS) System
Indicator............................................ 88, 641
Electronic Stability Control (ESC) ............. 509
Emergency ................................................ 648
Emissions Testing (Readiness Codes) ....... 658
Engine Coolant ........................................... 579, 581
Jump Starting .......................................... 629
Number................................................... 654
Oil ........................................................... 572
Starting ........................................... 460, 462
Switch Buzzer.................................. 171, 174
Engine Coolant ................................. 579, 581
Adding the Coolant................................. 580
Adding to the Radiator ............................ 582
Adding to the Reserve Tank..................... 581
Overheating ............................................ 633
Temperature Gauge ................................ 118
Engine Oil ................................................. 572
Adding .................................................... 575
Checking................................................. 573
Displaying Oil Life ............................ 559, 564
Low Oil Pressure Indicator ................. 83, 637
Recommended Engine Oil ....................... 572
ENGINE START/STOP Button .................... 172
EPS (Electric Power Steering) System ...... 641
Exhaust Gas Hazard (Carbon Monoxide) .. 76
18 CR-V-31TLA6100.book 667 ページ ２０１７年９月７日　木曜日　午後３時５６分

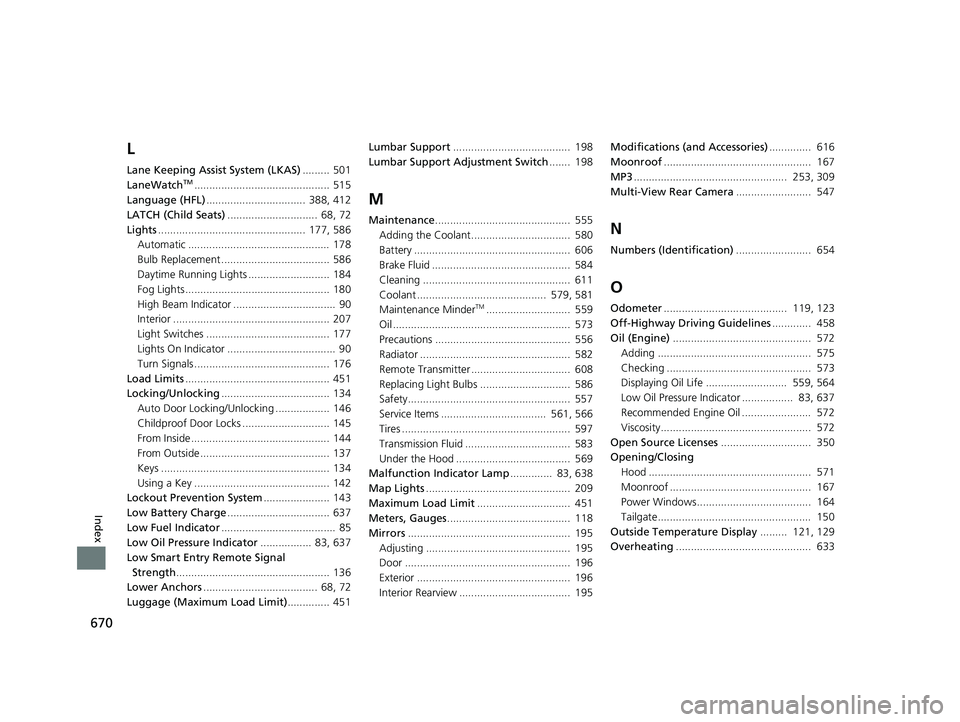

670
Index
L
Lane Keeping Assist System (LKAS)......... 501
LaneWatchTM............................................. 515
Language (HFL) ................................. 388, 412
LATCH (Child Seats) .............................. 68, 72
Lights ................................................. 177, 586
Automatic ............................................... 178
Bulb Replacement .................................... 586
Daytime Running Lights ........................... 184
Fog Lights ................................................ 180
High Beam Indicator .................................. 90
Interior .................................................... 207
Light Switches ......................................... 177
Lights On Indicator .................................... 90
Turn Signals ............................................. 176
Load Limits ................................................ 451
Locking/Unlocking .................................... 134
Auto Door Locking/Unlocking .................. 146
Childproof Door Locks ............................. 145
From Inside .............................................. 144
From Outside ........................................... 137
Keys ........................................................ 134
Using a Key ............................................. 142
Lockout Prevention System ...................... 143
Low Battery Charge .................................. 637
Low Fuel Indicator ...................................... 85
Low Oil Pressure Indicator ................. 83, 637
Low Smart Entry Remote Signal
Strength ................................................... 136
Lower Anchors ...................................... 68, 72
Luggage (Maximum Load Limit) .............. 451Lumbar Support
....................................... 198
Lumbar Support Adjustment Switch ....... 198
M
Maintenance............................................. 555
Adding the Coolant................................. 580
Battery .................................................... 606
Brake Fluid .............................................. 584
Cleaning ................................................. 611
Coolant ........................................... 579, 581
Maintenance Minder
TM............................ 559
Oil ........................................................... 573
Precautions ............................................. 556
Radiator .................................................. 582
Remote Transmitter ................................. 608
Replacing Light Bulbs .............................. 586
Safety...................................................... 557
Service Items ................................... 561, 566
Tires ........................................................ 597
Transmission Fluid ................................... 583
Under the Hood ...................................... 569
Malfunction Indicator Lamp .............. 83, 638
Map Lights ................................................ 209
Maximum Load Limit ............................... 451
Meters, Gauges ......................................... 118
Mirrors ...................................................... 195
Adjusting ................................................ 195
Door ....................................................... 196
Exterior ................................................... 196
Interior Rearview ..................................... 195 Modifications (and Accessories)
.............. 616
Moonroof ................................................. 167
MP3 ................................................... 253, 309
Multi-View Rear Camera ......................... 547
N
Numbers (Identification)......................... 654
O
Odometer......................................... 119, 123
Off-Highway Driving Guidelines ............. 458
Oil (Engine) .............................................. 572
Adding ................................................... 575
Checking ................................................ 573
Displaying Oil Life ........................... 559, 564
Low Oil Pressure Indicator ................. 83, 637
Recommended Engine Oil ....................... 572
Viscosity.................................................. 572
Open Source Licenses .............................. 350
Opening/Closing Hood ...................................................... 571
Moonroof ............................................... 167
Power Windows...................................... 164
Tailgate................................................... 150
Outside Temperature Display ......... 121, 129
Overheating ............................................. 633
18 CR-V-31TLA6100.book 670 ページ ２０１７年９月７日　木曜日　午後３時５６分
