uuOperating the Switches Around the Steering Wheel uLight Switches
178
Controls
Automatic lighting control can be used when
the power mode is in ON.
When you turn the light switch to AUTO, the
headlights and other exterior lights will switch
on and off automatica lly depending on the
ambient brightness. u You can change the au to light sensitivity
setting.
2 Customized Features P. 351
■Automatic Operation (automatic lighting control)*1Automatic Operation (aut omatic lighting control)*
We recommend that you tu rn on the lights manually
when driving at night, in a dense fog, or in dark areas
such as long tunnels or parking facilities.
The light sensor is in the location shown below.
Do not cover this light sensor with anything;
otherwise, the automatic lighting system may not
work properly.
Light Sensor
Models without automatic
intermittent wipers
Models with automatic
intermittent wipers
Light Sensor
* Not available on all models
18 CR-V-31TLA6100.book 178 ページ ２０１７年９月７日　木曜日　午後３時５６分

uuOperating the Switches Around the Steering Wheel uWipers and Washers
186
Controls
When you push the lever down to AUTO, the
windshield wipers sweep once, and go into
the automatic mode.
The wipers operate intermittently, at low
speed, or at high speed and stops in
accordance with the am ount of rainfall the
rainfall sensor detects.
■AUTO sensitivity adjustment
When the wiper function is set to AUTO , you
can adjust the sensitivity of the rain fall sensor
(using the adjustment ring) so that wipers will
operate in accordance with your preference.
Sensor sensitivity
■Automatic Intermittent Wipers*1 Wipers and Washers
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
Adjustment Ring
1 Automatic Intermittent Wipers*
The rainfall sensor is in the location shown below.
AUTO should always be turned OFF before the
following situation in order to prevent severe damage
to the wiper system:
•Cleaning the windshield
•Driving through a car wash•No rain present
Rainfall Sensor
Low Sensitivity
High Sensitivity
* Not available on all models
18 CR-V-31TLA6100.book 186 ページ ２０１７年９月７日　木曜日　午後３時５６分

195
Controls

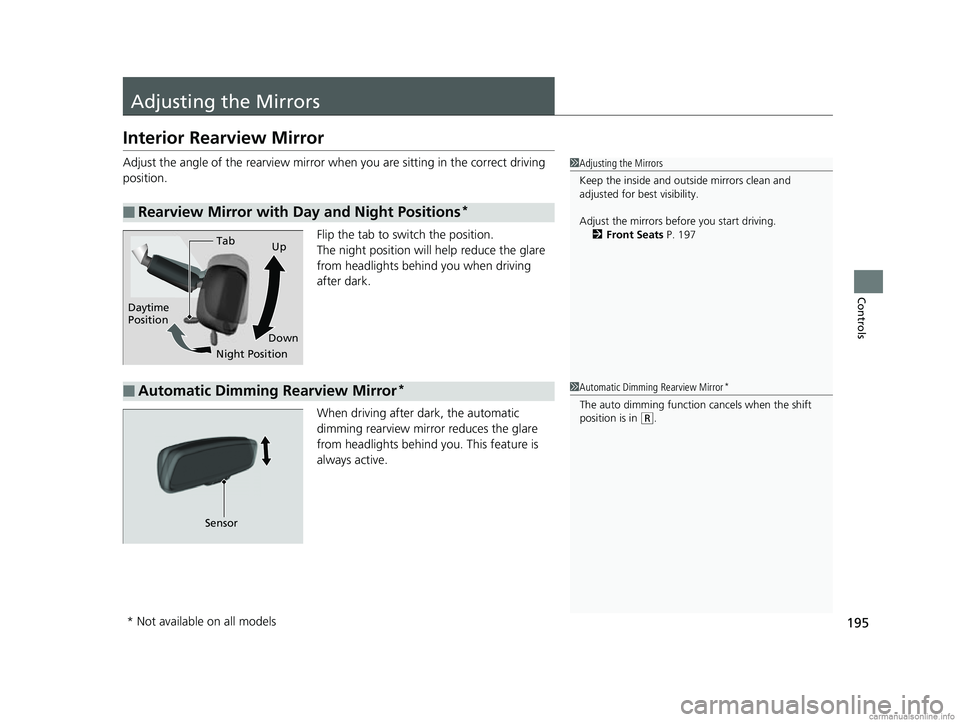

Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
Flip the tab to switch the position.
The night position will help reduce the glare
from headlights behind you when driving
after dark.
When driving after dark, the automatic
dimming rearview mirror reduces the glare
from headlights behind you. This feature is
always active.
■Rearview Mirror with Day and Night Positions*
1Adjusting the Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors befo re you start driving.
2 Front Seats P. 197
Tab
Daytime
Position
Night PositionUp
Down
■Automatic Dimming Rearview Mirror*
Sensor
1 Automatic Dimming Rearview Mirror*
The auto dimming function cancels when the shift
position is in (R.
* Not available on all models
18 CR-V-31TLA6100.book 195 ページ ２０１７年９月７日　木曜日　午後３時５６分

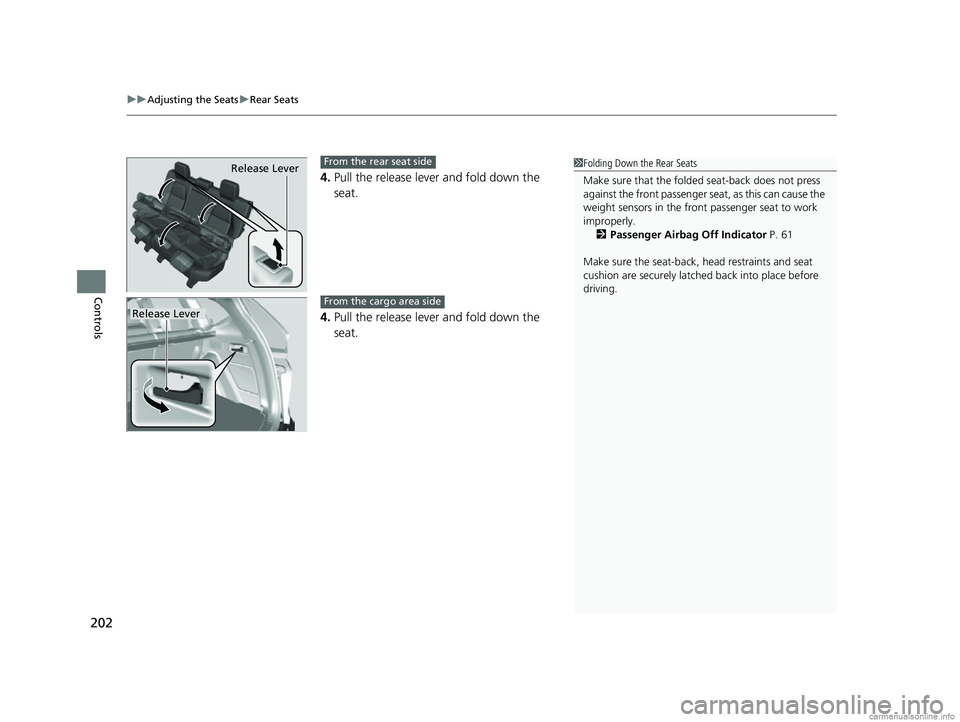

uuAdjusting the Seats uRear Seats
202
Controls
4. Pull the release lever and fold down the
seat.
4. Pull the release lever and fold down the
seat.
1Folding Down the Rear Seats
Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly. 2 Passenger Airbag Off Indicator P. 61
Make sure the seat-back, head restraints and seat
cushion are securely latche d back into place before
driving.Release LeverFrom the rear seat side
Release LeverFrom the cargo area side
18 CR-V-31TLA6100.book 202 ページ ２０１７年９月７日　木曜日　午後３時５６分

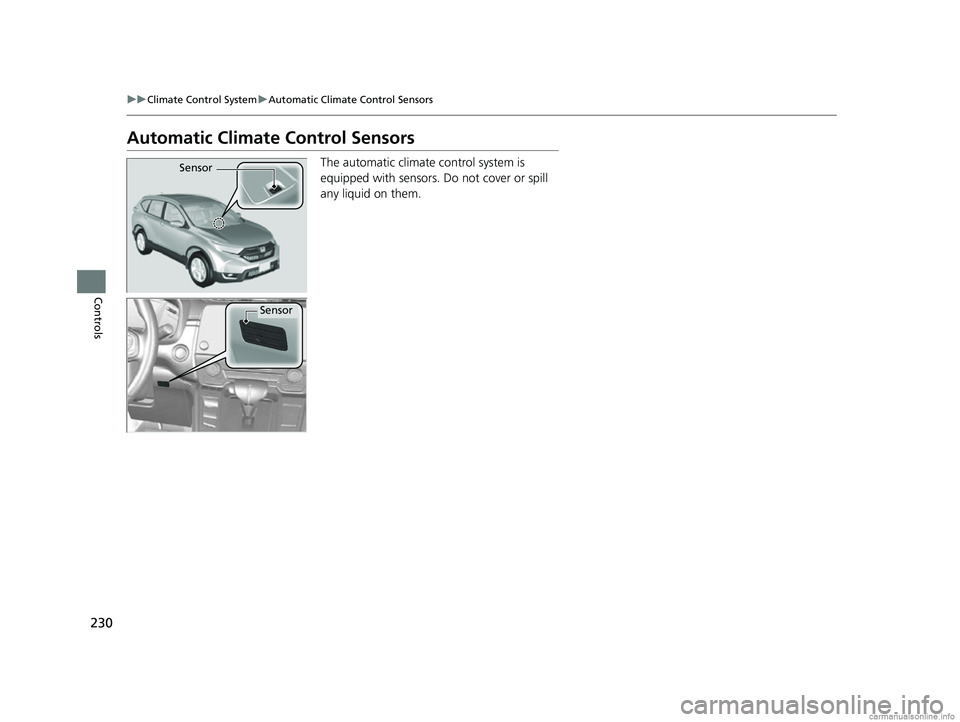

230
uuClimate Control System uAutomatic Climate Control Sensors
Controls
Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor
18 CR-V-31TLA6100.book 230 ページ ２０１７年９月７日　木曜日　午後３時５６分

447
Driving
This chapter discusses driving and refueling.
Before Driving................................... 448
Towing a Trailer Towing Preparation .......................... 453
Driving Safely with a Trailer .............. 456
Towing Your Vehicle ........................ 457
Off-Highway Driving Guidelines
General Information ......................... 458
Important Safety Precautions............ 458
Avoiding Trouble ............................. 459
When Driving
Starting the Engine .......................... 460
Starting the Engine .......................... 462
Precautions While Driving................. 467
Models without smart entry system
Models with smart entry system
Continuously Variable Transmission... 468
Shifting ............................................ 469
ECON Button ................................... 471
Cruise Control
*............................... 472
Front Sensor Camera*..................... 479
Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF)
*....................... 481Road Departure Mitigation (RDM) System*..................................... 497Lane Keeping Assist System (LKAS)*.. 501Vehicle Stability Assist (VSA®), aka Electronic
Stability Control (ESC), System............. 509
LaneWatchTM*.................................. 515
Real Time AWD with Intelligent Control System
TM*...................................... 517
Tire Pressure Monitoring System (TPMS) ... 518Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 522
Braking Brake System ................................... 524
Anti-lock Brake System (ABS) ........... 530
Brake Assist System ......................... 531
Collision Mitigation Braking System
TM
(CMBSTM)*..................................... 532
Parking Your Vehicle When Stopped ................................ 542
Multi-View Rear Camera .................. 547
Refueling ........................................... 549
Fuel Economy and CO
2 Emissions .... 552
Turbo Engine Vehicle*...................... 553
* Not available on all models
18 CR-V-31TLA6100.book 447 ページ ２０１７年９月７日　木曜日　午後３時５６分

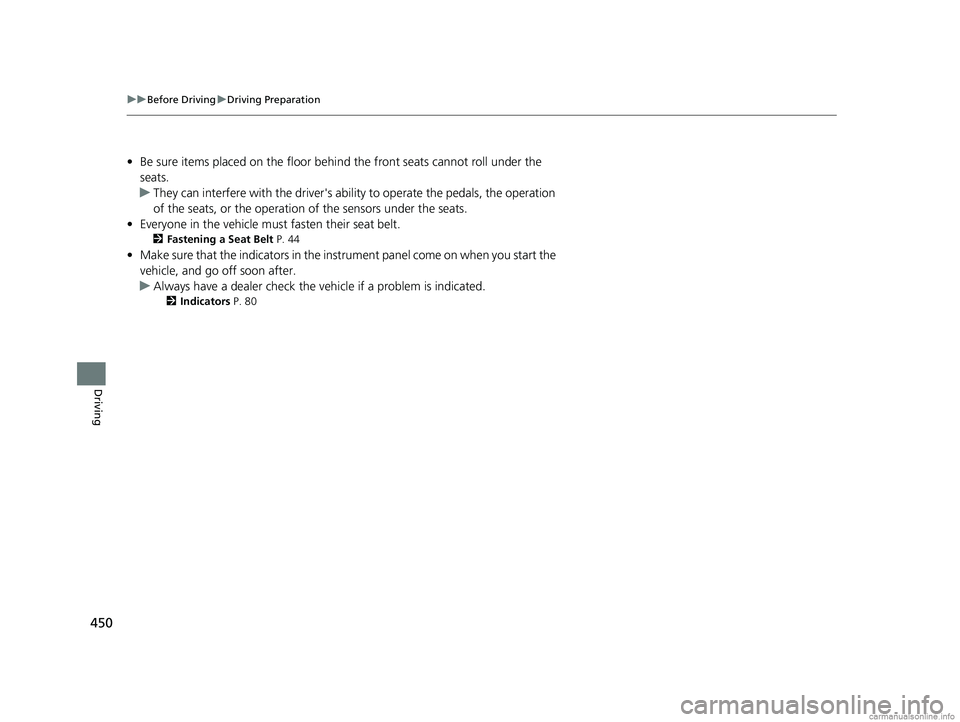

450
uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver's ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 44
•Make sure that the indicators in the ins trument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 80
18 CR-V-31TLA6100.book 450 ページ ２０１７年９月７日　木曜日　午後３時５６分

479
uuWhen Driving uFront Sensor Camera*
Continued
Driving
Front Sensor Camera*
The camera, used in systems; such as RDM, LKAS, ACC with LSF and CMBSTM, is
designed to detect an object that trigge rs any of the systems to operate their
functions.
This camera is located behind the rearview
mirror.
To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing
s y s t e m t o s h u t o f f , w h e n p a r k i n g , f i n d a s h a d y
area or face the front of the vehicle away from
the sun. If you use a reflective sun shade, do
not allow it to cover the camera housing.
Covering the camera can concentrate heat on
it.
■Camera Location and Handling Tips
1Front Sensor Camera*
Never apply a film or attach any objects to the
windshield, the hood, or th e front grill that could
obstruct the camera’s fiel d of vision and cause the
system to operate abnormally.
Scratches, nicks, and othe r damage to the windshield
within the camera’s fiel d of vision can cause the
system to operate abnormall y. If this occurs, we
recommend that you replac e the windshield with a
genuine Honda replacem ent windshield. Making
even minor repairs within th e camera’s field of vision
or installing an aftermarket replacement windshield
may also cause the system to operate abnormally.
After replacing the windshield, have a dealer
recalibrate the camera. Pr oper calibration of the
camera is necessary for the system to operate
properly.
Front Sensor
Camera
* Not available on all models
18 CR-V-31TLA6100.book 479 ページ ２０１７年９月７日　木曜日　午後３時５６分

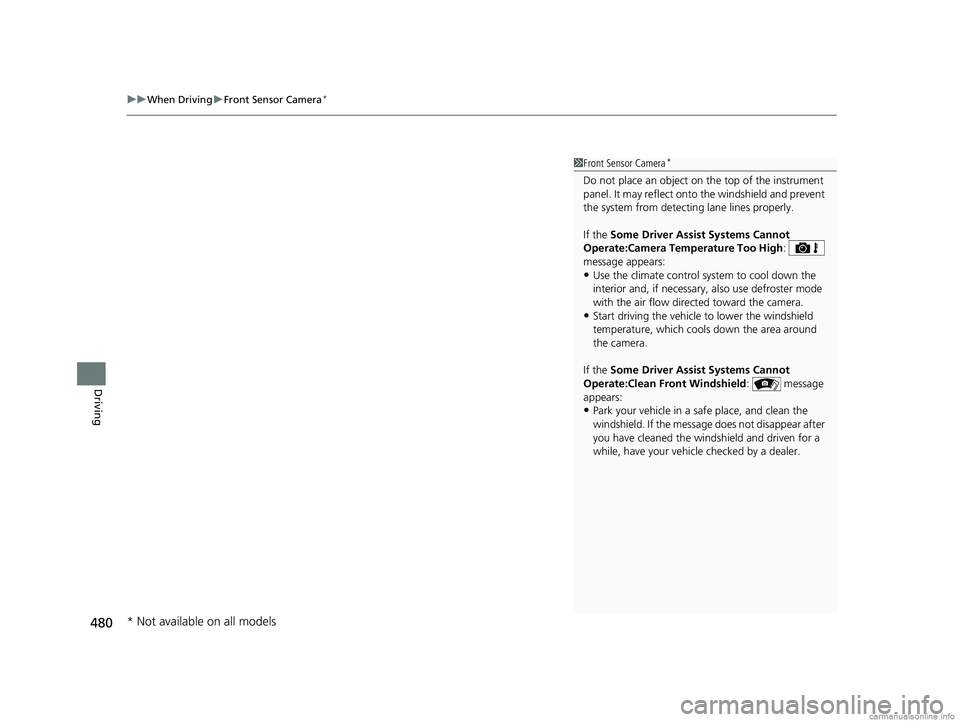

uuWhen Driving uFront Sensor Camera*
480
Driving
1Front Sensor Camera*
Do not place an object on the top of the instrument
panel. It may reflect onto the windshield and prevent
the system from detecting lane lines properly.
If the Some Driver Assist Systems Cannot
Operate:Camera Temperature Too High :
message appears:
•Use the climate control system to cool down the
interior and, if necessary, also use defroster mode
with the air flow directed toward the camera.
•Start driving the vehicle to lower the windshield
temperature, which cool s down the area around
the camera.
If the Some Driver Assist Systems Cannot
Operate:Clean Front Windshield : message
appears:
•Park your vehicle in a sa fe place, and clean the
windshield. If the message does not disappear after
you have cleaned the winds hield and driven for a
while, have your vehicle checked by a dealer.
* Not available on all models
18 CR-V-31TLA6100.book 480 ページ ２０１７年９月７日　木曜日　午後３時５６分

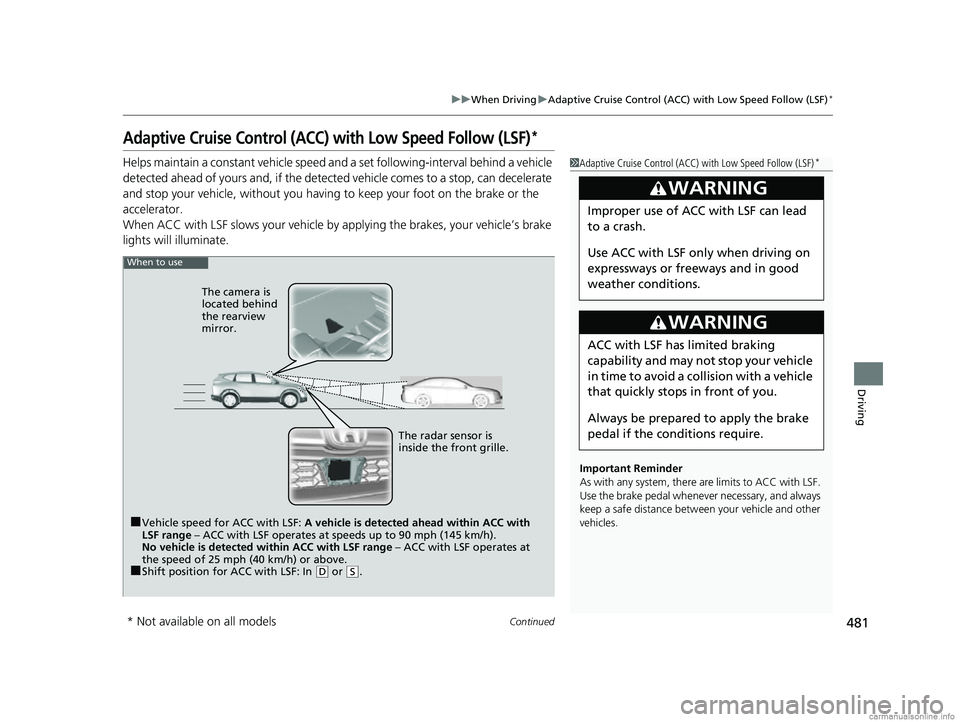

481
uuWhen Driving uAdaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
Continued
Driving
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
Helps maintain a constant vehicle speed an d a set following-interval behind a vehicle
detected ahead of yours and, if the detect ed vehicle comes to a stop, can decelerate
and stop your ve hicle, without yo u having to keep your foot on the brake or the
accelerator.
When ACC with LSF slows your vehicle by applying the brakes, your vehicle’s brake
lights will illuminate.1 Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
Important Reminder
As with any system, there are limits to ACC with LSF.
Use the brake pedal whenever necessary, and always
keep a safe distance between your vehicle and other
vehicles.
3WARNING
Improper use of ACC with LSF can lead
to a crash.
Use ACC with LSF only when driving on
expressways or freeways and in good
weather conditions.
3WARNING
ACC with LSF has limited braking
capability and may not stop your vehicle
in time to avoid a co llision with a vehicle
that quickly stops in front of you.
Always be prepared to apply the brake
pedal if the cond itions require.
When to use
■Vehicle speed for ACC with LSF: A vehicle is detected ahead within ACC with
LSF range – ACC with LSF operates at speeds up to 90 mph (145 km/h).
No vehicle is detected within ACC with LSF range – ACC with LSF operates at
the speed of 25 mph (40 km/h) or above.
■Shift position for ACC with LSF: In (D or (S. The radar sensor is
inside the front grille.
The camera is
located behind
the rearview
mirror.
