Page 13 of 679

11
Quick Reference Guide
Instrument Panel (P79)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist
(VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator Electric Power
Steering (EPS) System
Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL
Indicator
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Door Open Indicator
CRUISE MAIN
Indicator
Immobilizer System
Indicator/Security
System Alarm Indicator
Speedometer Fuel Gauge
Tachometer
Shift Lever Position Indicator
Low Fuel Indicator
Gauges (P 118)/Information Display* (P 119)/
Driver Information Interface
* (P122)/System Indicators (P80)
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
Maintenance Minder
Indicator
Transmission
Temperature
Indicator
Models with information display
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
Automatic Brake Hold
System Indicator
Automatic Brake Hold
Indicator
Temperature Gauge
Brake Depressing
Indicator
Tailgate Open
Indicator
Power Reduced
Indicator
All-wheel drive
( AWD ) Indicator*
Starter System Indicator
* Not available on all models
18 CR-V-31TLA6100.book 11 ページ 2017年9月7日 木曜日 午後3時56分
Page 14 of 679

12
Quick Reference GuideSystem Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist
(VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator Electric Power
Steering (EPS) System
Indicator
Seat Belt Reminder
Indicator
System Indicators
Parking Brake and
Brake System
Indicator (Red)
Supplemental
Restraint System
Indicator
Speedometer Fuel Gauge
Shift Lever Position
Indicator Immobilizer System Indicator/
Security System Alarm Indicator
Low Fuel Indicator
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
Models with driver information interface
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
U.S.
Canada
U.S.
Canada Automatic Brake Hold
System Indicator
Automatic Brake Hold
IndicatorU.S.
Canada Temperature Gauge
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator*
Adaptive Cruise
Control (
ACC) with
Low Speed Follow
(LSF) Indicator
(Amber/Green)
*
System Message
Indicator Collision Mitigation
Braking System
TM
(CMBSTM) Indicator*
Road Departure
Mitigation (RDM)
Indicator
*
Lane Keeping Assist
System ( LKAS)
Indicator (Amber/
Green)
*
Tachometer
Auto High-beam
System Indicator*
CRUISE CONTROL
Indicator*
CRUISE MAIN
Indicator*
Blind Spot
Information (BSI)
Indicator
*
18 CR-V-31TLA6100.book 12 ページ 2017年9月7日 木曜日 午後3時56分
Page 449 of 679

447
Driving
This chapter discusses driving and refueling.
Before Driving................................... 448
Towing a Trailer Towing Preparation .......................... 453
Driving Safely with a Trailer .............. 456
Towing Your Vehicle ........................ 457
Off-Highway Driving Guidelines
General Information ......................... 458
Important Safety Precautions............ 458
Avoiding Trouble ............................. 459
When Driving
Starting the Engine .......................... 460
Starting the Engine .......................... 462
Precautions While Driving................. 467
Models without smart entry system
Models with smart entry system
Continuously Variable Transmission... 468
Shifting ............................................ 469
ECON Button ................................... 471
Cruise Control
*............................... 472
Front Sensor Camera*..................... 479
Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF)
*....................... 481Road Departure Mitigation (RDM) System*..................................... 497Lane Keeping Assist System (LKAS)*.. 501Vehicle Stability Assist (VSA®), aka Electronic
Stability Control (ESC), System............. 509
LaneWatchTM*.................................. 515
Real Time AWD with Intelligent Control System
TM*...................................... 517
Tire Pressure Monitoring System (TPMS) ... 518Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 522
Braking Brake System ................................... 524
Anti-lock Brake System (ABS) ........... 530
Brake Assist System ......................... 531
Collision Mitigation Braking System
TM
(CMBSTM)*..................................... 532
Parking Your Vehicle When Stopped ................................ 542
Multi-View Rear Camera .................. 547
Refueling ........................................... 549
Fuel Economy and CO
2 Emissions .... 552
Turbo Engine Vehicle*...................... 553
* Not available on all models
18 CR-V-31TLA6100.book 447 ページ 2017年9月7日 木曜日 午後3時56分
Page 524 of 679

522
uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Driving

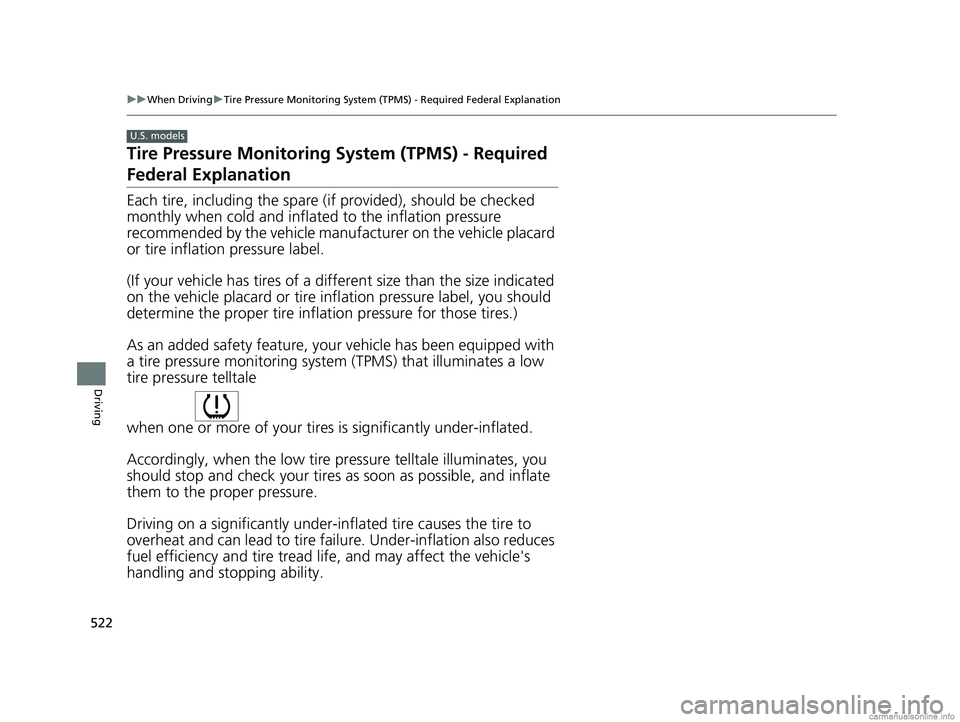

Tire Pressure Monitoring System (TPMS) - Required
Federal Explanation
Each tire, including the spare (i f provided), should be checked
monthly when cold and inflated to the inflation pressure
recommended by the vehicle manufacturer on the vehicle placard
or tire inflation pressure label.
(If your vehicle has tires of a different size than the size indicated
on the vehicle placard or tire infl ation pressure label, you should
determine the proper tire inflat ion pressure for those tires.)
As an added safety feature, your vehicle has been equipped with
a tire pressure monitoring system (TPMS) that illuminates a low
tire pressure telltale
when one or more of your tire s is significantly under-inflated.
Accordingly, when the low tire pr essure telltale illuminates, you
should stop and check your tires as soon as possible, and inflate
them to the proper pressure.
Driving on a significantly under-in flated tire causes the tire to
overheat and can lead to tire fail ure. Under-inflation also reduces
fuel efficiency and tire tread li fe, and may affect the vehicle's
handling and stopping ability.
U.S. models
18 CR-V-31TLA6100.book 522 ページ 2017年9月7日 木曜日 午後3時56分
Page 554 of 679

552
Driving
Fuel Economy and CO2 Emissions
Improving Fuel Economy and Reducing CO2
Emissions
Achieving fuel economy and reducing CO2 emissions is dependent on several
factors, including driving conditions, load weight, idling time, driving habits, and
vehicle condition. Depending on these and other factors, you may not achieve the
rated fuel economy of this vehicle.
You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accordance with the messages displayed on the
information display
*/driver information interface*.
• Use the recommended viscosity engine oil, displaying the API Certification Seal.
• Maintain the specified tire pressure.
• Do not load the vehicl e with excess cargo.
• Keep your vehicle clean. A buildup of snow or mud on your vehicle's underside
adds weight and increases wind resistance.
■Maintenance and Fuel Economy
1Improving Fuel Economy and Reducing CO2 Emissions
Direct calculation is the recommended method to
determine actual fuel consumed while driving.
In Canada, posted fuel economy numbers are
established following a simulated test. For more
information on how this test is performed, please visit
http://oee.nrcan.gc.ca/
Miles driven Gallons of
fuel Miles per
Gallon
100 LiterKilometers L per 100 km
* Not available on all models
18 CR-V-31TLA6100.book 552 ページ 2017年9月7日 木曜日 午後3時56分
Page 558 of 679

556
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.)
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake fluid level monthly.
2 Checking the Brake Fluid P. 584
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 597
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 586
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 593
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all maintenance services should
be performed in accordan ce with the intervals
indicated by the information display
*/driver
information interface*.
2 Maintenance Service Items P. 561, 566
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 662
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet.
U.S. models
* Not available on all models
18 CR-V-31TLA6100.book 556 ページ 2017年9月7日 木曜日 午後3時56分
Page 599 of 679

597
Maintenance

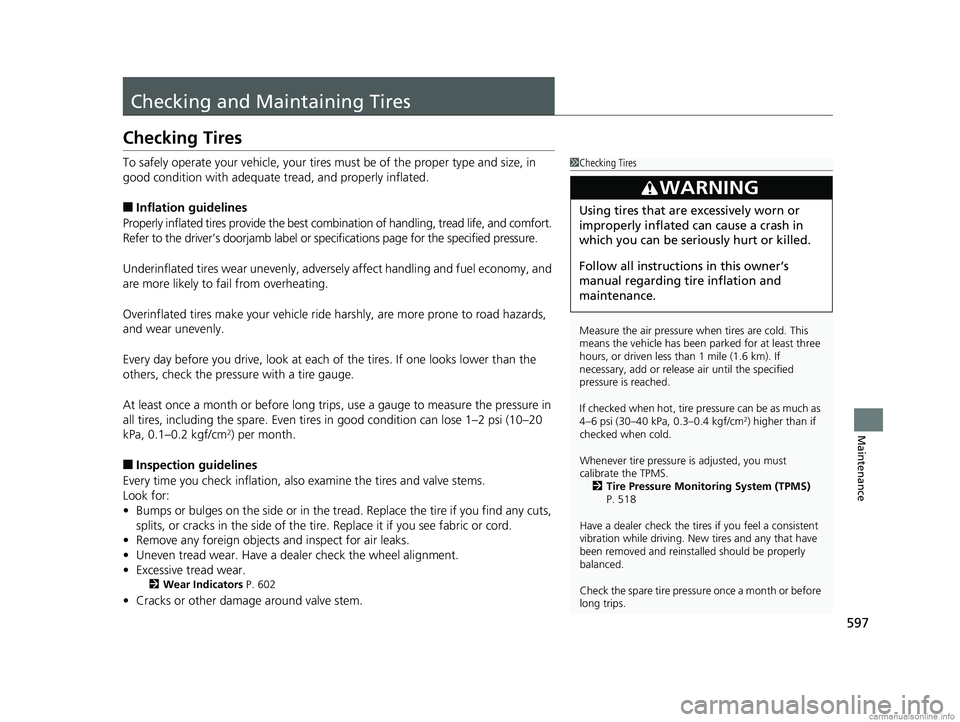

Checking and Maintaining Tires
Checking Tires
To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.
■Inflation guidelines
Properly inflated tires provid e the best combination of hand ling, tread life, and comfort.
Refer to the driver’s doorjamb label or spec ifications page for the specified pressure.
Underinflated tires wear unev enly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.
Overinflated tires make your vehicle ride ha rshly, are more prone to road hazards,
and wear unevenly.
Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.
At least once a month or before long trips , use a gauge to measure the pressure in
all tires, including the spare. Even tires in good condition can lose 1–2 psi (10–20
kPa, 0.1–0.2 kgf/cm
2) per month.
■Inspection guidelines
Every time you check inflation, also examine the tires and valve stems.
Look for:
• Bumps or bulges on the side or in the tr ead. Replace the tire if you find any cuts,
splits, or cracks in the side of the tire . Replace it if you see fabric or cord.
• Remove any foreign objects and inspect for air leaks.
• Uneven tread wear. Have a deal er check the wheel alignment.
• Excessive tread wear.
2 Wear Indicators P. 602
•Cracks or other damage around valve stem.
1Checking Tires
Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or releas e air until the specified
pressure is reached.
If checked when hot, tire pressure can be as much as
4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm
2) higher than if
checked when cold.
Whenever tire pressure is adjusted, you must
calibrate the TPMS. 2 Tire Pressure Monitoring System (TPMS)
P. 518
Have a dealer check the tires if you feel a consistent
vibration while driving. Ne w tires and any that have
been removed and reinst alled should be properly
balanced.
Check the spare tire pressu re once a month or before
long trips.
3WARNING
Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding tire inflation and
maintenance.
18 CR-V-31TLA6100.book 597 ページ 2017年9月7日 木曜日 午後3時56分
Page 615 of 679

613
uuCleaning uExterior Care
Continued
Maintenance

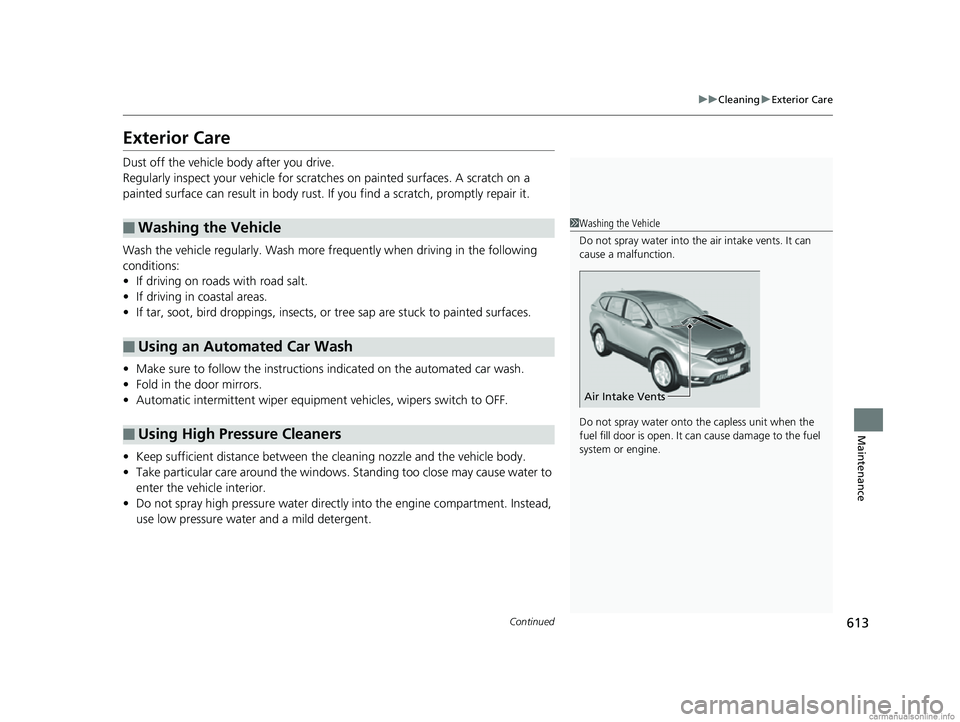

Exterior Care
Dust off the vehicle body after you drive.
Regularly inspect your vehi cle for scratches on painted surfaces. A scratch on a
painted surface can result in body rust. If you find a scratch, promptly repair it.
Wash the vehicle regularly. Wash more frequently when driving in the following
conditions:
• If driving on roads with road salt.
• If driving in coastal areas.
• If tar, soot, bird droppings, insects, or tree sap are stuck to painted surfaces.
• Make sure to follow the instructions indicated on the automated car wash.
• Fold in the door mirrors.
• Automatic intermittent wiper equipmen t vehicles, wipers switch to OFF.
• Keep sufficient distance between the cleaning nozzle and the vehicle body.
• Take particular care around the windows. Standing too close may cause water to
enter the vehicle interior.
• Do not spray high pressure water directly into the engine compartment. Instead,
use low pressure water and a mild detergent.
■Washing the Vehicle
■Using an Automated Car Wash
■Using High Pressure Cleaners
1 Washing the Vehicle
Do not spray water into the air intake vents. It can
cause a malfunction.
Do not spray water onto the capless unit when the
fuel fill door is open. It ca n cause damage to the fuel
system or engine.
Air Intake Vents
18 CR-V-31TLA6100.book 613 ページ 2017年9月7日 木曜日 午後3時56分
Page 619 of 679

617
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 618
If a Tire Goes Flat Changing a Flat Tire ......................... 619
Engine Does Not Start Checking the Engine ........................ 626
If the Smart Entry Remote Battery is Weak .......................................... 627
Emergency Engine Stop ................... 628
Jump Starting .................................... 629
Shift Lever Does Not Move .............. 632
Overheating How to Handle Overheating ............. 633 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On................................................ 637
If the Charging System Indicator Comes
On ................................................. 637
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 638
If the Brake System Indicator (Red) Comes On or Blinks ....................................... 639
If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On ..... 640
If the Electric Power Steering (EPS) System Indicator Comes On ........................... 641
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 643
Fuses Fuse Locations ................................. 644
Inspecting and Changing Fuses ........ 647
Emergency Towing ........................... 648
When You Cannot Open the Tailgate.. 649Refueling................................................. 650
18 CR-V-31TLA6100.book 617 ページ 2017年9月7日 木曜日 午後3時56分
Page 671 of 679

669
Index
Heating and Cooling SystemDust and Pollen Filter .............................. 610
HFL (HandsFreeLink ®) ...................... 387, 410
High Beam Indicator .................................. 90
Hill Start Assist System ..................... 461, 466
HomeLink ® Universal Transceiver ........... 384
Honda App License Agreement .............. 336
Honda Sensing
TM........................................ 26
HondaLink® .............................................. 314
I
Identification Numbers ............................ 654
Engine and Transmission ......................... 654
Vehicle Identification............................... 654
Ignition Switch ......................................... 171
Illumination Control ................................ 188
Knob ...................................................... 188
Immobilizer System .................................. 161
Immobilizer System Indicator..................... 91
Indicators .................................................... 80
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) .................... 98, 99, 481
Anti-lock Brake System (ABS) .................... 85
Automatic Brake Hold ....................... 82, 528
Blind spot information (BSI) ............... 92, 513
Brake Depressing ...................................... 94
Charging System............................... 83, 637
Collision Mitigati on Braking System
TM
(CMBSTM) ...................................... 101, 102
Cruise Control .......................... 93, 473, 476 Cruise Main ............................... 93, 472, 475
Door Open .......................................... 38, 87
ECON Mode ...................................... 93, 471
Electric Power Steering (EPS)
System............................................. 88, 641
Fog Light ................................................... 91
High Beam ................................................ 90
Immobilizer System .................................... 91
Lane Keeping Assist System (LKAS) .... 99, 100
Lights On ................................................... 90
Low Fuel .................................................... 85
Low Oil Pressure ................................ 83, 637
Low Tire Pressure/TPMS ..................... 89, 522
Maintenance Minder ......................... 93, 559
Malfunction Indicator Lamp ............... 83, 638
Parking Brake and Brake System (Amber) ... 81
Parking Brake and Brake System (Red)........................................ 80, 639, 640
Road Departure Mitigation (RDM) .. 95, 96, 97
Seat Belt Reminder .............................. 42, 84
Security System Alarm ............................... 92
Shift Lever Position .................................... 84
Starter System ........................................... 94
Supplemental Restraint System ............ 60, 85
System Message ........................................ 90
Tailgate Open ............................................ 87
Transmission .............................................. 84
Turn Signal ................................................ 90
Vehicle Stability Assist (VSA ®)
System............................................. 86, 509
VSA ® OFF .......................................... 87, 510 Information
.............................................. 651
Information Display ................................. 119
Instant Fuel Economy ....................... 120, 129
Instrument Panel ........................................ 79
Brightness Control................................... 188
Interior Lights ........................................... 207
Interior Rearview Mirror .......................... 195
iPod ................................................... 248, 300
J
Jack (Wheel Nut Wrench) ........................ 622
Jump Starting ........................................... 629
K
Key Number Tag ....................................... 135
Keyless Lockout Prevention ..................... 143
Keys ........................................................... 134
Lockout Prevention.................................. 143
Master Keys ............................................ 134
Number Tag ............................................ 135
Rear Door Won’t Open............................ 145
Remote Transmitter ................................. 141
Types and Functions ................................ 134
Valet Key................................................. 135
Won’t Turn ............................................... 29
Kickdown (Continuously Variable Transmission) .......................................... 468
18 CR-V-31TLA6100.book 669 ページ 2017年9月7日 木曜日 午後3時56分
