gas type HONDA CR-V 2018 Owner's Manual (in English)

33

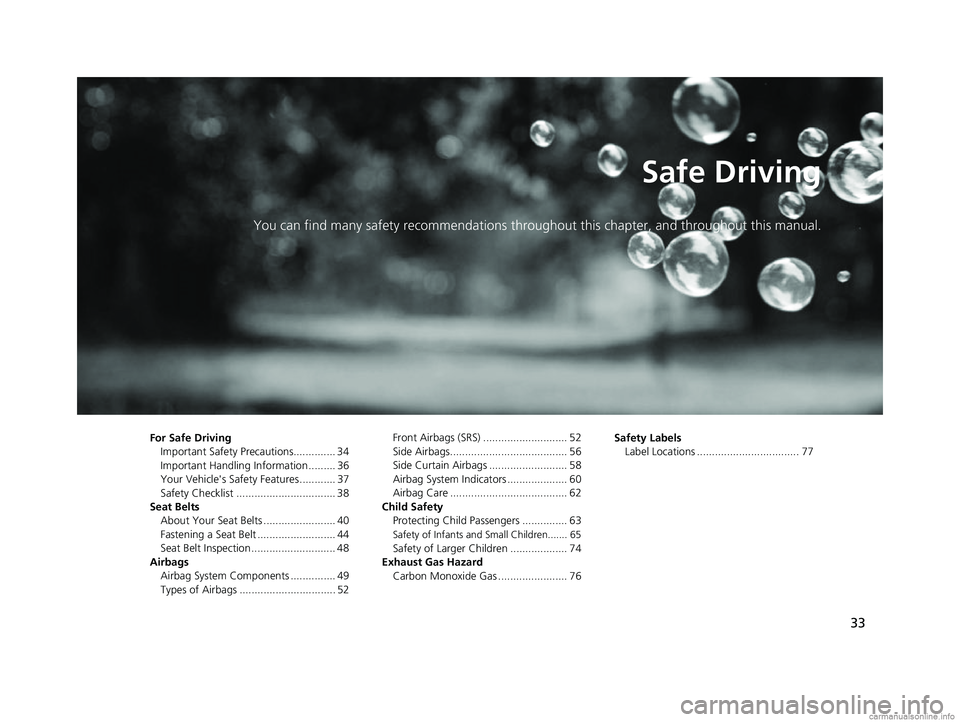

Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe Driving
Important Safety Precautions.............. 34
Important Handling Information ......... 36
Your Vehicle's Safety Features ............ 37
Safety Checklist ................................. 38
Seat Belts About Your Seat Belts ........................ 40
Fastening a Seat Belt .......................... 44
Seat Belt Inspection ............................ 48
Airbags Airbag System Components ............... 49
Types of Airbags ................................ 52 Front Airbags (SRS) ............................ 52
Side Airbags....................................... 56
Side Curtain Airbags .......................... 58
Airbag System Indicators .................... 60
Airbag Care ....................................... 62
Child Safety Protecting Child Passengers ............... 63
Safety of Infants and Small Children....... 65
Safety of Larger Children ................... 74
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 76 Safety Labels
Label Locations .................................. 77
18 CR-V-31TLA6100.book 33 ページ ２０１７年９月７日　木曜日　午後３時５６分

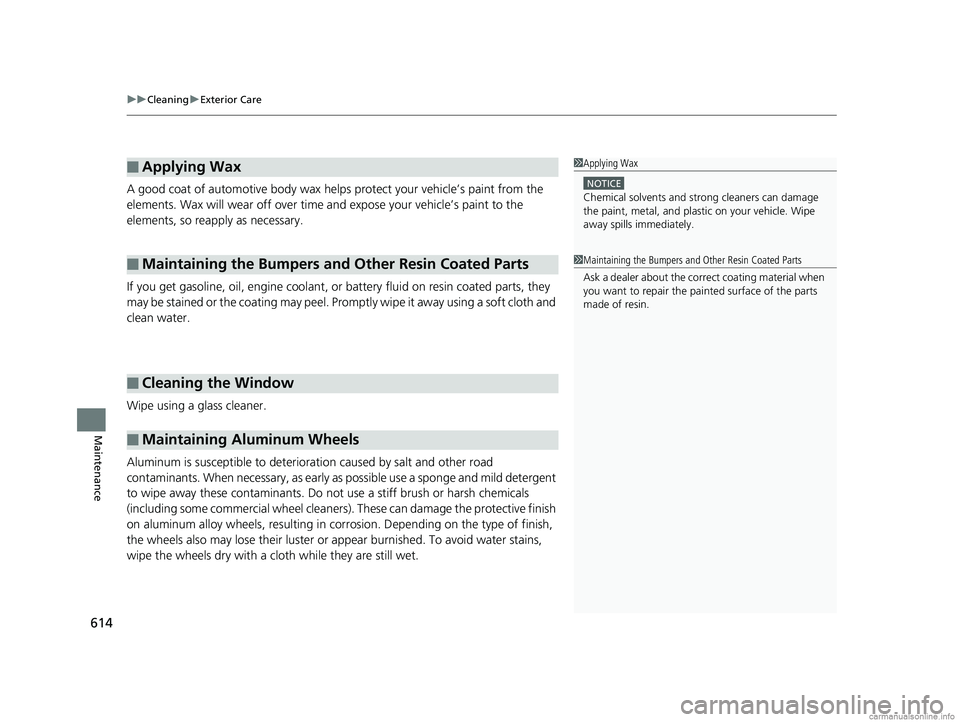

uuCleaning uExterior Care
614
Maintenance
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resin coated parts, they
may be stained or the coating may peel. Prom ptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do no t use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lose their luster or appear burnished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels
1 Applying Wax
NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe
away spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask a dealer about the correct coating material when
you want to repair the pa inted surface of the parts
made of resin.
18 CR-V-31TLA6100.book 614 ページ ２０１７年９月７日　木曜日　午後３時５６分

650
Handling the Unexpected

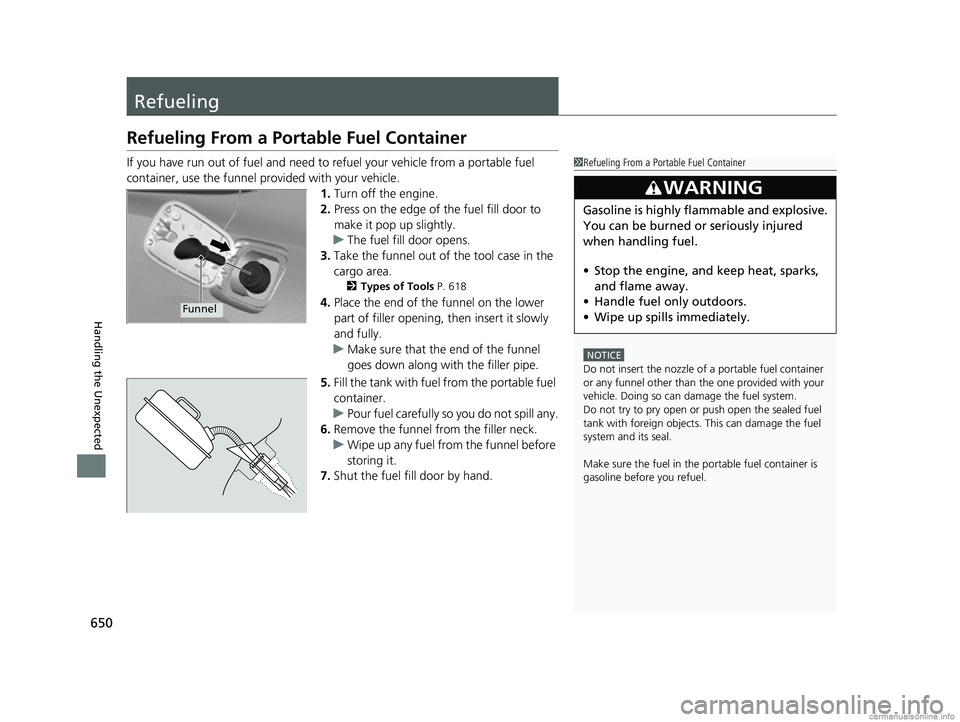

Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel pr ovided with your vehicle.
1.Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
cargo area.
2 Types of Tools P. 618
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
18 CR-V-31TLA6100.book 650 ページ ２０１７年９月７日　木曜日　午後３時５６分

652
Information
Specifications
■Vehicle Specifications
*1: 2WD models
*2: AWD models
ModelHonda CR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.:4,695 lbs (2,130 kg)Canada:2,130 kgGross Axle Weight
Rating (Front)U.S.:2,425 lbs (1,100 kg)Canada:1,100 kg
Gross Axle Weight
Rating (Rear)U.S.:2,292 lbs (1,040 kg)*1
2,369 lbs (1,075 kg)*2
Canada:1,040 kg*1
1,075 kg*2
■ Air Conditioning
*1: 2.4 L engine models
*2: 1.5 L engine models
■Engine Specifications
*1: 2.4 L engine models
*2: 1.5 L engine models
■Fuel
■ Washer Fluid
Refrigerant Type HFO-1234yf (R-1234yf)
Charge Quantity 14.6 – 16.4 oz (415 – 465 g)*1
15.3 – 17.1 oz (435 – 485 g)*2
Lubricant TypeRB100EV-01*1
RL85HM (POE)*2
Quantity5.80 - 6.53 cu-in (95 - 107 cm3)*1
4.70 - 6.28 cu-in (77 – 103 cm3)*2
Displacement143.72 cu-in (2,356 cm3)*1
91.38 cu-in (1,498 cm3)*2
Spark PlugsNGKDILKAR7H11GS*1
DILKAR7G11GS*1
ILZKAR8J8SY*2
DENSODXE22HQR-D11S*1
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 14 US gal (53 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)55 W (H11)*
LED*
Headlights (High Beam)60 W (HB3)*
LED*
Fog Lights*35 W (H8)
Front Turn Signal/
Front Side Marker Lights LED
Parking/Daytime Running LightsLED
Side Turn Signal Lights
(on Door Mirrors)
*LED
Tail and Brake/Rear Turn Signal/
Rear Side Marker LightsLED
Back-Up Lights 16 W
TaillightsLED
High-Mount Brake Light LED
Rear License Plate LightLED
Interior Lights
Map Lights 8 W
*
LED*
Ceiling Light8 W*
LED*
Cargo Area Lights 5 W
Vanity Mirror Lights*1.8 W
* Not available on all models
18 CR-V-31TLA6100.book 652 ページ ２０１７年９月７日　木曜日　午後３時５６分
