index HONDA CR-V 2018 Owner's Manual (in English)

Contents
Child Safety P. 63Exhaust Gas Hazard P. 76Safety Labels P. 77
Opening and Closing the Tailgate P. 150 Security System P. 161 Opening and Closing the Windows P. 164
Operating the Switches Around the Steering Wheel P. 171 Adjusting the Mirrors P. 195
Interior Lights/Interior Convenience It ems P. 207 Climate Control System P. 226
Audio Error Messages P. 329General Information on the Audio System P. 334
Bluetooth® HandsFreeLink ® P. 387, 410 Compass* P. 444
Off-Highway Driving Guidelines P. 458 When Driving P. 460 Braking P. 524
Refueling P. 549 Fuel Economy and CO
2 Emissions P. 552 Turbo Engine Vehicle* P. 553
Maintenance Under the Hood P. 569 Replacing Light Bulbs P. 586
Checking and Maintaining Tires P. 597 Battery P. 606 Remote Transmitter Care P. 608
Cleaning P. 611 Accessories and Modifications P. 616
Engine Does Not Start P. 626Jump Starting P. 629 Shift Lever Does Not Move P. 632
Fuses P. 644 Emergency Towing P. 648
Refueling P. 650
Devices that Emit Radio Waves P. 656 Reporting Safety Defects P. 657
Authorized Manuals P. 662 Customer Service Information P. 663
Quick Reference GuideP. 4
Safe DrivingP. 33
Instrument PanelP. 79
ControlsP. 131
FeaturesP. 231
DrivingP. 447
MaintenanceP. 555
Handling the UnexpectedP. 617
InformationP. 651
IndexP. 665
18 CR-V-31TLA6100.book 3 ページ ２０１７年９月７日　木曜日　午後３時５６分

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Ignition Switch* (P171)
❙Steering Wheel Adjustments (P194)
❙Information Display* (P119)
❙Tire Pressure Monitoring System (TPMS) Button* (P518)
❙Hazard Warning Button
❙System Indicators (P80)
❙Rear Window Defogger (P190)
❙Gauges (P118)
❙Driver Information Interface* (P122)
❙ENGINE START/STOP Button* (P172)
❙Audio System (P239, 260)
❙Navigation System*
() See the Navigation System Manual
❙ (Vehicle Stability Assist (VSA ®) System OFF) Button (P510)
❙Road Departure Mitigation (RDM) Button* (P498)
❙Collision Mitigation Braking SystemTM (CMBSTM) OFF Button* (P536)
❙Heated Windshield Button* (P191)
❙Power Tailgate Button* (P154)
❙Heated Door Mirror Button* (P190)
❙Climate Control System (P226)
❙Front Seat Heater Buttons* (P223)
18 CR-V-31TLA6100.book 4 ページ ２０１７年９月７日　木曜日　午後３時５６分

Visual Index
6
Quick Reference Guide
❙Rearview Mirror (P195)
❙Driver's Front Airbag
(P52)
❙Hood Release Handle (P571)
❙Driver’s Pocket
❙Fuel Fill Door Release Handle (P550)
❙Memory Buttons* (P 193)
❙Interior Fuse Box (P645)
❙Passenger's Front Airbag
(P52)
❙SET Button* (P 193)
❙Power Window Switches (P164)
❙Door Mirror Controls (P196)
❙Master Door Lock Switch (P 145)
❙Electric Parking Brake
Switch
(P524)
❙Automatic Brake Hold
Button
(P528)
❙Glove Box (P211)
❙Accessory Power Socket
(P217)
❙ECON Button (P471)
❙Shift Lever (P469)
❙Accessory Power Socket
(P217)
❙USB Port(s) (P233)
18 CR-V-31TLA6100.book 6 ページ ２０１７年９月７日　木曜日　午後３時５６分

Visual Index
8
Quick Reference Guide
❙Windshield Wipers (P185, 593)
❙Door Lock/Unlock Control (P137)
❙How to Refuel (P550)
❙High-Mount Brake Light (P592)
❙Rear Wiper (P187, 595)
❙Brake/Taillights (P590)
❙Power Door Mirrors (P196)
❙Maintenance Under the Hood (P569)
❙Fog Lights* (P180, 588)
❙Multi-View Rear Camera (P547)
❙Front Turn Signal/Front Side Marker Lights
(P176, 177, 590)
❙Tires (P597, 619)
❙Opening/Closing the Tailgate (P150)
❙Side Turn Signal Lights* (P176, 590)
❙Headlights (P177, 586)
❙Tailgate Release Button (P159)
❙Taillights (P591)
❙Rear Turn Signal Lights (P590)
❙Rear Side Marker Lights (P590)
❙Back-Up Lights (P591)
❙Rear License Plate Light (P592)
❙Parking/Daytime Running Lights (P177, 184, 590)
18 CR-V-31TLA6100.book 8 ページ ２０１７年９月７日　木曜日　午後３時５６分

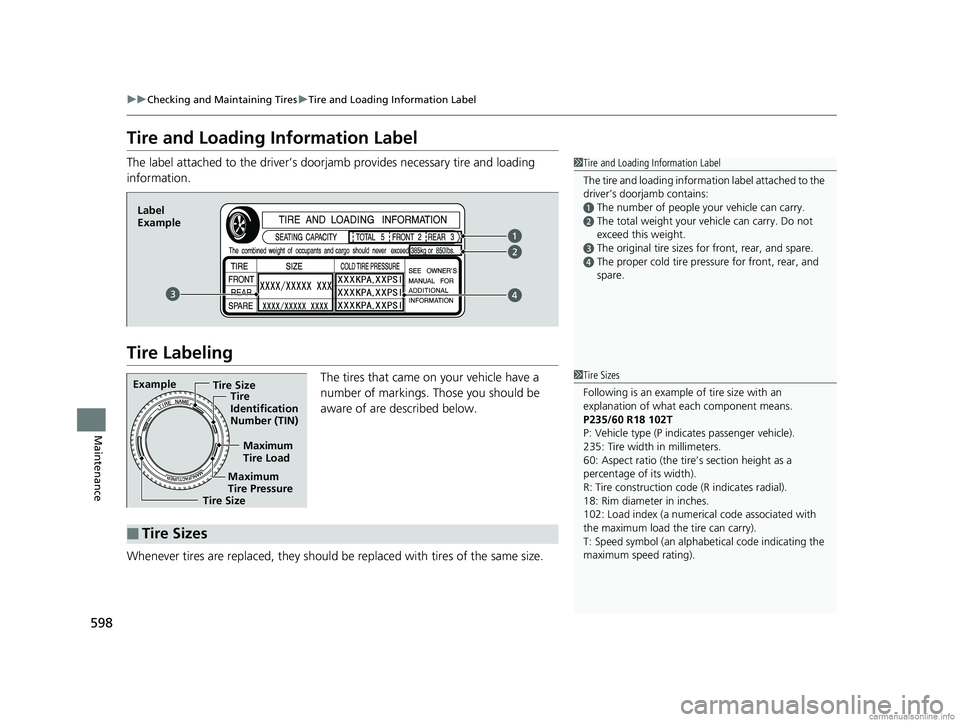

598
uuChecking and Maintaining Tires uTire and Loading Information Label
Maintenance
Tire and Loading Information Label
The label attached to the driver’s doorj amb provides necessary tire and loading
information.
Tire Labeling
The tires that came on your vehicle have a
number of markings. Those you should be
aware of are described below.
Whenever tires are replaced, they should be replaced with tires of the same size.
1 Tire and Loading Information Label
The tire and loading informat ion label attached to the
driver’s doorjamb contains:
aThe number of people your vehicle can carry.
bThe total weight your vehicle can carry. Do not
exceed this weight.
cThe original tire sizes for front, rear, and spare.
dThe proper cold tire pressure for front, rear, and
spare.
Label
Example
Example Tire Size
Tire
Identification
Number (TIN)
Maximum
Tire Load
Maximum
Tire Pressure
Tire Size
■Tire Sizes
1 Tire Sizes
Following is an example of tire size with an
explanation of what each component means.
P235/60 R18 102T
P: Vehicle type (P indi cates passenger vehicle).
235: Tire width in millimeters.
60: Aspect ratio (the tire’s section height as a
percentage of its width).
R: Tire construction code (R indicates radial).
18: Rim diameter in inches.
102: Load index (a numerical code associated with
the maximum load the tire can carry).
T: Speed symbol (an alphabetical code indicating the
maximum speed rating).
18 CR-V-31TLA6100.book 598 ページ ２０１７年９月７日　木曜日　午後３時５６分

Index
665
Index
Index
Numbers
4WD.......................................................... 517
A
ABS (Anti-lock Brake System) .................. 530
Accessories and Modifications ................ 616
Accessory Power Sockets ......................... 217
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ................................. 481
Adding the Coolant ................................. 580
Additives Coolant .......................................... 579, 581
Engine Oil ............................................... 572
Washer ................................................... 585
Additives, Engine Oil ............................... 572
Adjusting Armrest .................................................. 206
Front Seats.............................................. 197
Head Restraints ....................................... 203
Mirrors.................................................... 195
Rear Seats ............................................... 201
Steering Wheel ....................................... 194
Temperature ................................... 121, 129
Adjusting the Sound ........................ 244, 282
Agile Handling Assist ............................... 511
Air Conditioning System (Climate
Control System) ...................................... 226
Changing the Mode................................ 227
Defrosting the Windshield and
Windows .............................................. 227 Dust and Pollen Filter ............................... 610
Recirculation/Fresh Air Mode ................... 227
Sensor ..................................................... 230
Synchronized Mode ................................. 229
Using Automatic Climate Control ............ 226
Air Pressure ....................................... 598, 653
Airbags ........................................................ 49
Advanced Airbags ..................................... 55
Airbag Care ............................................... 62
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 52
Indicator .............................................. 60, 85
Passenger Airbag Off Indicator .................. 61
Sensors ...................................................... 49
Side Airbags .............................................. 56
Side Curtain Airbags .................................. 58
All-Wheel Drive (AWD) ............................ 517
AM/FM Radio .................................... 246, 289
Android Auto
TM........................................ 325
Anti-lock Brake System (ABS) .................. 530
Indicator .................................................... 85
Apple CarPlay
TM........................................ 322
Armrest ..................................................... 206
Audio Remote Controls ............................ 235
Audio System ............................ 232, 239, 260
Adjusting the Sound ........................ 244, 282
AM/FM Radio .................................. 246, 289
Android Auto
TM....................................... 325
Apple CarPlayTM....................................... 322
Audio/Information Screen ................ 240, 261
Changing the Home Screen Icon Layout .. 265 Changing the Screen Interface ................ 279
Closing Apps ........................................... 281
Customizing the Meter............................ 266
Display Setup .................................. 245, 283
Error Messages ........................................ 329
General Information ................................ 334
Home Screen........................................... 272
HondaLink
®............................................. 314
How to use Siri ® Eyes Free .............. 259, 321
iPod ................................................ 248, 300
Limitations for Manual Operation ............ 284
Menu Customize ..................................... 280
MP3/WMA/AAC .............................. 253, 309
Pandora ®......................................... 251, 307
Playing Bluetooth ® Audio ................ 256, 312
Playing SiriusXM ® Radio .......................... 293
Reactivating ............................................ 234
Recommended Devices............................ 335
Remote Controls ..................................... 235
Security Code .......................................... 234
Selecting an Audio Source ....................... 284
Song By Voice
TM (SBV) ............................. 303
Status Area ............................................. 278
Theft Protection ...................................... 234
USB Flash Drives ...................... 253, 309, 335
USB Port(s) .............................................. 233
Voice Control Operation.......................... 285
Wallpaper Setup.............................. 242, 270
Wi-Fi Connection .................................... 319
Audio/Information Screen ............... 240, 261
Authorized Manuals ................................ 662
18 CR-V-31TLA6100.book 665 ページ ２０１７年９月７日　木曜日　午後３時５６分

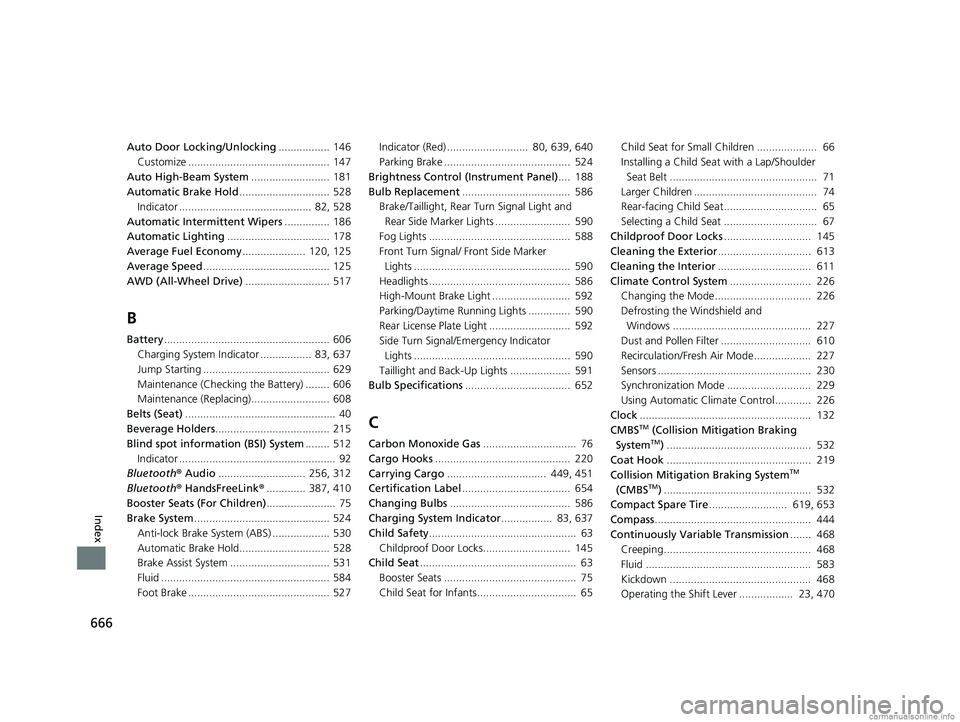

666
Index
Auto Door Locking/Unlocking................. 146
Customize ............................................... 147
Auto High-Beam System .......................... 181
Automatic Brake Hold .............................. 528
Indicator ............................................ 82, 528
Automatic Intermittent Wipers ............... 186
Automatic Lighting .................................. 178
Average Fuel Economy ..................... 120, 125
Average Speed .......................................... 125
AWD (All-Wheel Drive) ............................ 517
B
Battery....................................................... 606
Charging System Indicator ................. 83, 637
Jump Starting .......................................... 629
Maintenance (Checking the Battery) ........ 606
Maintenance (Replacing).......................... 608
Belts (Seat) .................................................. 40
Beverage Holders ...................................... 215
Blind spot information (BSI) System ........ 512
Indicator .................................................... 92
Bluetooth ® Audio ............................. 256, 312
Bluetooth ® HandsFreeLink ®............. 387, 410
Booster Seats (For Children) ....................... 75
Brake System ............................................. 524
Anti-lock Brake System (ABS) ................... 530
Automatic Brake Hold.............................. 528
Brake Assist System ................................. 531
Fluid ........................................................ 584
Foot Brake ............................................... 527 Indicator (Red) ........................... 80, 639, 640
Parking Brake .......................................... 524
Brightness Control (Instrument Panel).... 188
Bulb Replacement .................................... 586
Brake/Taillight, Rear Turn Signal Light and
Rear Side Marker Lights ......................... 590
Fog Lights ............................................... 588
Front Turn Signal/ Front Side Marker
Lights .................................................... 590
Headlights ............................................... 586
High-Mount Brake Light .......................... 592
Parking/Daytime Running Lights .............. 590
Rear License Plate Light ........................... 592
Side Turn Signal/Emergency Indicator
Lights .................................................... 590
Taillight and Back-Up Lights .................... 591
Bulb Specifications ................................... 652
C
Carbon Monoxide Gas ............................... 76
Cargo Hooks ............................................. 220
Carrying Cargo ................................. 449, 451
Certification Label .................................... 654
Changing Bulbs ........................................ 586
Charging System Indicator ................. 83, 637
Child Safety ................................................. 63
Childproof Door Locks............................. 145
Child Seat .................................................... 63
Booster Seats ............................................ 75
Child Seat for Infants................................. 65 Child Seat for Small Children .................... 66
Installing a Child Seat
with a Lap/Shoulder
Seat Belt ................................................. 71
Larger Children ......................................... 74
Rear-facing Child Seat............................... 65
Selecting a Child Seat ............................... 67
Childproof Door Locks ............................. 145
Cleaning the Exterior ............................... 613
Cleaning the Interior ............................... 611
Climate Control System ........................... 226
Changing the Mode................................ 226
Defrosting the Windshield and Windows .............................................. 227
Dust and Pollen Filter .............................. 610
Recirculation/Fresh Air Mode................... 227
Sensors ................................................... 230
Synchronization Mode ............................ 229
Using Automatic Climate Control............ 226
Clock ......................................................... 132
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 532
Coat Hook ................................................ 219
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 532
Compact Spare Tire .......................... 619, 653
Compass .................................................... 444
Continuously Variable Transmission ....... 468
Creeping................................................. 468
Fluid ....................................................... 583
Kickdown ............................................... 468
Operating the Shift Lever .................. 23, 470
18 CR-V-31TLA6100.book 666 ページ ２０１７年９月７日　木曜日　午後３時５６分

667
Index
Shift Lever Does Not Move ...................... 632
Shifting ................................................... 469
Controls .................................................... 131
Coolant (Engine) .............................. 579, 581
Adding the Coolant ................................ 580
Adding to the Radiator ........................... 582
Adding to the Reserve Tank .................... 581
Overheating ............................................ 633
Creeping (Continuously Variable Transmission) .......................................... 468
Cross Traffic Monitor ............................... 543
Cruise Control .................................. 472, 475
Indicator ................................................... 93
Cup Holders .............................................. 215
Customer Service Information ................ 663
Customized Features ............................... 351
Customizing the Auto Door Locking/
Unlocking Setting .................................. 147
D
Daytime Running Lights .......................... 184
Dead Battery ............................................ 629
Defaulting All the Settings ...................... 383
Defrosting the Windshield and Windows ................................................. 227
Detachable Anchor .................................... 46
Devices that Emit Radio Waves ............... 656
Dimming Headlights .............................................. 177
Rearview Mirror ...................................... 195 Dipstick (Engine Oil)
................................. 573
Directional Signals (Turn Signals) ............ 176
Display Setup .................................... 245, 283
Display/Information Button ..................... 122
Door Mirrors ............................................. 196
Doors ......................................................... 134
Auto Door Locking .................................. 146
Auto Door Unlocking ............................... 146
Door Open Indicator ............................ 38, 87
Keys ........................................................ 134
Locking/Unlocking the Doors from the
Inside..................................................... 144
Locking/Unlocking the Doors from the Outside.................................................. 137
Lockout Prevention System ...................... 143
DOT Tire Quality Grading ........................ 600
Driver Information Interface ................... 122
Driver’s Seat Lumbar Support .................. 197
Driving ....................................................... 447
Braking .................................................... 524
Continuously Variable Transmission ......... 468
Cruise Control ................................. 472, 475
Off-Highway Driving Guidelines ............... 458
Shifting Gear ........................................... 469
Starting the Engine .......................... 460, 462
Driving Position Memory System ............. 192
Dust and Pollen Filter ............................... 610
E
Eco Assist System.......................................... 9
ECON Button ............................................ 471
Elapsed Time ............................................. 125
Electric Power Steering (EPS) System
Indicator............................................ 88, 641
Electronic Stability Control (ESC) ............. 509
Emergency ................................................ 648
Emissions Testing (Readiness Codes) ....... 658
Engine Coolant ........................................... 579, 581
Jump Starting .......................................... 629
Number................................................... 654
Oil ........................................................... 572
Starting ........................................... 460, 462
Switch Buzzer.................................. 171, 174
Engine Coolant ................................. 579, 581
Adding the Coolant................................. 580
Adding to the Radiator ............................ 582
Adding to the Reserve Tank..................... 581
Overheating ............................................ 633
Temperature Gauge ................................ 118
Engine Oil ................................................. 572
Adding .................................................... 575
Checking................................................. 573
Displaying Oil Life ............................ 559, 564
Low Oil Pressure Indicator ................. 83, 637
Recommended Engine Oil ....................... 572
ENGINE START/STOP Button .................... 172
EPS (Electric Power Steering) System ...... 641
Exhaust Gas Hazard (Carbon Monoxide) .. 76
18 CR-V-31TLA6100.book 667 ページ ２０１７年９月７日　木曜日　午後３時５６分

668
Index
Exterior Care (Cleaning)........................... 613
Exterior Mirrors ......................................... 196
F
Features..................................................... 231
Filters
Dust and Pollen ....................................... 610
Oil ........................................................... 576
Flat Tire ..................................................... 619
Floor Mats ................................................. 612
Fluids Brake ....................................................... 584
Continuously Variable Transmission ......... 583
Engine Coolant ................................ 579, 581
Windshield Washer .................................. 585
FM/AM Radio .................................... 246, 289
Fog Light Indicator ..................................... 91
Folding Down the Rear Seats ................... 201
Foot Brake ................................................. 527
Front Airbags (SRS) ..................................... 52
Front Seat Heaters .................................... 223
Front Seats ................................................ 197
Adjusting ................................................. 197
Front Sensor Camera ................................ 479
Fuel ...................................................... 25, 549
Fuel Economy and CO
2 Emissions............. 552
Gauge ..................................................... 118
Instant Fuel Economy ....................... 120, 129
Low Fuel Indicator ..................................... 85
Range .............................................. 120, 125 Recommendation .................................... 549
Refueling................................................. 549
Fuel Economy and CO
2 Emissions ............ 552
Fuel Fill Door ...................................... 25, 550
Fuses .......................................................... 644
Inspecting and Changing......................... 647
Locations......................................... 644, 645
G
Gasoline (Fuel) Fuel Economy and CO
2 Emissions ............ 552
Gauge ..................................................... 118
Information ............................................. 549
Instant Fuel Economy ...................... 120, 129
Low Fuel Indicator ..................................... 85
Refueling................................................. 549
Gauges ...................................................... 118
Gear Shift Lever Positions Continuously Variable Transmission ......... 469
Glass (care) ........................................ 611, 614
Glove Box .................................................. 211
H
Handling the Unexpected ........................ 617
HandsFreeLink ® (HFL) ....................... 387, 410
Automatic Import of Cellular Phonebook
and Call History ............................. 400, 423
Caller’s ID Information............................. 398
Displaying Messages................................ 438 HFL Buttons .................................... 387, 410
HFL Menus...................................... 389, 413
HFL Status Display ........................... 388, 412
In Case of Emergency ............................. 442
Limitations for Manual Operation .... 388, 412
Making a Call ................................. 404, 431
Options During a Call...................... 409, 435
Phone Setup ................................... 393, 418
Phonebook Phonetic M
odification........... 427
Receiving a Call............................... 408, 434
Receiving a Text Message/E-mail ............. 436
Ring Tone ....................................... 398, 422
Selecting a Mail Account......................... 437
Speed Dial ...................................... 401, 424
To Clear the System ................................ 399
To Set Up Text Message/E-mail Options .. 421
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 289
Head Restraints ........................................ 203
Headlights ................................................ 177
Aiming.................................................... 586
Auto High-Beam System ......................... 181
Automatic Operation .............................. 178
Dimming................................................. 177
Operating ............................................... 177
Heated Door Mirror Button .................... 190
Heated Steering Wheel ........................... 222
Heated Windshield Button ...................... 191
Heaters (Front Seat) ................................. 223
Heaters (Seat) ........................................... 224
18 CR-V-31TLA6100.book 668 ページ ２０１７年９月７日　木曜日　午後３時５６分

669
Index
Heating and Cooling SystemDust and Pollen Filter .............................. 610
HFL (HandsFreeLink ®) ...................... 387, 410
High Beam Indicator .................................. 90
Hill Start Assist System ..................... 461, 466
HomeLink ® Universal Transceiver ........... 384
Honda App License Agreement .............. 336
Honda Sensing
TM........................................ 26
HondaLink® .............................................. 314
I
Identification Numbers ............................ 654
Engine and Transmission ......................... 654
Vehicle Identification............................... 654
Ignition Switch ......................................... 171
Illumination Control ................................ 188
Knob ...................................................... 188
Immobilizer System .................................. 161
Immobilizer System Indicator..................... 91
Indicators .................................................... 80
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) .................... 98, 99, 481
Anti-lock Brake System (ABS) .................... 85
Automatic Brake Hold ....................... 82, 528
Blind spot information (BSI) ............... 92, 513
Brake Depressing ...................................... 94
Charging System............................... 83, 637
Collision Mitigati on Braking System
TM
(CMBSTM) ...................................... 101, 102
Cruise Control .......................... 93, 473, 476 Cruise Main ............................... 93, 472, 475
Door Open .......................................... 38, 87
ECON Mode ...................................... 93, 471
Electric Power Steering (EPS)
System............................................. 88, 641
Fog Light ................................................... 91
High Beam ................................................ 90
Immobilizer System .................................... 91
Lane Keeping Assist System (LKAS) .... 99, 100
Lights On ................................................... 90
Low Fuel .................................................... 85
Low Oil Pressure ................................ 83, 637
Low Tire Pressure/TPMS ..................... 89, 522
Maintenance Minder ......................... 93, 559
Malfunction Indicator Lamp ............... 83, 638
Parking Brake and Brake System (Amber) ... 81
Parking Brake and Brake System (Red)........................................ 80, 639, 640
Road Departure Mitigation (RDM) .. 95, 96, 97
Seat Belt Reminder .............................. 42, 84
Security System Alarm ............................... 92
Shift Lever Position .................................... 84
Starter System ........................................... 94
Supplemental Restraint System ............ 60, 85
System Message ........................................ 90
Tailgate Open ............................................ 87
Transmission .............................................. 84
Turn Signal ................................................ 90
Vehicle Stability Assist (VSA ®)
System............................................. 86, 509
VSA ® OFF .......................................... 87, 510 Information
.............................................. 651
Information Display ................................. 119
Instant Fuel Economy ....................... 120, 129
Instrument Panel ........................................ 79
Brightness Control................................... 188
Interior Lights ........................................... 207
Interior Rearview Mirror .......................... 195
iPod ................................................... 248, 300
J
Jack (Wheel Nut Wrench) ........................ 622
Jump Starting ........................................... 629
K
Key Number Tag ....................................... 135
Keyless Lockout Prevention ..................... 143
Keys ........................................................... 134
Lockout Prevention.................................. 143
Master Keys ............................................ 134
Number Tag ............................................ 135
Rear Door Won’t Open............................ 145
Remote Transmitter ................................. 141
Types and Functions ................................ 134
Valet Key................................................. 135
Won’t Turn ............................................... 29
Kickdown (Continuously Variable Transmission) .......................................... 468
18 CR-V-31TLA6100.book 669 ページ ２０１７年９月７日　木曜日　午後３時５６分
