556
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.)
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake fluid level monthly.
2 Checking the Brake Fluid P. 584
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 597
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 586
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 593
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all maintenance services should
be performed in accordan ce with the intervals
indicated by the information display
*/driver
information interface*.
2 Maintenance Service Items P. 561, 566
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 662
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet.
U.S. models
* Not available on all models
18 CR-V-31TLA6100.book 556 ページ ２０１７年９月７日　木曜日　午後３時５６分

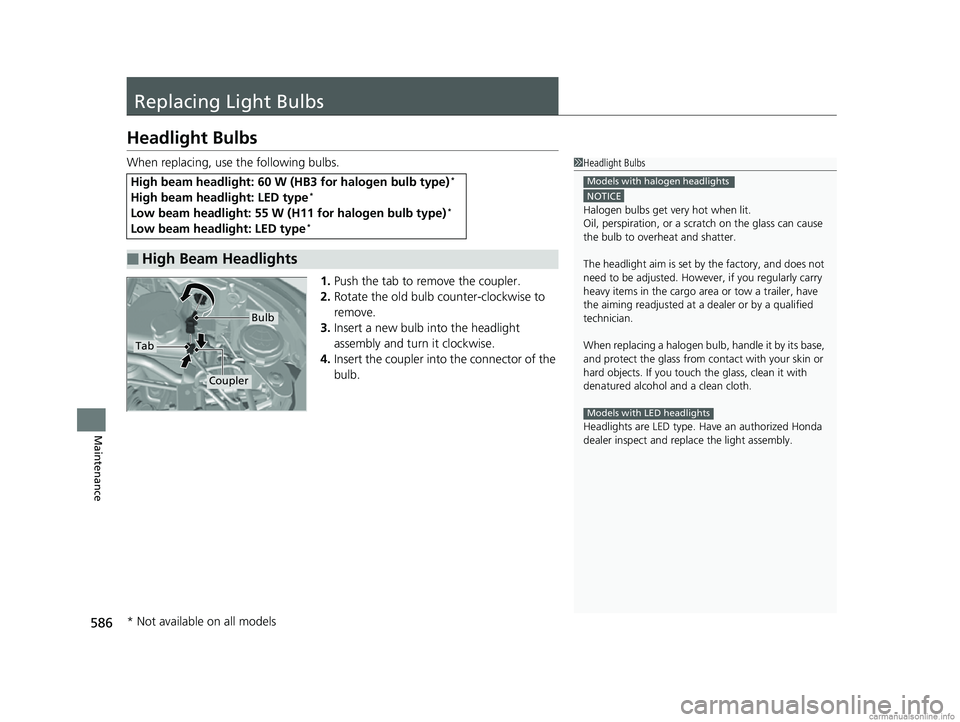

586
Maintenance
Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.1.Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to
remove.
3. Insert a new bulb into the headlight
assembly and turn it clockwise.
4. Insert the coupler into the connector of the
bulb.
High beam headlight: 60 W (HB3 for halogen bulb type)*
High beam headlight: LED type*
Low beam headlight: 55 W (H11 for halogen bulb type)*
Low beam headlight: LED type*
■High Beam Headlights
1Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overhe at and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
When replacing a halogen bulb, handle it by its base,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Headlights are LED type. Ha ve an authorized Honda
dealer inspect and replace the light assembly.
Models with halogen headlights
Models with LED headlights
Coupler
Bulb
Tab
* Not available on all models
18 CR-V-31TLA6100.book 586 ページ ２０１７年９月７日　木曜日　午後３時５６分

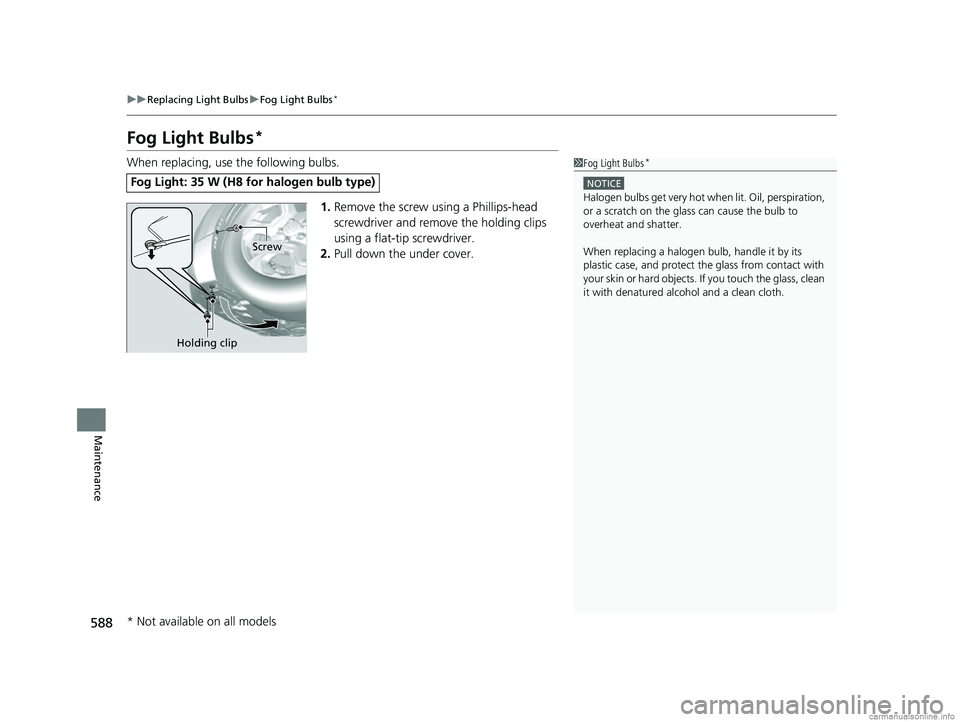

588
uuReplacing Light Bulbs uFog Light Bulbs*
Maintenance
Fog Light Bulbs*
When replacing, use the following bulbs.
1.Remove the screw using a Phillips-head
screwdriver and remove the holding clips
using a flat-tip screwdriver.
2. Pull down the under cover.
Fog Light: 35 W (H8 fo r halogen bulb type)
1Fog Light Bulbs*
NOTICE
Halogen bulbs get very hot wh en lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
When replacing a halogen bulb, handle it by its
plastic case, and protect th e glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alc ohol and a clean cloth.
Screw
Holding clip
* Not available on all models
18 CR-V-31TLA6100.book 588 ページ ２０１７年９月７日　木曜日　午後３時５６分

uuCleaning uExterior Care
614
Maintenance
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resin coated parts, they
may be stained or the coating may peel. Prom ptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do no t use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lose their luster or appear burnished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels
1 Applying Wax
NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe
away spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask a dealer about the correct coating material when
you want to repair the pa inted surface of the parts
made of resin.
18 CR-V-31TLA6100.book 614 ページ ２０１７年９月７日　木曜日　午後３時５６分

617
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 618
If a Tire Goes Flat Changing a Flat Tire ......................... 619
Engine Does Not Start Checking the Engine ........................ 626
If the Smart Entry Remote Battery is Weak .......................................... 627
Emergency Engine Stop ................... 628
Jump Starting .................................... 629
Shift Lever Does Not Move .............. 632
Overheating How to Handle Overheating ............. 633 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On................................................ 637
If the Charging System Indicator Comes
On ................................................. 637
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 638
If the Brake System Indicator (Red) Comes On or Blinks ....................................... 639
If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On ..... 640
If the Electric Power Steering (EPS) System Indicator Comes On ........................... 641
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 643
Fuses Fuse Locations ................................. 644
Inspecting and Changing Fuses ........ 647
Emergency Towing ........................... 648
When You Cannot Open the Tailgate.. 649Refueling................................................. 650
18 CR-V-31TLA6100.book 617 ページ ２０１７年９月７日　木曜日　午後３時５６分

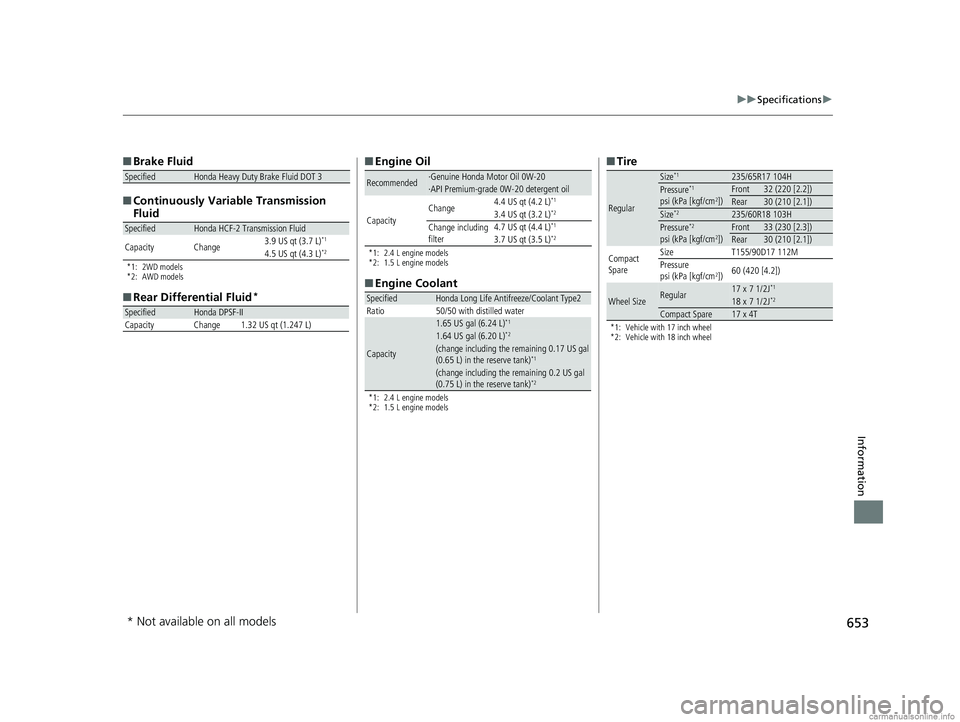

653
uuSpecifications u
Information
■Brake Fluid
■ Continuously Variable Transmission
Fluid
*1: 2WD models
*2: AWD models
■Rear Differential Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2 Transmission Fluid
Capacity Change 3.9 US qt (3.7 L)*1
4.5 US qt (4.3 L)*2
SpecifiedHonda DPSF-II
Capacity Change 1.32 US qt (1.247 L)
■ Engine Oil
*1: 2.4 L engine models
*2: 1.5 L engine models
■Engine Coolant
*1: 2.4 L engine models
*2: 1.5 L engine models
Recommended·Genuine Honda Motor Oil 0W-20·API Premium-grade 0W-20 detergent oil
CapacityChange4.4 US qt (4.2 L)*1
3.4 US qt (3.2 L)*2
Change including
filter 4.7 US qt (4.4 L)*1
3.7 US qt (3.5 L)*2
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.65 US gal (6.24 L)*1
1.64 US gal (6.20 L)*2
(change including the remaining 0.17 US gal
(0.65 L) in the reserve tank)*1
(change including the remaining 0.2 US gal
(0.75 L) in the reserve tank)*2
■ Tire
*1: Vehicle with 17 inch wheel
*2: Vehicle with 18 inch wheel
Regular
Size*1235/65R17 104HPressure*1
psi (kPa [kgf/cm2])Front32 (220 [2.2])Rear30 (210 [2.1])Size*2235/60R18 103HPressure*2
psi (kPa [kgf/cm2])Front33 (230 [2.3])Rear30 (210 [2.1])
Compact
Spare Size
T155/90D17 112M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 7 1/2J*1
18 x 7 1/2J*2
Compact Spare17 x 4T
* Not available on all models
18 CR-V-31TLA6100.book 653 ページ ２０１７年９月７日　木曜日　午後３時５６分

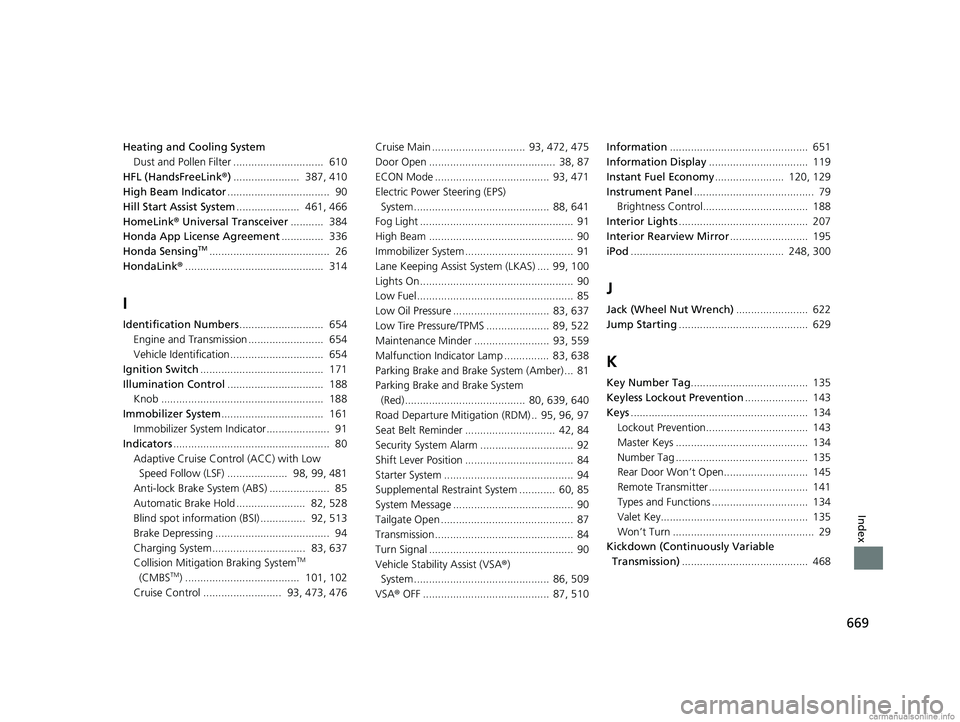

669
Index
Heating and Cooling SystemDust and Pollen Filter .............................. 610
HFL (HandsFreeLink ®) ...................... 387, 410
High Beam Indicator .................................. 90
Hill Start Assist System ..................... 461, 466
HomeLink ® Universal Transceiver ........... 384
Honda App License Agreement .............. 336
Honda Sensing
TM........................................ 26
HondaLink® .............................................. 314
I
Identification Numbers ............................ 654
Engine and Transmission ......................... 654
Vehicle Identification............................... 654
Ignition Switch ......................................... 171
Illumination Control ................................ 188
Knob ...................................................... 188
Immobilizer System .................................. 161
Immobilizer System Indicator..................... 91
Indicators .................................................... 80
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) .................... 98, 99, 481
Anti-lock Brake System (ABS) .................... 85
Automatic Brake Hold ....................... 82, 528
Blind spot information (BSI) ............... 92, 513
Brake Depressing ...................................... 94
Charging System............................... 83, 637
Collision Mitigati on Braking System
TM
(CMBSTM) ...................................... 101, 102
Cruise Control .......................... 93, 473, 476 Cruise Main ............................... 93, 472, 475
Door Open .......................................... 38, 87
ECON Mode ...................................... 93, 471
Electric Power Steering (EPS)
System............................................. 88, 641
Fog Light ................................................... 91
High Beam ................................................ 90
Immobilizer System .................................... 91
Lane Keeping Assist System (LKAS) .... 99, 100
Lights On ................................................... 90
Low Fuel .................................................... 85
Low Oil Pressure ................................ 83, 637
Low Tire Pressure/TPMS ..................... 89, 522
Maintenance Minder ......................... 93, 559
Malfunction Indicator Lamp ............... 83, 638
Parking Brake and Brake System (Amber) ... 81
Parking Brake and Brake System (Red)........................................ 80, 639, 640
Road Departure Mitigation (RDM) .. 95, 96, 97
Seat Belt Reminder .............................. 42, 84
Security System Alarm ............................... 92
Shift Lever Position .................................... 84
Starter System ........................................... 94
Supplemental Restraint System ............ 60, 85
System Message ........................................ 90
Tailgate Open ............................................ 87
Transmission .............................................. 84
Turn Signal ................................................ 90
Vehicle Stability Assist (VSA ®)
System............................................. 86, 509
VSA ® OFF .......................................... 87, 510 Information
.............................................. 651
Information Display ................................. 119
Instant Fuel Economy ....................... 120, 129
Instrument Panel ........................................ 79
Brightness Control................................... 188
Interior Lights ........................................... 207
Interior Rearview Mirror .......................... 195
iPod ................................................... 248, 300
J
Jack (Wheel Nut Wrench) ........................ 622
Jump Starting ........................................... 629
K
Key Number Tag ....................................... 135
Keyless Lockout Prevention ..................... 143
Keys ........................................................... 134
Lockout Prevention.................................. 143
Master Keys ............................................ 134
Number Tag ............................................ 135
Rear Door Won’t Open............................ 145
Remote Transmitter ................................. 141
Types and Functions ................................ 134
Valet Key................................................. 135
Won’t Turn ............................................... 29
Kickdown (Continuously Variable Transmission) .......................................... 468
18 CR-V-31TLA6100.book 669 ページ ２０１７年９月７日　木曜日　午後３時５６分
