wiper blades HONDA CR-V 2018 Owner's Manual (in English)

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 33
For Safe Driving P. 34 Seat Belts P. 40 Airbags P. 49
2Instrument Panel P. 79
Indicators P. 80 Gauges and Displays P. 118
2Controls P. 131
Clock P. 132 Locking and Unlocking the Doors P. 134
Moonroof* P. 167 Panoramic Roof*1 P. 168
Adjusting the Seats P. 197
2 Features P. 231
Audio System P. 232 Audio System Basic Operation P. 239, 260
Customized Features P. 351 HomeLink® Universal Transceiver* P. 384
2 Driving P. 447
Before Driving P. 448 Towing a Trailer P. 453Parking Your Vehicle P. 542 Multi-View Rear Camera P. 547
2Maintenance P. 555
Before Performing Maintenance P. 556 Maintenance MinderTM P. 559
Checking and Maintaining Wiper Blades P. 593
Climate Control System Maintenance P. 610
2Handling the Unexpected P. 617
Tools P. 618 If a Tire Goes Flat P. 619
Overheating P. 633 Indicator, Coming On/Blinking P. 637
When You Cannot Open the Tailgate P. 649
2 Information P. 651
Specifications P. 652 Identification Numbers P. 654
Emissions Testing P. 658 Warranty Coverages P. 660
18 CR-V-31TLA6100.book 2 ページ ２０１７年９月７日　木曜日　午後３時５６分

27
Quick Reference Guide
Maintenance (P555)
Under the Hood (P569)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P586)
● Inspect all lights regularly.
Wiper Blades (P593)
● Replace blades if they leave streaks
across the windshield.
Tires (P597)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
* Not available on all models
18 CR-V-31TLA6100.book 27 ページ ２０１７年９月７日　木曜日　午後３時５６分

185
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Continued
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the ignition switch is in ON
(w*1.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*2/AUTO*3, LO,
HI)
Move the lever up or down to change the
wiper settings.
■Adjusting wiper operation*
Turn the adjustment ring to adjust the wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the le ver for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
*2: Models with manual intermittent operation
*3: Models with automati c intermittent operation
■Windshield Wipers/Washers1Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defogger to warm the
windshield, then turn the wipers on.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
If the wiper stops operating due to an obstacle such
as the build-up of snow, pa rk the vehicle in a safe
place. Rotate the wiper switch to OFF, and turn the
ignition switch to ACCESSORY
( q or LOCK (0*1,
then remove the obstacle.
Models with intermittent time adjustment ring
Intermittent Time
Adjustment Ring*
MIST
INT
*2/AUTO*3
OFF
LO : Low speed wipe Pull to
use
washer.
HI
: High speed wipe
Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
18 CR-V-31TLA6100.book 185 ページ ２０１７年９月７日　木曜日　午後３時５６分

555
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 556
Safety When Performing Maintenance...557Parts and Fluids Used in Maintenance Service ........................................... 558
Maintenance Minder
TM..................... 559
Maintenance Under the Hood Maintenance Items Under the Hood .. 569
Opening the Hood ........................... 571
Recommended Engine Oil ................ 572
Oil Check ......................................... 573
Adding Engine Oil ............................ 575
Changing the Engine Oil and Oil Filter ...576
Engine Coolant ................................ 579
Transmission Fluid ............................ 583
Brake Fluid ....................................... 584
Refilling Window Washer Fluid......... 585
Replacing Light Bulbs ....................... 586
Checking and Maintaining Wiper Blades... 593Checking and Maintaining Tires
Checking Tires ................................. 597
Tire and Loading Information Label ...... 598Tire Labeling .................................... 598DOT Tire Quality Grading (U.S. Vehicles).. 600Wear Indicators................................ 602
Tire Service Life ................................ 602 Tire and Wheel Replacement ........... 603
Tire Rotation .................................... 604
Winter Tires ..................................... 605
Battery ............................................... 606
Remote Transmitter Care Replacing the Button Battery ........... 608
Climate Control System Maintenance .. 610Cleaning
Interior Care .................................... 611
Exterior Care.................................... 613
Accessories and Modifications .......... 616
18 CR-V-31TLA6100.book 555 ページ ２０１７年９月７日　木曜日　午後３時５６分

556
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.)
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake fluid level monthly.
2 Checking the Brake Fluid P. 584
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 597
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 586
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 593
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all maintenance services should
be performed in accordan ce with the intervals
indicated by the information display
*/driver
information interface*.
2 Maintenance Service Items P. 561, 566
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 662
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet.
U.S. models
* Not available on all models
18 CR-V-31TLA6100.book 556 ページ ２０１７年９月７日　木曜日　午後３時５６分

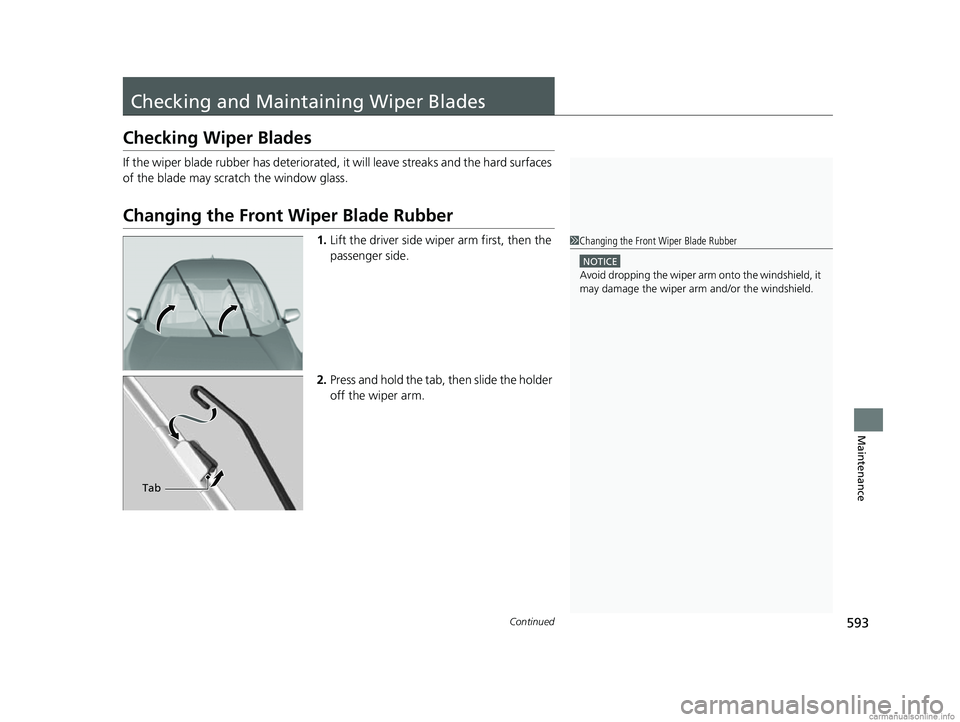

593Continued
Maintenance
Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Front Wiper Blade Rubber
1.Lift the driver side wiper arm first, then the
passenger side.
2. Press and hold the tab, then slide the holder
off the wiper arm.1 Changing the Front Wiper Blade Rubber
NOTICE
Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.
Tab
18 CR-V-31TLA6100.book 593 ページ ２０１７年９月７日　木曜日　午後３時５６分

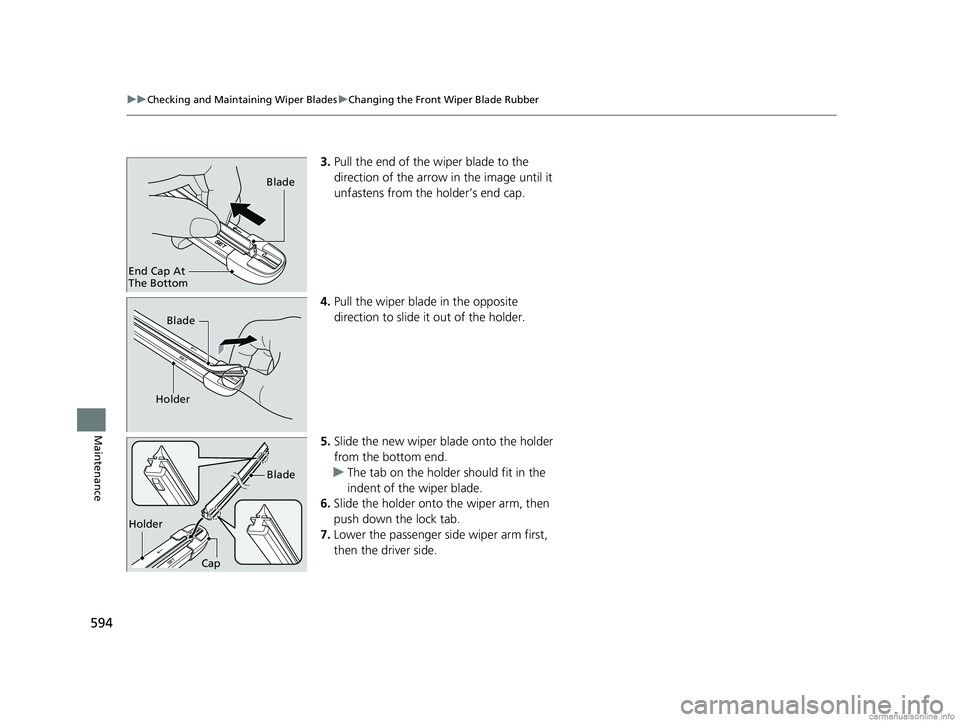

594
uuChecking and Maintaining Wiper Blades uChanging the Front Wiper Blade Rubber
Maintenance
3. Pull the end of the wiper blade to the
direction of the arrow in the image until it
unfastens from the holder’s end cap.
4. Pull the wiper blade in the opposite
direction to slide it out of the holder.
5. Slide the new wiper blade onto the holder
from the bottom end.
u The tab on the holder should fit in the
indent of the wiper blade.
6. Slide the holder onto the wiper arm, then
push down the lock tab.
7. Lower the passenger side wiper arm first,
then the driver side.
Blade
End Cap At
The Bottom
Blade
Holder
Holder Blade
Cap
18 CR-V-31TLA6100.book 594 ページ ２０１７年９月７日　木曜日　午後３時５６分

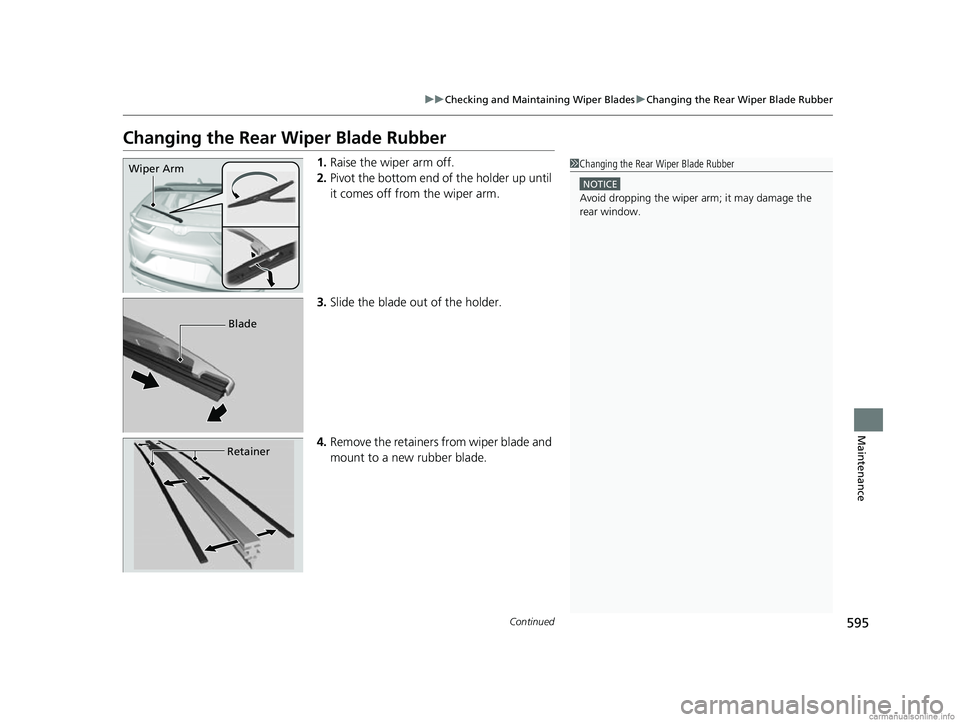

595
uuChecking and Maintaining Wiper Blades uChanging the Rear Wiper Blade Rubber
Continued
Maintenance
Changing the Rear Wiper Blade Rubber
1.Raise the wiper arm off.
2. Pivot the bottom end of the holder up until
it comes off from the wiper arm.
3. Slide the blade out of the holder.
4. Remove the retainers from wiper blade and
mount to a new rubber blade.1Changing the Rear Wiper Blade Rubber
NOTICE
Avoid dropping the wiper ar m; it may damage the
rear window.
Wiper Arm
Blade
Retainer
18 CR-V-31TLA6100.book 595 ページ ２０１７年９月７日　木曜日　午後３時５６分

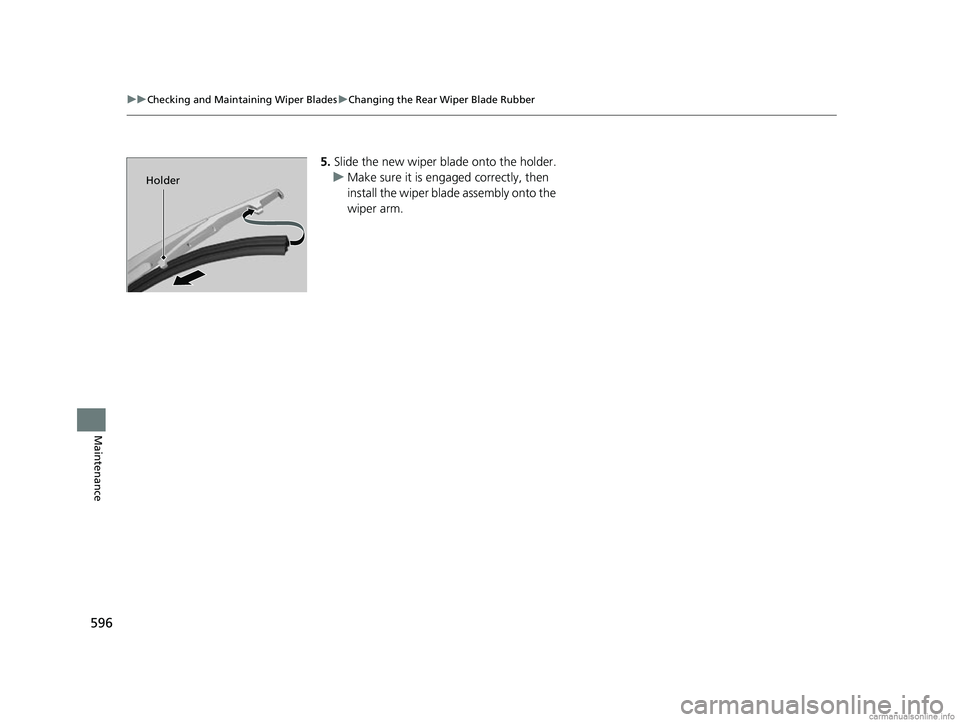

596
uuChecking and Maintaining Wiper Blades uChanging the Rear Wiper Blade Rubber
Maintenance
5. Slide the new wiper blade onto the holder.
u Make sure it is engaged correctly, then
install the wiper blade assembly onto the
wiper arm.
Holder
18 CR-V-31TLA6100.book 596 ページ ２０１７年９月７日　木曜日　午後３時５６分

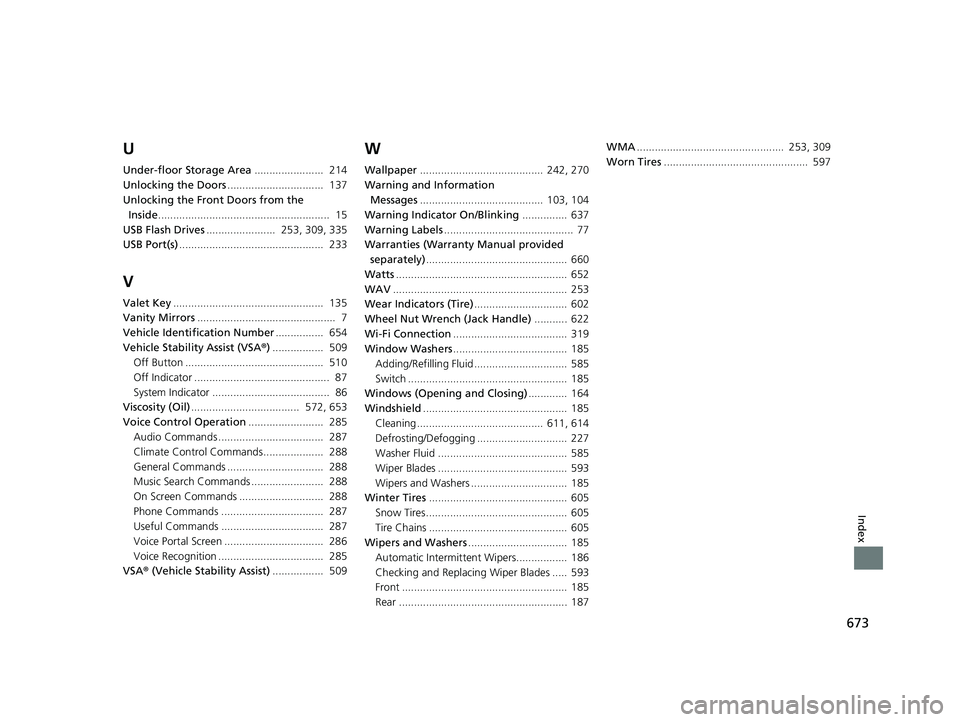

673
Index
U
Under-floor Storage Area....................... 214
Unlocking the Doors ................................ 137
Unlocking the Fron t Doors from the
Inside ......................................................... 15
USB Flash Drives ....................... 253, 309, 335
USB Port(s) ................................................ 233
V
Valet Key.................................................. 135
Vanity Mirrors .............................................. 7
Vehicle Identification Number ................ 654
Vehicle Stability Assist (VSA ®) ................. 509
Off Button .............................................. 510
Off Indicator ............................................. 87
System Indicator ....................................... 86
Viscosity (Oil) .................................... 572, 653
Voice Control Operation ......................... 285
Audio Commands ................................... 287
Climate Control Commands.................... 288
General Commands ................................ 288
Music Search Commands ........................ 288
On Screen Commands ............................ 288
Phone Commands .................................. 287
Useful Commands .................................. 287
Voice Portal Screen ................................. 286
Voice Recognition ................................... 285
VSA ® (Vehicle Stability Assist) ................. 509
W
Wallpaper......................................... 242, 270
Warning and Information Messages ......................................... 103, 104
Warning Indicator On/Blinking ............... 637
Warning Labels ........................................... 77
Warranties (Warranty Manual provided separately) ............................................... 660
Watts ......................................................... 652
WAV .......................................................... 253
Wear Indicators (Tire) ............................... 602
Wheel Nut Wrench (Jack Handle) ........... 622
Wi-Fi Connection ...................................... 319
Window Washers ...................................... 185
Adding/Refilling Fluid ............................... 585
Switch ..................................................... 185
Windows (Opening and Closing) ............. 164
Windshield ................................................ 185
Cleaning .......................................... 611, 614
Defrosting/Defogging .............................. 227
Washer Fluid ........................................... 585
Wiper Blades ........................................... 593
Wipers and Washers ................................ 185
Winter Tires .............................................. 605
Snow Tires ............................................... 605
Tire Chains .............................................. 605
Wipers and Washers ................................. 185
Automatic Intermittent Wipers................. 186
Checking and Replacing Wiper Blades ..... 593
Front ....................................................... 185
Rear ........................................................ 187 WMA
................................................. 253, 309
Worn Tires ................................................ 597
18 CR-V-31TLA6100.book 673 ページ ２０１７年９月７日　木曜日　午後３時５６分
