HONDA CR-V 2019 Owner's Manual (in English)

99
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage*
Collision
Mitigation
Braking
System
TM
(CMBSTM)
Indicator*
●Comes on when the CMBSTM
system shuts itself off.●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off with
a soft cloth.
2 Front Sensor Camera* P. 477●Have your vehicle checked by a dealer if
the indicator does no t go off even after
you cleaned the camera.
2 Collision Mitigation Braking
SystemTM (CMBSTM)* P. 530
●Stays on - The temperature inside the
camera is too high. Use the climate control
system to cool down the camera. The
system activates when the temperature
inside the camera cools down.
2 Front Sensor Camera* P. 477
●Indicator may come on temporarily when
passing through an en closed space, such
as tunnel.
- The area around the radar sensor is blocked
by dirt, mud, etc. Stop your vehicle in a safe
place, and wipe it off with a soft cloth.
●Have your vehicle checked by a dealer if
the indicator does no t go off even after
you clean the sensor cover.
2 Collision Mitigation Braking
SystemTM (CMBSTM)* P. 530
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 99 ページ ２０１８年８月２２日　水曜日　午後２時５９分

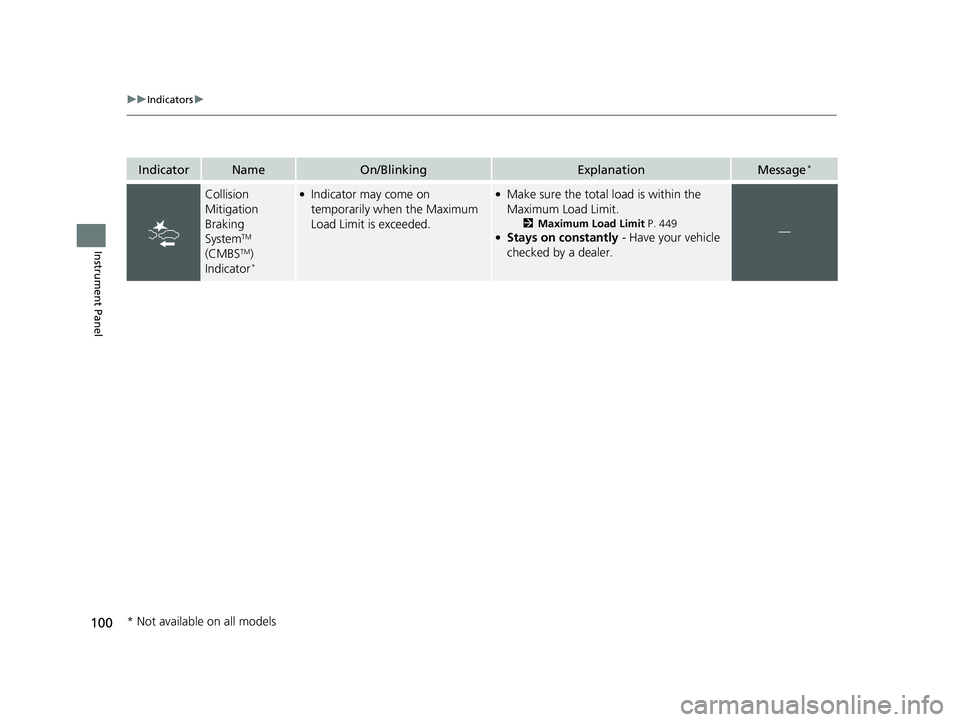

100
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage*
Collision
Mitigation
Braking
System
TM
(CMBSTM)
Indicator*
●Indicator may come on
temporarily when the Maximum
Load Limit is exceeded.●Make sure the total load is within the
Maximum Load Limit.
2 Maximum Load Limit P. 449●Stays on constantly - Have your vehicle
checked by a dealer.—
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 100 ページ ２０１８年８月２２日　水曜日　午後２時５９分

101
uuIndicators uInformation Display Warning and Information Messages*
Instrument Panel
Information Display Warning and Information Messages*
The following messages appear on ly on the information display.
MessageConditionExplanation
●Appears when there is a problem with the sensor on
the battery.●Stays on constantly - Have your vehicle checked by a
dealer.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 101 ページ ２０１８年８月２２日　水曜日　午後２時５９分

102
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Instrument Panel
Driver Information Interface Warning and Information Messages*
The following messages appear only on the driver information interface. Press the (display/information) button to see the mess age
again with the system message indicator on.
MessageConditionExplanation
●Appears if any door or the tailgate is not completely
closed.
●Appears if any door or the tailgate is opened while
driving. The beeper sounds.
●Goes off when all doors an d the tailgate are closed.
●Appears if there is a problem with the shutter grille,
and the radiator coolant temperature is too high.●Power output will be reduced, so you may not be able to
accelerate or maintain your current speed. Have your
vehicle checked by a dealer.
●Appears when the washer fluid gets low.●Refill the washer fluid.
2 Refilling Window Washer Fluid P. 583
●Appears when the scheduled maintenance is due
soon.
●Consequently, Maintenance Due Now and
Maintenance Past Due follow.
2Maintenance Minder Messages on the Driver
Information Interface P. 563
●Appears when the engine coolant temperature gets
abnormally high.
2 Overheating P. 631
Canadian models
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 102 ページ ２０１８年８月２２日　水曜日　午後２時５９分

103
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
MessageConditionExplanation
●Appears when you turn the ignition switch to ON
(w*1 without fastening the driver's seat belt.
●Fasten the seat belt properly before you start to drive.
●Appears when there is a problem with the sensor on
the battery.●Have your vehicle checked by a dealer.
2Checking the Battery P. 604
●Appears along with the ba ttery charging system
indicator when the battery is not charging.●Turn off the climate control system and rear defogger to
reduce electricity consumption.
2 If the Charging System Indicator Comes On P. 634
●Appears if the automatic br ake hold is automatically
canceled while it is in operation.●Immediately depress the brake pedal.
●Appears when the automatic brake hold system is
turned off.2 Automatic Brake Hold P. 526
●Appears when the automatic brake hold button is
pressed without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2Automatic Brake Hold P. 526
●Appears when the automatic brake hold button is
pressed without depressing the brake pedal while
the automatic brake hold is in operation.●Press the automatic brake hold button with the brake
pedal depressed.
2Automatic Brake Hold P. 526
●Appears when the parking brake is applied
automatically while it is in operation.2Automatic Brake Hold P. 526
2 Parking Brake P. 522
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 103 ページ ２０１８年８月２２日　水曜日　午後２時５９分

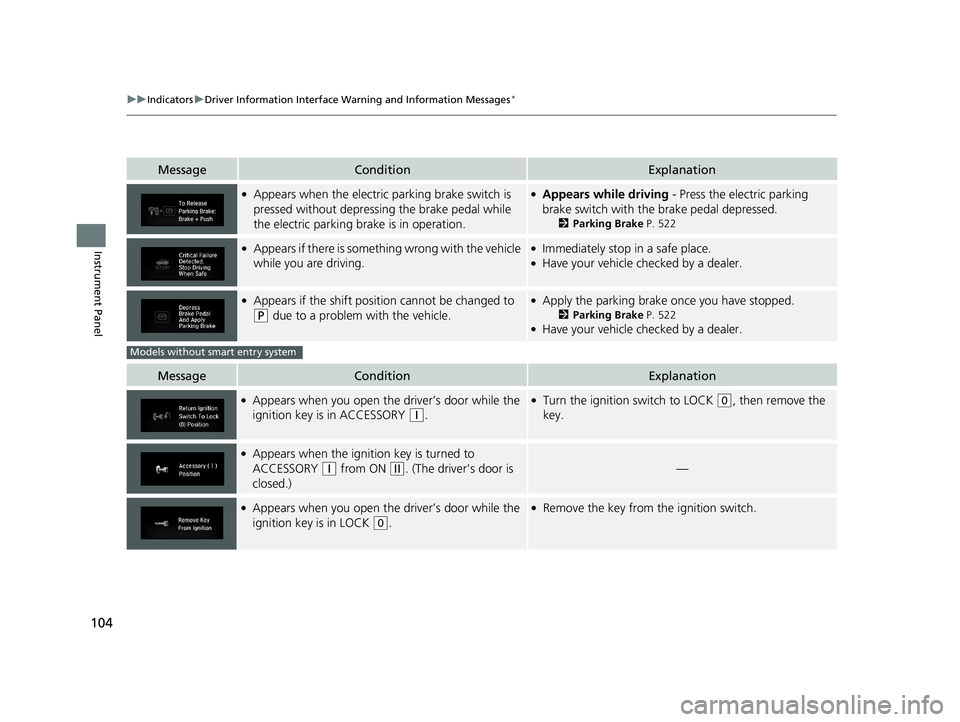

104
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears when the electric parking brake switch is
pressed without depressing the brake pedal while
the electric parking brake is in operation.●Appears while driving - Press the electric parking
brake switch with the brake pedal depressed.
2 Parking Brake P. 522
●Appears if there is something wrong with the vehicle
while you are driving.●Immediately stop in a safe place.●Have your vehicle checked by a dealer.
●Appears if the shift positi on cannot be changed to
(P due to a problem with the vehicle.
●Apply the parking brake once you have stopped.
2Parking Brake P. 522●Have your vehicle checked by a dealer.
MessageConditionExplanation
●Appears when you open the driver’s door while the
ignition key is in ACCESSORY
(q.
●Turn the ignition switch to LOCK (0, then remove the
key.
●Appears when the igniti on key is turned to
ACCESSORY
(q from ON (w. (The driver's door is
closed.)—
●Appears when you open the driver’s door while the
ignition key is in LOCK
(0.
●Remove the key from the ignition switch.
Models without smart entry system
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 104 ページ ２０１８年８月２２日　水曜日　午後２時５９分

105
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●Appears after you set the power mode to
ACCESSORY or ON.
2Starting the Engine P. 460
●Appears when the steering wheel is locked.●Move the steering wheel left an d right while pressing the
ENGINE START/STOP button.
Models with smart entry system
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 105 ページ ２０１８年８月２２日　水曜日　午後２時５９分

106
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears if you push the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P.
●Move the shift lever to (P. The power mode changes to
VEHICLE OFF.
●Move the shift lever to (P, then press the ENGINE
START/STOP button twice.
●Appears if you push the ENGINE START/STOP
button and the parking brake is not activated or the
shift lever is in
(N position.
●Move the shift lever to (P position and start the engine.
●Appears when the power mode is in ACCESSORY.
—
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Change the power mode to VEHICLE OFF.
2 ENGINE START/STOP Button* P. 170
●Appears when you close the door with the power
mode in ON without the smart entry remote inside
the vehicle.●Disappears when you bring the smart entry remote back
inside the vehicle and close the door.
2Smart Entry Remote Reminder P. 172
●Appears when the smart entry remote battery
becomes weak.●Replace the battery as soon as possible.
2Replacing the Button Battery P. 606
U.S. models
Canadian models
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 106 ページ ２０１８年８月２２日　水曜日　午後２時５９分

107
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●Appears if the smart entry remote battery is too
weak to start the engine or the key is not within
operating range to start the engine.
A beeper sounds six times.●Bring the smart entry remote in front of the ENGINE
START/STOP button to be touched with.
2If the Smart Entry Remote Battery is Weak P. 625
●Appears when the starter system has a problem.●As a temporary measure, press and hold the ENGINE
START/STOP button for up to 15 seconds while pressing
the brake pedal and manually start the engine.
Have your vehicle checked by a dealer.
●Appears as soon as a problem is detected in the
smart entry system or push button starting system.●Appears constantly - Have your vehicle checked by a
dealer.
●Appears if the vehicle is being driven in a manner
consistent with drowsy or inattentive driving.
2 Driver Attention Monitor P. 123
U.S.
Canada
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 107 ページ ２０１８年８月２２日　水曜日　午後２時５９分

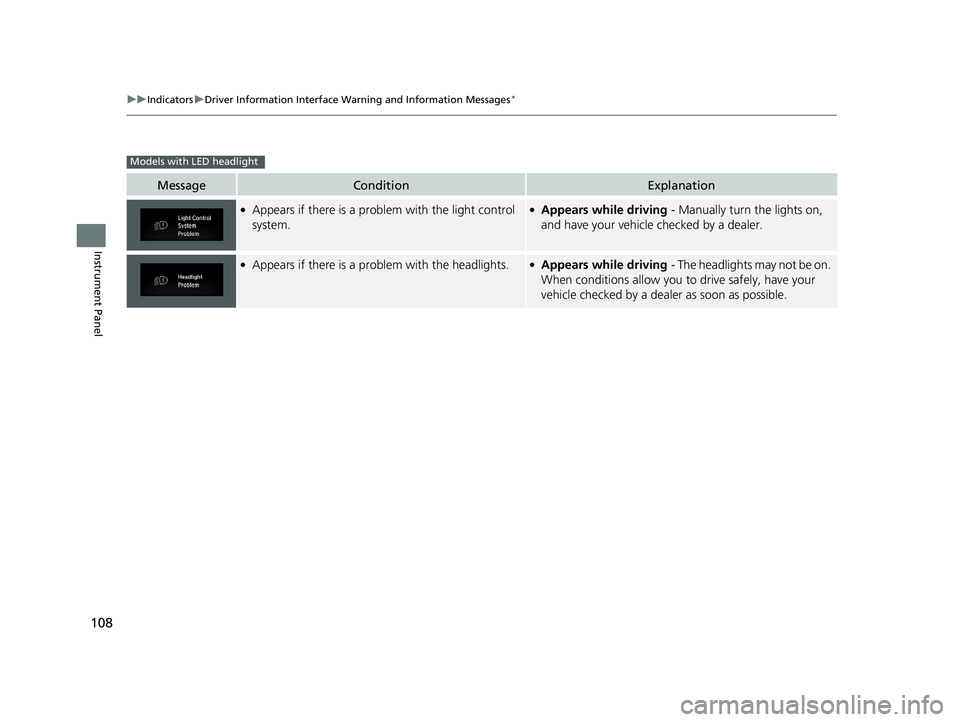

108
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the light control
system.●Appears while driving - Manually turn the lights on,
and have your vehicle checked by a dealer.
●Appears if there is a pr oblem with the headlights.●Appears while driving - The headlights may not be on.
When conditions allow you to drive safely, have your
vehicle checked by a deal er as soon as possible.
Models with LED headlight
