HONDA CR-V 2019 Owner's Manual (in English)

Continued139
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the doors
Press the lock button.
Once: u Some exterior lights flash, all the doors
and tailgate lock, and the security
system
* sets.
Twice (within five se conds after the first
push):
u The beeper sounds and verifies the
security system
* is set.
■Unlocking the doors
Press the unlock button.
Once: u Some exterior lights flash twice, and the
driver's door unlocks.
Twice:
u The remaining doors and tailgate unlock.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door or the tailgate within 30
seconds of unlocking the vehicle with the remote
transmitter, the doors and ta ilgate will automatically
relock.
You can change the relock timer setting. 2 Customized Features P. 349
The remote transmitter will not work when:
•The key is in the ignition switch.
•The power mode is not in VEHICLE OFF.
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock th e vehicle when a door is
open.
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 606
You can customize the door unlock mode setting. 2 Customized Features P. 349
Models with Display Audio
Ignition keys with remote transmitter
Models with smart entry remote
Models with Display Audio
LED
Unlock
Button
Lock
Button
Ignition keys with remote transmitter
Models with smart entry remote
LED
Unlock
Button
Lock
Button
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 139 ページ ２０１８年８月２２日　水曜日　午後２時５９分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
140
Controls
If the smart entry remote battery or the ve hicle battery is dead, use the key instead
of the smart entry remote. Fully insert the key and turn it.
■Locking/Unlocking the Doors Using a Key1Locking/Unlocking the Doors Using a Key
When you lock the driver's door with a key, all the
other doors and tail gate lock at the same time. When
unlocking, the driver's door unlocks first. Turn the
key a second time within a few seconds to unlock the
remaining doors a nd the tailgate.
You can customize the door unlock mode setting. 2 Customized Features P. 349
Models with Display Audio
Lock
Unlock
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 140 ページ ２０１８年８月２２日　水曜日　午後２時５９分

141
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the driver's door
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the passenger's doors
Push the lock tab forward and close the door.
■Lockout prevention system
The doors and tailgate cannot be locked when the key is in the ignition switch.
The doors and tailgate cannot be locked wh en the smart entry remote is inside the
vehicle.

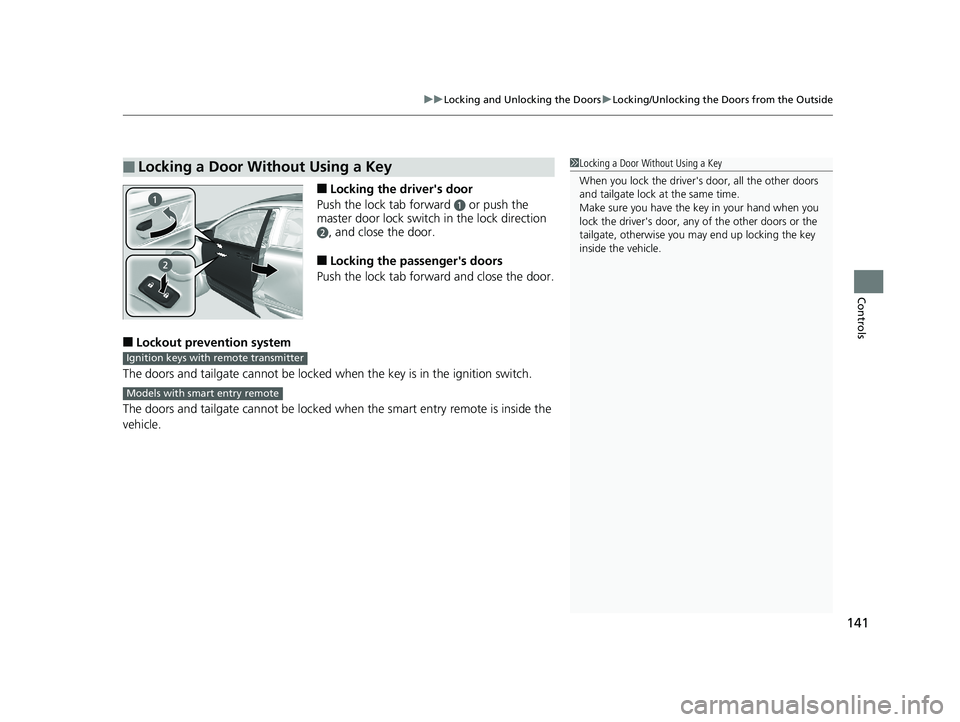

■Locking a Door Without Using a Key1 Locking a Door Without Using a Key
When you lock the driver's door, all the other doors
and tailgate lock at the same time.
Make sure you have the key in your hand when you
lock the driver's door, any of the other doors or the
tailgate, otherwis e you may end up locking the key
inside the vehicle.
Ignition keys with remote transmitter
Models with smart entry remote
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 141 ページ ２０１８年８月２２日　水曜日　午後２時５９分

142
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
Pull the front door inner handle. u
The door unlocks and opens in one motion.
Unlocking and opening the driver's door from
the inner handle unlocks all the other doors.
To avoid all the doors to be unlocked, use the
lock tab on the driver's door to unlock, then
lock again before opening the door. This
setting works for one time only. If you do not
want all the doors to be unlocked all the time,
customize the Auto Door Unlock setting to
Off using the master door lock switch or
Display Audio
*.
2 Auto Door Locking/Unlocking P. 144
■Using the Lock Tab1Using the Lock Tab
When you lock the door using the lock tab on the
driver's door, all of the other doors and tailgate lock
at the same time.
When you unlock the door using the lock tab on the
driver's door, only the driv er's door will unlock.
To Unlock
Lock TabTo Lock
■Unlocking Using the Front Door Inner Handle1Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to open the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided. 2 Childproof Door Locks P. 143
Inner
Handle
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 142 ページ ２０１８年８月２２日　水曜日　午後２時５９分

143
uuLocking and Unlocking the Doors uChildproof Door Locks
Controls

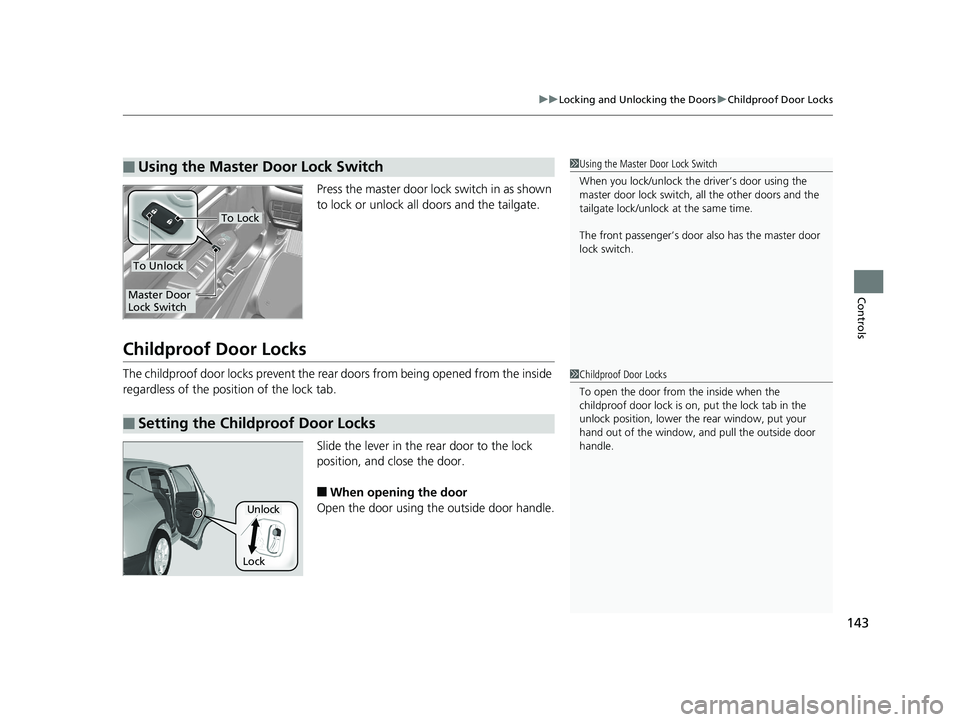

Press the master door lo ck switch in as shown
to lock or unlock all doors and the tailgate.
Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the door
Open the door using the outside door handle.
■Using the Master Door Lock Switch1 Using the Master Door Lock Switch
When you lock/unlock the driver’s door using the
master door lock switch, all the other doors and the
tailgate lock/unlock at the same time.
The front passenger’s door al so has the master door
lock switch.
To Unlock
Master Door
Lock Switch
To Lock
■Setting the Childproof Door Locks
1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Lock
Unlock
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 143 ページ ２０１８年８月２２日　水曜日　午後２時５９分

144
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls
Auto Door Locking/Unlocking
Your vehicle locks all doors and unlocks th e all doors automatically when a certain
condition is met.
■Drive lock mode
All doors and tailgate lock when the vehicle’s speed reaches about 10 mph (15 km/h).
■Driver’s door open mode
All doors unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking setting us ing the master door lock
switch. 2 Customizing the Auto Door Locking/
Unlocking Setting P. 145
You can turn off or cha nge to another auto door
locking/unlocking sett ing using the audio/
information screen. 2 Customized Features P. 349
Models with Display Audio
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 144 ページ ２０１８年８月２２日　水曜日　午後２時５９分

145
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting
Continued
Controls

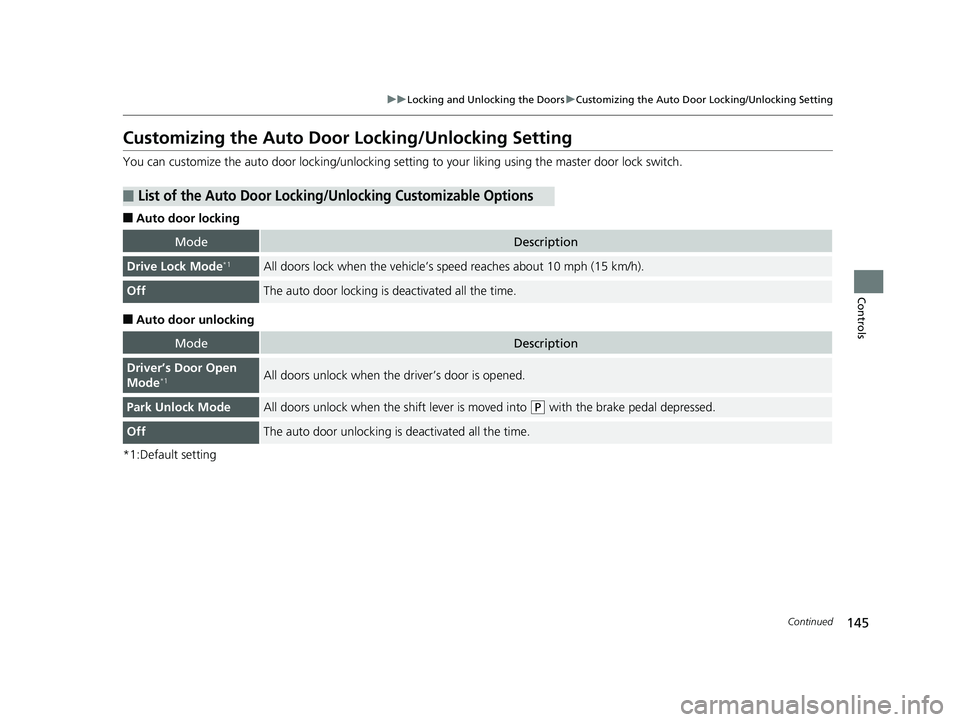

Customizing the Auto Door Locking/Unlocking Setting
You can customize the auto door locking/unlocking setting to your liking using the master door lock switch.
■Auto door locking
■Auto door unlocking
*1:Default setting
■List of the Auto Door Locking/ Unlocking Customizable Options
ModeDescription
Drive Lock Mode*1All doors lock when the vehicle’s speed reaches about 10 mph (15 km/h).
OffThe auto door locking is deactivated all the time.
ModeDescription
Driver’s Door Open
Mode*1All doors unlock when the driver’s door is opened.
Park Unlock ModeAll doors unlock when the shift lever is moved into (P with the brake pedal depressed.
OffThe auto door unlocking is deactivated all the time.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 145 ページ ２０１８年８月２２日　水曜日　午後２時５９分

146
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting
Controls
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2:Default setting
■Customizing Flow for Auto Door Locking Options
StepsDrive Lock Mode*2Off
1Apply the parking brake. Pu t the transmission into (P.
2Close the driver’s door.Open the driver’s door.
3Turn the ignition switch to ON (w*1.
4Take the transmission out of (P with the brake pedal depressed.—
5
Press and hold the right side of the master door lock switch on the driver’s door
for more than five seconds. Release th e switch after you hear a click twice.
Press and hold the right side of the master door
lock switch on the driver’s door for more than
five seconds. Release the switch after you hear
one click.
6Put the transmission into (P.—
7Turn the ignition switch to ACCESSORY (q*1 within 20 seconds.
u Customization is completed.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 146 ページ ２０１８年８月２２日　水曜日　午後２時５９分

147
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting
Controls
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2:Default setting
■Customizing Flow for Auto Door Unlocking Options
StepsDriver's Door Open Mode*2Park Unlock ModeOff
1Apply the parking brake. Pu t the transmission into (P.
2Close the driver’s door.Open the driver's door.
3Turn the ignition switch to ON (w*1.
4Take the transmission out of (P
with the brake pedal depressed.—
5
Press and hold the left side of the master door lock switch on the driver’s door for mo re than five seconds. Release the switch after
you hear a click twice.
6Put the transmission into (P.—
7Turn the ignition switch to ACCESSORY (q*1 within 20 seconds.
u Customization is completed.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 147 ページ ２０１８年８月２２日　水曜日　午後２時５９分

148
Controls

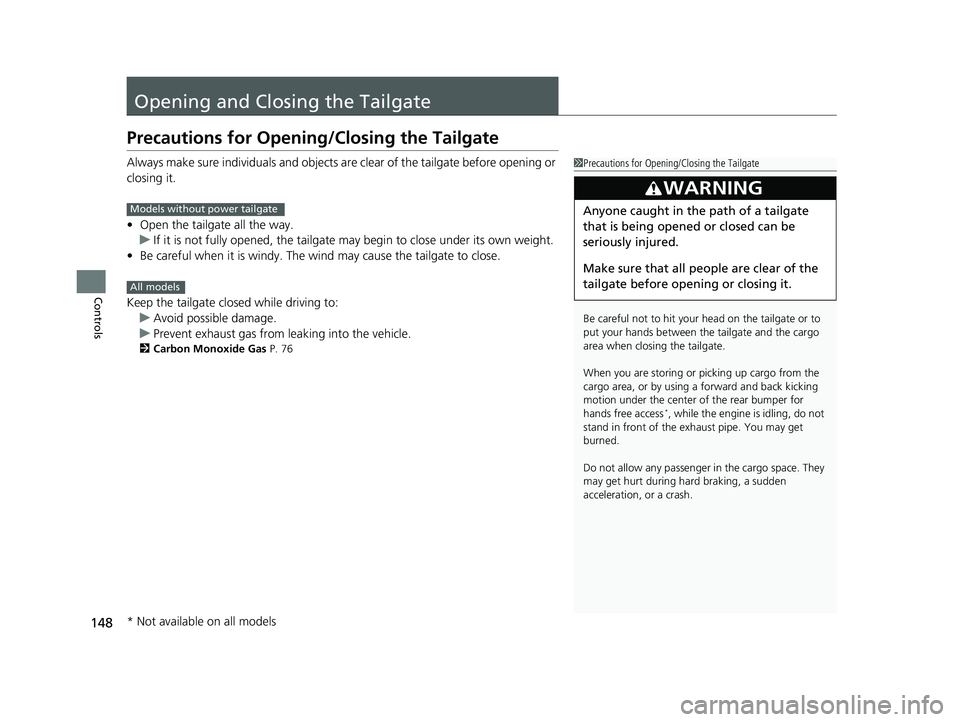

Opening and Closing the Tailgate
Precautions for Opening/Closing the Tailgate
Always make sure individuals and objects are clear of the tailgate before opening or
closing it.
•Open the tailgate all the way.
u If it is not fully opened, the tailgate may begin to close under its own weight.
• Be careful when it is windy. The wind may cause the tailgate to close.
Keep the tailgate closed while driving to: u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Carbon Monoxide Gas P. 76
1Precautions for Opening/Closing the Tailgate
Be careful not to hit your head on the tailgate or to
put your hands between th e tailgate and the cargo
area when closing the tailgate.
When you are storing or picking up cargo from the
cargo area, or by using a forward and back kicking
motion under the center of the rear bumper for
hands free access
*, while the engine is idling, do not
stand in front of the ex haust pipe. You may get
burned.
Do not allow any passenger in the cargo space. They
may get hurt during hard braking, a sudden
acceleration, or a crash.
3WARNING
Anyone caught in the path of a tailgate
that is being opened or closed can be
seriously injured.
Make sure that all people are clear of the
tailgate before opening or closing it.Models without power tailgate
All models
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 148 ページ ２０１８年８月２２日　水曜日　午後２時５９分
