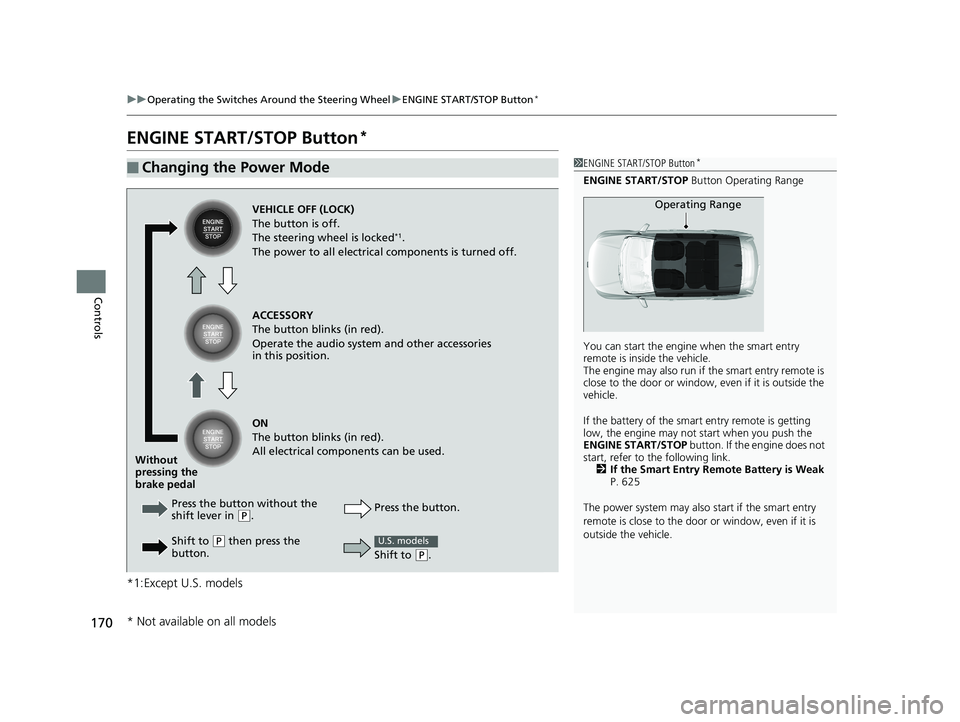

uuOperating the Switches Around the Steering Wheel uENGINE START/STOP Button*
Controls
ENGINE START/STOP Button*
*1:Except U.S. models
■Changing the Power Mode1ENGINE START/STOP Button*
ENGINE START/STOP Button Operating Range
You can start the engine when the smart entry
remote is inside the vehicle.
The engine may also run if the smart entry remote is
close to the door or window, ev en if it is outside the
vehicle.
If the battery of the smar t entry remote is getting
low, the engine may not start when you push the
ENGINE START/STOP button. If the engine does not
start, refer to the following link. 2 If the Smart Entry Remote Battery is Weak
P. 625
The power system may also start if the smart entry
remote is close to the door or window, even if it is
outside the vehicle.
Operating RangeVEHICLE OFF (LOCK)
The button is off.
The steering wheel is locked
*1.
The power to all electrical components is turned off.
ACCESSORY
The button blinks (in red).
Operate the audio system and other accessories
in this position.
ON
The button blinks (in red).
All electrical components can be used.
Press the button without the
shift lever in
( P.
Without
pressing the
brake pedal
Shift to
(P then press the
button. Press the button.
Shift to
(
P.
U.S. models
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 170 ページ ２０１８年８月２２日　水曜日　午後２時５９分

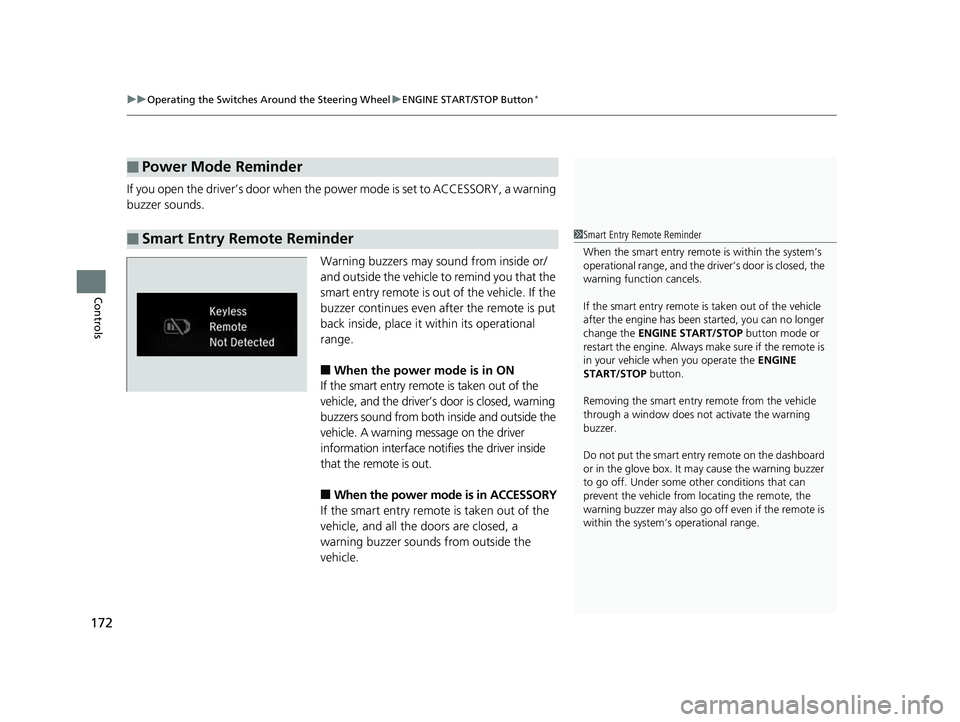

uuOperating the Switches Around the Steering Wheel uENGINE START/STOP Button*
172
Controls
If you open the driver’s doo r when the power mode is set to ACCESSORY, a warning
buzzer sounds.
Warning buzzers may sound from inside or/
and outside the vehicle to remind you that the
smart entry remote is out of the vehicle. If the
buzzer continues even after the remote is put
back inside, place it within its operational
range.
■When the power mode is in ON
If the smart entry remote is taken out of the
vehicle, and the driver’s door is closed, warning
buzzers sound from both inside and outside the
vehicle. A warning message on the driver
information interface notifies the driver inside
that the remote is out.
■When the power mode is in ACCESSORY
If the smart entry remote is taken out of the
vehicle, and all the doors are closed, a
warning buzzer sounds from outside the
vehicle.
■Power Mode Reminder
■Smart Entry Remote Reminder1 Smart Entry Remote Reminder
When the smart entry remote is within the system’s
operational range, and the driv er’s door is closed, the
warning function cancels.
If the smart entry remote is taken out of the vehicle
after the engine has been started, you can no longer
change the ENGINE START/STOP button mode or
restart the engine. Always make sure if the remote is
in your vehicle when you operate the ENGINE
START/STOP button.
Removing the smart entry remote from the vehicle
through a window does not activate the warning
buzzer.
Do not put the smart entr y remote on the dashboard
or in the glove box. It may cause the warning buzzer
to go off. Under some other conditions that can
prevent the vehicle from locating the remote, the
warning buzzer may al so go off even if the remote is
within the system’s operational range.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 172 ページ ２０１８年８月２２日　水曜日　午後２時５９分

188

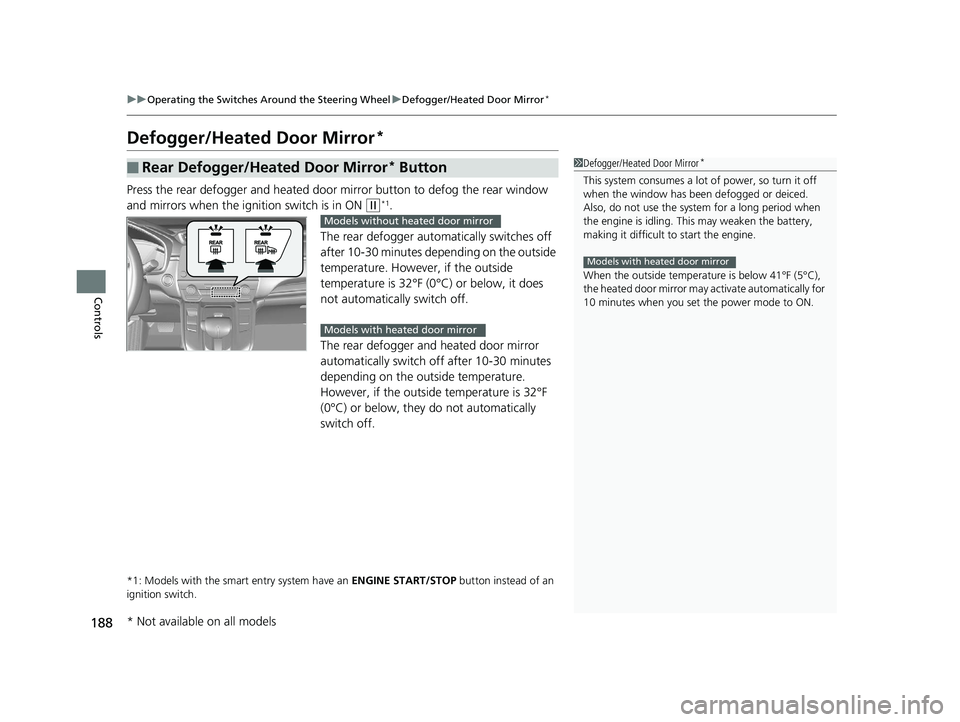

uuOperating the Switches Around the Steering Wheel uDefogger/Heated Door Mirror*
Controls
Defogger/Heated Door Mirror*
Press the rear defogger and heated door mirror button to defog the rear window
and mirrors when the ignition switch is in ON
(w*1.
The rear defogger automatically switches off
after 10-30 minutes depending on the outside
temperature. However, if the outside
temperature is 32°F (0°C) or below, it does
not automatically switch off.
The rear defogger and heated door mirror
automatically switch off after 10-30 minutes
depending on the outside temperature.
However, if the outside temperature is 32°F
(0°C) or below, they do not automatically
switch off.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Rear Defogger/Heated Door Mirror* Button1 Defogger/Heated Door Mirror*
This system consumes a lot of power, so turn it off
when the window has been defogged or deiced.
Also, do not use the system for a long period when
the engine is idling. This may weaken the battery,
making it difficult to start the engine.
When the outside temperature is below 41°F (5°C),
the heated door mirror may activate automatically for
10 minutes when you set the power mode to ON.
Models with heated door mirror
Models without heated door mirror
Models with heated door mirror
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 188 ページ ２０１８年８月２２日　水曜日　午後２時５９分

189
uuOperating the Switches Around the Steering Wheel uDefogger/Heated Door Mirror*
Controls
Press the heated windshield button to deice
the windshield when the power mode is in
ON.
■Heated Windshield Button
Canadian models
1Heated Windshield Button
This system consumes a lot of power, so turn it off
when the window has been defogged or deiced.
Also, do not use the system for a long period when
the engine is idling. This may weaken the battery,
making it difficult to start the engine.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 189 ページ ２０１８年８月２２日　水曜日　午後２時５９分

340

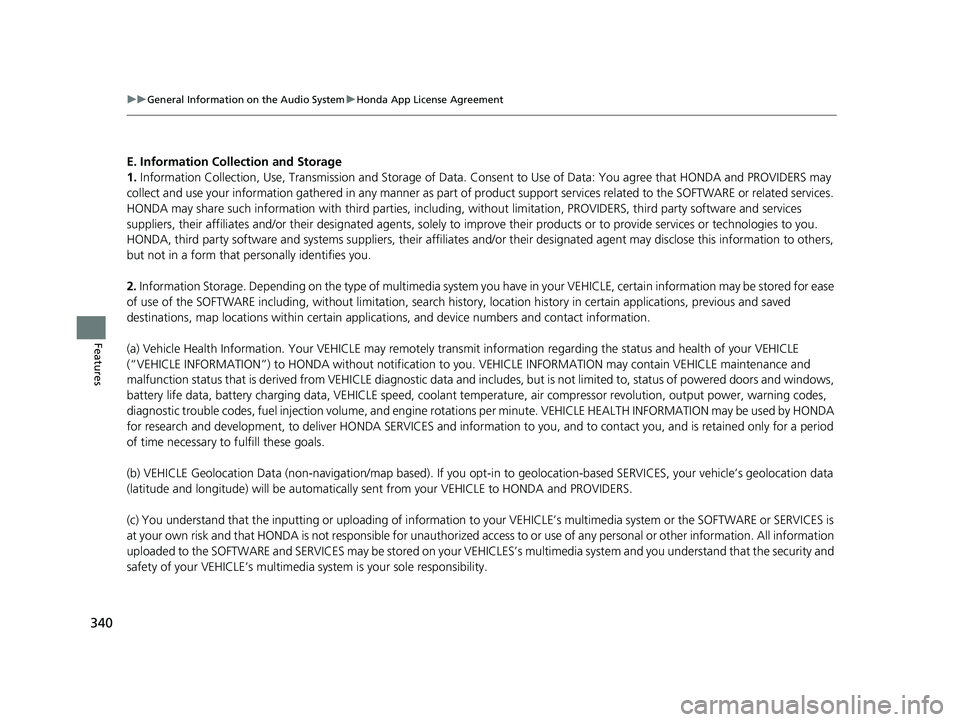

uuGeneral Information on the Audio System uHonda App License Agreement
Features
E. Information Collection and Storage
1. Information Collecti on, Use, Transmission and Storage of Data. Consent to Use of Data: You agree that HONDA and PROVIDERS may
collect and use your information gathered in any manner as part of product support services related to the SOFTWARE or related services.
HONDA may share such information with third parties, including, without limitation, PROV IDERS, third party software and service s
suppliers, their affiliates and/or their design ated agents, solely to improve their products or to provide services or technologies to you.
HONDA, third party software and systems supp liers, their affiliates and/or their designated agent may disclose this information to others,
but not in a form that pe rsonally identifies you.
2. Information Storage. Depending on the type of multimedia system you have in your VEHICLE, certain information may be stored fo r ease
of use of the SOFTWARE including, without limitation, search hi story, location history in certain applications, previous and saved
destinations, map locations within certain applications, and device numbers and contact information.
(a) Vehicle Health Information. Your VEHICL E may remotely transmit information regardin g the status and health of your VEHICLE
(“VEHICLE INFORMATION”) to HONDA without notification to you. VEHICLE INFORMATION may contain VEHICLE maintenance and
malfunction status that is derived from VEHICLE diagnostic data and includes, but is not limited to, status of powered doors and windows,
battery life data, battery charging data, VEHICLE speed, coolant temperat ure, air compressor revolution, output power, warning codes,
diagnostic trouble codes, fuel injection volume, and engine rotati ons per minute. VEHICLE HEALTH INFORMATION may be used by HONDA
for research and development, to deliver HO NDA SERVICES and information to you, and to contact you, and is retained only for a period
of time necessary to fulfill these goals.
(b) VEHICLE Geolocation Data (non-navigation/map based). If you opt-in to geolocation-based SERVICES, your vehicle’s geolocation data
(latitude and longitude) will be automatically sent from your VEHICLE to HONDA and PROVIDERS.
(c) You understand that the inputting or uploading of information to your VEHICLE’s multimedia system or the SOFTWARE or SERVICES is
at your own risk and that HONDA is not resp onsible for unauthorized access to or use of any personal or other information. All information
uploaded to the SOFTWARE and SERVICES may be stored on your VEHI CLES’s multimedia system and you understand that the security and
safety of your VEHICLE’s multimedia system is your sole responsibility.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 340 ページ ２０１８年８月２２日　水曜日　午後２時５９分

364

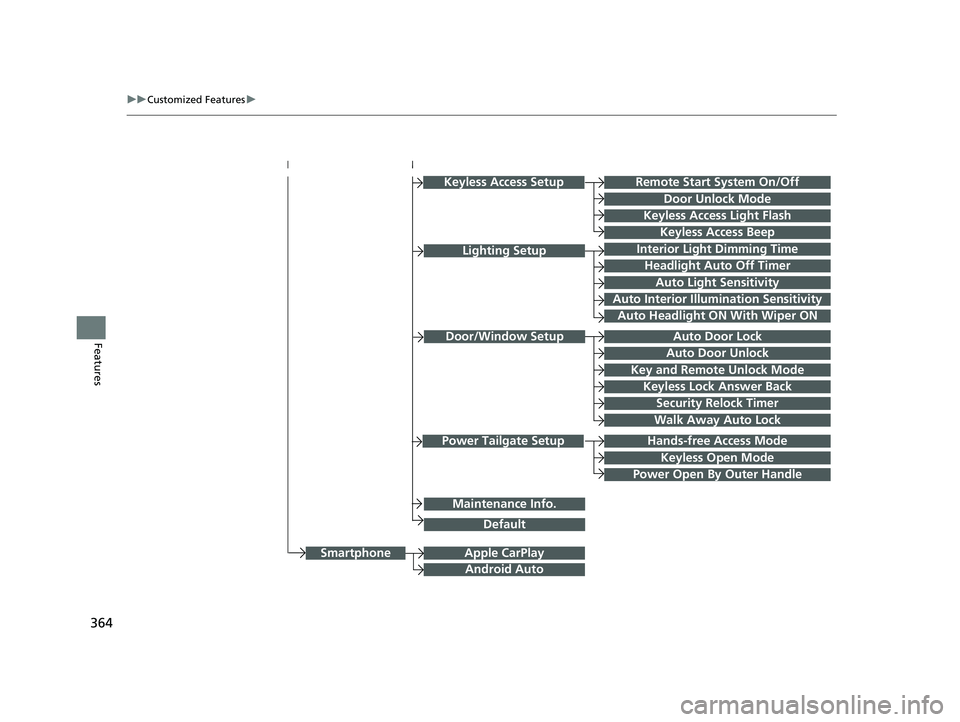

uuCustomized Features u
Features
Hands-free Access Mode
Keyless Open Mode
Lighting SetupInterior Light Dimming Time
Headlight Auto Off Timer
Auto Light Sensitivity
Auto Interior Illumination Sensitivity
Auto Door Lock
Key and Remote Unlock Mode
Door/Window Setup
Apple CarPlay
Maintenance Info.
Android Auto
Keyless Lock Answer Back
Security Relock Timer
Walk Away Auto Lock
Keyless Access Setup
Keyless Access Light Flash
Door Unlock Mode
Remote Start System On/Off
Keyless Access Beep
Smartphone
Power Tailgate Setup
Power Open By Outer Handle
Default
Auto Door Unlock
Auto Headlight ON With Wiper ON
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 364 ページ ２０１８年８月２２日　水曜日　午後２時５９分

642

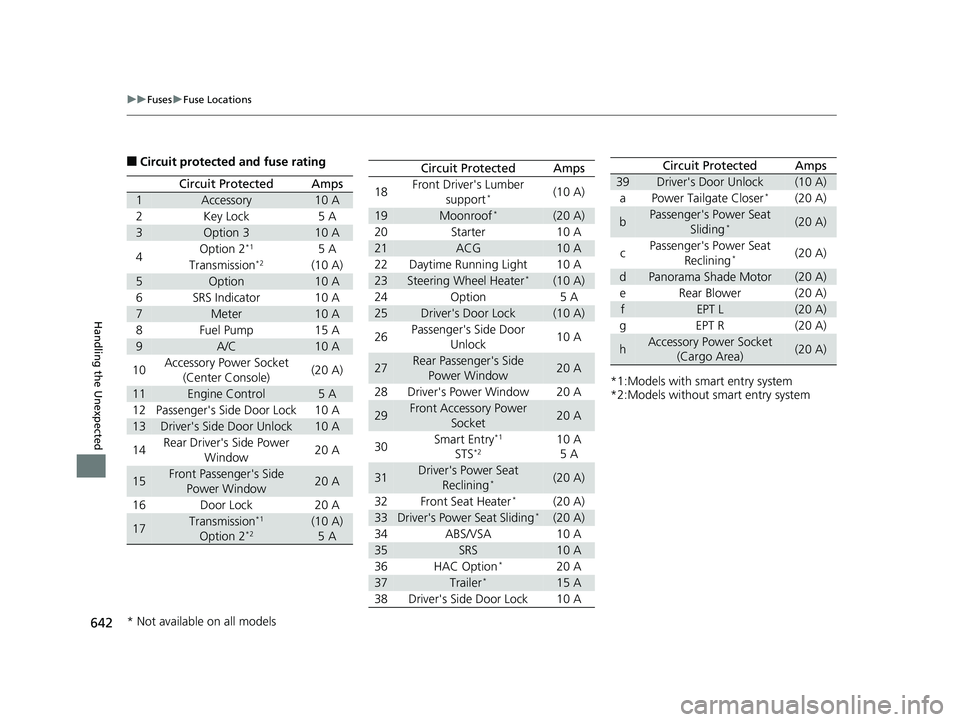

uuFuses uFuse Locations
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Accessory10 A
2Key Lock5 A
3Option 310 A
4Option 2*15 A
Transmission*2(10 A)
5Option10 A
6SRS Indicator10 A
7Meter10 A
8Fuel Pump15 A
9A/C10 A
10Accessory Power Socket
(Center Console)(20 A)
11Engine Control5 A
12Passenger's Side Door Lock10 A
13Driver's Side Door Unlock10 A
14Rear Driver's Side Power Window20 A
15Front Passenger's Side Power Window20 A
16Door Lock20 A
17Transmission*1
Option 2*2(10 A)
5 A
Circuit ProtectedAmps
18Front Driver's Lumber support*(10 A)
19Moonroof*(20 A)
20Starter10 A
21ACG10 A
22Daytime Running Light10 A
23Steering Wheel Heater* (10 A)
24Option5 A
25Driver's Door Lock(10 A)
26Passenger's Side Door Unlock10 A
27Rear Passenger's Side
Power Window20 A
28Driver's Power Window20 A
29Front Accessory Power Socket20 A
30Smart Entry*1
STS*210 A5 A
31Driver's Power Seat
Reclining*(20 A)
32Front Seat Heater*(20 A)
33Driver's Power Seat Sliding*(20 A)
34ABS/VSA10 A
35SRS10 A
36HAC Option*20 A
37Trailer*15 A
38Driver's Side Door Lock10 A
*1:Models with smart entry system
*2:Models without smart entry system
39Driver's Door Unlock(10 A)
aPower Tailgate Closer*(20 A)
bPassenger's Power Seat Sliding*(20 A)
cPassenger's Power Seat Reclining*(20 A)
dPanorama Shade Motor(20 A)
eRear Blower(20 A)
fEPT L(20 A)
gEPT R(20 A)
hAccessory Power Socket (Cargo Area)(20 A)
Circuit ProtectedAmps
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 642 ページ ２０１８年８月２２日　水曜日　午後２時５９分

Index
661
Index
Index
Numbers
4WD.......................................................... 515
A
ABS (Anti-lock Brake System) .................. 528
Accessories and Modifications ................ 614
Accessory Power Sockets ......................... 215
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ................................. 479
Adding the Coolant ................................. 578
Additives Coolant .......................................... 577, 579
Engine Oil ............................................... 570
Washer ................................................... 583
Additives, Engine Oil ............................... 570
Adjusting Armrest .................................................. 204
Front Seats.............................................. 195
Head Restraints ....................................... 201
Mirrors.................................................... 193
Rear Seats ............................................... 199
Steering Wheel ....................................... 192
Temperature ................................... 119, 126
Adjusting the Sound ........................ 242, 280
Agile Handling Assist ............................... 509
Air Conditioning System (Climate
Control System) ........................................ 224
Changing the Mode................................ 225
Defrosting the Windshield and
Windows .............................................. 225 Dust and Pollen Filter ............................... 608
Recirculation/Fresh Air Mode ................... 225
Sensor ..................................................... 228
Synchronized Mode ................................. 227
Using Automatic Climate Control ............ 224
Air Pressure ....................................... 596, 649
Airbags ........................................................ 49
Advanced Airbags ..................................... 55
Airbag Care ............................................... 62
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 52
Indicator .............................................. 60, 85
Passenger Airbag Off Indicator .................. 61
Sensors ...................................................... 49
Side Airbags .............................................. 56
Side Curtain Airbags .................................. 58
All-Wheel Drive (AWD) ............................ 515
AM/FM Radio .................................... 244, 287
Android Auto
TM........................................ 323
Anti-lock Brake System (ABS) .................. 528
Indicator .................................................... 85
Apple CarPlay
TM........................................ 320
Armrest ..................................................... 204
Audio Remote Controls ............................ 233
Audio System ............................ 230, 237, 258
Adjusting the Sound ........................ 242, 280
AM/FM Radio .................................. 244, 287
Android Auto
TM....................................... 323
Apple CarPlayTM....................................... 320
Audio/Information Screen ................ 238, 259
Changing the Home Screen Icon Layout .. 263 Changing the Screen Interface ................ 277
Closing Apps ........................................... 279
Customizing the Meter............................ 264
Display Setup .................................. 243, 281
Error Messages ........................................ 327
General Information ................................ 332
Home Screen........................................... 270
HondaLink
®............................................. 312
How to use Siri ® Eyes Free .............. 257, 319
iPod ................................................ 246, 298
Limitations for Manual Operation ............ 282
Menu Customize ..................................... 278
MP3/WMA/AAC .............................. 251, 307
Pandora ®......................................... 249, 305
Playing Bluetooth ® Audio ................ 254, 310
Playing SiriusXM ® Radio .......................... 291
Reactivating ............................................ 232
Recommended Devices............................ 333
Remote Controls ..................................... 233
Security Code .......................................... 232
Selecting an Audio Source ....................... 282
Song By Voice
TM (SBV) ............................. 301
Status Area ............................................. 276
Theft Protection ...................................... 232
USB Flash Drives ...................... 251, 307, 333
USB Port(s) .............................................. 231
Voice Control Operation.......................... 283
Wallpaper Setup.............................. 240, 268
Wi-Fi Connection .................................... 317
Audio/Information Screen ............... 238, 259
Authorized Manuals ................................ 658
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 661 ページ ２０１８年８月２２日　水曜日　午後２時５９分

663
Index
Shift Lever Does Not Move ...................... 630
Shifting ................................................... 467
Controls .................................................... 129
Coolant (Engine) .............................. 577, 579
Adding the Coolant ................................ 578
Adding to the Radiator ........................... 580
Adding to the Reserve Tank .................... 579
Overheating ............................................ 631
Creeping (Continuously Variable Transmission) .......................................... 466
Cross Traffic Monitor ............................... 542
Cruise Control .................................. 470, 473
Indicator ................................................... 92
Cup Holders .............................................. 213
Customer Service Information ................ 659
Customized Features ............................... 349
Customizing the Auto Door Locking/
Unlocking Setting .................................. 145
D
Daytime Running Lights .......................... 182
Dead Battery ............................................ 627
Defaulting All the Settings ...................... 381
Defrosting the Windshield and Windows ................................................. 225
Detachable Anchor .................................... 46
Devices that Emit Radio Waves ............... 652
Dimming Headlights .............................................. 175
Rearview Mirror ...................................... 193 Dipstick (Engine Oil)
................................. 571
Directional Signals (Turn Signals) ............ 174
Display Setup .................................... 243, 281
Display/Information Button ..................... 120
Door Mirrors ............................................. 194
Doors ......................................................... 132
Auto Door Locking .................................. 144
Auto Door Unlocking ............................... 144
Door Open Indicator ............................ 38, 87
Keys ........................................................ 132
Locking/Unlocking the Doors from the
Inside..................................................... 142
Locking/Unlocking the Doors from the Outside.................................................. 135
Lockout Prevention System ...................... 141
DOT Tire Quality Grading ........................ 598
Driver Information Interface ................... 120
Driver’s Seat Lumbar Support .................. 195
Driving ....................................................... 445
Braking .................................................... 522
Continuously Variable Transmission ......... 466
Cruise Control ................................. 470, 473
Off-Highway Driving Guidelines ............... 456
Shifting Gear ........................................... 467
Starting the Engine .......................... 458, 460
Driving Position Memory System ............. 190
Dust and Pollen Filter ............................... 608
E
Eco Assist® System ........................................ 9
ECON Button ............................................ 469
Elapsed Time ............................................. 122
Electric Power Steering (EPS) System
Indicator............................................ 87, 638
Electronic Stability Control (ESC) ............. 507
Emergency ................................................ 644
Emissions Testing (Readiness Codes) ....... 654
Engine Coolant ........................................... 577, 579
Jump Starting .......................................... 627
Number................................................... 650
Oil ........................................................... 570
Starting ........................................... 458, 460
Switch Buzzer.................................. 169, 172
Engine Coolant ................................. 577, 579
Adding the Coolant................................. 578
Adding to the Radiator ............................ 580
Adding to the Reserve Tank..................... 579
Overheating ............................................ 631
Temperature Gauge ................................ 116
Engine Oil ................................................. 570
Adding .................................................... 573
Checking................................................. 571
Displaying Oil Life ............................ 557, 562
Low Oil Pressure Indicator ................. 83, 634
Recommended Engine Oil ....................... 570
ENGINE START/STOP Button .................... 170
EPS (Electric Power Steering) System ...... 638
Exhaust Gas Hazard (Carbon Monoxide) .. 76
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 663 ページ ２０１８年８月２２日　水曜日　午後２時５９分

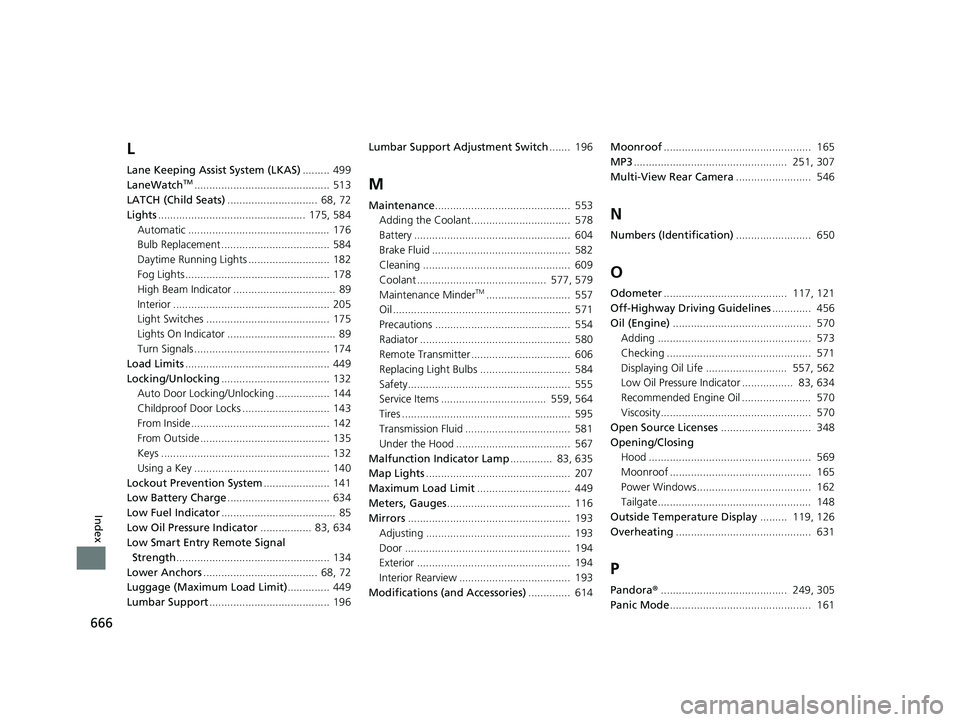

666
Index
L
Lane Keeping Assist System (LKAS)......... 499
LaneWatchTM............................................. 513
LATCH (Child Seats) .............................. 68, 72
Lights ................................................. 175, 584
Automatic ............................................... 176
Bulb Replacement .................................... 584
Daytime Running Lights ........................... 182
Fog Lights ................................................ 178
High Beam Indicator .................................. 89
Interior .................................................... 205
Light Switches ......................................... 175
Lights On Indicator .................................... 89
Turn Signals ............................................. 174
Load Limits ................................................ 449
Locking/Unlocking .................................... 132
Auto Door Locking/Unlocking .................. 144
Childproof Door Locks ............................. 143
From Inside .............................................. 142
From Outside ........................................... 135
Keys ........................................................ 132
Using a Key ............................................. 140
Lockout Prevention System ...................... 141
Low Battery Charge .................................. 634
Low Fuel Indicator ...................................... 85
Low Oil Pressure Indicator ................. 83, 634
Low Smart Entry Remote Signal Strength ................................................... 134
Lower Anchors ...................................... 68, 72
Luggage (Maximum Load Limit) .............. 449
Lumbar Support ........................................ 196 Lumbar Support Adjustment Switch
....... 196M
Maintenance............................................. 553
Adding the Coolant................................. 578
Battery .................................................... 604
Brake Fluid .............................................. 582
Cleaning ................................................. 609
Coolant ........................................... 577, 579
Maintenance Minder
TM............................ 557
Oil ........................................................... 571
Precautions ............................................. 554
Radiator .................................................. 580
Remote Transmitter ................................. 606
Replacing Light Bulbs .............................. 584
Safety...................................................... 555
Service Items ................................... 559, 564
Tires ........................................................ 595
Transmission Fluid ................................... 581
Under the Hood ...................................... 567
Malfunction Indicator Lamp .............. 83, 635
Map Lights ................................................ 207
Maximum Load Limit ............................... 449
Meters, Gauges ......................................... 116
Mirrors ...................................................... 193
Adjusting ................................................ 193
Door ....................................................... 194
Exterior ................................................... 194
Interior Rearview ..................................... 193
Modifications (and Accessories) .............. 614Moonroof
................................................. 165
MP3 ................................................... 251, 307
Multi-View Rear Camera ......................... 546
N
Numbers (Identification)......................... 650
O
Odometer......................................... 117, 121
Off-Highway Driving Guidelines ............. 456
Oil (Engine) .............................................. 570
Adding ................................................... 573
Checking ................................................ 571
Displaying Oil Life ........................... 557, 562
Low Oil Pressure Indicator ................. 83, 634
Recommended Engine Oil ....................... 570
Viscosity.................................................. 570
Open Source Licenses .............................. 348
Opening/Closing Hood ...................................................... 569
Moonroof ............................................... 165
Power Windows...................................... 162
Tailgate................................................... 148
Outside Temperature Display ......... 119, 126
Overheating ............................................. 631
P
Pandora®.......................................... 249, 305
Panic Mode ............................................... 161
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 666 ページ ２０１８年８月２２日　水曜日　午後２時５９分
