Power window HONDA CR-V 2019 Owner's Manual (in English)

Visual Index
6
Quick Reference Guide
❙Rearview Mirror (P193)
❙Driver's Front Airbag
(P52)
❙Hood Release Handle (P569)
❙Driver’s Pocket
❙Fuel Fill Door Release Handle (P549)
❙Memory Buttons* (P 191)
❙Interior Fuse Box (P641)
❙Passenger's Front Airbag
(P52)
❙SET Button* (P 191)
❙Power Window Switches (P162)
❙Door Mirror Controls (P194)
❙Master Door Lock Switch (P 143)
❙Electric Parking Brake
Switch
(P522)
❙Automatic Brake Hold
Button
(P526)
❙Glove Box (P209)
❙Accessory Power Socket
(P215)
❙ECON Button (P469)
❙Shift Lever (P467)
❙Accessory Power Socket
(P215)
❙USB Port(s) (P231)
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 6 ページ ２０１８年８月２２日　水曜日　午後２時５９分

16
Quick Reference Guide
Power Door Mirrors
(P194)
●With the ignition switch in ON
(w*1, move
the selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
*1: Models with the smart entry system have an
ENGINE START/STOP button instead of an ignition
switch.
Selector Switch
Adjustment Switch
Power Windows (P162)
● With the ignition switch in ON
(w*1, open
and close the power windows.
● If the power window lock button is in the
off position, each passenger's window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator on), each
passenger's window switch is disabled.
*1: Models with the smart entry system have an
ENGINE START/STOP button instead of an ignition
switch.
Power Window Lock Button
Window Switch Indicator
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 16 ページ ２０１８年８月２２日　水曜日　午後２時５９分

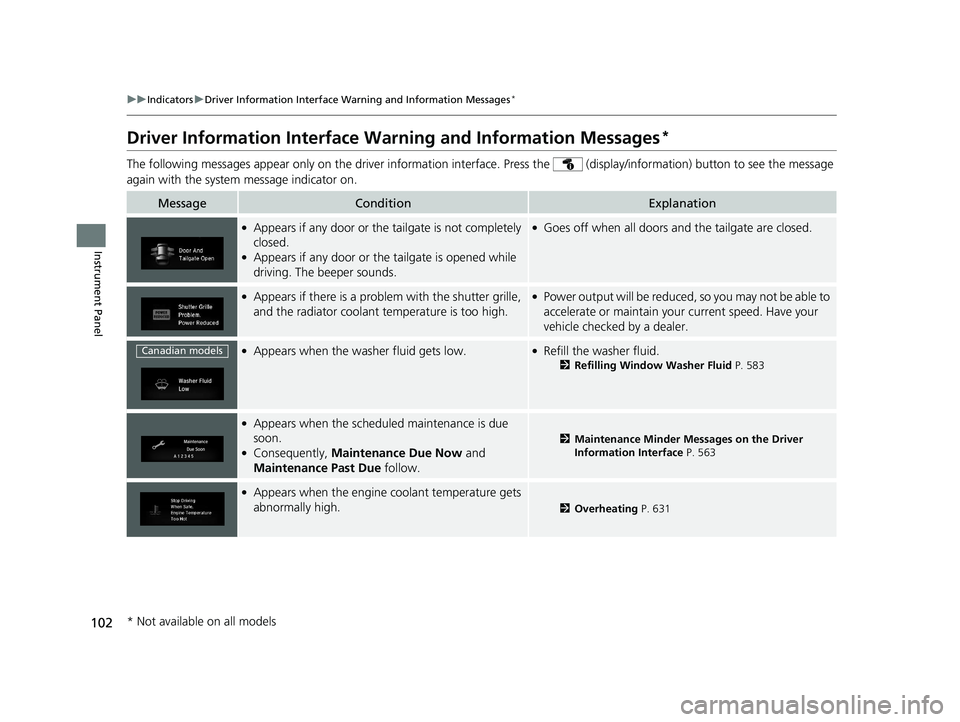

102
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Instrument Panel
Driver Information Interface Warning and Information Messages*
The following messages appear only on the driver information interface. Press the (display/information) button to see the mess age
again with the system message indicator on.
MessageConditionExplanation
●Appears if any door or the tailgate is not completely
closed.
●Appears if any door or the tailgate is opened while
driving. The beeper sounds.
●Goes off when all doors an d the tailgate are closed.
●Appears if there is a problem with the shutter grille,
and the radiator coolant temperature is too high.●Power output will be reduced, so you may not be able to
accelerate or maintain your current speed. Have your
vehicle checked by a dealer.
●Appears when the washer fluid gets low.●Refill the washer fluid.
2 Refilling Window Washer Fluid P. 583
●Appears when the scheduled maintenance is due
soon.
●Consequently, Maintenance Due Now and
Maintenance Past Due follow.
2Maintenance Minder Messages on the Driver
Information Interface P. 563
●Appears when the engine coolant temperature gets
abnormally high.
2 Overheating P. 631
Canadian models
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 102 ページ ２０１８年８月２２日　水曜日　午後２時５９分

129
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 130
Locking and Unlocking the Doors
Key Types and Functions .................. 132
Low Smart Entry Remote Signal Strength*...134Locking/Unlocking the Doors from the Outside .......................................... 135
Locking/Unlocking the Doors from the Inside ... 142Childproof Door Locks ..................... 143
Auto Door Locking/Unlocking .......... 144
Customizing the Auto Door Locking/Unlocking Setting ........................... 145
Opening and Closing the Tailgate ... 148
Security System Immobilizer System .......................... 159 Security System Alarm
*.................... 159Opening and Closing the Windows
.... 162Moonroof*.............................................. 165Panoramic Roof*1.................................... 166Operating the Switches Around the Steering WheelIgnition Switch*............................... 169
ENGINE START/STOP Button*........... 170
Ignition Switch and Power Mode
Comparison ................................... 173
Turn Signals ..................................... 174
Light Switches.................................. 175
Fog Lights
*...................................... 178
Auto High-Beam System*................ 179
Daytime Running Lights ................... 182 Wipers and Washers ........................ 183
Brightness Control ........................... 186
Defogger/Heated Door Mirror
*........ 188
Driving Position Memory System*.... 190
Adjusting the Steering Wheel .......... 192
Adjusting the Mirrors ....................... 193
Adjusting the Seats .......................... 195
Interior Lights/Interior Convenience Items.. 205Climate Control System
Using Automatic Climate Control .... 224
Synchronization Mode
*................... 227Automatic Climate Control Sensors ...... 228
(*1: Canadian models only, if equipped)
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 129 ページ ２０１８年８月２２日　水曜日　午後２時５９分

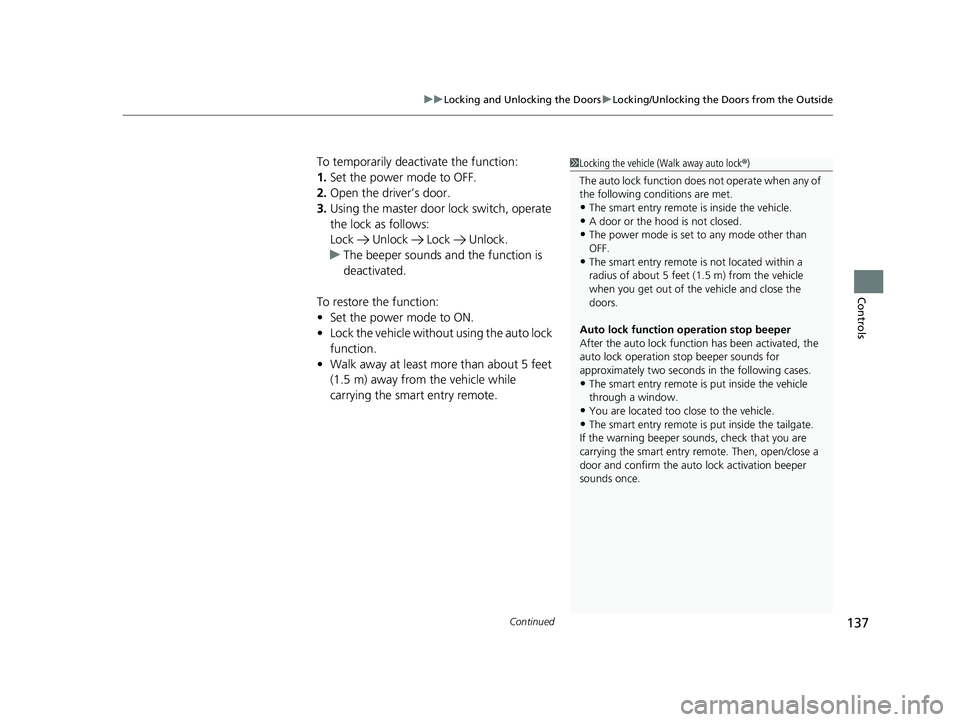

Continued137
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
To temporarily deactivate the function:
1. Set the power mode to OFF.
2. Open the driv er’s door.
3. Using the master door lock switch, operate
the lock as follows:
Lock Unlock Lock Unlock.
u The beeper sounds and the function is
deactivated.
To restore the function:
• Set the power mode to ON.
• Lock the vehicle withou t using the auto lock
function.
• Walk away at least more than about 5 feet
(1.5 m) away from the vehicle while
carrying the smart entry remote.1Locking the vehicle (Walk away auto lock® )
The auto lock function does not operate when any of
the following conditions are met.
•The smart entry remote is inside the vehicle.
•A door or the hood is not closed.•The power mode is set to any mode other than
OFF.
•The smart entry remote is not located within a
radius of about 5 feet (1 .5 m) from the vehicle
when you get out of the vehicle and close the
doors.
Auto lock function operation stop beeper
After the auto lock function has been activated, the
auto lock operation stop beeper sounds for
approximately two seconds in the following cases.
•The smart entry remote is put inside the vehicle
through a window.
•You are located too close to the vehicle.
•The smart entry remote is put inside the tailgate.
If the warning beeper sounds, check that you are
carrying the smart entry remote. Then, open/close a
door and confirm the auto lock activation beeper
sounds once.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 137 ページ ２０１８年８月２２日　水曜日　午後２時５９分

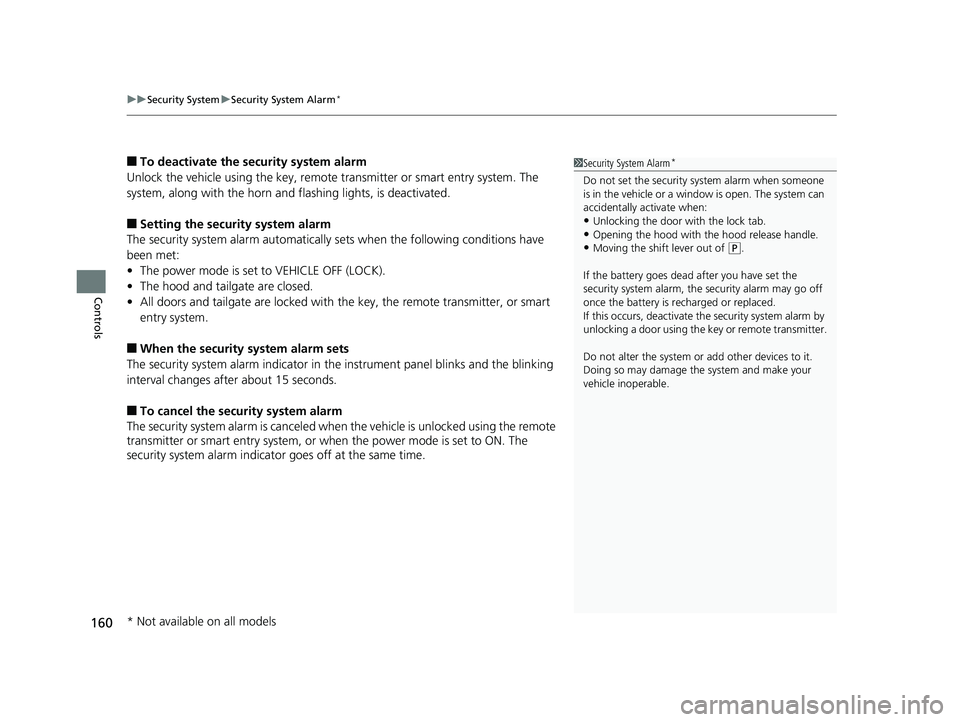

uuSecurity System uSecurity System Alarm*
160
Controls
■To deactivate the security system alarm
Unlock the vehicle using the key, remote transmitter or smart entry system. The
system, along with the horn and flashing lights, is deactivated.
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The power mode is set to VEHICLE OFF (LOCK).
• The hood and tailgate are closed.
• All doors and tailgate are locked with th e key, the remote transmitter, or smart
entry system.
■When the security system alarm sets
The security system alarm indicator in the instrument panel blinks and the blinking
interval changes after about 15 seconds.
■To cancel the security system alarm
The security system alarm is canceled when the vehicle is unlocked using the remote
transmitter or smart entry system, or when the power mode is set to ON. The
security system alarm indicator goes off at the same time.
1 Security System Alarm*
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.•Opening the hood with the hood release handle.
•Moving the shift lever out of ( P.
If the battery goes dead after you have set the
security system alarm, the security alarm may go off
once the battery is re charged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the ke y or remote transmitter.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 160 ページ ２０１８年８月２２日　水曜日　午後２時５９分

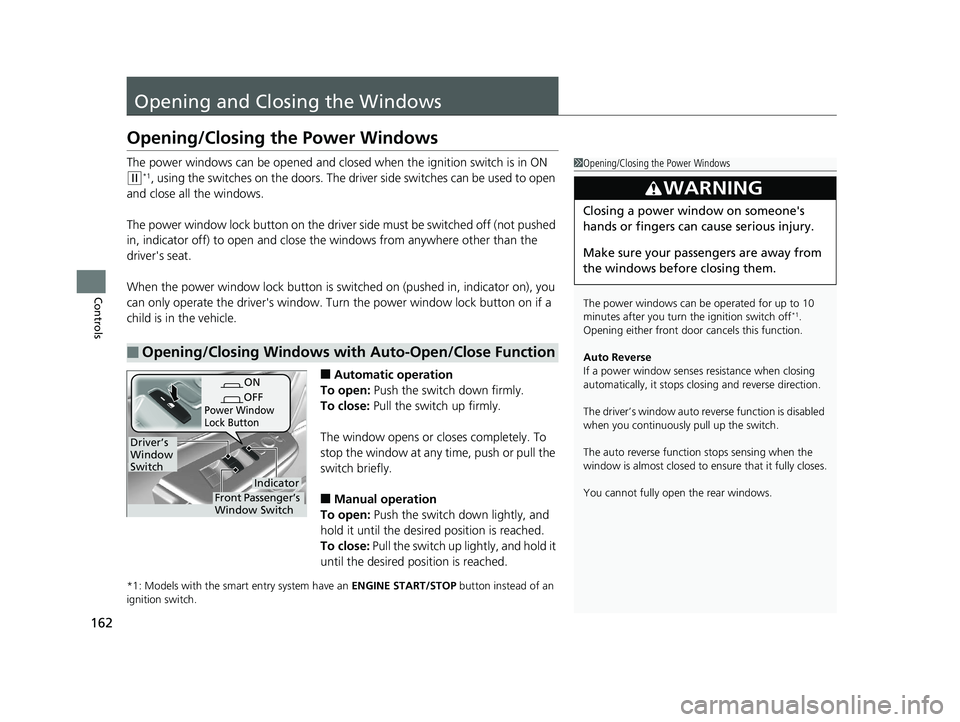

162
Controls
Opening and Closing the Windows
Opening/Closing the Power Windows
The power windows can be opened and closed when the ignition switch is in ON
(w*1, using the switches on the doors. The driver side switches can be used to open
and close all the windows.
The power window lock button on the driver side must be switched off (not pushed
in, indicator off) to open and close th e windows from anywhere other than the
driver's seat.
When the power window lock button is switched on (pushed in, indicator on), you
can only operate the driver's window. Turn the power window lock button on if a
child is in the vehicle.
■Automatic operation
To open: Push the switch down firmly.
To close: Pull the switch up firmly.
The window opens or cl oses completely. To
stop the window at any time, push or pull the
switch briefly.
■Manual operation
To open: Push the switch down lightly, and
hold it until the desired position is reached.
To close: Pull the switch up lightly, and hold it
until the desired position is reached.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Opening/Closing Windows with Auto-Open/Close Function
1 Opening/Closing the Power Windows
The power windows can be operated for up to 10
minutes after you turn the ignition switch off
*1.
Opening either front door cancels this function.
Auto Reverse
If a power window senses resistance when closing
automatically, it stops clos ing and reverse direction.
The driver’s window auto re verse function is disabled
when you continuously pull up the switch.
The auto reverse function stops sensing when the
window is almost closed to en sure that it fully closes.
You cannot fully ope n the rear windows.
3WARNING
Closing a power window on someone's
hands or fingers can cause serious injury.
Make sure your passengers are away from
the windows before closing them.
ON
OFF
Power Window
Lock Button
Indicator
Front Passenger’s
Window Switch
Driver’s
Window
Switch
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 162 ページ ２０１８年８月２２日　水曜日　午後２時５９分

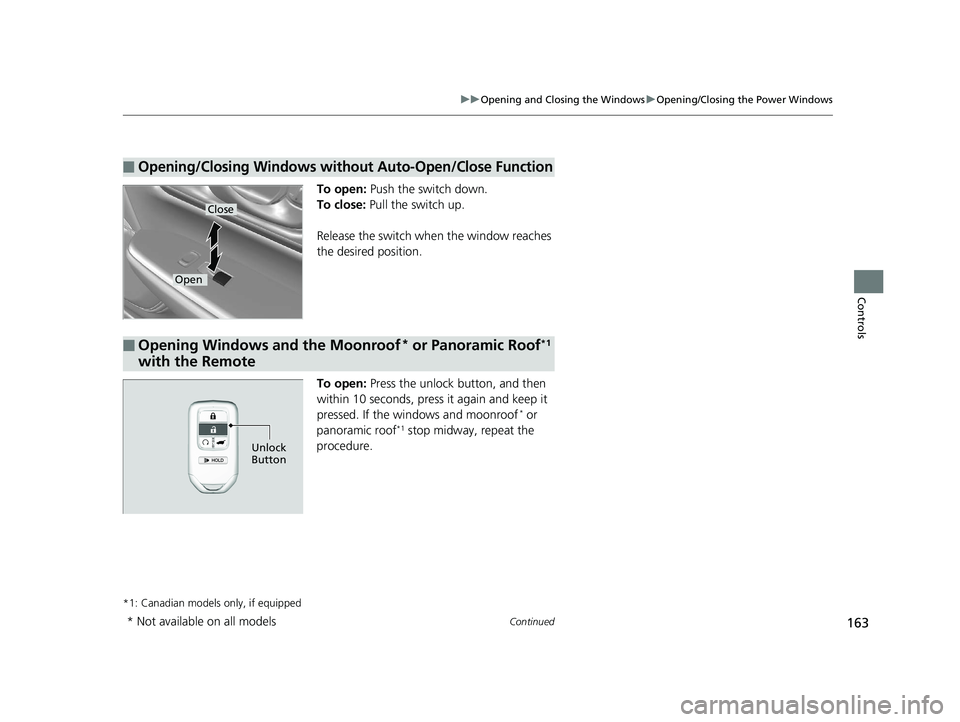

163
uuOpening and Closing the Windows uOpening/Closing the Power Windows
Continued
Controls
To open: Push the switch down.
To close: Pull the switch up.
Release the switch when the window reaches
the desired position.
To open: Press the unlock button, and then
within 10 seconds, press it again and keep it
pressed. If the windows and moonroof
* or
panoramic roof*1 stop midway, repeat the
procedure.
*1: Canadian models only, if equipped
■Opening/Closing Windows wit hout Auto-Open/Close Function
Close
Open
■Opening Windows and the Moonroof* or Panoramic Roof*1
with the Remote
Unlock
Button
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 163 ページ ２０１８年８月２２日　水曜日　午後２時５９分

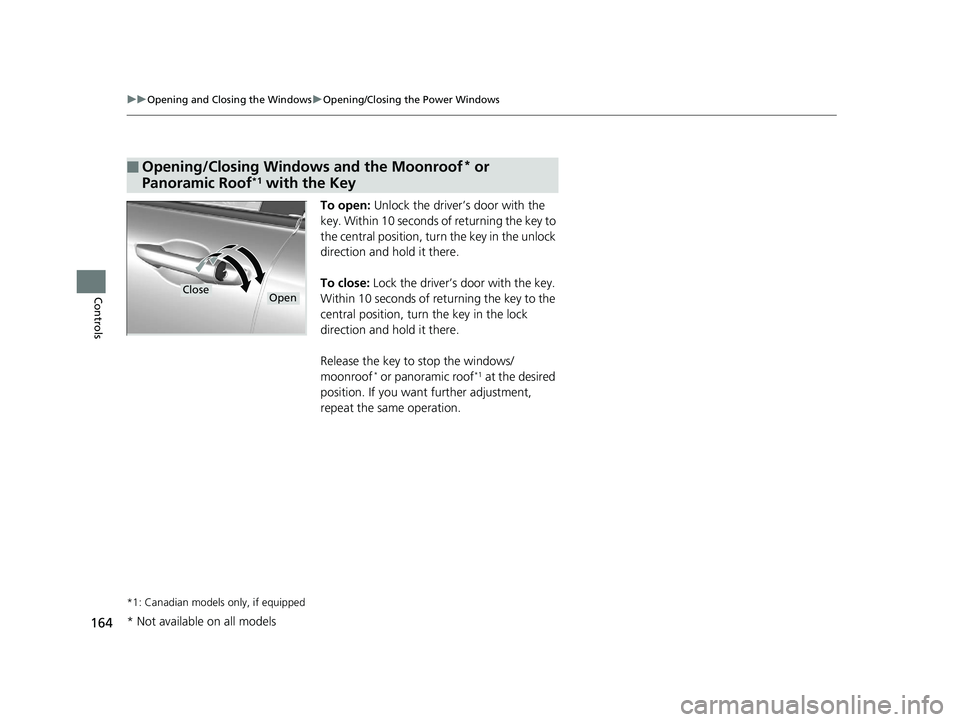

164
uuOpening and Closing the Windows uOpening/Closing th e Power Windows
Controls
To open: Unlock the driver’s door with the
key. Within 10 seconds of returning the key to
the central position, turn the key in the unlock
direction and hold it there.
To close: Lock the driver’s door with the key.
Within 10 seconds of re turning the key to the
central position, turn the key in the lock
direction and hold it there.
Release the key to stop the windows/
moonroof
* or panoramic roof*1 at the desired
position. If you want further adjustment,
repeat the same operation.
*1: Canadian models only, if equipped
■Opening/Closing Windows and the Moonroof* or
Panoramic Roof*1 with the Key
CloseOpen
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 164 ページ ２０１８年８月２２日　水曜日　午後２時５９分

165
Controls

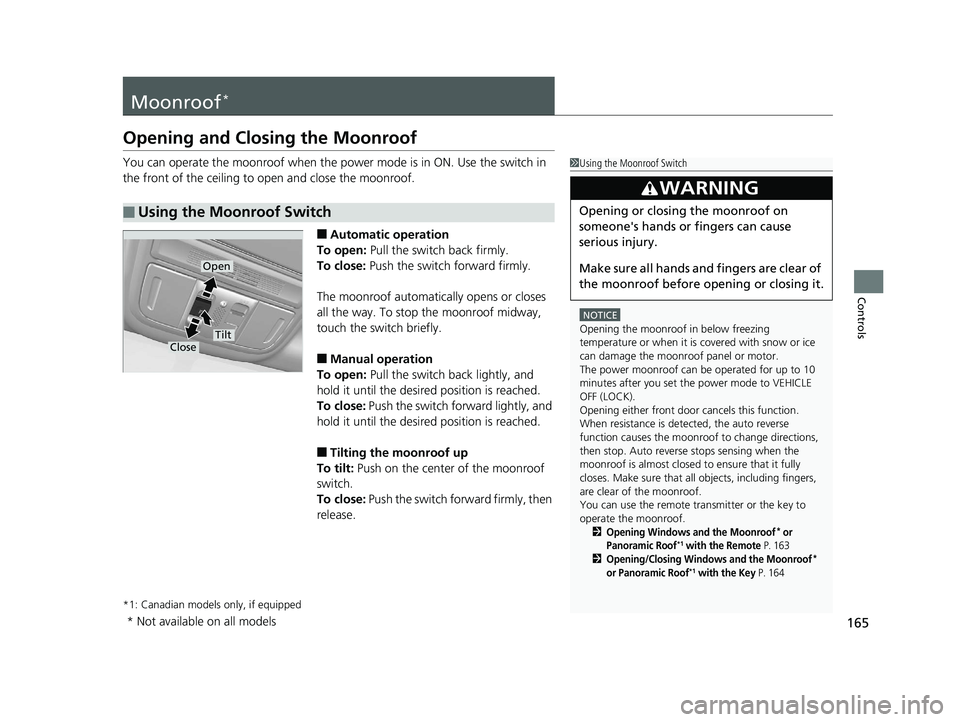

Moonroof*
Opening and Closing the Moonroof
You can operate the moonroof when the power mode is in ON. Use the switch in
the front of the ceiling to open and close the moonroof.
■Automatic operation
To open: Pull the switch back firmly.
To close: Push the switch forward firmly.
The moonroof automatically opens or closes
all the way. To stop the moonroof midway,
touch the switch briefly.
■Manual operation
To open: Pull the switch back lightly, and
hold it until the desired position is reached.
To close: Push the switch forward lightly, and
hold it until the desired position is reached.
■Tilting the moonroof up
To tilt: Push on the center of the moonroof
switch.
To close: Push the switch forward firmly, then
release.
*1: Canadian models only, if equipped
■Using the Moonroof Switch
1 Using the Moonroof Switch
NOTICE
Opening the moonroof in below freezing
temperature or when it is covered with snow or ice
can damage the moonr oof panel or motor.
The power moonroof can be operated for up to 10
minutes after you set the power mode to VEHICLE
OFF (LOCK).
Opening either front door cancels this function.
When resistance is detected, the auto reverse
function causes the moonroof to change directions,
then stop. Auto reverse stops sensing when the
moonroof is almost closed to ensure that it fully
closes. Make sure that al l objects, including fingers,
are clear of the moonroof.
You can use the remote transmitter or the key to
operate the moonroof.
2Opening Windows and the Moonroof* or
Panoramic Roof*1 with the Remote P. 1632Opening/Closing Windows and the Moonroof*
or Panoramic Roof*1 with the Key P. 164
3WARNING
Opening or closing the moonroof on
someone's hands or fingers can cause
serious injury.
Make sure all hands and fingers are clear of
the moonroof before opening or closing it.
Open
CloseTilt
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 165 ページ ２０１８年８月２２日　水曜日　午後２時５９分
