HONDA CR-V 2019 (in English) Owner's Guide

Quick Reference Guide
19

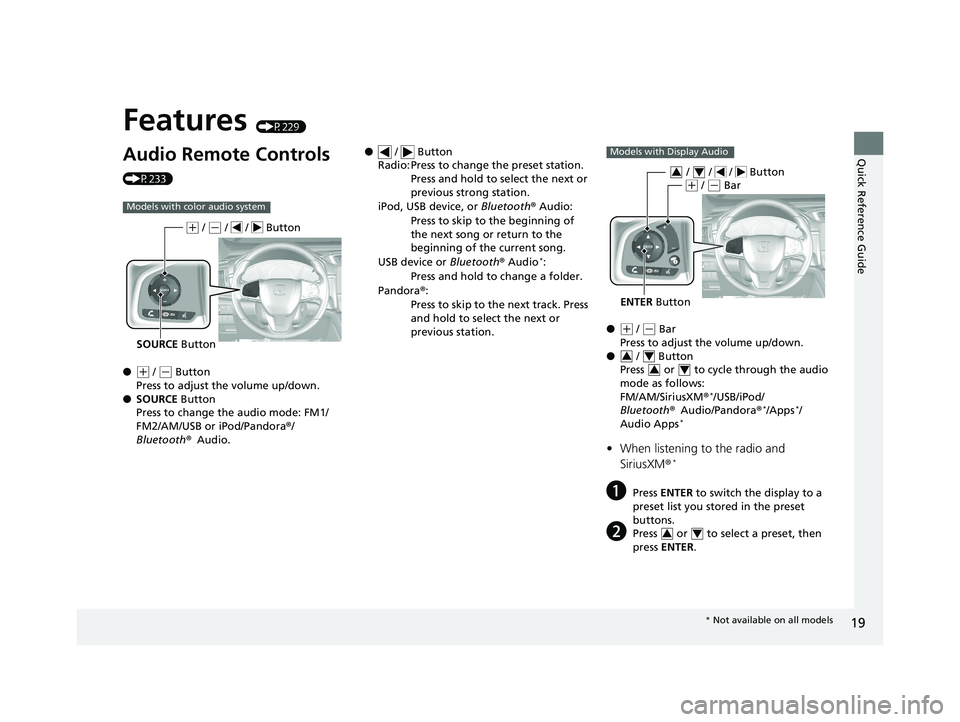

Features (P229)
Audio Remote Controls
(P233)
●
(+ / (- Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM1/
FM2/AM/USB or iPod/Pandora ®/
Bluetooth ®Audio.
Models with color audio system
SOURCE Button
(+ / (- / / Button
● / Button
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
iPod, USB device, or Bluetooth® Audio:
Press to skip to the beginning of
the next song or return to the
beginning of the current song.
USB device or Bluetooth® Audio
*:
Press and hold to change a folder.
Pandora ®:
Press to skip to the next track. Press
and hold to select the next or
previous station.
●( + / (- Bar
Press to adjust the volume up/down.
● / Button
Press or to cycl e through the audio
mode as follows:
FM/AM/SiriusXM ®
*/USB/iPod/
Bluetooth ®Audio/Pandora®*/Apps*/
Audio Apps*
• When listening to the radio and
SiriusXM ®*
aPress ENTER to switch the display to a
preset list you stored in the preset
buttons.
bPress or to select a preset, then
press ENTER .
Models with Display Audio
ENTER Button
/ / / Button34(+ / (- Bar
3434
34
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 19 ページ ２０１８年８月２２日　水曜日　午後２時５９分

20
Quick Reference Guide

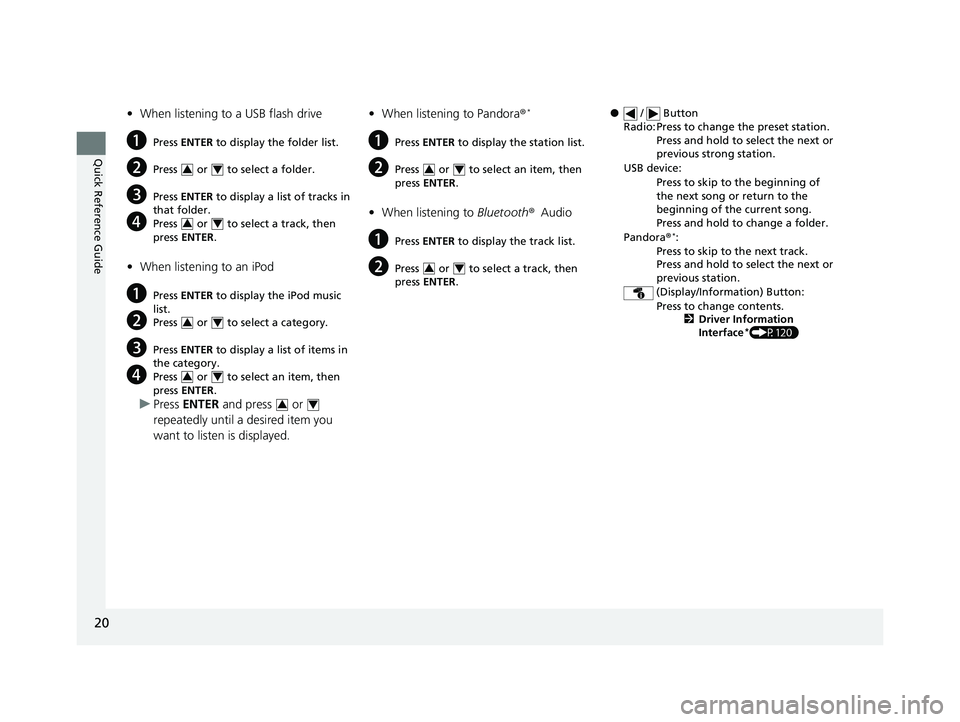

•When listening to a USB flash drive
aPress ENTER to display the folder list.
bPress or to select a folder.
cPress ENTER to display a list of tracks in
that folder.
dPress or to select a track, then
press ENTER .
•When listening to an iPod
aPress ENTER to display the iPod music
list.
bPress or to select a category.
cPress ENTER to display a list of items in
the category.
dPress or to select an item, then
press ENTER .
uPress ENTER and press or
repeatedly until a desired item you
want to listen is displayed.
34
34
34
34
34
• When listening to Pandora ®*
aPress ENTER to display the station list.
bPress or to select an item, then
press ENTER .
•When listening to Bluetooth®Audio
aPress ENTER to display the track list.
bPress or to select a track, then
press ENTER .
34
34
● / Button
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Pandora®
*:
Press to skip to the next track.
Press and hold to select the next or
previous station.
(Display/Information) Button: Press to change contents. 2Driver Information
Interface
*(P120)
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 20 ページ ２０１８年８月２２日　水曜日　午後２時５９分

21
Quick Reference Guide

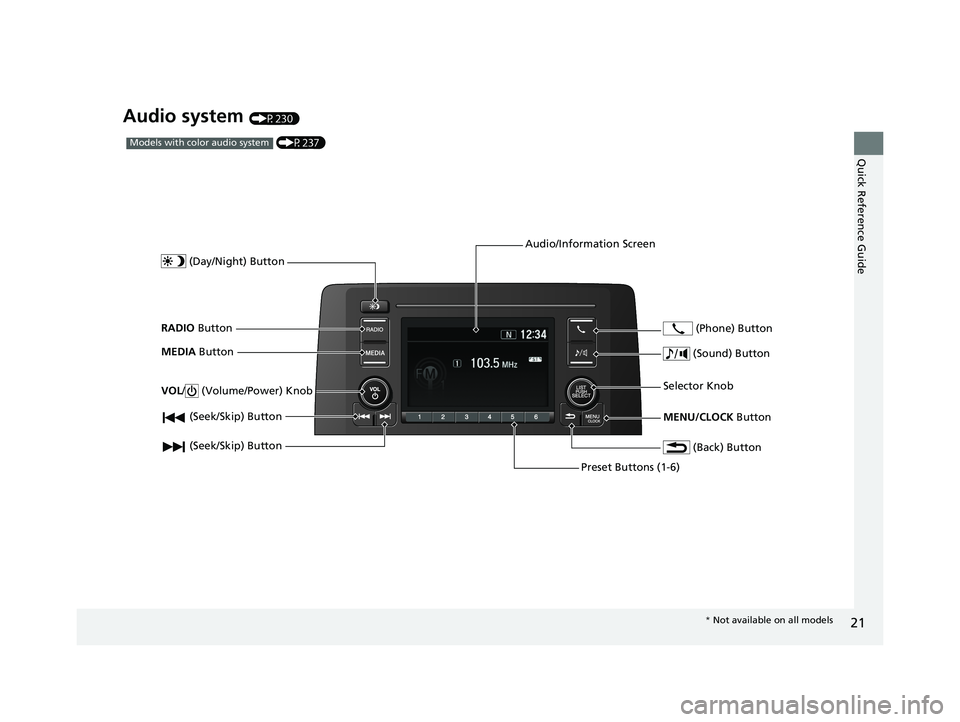

Audio system (P230)
(P237)Models with color audio system
(Seek/Skip) Button
RADIO Button
(Day/Night) Button
MEDIA Button
Preset Buttons (1-6)
(Seek/Skip) Button
VOL
/ (Volume/Power) Knob
Audio/Information Screen
(Back) Button
(Sound) Button
MENU/CLOCK Button
Selector Knob (Phone) Button
*
Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 21 ページ ２０１８年８月２２日　水曜日　午後２時５９分

22
Quick Reference Guide
(P258)
For navigation system operation () See the Navigation System Manual
Models with Display Audio
(Audio) Icon
(Back) Icon
Audio/Information Screen Driver Information Interface
(Instrument Panel) Icon (Day/Night) Icon
*
VOL / AUDIO (Volume/Power Audio)
Knob
(Home) Icon
(Map) Icon*
(Phone) Icon
Compass Icon*
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 22 ページ ２０１８年８月２２日　水曜日　午後２時５９分

23
Quick Reference Guide

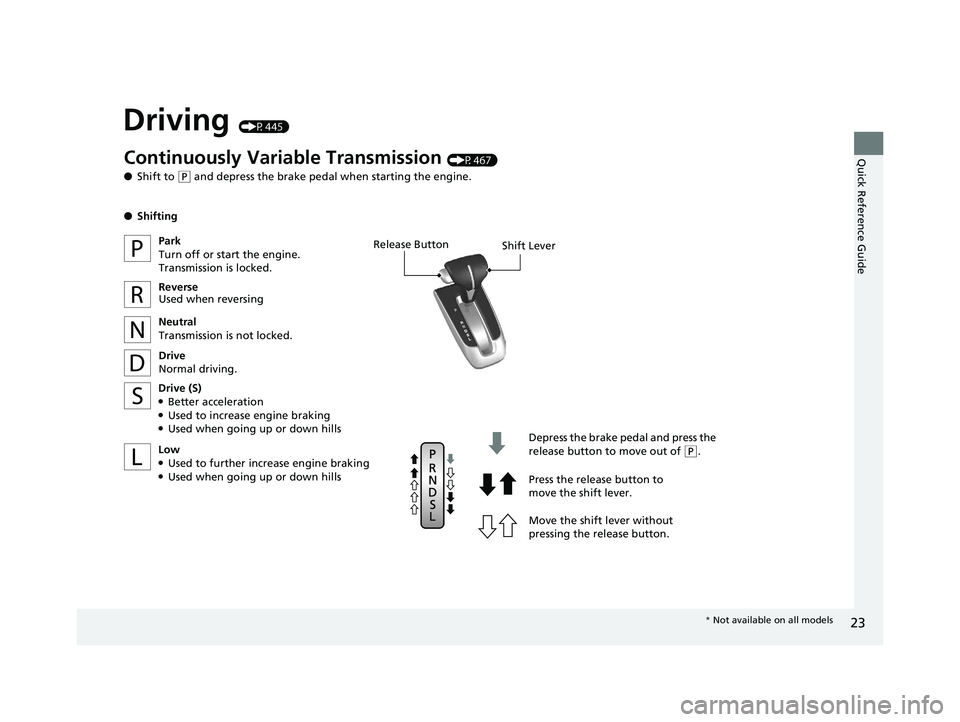

Driving (P445)
Release ButtonShift Lever
Depress the brake pedal and press the
release button to move out of
(P.
Move the shift lever without
pressing the release button. Press the release button to
move the shift lever.
Continuously Variable Transmission (P467)
● Shift to
(P and depress the brake pedal when starting the engine.
● Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing
Neutral
Transmission is not locked.
Drive
Normal driving.
Drive (S)
●Better acceleration●Used to increase engine braking●Used when going up or down hills
Low
●Used to further increase engine braking●Used when going up or down hills
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 23 ページ ２０１８年８月２２日　水曜日　午後２時５９分

24
Quick Reference Guide

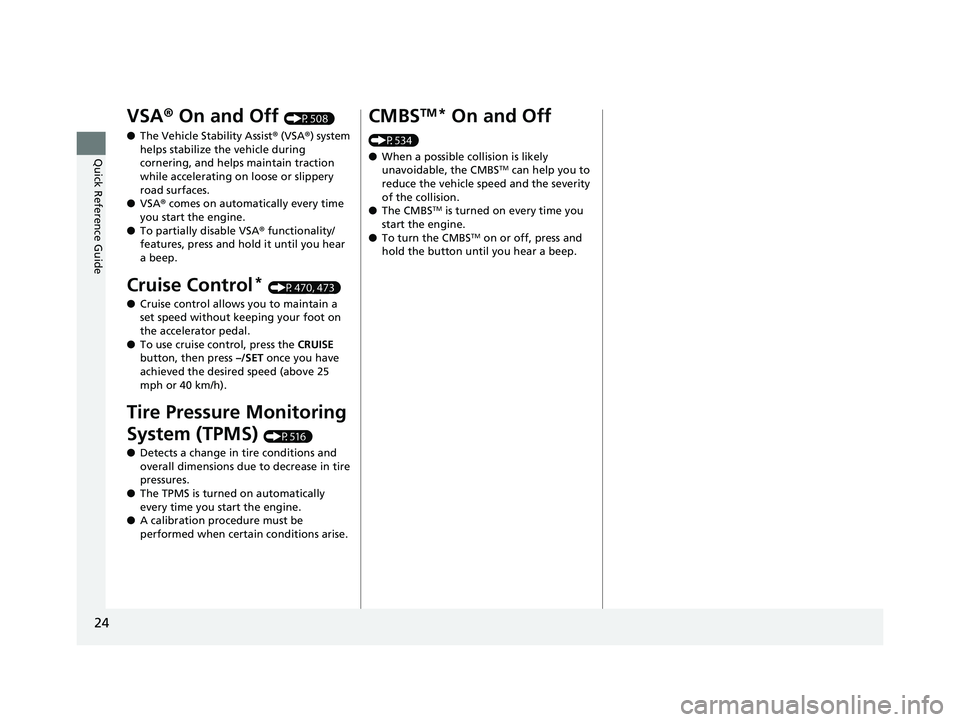

VSA® On and Off (P508)
● The Vehicle Stability Assist ® (VSA ®) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To partially disable VSA® functionality/
features, press and hold it until you hear
a beep.
Cruise Control* (P470, 473)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press –/SET once you have
achieved the desired speed (above 25
mph or 40 km/h).
Tire Pressure Monitoring
System (TPMS)
(P516)
● Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
● The TPMS is turned on automatically
every time you start the engine.
● A calibration procedure must be
performed when certain conditions arise.
CMBSTM* On and Off
(P534)
● When a possible collision is likely
unavoidable, the CMBS
TM can help you to
reduce the vehicle speed and the severity
of the collision.
● The CMBS
TM is turned on every time you
start the engine.
● To turn the CMBS
TM on or off, press and
hold the button until you hear a beep.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 24 ページ ２０１８年８月２２日　水曜日　午後２時５９分

25
Quick Reference Guide

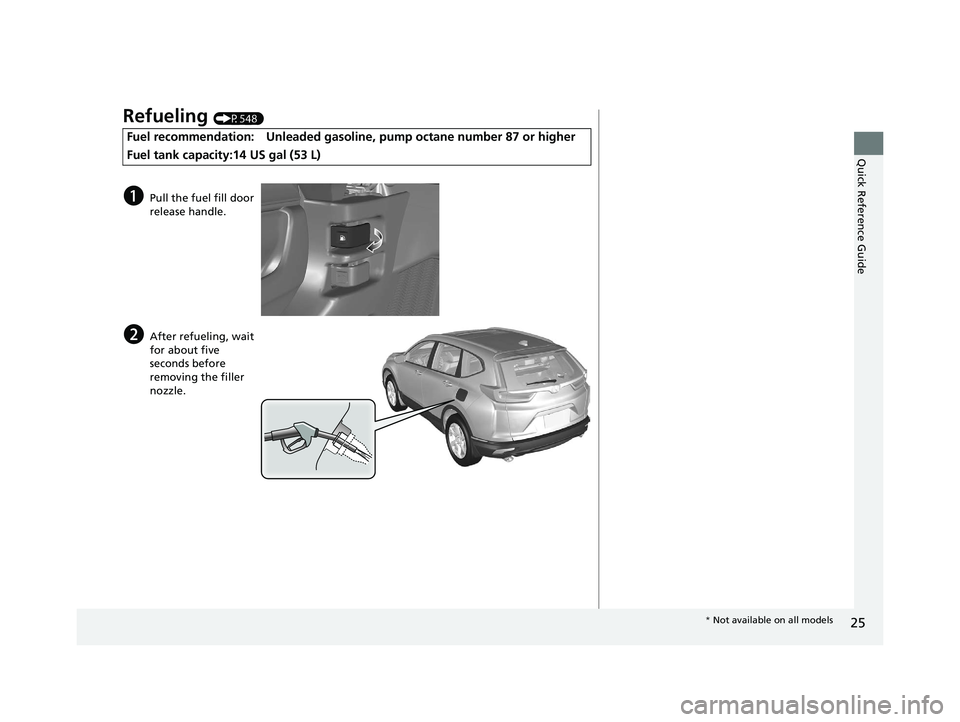

Refueling (P548)
Fuel recommendation: Unleaded gasoline, pump octane number 87 or higher
Fuel tank capacity:14 US gal (53 L)
aPull the fuel fill door
release handle.
bAfter refueling, wait
for about five
seconds before
removing the filler
nozzle.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 25 ページ ２０１８年８月２２日　水曜日　午後２時５９分

26
Quick Reference Guide

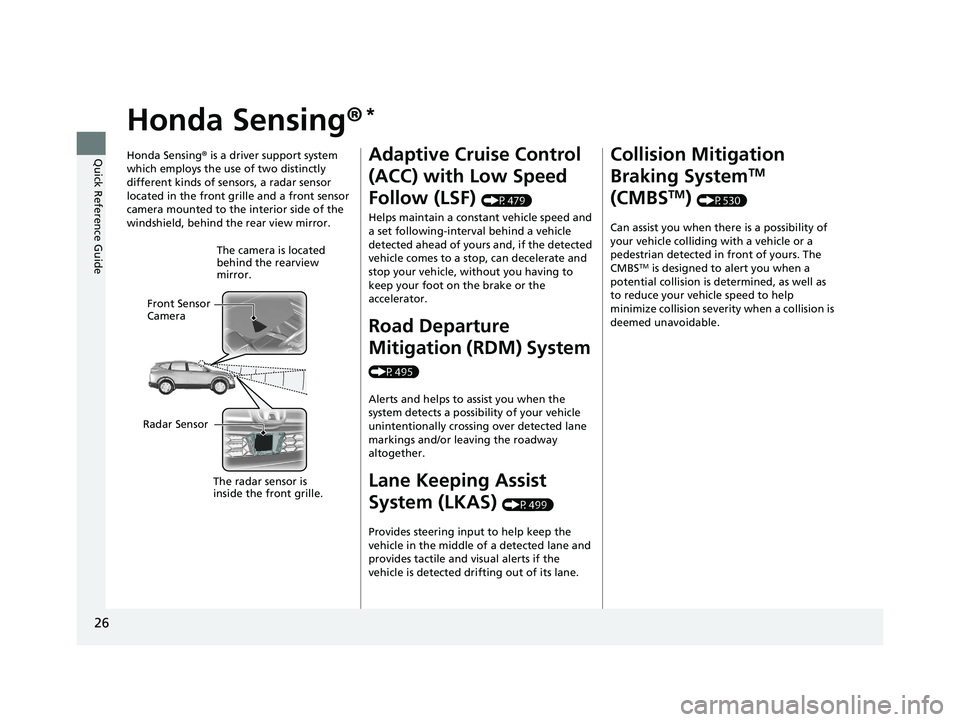

Honda Sensing®*
Honda Sensing® is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located in the front grille and a front sensor
camera mounted to the interior side of the
windshield, behind the rear view mirror.
The camera is located
behind the rearview
mirror.
Front Sensor
Camera
Radar Sensor
The radar sensor is
inside the front grille.
Adaptive Cruise Control
(ACC) with Low Speed
Follow (LSF)
(P479)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, wi thout you having to
keep your foot on the brake or the
accelerator.
Road Departure
Mitigation (RDM) System
(P495)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.
Lane Keeping Assist
System (LKAS)
(P499)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Collision Mitigation
Braking System
TM
(CMBS
TM) (P530)
Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBS
TM is designed to alert you when a
potential collision is determined, as well as
to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 26 ページ ２０１８年８月２２日　水曜日　午後２時５９分

27
Quick Reference Guide
Maintenance (P553)
Under the Hood (P567)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P584)
● Inspect all lights regularly.
Wiper Blades (P591)
● Replace blades if they leave streaks
across the windshield.
Tires (P595)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 27 ページ ２０１８年８月２２日　水曜日　午後２時５９分

28
Quick Reference Guide

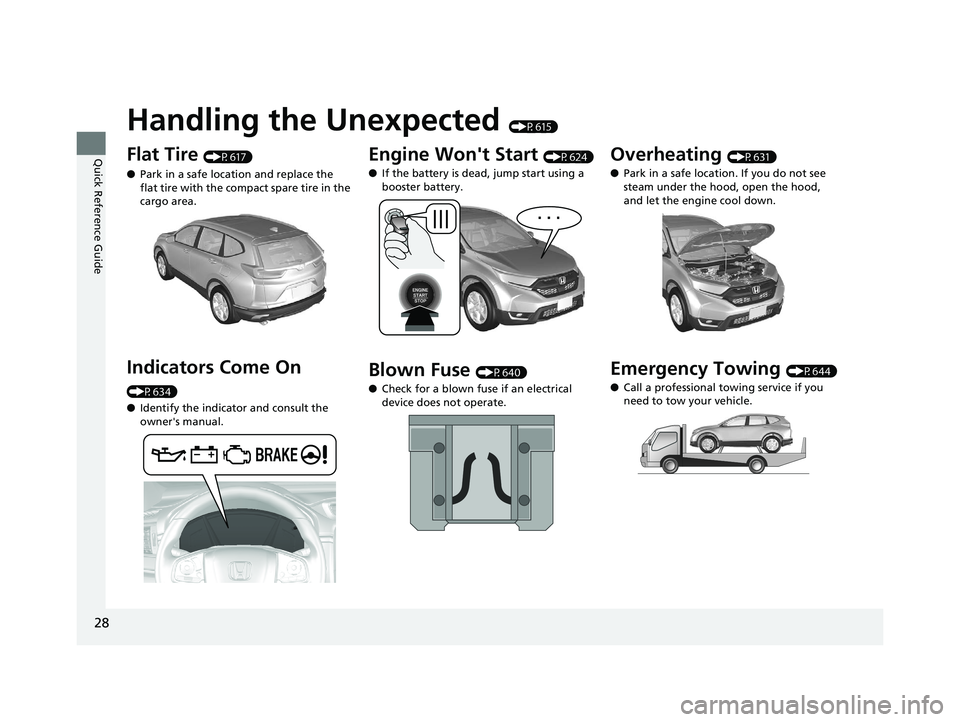

Handling the Unexpected (P615)
Flat Tire (P617)
● Park in a safe location and replace the
flat tire with the compact spare tire in the
cargo area.
Indicators Come On
(P634)
●Identify the indicator and consult the
owner's manual.
Engine Won't Start (P624)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P640)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P631)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P644)
● Call a professional towing service if you
need to tow your vehicle.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 28 ページ ２０１８年８月２２日　水曜日　午後２時５９分
