HONDA CR-V 2019 (in English) User Guide

9
Quick Reference Guide

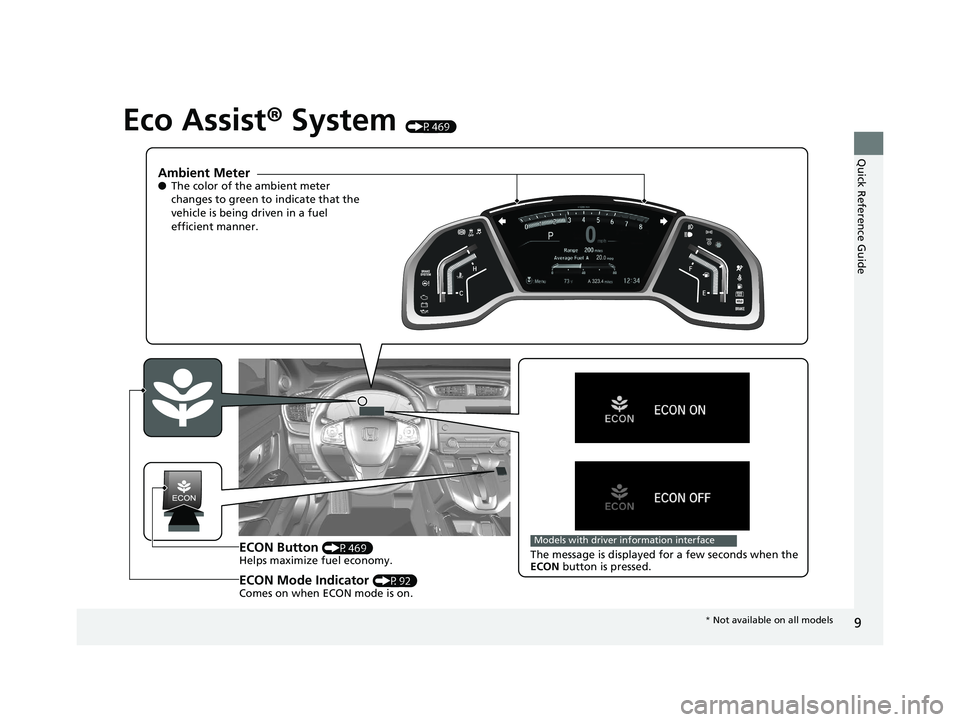

Eco Assist® System (P469)
Ambient Meter●The color of the ambient meter
changes to green to indicate that the
vehicle is being driven in a fuel
efficient manner.
ECON Button (P469)
Helps maximize fuel economy.
ECON Mode Indicator (P92)
Comes on when ECON mode is on.
Models with driver information interface
The message is displayed for a few seconds when the
ECON button is pressed.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 9 ページ ２０１８年８月２２日　水曜日　 午後２時５９分

10
Quick Reference Guide

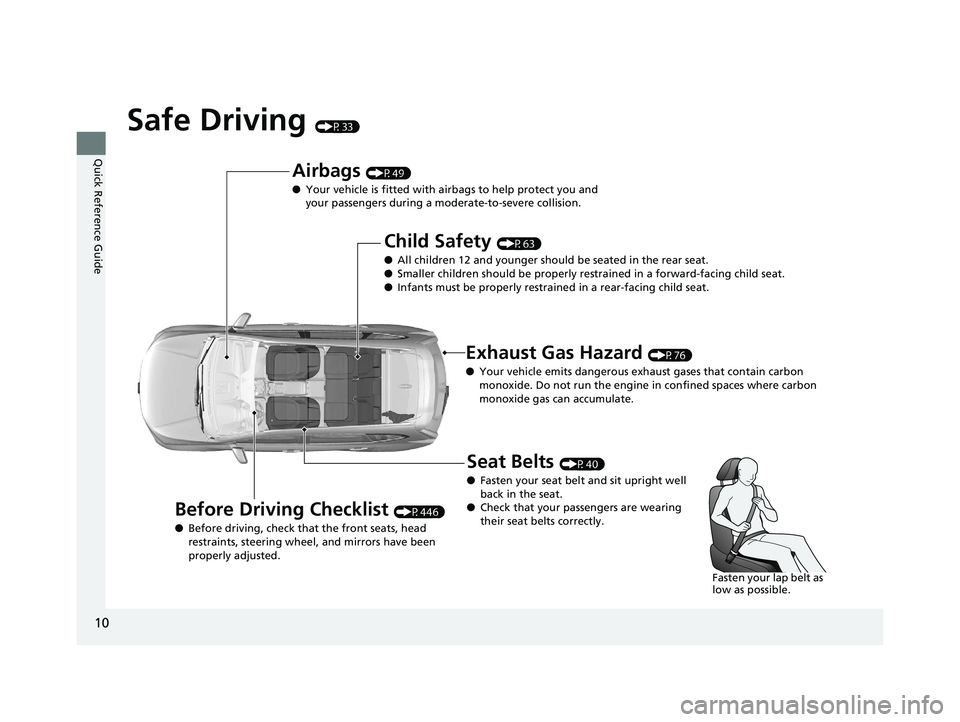

Safe Driving (P33)
Airbags (P49)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P63)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Exhaust Gas Hazard (P76)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P446)
● Before driving, check that the front seats, head
restraints, steering whee l, and mirrors have been
properly adjusted.
Seat Belts (P40)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 10 ページ ２０１８年８月２２日　水曜日　午後２時５９分

11
Quick Reference Guide
Instrument Panel (P79)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist ®
(VSA ®) System
Indicator
Vehicle Stability Assist ®
(VSA ®) OFF Indicator
Low Tire Pressure/
TPMS Indicator Electric Power
Steering (EPS) System
Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL

Indicator
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Door Open Indicator
CRUISE MAIN
Indicator
Immobilizer System
Indicator/Security
System Alarm Indicator
Speedometer Fuel Gauge
Tachometer
Shift Lever Position Indicator/
Transmission System Indicator
Low Fuel Indicator
Gauges (P 116)/Information Display* (P 117)/
Driver Information Interface
* (P120)/System Indicators (P80)
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
Maintenance Minder
Indicator
Transmission
Temperature
Indicator
Models with information display
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
Automatic Brake Hold
System Indicator
Automatic Brake Hold
Indicator
Temperature Gauge
Brake Depressing
Indicator
Tailgate Open
Indicator
Power Reduced
Indicator
All-wheel drive
( AWD ) Indicator*
Starter System Indicator
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 11 ページ ２０１８年８月２２日　水曜日　午後２時５９分

12
Quick Reference GuideSystem Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist ®
(VSA ®) System
Indicator
Low Tire Pressure/
TPMS Indicator Electric Power
Steering (EPS) System
Indicator
Seat Belt Reminder
Indicator
System Indicators
Parking Brake and
Brake System
Indicator (Red)
Supplemental
Restraint System
Indicator
Speedometer Fuel Gauge
Shift Lever Position
Indicator/Transmission
System Indicator Immobilizer System Indicator/
Security System Alarm Indicator
Low Fuel Indicator
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
Models with driver information interface
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
U.S.
Canada
U.S.
Canada Automatic Brake Hold
System Indicator
Automatic Brake Hold
IndicatorU.S.
Canada Temperature Gauge
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator*
Adaptive Cruise
Control (
ACC) with
Low Speed Follow
(LSF) Indicator
(Amber/Green)
*
System Message
Indicator Collision Mitigation
Braking System
TM
(CMBSTM) Indicator*
Road Departure
Mitigation (RDM)
Indicator
*
Lane Keeping Assist
System ( LKAS)
Indicator (Amber/
Green)
*
Tachometer
Auto High-beam
System Indicator*
CRUISE CONTROL
Indicator*
CRUISE MAIN
Indicator*
Blind spot
information System
Indicator
*
Vehicle Stability Assist ®
(VSA ®) OFF Indicator
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 12 ページ ２０１８年８月２２日　水曜日　午後２時５９分

13
Quick Reference Guide
Controls (P129)
Clock (P130)
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the Selector knob.
•Rotate to select.
•Press to enter.
Models with color audio system
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
aSelect the (HOME) icon, then select
Settings .
bSelect Clock, then Clock Adjustment .
cTouch the respective / icon to
adjust the hours or minutes up or
down.
dSelect OK.
Models with navigation system
Models with Display Audio
34
ENGINE START/STOP
Button
* (P170)
Press the button to change the vehicle’s
power mode.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 13 ページ ２０１８年８月２２日　水曜日　午後２時５９分

14
Quick Reference Guide
Turn Signals (P174)
Lights (P175)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P183)
*1: Models with automatic intermittent
wipers
*2: Models without automatic intermittent
wipers
Wiper/Washer Control Lever
Adjustment Ring MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO : Low speed wipe
HI: High speed wipe
Pull toward
you to spray
washer fluid.
Low Sensitivity*1
Lower speed, fewer sweeps*2
High Sensitivity*1
Higher speed, more sweeps*2(+:(+:
(-:(-:
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
● Cleaning the windshield
● Driving through a car wash
● No rain present
Steering Wheel (P192)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Models with automatic intermittent wipers
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 14 ページ ２０１８年８月２２日　水曜日　午後２時５９分

15
Quick Reference Guide

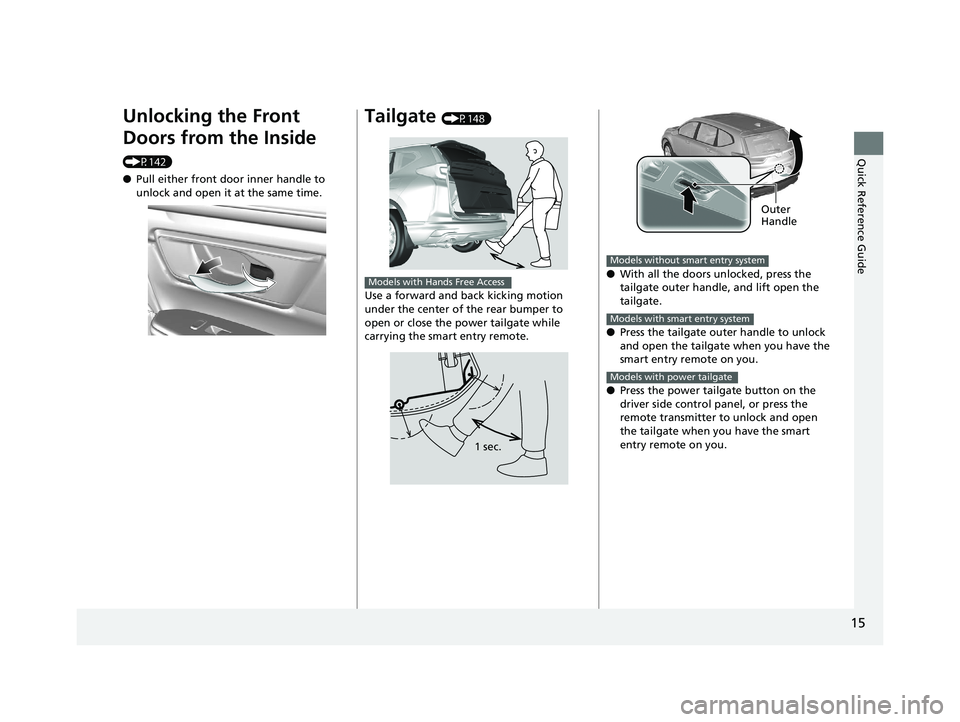

Unlocking the Front
Doors from the Inside
(P142)
●Pull either front door inner handle to
unlock and open it at the same time.
Tailgate (P148)
Use a forward and back kicking motion
under the center of the rear bumper to
open or close the power tailgate while
carrying the smart entry remote.
Models with Hands Free Access
1 sec.
● With all the doors unlocked, press the
tailgate outer handle, and lift open the
tailgate.
● Press the tailgate outer handle to unlock
and open the tailgate when you have the
smart entry remote on you.
● Press the power tailgate button on the
driver side control panel, or press the
remote transmitter to unlock and open
the tailgate when you have the smart
entry remote on you.
Outer
Handle
Models without smart entry system
Models with smart entry system
Models with power tailgate
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 15 ページ ２０１８年８月２２日　水曜日　午後２時５９分

16
Quick Reference Guide

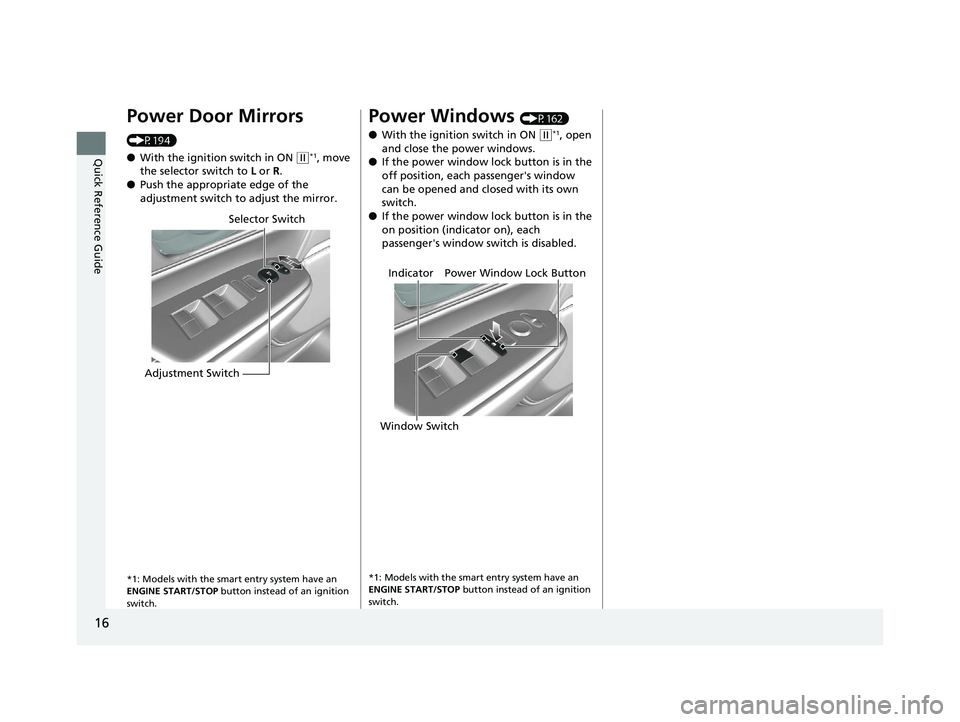

Power Door Mirrors
(P194)
●With the ignition switch in ON
(w*1, move
the selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
*1: Models with the smart entry system have an
ENGINE START/STOP button instead of an ignition
switch.
Selector Switch
Adjustment Switch
Power Windows (P162)
● With the ignition switch in ON
(w*1, open
and close the power windows.
● If the power window lock button is in the
off position, each passenger's window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator on), each
passenger's window switch is disabled.
*1: Models with the smart entry system have an
ENGINE START/STOP button instead of an ignition
switch.
Power Window Lock Button
Window Switch Indicator
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 16 ページ ２０１８年８月２２日　水曜日　午後２時５９分

17
Quick Reference Guide

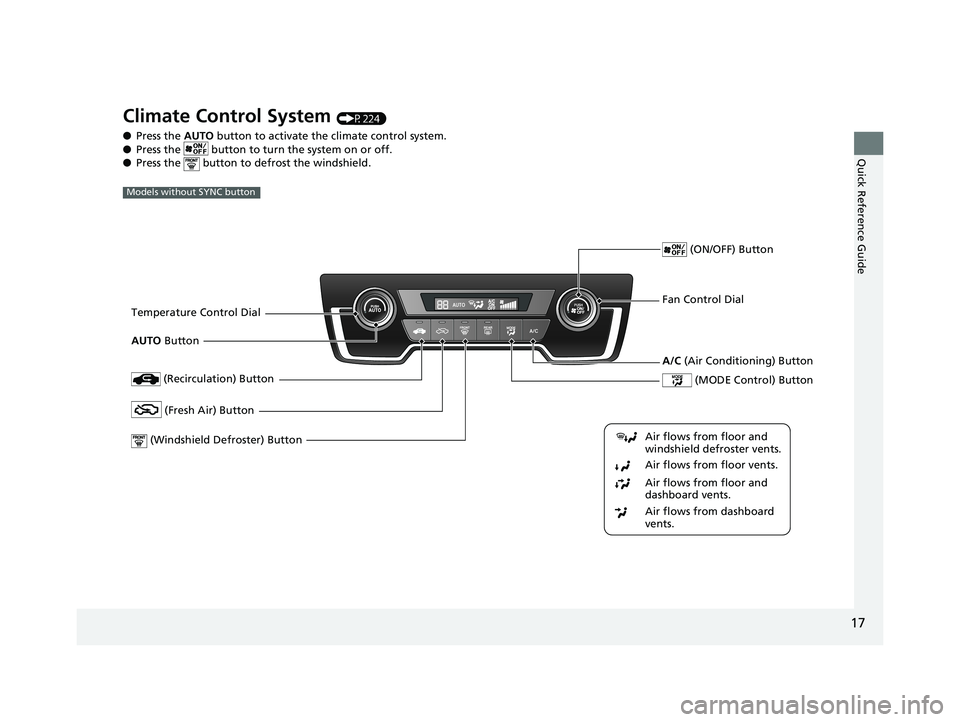

Climate Control System (P224)
● Press the AUTO button to activate th e climate control system.
● Press the button to tu rn the system on or off.
● Press the button to defrost the windshield.
Models without SYNC button
Fan Control Dial
(Fresh Air) ButtonTemperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button (MODE Control) Button
(ON/OFF) Button
AUTO Button
A/C (Air Conditioning) Button
(Windshield De froster) Button
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 17 ページ ２０１８年８月２２日　水曜日　午後２時５９分

18
Quick Reference Guide

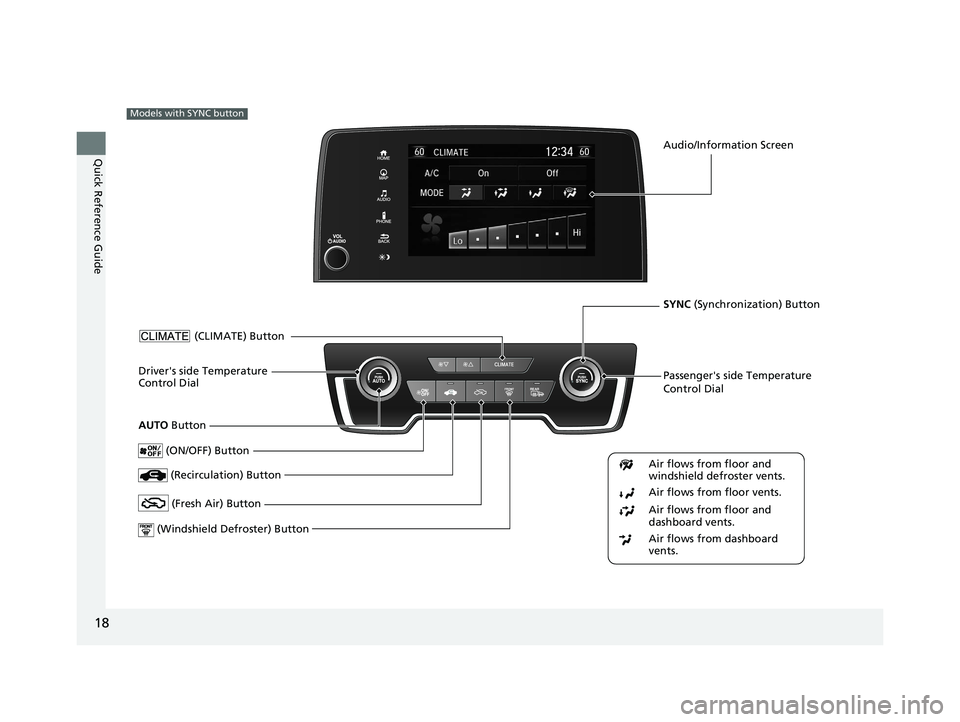

Models with SYNC button
Passenger's side Temperature
Control Dial
(Windshield De froster) ButtonDriver's side Temperature
Control Dial
(Recirculation) Button
(CLIMATE) Button
(ON/OFF) Button
AUTO Button
Audio/Information Screen
SYNC (Synchronization) Button
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Fresh Air) Button
