engine HONDA CR-V 2020 Owner's Manual (in English)

643

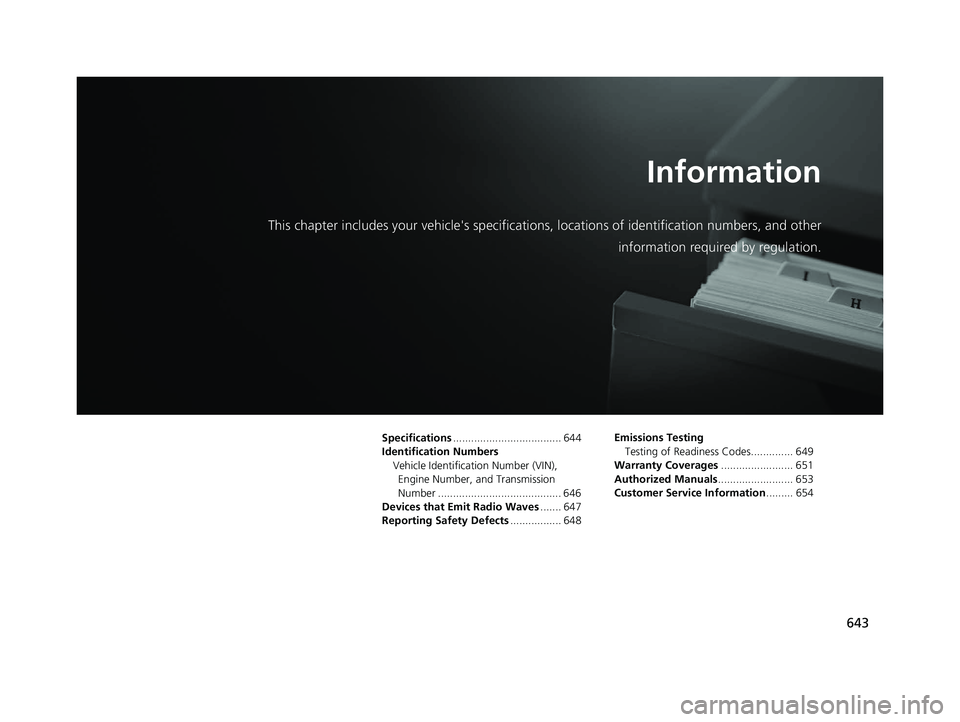

Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 644
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 646
Devices that Emit Radio Waves ....... 647
Reporting Safety Defects ................. 648Emissions Testing
Testing of Readiness Codes.............. 649
Warranty Coverages ........................ 651
Authorized Manuals ......................... 653
Customer Service Information ......... 654
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 643 ページ ２０１９年１０月３日　木曜日　午後４時５５分

644
Information
Specifications
■Vehicle Specifications
ModelCR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver's
doorjamb
■ Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant Type HFO-1234yf (R-1234yf)
Charge Quantity15.3 – 17.1 oz (435 – 485 g)Lubricant TypeRL85HM (POE)
Quantity4.70 - 6.28 cu-in (77 – 103 cm3)
Displacement91.38 cu-in (1,498 cm3)
Spark Plugs NGKILZKAR8J8SY
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 14 US gal (53 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)55 W (H11)*
LED*
Headlights (High Beam)60 W (HB3)*
LED*
Fog Lights*LED
Front Turn Signal/
Front Side Marker Lights LED
Parking/Daytime Running LightsLED
Side Turn Signal Lights
(on Door Mirrors)
*LED
Tail and Brake/Rear Turn Signal/
Rear Side Marker LightsLED
Back-Up Lights 16 W
TaillightsLED
High-Mount Brake Light LED
Rear License Plate LightLED
Interior Lights
Map Lights 8 W
*
LED*
Ceiling Light8 W*
LED*
Cargo Area Lights 5 W
Vanity Mirror Lights*1.4 W
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 644 ページ ２０１９年１０月３日　木曜日　午後４時５５分

645
uuSpecifications u
Information
■
Brake Fluid
■ Continuously Variable Transmission
Fluid
*1: 2WD models
*2: AWD models
■ Rear Differential Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2
Capacity Change 3.9 US qt (3.7 L)*1
4.5 US qt (4.3 L)*2
SpecifiedHonda DPSF-II
Capacity Change 1.32 US qt (1.247 L)
■ Engine Oil
■ Engine Coolant
Recommended·Honda Genuine Motor Oil 0W-20·API Premium-grade 0W-20 detergent oil
CapacityChange3.4 US qt (3.2 L)Change including
filter3.7 US qt (3.5 L)
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.64 US gal (6.19 L)(change including the remaining 0.2 US gal
(0.75 L) in the reserve tank)
■ Tire
*1: Models with 17 inch wheel
*2: Models with 18 inch wheel
*3: Models with 19 inch wheel
Regular
Size*1235/65R17 104HPressure*1
psi (kPa [kgf/cm2])Front32 (220 [2.2])Rear30 (210 [2.1])Size*2235/60R18 103HPressure*2
psi (kPa [kgf/cm2])Front33 (230 [2.3])Rear30 (210 [2.1])Size*3235/55R19 101HPressure*3
psi (kPa [kgf/cm2])Front33 (230 [2.3])Rear33 (230 [2.3])
Compact
Spare Size
T155/90D17 112M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 7 1/2J*1
18 x 7 1/2J*2
19 x 7 1/2J*3
Compact Spare17 x 4T
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 645 ページ ２０１９年１０月３日　木曜日　午後４時５５分

646
Information

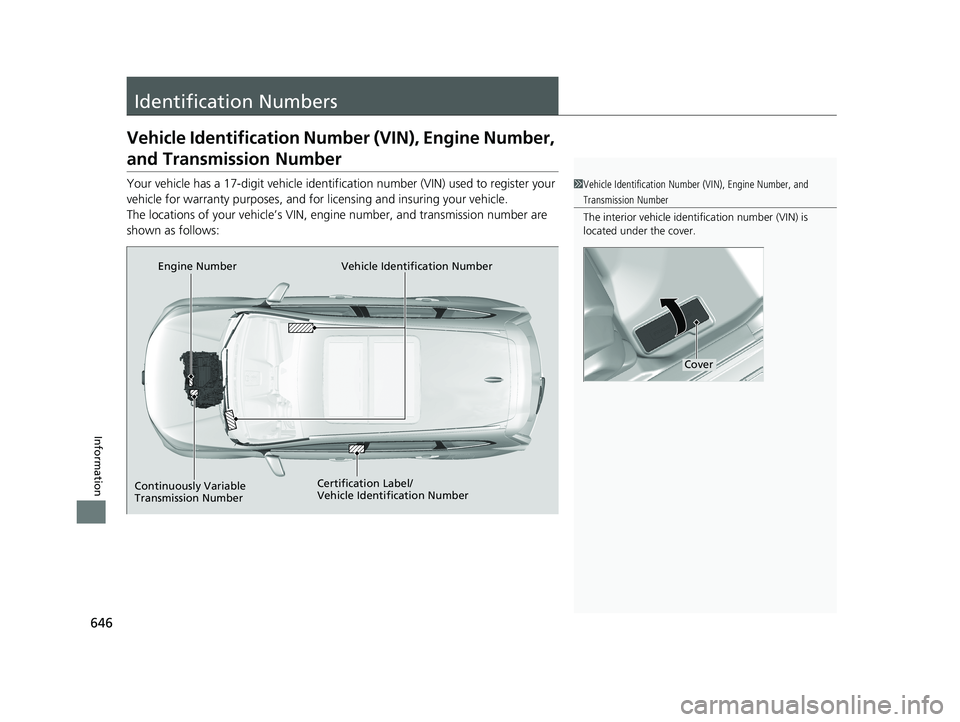

Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identifi cation number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, and transmission number are
shown as follows:1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification Number
Continuously Variable
Transmission Number
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 646 ページ ２０１９年１０月３日　木曜日　午後４時５５分

649Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle's emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, tu rn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 649 ページ ２０１９年１０月３日　木曜日　午後４時５５分

650
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When tra ffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle spee d may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two mo re times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 650 ページ ２０１９年１０月３日　木曜日　午後４時５５分

654
Information
Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolve to your satisfaction, contact Honda Client
Relations/Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 100-5E-8A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009 Canadian Owners
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Customer Service Information
When you call or write, please give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 646
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 654 ページ ２０１９年１０月３日　木曜日　午後４時５５分

Index
657
Index
Index
Numbers
4WD.......................................................... 521
A
ABS (Anti-lock Brake System) .................. 534
Accessories and Modifications ................ 609
Accessory Power Sockets ......................... 217
Adaptive Cruise Control (ACC) with Low Speed Follow .......................................... 485
Adding the Coolant ................................. 577
Additives Coolant .................................................. 576
Engine Oil ............................................... 571
Washer ................................................... 580
Additives, Engine Oil ............................... 571
Adjusting Armrest .................................................. 207
Front Seats.............................................. 198
Head Restraints ....................................... 204
Mirrors.................................................... 196
Rear Seats ............................................... 202
Steering Wheel ....................................... 195
Temperature ........................................... 119
Adjusting the Sound ........................ 245, 283
Agile Handling Assist ............................... 515
Air Conditioning System (Climate
Control System) ...................................... 228
Changing the Mode................................ 229
Defrosting the Windshield and
Windows .............................................. 229 Dust and Pollen Filter ............................... 603
Recirculation/Fresh Air Mode ................... 229
Sensor ..................................................... 232
Synchronization Mode ............................. 231
Using Automatic Climate Control ............ 228
Air Pressure ....................................... 591, 645
Airbags ........................................................ 48
Advanced Airbags ..................................... 54
Airbag Care ............................................... 61
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 51
Indicator .............................................. 59, 83
Passenger Airbag Off Indicator .................. 60
Sensors ...................................................... 48
Side Airbags .............................................. 55
Side Curtain Airbags .................................. 57
All-Wheel Drive (AWD) ............................ 521
AM/FM Radio .................................... 247, 290
Android Auto
TM........................................ 327
Anti-lock Brake System (ABS) .................. 534
Indicator .................................................... 83
Apple CarPlay
TM........................................ 324
Armrest ..................................................... 207
Audio Remote Controls ............................ 237
Audio System ............................ 234, 240, 261
Adjusting the Sound ........................ 245, 283
AM/FM Radio .................................. 247, 290
Android Auto
TM....................................... 327
Apple CarPlayTM....................................... 324
Audio/Information Screen ................ 241, 262
Changing the Home Screen Icon Layout .. 266 Changing the Screen Interface ................ 280
Closing Apps ........................................... 282
Customizing the Meter............................ 267
Display Setup .................................. 246, 284
Error Messages ........................................ 331
General Information ................................ 336
Home Screen........................................... 273
HondaLink
®........................................... 316
How to use Siri ® Eyes Free .............. 260, 323
iPod ................................................ 249, 301
Limitations for Manual Operation ............ 285
Menu Customize ..................................... 281
MP3/WMA/AAC .............................. 254, 310
Pandora ®....................................... 252, 308
Playing Bluetooth ® Audio ................ 257, 313
Playing SiriusXM ® Radio .......................... 294
Reactivating ............................................ 236
Recommended Devices............................ 337
Remote Controls ..................................... 237
Security Code .......................................... 236
Selecting an Audio Source ....................... 285
Song By Voice
TM (SBV) ............................. 304
Status Area ............................................. 279
Theft Protection ...................................... 236
USB Flash Drives ...................... 254, 310, 337
USB Port(s) .............................................. 235
Voice Control Operation.......................... 286
Wallpaper Setup.............................. 243, 271
Wi-Fi Connection .................................... 321
Audio/Information Screen ............... 241, 262
Authorized Manuals ................................ 653
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 657 ページ ２０１９年１０月３日　木曜日　午後４時５５分

659
Index
Continuously Variable Transmission....... 473
Creeping................................................. 473
Fluid ....................................................... 578
Kickdown ............................................... 473
Operating the Shift Lever .................. 23, 475
Shift Lever Does Not Move ...................... 626
Shifting ................................................... 474
Controls .................................................... 131
Coolant (Engine) ...................................... 576
Adding the Coolant ................................ 577
Overheating ............................................ 627
Creeping (Continuously Variable Transmission) .......................................... 473
Cross Traffic Monitor ............................... 548
Cup Holders .............................................. 215
Customer Service Information ................ 654
Customized Features ............... 121, 353, 360
D
Daytime Running Lights .......................... 185
Dead Battery ............................................ 623
Defaulting All the Settings ...................... 386
Defrosting the Windshield and
Windows ................................................. 229
Detachable Anchor .................................... 45
Devices that Emit Radio Waves ............... 647
Dimming Headlights .............................................. 176
Rearview Mirror ...................................... 196
Dipstick (Engine Oil) ................................ 572 Directional Signals (Turn Signals)
............ 175
Display Setup .................................... 246, 284
Display/Information Button ..................... 113
Door Mirrors ............................................. 197
Doors ......................................................... 135
Auto Door Locking .................................. 148
Auto Door Unlocking ............................... 148
Keys ........................................................ 135
Locking/Unlocking the Doors from the Inside..................................................... 146
Locking/Unlocking the Doors from the
Outside.................................................. 138
Lockout Prevention System ...................... 145
DOT Tire Quality Grading ........................ 593
Driver Information Interface ................... 113
Driver’s Seat Lumbar Support .................. 198
Driving ....................................................... 451
Braking .................................................... 528
Continuously Variable Transmission ......... 473
Off-Highway Driving Guidelines ............... 463
Shifting Gear ........................................... 474
Starting the Engine .......................... 465, 467
Driving Position Memory System ............. 193
Dust and Pollen Filter ............................... 603
E
Eco Assist® System ...................................... 10
ECON Button ............................................. 482
Elapsed Time ............................................. 115 Electric Power Steering (EPS) System
Indicator............................................ 85, 633
Electronic Stability Control (ESC) ............. 513
Emergency ................................................ 640
Emissions Testing (Readiness Codes) ....... 649
Engine Coolant ................................................... 576
Jump Starting .......................................... 623
Number................................................... 646
Oil ........................................................... 571
Starting ........................................... 465, 467
Switch Buzzer.................................. 170, 173
Engine Coolant ......................................... 576
Adding the Coolant................................. 577
Overheating ............................................ 627
Temperature Gauge ................................ 112
Engine Oil ................................................. 571
Adding .................................................... 573
Checking................................................. 572
Displaying Oil Life .................................... 564
Low Oil Pressure Indicator ................. 81, 629
Recommended Engine Oil ....................... 571
ENGINE START/STOP Button .................... 171
EPS (Electric Power Steering) System ...... 633
Exhaust Gas Hazard (Carbon Monoxide) .. 75
Exterior Care (Cleaning) ........................... 606
Exterior Mirrors ........................................ 197
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 659 ページ ２０１９年１０月３日　木曜日　午後４時５５分

660
Index
F
Features..................................................... 233
Filters Dust and Pollen ....................................... 603
Oil ........................................................... 574
Flat Tire ..................................................... 613
Floor Mats ................................................. 605
Fluids
Brake ....................................................... 579
Continuously Variable Transmission ......... 578
Engine Coolant ........................................ 576
Windshield Washer .................................. 580
FM/AM Radio .................................... 247, 290
Fog Light Indicator ..................................... 87
Folding Down the Rear Seats ................... 202
Foot Brake ................................................. 531
Front Airbags (SRS) ..................................... 51
Front Seat Heaters .................................... 225
Front Seats ................................................ 198
Adjusting ................................................. 198
Front Sensor Camera ................................ 483
Fuel ...................................................... 25, 554
Fuel Economy and CO
2 Emissions............. 557
Gauge ..................................................... 112
Instant Fuel Economy ............................... 119
Low Fuel Indicator ..................................... 83
Range ...................................................... 115
Recommendation .................................... 554
Refueling ................................................. 554
Fuel Economy and CO
2 Emissions ............ 557
Fuel Fill Door ....................................... 25, 555 Fuses
.......................................................... 635
Inspecting and Changing......................... 639
Locations......................................... 635, 636
G
Gasoline (Fuel)
Fuel Economy and CO
2 Emissions ............ 557
Gauge ..................................................... 112
Information ............................................. 554
Instant Fuel Economy .............................. 119
Low Fuel Indicator ..................................... 83
Refueling................................................. 554
Gauges ...................................................... 112
Gear Shift Lever Positions Continuously Variable Transmission ......... 474
Glass (care) ........................................ 604, 607
Glove Box .................................................. 212
H
Handling the Unexpected ........................ 611
HandsFreeLink ® (HFL) ....................... 390, 414
Automatic Import of Cellular Phonebook
and Call History ............................. 404, 427
Caller ID Information ............................... 401
Displaying Messages................................ 442
HFL Buttons..................................... 390, 414
HFL Menus ...................................... 392, 417
HFL Status Display ........................... 391, 416
In Case of Emergency .............................. 446 Limitations for Manual Operation .... 391, 416
Making a Call ................................. 408, 435
Options During a Call...................... 413, 439
Phone Setup ................................... 396, 422
Phonebook Phonetic M
odification........... 431
Receiving a Call............................... 412, 438
Receiving a Text/E-mail Message ............. 440
Ring Tone ....................................... 401, 426
Selecting a Text/E-mail Message Account ................................................ 441
Speed Dial ...................................... 405, 428
To Clear the System ................................ 403
To Set Up Text/E-mail Message Options ................................................. 425
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 290
Head Restraints ........................................ 204
Headlights ................................................ 176
Aiming.................................................... 581
Auto High-Beam ..................................... 181
Automatic Operation .............................. 177
Dimming................................................. 176
Operating ............................................... 176
Heated Door Mirror Button .................... 191
Heated Steering Wheel ........................... 224
Heated Windshield Button ...................... 192
Heaters (Front Seat) ................................. 225
Heaters (Seat) ........................................... 226
Heating and Cooling System Dust and Pollen Filter .............................. 603
HFL (HandsFreeLink ®) ...................... 390, 414
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 660 ページ ２０１９年１０月３日　木曜日　午後４時５５分
