Continued295
uuAudio System Basic Operation uPlaying SiriusXM ® Radio*
Features
1. Select MENU .
2. Select Tune Mode .
3. Select Channel Mode or Category Mode .
■To Change the Tune Mode1Playing SiriusXM ® Radio*
In the channel mode, all available channels are
selectable. In the categor y mode, you can select a
channel within a ca tegory (Jazz, Rock, Classical, etc.).
There may be instances when SiriusXM ® Radio does
not broadcast all the data fi elds (artist name, title).
This does not indicate a problem with your audio
system.
SiriusXM ® Radio stations load in ascending order,
which can take about a minute. Once they have
loaded you will be able to scroll up or down to make
your selections.
Switching the Audio Mode
Press the or button on the steering wheel or
select SOURCE on the screen.
2 Audio Remote Controls P. 237
Tune Start:
When you change to a preset channel, a song being
played on that channel restarts from the beginning
with this function. This can be turned on or off from
the Audio Settings screen.
2 Customized Features P. 360
34
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 295 ページ ２０１９年１０月３日　木曜日　午後４時５５分

387
Features

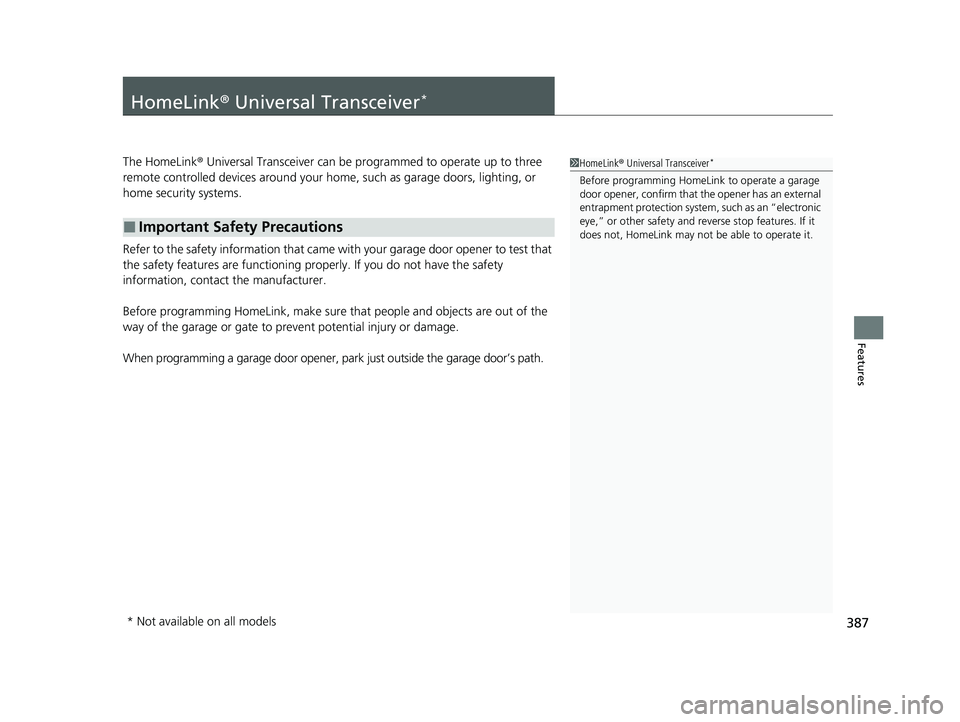

HomeLink® Universal Transceiver*
The HomeLink ® Universal Transceiver can be pr ogrammed to operate up to three
remote controlled devices around your hom e, such as garage doors, lighting, or
home security systems.
Refer to the safety information that came wi th your garage door opener to test that
the safety features are functioning prope rly. If you do not have the safety
information, contact the manufacturer.
Before programming HomeLink, make sure th at people and objects are out of the
way of the garage or gate to prevent potential injury or damage.
When programming a garage door opener, pa rk just outside the garage door’s path.
■Important Safety Precautions
1HomeLink ® Universal Transceiver*
Before programming HomeLi nk to operate a garage
door opener, confirm that the opener has an external
entrapment protection system , such as an “electronic
eye,” or other safety and reverse stop features. If it
does not, HomeLink may not be able to operate it.
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 387 ページ ２０１９年１０月３日　木曜日　午後４時５５分

389
uuHomeLink ® Universal Transceiver*u Training HomeLink
Features
■Training a Button1Training HomeLink
Retraining a Button
If you want to retrain a programmed button for a
new device, you do not ha ve to erase all button
memory. You can replace the existing memory code
using this procedure:
1. Press and hold the de sired HomeLink button
until the HomeLink indi cator begins to blink.
2.
Quickly release the Home Link button and follow
steps 1 - 3 under “Training a Button.” You do not
need to press and rele ase the HomeLink button
again in step 2.
Indicator remains on
for about 25 secs.
Standard transmitter
Indicator remains on for
about 25 secs.
Rolling code transmitter
Erasing Codes
To erase all the codes, press and hold the two outside
buttons until the HomeLink i ndicator begins to blink
(about 10 to 20 secs). You should erase all codes
before selling the vehicle.
If you have any problems, see the device’s
instructions, visit www.homelink.com , or call
HomeLink at (800) 355-3515.
HomeLink® is a registered tra demark of Gentex
Corporation.4.
3.
2.
5.A.
B.
1. Position the remote transmitter you wish to link 1 to 3 inches (3 - 8 cm) from the
HomeLink button you want to program.
Press and hold the desired HomeLink button. Hold the button on the remote
transmitter. Does the HomeLink indicato r (LED) change from slowly blinking to
constantly on or rapidly blinking? The process should take less than 60 seconds.
Press and hold the
programmed HomeLink
button for about a sec.
Does the device (garage
door opener) work? Press and release the Ho
meLink button. Press
and release the button on the remote every 2
secs.
Does the HomeLink indica tor (LED) change from
slowly blinking to constantly on or rapidly
blinking ? The process should take less than 60
seconds.
Training
Complete Press and hold the HomeLink button again.
Press and hold the HomeLink
button again.
The remote-controlled device
should operate.
Training Complete The remote has a ro
lling code. Press the
“learn” button on the remote-controlled
device (e.g. garage door opener).
Within 30 secs, press and hold the
programmed HomeLink button for 2 secs.
HomeLink indicator rapidly blinks.HomeLink LED is
constantly on.
YESNO
YES
YESNONO
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 389 ページ ２０１９年１０月３日　木曜日　午後４時５５分

414
Features
Bluetooth® HandsFreeLink ®
Bluetooth® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle’s audio system, without handling your cell phone.
Using HFL
■HFL Buttons
1 Bluetooth ® HandsFreeLink ®
Place your phone where y ou can get good reception.
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
•U.S.: Visit automobiles.honda.com /handsfreelink/,
or call 1-888-528 -7876.
•Canada: For more info rmation on smartphone
compatibility, call 1-855-490-7351.
To use the system, the Bluetooth On/Off Status
setting must be On. If there is an active connection to
Apple CarPlay
TM or Android AutoTM, HFL is
unavailable.
2 How to customize P. 360
Voice control tips
•Aim the vents away from the ceiling and close the
windows, as noise coming from them may interfere
with the microphone.
•Press the button when you want to call a
number using a stored voic e tag. Speak clearly and
naturally after a beep.
•If the microphone picks up vo ices other than yours,
the command may be misinterpreted.
•To change the volume level, select the audio
system’s VOL (Volume) or use the remote audio
controls on the steering wheel.
Up to three speed dial entries can be displayed
among a total of 20 that can be entered. 2 Speed Dial P. 428
Up to three previous calls can be displayed at a time
among a total of 20 that can be entered. If there is no
call history, Call History is disabled.
Models with Display Audio
(Talk) Button
( + (- Bar Microphone
(Hang-up/Back) Button
(Pick-up) Button
ENTER Button
(Display/Information) Button
Buttons34
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 414 ページ ２０１９年１０月３日　木曜日　午後４時５５分

559
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 560
Safety When Performing Maintenance ..561Parts and Fluids Used in Maintenance Service ........................................... 562
Maintenance Minder
TM..................... 563
Maintenance Under the Hood Maintenance Items Under the Hood .. 569
Opening the Hood ........................... 570
Recommended Engine Oil ................ 571
Oil Check ......................................... 572
Adding Engine Oil ............................ 573
Changing the Engine Oil and Oil Filter ...574
Engine Coolant ................................ 576
Transmission Fluid ............................ 578
Brake Fluid ....................................... 579
Refilling Window Wa sher Fluid......... 580
Replacing Light Bulbs ....................... 581
Checking and Maintaining Wiper Blades.. 586Checking and Maintaining Tires
Checking Tires ................................. 590
Tire and Loading Information Label ...... 591Tire Labeling .................................... 591DOT Tire Quality Grading (U.S. Vehicles).. 593Wear Indicators................................ 595
Tire Service Life ................................ 595 Tire and Wheel Replacement ........... 596
Tire Rotation .................................... 597
Winter Tires ..................................... 598
Battery ............................................... 599
Remote Transmitter Care Replacing the Button Battery ........... 601
Climate Control System Maintenance .. 603Cleaning
Interior Care .................................... 604
Exterior Care.................................... 606
Accessories and Modifications .......... 609
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 559 ページ ２０１９年１０月３日　木曜日　午後４時５５分

Index
657
Index
Index
Numbers
4WD.......................................................... 521
A
ABS (Anti-lock Brake System) .................. 534
Accessories and Modifications ................ 609
Accessory Power Sockets ......................... 217
Adaptive Cruise Control (ACC) with Low Speed Follow .......................................... 485
Adding the Coolant ................................. 577
Additives Coolant .................................................. 576
Engine Oil ............................................... 571
Washer ................................................... 580
Additives, Engine Oil ............................... 571
Adjusting Armrest .................................................. 207
Front Seats.............................................. 198
Head Restraints ....................................... 204
Mirrors.................................................... 196
Rear Seats ............................................... 202
Steering Wheel ....................................... 195
Temperature ........................................... 119
Adjusting the Sound ........................ 245, 283
Agile Handling Assist ............................... 515
Air Conditioning System (Climate
Control System) ...................................... 228
Changing the Mode................................ 229
Defrosting the Windshield and
Windows .............................................. 229 Dust and Pollen Filter ............................... 603
Recirculation/Fresh Air Mode ................... 229
Sensor ..................................................... 232
Synchronization Mode ............................. 231
Using Automatic Climate Control ............ 228
Air Pressure ....................................... 591, 645
Airbags ........................................................ 48
Advanced Airbags ..................................... 54
Airbag Care ............................................... 61
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 51
Indicator .............................................. 59, 83
Passenger Airbag Off Indicator .................. 60
Sensors ...................................................... 48
Side Airbags .............................................. 55
Side Curtain Airbags .................................. 57
All-Wheel Drive (AWD) ............................ 521
AM/FM Radio .................................... 247, 290
Android Auto
TM........................................ 327
Anti-lock Brake System (ABS) .................. 534
Indicator .................................................... 83
Apple CarPlay
TM........................................ 324
Armrest ..................................................... 207
Audio Remote Controls ............................ 237
Audio System ............................ 234, 240, 261
Adjusting the Sound ........................ 245, 283
AM/FM Radio .................................. 247, 290
Android Auto
TM....................................... 327
Apple CarPlayTM....................................... 324
Audio/Information Screen ................ 241, 262
Changing the Home Screen Icon Layout .. 266 Changing the Screen Interface ................ 280
Closing Apps ........................................... 282
Customizing the Meter............................ 267
Display Setup .................................. 246, 284
Error Messages ........................................ 331
General Information ................................ 336
Home Screen........................................... 273
HondaLink
®........................................... 316
How to use Siri ® Eyes Free .............. 260, 323
iPod ................................................ 249, 301
Limitations for Manual Operation ............ 285
Menu Customize ..................................... 281
MP3/WMA/AAC .............................. 254, 310
Pandora ®....................................... 252, 308
Playing Bluetooth ® Audio ................ 257, 313
Playing SiriusXM ® Radio .......................... 294
Reactivating ............................................ 236
Recommended Devices............................ 337
Remote Controls ..................................... 237
Security Code .......................................... 236
Selecting an Audio Source ....................... 285
Song By Voice
TM (SBV) ............................. 304
Status Area ............................................. 279
Theft Protection ...................................... 236
USB Flash Drives ...................... 254, 310, 337
USB Port(s) .............................................. 235
Voice Control Operation.......................... 286
Wallpaper Setup.............................. 243, 271
Wi-Fi Connection .................................... 321
Audio/Information Screen ............... 241, 262
Authorized Manuals ................................ 653
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 657 ページ ２０１９年１０月３日　木曜日　午後４時５５分

661
Index
High Beam Indicator.................................. 87
Hill Start Assist System ..................... 466, 471
HomeLink ® Universal Transceiver ........... 387
Honda App License Agreement .............. 338
Honda Sensing ®........................................ 26
HondaLink ®............................................ 316
I
Identification Numbers ............................ 646
Engine and Transmission ......................... 646
Vehicle Identification............................... 646
Ignition Switch ......................................... 170
Illumination Control ................................ 189
Knob ...................................................... 189
Immobilizer System .................................. 160
Immobilizer System Indicator..................... 88
Indicators .................................................... 78
Adaptive Cruise Control (ACC) with Low Speed Follow ............................ 92, 93, 485
Anti-lock Brake System (ABS) .................... 83
Auto Idle Stop (Amber) ............................. 90
Auto Idle Stop (Green) .............................. 89
Automatic Brake Hold ....................... 80, 532
Blind spot information ...................... 89, 517
Charging System............................... 81, 629
Collision Mitigati on Braking System
TM
(CMBSTM) .................................... 94, 95, 96
ECON Mode ..................................... 89, 482
Electric Power Steering (EPS)
System ............................................ 85, 633 Fog Light ................................................... 87
High Beam ................................................ 87
Immobilizer System .................................... 88
Lane Keeping Assist System (LKAS) ...... 93, 94
Lights On ................................................... 87
Low Fuel .................................................... 83
Low Oil Pressure ................................ 81, 629
Low Tire Pressure/TPMS ............... 85, 86, 526
Maintenance Minder ............................... 563
Malfunction Indicator Lamp ............... 81, 630
Parking Brake and Brake System
(Amber) ............................................. 79, 80
Parking Brake and Brake System (Red)........................................ 78, 631, 632
Road Departure Mitigation (RDM) .. 90, 91, 92
Seat Belt Reminder .............................. 41, 82
Security System Alarm ............................... 88
Shift Lever Position .................................... 82
Supplemental Restraint System ............ 59, 83
System Message ........................................ 86
Transmission .............................................. 82
Turn Signal ................................................ 87
Vehicle Stability Assist
TM (VSA ®)
System............................................. 84, 513
VSA ® OFF .......................................... 84, 514
Information ............................................... 643
Instant Fuel Economy ............................... 119
Instrument Panel ........................................ 77
Brightness Control ................................... 189
Interior Lights ........................................... 208
Interior Rearview Mirror .......................... 196iPod
................................................... 249, 301
J
Jack (Wheel Nut Wrench) ........................ 616
Jump Starting ........................................... 623
K
Key Number Tag ....................................... 136
Keyless Lockout Prevention ..................... 145
Keys ........................................................... 135
Lockout Prevention.................................. 145
Master Keys ............................................ 135
Number Tag ............................................ 136
Rear Door Won’t Open............................ 147
Remote Transmitter ................................. 142
Types and Functions ................................ 135
Valet Key................................................. 136
Won’t Turn ............................................... 29
Kickdown (Continuously Variable Transmission) .......................................... 473
L
Lane Keeping Assist System (LKAS) ......... 505
LaneWatchTM............................................ 519
LATCH (Child Seats) .............................. 67, 71
Lights ................................................. 176, 581
Auto High-Beam ..................................... 181
Automatic ............................................... 177
Bulb Replacement ................................... 581
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 661 ページ ２０１９年１０月３日　木曜日　午後４時５５分

663
Index
Passing Indicators..................................... 176
Playing Bluetooth ® Audio ............... 257, 313
Power Tailgate ......................................... 151
Power Windows ....................................... 163
Precautions While Driving ....................... 472
Driving Guidelines for Your Utility Vehicle .................................................. 472
Rain ........................................................ 472
Pregnant Women ....................................... 46
Puncture (Tire) ......................................... 613
R
Radio (FM/AM)................................. 247, 290
Radio (SiriusXM ®)..................................... 294
Radio Data System (RDS) ................. 248, 293
Range ........................................................ 115
RDS (Radio Data System) ................. 248, 293
Readiness Codes (Emissions Testing) ...... 649
Real Time AWD with Intelligent Control System
TM.................................................. 521
Rear Seat Heaters ..................................... 226
Rear Seats (Folding Down) ...................... 202
Rearview Mirror ....................................... 196
Refueling .................................................. 554
Fuel Gauge ............................................. 112
Gasoline ......................................... 554, 644
Low Fuel Indicator..................................... 83
Regulations .............................. 526, 593, 647
Remote Transmitter ................................. 142 Replacement
Battery .................................................... 601
Bulbs ....................................................... 581
Fuses ............................................... 635, 636
Rear Wiper Blade Rubber ......................... 588
Tires ........................................................ 596
Wiper Blade Rubber ................................. 586
Reporting Safety Defects ......................... 648
Resetting a Trip Meter ............................. 115
Road Departure Mitigation (RDM) .......... 501
On and Off .............................................. 503
S
Safe Driving ................................................ 33
Safety Check ............................................... 38
Safety Labels ............................................... 76
Safety Message ............................................. 1
Seat Belts ..................................................... 39
Adjusting the Shoulder Anchor .................. 44
Automatic Seat Belt Tensioners .................. 42
Checking ................................................... 47
Detachable Anchor .................................... 45
Fastening ................................................... 43
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 70
Pregnant Women ...................................... 46
Reminder ................................................... 41
Warning Indicator ................................ 41, 82
Seat Heaters ...................................... 225, 226 Seats
.......................................................... 198
Adjusting ................................................ 198
Driver’s Seat Lumbar Support .................. 198
Front Seat Heaters ................................... 225
Front Seats .............................................. 198
Rear Seats ............................................... 202
Seat Heaters .................................... 225, 226
Security System ......................................... 160
Security System Alarm Indicator................. 88
Select Lever ......................................... 23, 474
Operation.......................................... 23, 475
Releasing................................................. 626
Won’t Move ............................................ 626
Selecting a Child Seat ................................. 66
Selector Knob (Audio) .............................. 240
Setting the Clock ...................................... 132
Shift Lever ........................................... 23, 474
Shift Lever Position Indicator ............ 82, 475
Shifting (Transmission) ............................. 474
Shoulder Anchor ........................................ 44
Side Airbags ................................................ 55
Side Curtain Airbags .................................. 57
Siri ® Eyes Free ................................... 260, 323
SiriusXM ® Radio ........................................ 294
Smart Entry System .................................. 138
Snow Tires ................................................. 598
Song By Voice
TM (SBV) .............................. 304
Spare Tire .......................................... 613, 645
Spark Plugs ............................................... 644
Specifications ............................................ 644
Specified Fuel ................................... 554, 644
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 663 ページ ２０１９年１０月３日　木曜日　午後４時５５分
