fuse box location HONDA CR-V 2020 Owner's Manual (in English)

635Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any appl icable fuse is blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
VST 1(30 A)
Electric Brake Booster40 A
Main Fan Motor30 A
Relay Module 130 A
IG Main 2*230 A
−*3−
Relay Module 230 A
Battery125 A
2
EPS70 A
IG Main 130 A*2
50 A*3
Fuse Box Option40 A
Fuse Box 160 A
Front Wiper Motor30 A
Sub Fan Motor30 A
3
Rear Defroster40 A
Starter Motor30 A
Fuse Box 240 A
ABS/VSA Motor40 A
ABS/VSA FSR40 A
Blower Motor40 A
*1:Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
*2:Models with smart entry system
*3:Models without smart entry system
4
Option Block 1*2(40 A)
−*3−
Option Block 2*2(40 A)
−*3−
VST 2(30 A)
Power Tail Gate*2(40 A)
−*3−
5VB ACT7.5 A
6Washer15 A
7FI Main15 A
8FI Sub15 A
9Stop Lights10 A
10Injector20 A
11LAF7.5 A
Circuit ProtectedAmps
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 635 ページ ２０１９年１０月３日　木曜日　午後４時５５分

636
uuFuses uFuse Locations
Handling the Unexpected
Circuit ProtectedAmps
12FI ECU10 A
13Front Wiper Deicer*1(15 A)
−*2−
14Hazard10 A
15IG Coil15 A
16Transmission15 A
17−−
18Back Up10 A
19−−
20E-DPS*(20 A)
21Rear Seat Heater*1(20 A)
−*2−
22Front Fog Lights*/Lower
Shutter Grille(10 A)
23
Magnetic Clutch/Upper Shutter Grille*1,*210 A
VMP MAIN*3(20 A)
24Horn10 A
25Cooling Fan7.5 A
26−−
27Back Up 2(30 A)
28ST Magnetic Switch(7.5 A)
29−−
30−−
31VMP*3(10 A)
32−*3−
33−*3−
*1:Models with smart entry system
*2:Models without smart entry system
*3:Models with navigation system
34USB Charger*3(7.5 A)
35−*3−
36−*3−
Circuit ProtectedAmps
■Fuse Box A
Located under the dashboard.
Fuse locations are shown on the label on
the steering column lower cover.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box
Fuse Label
Fuse Box
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 636 ページ ２０１９年１０月３日　木曜日　午後４時５５分

638
uuFuses uFuse Locations
Handling the Unexpected

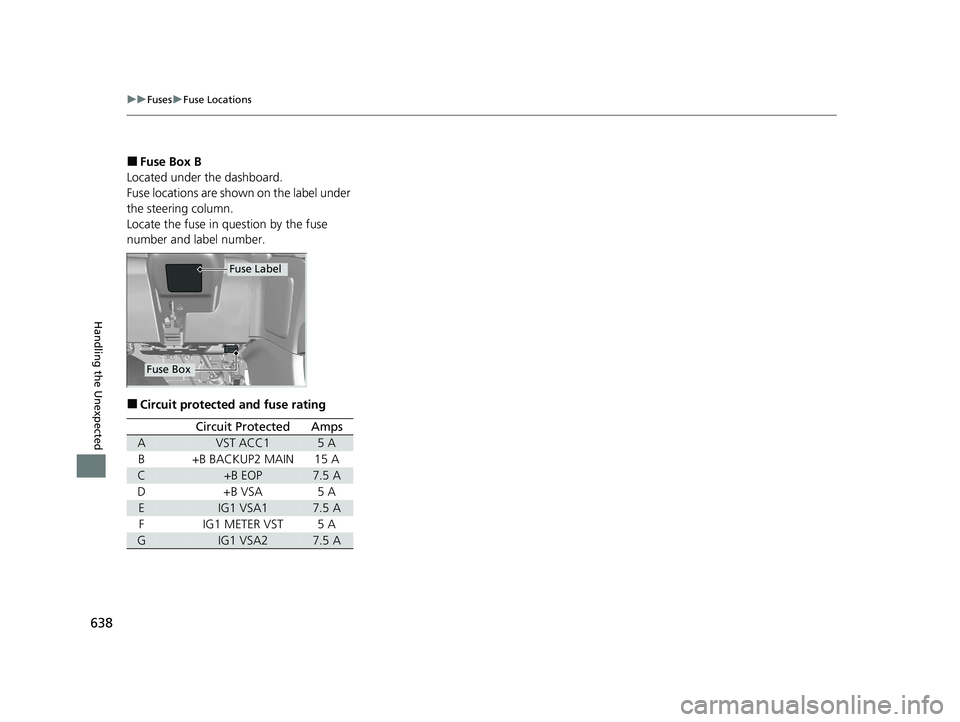

■Fuse Box B
Located under the dashboard.
Fuse locations are shown on the label under
the steering column.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
Fuse Label
Fuse Box
Circuit ProtectedAmps
AVST ACC15 A
B+B BACKUP2 MAIN15 A
C+B EOP7.5 A
D+B VSA5 A
EIG1 VSA17.5 A
FIG1 METER VST5 A
GIG1 VSA27.5 A
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 638 ページ ２０１９年１０月３日　木曜日　午後４時５５分

639
uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1.Turn the ignition switch to LOCK (0*1. Turn
the headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller, and replace it with a new
one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
conform the specific ampe rage on the fuse label.
2 Fuse Locations P. 635
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 639 ページ ２０１９年１０月３日　木曜日　午後４時５５分

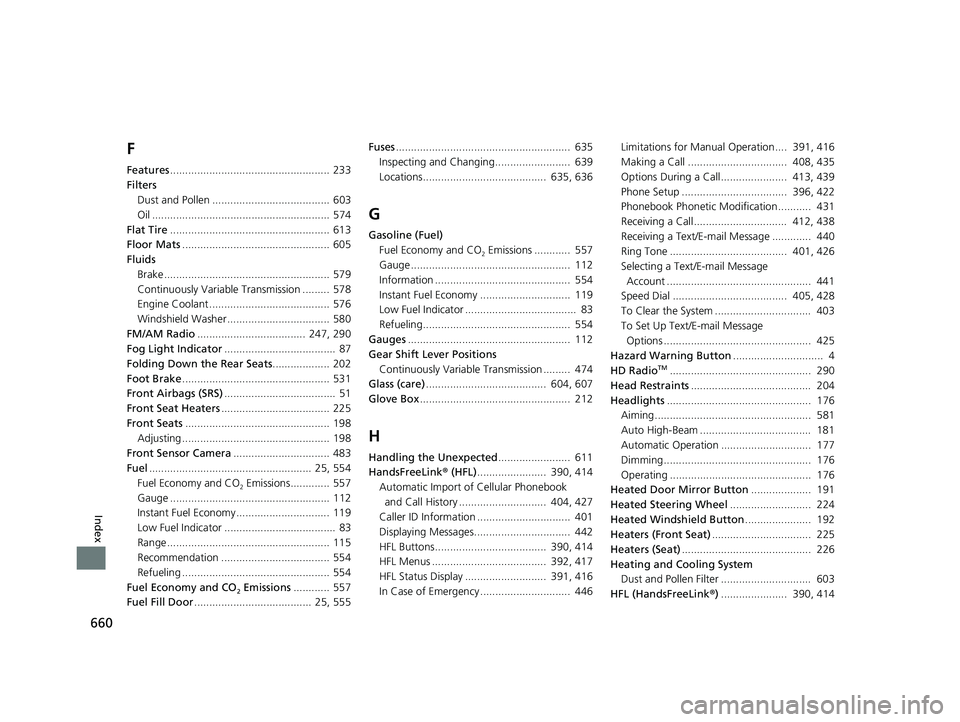

660
