mirror controls HONDA CR-V 2020 Owner's Manual (in English)

Contents
Child Safety P. 62Exhaust Gas Hazard P. 75Safety Labels P. 76
Opening and Closing the Tailgate P. 149 Security Sy stem P. 160 Opening and Closing the Windows P. 163
Operating the Switches Around the Steering Wheel P. 170 Adjusting the Mirrors P. 196
Interior Lights/Interior Convenience Items P. 208 Climate Control System P. 228
Audio Error Messages P. 331 General Information on the Audio System P. 336
Bluetooth ® HandsFreeLink ® P. 390, 414 Compass* P. 448
Off-Highway Driving Guidelines P. 463 When Driving P. 465 Braking P. 528
Refueling P. 554 Fuel Economy and CO
2 Emissions P. 557 Turbo Engine Vehicle P. 558
Maintenance Under the Hood P. 569 Replacing Light Bulbs P. 581
Checking and Maintaining Tires P. 590 Battery P. 599 Remote Transmitter Care P. 601
Cleaning P. 604 Accessories and Modifications P. 609
Engine Does Not Start P. 620Jump Starting P. 623 Shift Lever Does Not Move P. 626
Fuses P. 635 Emergency Towing P. 640
Refueling P. 642
Devices that Emit Radio Waves P. 647 Reporting Safety Defects P. 648
Authorized Manuals P. 653 Customer Service Information P. 654
Quick Reference GuideP. 4
Safe DrivingP. 33
Instrument PanelP. 77
ControlsP. 131
FeaturesP. 233
DrivingP. 451
MaintenanceP. 559
Handling the UnexpectedP. 611
InformationP. 643
IndexP. 657
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 3 ページ ２０１９年１０月３日　木曜日　午後４時５５分

Visual Index
6
Quick Reference Guide
❚Rearview Mirror (P196)
❚Driver's Front Airbag (P51)
❚Hood Release Handle (P570)
❚Driver’s Pocket
❚Fuel Fill Door Release Handle (P555)
❚Memory Buttons* (P 194)
❚Interior Fuse Box (P636)❚SET Button* (P 194)
❚Power Window Switches (P163)
❚Door Mirror Controls (P197)
❚Master Door Lock Switch (P 147)
❚Electric Parking Brake Switch
(P528)
❚Automatic Brake Hold Button
(P532)
❚Shift Lever (P474)
❚Auto Idle Stop OFF Button
(P477)
❚ECON Button (P482)
❚Wireless Charger* (P218)
❚Passenger's Front Airbag
(P51)
❚Accessory Power Socket
(P217)
❚USB Port(s) (P235)
❚Glove Box (P212)
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 6 ページ ２０１９年１０月３日　木曜日　午後４時５５分

131
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 132
Locking and Unlocking the Doors
Key Types and Functions .................. 135
Low Smart Entry Remote Signal Strength*..137Locking/Unlocking the Doors from the Outside .......................................... 138
Locking/Unlocking the Doors from the Inside ... 146Childproof Door Locks ..................... 147
Auto Door Locking/Unlocking .......... 148
Opening and Closing the Tailgate ... 149
Security System
Immobilizer System .......................... 160
Security System Alarm
*.................... 160Opening and Closing the Windows ..... 163
Moonroof*.............................................. 166Panoramic Roof*1.................................... 167Operating the Switches Around the Steering WheelIgnition Switch*............................... 170
ENGINE START/STOP Button*........... 171
Ignition Switch and Power Mode Comparison ................................... 174
Turn Signals ..................................... 175
Light Switches.................................. 176
Fog Lights
*...................................... 180
Auto High-Beam .............................. 181
Daytime Running Lights ................... 185
Wipers and Washers ........................ 186
Brightness Control ........................... 189 Defogger/Heated Door Mirror
*........ 191
Driving Position Memory System*.... 193
Adjusting the Steering Wheel .......... 195
Adjusting the Mirrors ....................... 196
Adjusting the Seats .......................... 198
Interior Lights/Interior Convenience Items.. 208Climate Control System
Using Automatic Climate Control .... 228
Synchronization Mode
*................... 231Automatic Climate Control Sensors ...... 232
(*1: Canadian models only, if equipped)
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 131 ページ ２０１９年１０月３日　木曜日　午後４時５５分

uuOperating the Switches Around the Steering Wheel uAuto High-Beam
182
Controls
If the auto high-beam indicator does not co me on even when all the conditions have
been met, carry out the following procedure and the indicator will come on.
• Pull the lever toward you for flashing the high beams then release it while driving.
■Automatic switching between high-beam and low-beam
When auto high-beam is ac tive, the headlights switch between high beam and low
beam based on the following conditions.
Switching to high beam:Switching to low beam:
All of the following conditions must
be met before the high beams turn
on.
●Your vehicle speed is 25 mph (40
km/h) or more.
●There are no preceding or
oncoming vehicle with headlights
or taillights turned on.
●There are few street lights on the
road ahead.
One of the following conditions
must be met before the low beams
turn on.
●Your vehicle speed is 15 mph (24
km/h) or less.
●There is a preceding or oncoming
vehicle with headlights or
taillights turned on.
●There are many street lights on
the road ahead.
1 How to Use the Auto High-Beam
In the following cases, th e auto high-beam system
may not switch the head lights properly or the
switching timing may be ch anged. In case of the
automatic switching operati on does not fit for your
driving habits, please swit ch the headlights manually.
•The brightness of the lights from the preceding or
oncoming vehicle is intense or poor.
•Visibility is poor due to the weather (rain, snow,
fog, windshield frost, etc.).
•Surrounding light sources, such as street lights,
electric billboards and traf fic lights are illuminating
the road ahead.
•The brightness level of th e road ahead constantly
changes.
•The road is bumpy or has many curves.•A vehicle suddenly appears in front of you, or a
vehicle in front of you is not in the preceding or
oncoming direction.
•Your vehicle is tilted with a heavy load in the rear.•A traffic sign, mirror, or other reflective object
ahead is reflecting strong light toward the vehicle.
•The oncoming vehicle freq uently disappears under
roadside trees or be hind median barriers.
•The preceding or oncoming vehicle is a motorcycle,
bicycle, mobility scooter, or other small vehicle.
The auto high-beam system keeps the headlight low
beam when:
•Windshield wipers are op erating at a high speed.
•The camera has been detected a dense fog.
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 182 ページ ２０１９年１０月３日　木曜日　午後４時５５分

191
uuOperating the Switches Around the Steering Wheel uDefogger/Heated Door Mirror*
Continued
Controls
Defogger/Heated Door Mirror*
Press the rear defogger and heated door mirror button to defog the rear window
and mirrors when the ignition switch is in ON
(w*1.
The rear defogger automatically switches off
after 10-30 minutes depending on the outside
temperature. However, if the outside
temperature is 32°F (0°C) or below, it does
not automatically switch off.
The rear defogger and heated door mirror
automatically switch of f after 10-30 minutes
depending on the outside temperature.
However, if the outsid e temperature is 32°F
(0°C) or below, they do not automatically
switch off.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Rear Defogger/Heated Door Mirror* Button1 Defogger/Heated Door Mirror*
This system consumes a lot of power, so turn it off
when the window has been defogged or deiced.
Also, do not use the system for a long period when
the engine is idling. This may weaken the battery,
making it difficult to start the engine.
When the outside temperature is below 41°F (5°C),
the heated door mirror may activate automatically for
10 minutes when you set the power mode to ON.
Models with heated door mirror
Models without heated door mirror
Models with heated door mirror
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 191 ページ ２０１９年１０月３日　木曜日　午後４時５５分

uuOperating the Switches Around the Steering Wheel uDefogger/Heated Door Mirror*
192
Controls

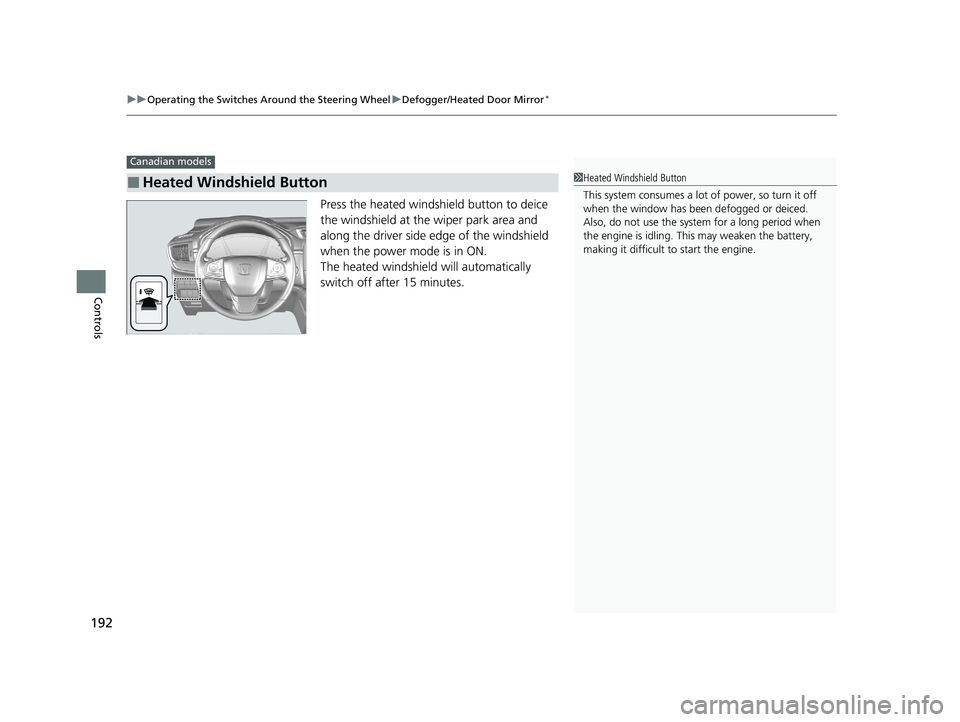

Press the heated windshield button to deice
the windshield at the wiper park area and
along the driver side edge of the windshield
when the power mode is in ON.
The heated windshield will automatically
switch off after 15 minutes.
■Heated Windshield Button
Canadian models
1Heated Windshield Button
This system consumes a lot of power, so turn it off
when the window has been defogged or deiced.
Also, do not use the system for a long period when
the engine is idling. This may weaken the battery,
making it difficult to start the engine.
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 192 ページ ２０１９年１０月３日　木曜日　午後４時５５分

196
Controls
Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
Flip the tab to switch the position.
The night position will help reduce the glare
from headlights behind you when driving
after dark.
When driving after dark, the automatic
dimming rearview mirror reduces the glare
from headlights behind you. This feature is
always active.
■Rearview Mirror with Day and Night Positions*
1Adjusting the Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving. 2 Front Seats P. 198
Tab
Daytime
Position
Night PositionUp
Down
■Automatic Dimming Rearview Mirror*
Sensor
1 Automatic Dimming Rearview Mirror*
The auto dimming function cancels when the shift
position is in (R.
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 196 ページ ２０１９年１０月３日　木曜日　午後４時５５分

197
uuAdjusting the Mirrors uPower Door Mirrors
Controls
Power Door Mirrors
You can adjust the door mirrors when the
ignition switch is in ON
(w*1.
■Mirror position adjustment
L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror positi on adjustment switch: Press
the switch left, right, up, or down to move the
mirror.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Selector
Switch
Adjustment
Switch
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 197 ページ ２０１９年１０月３日　木曜日　午後４時５５分

Continued223
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
To open the sunglasses holder, press and
release the indent. To close, press it again until
it latches.
You can store eyeglasses and other small
items in this holder.
■Conversation mirror
The sunglasses holder comes with a mirror.
Open the sunglasses holder fully, then push it
back to the first detent.
You can use the mirror to view the rear seats.
■Sunglasses Holder1 Sunglasses Holder
Keep the holder closed wh ile driving except when
accessing stored items.
Press
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 223 ページ ２０１９年１０月３日　木曜日　午後４時５５分

Index
657
Index
Index
Numbers
4WD.......................................................... 521
A
ABS (Anti-lock Brake System) .................. 534
Accessories and Modifications ................ 609
Accessory Power Sockets ......................... 217
Adaptive Cruise Control (ACC) with Low Speed Follow .......................................... 485
Adding the Coolant ................................. 577
Additives Coolant .................................................. 576
Engine Oil ............................................... 571
Washer ................................................... 580
Additives, Engine Oil ............................... 571
Adjusting Armrest .................................................. 207
Front Seats.............................................. 198
Head Restraints ....................................... 204
Mirrors.................................................... 196
Rear Seats ............................................... 202
Steering Wheel ....................................... 195
Temperature ........................................... 119
Adjusting the Sound ........................ 245, 283
Agile Handling Assist ............................... 515
Air Conditioning System (Climate
Control System) ...................................... 228
Changing the Mode................................ 229
Defrosting the Windshield and
Windows .............................................. 229 Dust and Pollen Filter ............................... 603
Recirculation/Fresh Air Mode ................... 229
Sensor ..................................................... 232
Synchronization Mode ............................. 231
Using Automatic Climate Control ............ 228
Air Pressure ....................................... 591, 645
Airbags ........................................................ 48
Advanced Airbags ..................................... 54
Airbag Care ............................................... 61
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 51
Indicator .............................................. 59, 83
Passenger Airbag Off Indicator .................. 60
Sensors ...................................................... 48
Side Airbags .............................................. 55
Side Curtain Airbags .................................. 57
All-Wheel Drive (AWD) ............................ 521
AM/FM Radio .................................... 247, 290
Android Auto
TM........................................ 327
Anti-lock Brake System (ABS) .................. 534
Indicator .................................................... 83
Apple CarPlay
TM........................................ 324
Armrest ..................................................... 207
Audio Remote Controls ............................ 237
Audio System ............................ 234, 240, 261
Adjusting the Sound ........................ 245, 283
AM/FM Radio .................................. 247, 290
Android Auto
TM....................................... 327
Apple CarPlayTM....................................... 324
Audio/Information Screen ................ 241, 262
Changing the Home Screen Icon Layout .. 266 Changing the Screen Interface ................ 280
Closing Apps ........................................... 282
Customizing the Meter............................ 267
Display Setup .................................. 246, 284
Error Messages ........................................ 331
General Information ................................ 336
Home Screen........................................... 273
HondaLink
®........................................... 316
How to use Siri ® Eyes Free .............. 260, 323
iPod ................................................ 249, 301
Limitations for Manual Operation ............ 285
Menu Customize ..................................... 281
MP3/WMA/AAC .............................. 254, 310
Pandora ®....................................... 252, 308
Playing Bluetooth ® Audio ................ 257, 313
Playing SiriusXM ® Radio .......................... 294
Reactivating ............................................ 236
Recommended Devices............................ 337
Remote Controls ..................................... 237
Security Code .......................................... 236
Selecting an Audio Source ....................... 285
Song By Voice
TM (SBV) ............................. 304
Status Area ............................................. 279
Theft Protection ...................................... 236
USB Flash Drives ...................... 254, 310, 337
USB Port(s) .............................................. 235
Voice Control Operation.......................... 286
Wallpaper Setup.............................. 243, 271
Wi-Fi Connection .................................... 321
Audio/Information Screen ............... 241, 262
Authorized Manuals ................................ 653
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 657 ページ ２０１９年１０月３日　木曜日　午後４時５５分
