uuIf the 12-Volt Battery Is Dead u
646
Handling the Unexpected
5.Connect the other end of the second
jumper cable to the engine mounting bolt
as shown. Do not connect this jumper cable
to any other part.
6. If your vehicle is connected to another
vehicle, start the assisting vehicle's engine
and increase its rpm slightly.
7. Attempt to start your vehicle's engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
Once your vehicle's engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle's ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle's 12-volt battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts
1Jump Starting Procedure
The indicators for the Adaptive Cruise Control (ACC)
with Low Speed Follow, Roa d Departure Mitigation,
Vehicle Stability Assist
TM (VSA ®) system, Vehicle
Stability AssistTM (VSA ®) OFF, Collision Mitigation
Braking SystemTM (CMBSTM), low tire pressure/TPMS,
and Parking Brake and Br ake System (Amber) may
come on along with a message in the Driver
Information Interface when you set the power mode
to ON after reconnecting the 12-volt battery.
Drive a short distance at more than 12 mph (20 km/
h). Each indicator should go off. If any do not, have
your vehicle checked by a dealer.
21 CR-V HYBRID HMIN-31TPG6100.book 646 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

650
Handling the Unexpected

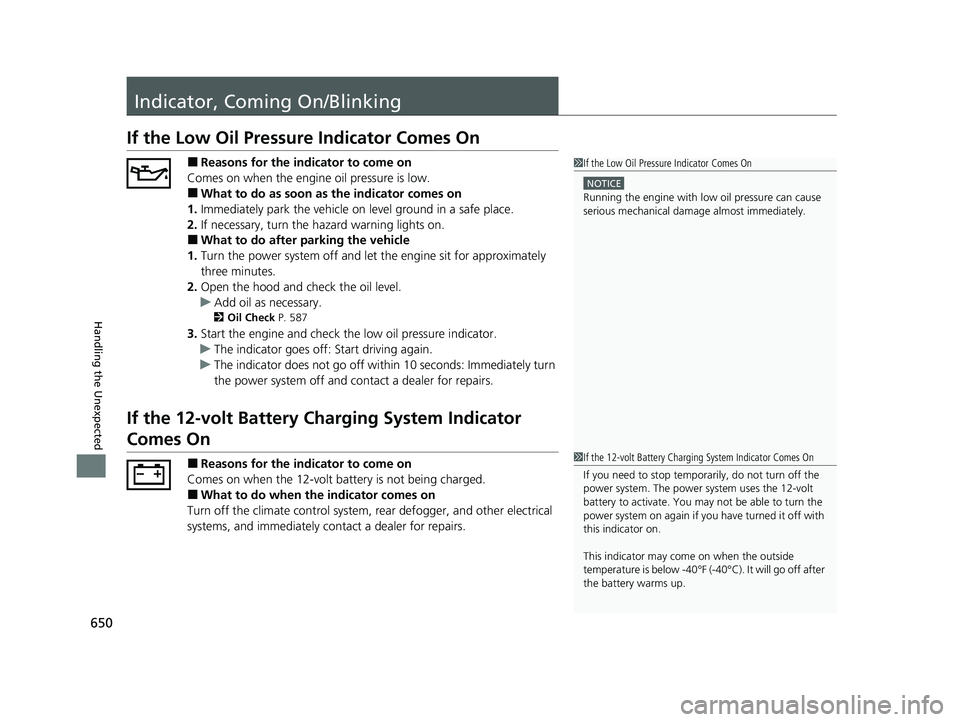

Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the ha zard warning lights on.
■What to do after parking the vehicle
1. Turn the power system off and let the engine sit for approximately
three minutes.
2. Open the hood and check the oil level.
u Add oil as necessary.
2 Oil Check P. 587
3.Start the engine and check th e low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off within 10 seconds: Immediately turn
the power system off and co ntact a dealer for repairs.
If the 12-volt Battery Charging System Indicator
Comes On
■Reasons for the indicator to come on
Comes on when the 12-volt battery is not being charged.
■What to do when the indicator comes on
Turn off the climate con trol system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.
1 If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the 12-volt Battery Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
power system. The power system uses the 12-volt
battery to activate. You may not be able to turn the
power system on again if you have turned it off with
this indicator on.
This indicator may come on when the outside
temperature is below -40°F (-40°C). It will go off after
the battery warms up.
21 CR-V HYBRID HMIN-31TPG6100.book 650 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

657Continued
Handling the Unexpected

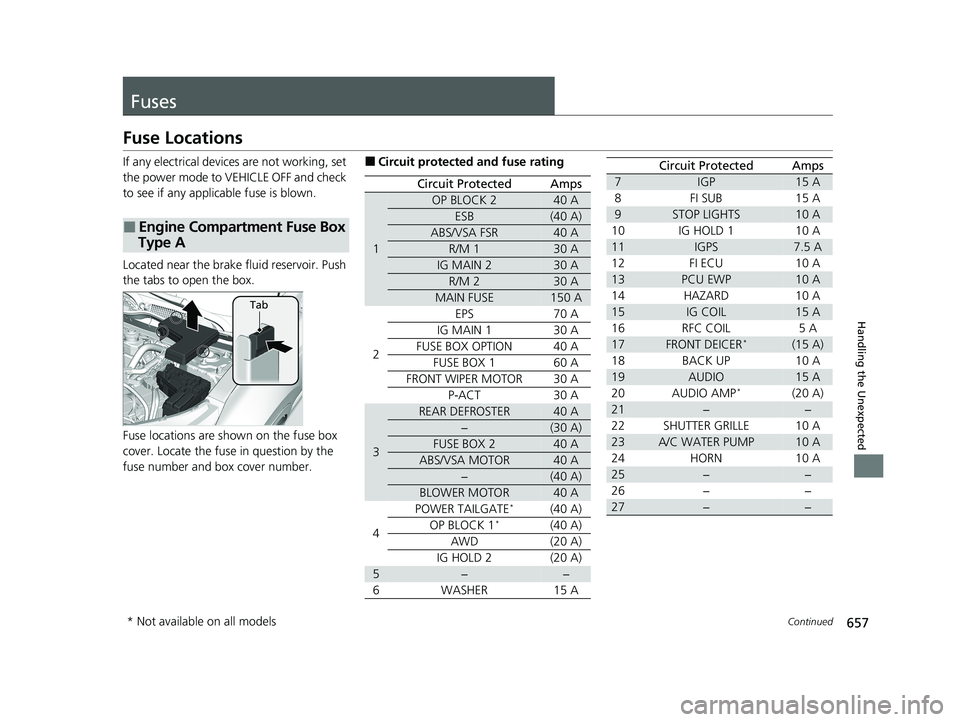

Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF and check
to see if any applic able fuse is blown.
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
OP BLOCK 240 A
ESB(40 A)
ABS/VSA FSR40 A
R/M 130 A
IG MAIN 230 A
R/M 230 A
MAIN FUSE150 A
2
EPS70 A
IG MAIN 130 A
FUSE BOX OPTION40 A
FUSE BOX 160 A
FRONT WIPER MOTOR30 A
P-ACT30 A
3
REAR DEFROSTER40 A
−(30 A)
FUSE BOX 240 A
ABS/VSA MOTOR40 A
−(40 A)
BLOWER MOTOR40 A
4
POWER TAILGATE*(40 A)
OP BLOCK 1*(40 A)
AWD(20 A)
IG HOLD 2(20 A)
5−−
6WASHER15 A
7IGP15 A
8FI SUB15 A
9STOP LIGHTS10 A
10IG HOLD 110 A
11IGPS7.5 A
12FI ECU10 A
13PCU EWP10 A
14HAZARD10 A
15IG COIL15 A
16RFC COIL5 A
17FRONT DEICER*(15 A)
18BACK UP10 A
19AUDIO15 A
20AUDIO AMP*(20 A)
21−−
22SHUTTER GRILLE10 A
23A/C WATER PUMP10 A
24HORN10 A
25−−
26−−
27−−
Circuit ProtectedAmps
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 657 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

660
uuFuses uInspecting and Changing Fuses
Handling the Unexpected

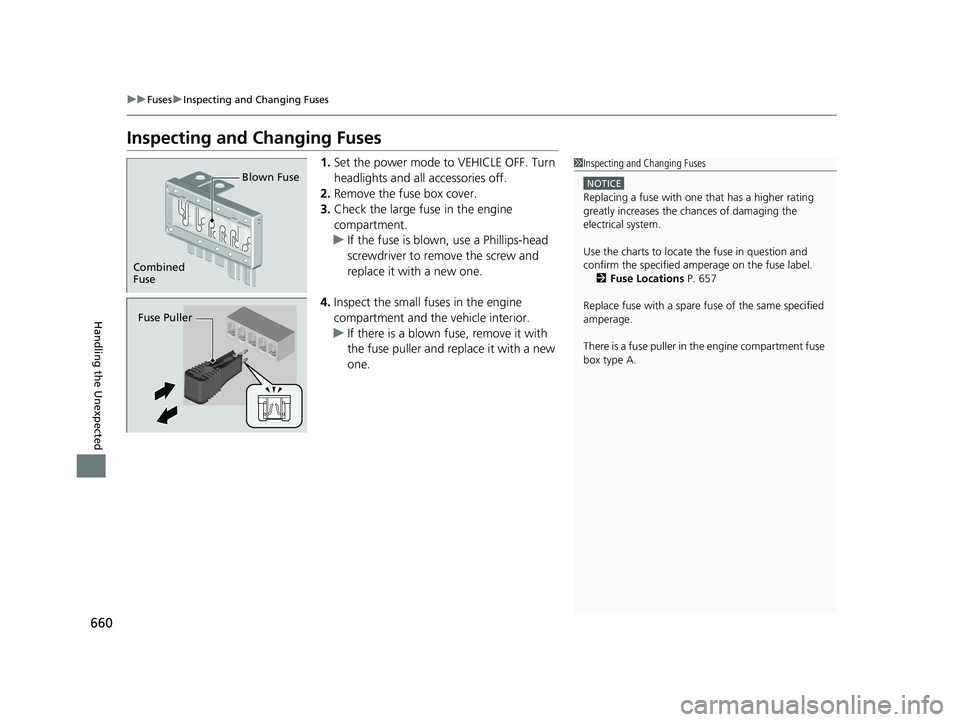

Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.
2 Fuse Locations P. 657
Replace fuse with a spare fuse of the same specified
amperage.
There is a fuse puller in the engine compartment fuse
box type A.
Combined
Fuse Blown Fuse
Fuse Puller
21 CR-V HYBRID HMIN-31TPG6100.book 660 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

681

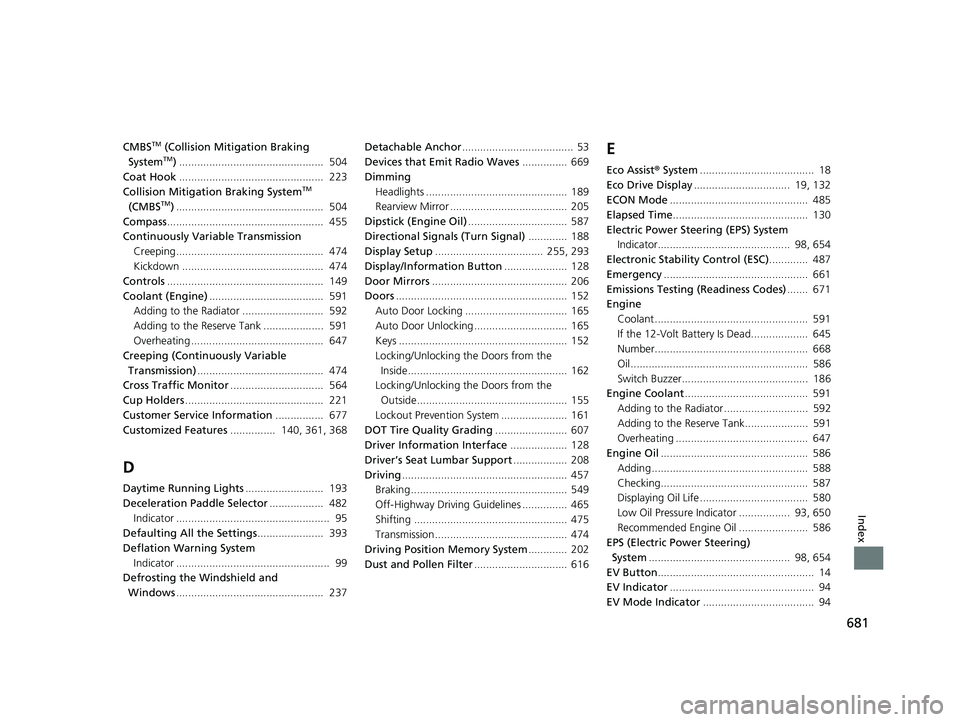

Index
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 504
Coat Hook ................................................ 223
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 504
Compass .................................................... 455
Continuously Variable Transmission Creeping................................................. 474
Kickdown ............................................... 474
Controls .................................................... 149
Coolant (Engine) ...................................... 591
Adding to the Radiator ........................... 592
Adding to the Reserve Tank .................... 591
Overheating ............................................ 647
Creeping (Continuously Variable Transmission) .......................................... 474
Cross Traffic Monitor ............................... 564
Cup Holders .............................................. 221
Customer Service Information ................ 677
Customized Features ............... 140, 361, 368
D
Daytime Running Lights .......................... 193
Deceleration Paddle Selector .................. 482
Indicator ................................................... 95
Defaulting All the Settings ...................... 393
Deflation Warning System Indicator ................................................... 99
Defrosting the Windshield and
Windows ................................................. 237 Detachable Anchor
..................................... 53
Devices that Emit Radio Waves ............... 669
Dimming Headlights ............................................... 189
Rearview Mirror ....................................... 205
Dipstick (Engine Oil) ................................. 587
Directional Signals (Turn Signal) ............. 188
Display Setup .................................... 255, 293
Display/Information Button ..................... 128
Door Mirrors ............................................. 206
Doors ......................................................... 152
Auto Door Locking .................................. 165
Auto Door Unlocking ............................... 165
Keys ........................................................ 152
Locking/Unlocking the Doors from the Inside..................................................... 162
Locking/Unlocking the Doors from the
Outside.................................................. 155
Lockout Prevention System ...................... 161
DOT Tire Quality Grading ........................ 607
Driver Information Interface ................... 128
Driver’s Seat Lumbar Support .................. 208
Driving ....................................................... 457
Braking .................................................... 549
Off-Highway Driving Guidelines ............... 465
Shifting ................................................... 475
Transmission ............................................ 474
Driving Position Memory System ............. 202
Dust and Pollen Filter ............................... 616
E
Eco Assist® System ...................................... 18
Eco Drive Display ................................ 19, 132
ECON Mode .............................................. 485
Elapsed Time ............................................. 130
Electric Power Steering (EPS) System Indicator............................................ 98, 654
Electronic Stability Control (ESC) ............. 487
Emergency ................................................ 661
Emissions Testing (Readiness Codes) ....... 671
Engine
Coolant ................................................... 591
If the 12-Volt Battery Is Dead................... 645
Number................................................... 668
Oil ........................................................... 586
Switch Buzzer.......................................... 186
Engine Coolant ......................................... 591
Adding to the Radiator ............................ 592
Adding to the Reserve Tank..................... 591
Overheating ............................................ 647
Engine Oil ................................................. 586
Adding .................................................... 588
Checking................................................. 587
Displaying Oil Life .................................... 580
Low Oil Pressure Indicator ................. 93, 650
Recommended Engine Oil ....................... 586
EPS (Electric Power Steering) System ............................................... 98, 654
EV Button .................................................... 14
EV Indicator ................................................ 94
EV Mode Indicator ..................................... 94
21 CR-V HYBRID HMIN-31TPG6100.book 681 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

684

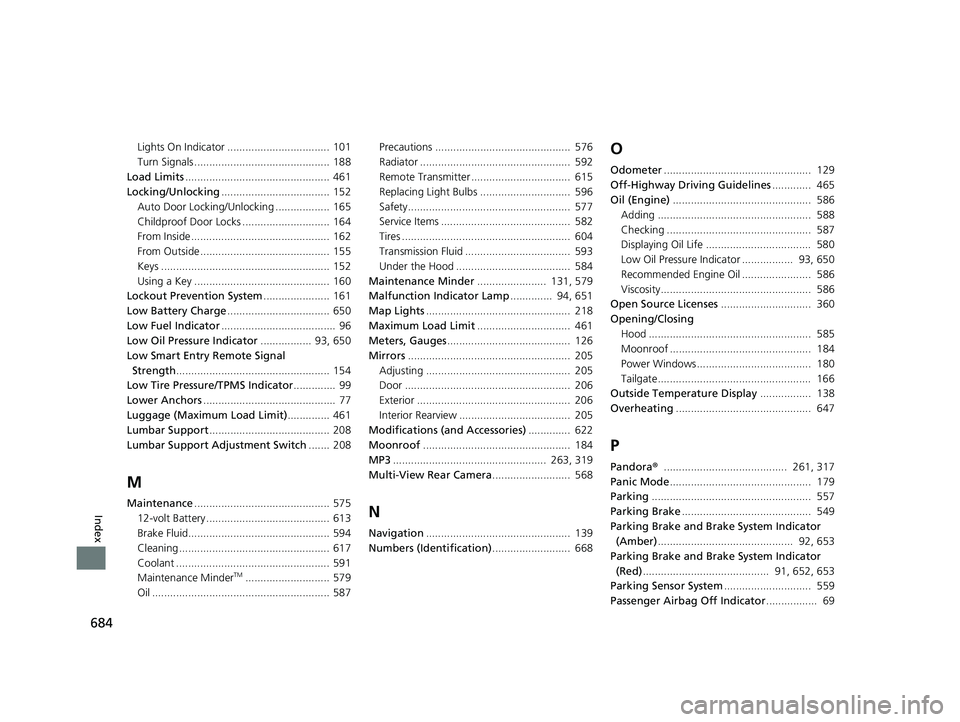

Index
Lights On Indicator .................................. 101
Turn Signals ............................................. 188
Load Limits ................................................ 461
Locking/Unlocking .................................... 152
Auto Door Locking/Unlocking .................. 165
Childproof Door Locks ............................. 164
From Inside .............................................. 162
From Outside ........................................... 155
Keys ........................................................ 152
Using a Key ............................................. 160
Lockout Prevention System ...................... 161
Low Battery Charge .................................. 650
Low Fuel Indicator ...................................... 96
Low Oil Pressure Indicator ................. 93, 650
Low Smart Entry Remote Signal Strength ................................................... 154
Low Tire Pressure/TPMS Indicator .............. 99
Lower Anchors ............................................ 77
Luggage (Maximum Load Limit) .............. 461
Lumbar Support ........................................ 208
Lumbar Support Adjustment Switch ....... 208
M
Maintenance............................................. 575
12-volt Battery ......................................... 613
Brake Fluid............................................... 594
Cleaning .................................................. 617
Coolant ................................................... 591
Maintenance Minder
TM............................ 579
Oil ........................................................... 587 Precautions ............................................. 576
Radiator .................................................. 592
Remote Transmitter ................................. 615
Replacing Light Bulbs .............................. 596
Safety...................................................... 577
Service Items ........................................... 582
Tires ........................................................ 604
Transmission Fluid ................................... 593
Under the Hood ...................................... 584
Maintenance Minder ....................... 131, 579
Malfunction Indicator Lamp .............. 94, 651
Map Lights ................................................ 218
Maximum Load Limit ............................... 461
Meters, Gauges ......................................... 126
Mirrors ...................................................... 205
Adjusting ................................................ 205
Door ....................................................... 206
Exterior ................................................... 206
Interior Rearview ..................................... 205
Modifications (and Accessories) .............. 622
Moonroof ................................................. 184
MP3 ................................................... 263, 319
Multi-View Rear Camera .......................... 568
N
Navigation................................................ 139
Numbers (Identification) .......................... 668
O
Odometer................................................. 129
Off-Highway Driving Guidelines ............. 465
Oil (Engine) .............................................. 586
Adding ................................................... 588
Checking ................................................ 587
Displaying Oil Life ................................... 580
Low Oil Pressure Indicator ................. 93, 650
Recommended Engine Oil ....................... 586
Viscosity.................................................. 586
Open Source Licenses .............................. 360
Opening/Closing Hood ...................................................... 585
Moonroof ............................................... 184
Power Windows...................................... 180
Tailgate................................................... 166
Outside Temperature Display ................. 138
Overheating ............................................. 647
P
Pandora®......................................... 261, 317
Panic Mode ............................................... 179
Parking ..................................................... 557
Parking Brake ........................................... 549
Parking Brake and Brake System Indicator (Amber) ............................................. 92, 653
Parking Brake and Brake System Indicator (Red) .......................................... 91, 652, 653
Parking Sensor System ............................. 559
Passenger Airbag Off Indicator ................. 69
21 CR-V HYBRID HMIN-31TPG6100.book 684 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
