fuse box HONDA CR-V 2021 Owner's Manual (in English)

Visual Index
8
Quick Reference Guide
❚Rearview Mirror (P205)
❚Driver’s Front Airbag
(P59)
❚Memory Buttons* (P 203)
❚Interior Fuse Box (P659)
❚Passenger’s Front Airbag
(P59)
❚SET Button* (P 203)
❚Power Window Switches (P181)
❚Door Mirror Controls (P206)
❚Master Door Lock Switch (P 164)
❚Electric Parking Brake
Switch
(P549)
❚Automatic Brake Hold
Button
(P553)
❚Glove Box (P219)
❚SPORT Button (P481)
❚Accessory Power Socket
(P228)
❚Shift Buttons (P475)
❚EV Button (P14)
❚ECON Button (P485)
❚Wireless Charger* (P229)
❚USB Port(s) (P243)
❚Hood Release Handle (P585)
❚Fuel Fill Door Release Handle (P571)
❚Driver’s Pocket
21 CR-V HYBRID HMIN-31TPG6100.book 8 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

657Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF and check
to see if any applic able fuse is blown.
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
OP BLOCK 240 A
ESB(40 A)
ABS/VSA FSR40 A
R/M 130 A
IG MAIN 230 A
R/M 230 A
MAIN FUSE150 A
2
EPS70 A
IG MAIN 130 A
FUSE BOX OPTION40 A
FUSE BOX 160 A
FRONT WIPER MOTOR30 A
P-ACT30 A
3
REAR DEFROSTER40 A
−(30 A)
FUSE BOX 240 A
ABS/VSA MOTOR40 A
−(40 A)
BLOWER MOTOR40 A
4
POWER TAILGATE*(40 A)
OP BLOCK 1*(40 A)
AWD(20 A)
IG HOLD 2(20 A)
5−−
6WASHER15 A
7IGP15 A
8FI SUB15 A
9STOP LIGHTS10 A
10IG HOLD 110 A
11IGPS7.5 A
12FI ECU10 A
13PCU EWP10 A
14HAZARD10 A
15IG COIL15 A
16RFC COIL5 A
17FRONT DEICER*(15 A)
18BACK UP10 A
19AUDIO15 A
20AUDIO AMP*(20 A)
21−−
22SHUTTER GRILLE10 A
23A/C WATER PUMP10 A
24HORN10 A
25−−
26−−
27−−
Circuit ProtectedAmps
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 657 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

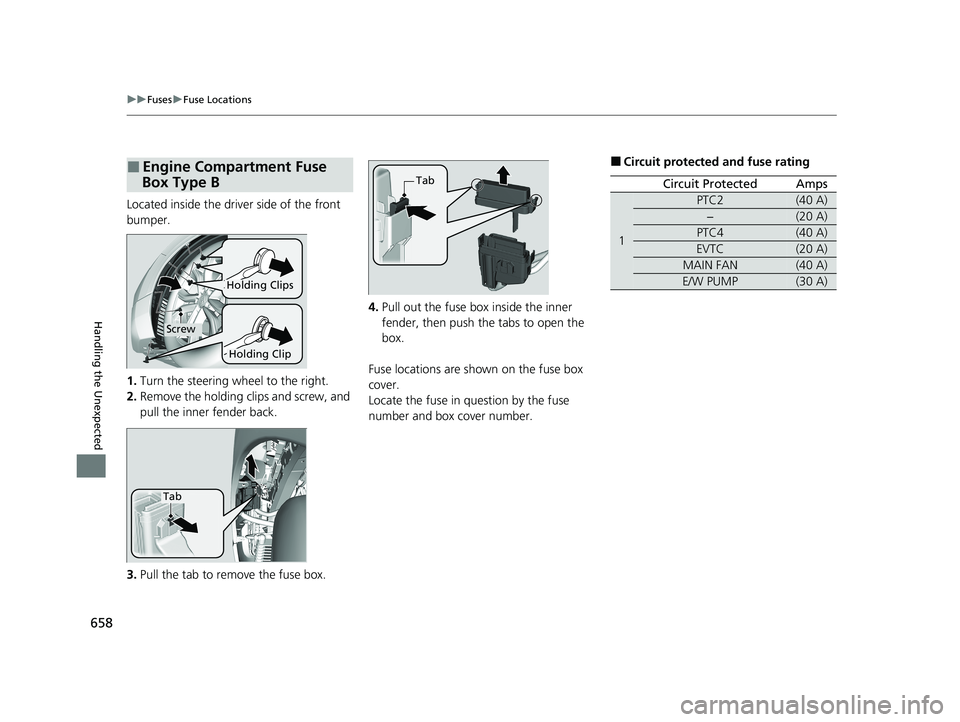

658
uuFuses uFuse Locations
Handling the Unexpected
Located inside the driver side of the front
bumper.
1. Turn the steering wheel to the right.
2. Remove the holding clips and screw, and
pull the inner fender back.
3. Pull the tab to remove the fuse box.
■Engine Compartment Fuse
Box Type B
Holding Clips
Screw
Holding Clip
Tab
4. Pull out the fuse box inside the inner
fender, then push the tabs to open the
box.
Fuse locations are sh own on the fuse box
cover.
Locate the fuse in question by the fuse
number and box cover number.
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
PTC2(40 A)
−(20 A)
PTC4(40 A)
EVTC(20 A)
MAIN FAN(40 A)
E/W PUMP(30 A)
21 CR-V HYBRID HMIN-31TPG6100.book 658 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

659
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the steering column lower cover.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box
Fuse Label
Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1ACCESSORY10 A
2ACC KEY LOCK5 A
3IG1 P-DRV5 A
4IG1 OPTION 25 A
5IG1 OPTION10 A
6IG1 SRS 210 A
7IG1 METER10 A
8IG1 FUEL PUMP15 A
9IG2 A/C10 A
10CTR ACCESSORY SOCKET(20 A)
11IG1 MONITOR5 A
12R SIDE DOOR LOCK10 A
13L SIDE DOOR UNLOCK10 A
14P/W RR L20 A
15P/W AS20 A
16DOOR LOCK20 A
17IG1 TCU(10 A)
18DR POWER LUMBAR*(10 A)
19MOONROOF*(20 A)
20IG1 STARTER10 A
21IG1 ACG10 A
22IG2 DAYTIME LIGHT10 A
23USB CHARGER*(7.5 A)
24+B OPTION5 A
25DR DOOR LOCK(10 A)
26R SIDE DOOR UNLOCK10 A
27P/W RR R20 A
28P/W DR20 A
29FR ACCESSORY SOCKET*20 A
30SMART10 A
31DR P/SEAT RECLINE*(20 A)
32FR HEATED SEAT*(20 A)
33DR P/SEAT SLIDE*(20 A)
34IG1 ABS/VSA10 A
35IG1 SRS10 A
36HAC OPTION20 A
37+B TRAILER15 A
38L SIDE DOOR LOCK10 A
39DR DOOR UNLOCK(10 A)
aPTG*(20 A)
bAS P/SEAT SLIDE*(20 A)
cAS P/SEAT RECLINE*(20 A)
dSUNSHADE*(20 A)
eIMA 110 A
fRR HEATED SEAT*(20 A)
gHEATED STRG*(10 A)
hSBW15 A
Circuit ProtectedAmps
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 659 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

660
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.
2 Fuse Locations P. 657
Replace fuse with a spare fuse of the same specified
amperage.
There is a fuse puller in the engine compartment fuse
box type A.
Combined
Fuse Blown Fuse
Fuse Puller
