HONDA CR-V 2021 Owner's Manual (in English)

270
Features
Audio System Basic Operation
To use the audio system function, the power mode must be in ACCESSORY or ON.
(Home): Select to go to the home screen.
2 Switching the Display P. 271
(Map)*: Select to display the map screen.
2Refer to the Navigation System Manual
(Audio): Select to disp lay the audio screen.
(Phone): Select to display the phone
screen.
(Back): Select to go back to the previous
screen when the icon is illuminated.
(Day/Night): Select to change the audio/
information screen brightness.
Select once and select
(- or (+ to make
an adjustment. u Each time you select , the mode
switches among the daytime mode,
nighttime mode and off mode.
1Audio System Basic Operation
Audio Menu Items
2 Station List P. 300, 302
2 Music Search List P. 311, 320
2 Scan P. 301, 309, 321
2 Play Mode P. 312, 321Models with Display Audio
(Map) Icon*
(Phone) Icon
(Back) Icon
(Day/Night) Icon
(Home) Icon
(Audio) Icon
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 270 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

271
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features
Audio/Information Screen
Displays the audio status and wallpaper. From this display, you can go to various
setup options.
■Using the (display /information) button
Press the (display/i nformation) button to change the display.
■Switching the Display
1Using the (display/information) button
You can edit, add, and dele te the contents shown on
the driver information interface.
2 Customizing the Meter P. 276
Driver Information Interface
(Display/Information) Button
21 CR-V HYBRID HMIN-31TPG6100.book 271 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

uuAudio System Basic Operation uAudio/Information Screen
272
Features
■Using the audio/information screen
Select to go to the home screen.
Select the following ic ons on the home screen.
■Phone
Displays the HFL information.
2 Bluetooth ® HandsFreeLink ® P. 421
1 Using the audio/in formation screen
Touchscreen operation
•Use simple gestures - in cluding touching, swiping
and scrolling - to operate certain audio functions.
•Some items may be grayed out during driving to
reduce the potential for distraction.
•You can select them when the vehicle is stopped or
use voice commands.
•Wearing gloves may limit or prevent touchscreen
response.
You can change the touchs creen sensitivity setting.
2 Customized Features P. 368
Home Screen
21 CR-V HYBRID HMIN-31TPG6100.book 272 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

273
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features
■Info
Displays Trip Computer , Voice Info, Clock/Wallpaper , or System/Device
Information . Select MENU on the Info Menu screen to see all available options:
Trip Computer , Voice Info , Clock/Wallpaper and System/Device Information .
Trip Computer :
• Current Drive tab: Displays the current trip information.
• History of Trip A tab: Displays information for the three previous drives. The
information is stored every time you reset Trip A.
To delete the history manually, select Delete history on the History of Trip A
tab. The confirmation message appears on the screen, then select Yes.
Voice Info : Displays the All Commands list.
Clock/Wallpaper : Displays the clock and wallpaper.
System/Device Information :
• System Info : Displays the software version of the audio system.
• USB Info : Displays the memory usage of the USB device.
■Audio
Displays the current audio information.
■Settings
Enters the customizing menu screen.
2 Customized Features P. 368
■Navigation*
Displays the navigation screen.
2Refer to the Navigation System Manual
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 273 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

274
uuAudio System Basic Operation uAudio/Information Screen
Features
■HondaLink
Displays the HondaLink ® screen.
2 HondaLink ® P. 324
■Smartphone Connection
Displays the Apple CarPlayTM or Android AutoTM.
2 Apple CarPlayTM P. 332
2 Android AutoTM P. 335
■App List ( )
Adds or removes apps or widgets on the home screen.
2 Home Screen P. 282
■Instrument Panel
Selects from three customizable setting s for the driver information interface.
21 CR-V HYBRID HMIN-31TPG6100.book 274 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

275
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features

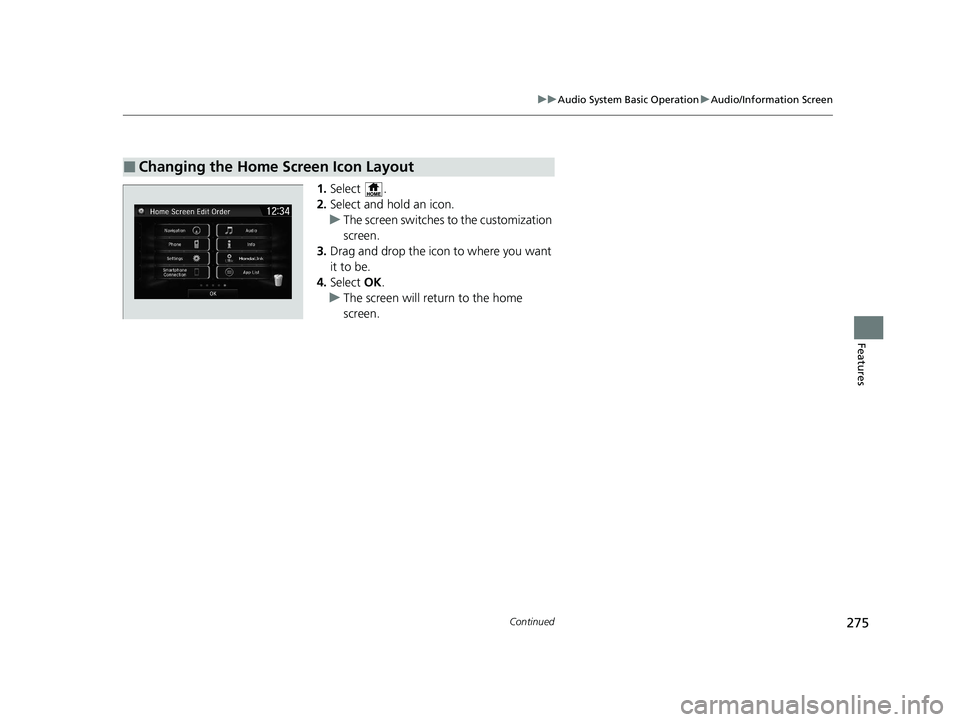

1. Select .
2. Select and hold an icon.
u The screen switches to the customization
screen.
3. Drag and drop the icon to where you want
it to be.
4. Select OK.
u The screen will return to the home
screen.
■Changing the Home Screen Icon Layout
21 CR-V HYBRID HMIN-31TPG6100.book 275 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

uuAudio System Basic Operation uAudio/Information Screen
276
Features

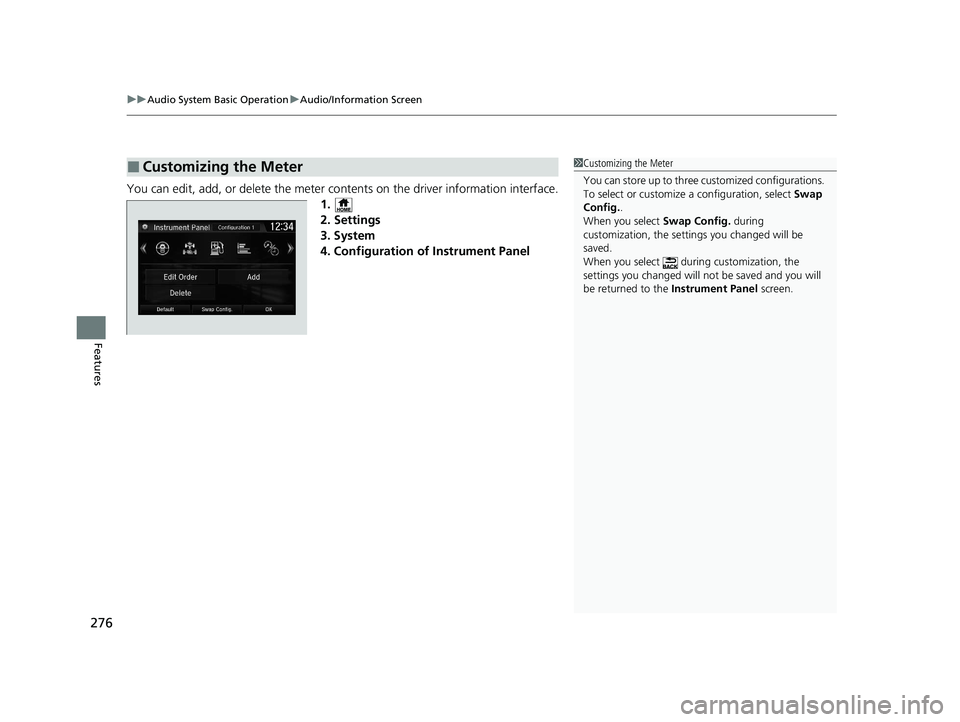

You can edit, add, or delete the meter co ntents on the driver information interface.
1.
2. Settings
3. System
4. Configuration of Instrument Panel
■Customizing the Meter1 Customizing the Meter
You can store up to three customized configurations.
To select or customize a configuration, select Swap
Config. .
When you select Swap Config. during
customization, the settings you changed will be
saved.
When you select during customization, the
settings you changed will not be saved and you will
be returned to the Instrument Panel screen.
21 CR-V HYBRID HMIN-31TPG6100.book 276 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

Continued277
uuAudio System Basic Operation uAudio/Information Screen
Features

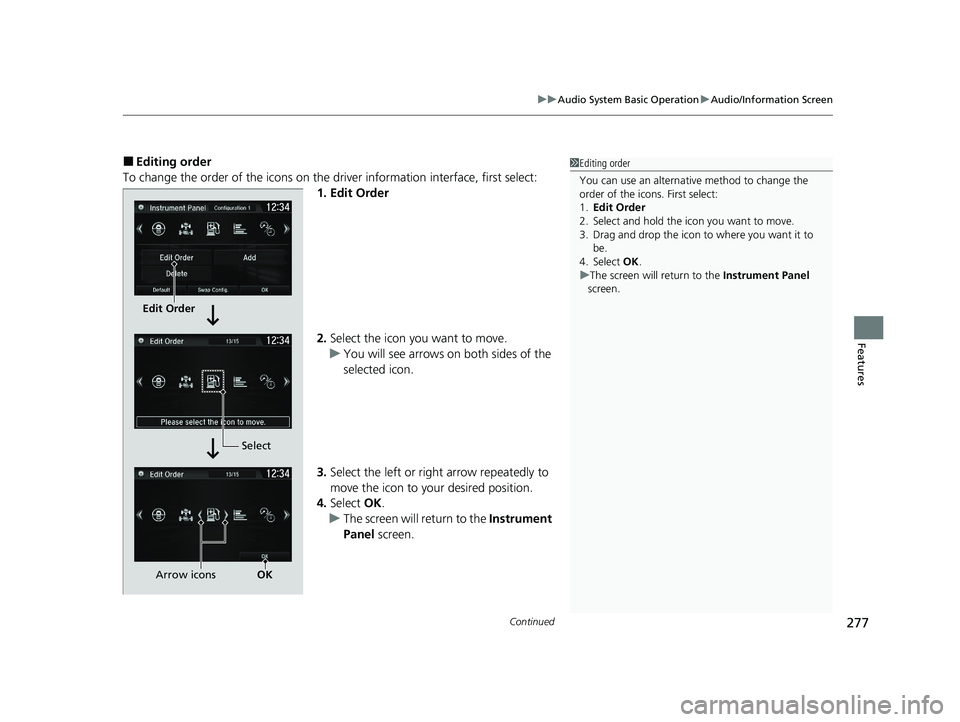

■Editing order
To change the order of the icons on the driver information interface, first select: 1. Edit Order
2.Select the icon you want to move.
u You will see arrows on both sides of the
selected icon.
3. Select the left or right arrow repeatedly to
move the icon to your desired position.
4. Select OK.
u The screen will return to the Instrument
Panel screen.1Editing order
You can use an alternative method to change the
order of the icons. First select:
1. Edit Order
2. Select and hold the icon you want to move.
3. Drag and drop the icon to where you want it to be.
4. Select OK .
u The screen will return to the Instrument Panel
screen.
Edit Order
Select
Arrow icons OK
21 CR-V HYBRID HMIN-31TPG6100.book 277 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

uuAudio System Basic Operation uAudio/Information Screen
278
Features

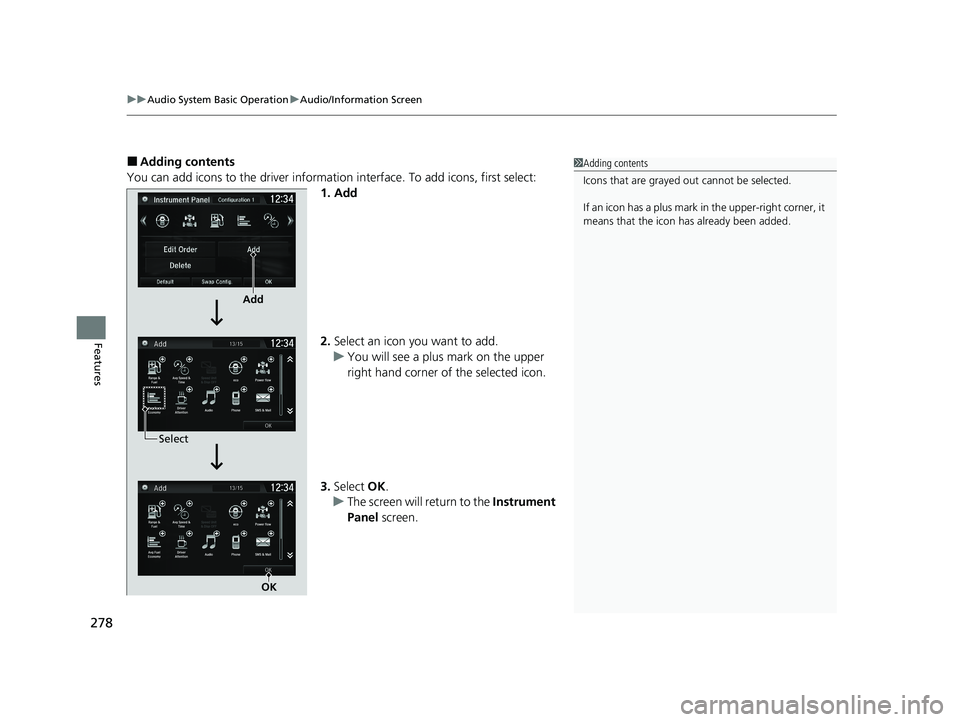

■Adding contents
You can add icons to the driver informati on interface. To add icons, first select:
1. Add
2. Select an icon you want to add.
u You will see a plus mark on the upper
right hand corner of the selected icon.
3. Select OK.
u The screen will return to the Instrument
Panel screen.1Adding contents
Icons that are grayed out cannot be selected.
If an icon has a plus mark in the upper-right corner, it
means that the icon ha s already been added.
Add
Select
OK
21 CR-V HYBRID HMIN-31TPG6100.book 278 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

Continued279
uuAudio System Basic Operation uAudio/Information Screen
Features

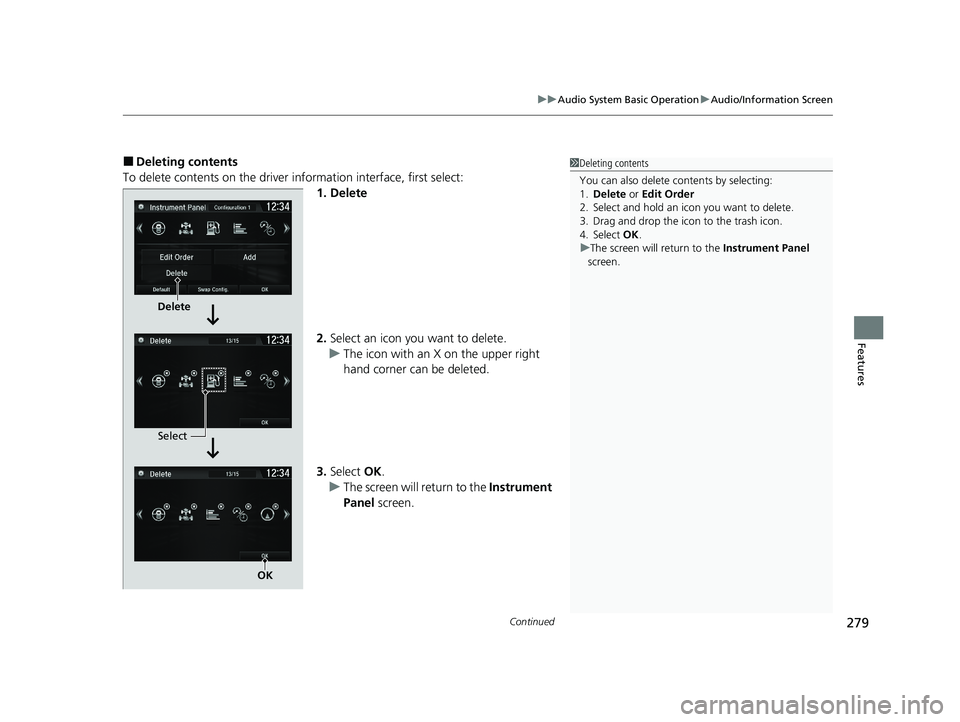

■Deleting contents
To delete contents on the driver information interface, first select:
1. Delete
2.Select an icon you want to delete.
u The icon with an X on the upper right
hand corner can be deleted.
3. Select OK.
u The screen will return to the Instrument
Panel screen.1Deleting contents
You can also delete c ontents by selecting:
1. Delete or Edit Order
2. Select and hold an icon you want to delete.
3. Drag and drop the icon to the trash icon.
4. Select OK .
u The screen will return to the Instrument Panel
screen.
Delete
Select
OK
21 CR-V HYBRID HMIN-31TPG6100.book 279 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
