TPMS HONDA CR-V 2021 (in English) Owner's Guide

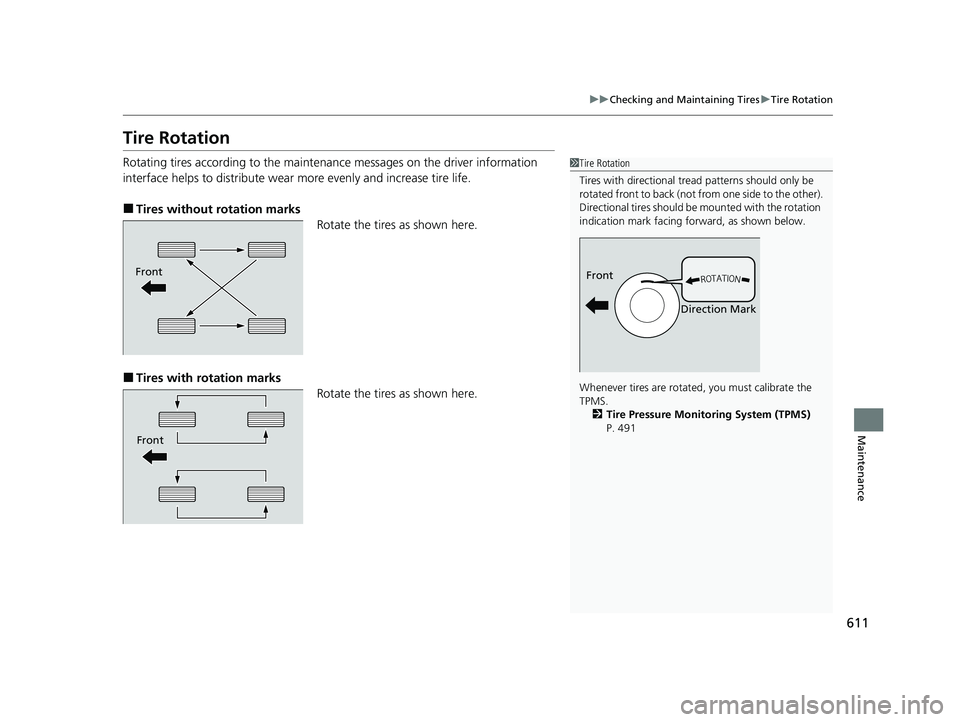

611
uuChecking and Maintaining Tires uTire Rotation
Maintenance
Tire Rotation
Rotating tires according to the maintena nce messages on the driver information
interface helps to distribute wear more evenly and increase tire life.
■Tires without rotation marks
Rotate the tires as shown here.
■Tires with rotation marksRotate the tires as shown here.
1Tire Rotation
Tires with directional trea d patterns should only be
rotated front to back (not fr om one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
Whenever tires are rotated, you must calibrate the
TPMS. 2 Tire Pressure Monitoring System (TPMS)
P. 491
Front
Direction MarkFront
Front
21 CR-V HYBRID HMIN-31TPG6100.book 611 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

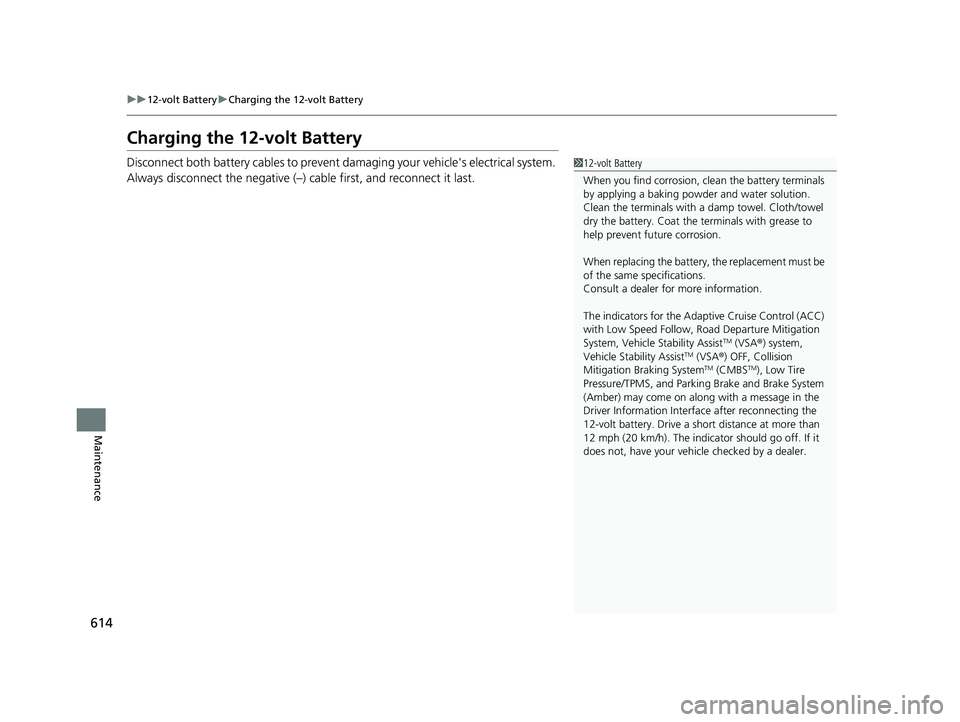

614
uu12-volt Battery uCharging the 12-volt Battery
Maintenance
Charging the 12-volt Battery
Disconnect both battery cables to prevent da maging your vehicle's electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.1 12-volt Battery
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
The indicators for the Adaptive Cruise Control (ACC)
with Low Speed Follow, Road Departure Mitigation
System, Vehicle Stability Assist
TM (VSA ®) system,
Vehicle Stability AssistTM (VSA ®) OFF, Collision
Mitigation Braking SystemTM (CMBSTM), Low Tire
Pressure/TPMS, and Parking Brake and Brake System
(Amber) may come on along with a message in the
Driver Information Interf ace after reconnecting the
12-volt battery. Drive a shor t distance at more than
12 mph (20 km/h). The indicator should go off. If it
does not, have your vehicl e checked by a dealer.
21 CR-V HYBRID HMIN-31TPG6100.book 614 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

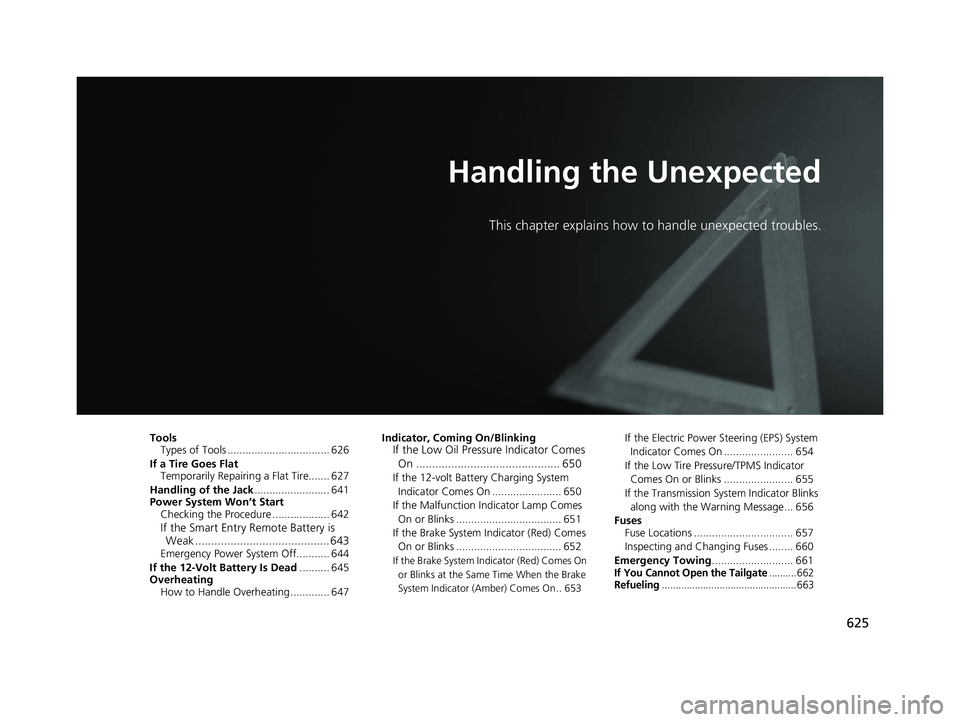

625
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 626
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 627
Handling of the Jack ......................... 641
Power System Won’t Start Checking the Procedure ................... 642
If the Smart Entry Remote Battery is Weak .......................................... 643
Emergency Power System Off........... 644
If the 12-Volt Battery Is Dead .......... 645
Overheating How to Handle Overheating ............. 647 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 650
If the 12-volt Batt ery Charging System
Indicator Comes On ....................... 650
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 651
If the Brake System Indicator (Red) Comes On or Blinks ................................... 652
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .. 653
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 654
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 655
If the Transmission System Indicator Blinks along with the Warning Message... 656
Fuses Fuse Locations ................................. 657
Inspecting and Changing Fuses ........ 660
Emergency Towing ........................... 661
If You Cannot Open the Tailgate.......... 662Refueling................................................. 663
21 CR-V HYBRID HMIN-31TPG6100.book 625 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

uuIf the 12-Volt Battery Is Dead u
646
Handling the Unexpected
5.Connect the other end of the second
jumper cable to the engine mounting bolt
as shown. Do not connect this jumper cable
to any other part.
6. If your vehicle is connected to another
vehicle, start the assisting vehicle's engine
and increase its rpm slightly.
7. Attempt to start your vehicle's engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
Once your vehicle's engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle's ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle's 12-volt battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts
1Jump Starting Procedure
The indicators for the Adaptive Cruise Control (ACC)
with Low Speed Follow, Roa d Departure Mitigation,
Vehicle Stability Assist
TM (VSA ®) system, Vehicle
Stability AssistTM (VSA ®) OFF, Collision Mitigation
Braking SystemTM (CMBSTM), low tire pressure/TPMS,
and Parking Brake and Br ake System (Amber) may
come on along with a message in the Driver
Information Interface when you set the power mode
to ON after reconnecting the 12-volt battery.
Drive a short distance at more than 12 mph (20 km/
h). Each indicator should go off. If any do not, have
your vehicle checked by a dealer.
21 CR-V HYBRID HMIN-31TPG6100.book 646 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

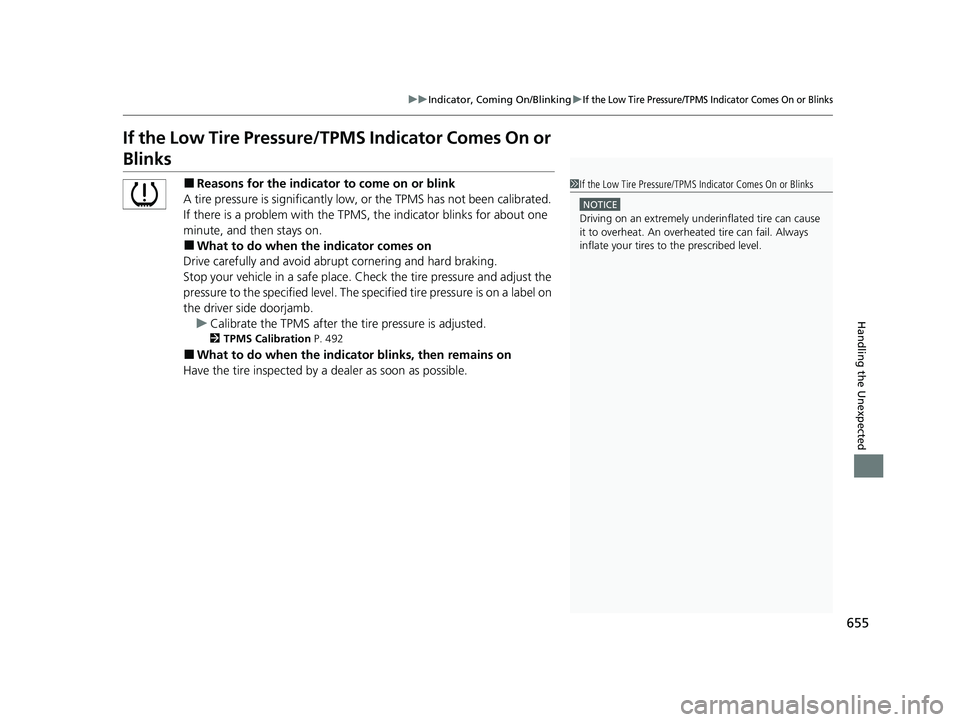

655
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.
■What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
u Calibrate the TPMS after the tire pressure is adjusted.
2 TPMS Calibration P. 492
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible.
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
21 CR-V HYBRID HMIN-31TPG6100.book 655 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

683
Index
HondaLink®............................................ 324
Hybrid Vehicle
SPORT HYBRID i-MMD (intelligent Multi-Mode Drive) ................................... 11
I
Identification Numbers ............................ 668
Engine, Motor and Transmission ............. 668
Vehicle Identification............................... 668
If the 12-Volt Battery Is Dead .................. 645
Illumination Control ................................ 201
Knob ...................................................... 201
Immobilizer System .................................. 177
Indicator ................................................. 101
Indicators .................................................... 90
12-volt Battery Charging System ....... 95, 650
ABS (Anti-lock Brake System) .................... 97
Adaptive Cruise Control (ACC) with Low Speed Follow ........................ 105, 106, 516
Auto High-Beam ..................................... 101
Automatic Brake Hold ....................... 93, 553
Automatic Brake Hold System ................... 93
Blind spot information System................. 102
Collision Mitigati on Braking System
(CMBS) ......................................... 107, 108
Deceleration Paddle Selector ..................... 95
ECON Mode ................................... 102, 485
Electric Power Steering (EPS) System ............................................ 98, 654
EV............................................................. 94 EV Mode ................................................... 94
Fog Light ................................................. 101
High Beam .............................................. 100
Immobilizer System .................................. 101
Lane Keeping Assist System (LKAS) .......... 106
Lights On ................................................. 101
Low Fuel .................................................... 96
Low Oil Pressure ................................ 93, 650
Low Tire Pressure/TPMS ............. 99, 495, 655
Malfunction Indicator Lamp ............... 94, 651
Parking Brake and Brake System
(Amber) ........................................... 92, 653
Parking Brake and Brake System (Red)........................................ 91, 652, 653
Power System ............................................ 93
READY ...................................................... 93
Road Departure Mitigation (RDM) .... 103, 104
Seat Belt Reminder .............................. 49, 96
Security System Alarm ............................. 102
Shift Position ............................................. 95
SPORT Mode ..................................... 96, 481
Supplemental Restraint System ............ 68, 97
System Message ...................................... 100
Transmission System .......................... 95, 656
Turn Signal and Haza rd Warning ............. 100
Vehicle Stability Assist
TM (VSA ®)
System............................................. 97, 487
VSA ® OFF .......................................... 98, 488
Information ............................................... 665
Instrument Panel ........................................ 89
Brightness Control ................................... 201 Interior Lights
........................................... 217
Interior Rearview Mirror .......................... 205
iPod ................................................... 258, 310
K
Key Number Tag ....................................... 153
Keyless Lockout Prevention ..................... 161
Keys ........................................................... 152
Lockout Prevention.................................. 161
Master Keys ............................................ 152
Number Tag ............................................ 153
Rear Door Won’t Open............................ 164
Remote Transmitter ................................. 159
Types and Functions ................................ 152
Kickdown (Continuously Variable
Transmission) .......................................... 474
L
Lane Keeping Assist System (LKAS) ......... 532
LATCH (Child Seats) .............................. 77, 82
Lights ................................................. 189, 596
Auto High-Beam ..................................... 194
Automatic ............................................... 190
Bulb Replacement ................................... 596
Daytime Running Lights........................... 193
Fog Lights ............................................... 193
High Beam Indicator Light ....................... 100
Interior .................................................... 217
Light Switches ......................................... 189
21 CR-V HYBRID HMIN-31TPG6100.book 683 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

684
Index
Lights On Indicator .................................. 101
Turn Signals ............................................. 188
Load Limits ................................................ 461
Locking/Unlocking .................................... 152
Auto Door Locking/Unlocking .................. 165
Childproof Door Locks ............................. 164
From Inside .............................................. 162
From Outside ........................................... 155
Keys ........................................................ 152
Using a Key ............................................. 160
Lockout Prevention System ...................... 161
Low Battery Charge .................................. 650
Low Fuel Indicator ...................................... 96
Low Oil Pressure Indicator ................. 93, 650
Low Smart Entry Remote Signal Strength ................................................... 154
Low Tire Pressure/TPMS Indicator .............. 99
Lower Anchors ............................................ 77
Luggage (Maximum Load Limit) .............. 461
Lumbar Support ........................................ 208
Lumbar Support Adjustment Switch ....... 208
M
Maintenance............................................. 575
12-volt Battery ......................................... 613
Brake Fluid............................................... 594
Cleaning .................................................. 617
Coolant ................................................... 591
Maintenance Minder
TM............................ 579
Oil ........................................................... 587 Precautions ............................................. 576
Radiator .................................................. 592
Remote Transmitter ................................. 615
Replacing Light Bulbs .............................. 596
Safety...................................................... 577
Service Items ........................................... 582
Tires ........................................................ 604
Transmission Fluid ................................... 593
Under the Hood ...................................... 584
Maintenance Minder ....................... 131, 579
Malfunction Indicator Lamp .............. 94, 651
Map Lights ................................................ 218
Maximum Load Limit ............................... 461
Meters, Gauges ......................................... 126
Mirrors ...................................................... 205
Adjusting ................................................ 205
Door ....................................................... 206
Exterior ................................................... 206
Interior Rearview ..................................... 205
Modifications (and Accessories) .............. 622
Moonroof ................................................. 184
MP3 ................................................... 263, 319
Multi-View Rear Camera .......................... 568
N
Navigation................................................ 139
Numbers (Identification) .......................... 668
O
Odometer................................................. 129
Off-Highway Driving Guidelines ............. 465
Oil (Engine) .............................................. 586
Adding ................................................... 588
Checking ................................................ 587
Displaying Oil Life ................................... 580
Low Oil Pressure Indicator ................. 93, 650
Recommended Engine Oil ....................... 586
Viscosity.................................................. 586
Open Source Licenses .............................. 360
Opening/Closing Hood ...................................................... 585
Moonroof ............................................... 184
Power Windows...................................... 180
Tailgate................................................... 166
Outside Temperature Display ................. 138
Overheating ............................................. 647
P
Pandora®......................................... 261, 317
Panic Mode ............................................... 179
Parking ..................................................... 557
Parking Brake ........................................... 549
Parking Brake and Brake System Indicator (Amber) ............................................. 92, 653
Parking Brake and Brake System Indicator (Red) .......................................... 91, 652, 653
Parking Sensor System ............................. 559
Passenger Airbag Off Indicator ................. 69
21 CR-V HYBRID HMIN-31TPG6100.book 684 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

686
Index
Specifications............................................ 666
Specified Fuel .................................... 570, 666
Speedometer ............................................. 126
SPORT Mode Indicator ............................................ 96, 481
SRS Airbags (Airbags) ................................. 59
Starting the Engine Engine Switch Buzzer............................... 186
If the 12-Volt Battery Is Dead ................... 645
Steering Wheel ......................................... 204
Adjusting ................................................. 204
Stopping .................................................... 557
Summer Tires ............................................ 612
Sunglasses Holder ..................................... 225
Supplemental Restraint System (SRS) ........ 59
Switches (Around the Steering Wheel) ............................................. 6, 7, 185
System Message Indicator ........................ 100
T
Tailgate..................................................... 166
Unable to Open ....................................... 662
Temperature
Outside Temperature Display ................... 138
Temperature Sensor ................................. 138
Temporary Repair Kit (TRK) ..................... 627
Theft Protection ........................................ 245
Time (Setting) ........................................... 150
Tire Pressure Monitoring System
(TPMS) ...................................................... 491 Tires
........................................................... 604
Air Pressure ..................................... 605, 667
Checking and Maintaining ...................... 604
Inspection ............................................... 604
Labeling .................................................. 605
Puncture (Flat Tire) .................................. 627
Regulations ............................................. 607
Rotation .................................................. 611
Summer .................................................. 612
Temporary Repair Kit (TRK) ...................... 627
Tire Chains .............................................. 612
Wear Indicators ....................................... 609
Winter..................................................... 612
Tonneau Cover ......................................... 226
Tools .......................................................... 626
Towing a Trailer ....................................... 463
Towing Behind a Motorhome ................. 464
Towing Your Vehicle Emergency .............................................. 661
TPMS (Tire Pressure Monitoring System) .................................................... 491
Transmission ..................................... 474, 475
Number................................................... 668
Operating the Shift Button ...................... 477
Operation.................................................. 32
Shift Position Indicator....................... 95, 477
Shifting ................................................... 475
Transmission System
Indicator............................................ 95, 656
TRIP Knob ................................................. 129
Trip Meter ................................................. 129 TRK (Temporary Repair Kit)
.................... 627
Troubleshooting ...................................... 625
Blown Fuse ............................. 657, 658, 659
Brake Pedal Vibrates ................................. 38
Buzzer Sounds When Opening Door ......... 38
Emergency Towing ................................. 661
If the 12-Volt Battery Is Dead .................. 645
Noise When Braking ................................. 39
Overheating ............................................ 647
Power System Won’t Start ...................... 642
Puncture/Flat Tire .................................... 627
Rear Door Won’t Open ..................... 38, 164
Warning Indicators.................................... 90
Turn Signals .............................................. 188
Turn signals Indicators (Instru ment Panel) ................... 100
Turning on the Power
Does Not Activate ................................... 642
U
Unlocking the Doors ................................ 155
Unlocking the Fron t Doors from the
Inside ....................................................... 162
USB Flash Drives ....................... 263, 319, 345
USB Port(s) ................................................ 243
21 CR-V HYBRID HMIN-31TPG6100.book 686 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
