uuWhen Driving uTurning on the Power
470
Driving

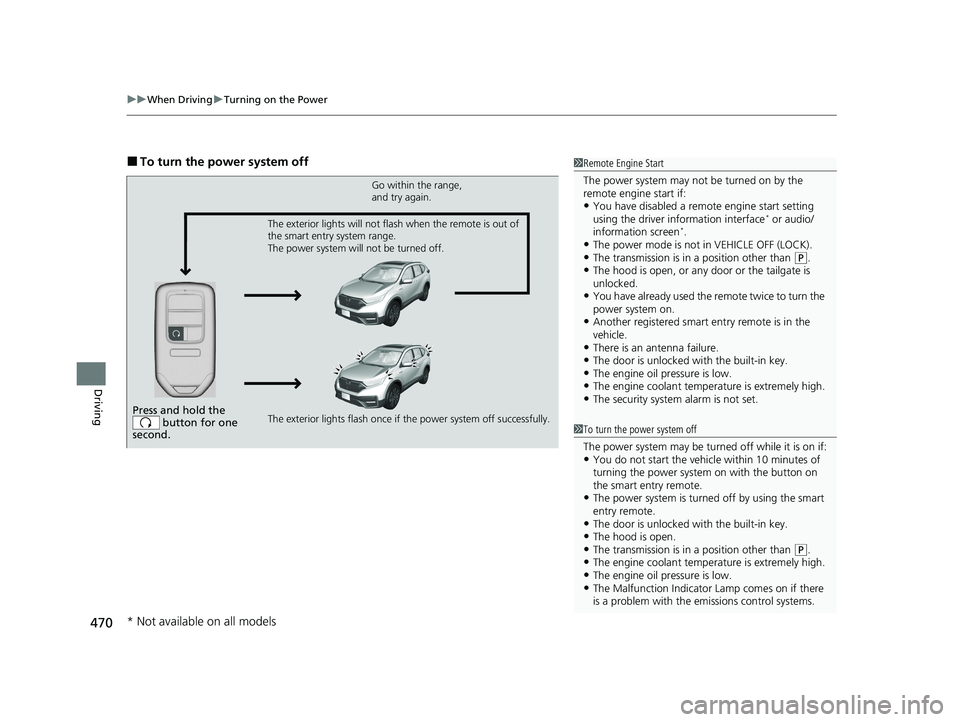

■To turn the power system off1Remote Engine Start
The power system may not be turned on by the
remote engine start if:
•You have disabled a remo te engine start setting
using the driver information interface* or audio/
information screen*.•The power mode is not in VEHICLE OFF (LOCK).•The transmission is in a position other than ( P.•The hood is open, or any door or the tailgate is
unlocked.
•You have already used the remote twice to turn the
power system on.
•Another registered smart entry remote is in the
vehicle.
•There is an antenna failure.•The door is unlocked with the built-in key.•The engine oil pressure is low.•The engine coolant temper ature is extremely high.•The security system alarm is not set.Press and hold the
button for one
second.
Go within the range,
and try again.
The exterior lights flash once if the power system off successfully. The exterior lights will not flash when the remote is out of
the smart entry system range.
The power system will not be turned off.
1 To turn the power system off
The power system may be turned off while it is on if:
•You do not start the vehicl e within 10 minutes of
turning the power system on with the button on
the smart entry remote.
•The power system is turned off by using the smart
entry remote.
•The door is unlocked with the built-in key.•The hood is open.•The transmission is in a position other than ( P.•The engine coolant temper ature is extremely high.•The engine oil pressure is low.•The Malfunction Indicator Lamp comes on if there
is a problem with the emissions control systems.
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 470 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

615
Maintenance

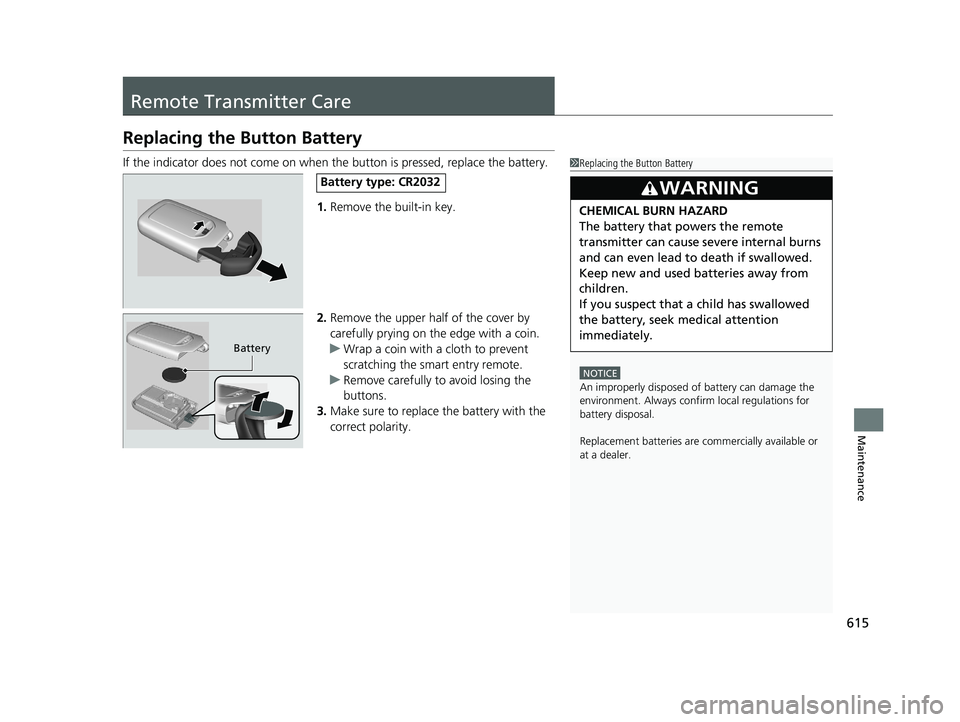

Remote Transmitter Care
Replacing the Button Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Wrap a coin with a cloth to prevent
scratching the smart entry remote.
u Remove carefully to avoid losing the
buttons.
3. Make sure to replace the battery with the
correct polarity.1Replacing the Button Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.
Battery type: CR2032
Battery
21 CR-V HYBRID HMIN-31TPG6100.book 615 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

659

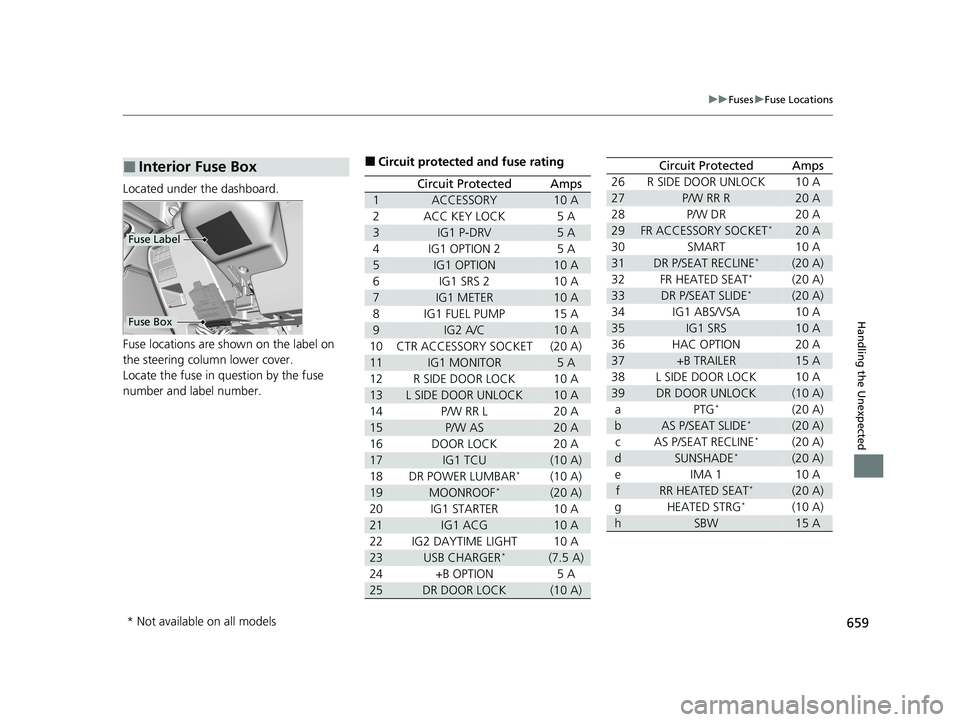

uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the steering column lower cover.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box
Fuse Label
Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1ACCESSORY10 A
2ACC KEY LOCK5 A
3IG1 P-DRV5 A
4IG1 OPTION 25 A
5IG1 OPTION10 A
6IG1 SRS 210 A
7IG1 METER10 A
8IG1 FUEL PUMP15 A
9IG2 A/C10 A
10CTR ACCESSORY SOCKET(20 A)
11IG1 MONITOR5 A
12R SIDE DOOR LOCK10 A
13L SIDE DOOR UNLOCK10 A
14P/W RR L20 A
15P/W AS20 A
16DOOR LOCK20 A
17IG1 TCU(10 A)
18DR POWER LUMBAR*(10 A)
19MOONROOF*(20 A)
20IG1 STARTER10 A
21IG1 ACG10 A
22IG2 DAYTIME LIGHT10 A
23USB CHARGER*(7.5 A)
24+B OPTION5 A
25DR DOOR LOCK(10 A)
26R SIDE DOOR UNLOCK10 A
27P/W RR R20 A
28P/W DR20 A
29FR ACCESSORY SOCKET*20 A
30SMART10 A
31DR P/SEAT RECLINE*(20 A)
32FR HEATED SEAT*(20 A)
33DR P/SEAT SLIDE*(20 A)
34IG1 ABS/VSA10 A
35IG1 SRS10 A
36HAC OPTION20 A
37+B TRAILER15 A
38L SIDE DOOR LOCK10 A
39DR DOOR UNLOCK(10 A)
aPTG*(20 A)
bAS P/SEAT SLIDE*(20 A)
cAS P/SEAT RECLINE*(20 A)
dSUNSHADE*(20 A)
eIMA 110 A
fRR HEATED SEAT*(20 A)
gHEATED STRG*(10 A)
hSBW15 A
Circuit ProtectedAmps
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 659 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

681
Index
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 504
Coat Hook ................................................ 223
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 504
Compass .................................................... 455
Continuously Variable Transmission Creeping................................................. 474
Kickdown ............................................... 474
Controls .................................................... 149
Coolant (Engine) ...................................... 591
Adding to the Radiator ........................... 592
Adding to the Reserve Tank .................... 591
Overheating ............................................ 647
Creeping (Continuously Variable Transmission) .......................................... 474
Cross Traffic Monitor ............................... 564
Cup Holders .............................................. 221
Customer Service Information ................ 677
Customized Features ............... 140, 361, 368
D
Daytime Running Lights .......................... 193
Deceleration Paddle Selector .................. 482
Indicator ................................................... 95
Defaulting All the Settings ...................... 393
Deflation Warning System Indicator ................................................... 99
Defrosting the Windshield and
Windows ................................................. 237 Detachable Anchor
..................................... 53
Devices that Emit Radio Waves ............... 669
Dimming Headlights ............................................... 189
Rearview Mirror ....................................... 205
Dipstick (Engine Oil) ................................. 587
Directional Signals (Turn Signal) ............. 188
Display Setup .................................... 255, 293
Display/Information Button ..................... 128
Door Mirrors ............................................. 206
Doors ......................................................... 152
Auto Door Locking .................................. 165
Auto Door Unlocking ............................... 165
Keys ........................................................ 152
Locking/Unlocking the Doors from the Inside..................................................... 162
Locking/Unlocking the Doors from the
Outside.................................................. 155
Lockout Prevention System ...................... 161
DOT Tire Quality Grading ........................ 607
Driver Information Interface ................... 128
Driver’s Seat Lumbar Support .................. 208
Driving ....................................................... 457
Braking .................................................... 549
Off-Highway Driving Guidelines ............... 465
Shifting ................................................... 475
Transmission ............................................ 474
Driving Position Memory System ............. 202
Dust and Pollen Filter ............................... 616
E
Eco Assist® System ...................................... 18
Eco Drive Display ................................ 19, 132
ECON Mode .............................................. 485
Elapsed Time ............................................. 130
Electric Power Steering (EPS) System Indicator............................................ 98, 654
Electronic Stability Control (ESC) ............. 487
Emergency ................................................ 661
Emissions Testing (Readiness Codes) ....... 671
Engine
Coolant ................................................... 591
If the 12-Volt Battery Is Dead................... 645
Number................................................... 668
Oil ........................................................... 586
Switch Buzzer.......................................... 186
Engine Coolant ......................................... 591
Adding to the Radiator ............................ 592
Adding to the Reserve Tank..................... 591
Overheating ............................................ 647
Engine Oil ................................................. 586
Adding .................................................... 588
Checking................................................. 587
Displaying Oil Life .................................... 580
Low Oil Pressure Indicator ................. 93, 650
Recommended Engine Oil ....................... 586
EPS (Electric Power Steering) System ............................................... 98, 654
EV Button .................................................... 14
EV Indicator ................................................ 94
EV Mode Indicator ..................................... 94
21 CR-V HYBRID HMIN-31TPG6100.book 681 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

683
Index
HondaLink®............................................ 324
Hybrid Vehicle
SPORT HYBRID i-MMD (intelligent Multi-Mode Drive) ................................... 11
I
Identification Numbers ............................ 668
Engine, Motor and Transmission ............. 668
Vehicle Identification............................... 668
If the 12-Volt Battery Is Dead .................. 645
Illumination Control ................................ 201
Knob ...................................................... 201
Immobilizer System .................................. 177
Indicator ................................................. 101
Indicators .................................................... 90
12-volt Battery Charging System ....... 95, 650
ABS (Anti-lock Brake System) .................... 97
Adaptive Cruise Control (ACC) with Low Speed Follow ........................ 105, 106, 516
Auto High-Beam ..................................... 101
Automatic Brake Hold ....................... 93, 553
Automatic Brake Hold System ................... 93
Blind spot information System................. 102
Collision Mitigati on Braking System
(CMBS) ......................................... 107, 108
Deceleration Paddle Selector ..................... 95
ECON Mode ................................... 102, 485
Electric Power Steering (EPS) System ............................................ 98, 654
EV............................................................. 94 EV Mode ................................................... 94
Fog Light ................................................. 101
High Beam .............................................. 100
Immobilizer System .................................. 101
Lane Keeping Assist System (LKAS) .......... 106
Lights On ................................................. 101
Low Fuel .................................................... 96
Low Oil Pressure ................................ 93, 650
Low Tire Pressure/TPMS ............. 99, 495, 655
Malfunction Indicator Lamp ............... 94, 651
Parking Brake and Brake System
(Amber) ........................................... 92, 653
Parking Brake and Brake System (Red)........................................ 91, 652, 653
Power System ............................................ 93
READY ...................................................... 93
Road Departure Mitigation (RDM) .... 103, 104
Seat Belt Reminder .............................. 49, 96
Security System Alarm ............................. 102
Shift Position ............................................. 95
SPORT Mode ..................................... 96, 481
Supplemental Restraint System ............ 68, 97
System Message ...................................... 100
Transmission System .......................... 95, 656
Turn Signal and Haza rd Warning ............. 100
Vehicle Stability Assist
TM (VSA ®)
System............................................. 97, 487
VSA ® OFF .......................................... 98, 488
Information ............................................... 665
Instrument Panel ........................................ 89
Brightness Control ................................... 201 Interior Lights
........................................... 217
Interior Rearview Mirror .......................... 205
iPod ................................................... 258, 310
K
Key Number Tag ....................................... 153
Keyless Lockout Prevention ..................... 161
Keys ........................................................... 152
Lockout Prevention.................................. 161
Master Keys ............................................ 152
Number Tag ............................................ 153
Rear Door Won’t Open............................ 164
Remote Transmitter ................................. 159
Types and Functions ................................ 152
Kickdown (Continuously Variable
Transmission) .......................................... 474
L
Lane Keeping Assist System (LKAS) ......... 532
LATCH (Child Seats) .............................. 77, 82
Lights ................................................. 189, 596
Auto High-Beam ..................................... 194
Automatic ............................................... 190
Bulb Replacement ................................... 596
Daytime Running Lights........................... 193
Fog Lights ............................................... 193
High Beam Indicator Light ....................... 100
Interior .................................................... 217
Light Switches ......................................... 189
21 CR-V HYBRID HMIN-31TPG6100.book 683 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

684
Index
Lights On Indicator .................................. 101
Turn Signals ............................................. 188
Load Limits ................................................ 461
Locking/Unlocking .................................... 152
Auto Door Locking/Unlocking .................. 165
Childproof Door Locks ............................. 164
From Inside .............................................. 162
From Outside ........................................... 155
Keys ........................................................ 152
Using a Key ............................................. 160
Lockout Prevention System ...................... 161
Low Battery Charge .................................. 650
Low Fuel Indicator ...................................... 96
Low Oil Pressure Indicator ................. 93, 650
Low Smart Entry Remote Signal Strength ................................................... 154
Low Tire Pressure/TPMS Indicator .............. 99
Lower Anchors ............................................ 77
Luggage (Maximum Load Limit) .............. 461
Lumbar Support ........................................ 208
Lumbar Support Adjustment Switch ....... 208
M
Maintenance............................................. 575
12-volt Battery ......................................... 613
Brake Fluid............................................... 594
Cleaning .................................................. 617
Coolant ................................................... 591
Maintenance Minder
TM............................ 579
Oil ........................................................... 587 Precautions ............................................. 576
Radiator .................................................. 592
Remote Transmitter ................................. 615
Replacing Light Bulbs .............................. 596
Safety...................................................... 577
Service Items ........................................... 582
Tires ........................................................ 604
Transmission Fluid ................................... 593
Under the Hood ...................................... 584
Maintenance Minder ....................... 131, 579
Malfunction Indicator Lamp .............. 94, 651
Map Lights ................................................ 218
Maximum Load Limit ............................... 461
Meters, Gauges ......................................... 126
Mirrors ...................................................... 205
Adjusting ................................................ 205
Door ....................................................... 206
Exterior ................................................... 206
Interior Rearview ..................................... 205
Modifications (and Accessories) .............. 622
Moonroof ................................................. 184
MP3 ................................................... 263, 319
Multi-View Rear Camera .......................... 568
N
Navigation................................................ 139
Numbers (Identification) .......................... 668
O
Odometer................................................. 129
Off-Highway Driving Guidelines ............. 465
Oil (Engine) .............................................. 586
Adding ................................................... 588
Checking ................................................ 587
Displaying Oil Life ................................... 580
Low Oil Pressure Indicator ................. 93, 650
Recommended Engine Oil ....................... 586
Viscosity.................................................. 586
Open Source Licenses .............................. 360
Opening/Closing Hood ...................................................... 585
Moonroof ............................................... 184
Power Windows...................................... 180
Tailgate................................................... 166
Outside Temperature Display ................. 138
Overheating ............................................. 647
P
Pandora®......................................... 261, 317
Panic Mode ............................................... 179
Parking ..................................................... 557
Parking Brake ........................................... 549
Parking Brake and Brake System Indicator (Amber) ............................................. 92, 653
Parking Brake and Brake System Indicator (Red) .......................................... 91, 652, 653
Parking Sensor System ............................. 559
Passenger Airbag Off Indicator ................. 69
21 CR-V HYBRID HMIN-31TPG6100.book 684 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
