sensor HONDA CR-V 2021 (in English) Owner's Guide

uuOperating the Switches Around the Steering Wheel uWipers and Washers
198
Controls

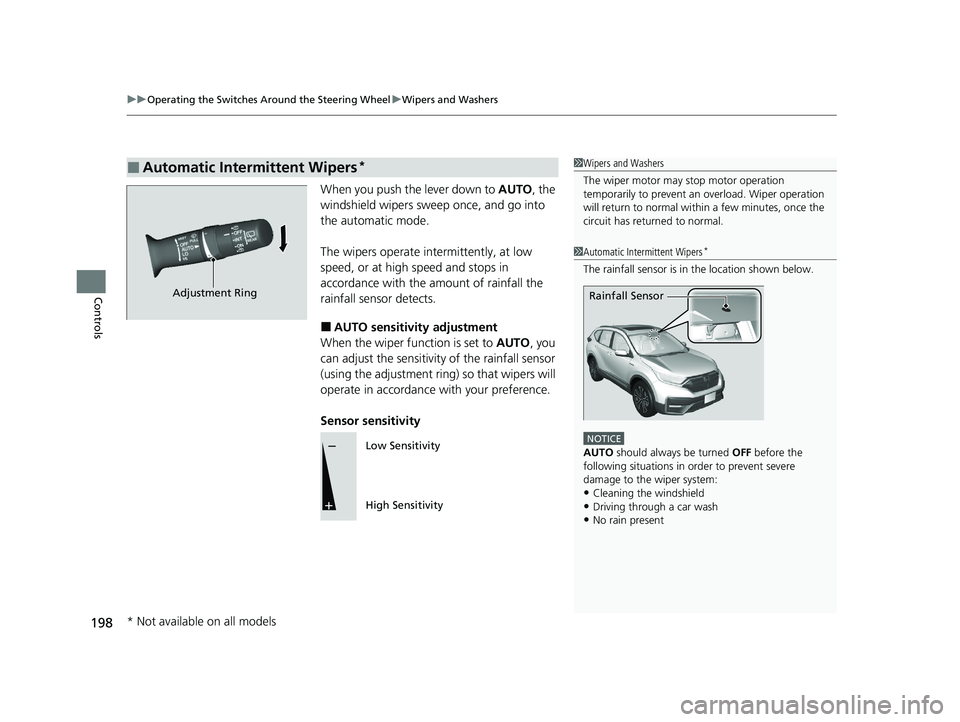

When you push the lever down to AUTO, the
windshield wipers sweep once, and go into
the automatic mode.
The wipers operate intermittently, at low
speed, or at high speed and stops in
accordance with the am ount of rainfall the
rainfall sensor detects.
■AUTO sensitivity adjustment
When the wiper function is set to AUTO, you
can adjust the sensitivity of the rainfall sensor
(using the adjustment ring) so that wipers will
operate in accordance with your preference.
Sensor sensitivity
■Automatic Intermittent Wipers*1 Wipers and Washers
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
Adjustment Ring
1 Automatic Intermittent Wipers*
The rainfall sensor is in the location shown below.
NOTICE
AUTO should always be turned OFF before the
following situations in order to prevent severe
damage to the wiper system:
•Cleaning the windshield•Driving through a car wash
•No rain present
Rainfall Sensor
Low Sensitivity
High Sensitivity
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 198 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

205
Controls

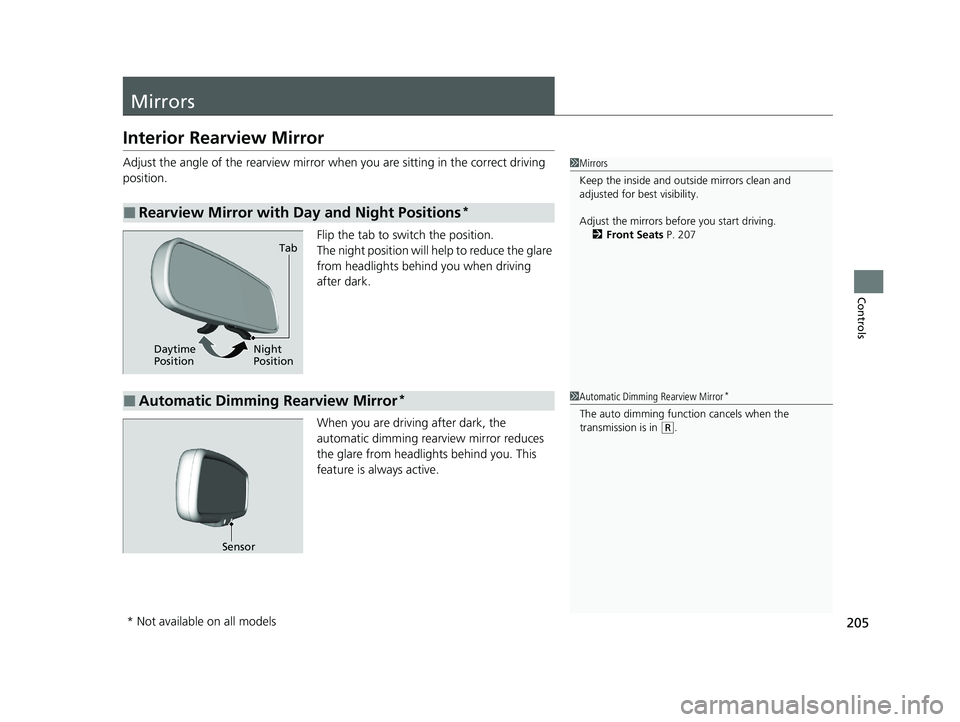

Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.
When you are driving after dark, the
automatic dimming rearview mirror reduces
the glare from headlights behind you. This
feature is always active.
■Rearview Mirror with Day and Night Positions*
1Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving. 2 Front Seats P. 207
Tab
Daytime
Position Night
Position
■Automatic Dimming Rearview Mirror*
Sensor
1
Automatic Dimming Rearview Mirror*
The auto dimming function cancels when the
transmission is in
(R.
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 205 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

uuSeats uRear Seats
212
Controls
1. Store the center seat belt first. Insert the
latch plate into the slot on the side of the
anchor buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 53
3.Lower the rear seat head restraint to its
lowest position. Put the armrest back into
the seat-back.
4. Pull the release lever and fold down the
seat.
4. Pull the release lever and fold down the
seat.
■Folding Down the Rear Seats
Latch plate
Anchor buckle
1Folding Down the Rear Seats
The rear seat-backs can be folded down to
accommodate bulkier items in the cargo area.
Remove any items from th e rear seat cushion and
floor before you fold down the rear seat.
When returning the seat-back to its original position,
push it firmly back. Also, m ake sure all rear shoulder
belts are positioned in front of the seat-back.
Make sure all items in the cargo area or items
extending through the opening into the rear
seats are properly secured. Loose items can fly
forward if you have to brake hard.
Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly. 2 Passenger Airbag Off Indicator P. 69
Make sure the seat-back, head restraints and seat
cushion are securely latche d back into place before
driving.
Release
Lever
From the rear seat side
Release Lever
From the cargo area side
21 CR-V HYBRID HMIN-31TPG6100.book 212 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

240
uuClimate Control System uAutomatic Climate Control Sensors
Controls

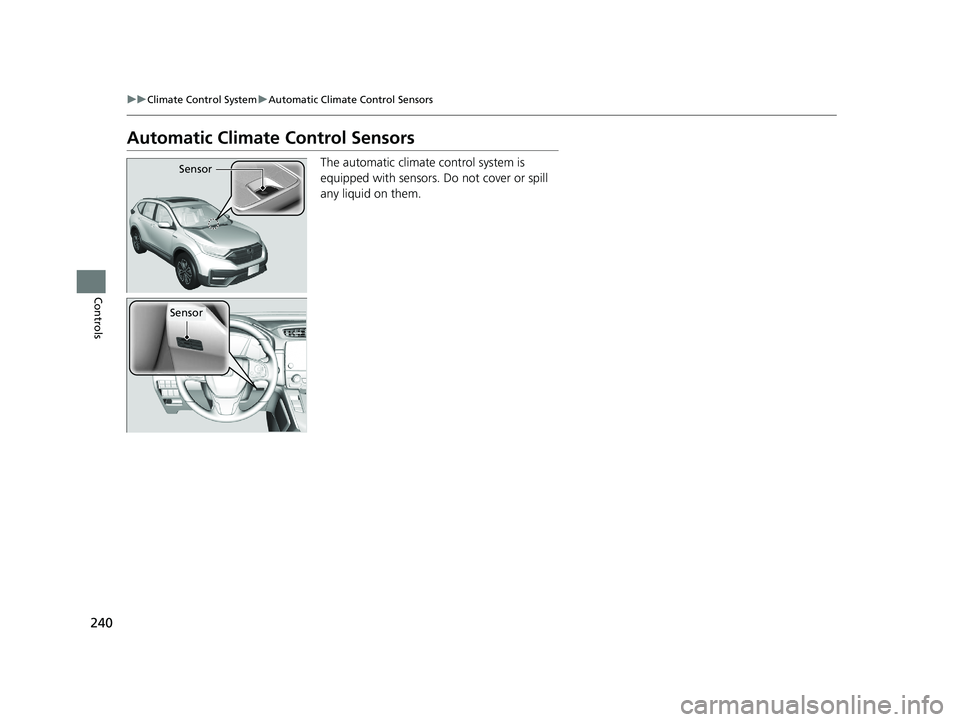

Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor
21 CR-V HYBRID HMIN-31TPG6100.book 240 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

370

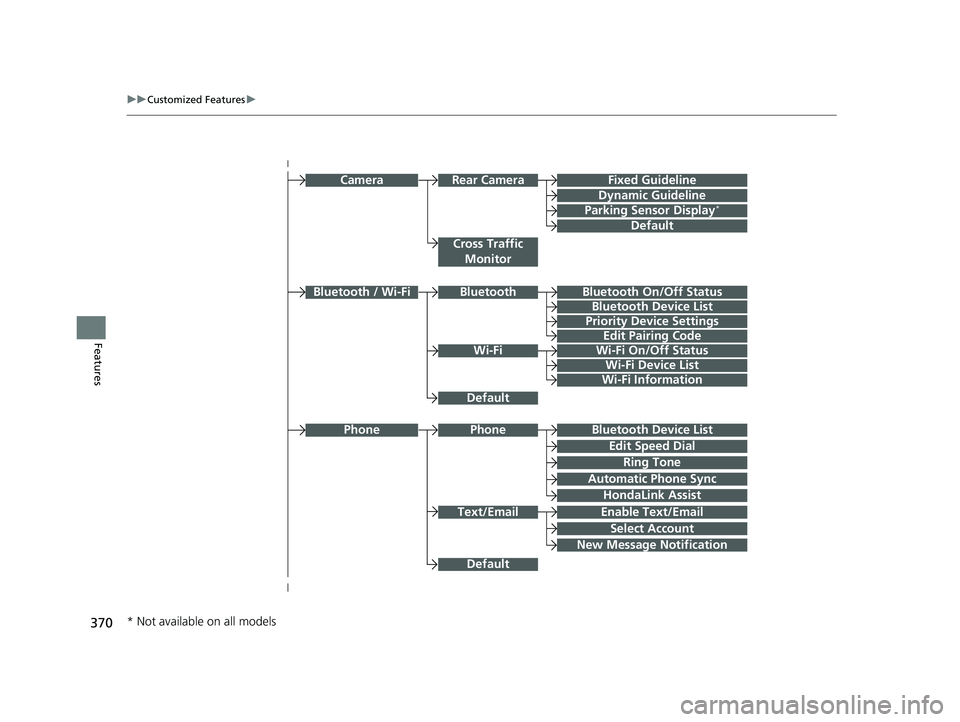

uuCustomized Features u
Features
Bluetooth Device List
Priority Device Settings
Edit Pairing Code
Wi-Fi On/Off Status
Wi-Fi Device List
Wi-Fi
BluetoothBluetooth / Wi-Fi
Wi-Fi Information
Text/Email
Bluetooth Device List
Edit Speed Dial
Ring Tone
Phone
Automatic Phone Sync
HondaLink Assist
Enable Text/Email
Select Account
New Message Notification
Phone
Fixed Guideline
Dynamic Guideline
Rear CameraCamera
Parking Sensor Display*
Cross Traffic
Monitor
Default
Default
Default
Bluetooth On/Off Status
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 370 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

379

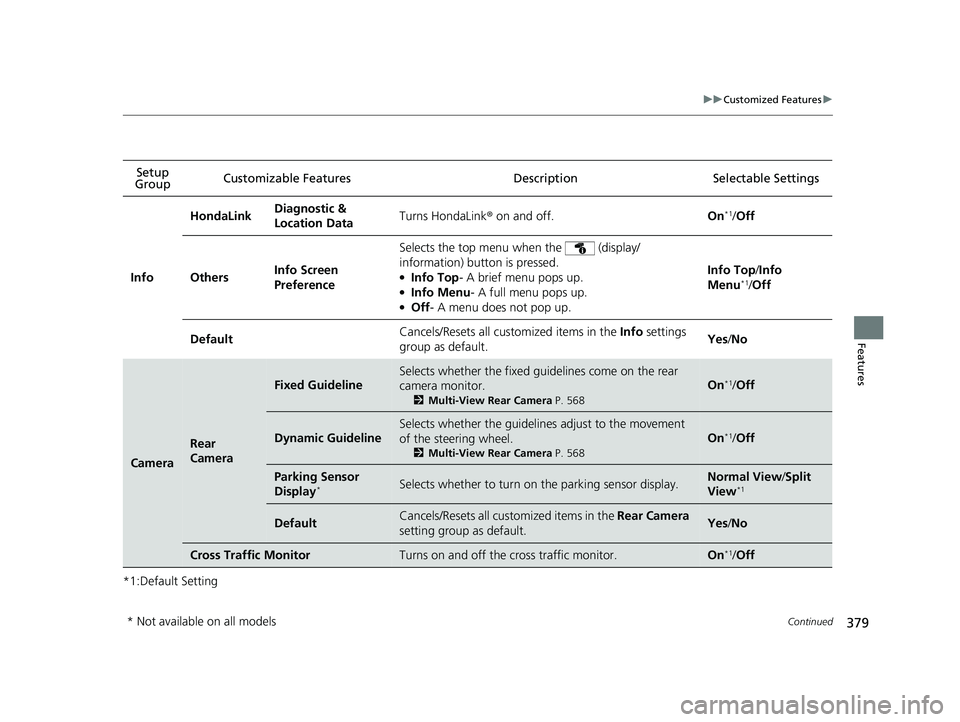

uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Info HondaLink
Diagnostic &
Location Data
Turns HondaLink
® on and off. On
*1/Off
Others Info Screen
Preference Selects the top menu wh
en the (display/
information) button is pressed.
●Info Top - A brief menu pops up.●Info Menu- A full menu pops up.●Off- A menu does not pop up. Info Top
/Info
Menu
*1/ Off
Default Cancels/Resets all customized items in the
Info settings
group as default. Yes
/No
Camera
Rear
Camera
Fixed Guideline
Selects whether the fixed gui delines come on the rear
camera monitor.
2 Multi-View Rear Camera P. 568
On*1/Off
Dynamic Guideline
Selects whether the guidelines adjust to the movement
of the steering wheel.
2 Multi-View Rear Camera P. 568
On*1/Off
Parking Sensor
Display*Selects whether to turn on the parking sensor display.Normal View/Split
View*1
DefaultCancels/Resets all customized items in the Rear Camera
setting group as default.Yes /No
Cross Traffic MonitorTurns on and off the cross traffic monitor.On*1/ Off
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 379 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

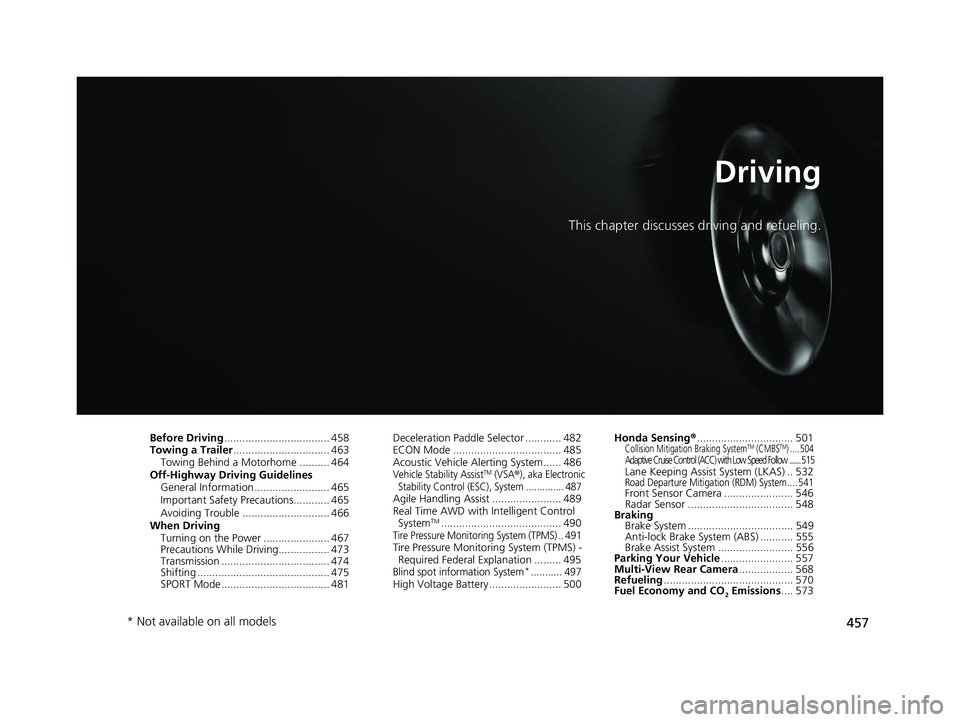

457
Driving
This chapter discusses driving and refueling.
Before Driving................................... 458
Towing a Trailer ................................ 463
Towing Behind a Motorhome .......... 464
Off-Highway Driving Guidelines General Information ......................... 465
Important Safety Precautions............ 465
Avoiding Trouble ............................. 466
When Driving Turning on the Power ...................... 467
Precautions While Driving................. 473
Transmission .................................... 474
Shifting ............................................ 475
SPORT Mode.................................... 481 Deceleration Paddl
e Selector ............ 482
ECON Mode .................................... 485
Acoustic Vehicle Alerting System...... 486
Vehicle Stability AssistTM (VSA®), aka Electronic
Stability Control (ESC), System .............. 487
Agile Handling Assist ....................... 489
Real Time AWD with Intelligent Control System
TM........................................ 490Tire Pressure Monitoring System (TPMS) .. 491Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 495
Blind spot information System*........... 497High Voltage Battery ........................ 500 Honda Sensing
®................................ 501
Collision Mitigation Braking SystemTM (CMBSTM) .... 504Adaptive Cruise Control (ACC) with Low Speed Follow ....... 515Lane Keeping Assist System (LKAS) .. 532Road Departure Mitigation (RDM) System.... 541Front Sensor Camera ....................... 546
Radar Sensor ................................... 548
Braking Brake System ................................... 549
Anti-lock Brake System (ABS) ........... 555
Brake Assist System ......................... 556
Parking Your Vehicle ........................ 557
Multi-View Rear Camera .................. 568
Refueling ........................................... 570
Fuel Economy and CO
2 Emissions .... 573
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 457 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

460

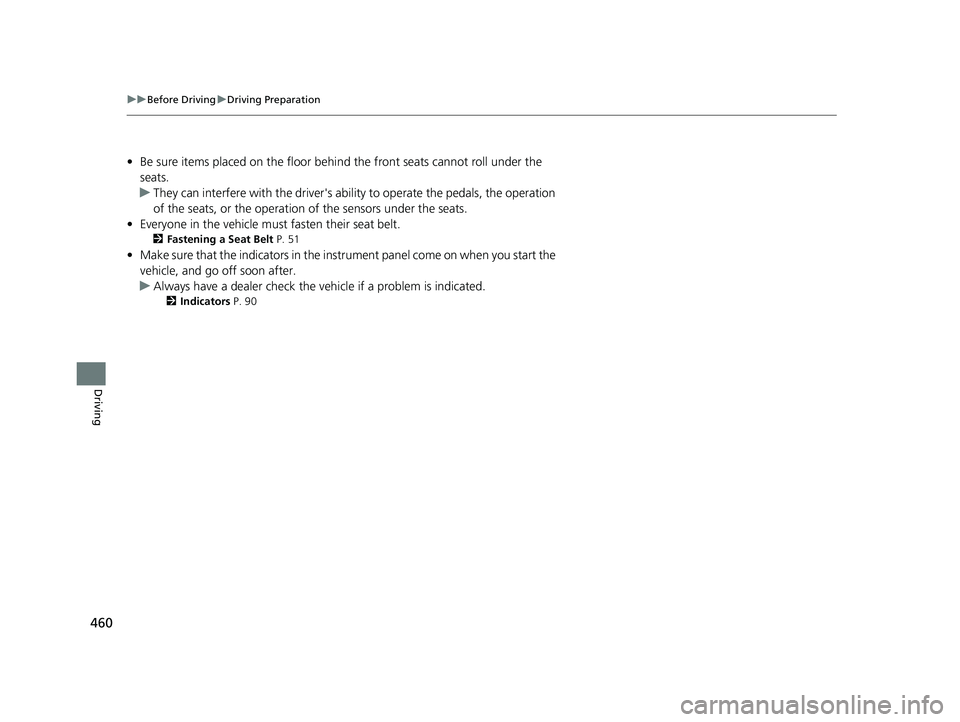

uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver's ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 51
•Make sure that the indicators in the instrument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 90
21 CR-V HYBRID HMIN-31TPG6100.book 460 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

497
uuWhen Driving uBlind spot information System*
Continued
Driving

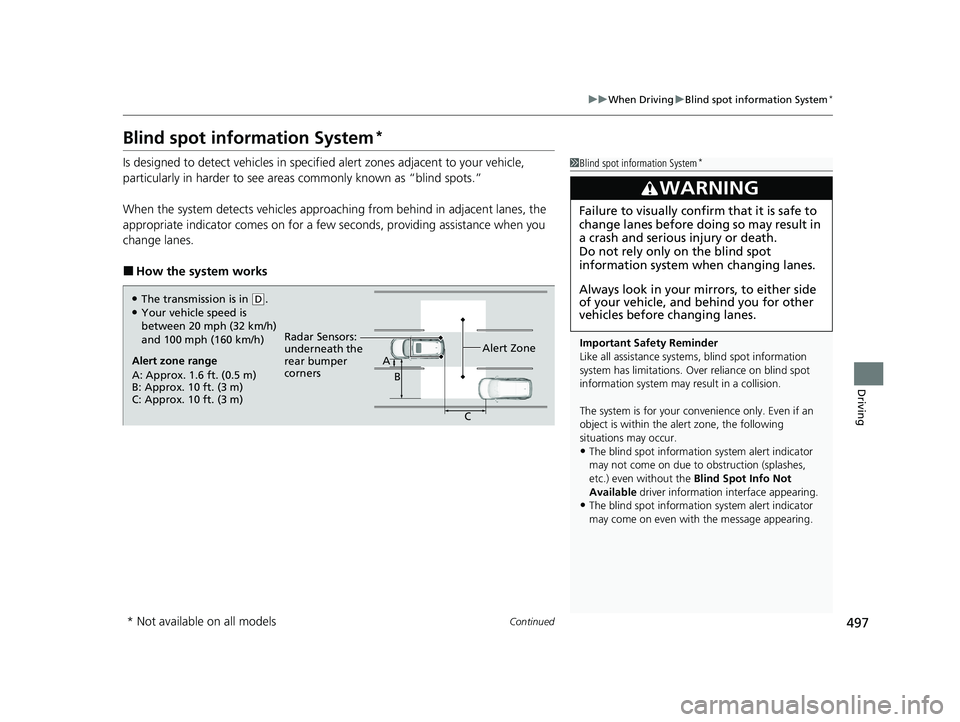

Blind spot information System*
Is designed to detect vehicles in specifie d alert zones adjacent to your vehicle,
particularly in harder to see areas commonly known as “blind spots.”
When the system detects vehicles approaching from behind in adjacent lanes, the
appropriate indicator comes on for a few se conds, providing assistance when you
change lanes.
■How the system works
1 Blind spot information System*
Important Safety Reminder
Like all assistance systems, blind spot information
system has limitations. Over reliance on blind spot
information system may result in a collision.
The system is for your convenience only. Even if an
object is within the alert zone, the following
situations may occur.
•The blind spot informatio n system alert indicator
may not come on due to obstruction (splashes,
etc.) even without the Blind Spot Info Not
Available driver information interface appearing.
•The blind spot information system alert indicator
may come on even with the message appearing.
3WARNING
Failure to visually confirm that it is safe to
change lanes before doing so may result in
a crash and serious injury or death.
Do not rely only on the blind spot
information system wh en changing lanes.
Always look in your mi rrors, to either side
of your vehicle, and behind you for other
vehicles before changing lanes.
Alert zone range
A: Approx. 1.6 ft. (0.5 m)
B: Approx. 10 ft. (3 m)
C: Approx. 10 ft. (3 m) Radar Sensors:
underneath the
rear bumper
corners
Alert ZoneA
B
C
●The transmission is in (D.●Your vehicle speed is
between 20 mph (32 km/h)
and 100 mph (160 km/h)
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 497 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

uuWhen Driving uBlind spot information System*
498
Driving
■When the system detects a vehicle1Blind spot information System*
The blind spot information system alert indicator may
not come on under the following conditions:
•A vehicle does not stay in the alert zone for more
than two seconds.
•A vehicle is parked in a side lane.
•The speed difference betw een your vehicle and the
vehicle you are passing is greater than 6 mph (10
km/h).
•An object not detected by the radar sensors
approaches or passes your vehicle.
•A vehicle running in the adjacent lane is a
motorcycle or other small vehicle.
You can change the setting for the blind spot
information system. 2 Customized Features P. 368
■Comes on when:●A vehicle enters the alert zone from behind
to overtake you with a speed difference of
no more than 31 mph (50 km/h) from your
vehicle.
●You pass a vehicle with a speed difference
of no more than 12 mph (20 km/h).
■Blinks and the beeper sounds when:
You move the turn signal lever in the direction
of the detected vehicle. The beeper sounds
three times. Comes On
Blinks
Blind spot information
System Alert Indicator:
Located on the outside rearview mirror on
both sides.
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 498 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
