tailgate HONDA CR-V 2021 (in English) Service Manual

392
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Power
Tailgate
Setup
*
Hands Free Access
Function*
Changes the setting to open power tailgate by a
swift forward in and out kicking motion under
the rear bumper.
On*1/
Off
Keyless Open ModeChanges the keyless setting for when the power
tailgate opens.Anytime*1/When
Unlocked
Power Open By Outer
HandleChanges the setting to open power tailgate by
tailgate outer handle.Off (Manual only) /
On (Power/
Manual)
*1
Maintenance Info.
Used to reset the maintenance minder
information display when the maintenance
service has been performed.
—
DefaultCancels/Resets all customized items in the Vehicle
settings group as default.Yes /No
SmartphoneApple CarPlaySets up the Apple CarPlayTM connection.—
Android AutoSets up the Android AutoTM connection.—
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 392 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

Continued459

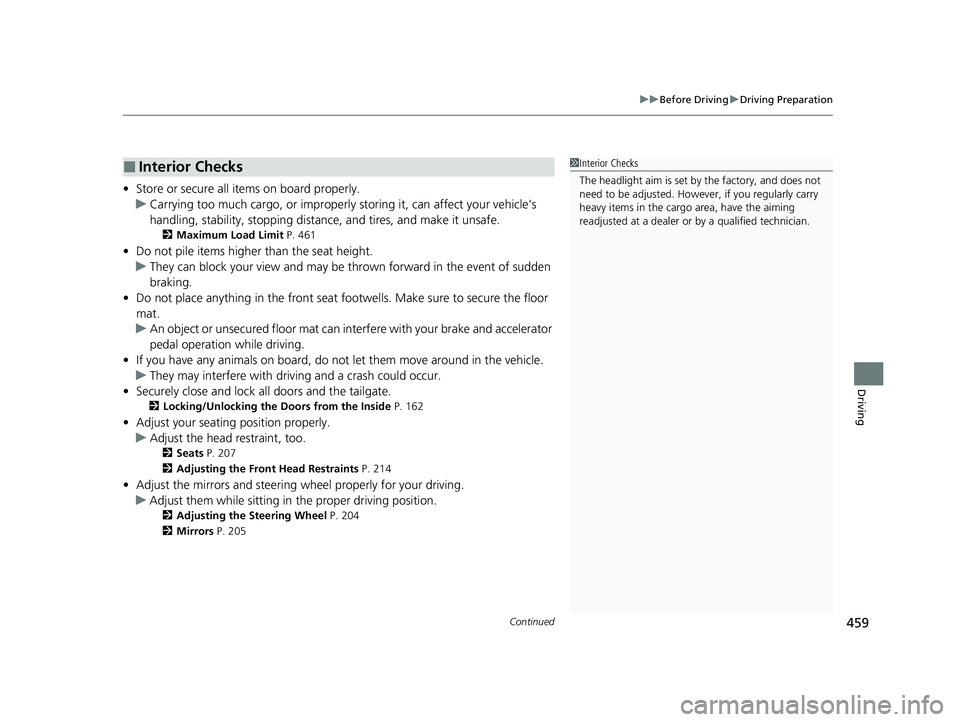

uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle's
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 461
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driving and a crash could occur.
• Securely close and lock al l doors and the tailgate.
2Locking/Unlocking the Doors from the Inside P. 162
•Adjust your seating position properly.
u Adjust the head restraint, too.
2Seats P. 207
2 Adjusting the Front Head Restraints P. 214
•Adjust the mirrors and steering wh eel properly for your driving.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Steering Wheel P. 204
2 Mirrors P. 205
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area, have the aiming
readjusted at a dealer or by a qualified technician.
21 CR-V HYBRID HMIN-31TPG6100.book 459 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

uuWhen Driving uTurning on the Power
470
Driving
■To turn the power system off1Remote Engine Start
The power system may not be turned on by the
remote engine start if:
•You have disabled a remo te engine start setting
using the driver information interface* or audio/
information screen*.•The power mode is not in VEHICLE OFF (LOCK).•The transmission is in a position other than ( P.•The hood is open, or any door or the tailgate is
unlocked.
•You have already used the remote twice to turn the
power system on.
•Another registered smart entry remote is in the
vehicle.
•There is an antenna failure.•The door is unlocked with the built-in key.•The engine oil pressure is low.•The engine coolant temper ature is extremely high.•The security system alarm is not set.Press and hold the
button for one
second.
Go within the range,
and try again.
The exterior lights flash once if the power system off successfully. The exterior lights will not flash when the remote is out of
the smart entry system range.
The power system will not be turned off.
1 To turn the power system off
The power system may be turned off while it is on if:
•You do not start the vehicl e within 10 minutes of
turning the power system on with the button on
the smart entry remote.
•The power system is turned off by using the smart
entry remote.
•The door is unlocked with the built-in key.•The hood is open.•The transmission is in a position other than ( P.•The engine coolant temper ature is extremely high.•The engine oil pressure is low.•The Malfunction Indicator Lamp comes on if there
is a problem with the emissions control systems.
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 470 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

568
Driving
Multi-View Rear Camera
About Your Multi-View Rear Camera
The audio/information screen can display your vehicle’s rear view.
The display automatically changes to a rear view when the transmission is put into
(R.
■Multi-View Rear Camera Display Area
1About Your Multi-View Rear Camera
The rear camera view is restricted. You cannot see
the corner ends of the bumper or what is underneath
the bumper. Its unique le ns also makes objects
appear closer or farther than they actually are.
Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.
If the camera lens is cove red with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.
You can change the Fixed Guideline and Dynamic
Guideline settings.
2 Customized Features P. 368
Fixed Guideline
On: Guidelines appear when you put the
transmission into
( R.
Off: Guidelines do not appear.
Dynamic Guideline
On: Guidelines move accordi ng to the steering wheel
direction.
Off: Guidelines do not move.
Models with Display Audio
Guidelines Bumper Wide View Mode
Normal View Mode
Top Down View Mode
Approx.
39

inches
(1 m)
Approx.
20 inches
(50 cm)
Tailgate
Open
Range
Camera
21 CR-V HYBRID HMIN-31TPG6100.book 568 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

625
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 626
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 627
Handling of the Jack ......................... 641
Power System Won’t Start Checking the Procedure ................... 642
If the Smart Entry Remote Battery is Weak .......................................... 643
Emergency Power System Off........... 644
If the 12-Volt Battery Is Dead .......... 645
Overheating How to Handle Overheating ............. 647 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 650
If the 12-volt Batt ery Charging System
Indicator Comes On ....................... 650
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 651
If the Brake System Indicator (Red) Comes On or Blinks ................................... 652
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .. 653
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 654
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 655
If the Transmission System Indicator Blinks along with the Warning Message... 656
Fuses Fuse Locations ................................. 657
Inspecting and Changing Fuses ........ 660
Emergency Towing ........................... 661
If You Cannot Open the Tailgate.......... 662Refueling................................................. 663
21 CR-V HYBRID HMIN-31TPG6100.book 625 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

657Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF and check
to see if any applic able fuse is blown.
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
OP BLOCK 240 A
ESB(40 A)
ABS/VSA FSR40 A
R/M 130 A
IG MAIN 230 A
R/M 230 A
MAIN FUSE150 A
2
EPS70 A
IG MAIN 130 A
FUSE BOX OPTION40 A
FUSE BOX 160 A
FRONT WIPER MOTOR30 A
P-ACT30 A
3
REAR DEFROSTER40 A
−(30 A)
FUSE BOX 240 A
ABS/VSA MOTOR40 A
−(40 A)
BLOWER MOTOR40 A
4
POWER TAILGATE*(40 A)
OP BLOCK 1*(40 A)
AWD(20 A)
IG HOLD 2(20 A)
5−−
6WASHER15 A
7IGP15 A
8FI SUB15 A
9STOP LIGHTS10 A
10IG HOLD 110 A
11IGPS7.5 A
12FI ECU10 A
13PCU EWP10 A
14HAZARD10 A
15IG COIL15 A
16RFC COIL5 A
17FRONT DEICER*(15 A)
18BACK UP10 A
19AUDIO15 A
20AUDIO AMP*(20 A)
21−−
22SHUTTER GRILLE10 A
23A/C WATER PUMP10 A
24HORN10 A
25−−
26−−
27−−
Circuit ProtectedAmps
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 657 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

662
Handling the Unexpected

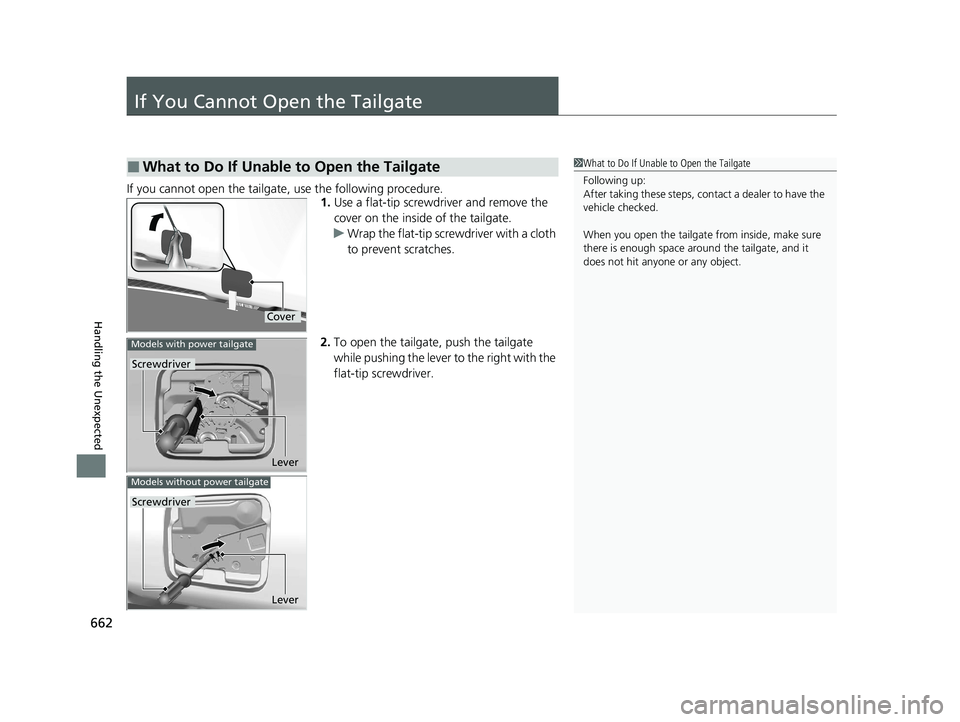

If You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure.1.Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the tailgat e, push the tailgate
while pushing the lever to the right with the
flat-tip screwdriver.
■What to Do If Unable to Open the Tailgate1 What to Do If Unable to Open the Tailgate
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
Models with power tailgate
Screwdriver
Models without power tailgate
Lever
Screwdriver
21 CR-V HYBRID HMIN-31TPG6100.book 662 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

684
Index
Lights On Indicator .................................. 101
Turn Signals ............................................. 188
Load Limits ................................................ 461
Locking/Unlocking .................................... 152
Auto Door Locking/Unlocking .................. 165
Childproof Door Locks ............................. 164
From Inside .............................................. 162
From Outside ........................................... 155
Keys ........................................................ 152
Using a Key ............................................. 160
Lockout Prevention System ...................... 161
Low Battery Charge .................................. 650
Low Fuel Indicator ...................................... 96
Low Oil Pressure Indicator ................. 93, 650
Low Smart Entry Remote Signal Strength ................................................... 154
Low Tire Pressure/TPMS Indicator .............. 99
Lower Anchors ............................................ 77
Luggage (Maximum Load Limit) .............. 461
Lumbar Support ........................................ 208
Lumbar Support Adjustment Switch ....... 208
M
Maintenance............................................. 575
12-volt Battery ......................................... 613
Brake Fluid............................................... 594
Cleaning .................................................. 617
Coolant ................................................... 591
Maintenance Minder
TM............................ 579
Oil ........................................................... 587 Precautions ............................................. 576
Radiator .................................................. 592
Remote Transmitter ................................. 615
Replacing Light Bulbs .............................. 596
Safety...................................................... 577
Service Items ........................................... 582
Tires ........................................................ 604
Transmission Fluid ................................... 593
Under the Hood ...................................... 584
Maintenance Minder ....................... 131, 579
Malfunction Indicator Lamp .............. 94, 651
Map Lights ................................................ 218
Maximum Load Limit ............................... 461
Meters, Gauges ......................................... 126
Mirrors ...................................................... 205
Adjusting ................................................ 205
Door ....................................................... 206
Exterior ................................................... 206
Interior Rearview ..................................... 205
Modifications (and Accessories) .............. 622
Moonroof ................................................. 184
MP3 ................................................... 263, 319
Multi-View Rear Camera .......................... 568
N
Navigation................................................ 139
Numbers (Identification) .......................... 668
O
Odometer................................................. 129
Off-Highway Driving Guidelines ............. 465
Oil (Engine) .............................................. 586
Adding ................................................... 588
Checking ................................................ 587
Displaying Oil Life ................................... 580
Low Oil Pressure Indicator ................. 93, 650
Recommended Engine Oil ....................... 586
Viscosity.................................................. 586
Open Source Licenses .............................. 360
Opening/Closing Hood ...................................................... 585
Moonroof ............................................... 184
Power Windows...................................... 180
Tailgate................................................... 166
Outside Temperature Display ................. 138
Overheating ............................................. 647
P
Pandora®......................................... 261, 317
Panic Mode ............................................... 179
Parking ..................................................... 557
Parking Brake ........................................... 549
Parking Brake and Brake System Indicator (Amber) ............................................. 92, 653
Parking Brake and Brake System Indicator (Red) .......................................... 91, 652, 653
Parking Sensor System ............................. 559
Passenger Airbag Off Indicator ................. 69
21 CR-V HYBRID HMIN-31TPG6100.book 684 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

685
Index
Passing Indicators..................................... 189
Playing Bluetooth ® Audio ............... 266, 322
POWER Button ......................................... 185
Power System Won’t Start ............................................. 642
Power System Indicator ............................. 93
Power Tailgate ......................................... 169
Power Windows ....................................... 180
POWER/CHARGE Gauge .......................... 126
Precautions While Driving ....................... 473
Driving Guidelines for Your Utility
Vehicle .................................................. 473
Rain ........................................................ 473
Pregnant Women ....................................... 54
Puncture (Tire) ......................................... 627
R
Radiator.................................................... 592
Radio (FM/AM) ................................. 256, 299
Radio (SiriusXM ®)..................................... 303
Radio Data System (RDS) ................. 257, 302
RDS (Radio Data System) ................. 257, 302
Readiness Codes (Emissions Testing) ...... 671
READY Indicator ........................................ 93
Real Time AWD with Intelligent Control System
TM.................................................. 490
Rear Seats (Folding Down) ...................... 212
Rearview Mirror ....................................... 205
Refueling .................................................. 570
Fuel Gauge ............................................. 126 Gasoline .......................................... 570, 666
Low Fuel Indicator ..................................... 96
Regulations ............................... 495, 607, 669
Remote Transmitter ................................. 159
Replacement
Battery .................................................... 615
Bulbs ....................................................... 596
Front Wiper Blade Rubber ........................ 599
Fuses ....................................... 657, 658, 659
Rear Wiper Blade Rubber ......................... 602
Tires ........................................................ 610
Reporting Safety Defects ......................... 670
Resetting a Trip Meter ............................. 130
Road Departure Mitigation (RDM) .......... 541
On and Off .............................................. 543
S
Safe Driving ................................................ 41
Safety Check ............................................... 46
Safety Labels ............................................... 87
Safety Message ............................................. 2
Seat Belts ..................................................... 47
Adjusting the Shoulder Anchor .................. 52
Automatic Seat Belt Tensioners .................. 50
Checking ................................................... 55
Detachable Anchor .................................... 53
Fastening ................................................... 51
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 80
Pregnant Women ...................................... 54 Reminder .................................................. 49
Warning Indicator ............................... 49, 96
Seat Heaters .............................................. 233
Seats .......................................................... 207
Adjusting ................................................ 207
Driver’s Seat Lumbar Support .................. 207
Front Seats .............................................. 207
Heaters ................................................... 233
Rear Seats ............................................... 211
Seat Heaters ............................................ 233
Security System ......................................... 177
Immobilizer System Indicator ................... 101
Security System Alarm Indicator............... 102
Select Button
Operation.......................................... 32, 477
Selecting a Child Seat ................................. 76
Selector Knob (Audio) .............................. 249
Setting the Clock ...................................... 150
Shift Button ................................................ 32
Shift Button Positions Transmission ..................................... 32, 475
Shift Position Indicator ...................... 95, 477
Shoulder Anchor ........................................ 52
Side Airbags ................................................ 64
Side Curtain Airbags .................................. 66
Siri ® Eyes Free ................................... 269, 331
SiriusXM ® Radio ........................................ 303
Smart Entry System .................................. 155
Snow Tires ................................................. 612
Song By Voice
TM (SBV) .............................. 313
Spark Plugs ............................................... 666
21 CR-V HYBRID HMIN-31TPG6100.book 685 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

686
Index
Specifications............................................ 666
Specified Fuel .................................... 570, 666
Speedometer ............................................. 126
SPORT Mode Indicator ............................................ 96, 481
SRS Airbags (Airbags) ................................. 59
Starting the Engine Engine Switch Buzzer............................... 186
If the 12-Volt Battery Is Dead ................... 645
Steering Wheel ......................................... 204
Adjusting ................................................. 204
Stopping .................................................... 557
Summer Tires ............................................ 612
Sunglasses Holder ..................................... 225
Supplemental Restraint System (SRS) ........ 59
Switches (Around the Steering Wheel) ............................................. 6, 7, 185
System Message Indicator ........................ 100
T
Tailgate..................................................... 166
Unable to Open ....................................... 662
Temperature
Outside Temperature Display ................... 138
Temperature Sensor ................................. 138
Temporary Repair Kit (TRK) ..................... 627
Theft Protection ........................................ 245
Time (Setting) ........................................... 150
Tire Pressure Monitoring System
(TPMS) ...................................................... 491 Tires
........................................................... 604
Air Pressure ..................................... 605, 667
Checking and Maintaining ...................... 604
Inspection ............................................... 604
Labeling .................................................. 605
Puncture (Flat Tire) .................................. 627
Regulations ............................................. 607
Rotation .................................................. 611
Summer .................................................. 612
Temporary Repair Kit (TRK) ...................... 627
Tire Chains .............................................. 612
Wear Indicators ....................................... 609
Winter..................................................... 612
Tonneau Cover ......................................... 226
Tools .......................................................... 626
Towing a Trailer ....................................... 463
Towing Behind a Motorhome ................. 464
Towing Your Vehicle Emergency .............................................. 661
TPMS (Tire Pressure Monitoring System) .................................................... 491
Transmission ..................................... 474, 475
Number................................................... 668
Operating the Shift Button ...................... 477
Operation.................................................. 32
Shift Position Indicator....................... 95, 477
Shifting ................................................... 475
Transmission System
Indicator............................................ 95, 656
TRIP Knob ................................................. 129
Trip Meter ................................................. 129 TRK (Temporary Repair Kit)
.................... 627
Troubleshooting ...................................... 625
Blown Fuse ............................. 657, 658, 659
Brake Pedal Vibrates ................................. 38
Buzzer Sounds When Opening Door ......... 38
Emergency Towing ................................. 661
If the 12-Volt Battery Is Dead .................. 645
Noise When Braking ................................. 39
Overheating ............................................ 647
Power System Won’t Start ...................... 642
Puncture/Flat Tire .................................... 627
Rear Door Won’t Open ..................... 38, 164
Warning Indicators.................................... 90
Turn Signals .............................................. 188
Turn signals Indicators (Instru ment Panel) ................... 100
Turning on the Power
Does Not Activate ................................... 642
U
Unlocking the Doors ................................ 155
Unlocking the Fron t Doors from the
Inside ....................................................... 162
USB Flash Drives ....................... 263, 319, 345
USB Port(s) ................................................ 243
21 CR-V HYBRID HMIN-31TPG6100.book 686 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
