bulb HONDA CR-V 2021 Owner's Manual (in English)

Contents
Child Safety P. 72Exhaust Gas Hazard P. 86Safety Labels P. 87
Tailgate P. 166 Security System P. 177 Windows P. 180
Operating the Switches Around the Steering Wheel P. 185 Mirrors P. 205
Climate Control System P. 234
Audio Error Messages P. 339 General Information on the Audio System P. 344
Bluetooth ® HandsFreeLink ® P. 397, 421 Compass* P. 455
Off-Highway Driving Guidelines P. 465 When Driving P. 467 Honda Sensing ® P. 501 Braking P. 549
Refueling P. 570 Fuel Economy and CO
2 Emissions P. 573
Maintenance Under the Hood P. 584 Replacing Light Bulbs P. 596
Checking and Maintaining Tires P. 604 12-volt Battery P. 613 Remote Transmitter Care P. 615
Cleaning P. 617 Accessories and Modifications P. 622
Handling of the Jack P. 641 Power System Won’t Start P. 642 If the 12-Volt Battery Is Dead P. 645
Fuses P. 657 Emergency Towing P. 661
Refueling P. 663
Devices that Emit Radio Waves P. 669 Reporting Safety Defects P. 670
Authorized Manuals P. 676 Customer Service Information P. 677
Quick Reference GuideP. 6
Safe DrivingP. 41
Instrument PanelP. 89
ControlsP. 149
FeaturesP. 241
DrivingP. 457
MaintenanceP. 575
Handling the UnexpectedP. 625
InformationP. 665
IndexP. 679
21 CR-V HYBRID HMIN-31TPG6100.book 5 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

575
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 576
Safety When Performing Maintenance ..577Parts and Fluids Used in Maintenance Service ........................................... 578
Maintenance Minder
TM..................... 579
Maintenance Under the Hood Maintenance Items Under the Hood .. 584
Opening the Hood ........................... 585
Recommended Engine Oil ................ 586
Oil Check ......................................... 587
Adding Engine Oil ............................ 588
Changing the Engine Oil and Oil Filter ...589
Cooling System ................................ 591
Transmission Fluid ............................ 593
Brake Fluid ....................................... 594
Refilling Window Wa sher Fluid......... 595
Replacing Light Bulbs ....................... 596
Checking and Maintaining Wiper Blades.. 599Checking and Maintaining Tires
Checking Tires ................................. 604
Tire and Loading Information Label ...... 605Tire Labeling .................................... 605DOT Tire Quality Grading (U.S. Vehicles).. 607Wear Indicators................................ 609
Tire Service Life ................................ 609 Tire and Wheel Replacement ........... 610
Tire Rotation .................................... 611
Winter Tires ..................................... 612
12-volt Battery .................................. 613
Remote Transmitter Care Replacing the Button Battery ........... 615
Climate Control System Maintenance .. 616Cleaning
Interior Care .................................... 617
Exterior Care.................................... 619
Accessories and Modifications .......... 622
21 CR-V HYBRID HMIN-31TPG6100.book 575 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

576
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of an y abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.)
■Daily inspections
Perform inspections before long distance tri ps, when washing the vehicle, or when
refueling.
2 Maintenance P. 36
■Periodic inspections
• Check the brake fluid level monthly.
2 Checking the Brake Fluid P. 594
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 604
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 596
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 599
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the driver information interface.
2 Maintenance Service Items P. 582
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 676
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing maintenanc e, update the records in
the separate maintenance booklet.
21 CR-V HYBRID HMIN-31TPG6100.book 576 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

596
Maintenance

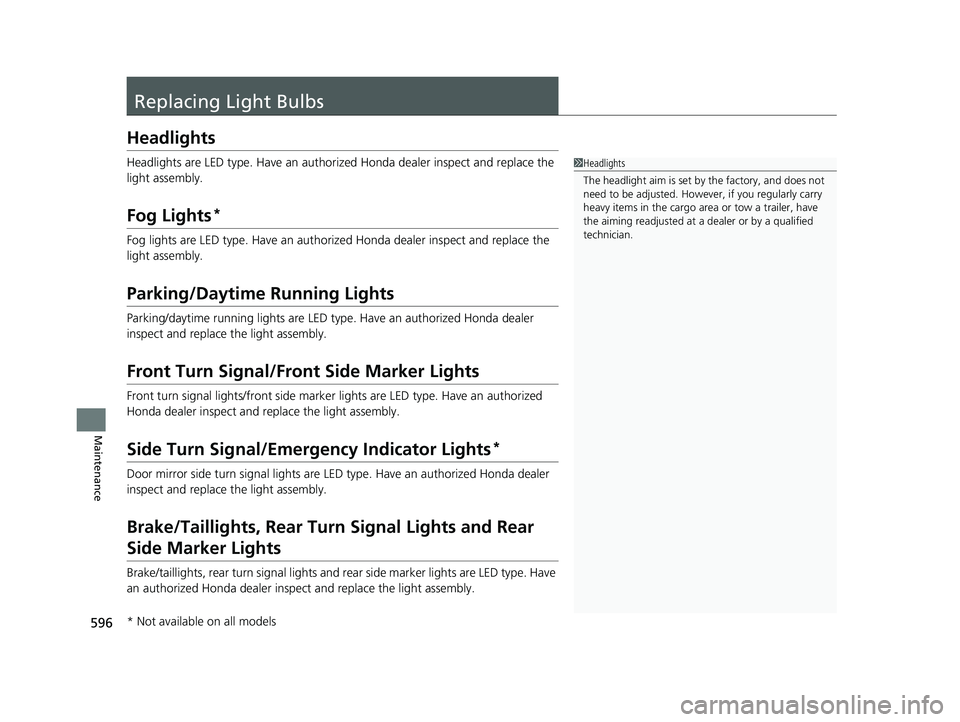

Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Honda dealer inspect and replace the
light assembly.
Fog Lights*
Fog lights are LED type. Have an authoriz ed Honda dealer inspect and replace the
light assembly.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type . Have an authorized Honda dealer
inspect and replace the light assembly.
Front Turn Signal/Front Side Marker Lights
Front turn signal lights/front side marker lights are LED type. Have an authorized
Honda dealer inspect and re place the light assembly.
Side Turn Signal/Emergency Indicator Lights*
Door mirror side turn signal lights are LE D type. Have an authorized Honda dealer
inspect and replace the light assembly.
Brake/Taillights, Rear Turn Signal Lights and Rear
Side Marker Lights
Brake/taillights, rear turn sign al lights and rear side marker lights are LED type. Have
an authorized Honda dealer inspec t and replace the light assembly.
1Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 596 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

597
uuReplacing Light Bulbs uTaillights and Back-Up Light Bulbs
Maintenance

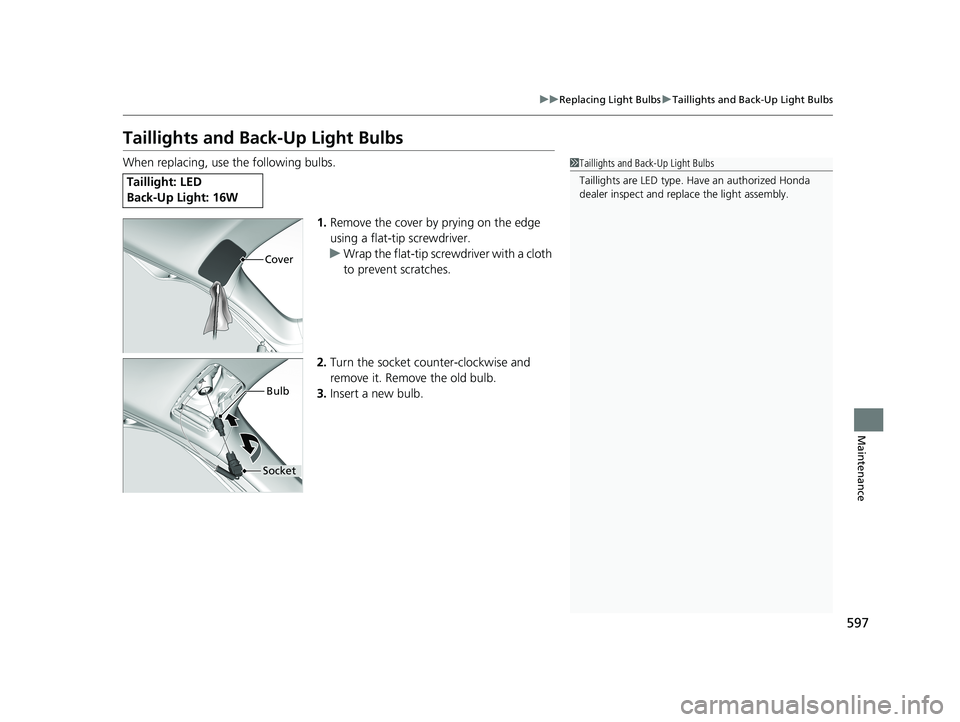

Taillights and Back-Up Light Bulbs
When replacing, use the following bulbs.
1.Remove the cover by prying on the edge
using a flat-tip screwdriver.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. Turn the socket counter-clockwise and
remove it. Remove the old bulb.
3. Insert a new bulb.
Taillight: LED
Back-Up Light: 16W
1Taillights and Back-Up Light Bulbs
Taillights are LED type. Ha ve an authorized Honda
dealer inspect and replace the light assembly.
Cover
Bulb
Socket
21 CR-V HYBRID HMIN-31TPG6100.book 597 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

598
uuReplacing Light Bulbs uRear License Plate Light
Maintenance
Rear License Plate Light
Rear license plate light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
21 CR-V HYBRID HMIN-31TPG6100.book 598 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

666
Information
Specifications
■Vehicle Specifications
ModelCR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
■ Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant Type HFO-1234yf (R-1234yf)
Charge Quantity 14.6 – 16.4 oz (415 – 465 g)
Lubricant TypeND-OIL 11 (POE)
Quantity 7.32 – 8.24 cu-in (120 – 135 cm3)
Displacement121.6 cu-in (1,993 cm3)Spark PlugsNGKDILZKAR7D11S
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 14 US gal (53 L)
Tank Capacity2.6 US qt (2.5 L)
■ Light Bulbs
Headlights (Low Beam)LEDHeadlights (High Beam)LEDFog Lights*LED
Front Turn Signal Lights LED
Front Side Marker LightsLED
Parking/Daytime Running Lights LED
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake/Taillights LED
Rear Side Marker LightsLED
Rear Turn Signal Lights LED
Back-Up Lights16 W
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap Lights8 WCeiling Light8 WCargo Area Lights5 WVanity Mirror Lights*1.4 WFront Door Inner
Handle Lights*LED
Foot Lights*LED
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 666 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

680
Index
USB Flash Drives ...................... 263, 319, 345
USB Port(s)............................................... 243
Voice Control Operation .......................... 295
Wallpaper Setup .............................. 252, 280
Wi-Fi Connection ..................................... 329
Audio/Information Screen ................ 250, 271
Authorized Manuals ................................. 676
Auto Door Locking/Unlocking ................. 165
Auto High-Beam ....................................... 194
Indicator .................................................. 101
Automatic Brake Hold .............................. 553
Indicator ............................................ 93, 553
Automatic Brake Hold System Indicator .................................................... 93
Automatic Intermittent Wipers ............... 198
Automatic Lighting .................................. 190
Average Fuel Economy ............................. 130
Average Fuel Economy Records ............... 131
Average Speed .......................................... 130
AWD (All-Wheel Drive) ............................ 490
B
Battery......................................................... 12
Charging System Indicator ......................... 95
High Voltage ..................................... 12, 500
If the 12-Volt Battery Is Dead ................... 645
Maintenance (Replacing).......................... 615
Belts (Seat) .................................................. 47
Beverage Holders ...................................... 221 Blind spot information System
................ 497
Indicator.................................................. 102
Bluetooth® Audio............................. 266, 322
Bluetooth® HandsFreeLink ®........... 397, 421
Booster Seats (For Children) ...................... 85
Brake System ............................................ 549
Anti-lock Brake System (ABS)................... 555
Automatic Brake Hold ............................. 553
Brake Assist System ................................. 556
Fluid ........................................................ 594
Foot Brake............................................... 552
Indicator.............................................. 91, 92
Indicator (Red) ................................. 652, 653
Parking Brake .......................................... 549
Brightness Control (Instrument Panel) .... 201
Bulb Replacement .................................... 596
Brake/Taillights, Rear Turn Signal Lights and
Rear Side Marker Lights ......................... 596
Front Turn Signal/ Front Side Marker
Lights .................................................... 596
Headlights ............................................... 596
High-Mount Brake Light .......................... 598
Parking/Daytime Running Lights .............. 596
Rear License Plate Light ........................... 598
Side Turn Signal/Emergency Indicator
Lights .................................................... 596
Taillights and Back-Up Lights ................... 597
Bulb Specifications ................................... 666
C
Carbon Monoxide Gas ............................... 86
Cargo Hook .............................................. 224
Carrying Cargo ................................. 459, 461
Certification Label ................................... 668
Changing Bulbs ........................................ 596
Charging System Indicator ................ 95, 650
Child Safety ................................................ 72
Childproof Door Locks ............................ 164
Child Seat ................................................... 72
Booster Seats ............................................ 85
Child Seat for Infants ................................ 74
Child Seat for Small Children .................... 75
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 80
Larger Children ......................................... 84
Rear-facing Child Seat............................... 74
Selecting a Child Seat ............................... 76
Childproof Door Locks ............................. 164
Cleaning the Exterior ............................... 619
Cleaning the Interior ............................... 617
Climate Control System ........................... 234
Changing the Mode................................ 234
Defrosting the Windshield and Windows .............................................. 237
Dust and Pollen Filter .............................. 616
Recirculation/Fresh Air Mode................... 237
Sensors ................................................... 240
Synchronization Mode ............................ 239
Using Automatic Climate Control............ 234
Clock ......................................................... 150
21 CR-V HYBRID HMIN-31TPG6100.book 680 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

683
Index
HondaLink®............................................ 324
Hybrid Vehicle
SPORT HYBRID i-MMD (intelligent Multi-Mode Drive) ................................... 11
I
Identification Numbers ............................ 668
Engine, Motor and Transmission ............. 668
Vehicle Identification............................... 668
If the 12-Volt Battery Is Dead .................. 645
Illumination Control ................................ 201
Knob ...................................................... 201
Immobilizer System .................................. 177
Indicator ................................................. 101
Indicators .................................................... 90
12-volt Battery Charging System ....... 95, 650
ABS (Anti-lock Brake System) .................... 97
Adaptive Cruise Control (ACC) with Low Speed Follow ........................ 105, 106, 516
Auto High-Beam ..................................... 101
Automatic Brake Hold ....................... 93, 553
Automatic Brake Hold System ................... 93
Blind spot information System................. 102
Collision Mitigati on Braking System
(CMBS) ......................................... 107, 108
Deceleration Paddle Selector ..................... 95
ECON Mode ................................... 102, 485
Electric Power Steering (EPS) System ............................................ 98, 654
EV............................................................. 94 EV Mode ................................................... 94
Fog Light ................................................. 101
High Beam .............................................. 100
Immobilizer System .................................. 101
Lane Keeping Assist System (LKAS) .......... 106
Lights On ................................................. 101
Low Fuel .................................................... 96
Low Oil Pressure ................................ 93, 650
Low Tire Pressure/TPMS ............. 99, 495, 655
Malfunction Indicator Lamp ............... 94, 651
Parking Brake and Brake System
(Amber) ........................................... 92, 653
Parking Brake and Brake System (Red)........................................ 91, 652, 653
Power System ............................................ 93
READY ...................................................... 93
Road Departure Mitigation (RDM) .... 103, 104
Seat Belt Reminder .............................. 49, 96
Security System Alarm ............................. 102
Shift Position ............................................. 95
SPORT Mode ..................................... 96, 481
Supplemental Restraint System ............ 68, 97
System Message ...................................... 100
Transmission System .......................... 95, 656
Turn Signal and Haza rd Warning ............. 100
Vehicle Stability Assist
TM (VSA ®)
System............................................. 97, 487
VSA ® OFF .......................................... 98, 488
Information ............................................... 665
Instrument Panel ........................................ 89
Brightness Control ................................... 201 Interior Lights
........................................... 217
Interior Rearview Mirror .......................... 205
iPod ................................................... 258, 310
K
Key Number Tag ....................................... 153
Keyless Lockout Prevention ..................... 161
Keys ........................................................... 152
Lockout Prevention.................................. 161
Master Keys ............................................ 152
Number Tag ............................................ 153
Rear Door Won’t Open............................ 164
Remote Transmitter ................................. 159
Types and Functions ................................ 152
Kickdown (Continuously Variable
Transmission) .......................................... 474
L
Lane Keeping Assist System (LKAS) ......... 532
LATCH (Child Seats) .............................. 77, 82
Lights ................................................. 189, 596
Auto High-Beam ..................................... 194
Automatic ............................................... 190
Bulb Replacement ................................... 596
Daytime Running Lights........................... 193
Fog Lights ............................................... 193
High Beam Indicator Light ....................... 100
Interior .................................................... 217
Light Switches ......................................... 189
21 CR-V HYBRID HMIN-31TPG6100.book 683 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

684
Index
Lights On Indicator .................................. 101
Turn Signals ............................................. 188
Load Limits ................................................ 461
Locking/Unlocking .................................... 152
Auto Door Locking/Unlocking .................. 165
Childproof Door Locks ............................. 164
From Inside .............................................. 162
From Outside ........................................... 155
Keys ........................................................ 152
Using a Key ............................................. 160
Lockout Prevention System ...................... 161
Low Battery Charge .................................. 650
Low Fuel Indicator ...................................... 96
Low Oil Pressure Indicator ................. 93, 650
Low Smart Entry Remote Signal Strength ................................................... 154
Low Tire Pressure/TPMS Indicator .............. 99
Lower Anchors ............................................ 77
Luggage (Maximum Load Limit) .............. 461
Lumbar Support ........................................ 208
Lumbar Support Adjustment Switch ....... 208
M
Maintenance............................................. 575
12-volt Battery ......................................... 613
Brake Fluid............................................... 594
Cleaning .................................................. 617
Coolant ................................................... 591
Maintenance Minder
TM............................ 579
Oil ........................................................... 587 Precautions ............................................. 576
Radiator .................................................. 592
Remote Transmitter ................................. 615
Replacing Light Bulbs .............................. 596
Safety...................................................... 577
Service Items ........................................... 582
Tires ........................................................ 604
Transmission Fluid ................................... 593
Under the Hood ...................................... 584
Maintenance Minder ....................... 131, 579
Malfunction Indicator Lamp .............. 94, 651
Map Lights ................................................ 218
Maximum Load Limit ............................... 461
Meters, Gauges ......................................... 126
Mirrors ...................................................... 205
Adjusting ................................................ 205
Door ....................................................... 206
Exterior ................................................... 206
Interior Rearview ..................................... 205
Modifications (and Accessories) .............. 622
Moonroof ................................................. 184
MP3 ................................................... 263, 319
Multi-View Rear Camera .......................... 568
N
Navigation................................................ 139
Numbers (Identification) .......................... 668
O
Odometer................................................. 129
Off-Highway Driving Guidelines ............. 465
Oil (Engine) .............................................. 586
Adding ................................................... 588
Checking ................................................ 587
Displaying Oil Life ................................... 580
Low Oil Pressure Indicator ................. 93, 650
Recommended Engine Oil ....................... 586
Viscosity.................................................. 586
Open Source Licenses .............................. 360
Opening/Closing Hood ...................................................... 585
Moonroof ............................................... 184
Power Windows...................................... 180
Tailgate................................................... 166
Outside Temperature Display ................. 138
Overheating ............................................. 647
P
Pandora®......................................... 261, 317
Panic Mode ............................................... 179
Parking ..................................................... 557
Parking Brake ........................................... 549
Parking Brake and Brake System Indicator (Amber) ............................................. 92, 653
Parking Brake and Brake System Indicator (Red) .......................................... 91, 652, 653
Parking Sensor System ............................. 559
Passenger Airbag Off Indicator ................. 69
21 CR-V HYBRID HMIN-31TPG6100.book 684 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
