reset HONDA CR-V 2021 Owner's Manual (in English)

29
Quick Reference Guide
● / Button
● (Display/Information) Button:
Press to change contents. 2 Driver Information Interface
(P128)
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Pandora ®:
Press to skip to the next track.
Press and hold to select the next or
previous station.
21 CR-V HYBRID HMIN-31TPG6100.book 29 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

30
Quick Reference Guide
Audio System (P242)
(P249)Models with color audio system
(Seek/Skip) Button
RADIO Button
(Day/Night) Button
MEDIA Button
Preset Buttons (1-6)
(Seek/Skip) Button
VOL
/ (Volume/Power) Knob
Audio/Information Screen
(Back) Button
(Sound) Button
MENU/CLOCK Button
Selector Knob (Phone) Button
21 CR-V HYBRID HMIN-31TPG6100.book 30 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

uuChild Safety uSafety of Infants and Small Children
80
Safe DrivingA child seat can be installed with a lap/should er belt in any rear seat or, if absolutely
necessary, the front passenger seat. 1.Make sure to lock th e seat-back in the
upright position.
2. Place the child seat on the vehicle seat.
3. Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.
u Insert the latch plate fully until it clicks.
4. Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.
5. Let the seat belt retract a few inches and
check that the retractor has switched
modes by pulling on the webbing. It should
not pull out again until it is reset by
removing the latch plate from the buckle.
u If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Slowly pull the seat belt all the
way out, and repeat steps 4 – 5.
■Installing a Child Seat with a Lap/Shoulder Seat Belt1Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
21 CR-V HYBRID HMIN-31TPG6100.book 80 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

119

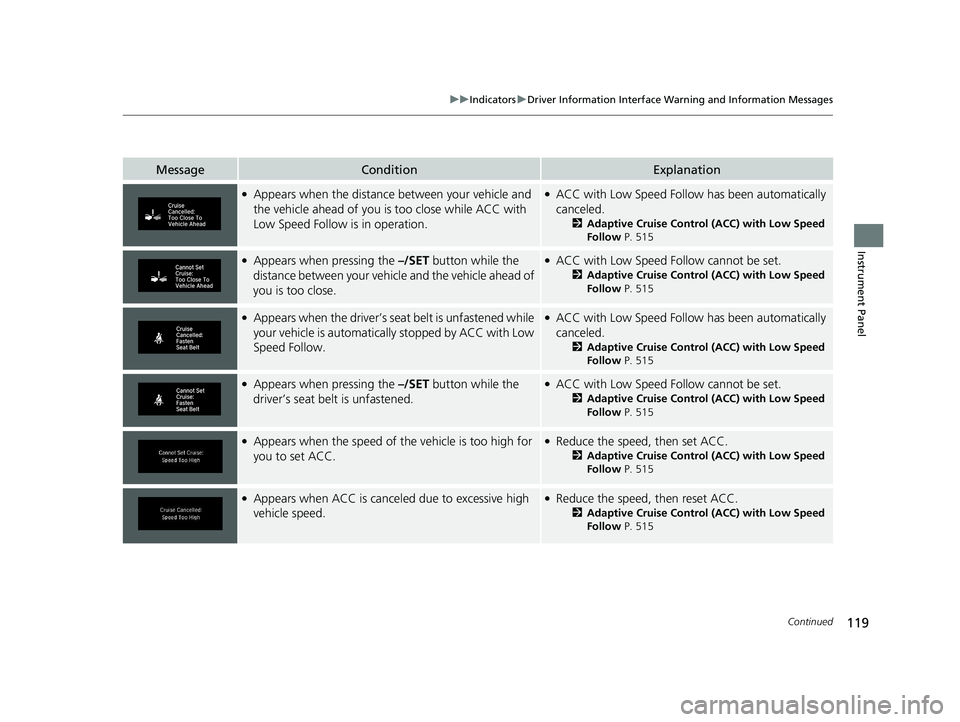

uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the distance between your vehicle and
the vehicle ahead of you is too close while ACC with
Low Speed Follow is in operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 515
●Appears when pressing the –/SET button while the
distance between your vehicle and the vehicle ahead of
you is too close.●ACC with Low Speed Fo llow cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 515
●Appears when the driver’s seat belt is unfastened while
your vehicle is automatica lly stopped by ACC with Low
Speed Follow.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 515
●Appears when pressing the –/SET button while the
driver’s seat belt is unfastened.●ACC with Low Speed Fo llow cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 515
●Appears when the speed of th e vehicle is too high for
you to set ACC.●Reduce the speed, then set ACC.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 515
●Appears when ACC is cancel ed due to excessive high
vehicle speed.●Reduce the speed, then reset ACC.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 515
21 CR-V HYBRID HMIN-31TPG6100.book 119 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

Continued129
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
■Trip computer
Press the ( TRIP) knob to change display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Odometer
■Trip Meter
Odometer Outside temperature Trip ATrip B
(
TRIP)
Knob
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
21 CR-V HYBRID HMIN-31TPG6100.book 129 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

uuGauges and Driver Information Interface uDriver Information Interface
130
Instrument Panel
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0 .
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.
Shows the estimated distance you can trave l on the remaining power and fuel. This
estimated distance is based on the vehicle’s current fuel economy.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■Average Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Instant Fuel Economy Gauge
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 140, 368
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 140, 368
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 140, 368
21 CR-V HYBRID HMIN-31TPG6100.book 130 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

133
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

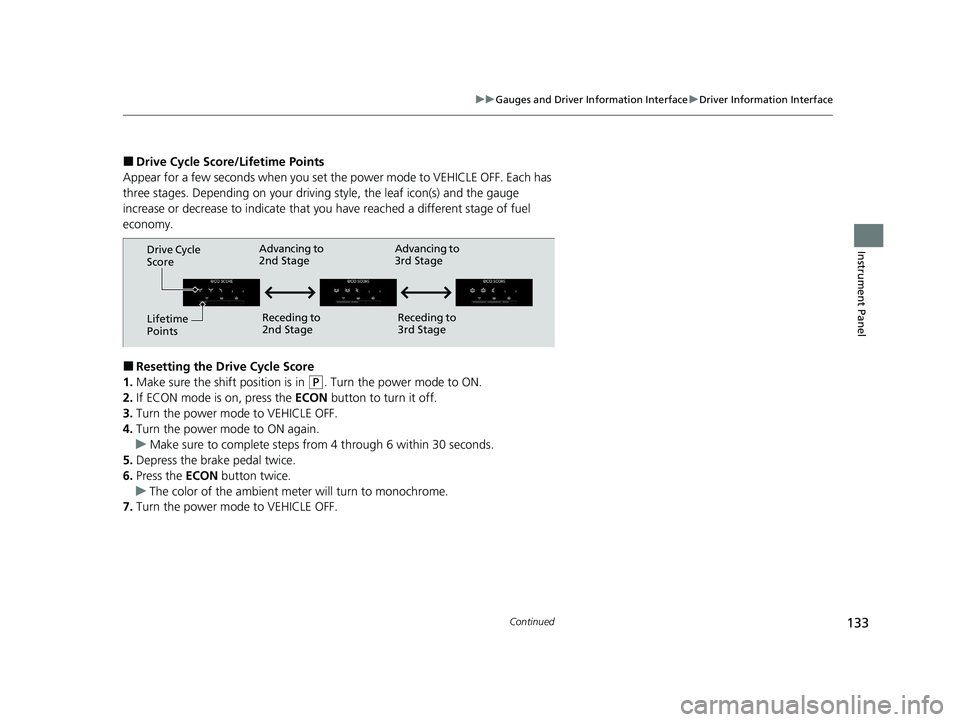

■Drive Cycle Score/Lifetime Points
Appear for a few seconds when you set th e power mode to VEHICLE OFF. Each has
three stages. Depending on your driving style, the leaf icon(s) and the gauge
increase or decrease to indicate that yo u have reached a different stage of fuel
economy.
■Resetting the Drive Cycle Score
1. Make sure the shift position is in
(P. Turn the power mode to ON.
2. If ECON mode is on, press the ECON button to turn it off.
3. Turn the power mode to VEHICLE OFF.
4. Turn the power mode to ON again.
u Make sure to complete steps fro m 4 through 6 within 30 seconds.
5. Depress the brake pedal twice.
6. Press the ECON button twice.
u The color of the ambient mete r will turn to monochrome.
7. Turn the power mode to VEHICLE OFF.
Drive Cycle
Score
Lifetime
Points Advancing to
2nd Stage
Receding to
2nd Stage Advancing to
3rd Stage
Receding to
3rd Stage
21 CR-V HYBRID HMIN-31TPG6100.book 133 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

Continued137
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

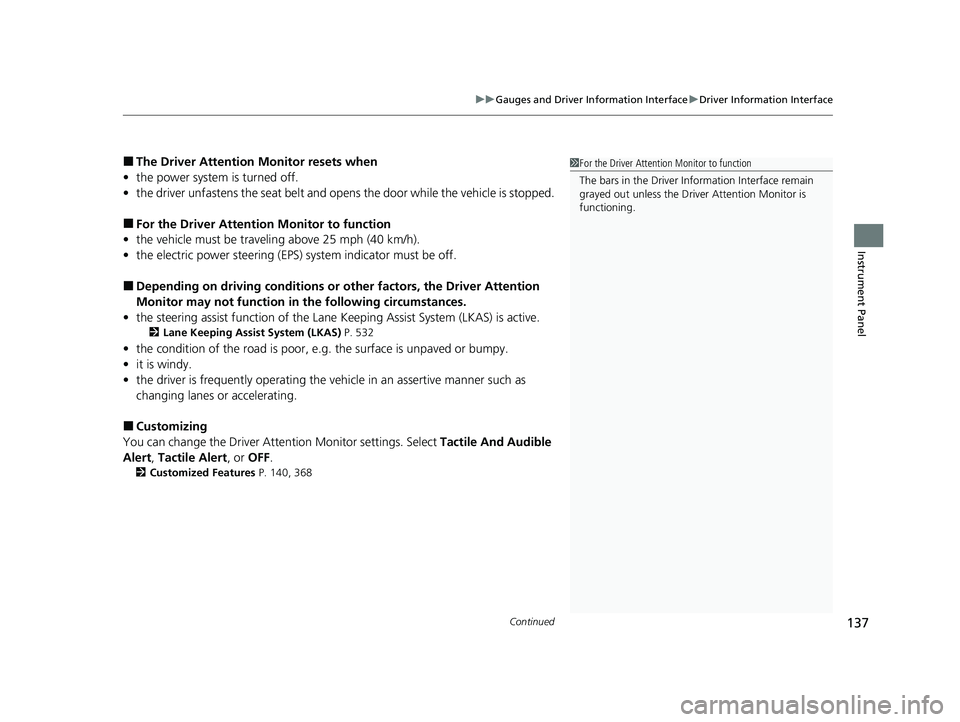

■The Driver Attention Monitor resets when
• the power system is turned off.
• the driver unfastens the seat belt and op ens the door while the vehicle is stopped.
■For the Driver Attention Monitor to function
• the vehicle must be traveling above 25 mph (40 km/h).
• the electric power steering (EPS) system indicator must be off.
■Depending on driving conditions or other factors, the Driver Attention
Monitor may not function in the following circumstances.
• the steering assist function of the Lane K eeping Assist System (LKAS) is active.
2Lane Keeping Assist System (LKAS) P. 532
•the condition of the road is poor, e.g. the surface is unpaved or bumpy.
• it is windy.
• the driver is frequently op erating the vehicle in an assertive manner such as
changing lanes or accelerating.
■Customizing
You can change the Driver Attention Monitor settings. Select Tactile And Audible
Alert , Tactile Alert , or OFF .
2Customized Features P. 140, 368
1For the Driver Attention Monitor to function
The bars in the Driver Information Interface remain
grayed out unless the Driv er Attention Monitor is
functioning.
21 CR-V HYBRID HMIN-31TPG6100.book 137 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

141
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
■Customization flow
Press the button.
ENTER
TPMS Calibration
Vehicle Settings
Lane Keeping Assist Suspend Beep
Forward Collision Warning Distance
Road Departure Mitigation Setting
Driver Attention Monitor
Driver Assist System SetupENTER
ACC Forward Vehicle Detect Beep
“Trip B” Reset Timing
Language Selection
“Trip A” Reset Timing
Adjust Alarm Volume
Speed/Distance Units
Reverse Alert Tone
Meter SetupENTER
Adjust Outside Temp. Display
3
4
3
4
3
4
3
4
3
4
3
4
ENTER
Fuel Efficiency Backlight
21 CR-V HYBRID HMIN-31TPG6100.book 141 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

142
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Exit
Default All
Auto Door Lock
Walk Away Auto Lock
Security Relock Timer
Headlight Auto OFF Timer
Auto Headlight ON With Wiper ON
ENTER
ENTER
Lighting Setup
Door Setup
ENTER
Auto Interior Illumination Sensitivity
Door Unlock Mode
Remote Start System ON/OFF
ENTERKeyless Access SetupKeyless Access Light Flash
Keyless Access Beep
3
4
3
4
3
4
3
4
3
4
3
4
3
4Interior Light Dimming Time
Auto Light Sensitivity
Key And Remote Unlock Mode
Keyless Lock Answer Back
Auto Door Unlock
Maintenance Reset
3
4
3
4
3
4
21 CR-V HYBRID HMIN-31TPG6100.book 142 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
