Page 6 of 690

Contents
Child Safety P. 72Exhaust Gas Hazard P. 86Safety Labels P. 87
Tailgate P. 166 Security System P. 177 Windows P. 180
Operating the Switches Around the Steering Wheel P. 185 Mirrors P. 205
Climate Control System P. 234
Audio Error Messages P. 339 General Information on the Audio System P. 344
Bluetooth ® HandsFreeLink ® P. 397, 421 Compass* P. 455
Off-Highway Driving Guidelines P. 465 When Driving P. 467 Honda Sensing ® P. 501 Braking P. 549
Refueling P. 570 Fuel Economy and CO
2 Emissions P. 573
Maintenance Under the Hood P. 584 Replacing Light Bulbs P. 596
Checking and Maintaining Tires P. 604 12-volt Battery P. 613 Remote Transmitter Care P. 615
Cleaning P. 617 Accessories and Modifications P. 622
Handling of the Jack P. 641 Power System Won’t Start P. 642 If the 12-Volt Battery Is Dead P. 645
Fuses P. 657 Emergency Towing P. 661
Refueling P. 663
Devices that Emit Radio Waves P. 669 Reporting Safety Defects P. 670
Authorized Manuals P. 676 Customer Service Information P. 677
Quick Reference GuideP. 6
Safe DrivingP. 41
Instrument PanelP. 89
ControlsP. 149
FeaturesP. 241
DrivingP. 457
MaintenanceP. 575
Handling the UnexpectedP. 625
InformationP. 665
IndexP. 679
21 CR-V HYBRID HMIN-31TPG6100.book 5 ページ 2020年9月14日 月曜日 午前11時36分
Page 25 of 690

24
Quick Reference Guide
Unlocking the Front
Doors from the Inside
(P162)
●Pull either front door inner handle to
unlock and open it at the same time.
Tailgate (P166)
●Press the tailgate outer handle to unlock
and open the tailgate when you have the
smart entry remote on you.
●Press the power tailgate button on the
driver’s side control panel, or press the
remote transmitter to unlock and open
the tailgate when you have the smart
entry remote on you.
Models with power tailgate
Outer Handle
Use a forward and back kicking motion
under the center of the rear bumper to
open or close the power tailgate while
carrying the smart entry remote.
Models with hands free access
1 sec.
21 CR-V HYBRID HMIN-31TPG6100.book 24 ページ 2020年9月14日 月曜日 午前11時36分
Page 29 of 690

28
Quick Reference Guide
Features (P241)
Audio Remote Controls
(P246)
●(+ / ( - Bar
Press to adjust the volume up/down.
● / Button
Press or to cycle through the audio
mode as follows:
FM1/FM2/AM/USB or iPod/Pandora ®/
Bluetooth ®Audio
FM/AM/SiriusXM® /USB/iPod/
Bluetooth ®Audio/Pandora® /Apps/
Audio Apps
ENTER Button
/ / / Button34
(+ / (- Bar
Button
3434
Models with color audio system
Models with Display Audio
●ENTER Button
•When listening to a USB flash drive
aPress ENTER to display the folder list.
bPress or to select a folder.
cPress ENTER to display a list of tracks in
that folder.
dPress or to select a track, then
press ENTER .
•When listening to an iPod
aPress ENTER to display the iPod music
list.
bPress or to select a category.
cPress ENTER to display a list of items in
the category.
dPress or to select an item, then
press ENTER .
uPress ENTER and press or
repeatedly until a desired item you
want to listen is displayed.
Models with Display Audio
34
34
34
34
34
• When listening to Pandora®
aPress ENTER to display the station list.
bPress or to select an item, then
press ENTER .
•When listening to Bluetooth®Audio
aPress ENTER to display the track list.
bPress or to select a track, then
press ENTER .
34
34
21 CR-V HYBRID HMIN-31TPG6100.book 28 ページ 2020年9月14日 月曜日 午前11時36分
Page 119 of 690

118
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the automatic
lighting control system.●Appears while driving - Manually turn the lights
on, and have your vehicl e checked by a dealer.
●Appears if there is a problem with the headlights.●Appears while driving - The headlights may not be
on.
When conditions allow you to drive safely, have your
vehicle checked by a dealer as soon as possible.
●Appears when you unlock and open the driver’s door
while the power system is on by remote engine start.
2 Remote Engine Start P. 469
●Appears if the vehicle is being driven in a manner
consistent with drowsy or inattentive driving.
2Driver Attention Monitor P. 135
●Appears when ACC with Lo w Speed Follow has been
automatically canceled.●You can resume the set speed after the condition
that caused ACC with Low Speed Follow to cancel
improves. Press the RES/+ button.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 515
21 CR-V HYBRID HMIN-31TPG6100.book 118 ページ 2020年9月14日 月曜日 午前11時36分
Page 150 of 690

149
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 150
Locking and Unlocking the Doors Key .................................................. 152
Low Smart Entry Remote Signal Strength ... 154
Locking/Unlocking the Doors from the Outside .......................................... 155
Locking/Unlocking the Doors from the Inside ............................................. 162
Childproof Door Locks ..................... 164
Auto Door Locking/Unlocking .......... 165
Tailgate .............................................. 166
Security System Immobilizer System .......................... 177
Security System Alarm
*.................... 177
Windows ............................................... 180Moonroof*........................................ 184
Operating the Switches Around the Steering Wheel
POWER Button................................. 185
Turn Signals ..................................... 188
Light Switches.................................. 189
Fog Lights
*...................................... 193
Daytime Running Lights ................... 193
Auto High-Beam .............................. 194
Wipers and Washers ........................ 197
Brightness Control ........................... 201 Rear Defogger/Heated Door Mirror
*
Button ........................................... 200
Driving Position Memory System*.... 202
Adjusting the Steering Wheel .......... 204
Mirrors ............................................... 205
Seats .................................................. 207
Interior Convenience Items .............. 217
Climate Control System Using Automatic Climate Control .... 234
Automatic Climate Control Sensors ...... 240
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 149 ページ 2020年9月14日 月曜日 午前11時36分
Page 153 of 690

152
Controls
Locking and Unlocking the Doors
Key
This vehicle comes with the following keys:Use the keys to turn on and off the power
system, and to lock and unlock the doors and
tailgate.
The built-in key can be used to lock/unlock the
doors when the smart entry remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
smart entry remote until it clicks.1 Key
All the keys have an immobilizer system. The
immobilizer system helps protect against vehicle
theft.
2 Immobilizer System P. 177
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the power
system may not activate, and the remote transmitter
may not work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely turn the power system on using the
remote engine start. 2 Remote Engine Start P. 469■Built-in Key
Built-in Key
Release Knob
21 CR-V HYBRID HMIN-31TPG6100.book 152 ページ 2020年9月14日 月曜日 午前11時36分
Page 155 of 690

154
uuLocking and Unlocking the Doors uLow Smart Entry Remote Signal Strength
Controls

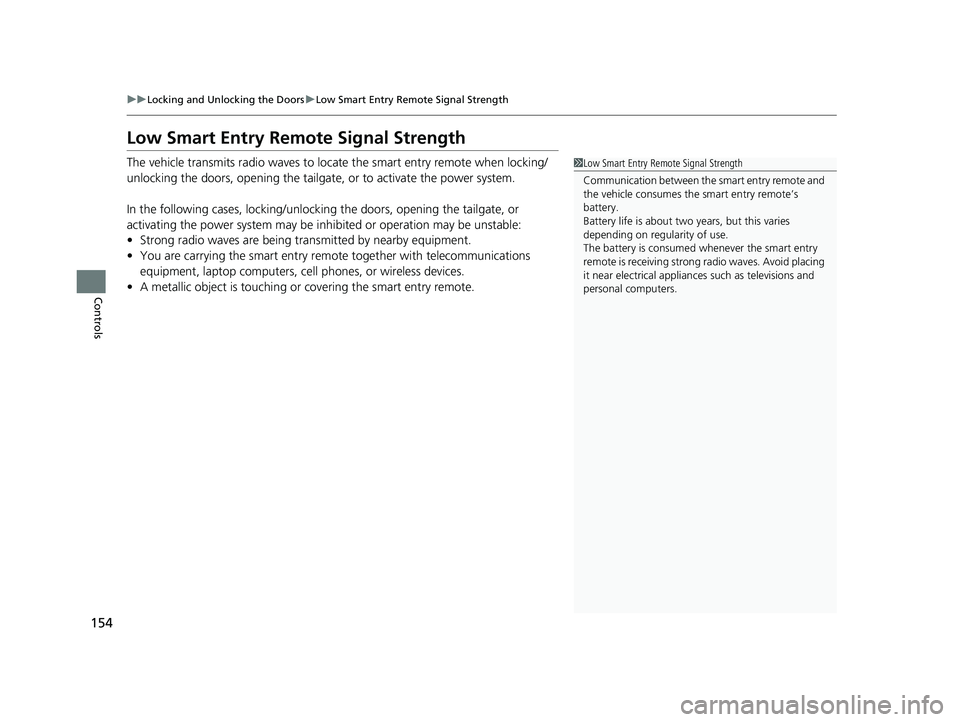

Low Smart Entry Remo te Signal Strength
The vehicle transmits radio waves to loca te the smart entry remote when locking/
unlocking the doors, opening the tailgate, or to activate the power system.
In the following cases, locking/unlocking the doors, opening the tailgate, or
activating the power system may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the smart entry remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the smart entry remote.1Low Smart Entry Remote Signal Strength
Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on re gularity of use.
The battery is consumed whenever the smart entry
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
21 CR-V HYBRID HMIN-31TPG6100.book 154 ページ 2020年9月14日 月曜日 午前11時36分
Page 156 of 690

155
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Controls
Locking/Unlocking the Doors from the Outside
When you carry the sm art entry remote, you
can lock/unlock the doors and open the
tailgate.
You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle or tailgate outer handle.
■Locking the doors and tailgate
Touch the door lock sensor on the front door
or press the lock button on the tailgate. u Some exterior lights flash; the beeper
sounds; all the doors and tailgate lock;
and the security system
* sets.
■Using the Smart Entry with Push Button Start System1Locking/Unlocking the Doors from the Outside
If the interior light switch is in the door activated
position, the interior light comes on when you unlock
the doors and tailgate.
No doors opened: The li ght fades out after 30
seconds.
Doors and tailgate relo cked: The light goes off
immediately.
2 Interior Lights P. 217
1Using the Smart Entry with Push Button Start System
If you do not open a door or the tailgate within 30
seconds of unlocking the vehicle with the smart entry
system, the doors and tailg ate will automatically
relock.
You can lock or unlock doors using the smart entry
system only when the power mode is in VEHICLE OFF.
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can lock/unlock the doors and tailgate while
someone else with the remote is within range.
•The door may be locked or unlocked if the door
handle is covered with wate r in heavy rain or in a
car wash if the smart entry remote is within range.
•If you grip a front door ha ndle or touch a door lock
sensor wearing gloves, the door sensor may be
slow to respond or may no t respond by locking or
unlocking the doors.
Door Lock
Sensor
Lock Button
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 155 ページ 2020年9月14日 月曜日 午前11時36分
Page 157 of 690

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
156
Controls
■Unlocking the doors and tailgate
Grab the driver’s door handle: u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle:
u All the doors and tailgate unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the tailgate outer handle: u The tailgate unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
2 Opening/Closing the Tailgate P. 167
1Using the Smart Entry with Push Button Start System
•After locking the door, you have up to 2 seconds
during which you can pull the door handle to
confirm whether the door is locked. If you need to
unlock the door immediately after locking it, wait
at least 2 seconds befo re gripping the handle,
otherwise the door will not unlock.
•The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unlock the doors and the
tailgate with the smart entry remote if it is above or
below the outside handle.
•The smart entry remote may not operate if it is too
close to the door and door glass.
The light flashes, and beeper sounds and unlock
settings can be custom ized using the driver
information interface
* or audio/information screen*.
2 Customized Features P. 140
2 Customized Features P. 368
You can also unlock and open with the power
tailgate. 2 Using the Tailgate Outer Handle P. 173Models with color audio system
Models with Display Audio
Models with power tailgate
Outer Handle
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 156 ページ 2020年9月14日 月曜日 午前11時36分
Page 158 of 690

Continued157
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the doors and tailgate (Walk
away auto lock ®)
When you walk away fro m the vehicle with all
doors and tailgate closed while carrying the
smart entry remote, th e doors and tailgate will
automatically lock.
The auto lock function activates when all
doors and tailgate are closed, and the smart
entry remote is within about 5 feet (1.5 m)
radius of the outside door handle.
Exit vehicle while carry ing smart entry remote
and close door(s) and tailgate.
1. While within about 5 feet (1.5 m) radius of
the vehicle.
u The beeper sounds; the auto lock
function will be activated.
2. Carry the smart entry remote beyond about
5 feet (1.5 m) from the vehicle and remain
outside this range for 2 or more seconds.
u Some exterior lights flash; the beeper
sounds; all doors and tailgate will then
lock.1Locking the doors and tailg ate (Walk away auto lock®)
The auto lock function is set to OFF as the factory
default setting. The auto lo ck function can be set to
ON using the driver information interface
* or audio/
information screen*.
If you set the auto lock function to ON using the
driver information interface
* or audio/information
screen*, only the smart entry remote that was used to
unlock the driver’s door prio r to the setting change
can activate auto lock.
2 Customized Features P. 140
2 Customized Features P. 368
After the auto lock function has been activated, when
you stay within the locking/unlocking operation range,
the indicator on the smart en try remote will continue to
flash until the doors and tailgate are locked.
When you stay beside the vehicle within the
operation range, the door s and tailgate will
automatically lock approx imately 30 seconds after
the auto lock function activating beeper sounds.
When you open a door or tailgate after the auto lock
function activating beeper sounds, the auto lock
function will be canceled.
Models with color audio system
Models with Display Audio
The activation range of
the auto lock function is
about 5 feet (1.5 m)
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 157 ページ 2020年9月14日 月曜日 午前11時36分
