snow chains HONDA CR-V 2021 Owner's Manual (in English)

491
uuWhen Driving uTire Pressure Monitoring System (TPMS)
Continued
Driving
Tire Pressure Monitoring System (TPMS)
Instead of directly measuring the pressure in each tire, the TPMS on this vehicle
monitors and compares the rolling radius and rotational characteristics of each
wheel and tire while you are driving to determine if one or more tires are
significantly under-inflated. This will cause the low tire pressure/TPMS
indicator to come on and a message to appear
on the driver information interface.1 Tire Pressure Monitoring System (TPMS)
The system does not monitor the tires when driving
at low speed.
Conditions such as low ambient temperature and
altitude change directly a ffect tire pressure and can
trigger the low tire pressure/TPMS indicator to come on.
Tire pressure checked and inflated in:
•Warm weather can beco me under-inflated in
colder weather.
•Cold weather can become over-inflated in warmer
weather.
The low tire pressure/TPMS indicator will not come
on as a result of over inflation.
The TPMS may not function pr operly if tire type and
size are mixed. Make sure to use the same size and
type of tire. 2 Checking and Maintaining Tires P. 604
The low tire pressure/TPMS indicator may come on
with a delay or may not come on at all when:
•You rapidly accelerate, decelerate, or turn the
steering wheel.
•You drive on snowy or slippery roads.•Tire chains are used.
The low tire pressure/TPMS indicator may come on
under the following conditions:
•There is a heavier and une ven load on the tires,
such as when towing a trailer, than the condition at
calibration.
•Tire chains are used.
Low Tire Pressure/TPMS indicator
21 CR-V HYBRID HMIN-31TPG6100.book 491 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

510
uuHonda Sensing ®u Collision Mitigation Braking SystemTM (CMBSTM)
Driving
■Vehicle conditions
• Headlight lenses are dirty or the headlights are not properly adjusted.
• The outside of the windshie ld is blocked by dirt, mud, leaves, wet snow, etc.
• The inside of the windshield is fogged.
• An abnormal tire or wheel condition (wrong sized, varied size or construction,
improperly inflated, etc.).
• When tire chains are installed.
• The vehicle is tilted due to a heav y load or suspension modifications.
• The camera temperature gets too high.
• Driving with the parking brake applied.
• When the radar sensor in the front grille gets dirty.
• Driving at night or in a dark place (e .g., a tunnel) with the headlights off.
21 CR-V HYBRID HMIN-31TPG6100.book 510 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

uuHonda Sensing ®u Adaptive Cruise Control (ACC) with Low Speed Follow
522
Driving
The system may automatically shut off and the ACC indicator will come on under
certain conditions. Some examples of th ese conditions are listed below. Other
conditions may reduce some of the ACC functions.
2 Front Sensor Camera P. 546
2 Radar Sensor P. 548
■Environmental conditions
• Driving in bad weather (rain, fog, snow, etc.).
■Roadway conditions
• Driving on a snowy or wet roadway (obs cured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).
■Vehicle conditions
• The outside of the windshie ld is blocked by dirt, mud, leaves, wet snow, etc.
• An abnormal tire or wheel condition (Wro ng size, varied size or construction,
improperly inflated, etc.).
• The camera temperature gets too high.
• The parking brake is applied.
• When the front grille is dirty.
• The vehicle is tilted due to a heav y load or suspension modifications.
• When tire chains are installed.
■ACC with Low Speed Follow Conditions and Limitations1ACC with Low Speed Follow Conditions and Limitations
The radar sensor for ACC with Low Speed Follow is
shared with the collision mitigation braking system
TM
(CMBSTM).
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 504
If you need the radar sensor to be repaired, or
removed, or the radar se nsor cover is strongly
impacted, turn off the system by pressing the MAIN
button and take your vehicle to a dealer.
Have your vehicle checked by a dealer if you find any
unusual behavior of the system (e.g., the warning
message appears too frequently).
If the front of the vehicle is impacted in any of the
following situations, the ra dar sensor may not work
properly. Have your vehi cle checked by a dealer:
•The vehicle mounted onto a bump, curb, chock,
embankment, etc.
•You drive the vehicle where the water is deep.
•Your vehicle has a frontal collision.
21 CR-V HYBRID HMIN-31TPG6100.book 522 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

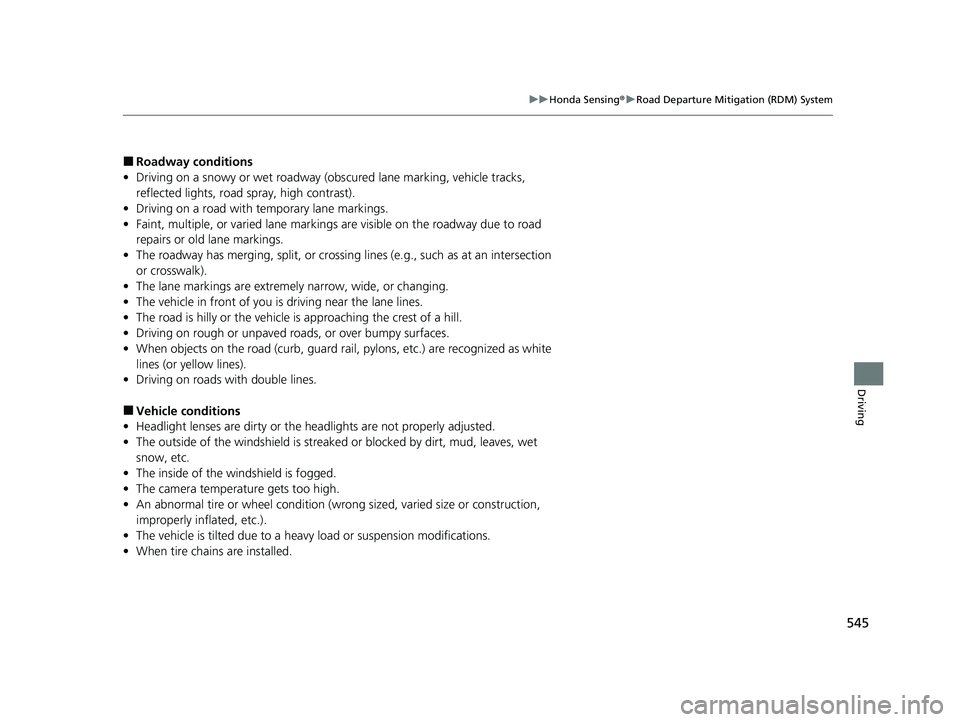

545
uuHonda Sensing ®u Road Departure Mitigation (RDM) System
Driving
■Roadway conditions
• Driving on a snowy or wet roadway (obs cured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).
• Driving on a road with temporary lane markings.
• Faint, multiple, or varied lane markings are visible on the roadway due to road
repairs or old lane markings.
• The roadway has merging, split, or crossing lines (e.g., such as at an intersection
or crosswalk).
• The lane markings are extremely narrow, wide, or changing.
• The vehicle in front of you is driving near the lane lines.
• The road is hilly or the vehicle is approaching the crest of a hill.
• Driving on rough or unpaved roads, or over bumpy surfaces.
• When objects on the road (curb, guard rail, pylons, etc.) are recognized as white
lines (or yellow lines).
• Driving on roads with double lines.
■Vehicle conditions
• Headlight lenses are dirty or the h eadlights are not properly adjusted.
• The outside of the windshield is streaked or blocked by dirt, mud, leaves, wet
snow, etc.
• The inside of the windshield is fogged.
• The camera temperature gets too high.
• An abnormal tire or wheel condition (wrong sized, varied size or construction,
improperly inflated, etc.).
• The vehicle is tilted due to a heavy load or suspension modifications.
• When tire chains are installed.
21 CR-V HYBRID HMIN-31TPG6100.book 545 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

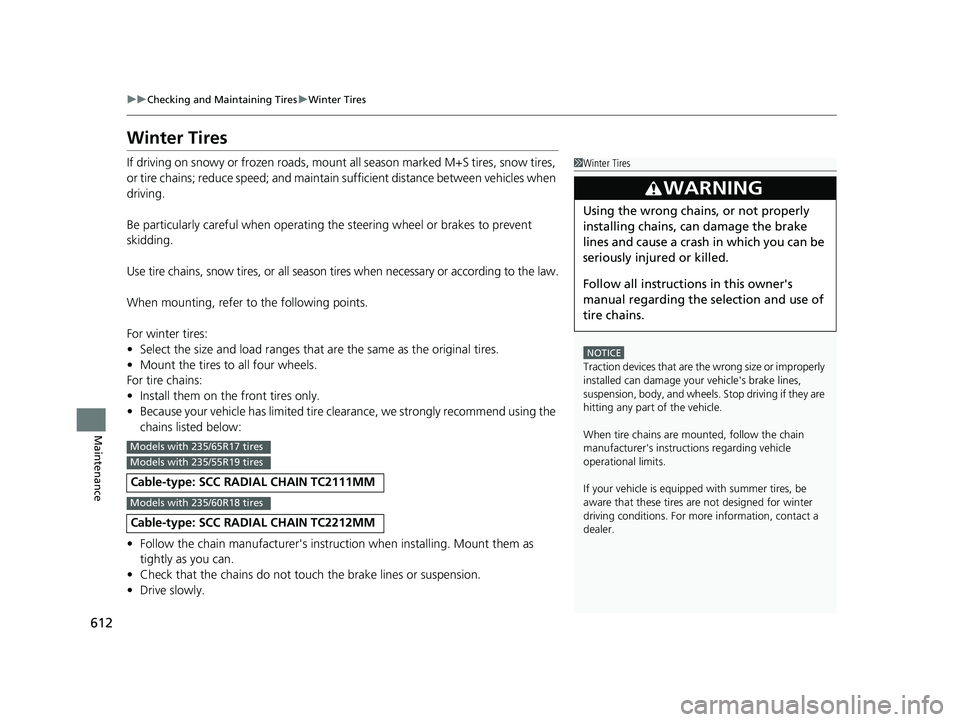

612
uuChecking and Maintaining Tires uWinter Tires
Maintenance
Winter Tires
If driving on snowy or frozen roads, mount all season marked M+S tires, snow tires,
or tire chains; reduce speed; and maintain sufficient distance between vehicles when
driving.
Be particularly careful when operating the steering wheel or brakes to prevent
skidding.
Use tire chains, snow tires, or all season ti res when necessary or according to the law.
When mounting, refer to the following points.
For winter tires:
• Select the size and load ranges that are the same as the original tires.
• Mount the tires to all four wheels.
For tire chains:
• Install them on the front tires only.
• Because your vehicle has limited tire cl earance, we strongly recommend using the
chains listed below:
• Follow the chain manufacturer's instruction when installing. Mount them as
tightly as you can.
• Check that the chains do not to uch the brake lines or suspension.
• Drive slowly.
Cable-type: SCC RADIAL CHAIN TC2111MM
Cable-type: SCC RADIAL CHAIN TC2212MM
1Winter Tires
NOTICE
Traction devices that are the wrong size or improperly
installed can damage your vehicle's brake lines,
suspension, body, and wheels. Stop driving if they are
hitting any part of the vehicle.
When tire chains are mounted, follow the chain
manufacturer's instructi ons regarding vehicle
operational limits.
If your vehicle is equipp ed with summer tires, be
aware that these tires are not designed for winter
driving conditions. For more information, contact a
dealer.
3WARNING
Using the wrong chains, or not properly
installing chains, can damage the brake
lines and cause a crash in which you can be
seriously injured or killed.
Follow all instruction s in this owner's
manual regarding the selection and use of
tire chains.
Models with 235/65R17 tires
Models with 235/55R19 tires
Models with 235/60R18 tires
21 CR-V HYBRID HMIN-31TPG6100.book 612 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

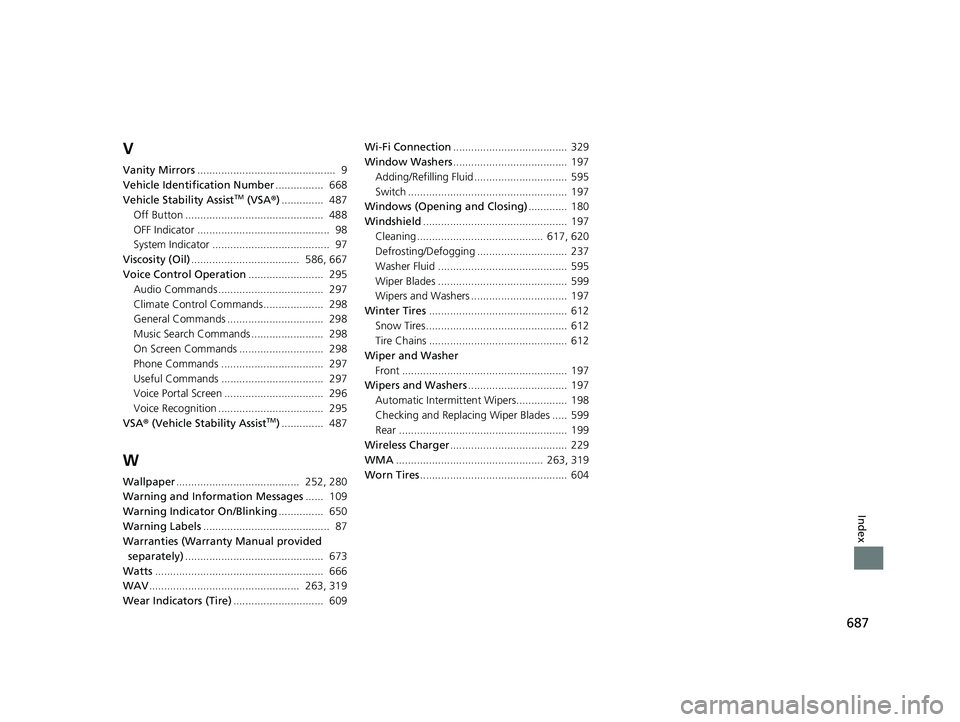

687
Index
V
Vanity Mirrors.............................................. 9
Vehicle Identification Number ................ 668
Vehicle Stability Assist
TM (VSA ®).............. 487
Off Button .............................................. 488
OFF Indicator ............................................ 98
System Indicator ....................................... 97
Viscosity (Oil) .................................... 586, 667
Voice Control Operation ......................... 295
Audio Commands ................................... 297
Climate Control Commands.................... 298
General Commands ................................ 298
Music Search Commands ........................ 298
On Screen Commands ............................ 298
Phone Commands .................................. 297
Useful Commands .................................. 297
Voice Portal Screen ................................. 296
Voice Recognition ................................... 295
VSA ® (Vehicle Stability Assist
TM).............. 487
W
Wallpaper ......................................... 252, 280
Warning and Info rmation Messages ...... 109
Warning Indicator On/Blinking ............... 650
Warning Labels .......................................... 87
Warranties (Warranty Manual provided
separately) .............................................. 673
Watts ........................................................ 666
WAV .................................................. 263, 319
Wear Indicators (Tire) .............................. 609 Wi-Fi Connection
...................................... 329
Window Washers ...................................... 197
Adding/Refilling Fluid ............................... 595
Switch ..................................................... 197
Windows (Opening and Closing) ............. 180
Windshield ................................................ 197
Cleaning .......................................... 617, 620
Defrosting/Defogging .............................. 237
Washer Fluid ........................................... 595
Wiper Blades ........................................... 599
Wipers and Washers ................................ 197
Winter Tires .............................................. 612
Snow Tires ............................................... 612
Tire Chains .............................................. 612
Wiper and Washer Front ....................................................... 197
Wipers and Washers ................................. 197
Automatic Intermittent Wipers................. 198
Checking and Replacing Wiper Blades ..... 599
Rear ........................................................ 199
Wireless Charger ....................................... 229
WMA ................................................. 263, 319
Worn Tires ................................................. 604
21 CR-V HYBRID HMIN-31TPG6100.book 687 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
