HONDA CR-V HYBRID 2020 Owner's Manual (in English)

Continued229
uuInterior Convenience Items uOther Interior Convenience Items
Controls

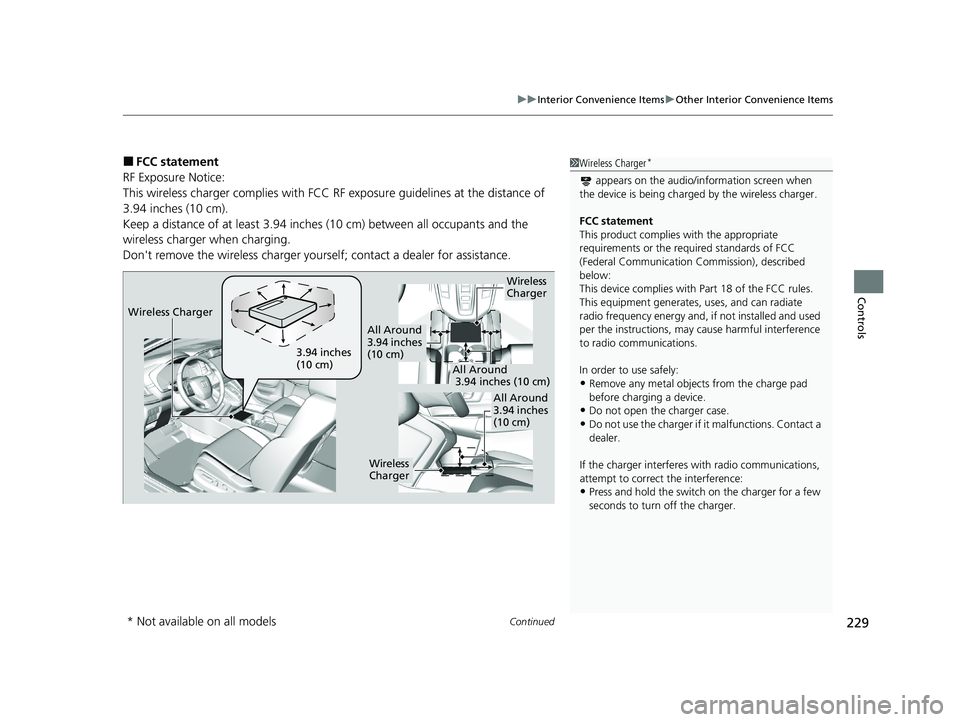

■FCC statement
RF Exposure Notice:
This wireless charger complies with FCC RF exposure guidelines at the distance of
3.94 inches (10 cm).
Keep a distance of at l east 3.94 inches (10 cm) be tween all occupants and the
wireless charger when charging.
Don't remove the wireless charger yourse lf; contact a dealer for assistance.1Wireless Charger*
appears on the audio/information screen when
the device is being charge d by the wireless charger.
FCC statement
This product complies with the appropriate
requirements or the requ ired standards of FCC
(Federal Communication Commission), described
below:
This device complies with Part 18 of the FCC rules.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used
per the instructions, may cause harmful interference
to radio communications.
In order to use safely:
•Remove any metal objects from the charge pad
before charging a device.
•Do not open the charger case.
•Do not use the charger if it malfunctions. Contact a
dealer.
If the charger interferes with radio communications,
attempt to correct the interference:
•Press and hold the switch on the charger for a few
seconds to turn off the charger.
Wireless
Charger
3.94 inches
(10 cm)
All Around
3.94 inches
(10 cm)
All Around
3.94 inches (10 cm)
All Around
3.94 inches
(10 cm)
Wireless
Charger
Wireless Charger
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 229 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

uuInterior Convenience Items uOther Interior Convenience Items
230
Controls

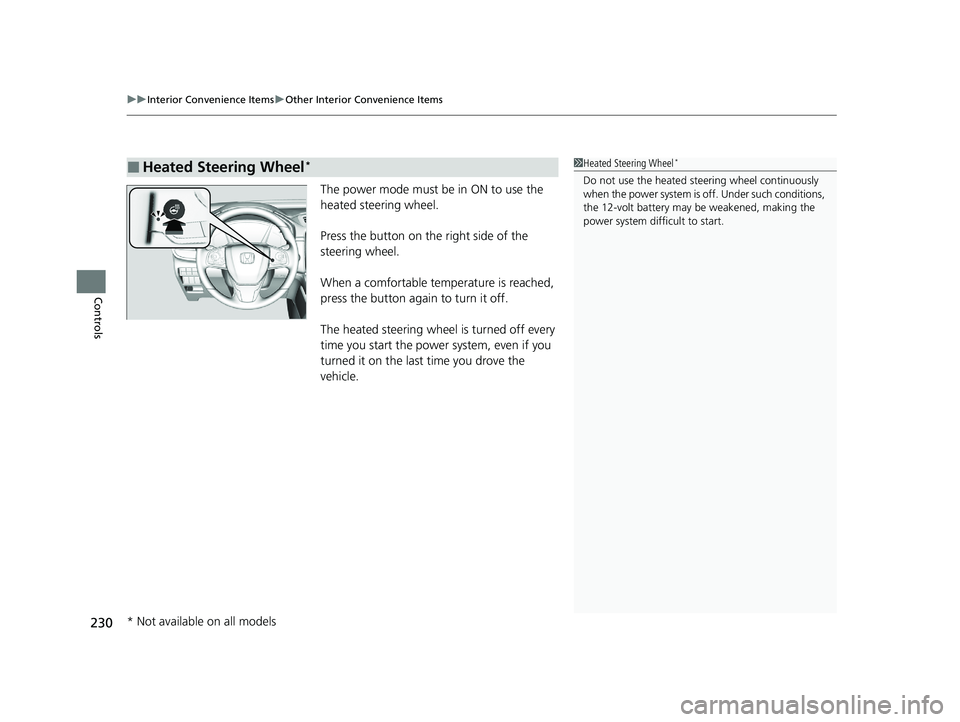

The power mode must be in ON to use the
heated steering wheel.
Press the button on the right side of the
steering wheel.
When a comfortable temperature is reached,
press the button again to turn it off.
The heated steering wheel is turned off every
time you start the power system, even if you
turned it on the last time you drove the
vehicle.
■Heated Steering Wheel*1Heated Steering Wheel*
Do not use the heated st eering wheel continuously
when the power system is off. Under such conditions,
the 12-volt battery may be weakened, making the
power system difficult to start.
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 230 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

231
uuInterior Convenience Items uOther Interior Convenience Items
Controls

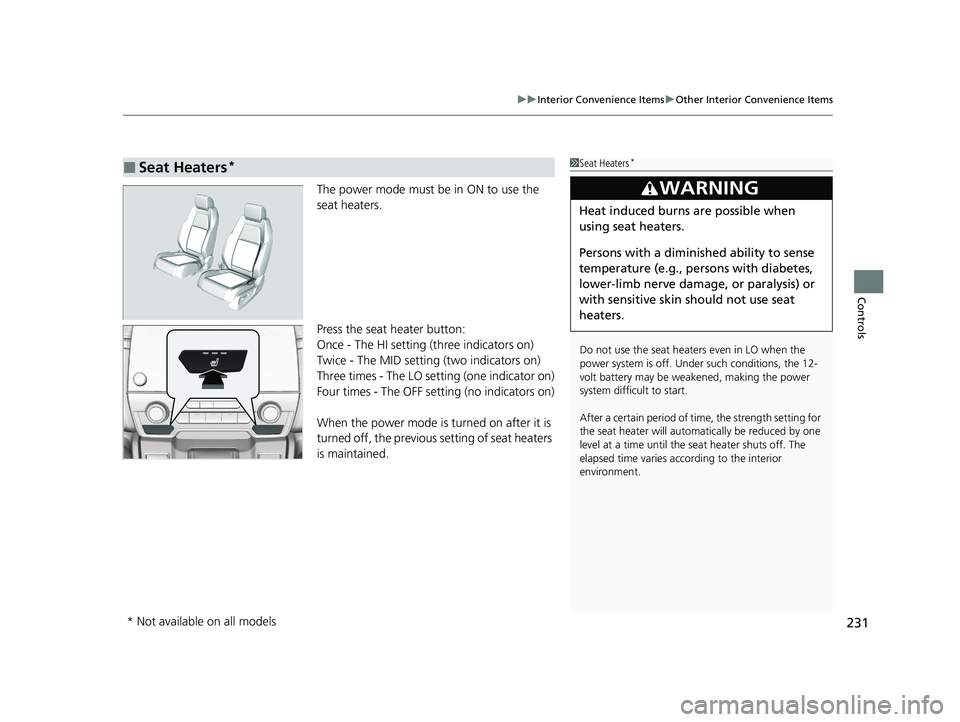

The power mode must be in ON to use the
seat heaters.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF setting (no indicators on)
When the power mode is turned on after it is
turned off, the previous setting of seat heaters
is maintained.
■Seat Heaters*1Seat Heaters*
Do not use the seat heaters even in LO when the
power system is off. U nder such conditions, the 12-
volt battery may be weakened, making the power
system difficult to start.
After a certain period of time, the strength setting for
the seat heater will automatically be reduced by one
level at a time until the seat heater shuts off. The
elapsed time varies according to the interior
environment.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 231 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

232
Controls

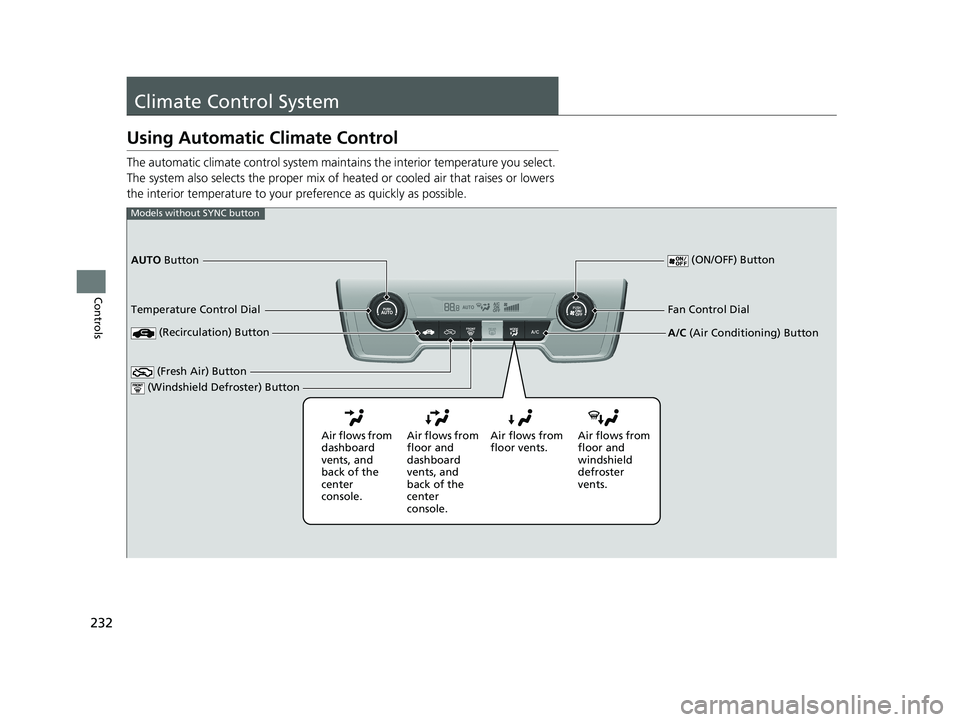

Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heated or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Temperature Control Dial Fan Control Dial
(Windshield Defroster) Button
(Fresh Air) Button
(ON/OFF) Button
(Recirculation) Button
AUTO Button
Air flows from
dashboard
vents, and
back of the
center
console. Air flows from
floor and
dashboard
vents, and
back of the
center
console.Air flows from
floor vents.
Air flows from
floor and
windshield
defroster
vents.
Models without SYNC button
A/C
(Air Conditioning) Button
20 CR-V HYBRID HMIN-31TPG6000.book 232 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

233
uuClimate Control System uUsing Automatic Climate Control
Continued
Controls
Driver’s Side Temperature
Control Dial Fan Control Buttons
CLIMATE Button
Passenger’s Side
Temperature Control Dial
SYNC (Synchronization) Button
(Windshield Defroster) Button
(Fresh Air) Button
(ON/OFF) Button
(Recirculation) Button
AUTO Button
Models with SYNC button
Air flows
from
dashboard
vents, and
back of the
center
console. Air flows
from floor
and
dashboard
vents, and
back of the
center
console. Air flows
from floor
vents.
Air flows
from floor
and
windshield
defroster
vents.
20 CR-V HYBRID HMIN-31TPG6000.book 233 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

uuClimate Control System uUsing Automatic Climate Control
234
Controls
Use the system when the power system is on.
1. Press the AUTO button.
2. Adjust the interior temperature us ing the temperature control dial.
2. Adjust the interior temperature using the dr iver’s side or passenger’s side control
dial.
3. Press the (ON/OFF) button to cancel.1Using Automatic Climate Control
Press the CLIMATE button to display A/C, MODE, and
fan control information on th e audio/information screen
to operate manually. Select icon to turn
On or Off A/C,
change the vent mode, or change the fan speed.
If any buttons are presse d while using the climate
control system in auto, the function of the button
that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button that were pressed will be
controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
Pressing the button switches the climate
control system between on and off. When turned on,
the system returns to your last selection.
While ECON mode is active, the climate control
system may have reduced cooling performance.
Models with SYNC button
All models
Models without SYNC button
Models with SYNC button
All models
20 CR-V HYBRID HMIN-31TPG6000.book 234 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

Continued235
uuClimate Control System uUsing Automatic Climate Control
Controls

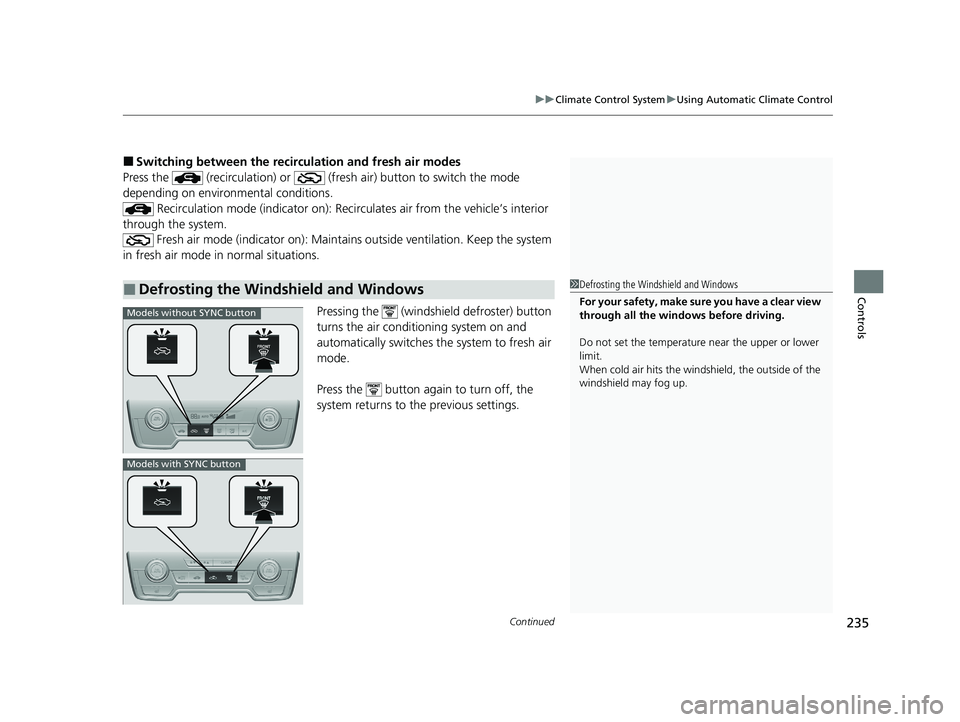

■Switching between the recirc ulation and fresh air modes
Press the (recirculation) or (fre sh air) button to switch the mode
depending on environmental conditions.
Recirculation mode (indicator on): Recirculates air from the vehicle’s interior
through the system. Fresh air mode (indicator on): Maintain s outside ventilation. Keep the system
in fresh air mode in normal situations.
Pressing the (windshield defroster) button
turns the air conditioning system on and
automatically switches the system to fresh air
mode.
Press the button again to turn off, the
system returns to the previous settings.
■Defrosting the Windshield and Windows1 Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
Models without SYNC button
Models with SYNC button
20 CR-V HYBRID HMIN-31TPG6000.book 235 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

uuClimate Control System uUsing Automatic Climate Control
236
Controls

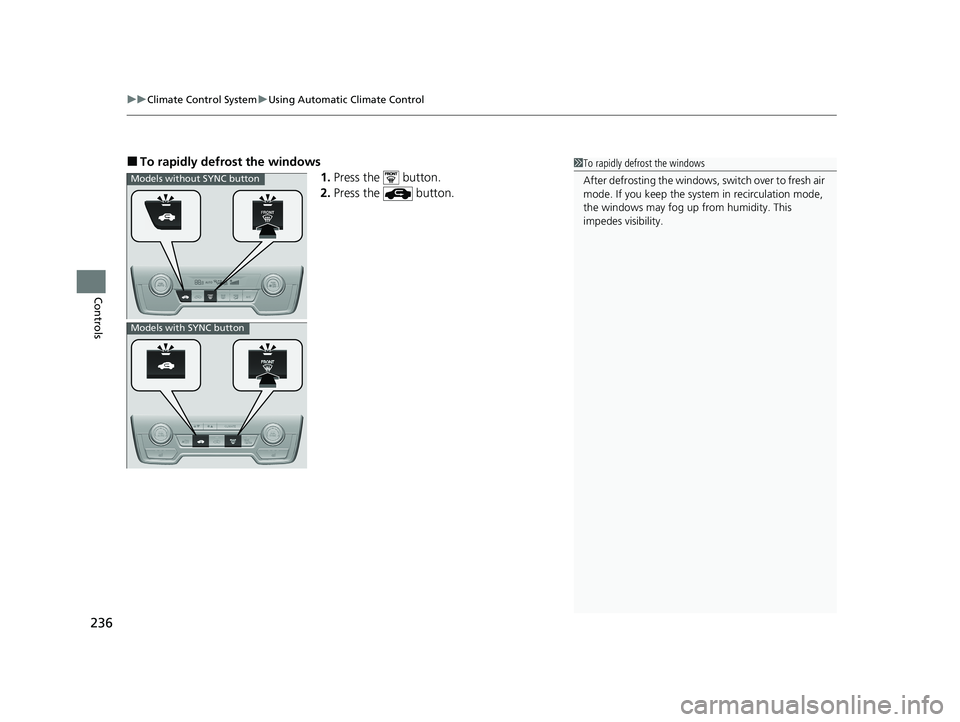

■To rapidly defro st the windows
1.Press the button.
2. Press the button.1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode. If you keep the syst em in recirculation mode,
the windows may fog up from humidity. This
impedes visibility.
Models without SYNC button
Models with SYNC button
20 CR-V HYBRID HMIN-31TPG6000.book 236 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

237
uuClimate Control System uUsing Automatic Climate Control
Controls

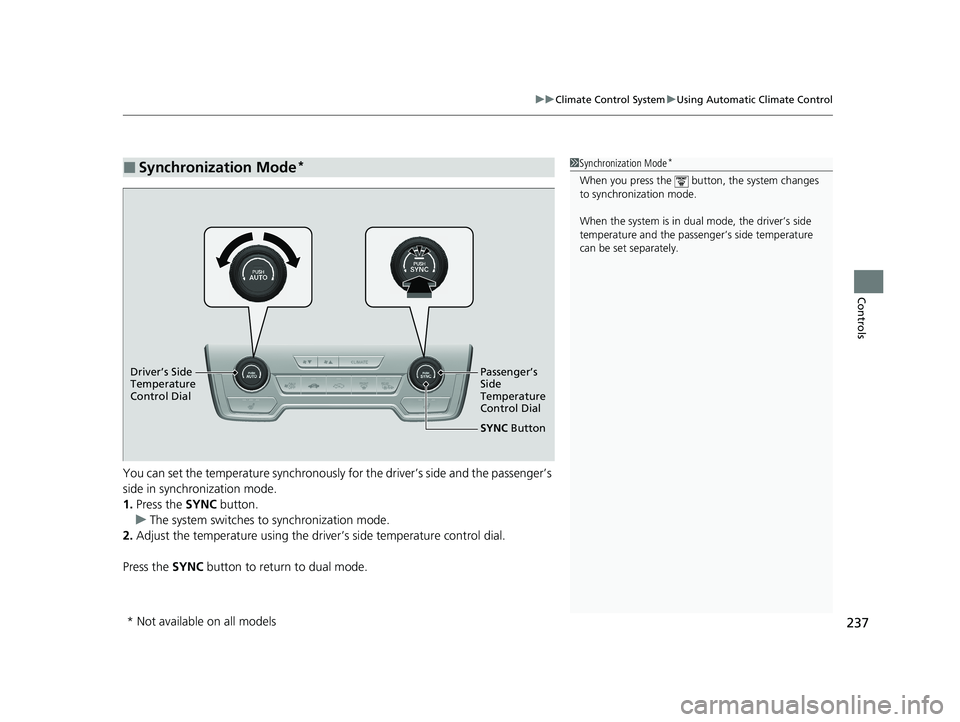

You can set the temperature synchronously for the driver’s side and the passenger’s
side in synchronization mode.
1. Press the SYNC button.
u The system switches to synchronization mode.
2. Adjust the temperature using the driv er’s side temperature control dial.
Press the SYNC button to return to dual mode.
■Synchronization Mode*1Synchronization Mode*
When you press the button, the system changes
to synchronization mode.
When the system is in dua l mode, the driver’s side
temperature and the passe nger’s side temperature
can be set separately.
SYNC Button
Driver’s Side
Temperature
Co

ntrol Dial Passenger’s
Side
Temperature
Control Dial
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 237 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

238
uuClimate Control System uAutomatic Climate Control Sensors
Controls

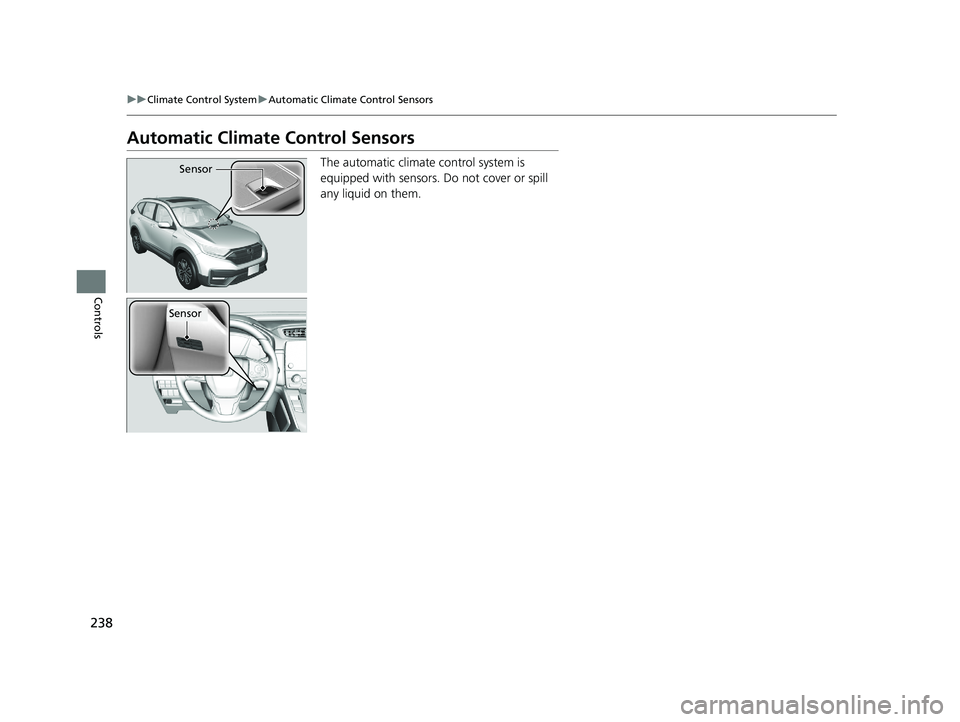

Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor
20 CR-V HYBRID HMIN-31TPG6000.book 238 ページ ２０１９年１１月２８日　木曜日　午後１時５０分
