HONDA CR-V HYBRID 2020 Owner's Manual (in English)

Continued219
uuInterior Convenience Items uStorage Items
Controls

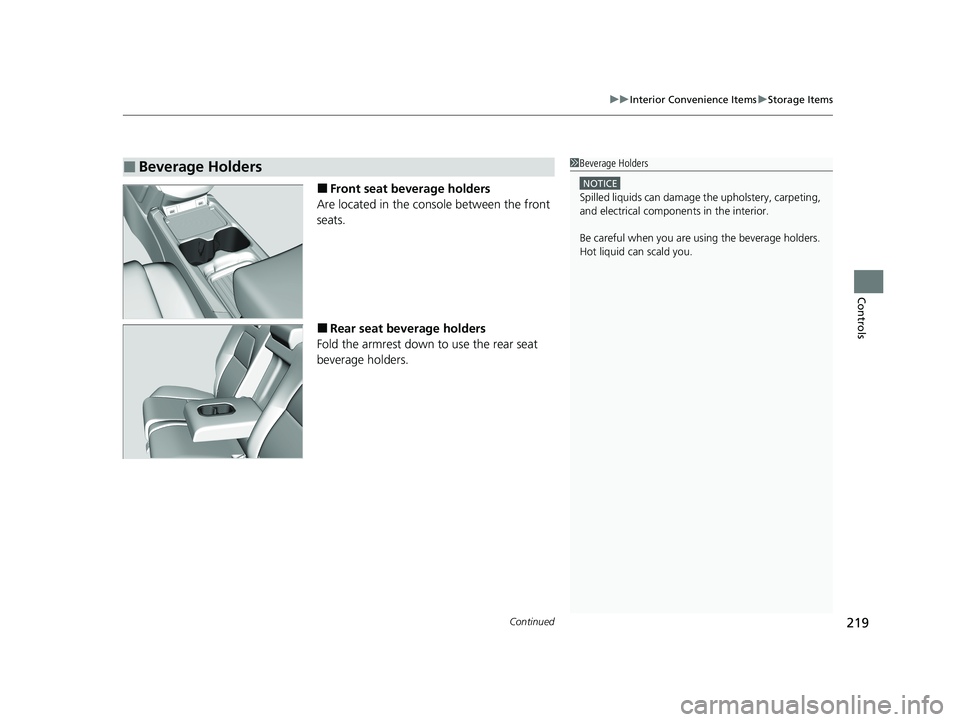

■Front seat beverage holders
Are located in the console between the front
seats.
■Rear seat beverage holders
Fold the armrest down to use the rear seat
beverage holders.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
20 CR-V HYBRID HMIN-31TPG6000.book 219 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

220
uuInterior Convenience Items uStorage Items
Controls

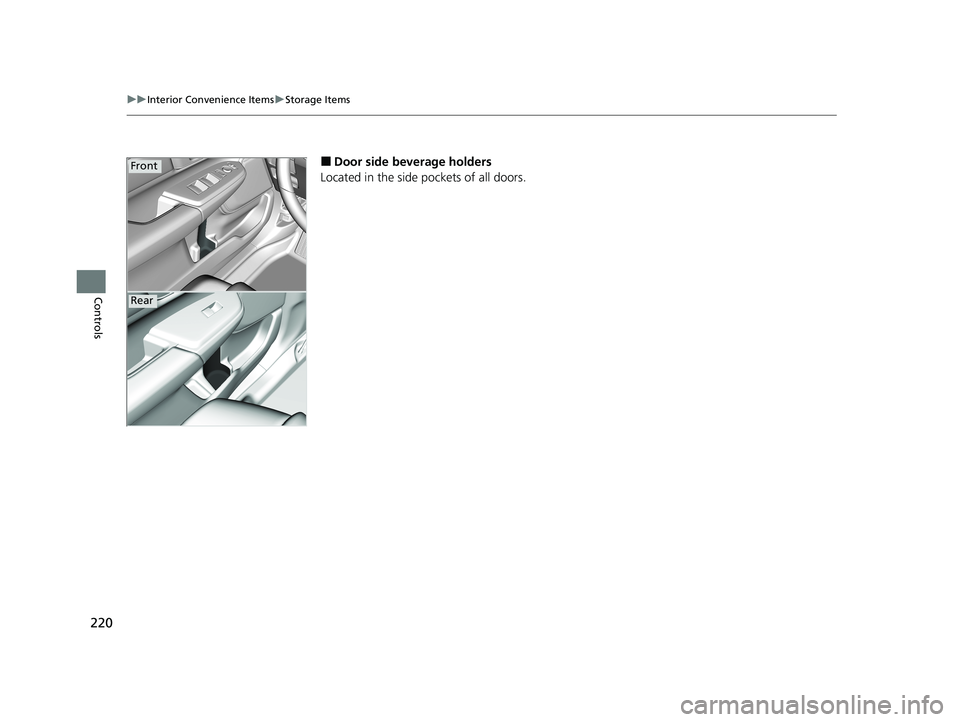

■Door side beverage holders
Located in the side pockets of all doors.Front
Rear
20 CR-V HYBRID HMIN-31TPG6000.book 220 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

Continued221
uuInterior Convenience Items uStorage Items
Controls

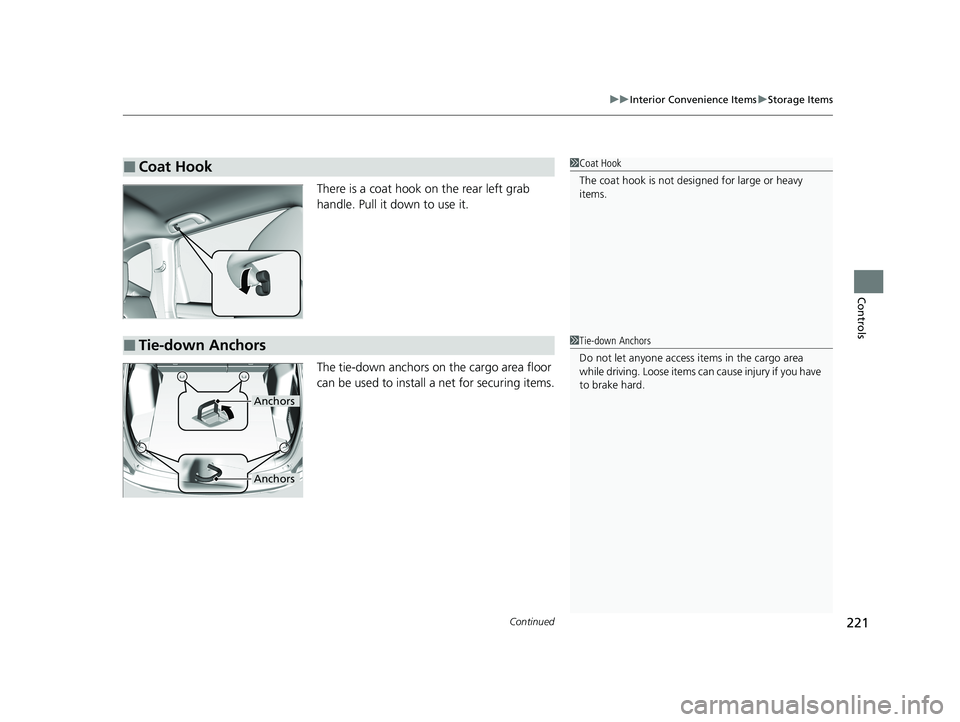

There is a coat hook on the rear left grab
handle. Pull it down to use it.
The tie-down anchors on the cargo area floor
can be used to install a net for securing items.
■Coat Hook1Coat Hook
The coat hook is not desi gned for large or heavy
items.
■Tie-down Anchors1 Tie-down Anchors
Do not let anyone access items in the cargo area
while driving. Loose items can cause injury if you have
to brake hard.
Anchors
Anchors
20 CR-V HYBRID HMIN-31TPG6000.book 221 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

uuInterior Convenience Items uStorage Items
222
Controls

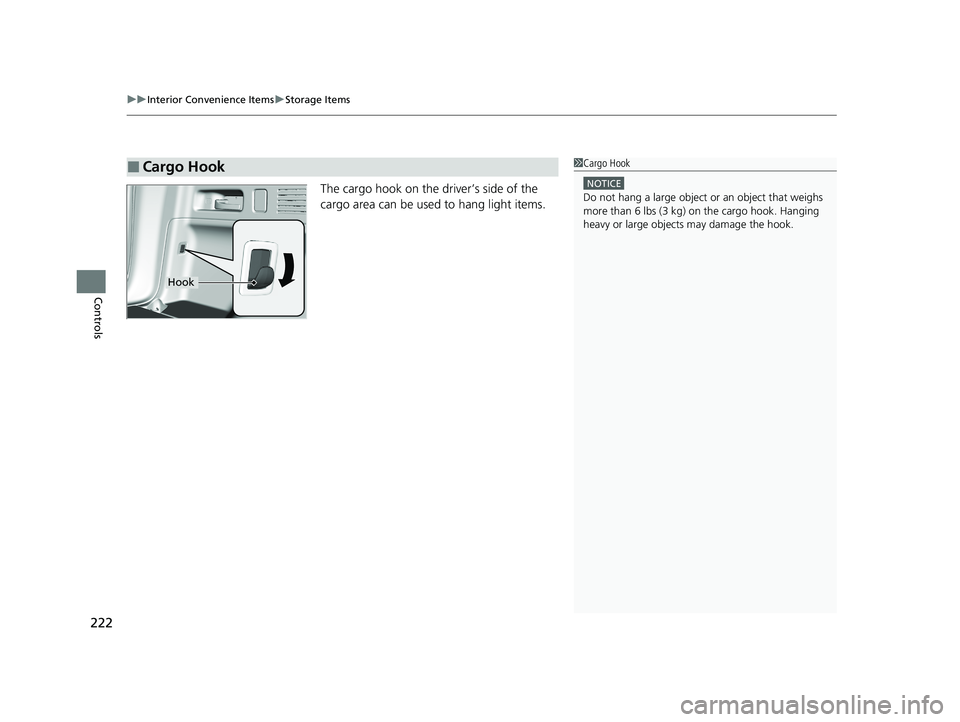

The cargo hook on the driver’s side of the
cargo area can be used to hang light items.
■Cargo Hook1Cargo Hook
NOTICE
Do not hang a large object or an object that weighs
more than 6 lbs (3 kg) on the cargo hook. Hanging
heavy or large objects may damage the hook.
Hook
20 CR-V HYBRID HMIN-31TPG6000.book 222 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

Continued223
uuInterior Convenience Items uStorage Items
Controls
To open the sunglasses holder, press and
release the indent. To close, press it again until
it latches.
You can store eyeglasses and other small
items in this holder.
■Conversation mirror
The sunglasses holder comes with a mirror.
Open the sunglasses holder fully, then push it
back to the first detent.
You can use the mirror to view the rear seats.
■Sunglasses Holder1 Sunglasses Holder
Keep the holder closed wh ile driving except when
accessing stored items.
Press
20 CR-V HYBRID HMIN-31TPG6000.book 223 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

uuInterior Convenience Items uStorage Items
224
Controls

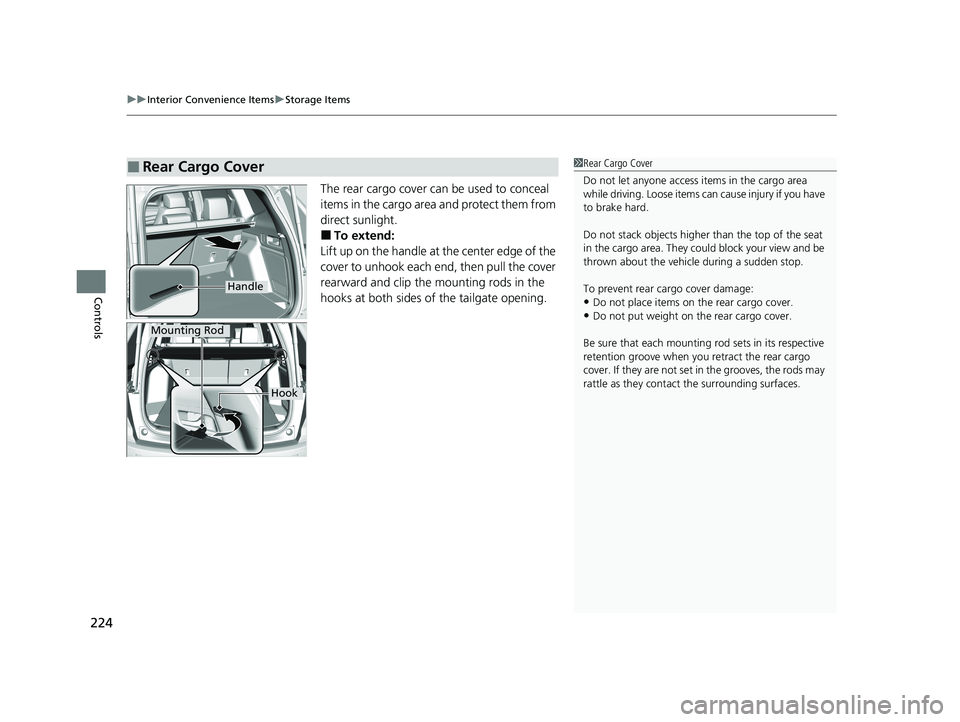

The rear cargo cover can be used to conceal
items in the cargo area and protect them from
direct sunlight.
■To extend:
Lift up on the handle at the center edge of the
cover to unhook each end, then pull the cover
rearward and clip the mounting rods in the
hooks at both sides of the tailgate opening.
■Rear Cargo Cover1 Rear Cargo Cover
Do not let anyone access items in the cargo area
while driving. Loose items can cause injury if you have
to brake hard.
Do not stack objects higher than the top of the seat
in the cargo area. They could block your view and be
thrown about the vehicle during a sudden stop.
To prevent rear cargo cover damage:
•Do not place items on the rear cargo cover.•Do not put weight on the rear cargo cover.
Be sure that each mounting rod sets in its respective
retention groove when you retract the rear cargo
cover. If they are not set in the grooves, the rods may
rattle as they contac t the surrounding surfaces.
Handle
Mounting Rod
Hook
20 CR-V HYBRID HMIN-31TPG6000.book 224 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

225
uuInterior Convenience Items uStorage Items
Controls

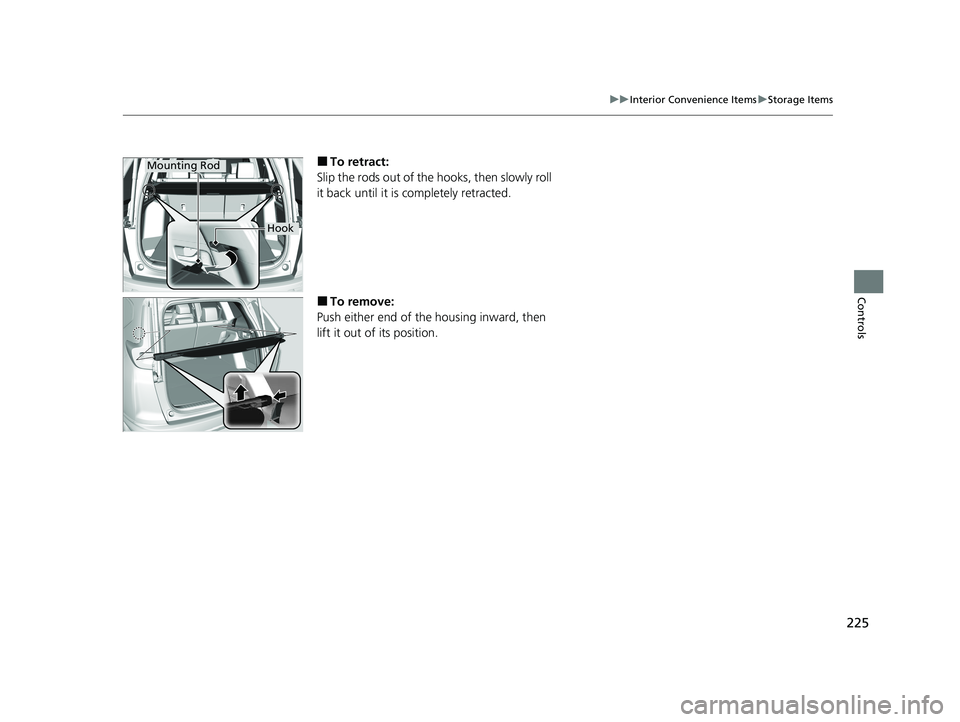

■To retract:
Slip the rods out of the hooks, then slowly roll
it back until it is completely retracted.
■To remove:
Push either end of th e housing inward, then
lift it out of its position.
Mounting Rod
Hook
20 CR-V HYBRID HMIN-31TPG6000.book 225 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

226
uuInterior Convenience Items uOther Interior Convenience Items
Controls
Other Interior Convenience Items

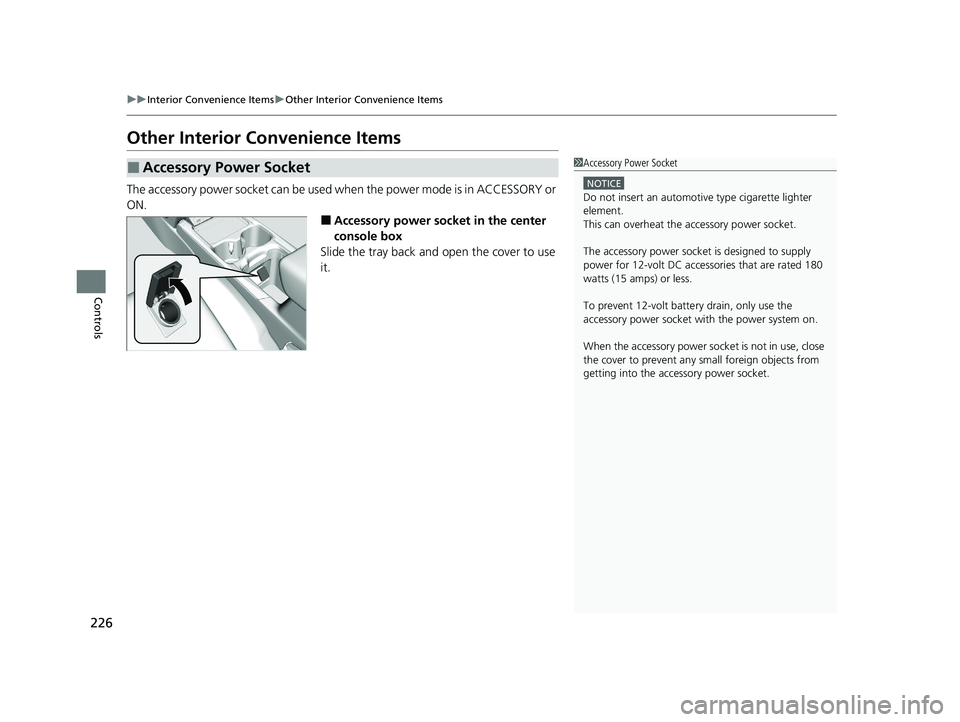

The accessory power socket can be used wh en the power mode is in ACCESSORY or
ON.
■Accessory power socket in the center
console box
Slide the tray back and open the cover to use
it.
■Accessory Power Socket1 Accessory Power Socket
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the accessory power socket.
The accessory power socket is designed to supply
power for 12-volt DC accessories that are rated 180
watts (15 amps) or less.
To prevent 12-volt batte ry drain, only use the
accessory power socket with the power system on.
When the accessory power soc ket is not in use, close
the cover to prevent any small foreign objects from
getting into the accessory power socket.
20 CR-V HYBRID HMIN-31TPG6000.book 226 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

Continued227
uuInterior Convenience Items uOther Interior Convenience Items
Controls
To use the wireless charger, the powe r mode must be in ACCESSORY or ON.
Charge a compatible device on the ar ea indicated by the mark as follows:
1. To turn the system on and off, press and
hold the (power) button.
u When the system is activated, the green
indicator light comes on.
2. Place the device you want to charge on the
charging area.
u The system will au tomatically start
charging the device, and the amber
indicator light will come on.
u Make sure that the device is compatible
with the system, and placed with the
chargeable side in the center of the
charging area.
3. When charging is co mpleted, the green
indicator light will come on.
u Depending on the device, the amber
indicator light will stay on.
■Wireless Charger*1Wireless Charger*
This system consumes a lot of power. Do not use the
system for a long time when the power system is off.
This may weaken the 12-v olt battery, making it
difficult to turn the power system on.
When using the wireless charger, check the user’s manual that
came with the compatible device you want to charge.
3CAUTION
Metal objects between the charge pad
and the device to be charged will get
hot and can burn you.
• Always remove foreign objects from
the charge pad before charging the
device.
• Be sure the surface is clear of dust and
other debris before charging.
• Do not spill liquids (i. e. water, drinks,
etc.) on the charger and the device.
• Do not use oil, grease, alcohol,
benzine or thinner for cleaning the
charge pad.
• Do not cover the system with towels,
clothing, or other objects while
charging etc.
• Avoid spraying aerosols which may
come in contact with the charge pad
surface.
Green Indicator
Amber Indicator
Charging Area
(Power) Button
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 227 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

uuInterior Convenience Items uOther Interior Convenience Items
228
Controls

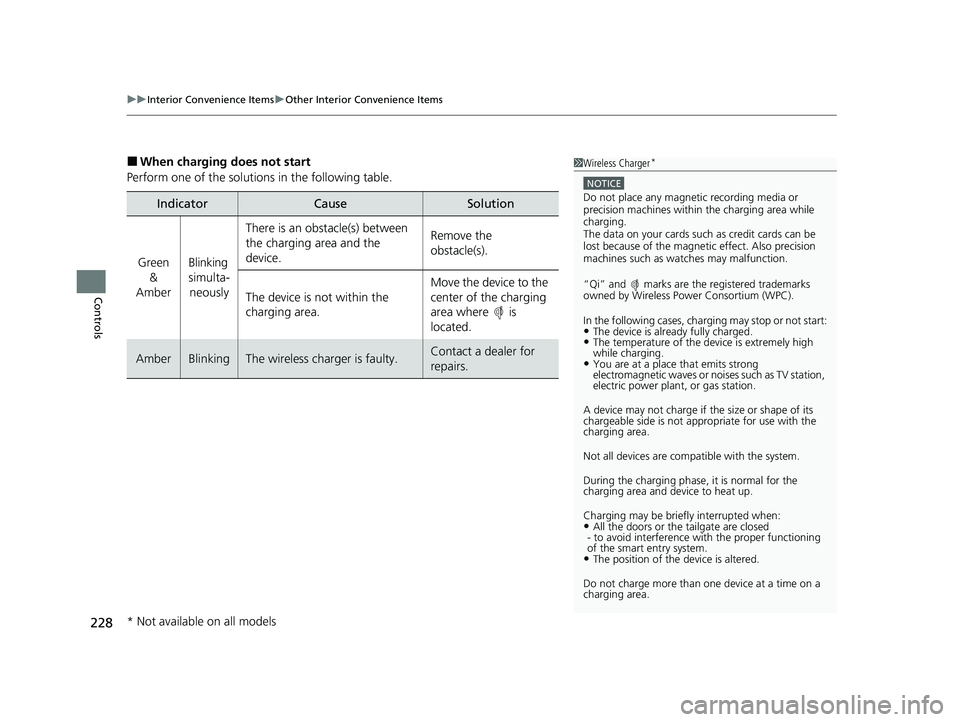

■When charging does not start
Perform one of the solution s in the following table.
IndicatorCauseSolution
Green
&
AmberBlinking
simulta- neously
There is an obstacle(s) between
the charging area and the
device.Remove the
obstacle(s).
The device is not within the
charging area. Move the device to the
center of the charging
area where is
located.
AmberBlinkingThe wireless charger is faulty.Contact a dealer for
repairs.
1
Wireless Charger*
NOTICE
Do not place any magneti c recording media or
precision machines within the charging area while
charging.
The data on your cards such as credit cards can be
lost because of the magneti c effect. Also precision
machines such as watches may malfunction.
