display HONDA CR-V HYBRID 2020 Owner's Manual (in English)

7
Quick Reference Guide
❚Navigation System Voice Control Buttons*
() See the Navigation System Manual
❚Bluetooth ® HandsFreeLink ® System Voice
Control Buttons
(P395, 419)
❚ / / / Buttons (P126, 244)
❚ENTER Button (P126, 244)
❚Wipers/Washers (P195)
❚Headlights/Turn Signals (P186, 187)
❚Fog Lights* (P191)
❚Interval Button (P524)
❚MAIN Button (P514, 532)
❚ (Display/Information) Button
(P126, 269)
❚Selector (-) (P 480)
❚Selector (+) (P 480)
❚ (TRIP) Knob (P127)
❚Brightness Control (P199)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons
(P513)
❚Lane Keeping Assist System (LKAS) Button
(P530)
❚Horn (Press an area around .)
❚Heated Steering Wheel Button* (P230)
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 7 ページ ２０１９年１１月２８日　木曜日　午後１時 ５０分

12
Quick Reference Guide
SPORT HYBRID i-MMD SYSTEM MAIN COMPONENTS
Gasoline Engine– Provides propulsion to drive the wheels
under certain driving conditio ns, and turns the generator.
Generator– Starts the engine and generates electric power
when driven by the gasoline engine to supply electricity to
power the electric motor and/or to charge the High Voltage
battery.
Electric Motor– Provides propulsion to drive the wheels in
conjunction with the gasoline engine in certain conditions, and
provides electricity to the High Voltage battery through
regenerative braking.
High Voltage Battery– Provides electrical storage and serves
as a power source for the electric motor.
Learning about the High Voltage battery’s characteristics will
help you get the best handling and maximize the range of your
electric vehicle. (P498)
High Voltage Battery Charge Level Indicator– Displays
battery state of charge.
When the indicator:
•Displays two or less segments, EV mode is no longer available.
•Displays ten segments, battery charge level is full.
High Voltage
Battery
Generator & Electric Motor
Gasoline Engine
20 CR-V HYBRID HMIN-31TPG6000.book 12 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

18
Quick Reference Guide
Eco Assist® System (P483)
Ambient Meter●With SPORT mode o ff, the color of
the ambient meter changes to green
to indicate that the vehicle is being
driven in a fuel efficient manner.
ECON Button (P483)
Helps maximize fuel economy.
ECON Mode Indicator (P100)
Comes on when the ECON button is pressed.
The message is displayed for a few seconds
when the ECON button is pressed.
20 CR-V HYBRID HMIN-31TPG6000.book 18 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

19
Quick Reference GuideDrive Cycle Score/Lifetime Points
●Comes on when the power mode is in VEHICLE OFF.
Eco Drive Display (P130)
●Keep the vehicle icon near the center of the circle.Aggressive Deceleration
Fuel economy is: Best Drive Cycle Score
Lifetime Points
Worse Worse
Better Better
Moderate
DecelerationSlow Acceleration/
DecelerationAggressive AccelerationModerate
Acceleration
20 CR-V HYBRID HMIN-31TPG6000.book 19 ページ ２０１９年１１月２８日　木曜日　午後１
時５０分

22
Quick Reference Guide
Controls (P147)
Clock (P148)
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the selector knob.
•Rotate to select.
•Press to enter.
Models with color audio system
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
aSelect the (Home) icon, then select
Settings.
bSelect Clock, then Clock Adjustment .
cTouch the respective / icon to
adjust the hours or minutes up or
down.
dSelect OK.
Models with navigation system
Models with Display Audio
34
POWER Button (P183)
Press the button to change the vehicle’s
power mode.
20 CR-V HYBRID HMIN-31TPG6000.book 22 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

28
Quick Reference Guide
Features (P239)
Audio Remote Controls
(P244)
●(+ / ( - Bar
Press to adjust the volume up/down.
● / Button
Press or to cycle through the audio
mode as follows:
FM1/FM2/AM/USB or iPod/Pandora ®/
Bluetooth ®Audio
FM/AM/SiriusXM® /USB/iPod/
Bluetooth ®Audio/Pandora® /Apps/
Audio Apps
ENTER Button
/ / / Button34
(+ / (- Bar
Button
3434
Models with color audio system
Models with Display Audio
●ENTER Button
•When listening to a USB flash drive
aPress ENTER to display the folder list.
bPress or to select a folder.
cPress ENTER to display a list of tracks in
that folder.
dPress or to select a track, then
press ENTER .
•When listening to an iPod
aPress ENTER to display the iPod music
list.
bPress or to select a category.
cPress ENTER to display a list of items in
the category.
dPress or to select an item, then
press ENTER .
uPress ENTER and press or
repeatedly until a desired item you
want to listen is displayed.
Models with Display Audio
34
34
34
34
34
• When listening to Pandora ®
aPress ENTER to display the station list.
bPress or to select an item, then
press ENTER .
•When listening to Bluetooth®Audio
aPress ENTER to display the track list.
bPress or to select a track, then
press ENTER .
34
34
20 CR-V HYBRID HMIN-31TPG6000.book 28 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

29
Quick Reference Guide

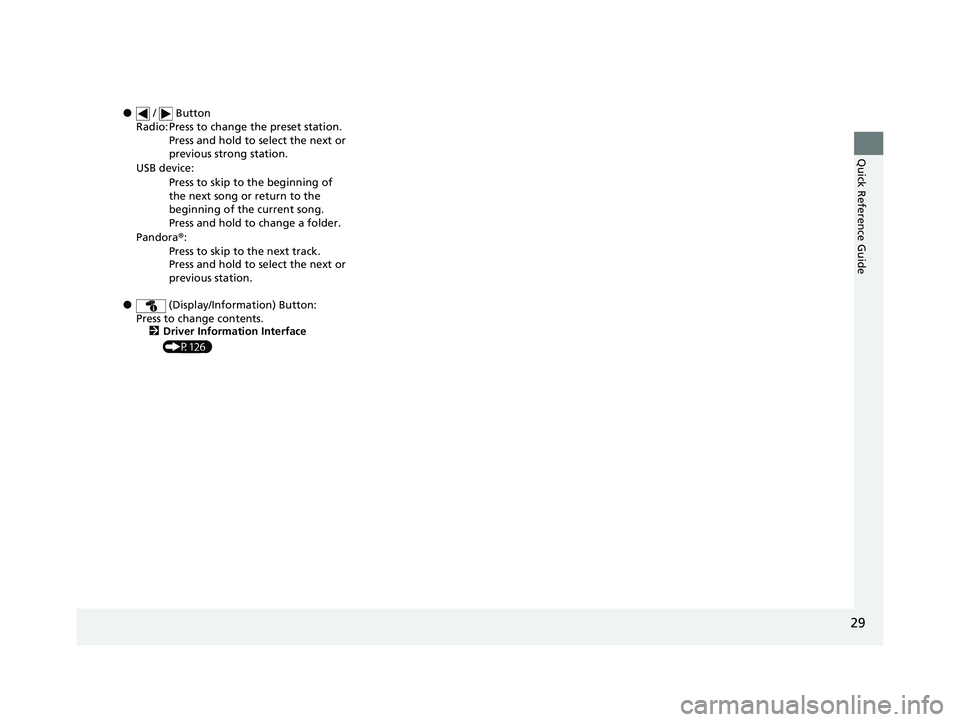

● / Button
● (Display/Information) Button:
Press to change contents. 2 Driver Information Interface
(P126)
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Pandora ®:
Press to skip to the next track.
Press and hold to select the next or
previous station.
20 CR-V HYBRID HMIN-31TPG6000.book 29 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

31
Quick Reference Guide

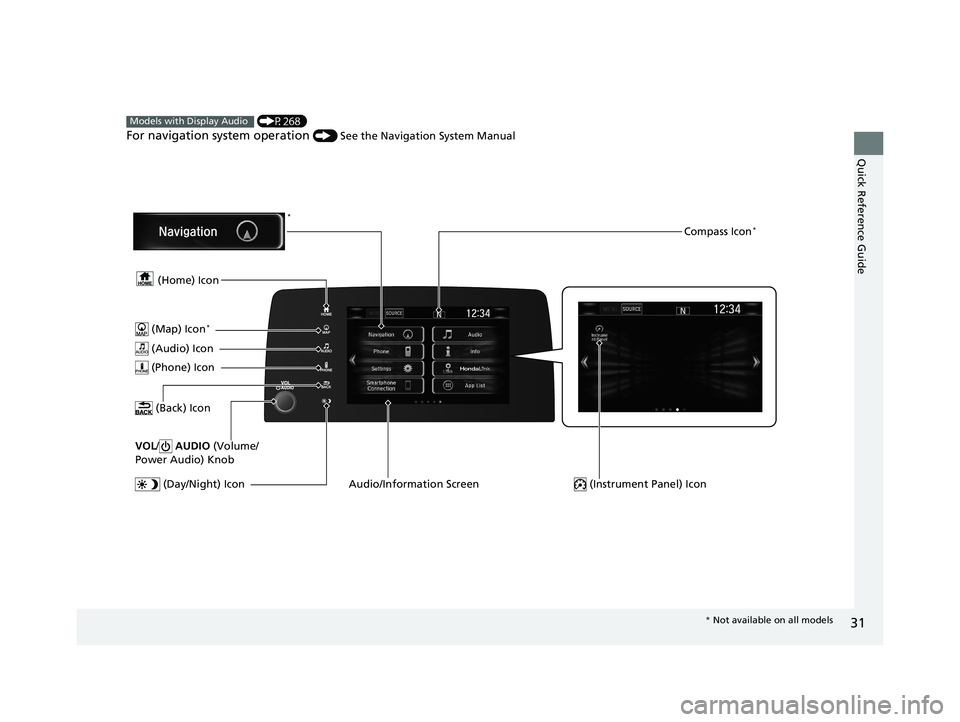

(P268)
For navigation system operation () See the Navigation System Manual
Models with Display Audio
(Audio) Icon
(Back) Icon
Audio/Information Screen (Instrument Panel) Icon (Day/Night) Icon
*
VOL/ AUDIO (Volume/
Power Audio) Knob
(Home) Icon
(Map) Icon*
(Phone) Icon
Compass Icon*
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 31 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

98

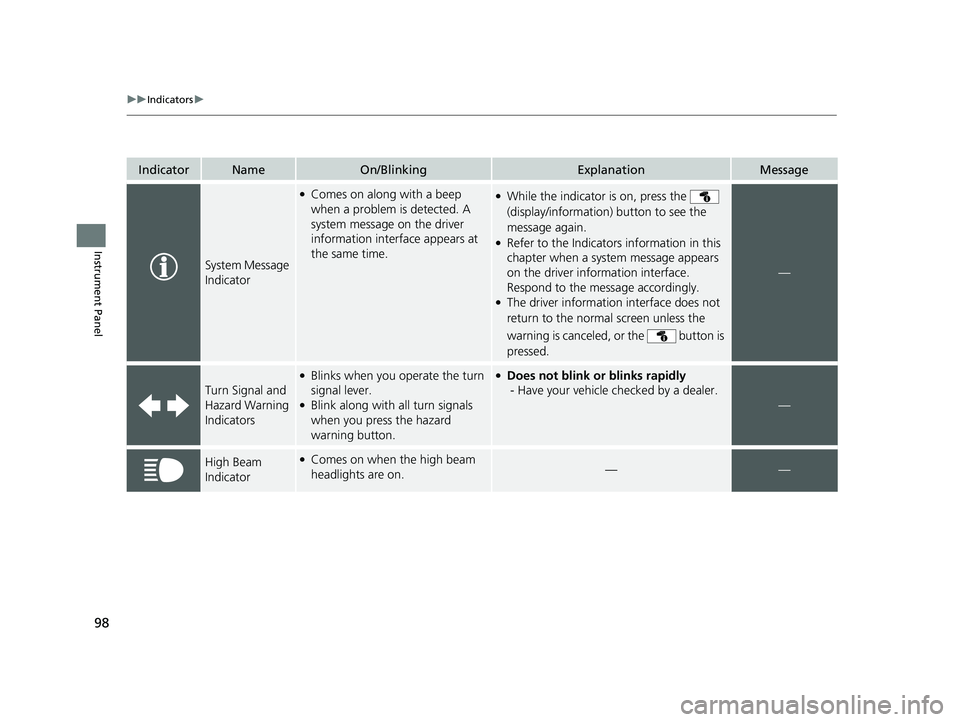

uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
System Message
Indicator
●Comes on along with a beep
when a problem is detected. A
system message on the driver
information interface appears at
the same time.●While the indicator is on, press the
(display/information) button to see the
message again.
●Refer to the Indicators information in this
chapter when a system message appears
on the driver information interface.
Respond to the message accordingly.
●The driver informatio n interface does not
return to the normal screen unless the
warning is canceled, or the button is
pressed.
—
Turn Signal and
Hazard Warning
Indicators
●Blinks when you operate the turn
signal lever.
●Blink along with all turn signals
when you press the hazard
warning button.
●Does not blink or blinks rapidly
- Have your vehicle checked by a dealer.
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
20 CR-V HYBRID HMIN-31TPG6000.book 98 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

107
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel

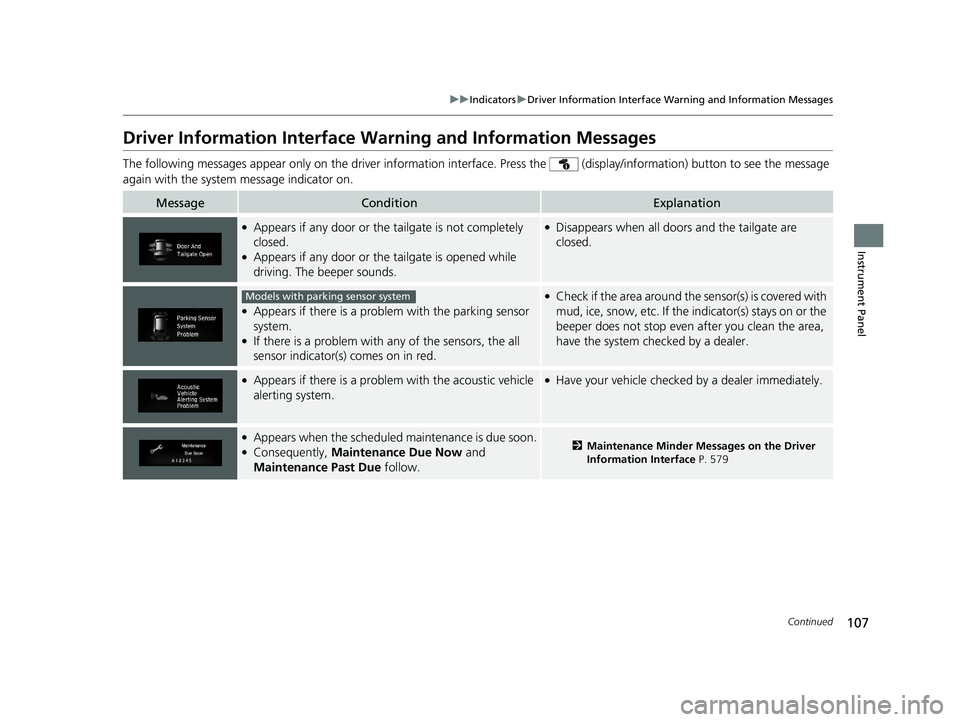

Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Press the (display/information) button to see the mess age
again with the system message indicator on.
MessageConditionExplanation
●Appears if any door or the tailgate is not completely
closed.
●Appears if any door or th e tailgate is opened while
driving. The beeper sounds.
●Disappears when all doors and the tailgate are
closed.
●Appears if there is a problem with the parking sensor
system.
●If there is a problem with any of the sensors, the all
sensor indicator(s) comes on in red.
●Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on or the
beeper does not stop even after you clean the area,
have the system checked by a dealer.
●Appears if there is a proble m with the acoustic vehicle
alerting system.●Have your vehicle checked by a dealer immediately.
●Appears when the scheduled maintenance is due soon.●Consequently, Maintenance Due Now and
Maintenance Past Due follow.2Maintenance Minder Messages on the Driver
Information Interface P. 579
Models with parking sensor system
20 CR-V HYBRID HMIN-31TPG6000.book 107 ページ ２０１９年１１月２８日　木曜日　午後１時５０分
