keyless HONDA CR-V HYBRID 2020 Owner's Manual (in English)

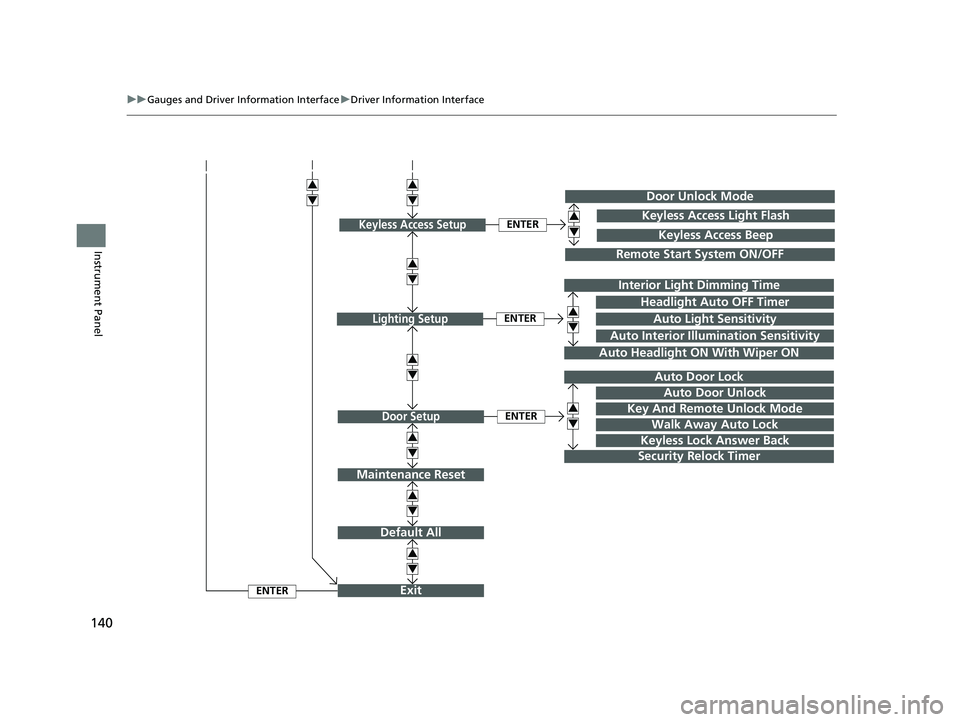

140
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Exit
Default All
Auto Door Lock
Walk Away Auto Lock
Security Relock Timer
Headlight Auto OFF Timer
Auto Headlight ON With Wiper ON
ENTER
ENTER
Lighting Setup
Door Setup
ENTER
Auto Interior Illumination Sensitivity
Door Unlock Mode
Remote Start System ON/OFF
ENTERKeyless Access SetupKeyless Access Light Flash
Keyless Access Beep
3
4
3
4
3
4
3
4
3
4
3
4
3
4Interior Light Dimming Time
Auto Light Sensitivity
Key And Remote Unlock Mode
Keyless Lock Answer Back
Auto Door Unlock
Maintenance Reset
3
4
3
4
3
4
20 CR-V HYBRID HMIN-31TPG6000.book 140 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

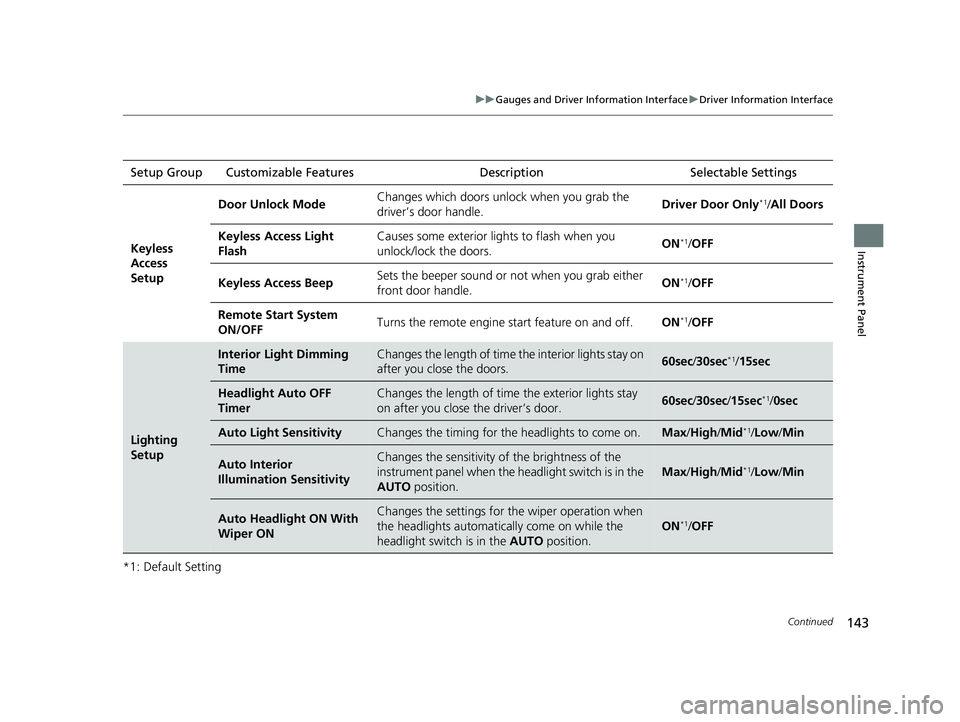

143
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Keyless
Access
Setup
Door Unlock ModeChanges which doors unlock when you grab the
driver’s door handle.Driver Door Only*1/All Doors
Keyless Access Light
FlashCauses some exterior li ghts to flash when you
unlock/lock the doors.ON*1/ OFF
Keyless Access BeepSets the beeper sound or not when you grab either
front door handle.ON*1/OFF
Remote Start System
ON/OFFTurns the remote engine start feature on and off.ON*1/OFF
Lighting
Setup
Interior Light Dimming
TimeChanges the length of time the interior lights stay on
after you close the doors.60sec /30sec*1/15sec
Headlight Auto OFF
TimerChanges the length of time the exterior lights stay
on after you close the driver’s door.60sec /30sec /15sec*1/ 0sec
Auto Light SensitivityChanges the timing for th e headlights to come on.Max/High /Mid*1/Low /Min
Auto Interior
Illumination SensitivityChanges the sensitivity of the brightness of the
instrument panel when the headlight switch is in the
AUTO position.
Max/High /Mid*1/Low /Min
Auto Headlight ON With
Wiper ONChanges the settings for th e wiper operation when
the headlights automatica lly come on while the
headlight switch is in the AUTO position.
ON*1/OFF
20 CR-V HYBRID HMIN-31TPG6000.book 143 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

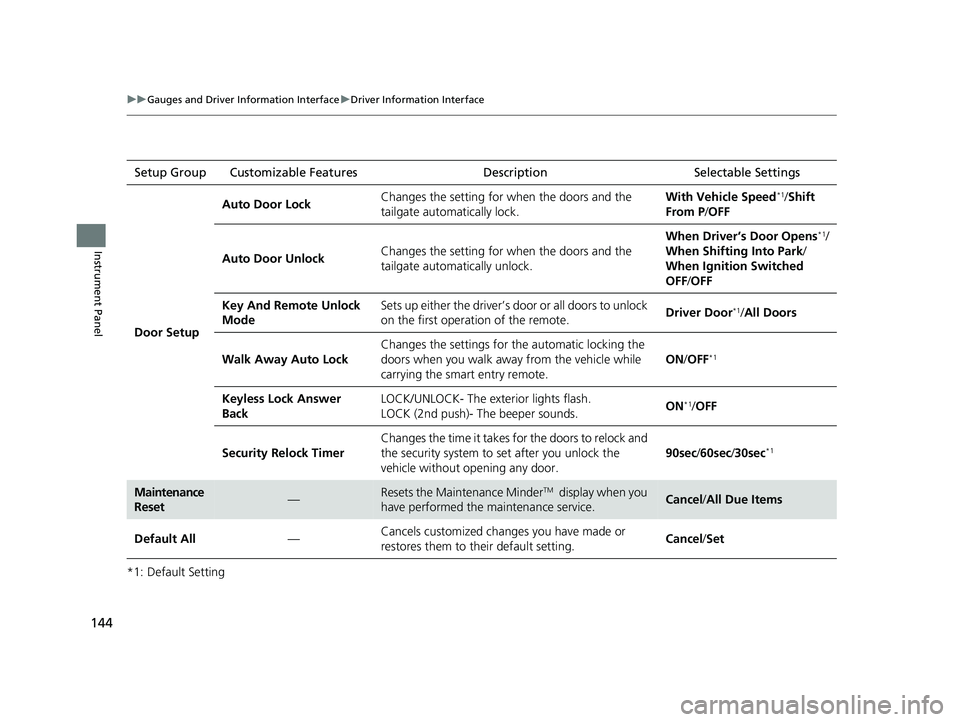

144
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
*1: Default SettingSetup Group Customizable Features Description Selectable Settings
Door Setup
Auto Door LockChanges the setting for when the doors and the
tailgate automatically lock.With Vehicle Speed*1/
Shift
From P /OFF
Auto Door UnlockChanges the setting for when the doors and the
tailgate automatically unlock.
When Driver’s Door Opens*1/
When Shifting Into Park/
When Ignition Switched
OFF /OFF
Key And Remote Unlock
ModeSets up either the driver’s door or all doors to unlock
on the first operation of the remote.Driver Door*1/ All Doors
Walk Away Auto Lock
Changes the settings for the automatic locking the
doors when you walk away from the vehicle while
carrying the smart entry remote.
ON /OFF*1
Keyless Lock Answer
BackLOCK/UNLOCK- The exte rior lights flash.
LOCK (2nd push)- The beeper sounds.ON*1/ OFF
Security Relock Timer
Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.
90sec /60sec /30sec*1
Maintenance
Reset—Resets the Maintenance MinderTM display when you
have performed the maintenance service.Cancel /All Due Items
Default All—Cancels customized changes you have made or
restores them to their default setting.Cancel /Set
20 CR-V HYBRID HMIN-31TPG6000.book 144 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

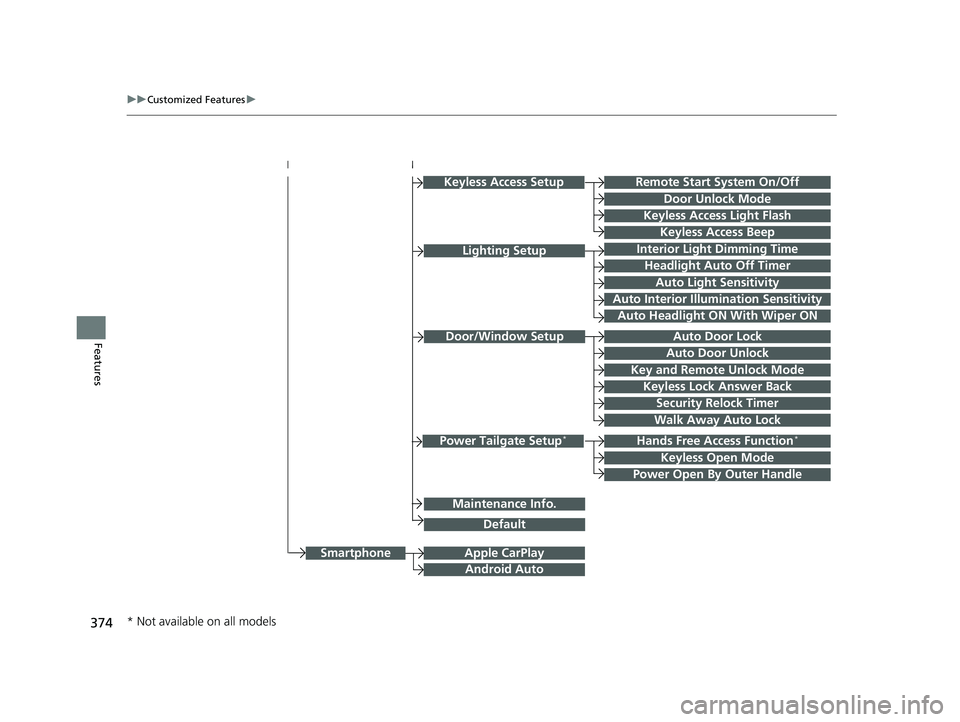

374
uuCustomized Features u
Features
Hands Free Access Function*
Keyless Open Mode
Lighting SetupInterior Light Dimming Time
Headlight Auto Off Timer
Auto Light Sensitivity
Auto Interior Illumination Sensitivity
Auto Door Lock
Key and Remote Unlock Mode
Door/Window Setup
Apple CarPlay
Maintenance Info.
Android Auto
Keyless Lock Answer Back
Security Relock Timer
Walk Away Auto Lock
Keyless Access Setup
Keyless Access Light Flash
Door Unlock Mode
Remote Start System On/Off
Keyless Access Beep
Smartphone
Power Tailgate Setup*
Power Open By Outer Handle
Default
Auto Door Unlock
Auto Headlight ON With Wiper ON
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 374 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

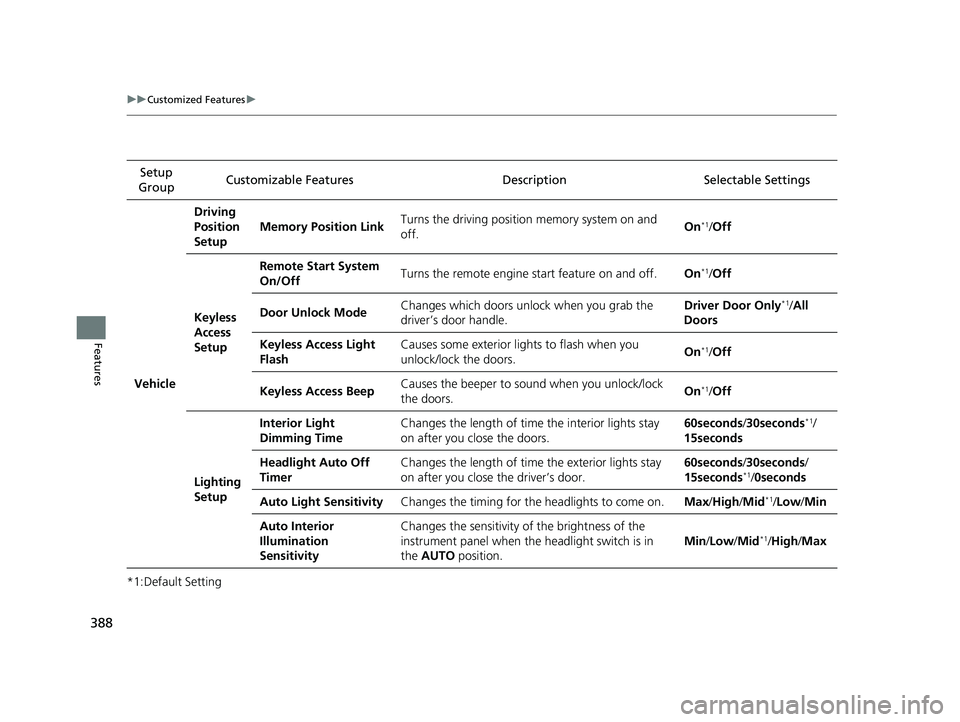

388
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Vehicle
Driving
Position
Setup
Memory Position LinkTurns the driving position memory system on and
off.On*1/Off
Keyless
Access
Setup
Remote Start System
On/OffTurns the remote engine start feature on and off.On*1/Off
Door Unlock ModeChanges which doors unlock when you grab the
driver’s door handle.Driver Door Only*1/All
Doors
Keyless Access Light
FlashCauses some exterior lights to flash when you
unlock/lock the doors.On*1/ Off
Keyless Access BeepCauses the beeper to so und when you unlock/lock
the doors.On*1/ Off
Lighting
Setup
Interior Light
Dimming TimeChanges the length of time the interior lights stay
on after you close the doors.60seconds /30seconds*1/
15seconds
Headlight Auto Off
TimerChanges the length of time the exterior lights stay
on after you close the driver’s door.60seconds /30seconds /
15seconds*1/ 0seconds
Auto Light SensitivityChanges the timing for the headlights to come on.Max /High /Mid*1/Low /Min
Auto Interior
Illumination
SensitivityChanges the sensitivity of the brightness of the
instrument panel when the headlight switch is in
the AUTO position.
Min/Low /Mid*1/High/ Max
20 CR-V HYBRID HMIN-31TPG6000.book 388 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

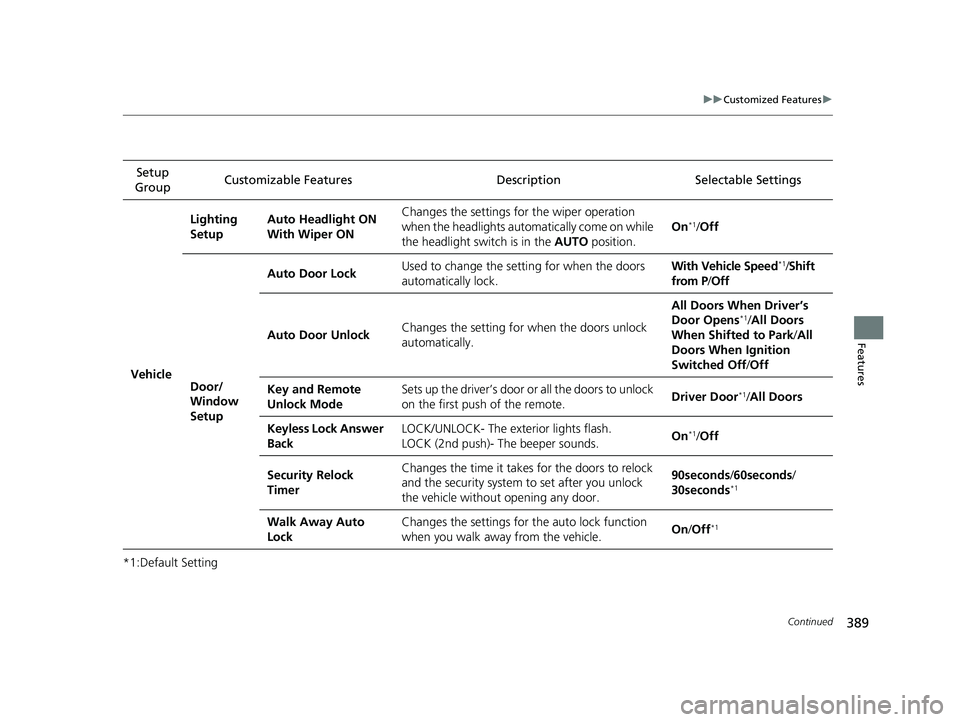

389
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Vehicle
Lighting
SetupAuto Headlight ON
With Wiper ONChanges the settings for the wiper operation
when the headlights auto matically come on while
the headlight switch is in the AUTO position.
On*1/Off
Door/
Window
Setup
Auto Door LockUsed to change the se tting for when the doors
automatically lock.With Vehicle Speed*1/ Shift
from P/ Off
Auto Door UnlockChanges the setting for when the doors unlock
automatically.
All Doors When Driver’s
Door Opens*1/ All Doors
When Shifted to Park /All
Doors When Ignition
Switched Off /Off
Key and Remote
Unlock ModeSets up the driver’s door or all the doors to unlock
on the first push of the remote.Driver Door*1/All Doors
Keyless Lock Answer
BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.On*1/Off
Security Relock
TimerChanges the time it takes for the doors to relock
and the security system to set after you unlock
the vehicle without opening any door.90seconds /60seconds /
30seconds*1
Walk Away Auto
LockChanges the settings for the auto lock function
when you walk away from the vehicle.On /Off*1
20 CR-V HYBRID HMIN-31TPG6000.book 389 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

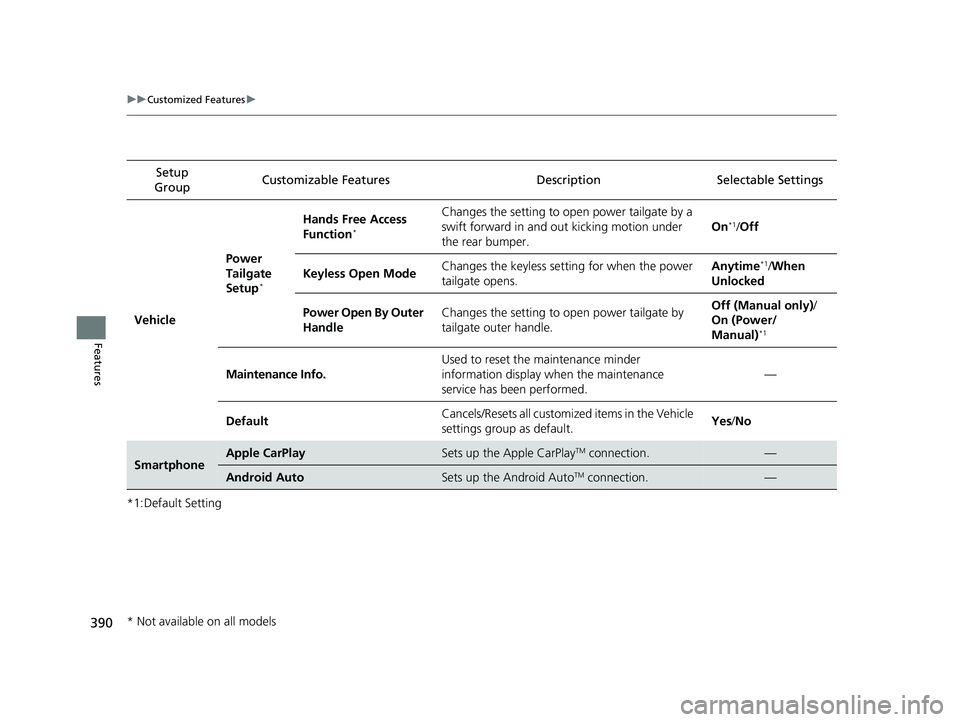

390
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Power
Tailgate
Setup
*
Hands Free Access
Function*
Changes the setting to open power tailgate by a
swift forward in and out kicking motion under
the rear bumper.
On*1/
Off
Keyless Open ModeChanges the keyless setting for when the power
tailgate opens.Anytime*1/When
Unlocked
Power Open By Outer
HandleChanges the setting to open power tailgate by
tailgate outer handle.Off (Manual only) /
On (Power/
Manual)
*1
Maintenance Info.
Used to reset the maintenance minder
information display when the maintenance
service has been performed.
—
DefaultCancels/Resets all customized items in the Vehicle
settings group as default.Yes /No
SmartphoneApple CarPlaySets up the Apple CarPlayTM connection.—
Android AutoSets up the Android AutoTM connection.—
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 390 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

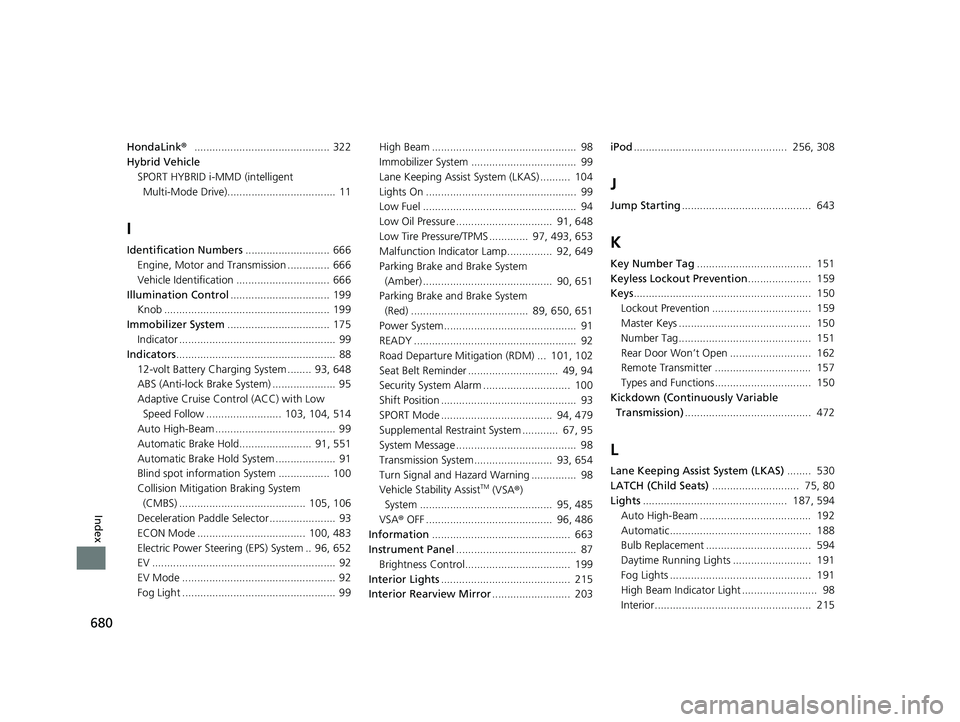

680
Index
HondaLink®............................................. 322
Hybrid Vehicle
SPORT HYBRID i-MMD (intelligent
Multi-Mode Drive).................................... 11
I
Identification Numbers ............................ 666
Engine, Motor and Transmission .............. 666
Vehicle Identification ............................... 666
Illumination Control ................................. 199
Knob ....................................................... 199
Immobilizer System .................................. 175
Indicator .................................................... 99
Indicators ..................................................... 88
12-volt Battery Charging System ........ 93, 648
ABS (Anti-lock Brake System) ..................... 95
Adaptive Cruise Control (ACC) with Low
Speed Follow ......................... 103, 104, 514
Auto High-Beam ........................................ 99
Automatic Brake Hold........................ 91, 551
Automatic Brake Hold System .................... 91
Blind spot information System ................. 100
Collision Mitigation Braking System
(CMBS) .......................................... 105, 106
Deceleration Paddle Selector ...................... 93
ECON Mode .................................... 100, 483
Electric Power Steering (EPS) System .. 96, 652
EV ............................................................. 92
EV Mode ................................................... 92
Fog Light ................................................... 99 High Beam ................................................ 98
Immobilizer System ................................... 99
Lane Keeping Assist System (LKAS) .......... 104
Lights On .................................................. 99
Low Fuel ................................................... 94
Low Oil Pressure ................................ 91, 648
Low Tire Pressure/TPMS ............. 97, 493, 653
Malfunction Indicator Lamp............... 92, 649
Parking Brake a
nd Brake System
(Amber) ........................................... 90, 651
Parking Brake a nd Brake System
(Red) ....................................... 89, 650, 651
Power System............................................ 91
READY ...................................................... 92
Road Departure Mitiga tion (RDM) ... 101, 102
Seat Belt Reminder .............................. 49, 94
Security System Alarm ............................. 100
Shift Position ............................................. 93
SPORT Mode ..................................... 94, 479
Supplemental Restraint System ............ 67, 95
System Message ........................................ 98
Transmission System.......................... 93, 654
Turn Signal and Hazard Warning ............... 98
Vehicle Stability Assist
TM (VSA ®)
System ............................................ 95, 485
VSA ® OFF .......................................... 96, 486
Information .............................................. 663
Instrument Panel ........................................ 87
Brightness Control................................... 199
Interior Lights ........................................... 215
Interior Rearview Mirror .......................... 203iPod
................................................... 256, 308
J
Jump Starting ........................................... 643
K
Key Number Tag ...................................... 151
Keyless Lockout Prevention ..................... 159
Keys ........................................................... 150
Lockout Prevention ................................. 159
Master Keys ............................................ 150
Number Tag............................................ 151
Rear Door Won’t Open ........................... 162
Remote Transmitter ................................ 157
Types and Functions................................ 150
Kickdown (Continuously Variable Transmission) .......................................... 472
L
Lane Keeping Assist System (LKAS) ........ 530
LATCH (Child Seats) ............................. 75, 80
Lights ................................................ 187, 594
Auto High-Beam ..................................... 192
Automatic............................................... 188
Bulb Replacement ................................... 594
Daytime Running Lights .......................... 191
Fog Lights ............................................... 191
High Beam Indicator Light ......................... 98
Interior.................................................... 215
20 CR-V HYBRID HMIN-31TPG6000.book 680 ページ ２０１９年１１月２８日　木曜日　午後１時５０分
